MODEL 2760
Aqueous Spray Unit
Operating Manual
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

INTRODUCTION
Congratulations on receiving your 2760!
Heritage Crystal Clean provides comprehensive maintenance and service support for your leased
product. This manual provides helpful content regarding operator maintenance and solution
monitoring. HCC provides additional maintenance support, troubleshooting support, and provides
scheduled service of the unit and solution based on your needs. HCC strives to be a helpful hand and
partner for your part washing needs.
This unit is a compact and powerful jet washer designed to provide maximum cleaning power in a
minimum amount of space. This footprint coupled with the machines ease of operation and automated
cleaning abilities will eliminate the need for solvent sinks which may be harmful to employees and the
environment. It also reduces the amount of time spent manually cleaning parts. The operator simply
places the parts on the turntable, closes the lid, and starts the wash cycle. The parts automatically clean
while rotating through multiple spray curtains of aqueous based cleaners and hot water.
Read the entire manual before attempting to operate the 2740.
Carefully review the SAFETY INSTRUCTIONS AND INFORMATION section and all CAUTION, WARNING,
and DANGER information. This information will instruct you on how to use this equipment in a safe
manner. Keep this manual along with the Material Safety Data Sheets (MSDS) for aqueous based
cleaners in use. Always have this information in easy reach for the operator and all personnel working
on or around the equipment.
Familiarize yourself with the general Maintenance and Troubleshooting of the product. Follow these
guidelines to help ensure a long and trouble free experience. If there are any questions or concerns,
please call your HCC representative.
The equipment described in this manual is subject to change. The manufacturer reserves the right to
change equipment at any time as part of normal product improvement. Some improvements may have
been made after this manual was printed. For the latest information on your equipment, contact your
HCC representative.
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948 2

MODEL 2760
GENERAL INSTRUCTIONS
1. Read all instructions.
2. Always wear PPE. Take precaution and wear thermally protective equipment that is suitable
for wet environments. This machine is preset to 160F. The liquid will be hot. Most surfaces
will be hot. All parts removed from the machine will be hot.
3. Do not operate equipment with a damaged cord or if the equipment has been dropped or
damaged until it has been examined by a qualified technician.
4. Do not let cord hang over edges of table, bench or counter or come in contact with hot
manifolds or moving fan blades.
5. If an extension cord is necessary, a cord with a current rating equal to or more than that of
the equipment should be used. Cords rated for less current than the equipment may
overheat. Care should be taken to arrange the cord so that it will not be tripped over or
pulled.
6. Always unplug equipment from electrical outlet when not in use or empty. Never use the
cord to pull the plug from the outlet. Grasp plug and pull to disconnect power to the unit
before maintenance or servicing of the equipment.
7. Wait for at least 15 seconds before opening Lid/Sink after washer has timed off.
8. To reduce the risk of fire, do not operate equipment in the vicinity of open containers of
flammable liquids (gasoline).
9. Keep hair, loose clothing, fingers, and all parts of the body away from moving parts.
10. To reduce the risk of electric shock, do not use on wet surfaces or expose to rain.
11. Use only as described in this manual. Use only manufacturer’s recommended attachments.
12. The ambient air temperature should not be below 40F or above 105F.
13. Do NOT modify these machines.
“SAVE THESE INSTRUCTIONS”
3
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2760
SAFETY INSTRUCTIONS
DANGER! This is a HEATED device. This equipment is designed for use only with Aqueous
Based Solutions. Do NOT add any other chemicals to the cleaning agent including,
but not limited to: mineral spirits, kerosene, fuel oil, gasoline, or chlorinated
solutions. The use of any other solutions could potentially cause a hazardous
condition including risk of fire or explosion.
DANGER! NEVER operate electrical equipment inside of parts cleaner.
DANGER! This machine utilizes HIGH VOLTAGE 220V 1 Phase electricity. ALWAYS disconnect
power to the unit before removal of the electrical panel cover. Obtain the services
of a qualified electrician for all electrical work.
Make sure the parts cleaner is connected to a properly grounded power source.
Check serial plate for power requirements.
WARNING! Avoid contact with eyes or skin. Wear protective eyewear, gloves, and clothing.
Operation should be conducted in a manner, which prevents splashing, or spillage.
Any spills should be promptly and properly cleaned up. Soak up all spills with
absorbent material. Remove and dispose of all soaked material in accordance with
regulatory requirements.
CAUTION! Do NOT allow heater to operate unattended for long periods, such as evenings or
weekends.
CAUTION! This machine comes with a built-in lid limit switch to protect the operator from
injury. In the event that the lid is lifted mid-cycle, the limit switch will cease all
operation of the turntable and pump.
NEVER Modify or defeat the limit switch. An unsafe condition may occur if any
unauthorized changes are made.
4
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

MODEL 2760
INSTALLATION

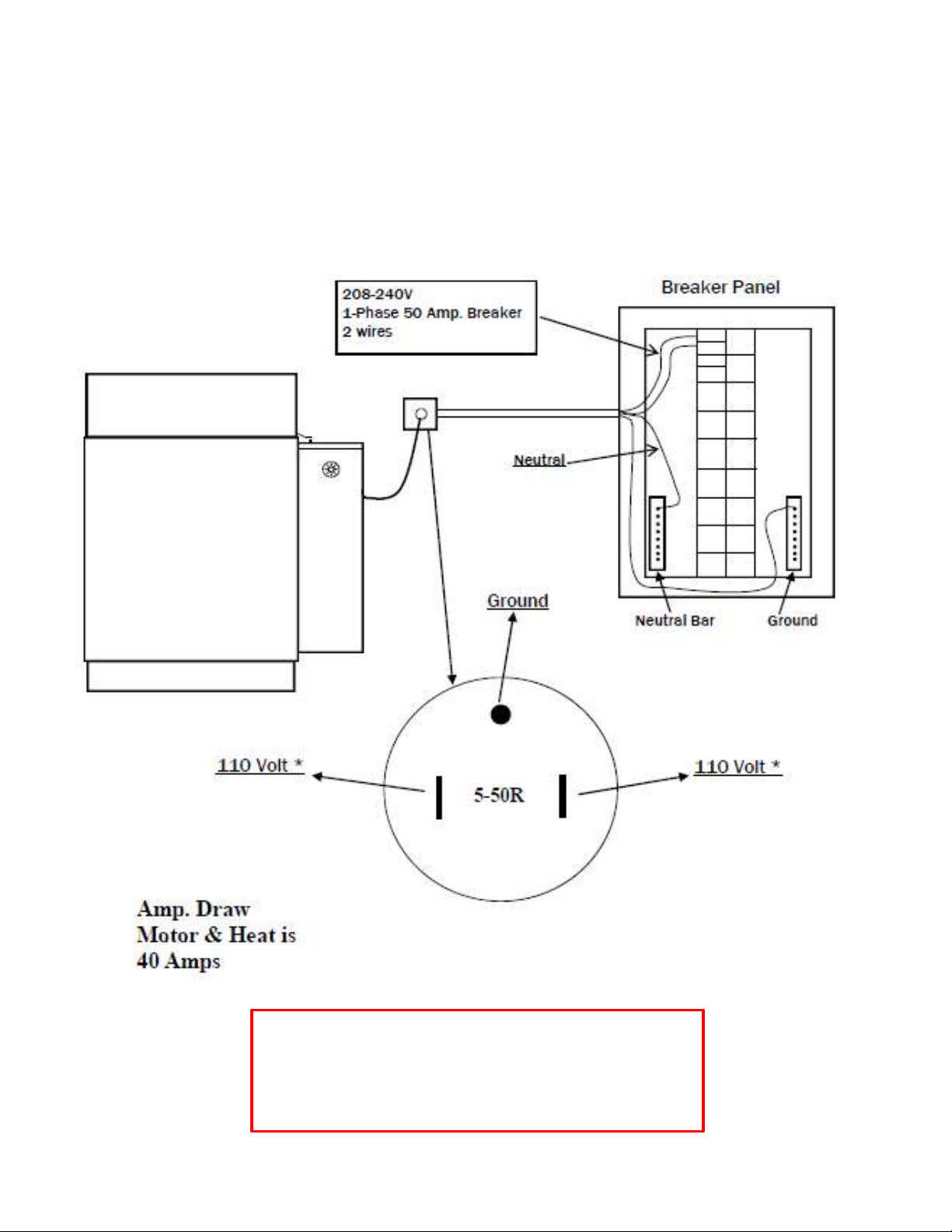

The 2760 is a high capacity, compact footprint, and self-contained parts washer. The only
external hookup is a 220VAC, 1PH, 40A minimum dedicated electrical supply line. Floor plan
layout should include adequate access for maintenance, service, and repair. Vertical
clearance should allow full opening and closing of the lid without obstruction. Install your
parts cleaner on a flat, level surface in an area provided with adequate ventilation. Local
exhaust ventilation should be used in areas of high vapor concentration. Provisions for
determining and maintaining adequate ventilation are the responsibility of the operator.
WARNING! This unit is NOT intended for outdoor operation.
PRODUCT SPECIFICATIONS
•Overall dimensions: 46”L X 53”W X 47”H (closed) – 71”H (open)
•Inside dimensions: 32”L X 32”W X 24”H
•Shipping weight 550 lbs.
•Fluid capacity: 60 gallons
•Load lift over: 38”
•Turntable diameter 30”
•Load capacity 1,000 lbs.
•Voltage: 208-240V/60HZ/1PH/35-40 Amps
•Pump: 2 H.P. Seal-less
•Heater: 6.0 KW
•Thermostat preset at 160 F
•Serviced with Alkaline Cabinet Wash
5
