Crystal Image CyberView IP802 User manual

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1
Designed and manufactured by Austin Hughes 751
dedicated KVM switch and rackmount screen technology
back
User Manual - KVM Rear Kit Version
for LCD Console Drawer
Combo DB-15 KVM
Combo DB-15 KVM
Combo DB-15 2-console KVM -802
-1602
-IP802
-IP1602
-S801
-S1601 back
back

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1
Intentionally
Left
Blank

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1
Legal Information
First English printing, April 2021
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1
Contents
< Part. 1 > Combo DB-15 IP KVM
1.1 Package Contents P.1
1.2 KVM port connection P.2
1.3 IP console connection P.3
1.4 IP console setting P.4
1.5 Important Preconfiguration for IP console P.5 - 7
1.6 KVM Cascade P.8
1.7 Specifications P.9
< Part. 2 > Combo DB-15 2-console KVM
2.1 KVM Cascade P.10
2.2 KVM port connection P.11
2.3 Remote console connection P.12
2.4 KVM Cascade P.14
2.5 Specifications P.15
< Part. 3 > Combo DB-15 KVM
3.1 Package Contents P.16
3.2 KVM port connection P.17
3.3 KVM Cascade P.18
3.4 Specifications P.19
< Part. 4 > Combo DB-15 KVM Usage
4.1 KVM Button P.20
4.2 Password P.21
4.3 KVM OSD P.22
4.4 KVM Hotkey & Remote Console Hotkey P.23
4.5 DC Power Option : 12V / 24V / 48V / 125V P.24
-IP802 -IP1602v
-S801 -S1601
-802 -1602

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.1

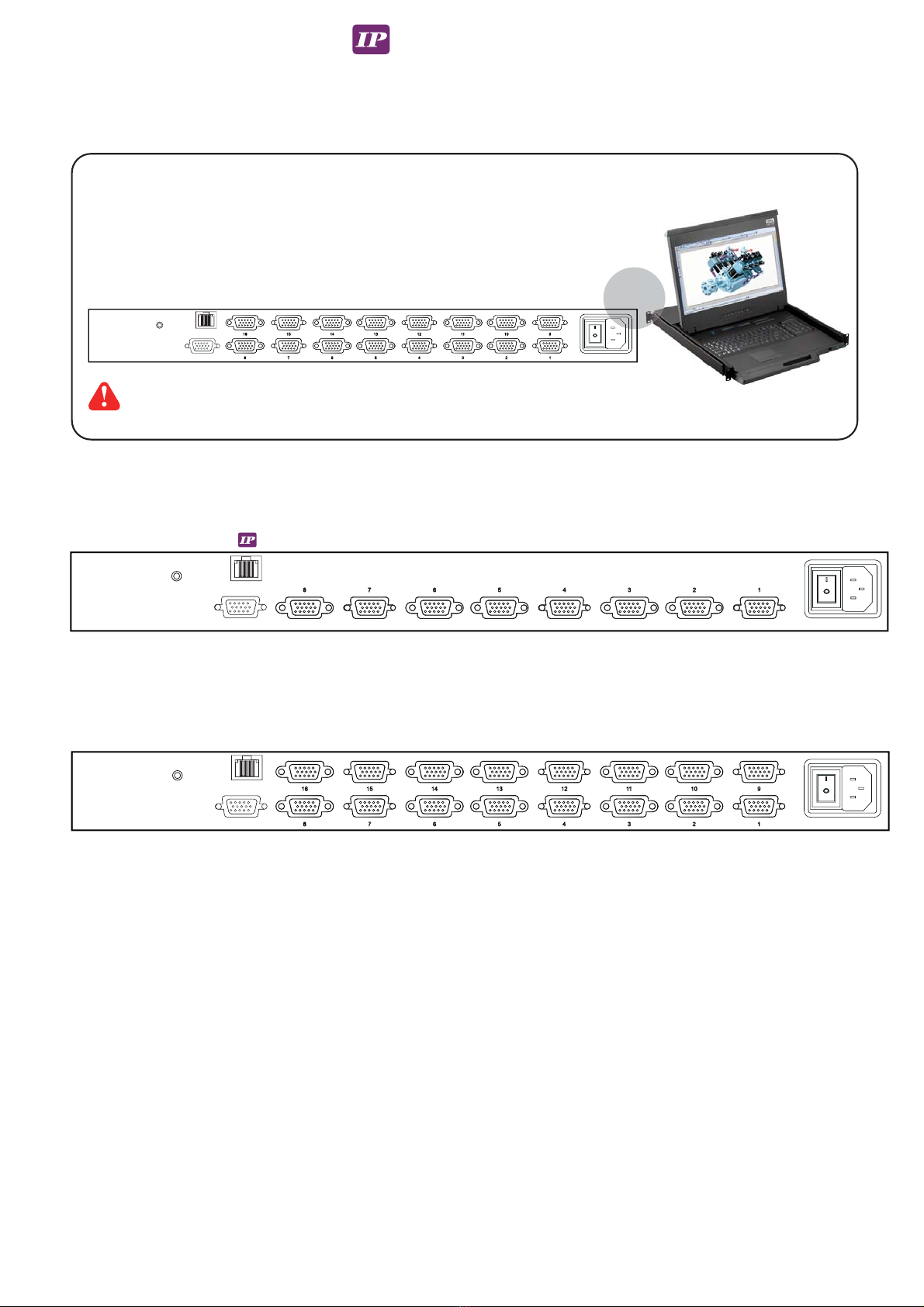

Combo DB-15 IP KVM
back
-IP802
-IP1602
KVM Rear Kit
The power of the KVM rear kit may be changed to external power design
based on the LCD console drawer series and model.
-IP802
-IP1602
PowerCascade
< Part 1 > Combo DB-15 KVM
< 1.1 > Package Contents

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.2
Combo DB-15 IP KVM
CB-6 / CB-10 / CB-15
■6 / 10 / 15 ft USB KVM cable
■Support USB server
DB-15 Combo KVM port
USB Servers
USB Servers
CB - 6 / 10 / 15 USB KVM cable
support USB server
< 1.2 > KVM port connection
Drawer KVM Rear Kit

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.3
Combo DB-15 IP KVM
Resolution Support Frequency
( Hz )
1600 x 1200 60
1280 x 1024 60
1024 x 768 60 / 70 / 75
IP Console

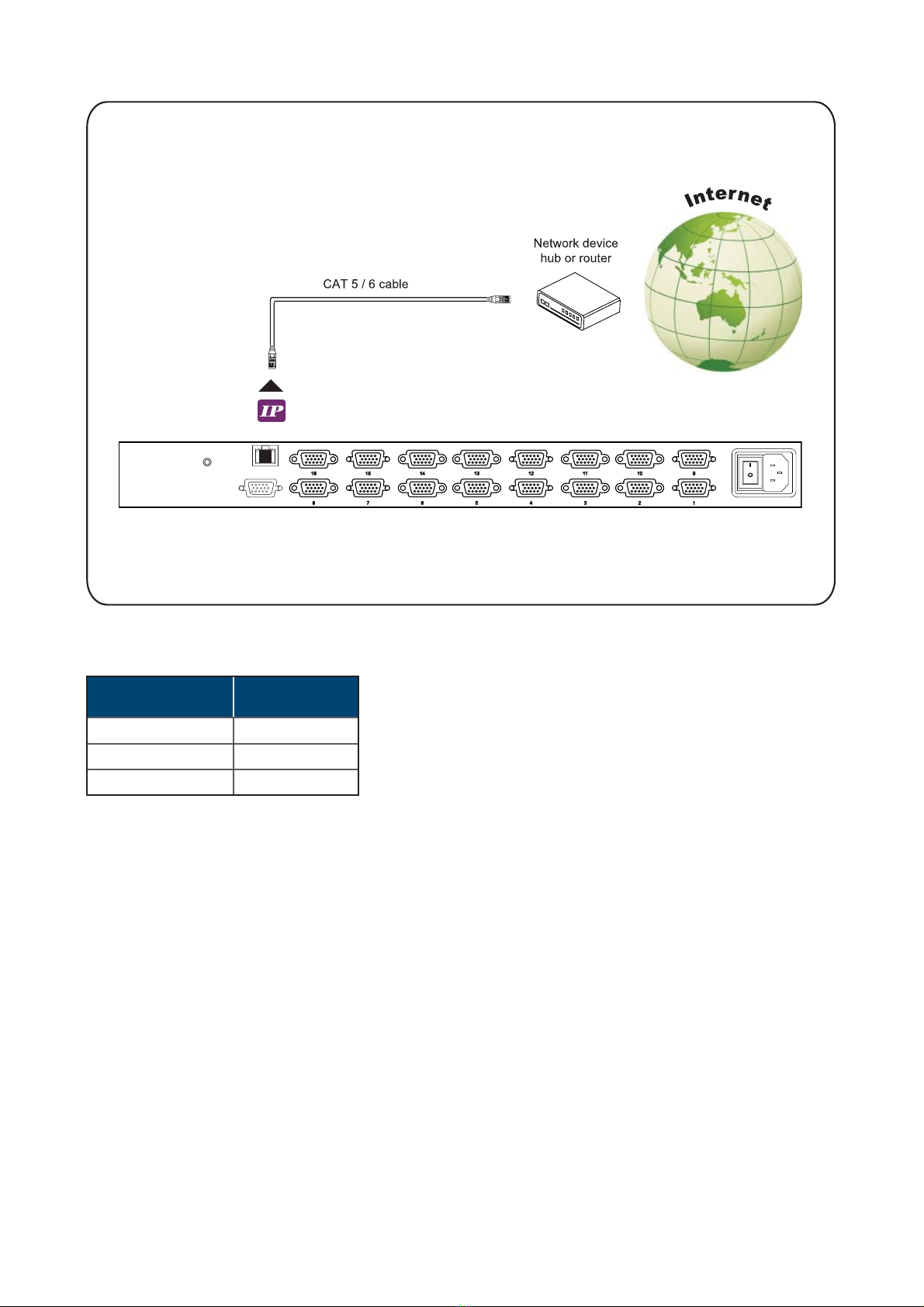

< 1.3 > IP console connection
Drawer KVM Rear Kit

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.4
Combo DB-15 IP KVM
After the cable connection, please take the following steps to configure the IP KVM :
1. Download IPKVMsetup.exe from the link:
www.austin-hughes.com/support/utilities/cyberview/IPKVMsetup.exe
2. Double click IPKVMsetup.exe to configure the IP KVM by device setup as below.
< 1.4 > IP console setting
- http://192.168.1.22
11. Open Internet Explorer ( I.E. ), version 6.0 or above
12. Enter the IP KVM address into the address bar
- For Single IP - http://192.168.1.22
13. Enter username ( default is super )
Password ( default is pass )
14. After successful login to IP KVM, the user will enter the main page of IP KVM
The setting is enough for intranet.
If the users access KVM GUI via internet, please ask MIS for assistance and
download IP KVM user manual from the link :
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-IP.pdf
3. Click Refresh Device to search the connected IP KVM
4. Select the M.A.C. address, which you want to setup, then click Query Device
5. Enter Super user login. The default is super
6. Enter Super user password. The default is pass
7. Enter the new super user password
8. Re-enter the new password
9. Change the desired IP address / Subnet mask / Gateway, then click Setup Device to confirm the setting to IP KVM
10. The default address is as below:--
■The single IP KVM model, such as IP-1602

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.5
Combo DB-15 IP KVM
< 1.5 > Important Preconfiguration for IP console
( 1 ) TARGET SERVER SETUP
Resolution
The IP KVM remote console recognizes several varieties of video display formats with resolutions up to 1600 x
1200 @60Hz. (Refer to the User Manual for a list of supported video formats). Minimize bandwidth by setting the
target server’s video resolution to the minimum setting required for your remote monitoring application.
The following video modes are recommended:
(i) 1024 x 768 @ 60Hz
(ii) 1280 x 1024 @ 60Hz
On a Windows target server system, select Control Panel > Display > Settings.
Modify the screen resolution value as necessary.
Mouse
Use generic mouse drivers for optimum mouse control during remote sessions. Set the mouse pointer speed to a
middle setting with no acceleration or snap-to effects.
On a Windows target server system, select Control Panel > Mouse > Pointer Options
Set the pointer speed to medium and disable Enhanced pointer precision
For Linux GUIs, set the mouse acceleration to exactly 1 and the threshold to exactly 1.
You must complete the following tasks after the IP console setting is performed.
If your keyboard keeps repeating keys when it is plugged into the KVM. Please follow either one below :
( a. )
Enable key release timeout if you experience duplicated keystrokes during poor network performance.
- login to IP KVM remote console
- go to Interfaces KVM settings > Keyboard / Mouse
- click the Key Release Timeout
- adjust Timeout after if necessary
( b. )
Reduce video bandwidth usage if you experience duplicated keystrokes during poor network
- login to IP KVM remote console
- go to Interfaces KVM Settings > User Console > Transmission Encoding,
- select Manually
- adjust Compression to [ 0-none ] and Color depth to [ 8-bit – 256 col ]
**Servers connected to KVM

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.6
Combo DB-15 IP KVM
< 1.5 > Important Preconfiguration for IP console

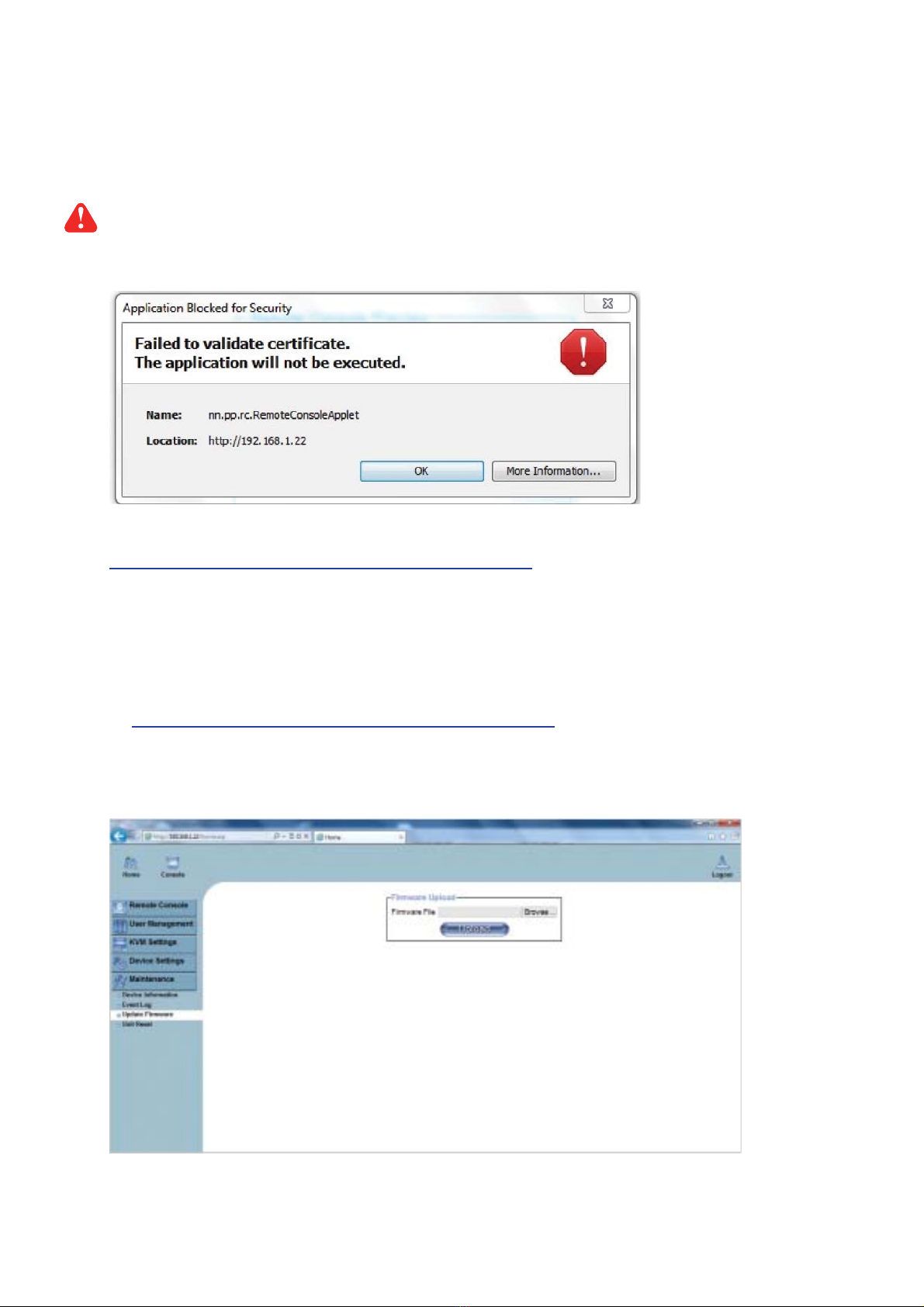

JAVA Update for IP KVM
Due to the latest update from Java security, customer may face the "JAVA Block" message while accessing
the remote console over IP as below :
If it said so, please download the latest IP KVM firmware ( version aust-i11-150608 ) from the link below :
http://www.austin-hughes.com/resources/software/kvm-switch
Then follow the attached steps to update the firmware.
Firmware Update Steps
1) Download the latest IP KVM firmware ( version aust-i11-150608 ) from the link
http://www.austin-hughes.com/resources/software/kvm-switch
2) Login the IP KVM
3) Click < Update Firmware >
4) Click < Browse > to select the firmware file
5) Click < Upload >
( 2 ) REMOTE CLIENT COMPUTER SETUP
The remote client computer must have a web browser ( such as Microsoft Internet Explorer, Mozilla Firefox,
and Netscape Navigator ) and a Java Virtual Machine ( version 1.4 or higher ) installed. Enable Java on the
web browser.

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.7
Combo DB-15 IP KVM

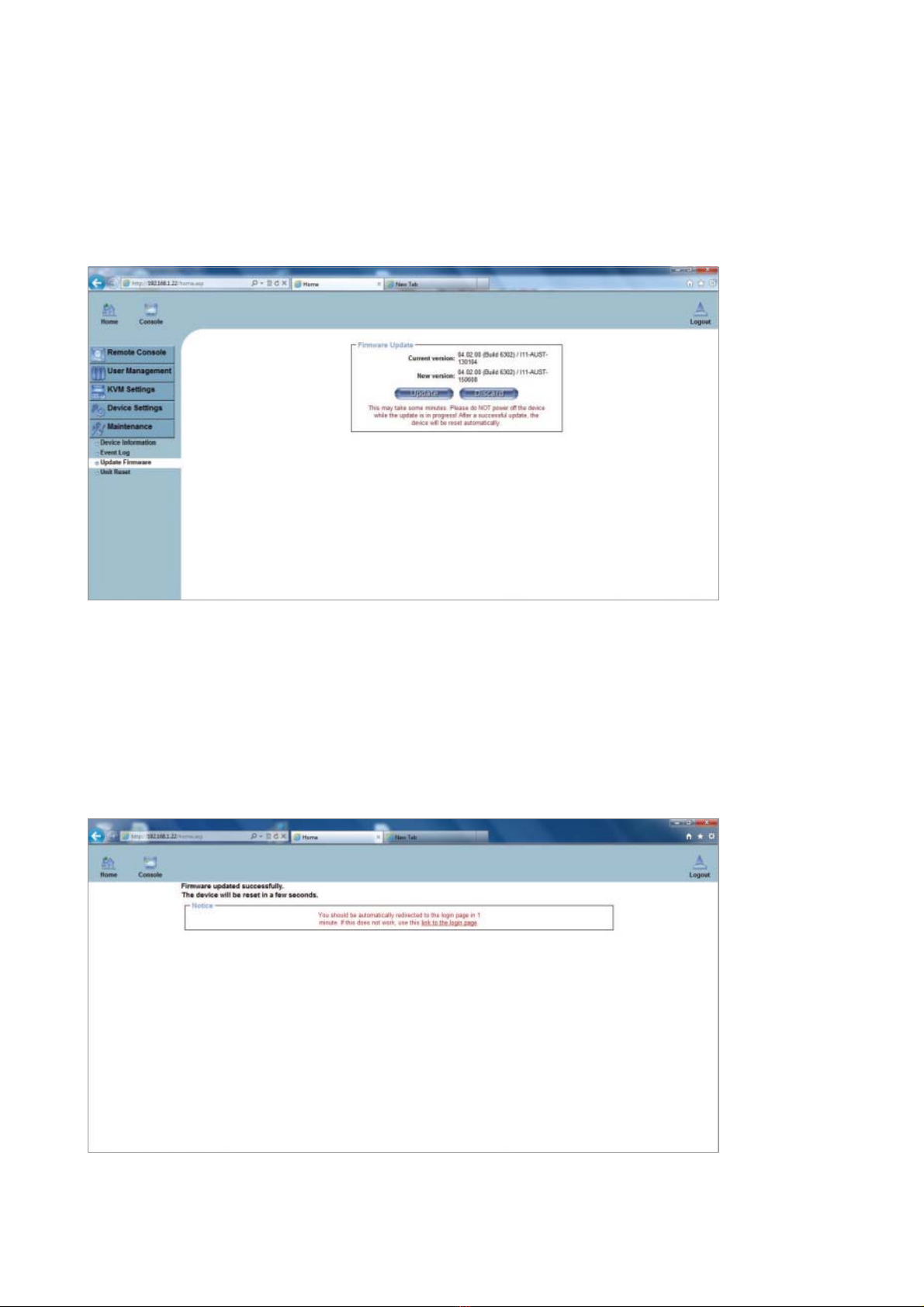

6) Click < Update >
After the firmware has been updated, IP KVM will reset automatically.
After one minute, you will be redirected to the Login page and requested to login again.
- Completed

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.8
Combo DB-15 IP KVM
Cascade
CV-S801
CV-S801
CV-S801
CV-S801
CV-S1601
CV-S1601
CV-S1601
Master KVM
Slave KVM
level 2
Slave KVM
level 8
Slave KVM
level 7
Slave KVM
level 6
Slave KVM
level 5
Slave KVM
level 4
Slave KVM
level 3
To console VGA port
Drawer KVM Rear Kit
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM

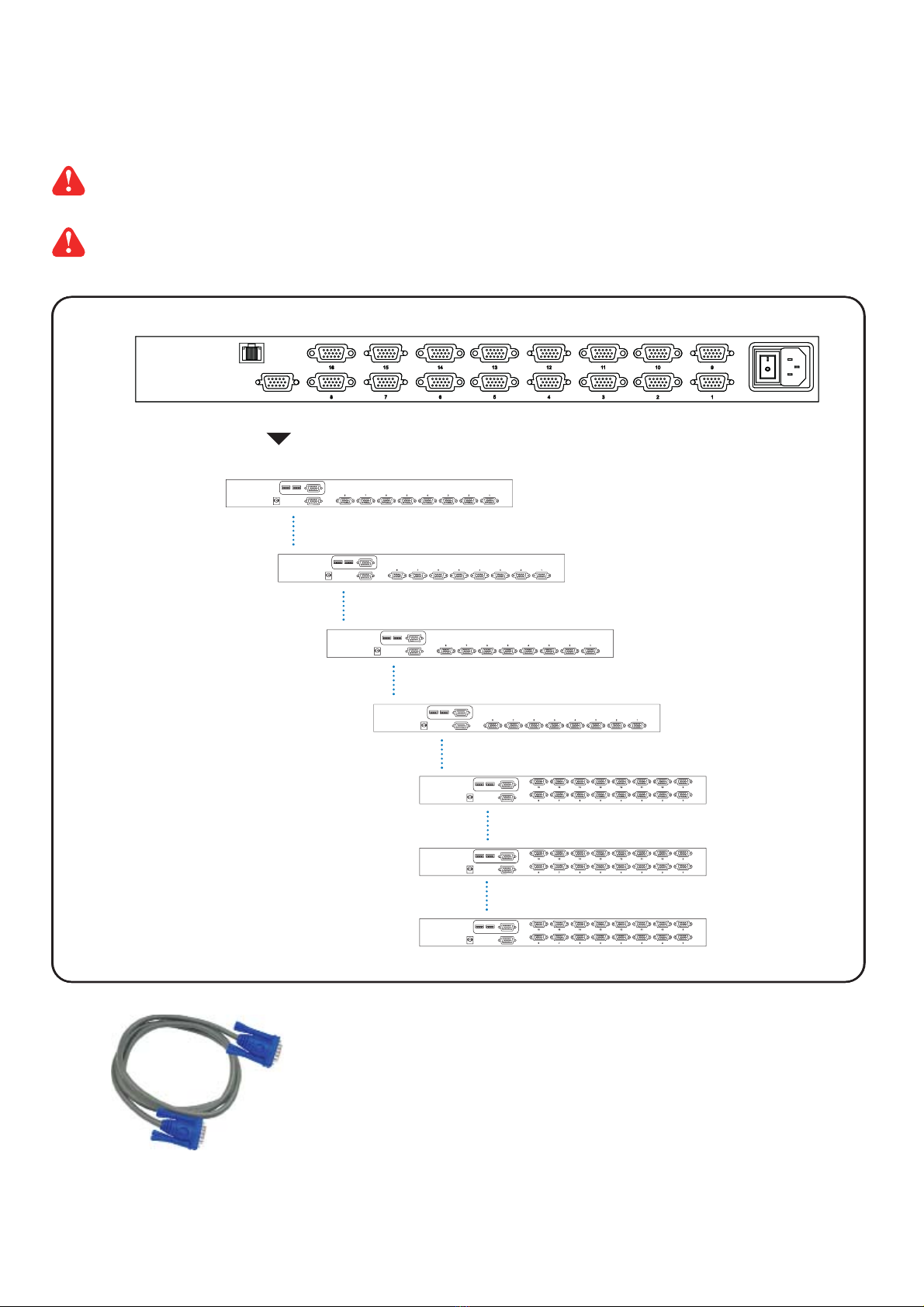

< 1.6 > KVM Cascade
■Cascade up to 8 levels, 128 servers
■Cascading multiple KVM with CBC-6 cascade cable.
Cascaded KVMs from level 2 to 8 must be the models of CV-S801 / CV-S1601.
When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control
of other slave KVM switches (e.g. level 2 to 8).
CBC-6
■6ft Combo KVM cascade cable

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.9
Combo DB-15 IP KVM
< 1.7 > Specifications
-IP802 -IP1602
▀KVM Port
Number of ports : 8 or 16
Connector : DB-15 combo connector
Connectivity : USB 2-in-1 KVM cable, up to 6, 10 & 15 feet
▀Local Console : Nil for LCD console drawer version
▀IP Remote Console
Connector : RJ45 Ethernet
User management : 15-user login, 1 x active user
Network protocol : DHCP / BOOTP / DNS
Security : SSL v3, RSA, AES, HTTP / HTTPs, CSR
Browser : IE, Firefox, Safari, Netscape
Resolution support : 4:3 - max. 1600 x 1200
▀Expansion: Up to 128 servers by 8-level cascade
▀Compatibility
Hardware : HP / IBM / Dell PC, Server and Blade Server
SUN / Mac
OS Support : Windows / Linux / Unix / Mac OS
▀Power
Input : Auto sensing 100 to 240VAC, 50 / 60 Hz
Option DC : 12V / 24V / 48V / 125V DC input
Consumption : Max. 19W
▀Regulatory
Safety : FCC & CE certified
Environment : RoHS3 & REACH compliant
▀Environmental Operating Storage / Non-operating
Temperature : 0 to 55°C degree -20 to 60°C degree
Humidity : 20~90%, non-condensing 5~90%, non-condensing
Altitude : 16,000 ft 40,000 ft
Shock : - 10G acceleration (11ms duration)
Vibration : - 10~300Hz 0.5G RMS random vibration

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.10
Combo DB-15 2-console KVM
• Receiver box for remote console x 1
• Power adapter w/ power cord ( for receiver ) x 1
• CB-6 6ft USB KVM cable for receiver box x 1
KVM Rear Kit
The power of the KVM rear kit may be changed to external power design
based on the LCD console drawer series and model.
-802
-1602
PowerCascade
-802 / -1602
Remote
< Part 2 > Combo DB-15 2-console KVM
< 2.1 > Package Contents
back

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.11
Combo DB-15 2-console KVM
CB-6 / CB-10 / CB-15
■6 / 10 / 15 ft USB KVM cable
■Support USB server
DB-15 Combo KVM port
USB Servers
USB Servers
CB - 6 / 10 / 15 USB KVM cable
support USB server
Drawer KVM Rear Kit
< 2.2 > KVM port connection

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.12
Combo DB-15 2-console KVM
Resolution Support Frequency
( Hz )
Max. Cat6 Cable
Length ( M )
1920 x 1080 60 50
1920 x 1200 60 50
1600 x 1200 60 100
1440 x 900 60 100
1280 x 1024 60 150
1024 x 768 60 / 70 / 75 150
Remote Console
Receiver
Remote
USB console
Drawer KVM Rear Kit
< 2.3 > Remote console connection
For remote console, max. cable length is
subject to the resolution.
Please refer to the tables below.

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.13
Combo DB-15 2-console KVM
VGA
Power KB
Mouse
Local
Computer Remote I/O
Front
Remote
LED
Local
LED
Rear
Select button
Receiver
12V DC Power
Adapter
CB-6
USB
KVM cable
Local computer
( Optional setup )
Monitor
VGA
cable
The receiver provides a hotkey function for remote console. Please refer to P.23
Front
Cat6 cable
up to 150m
Drawer KVM Rear Kit
Remote
Console

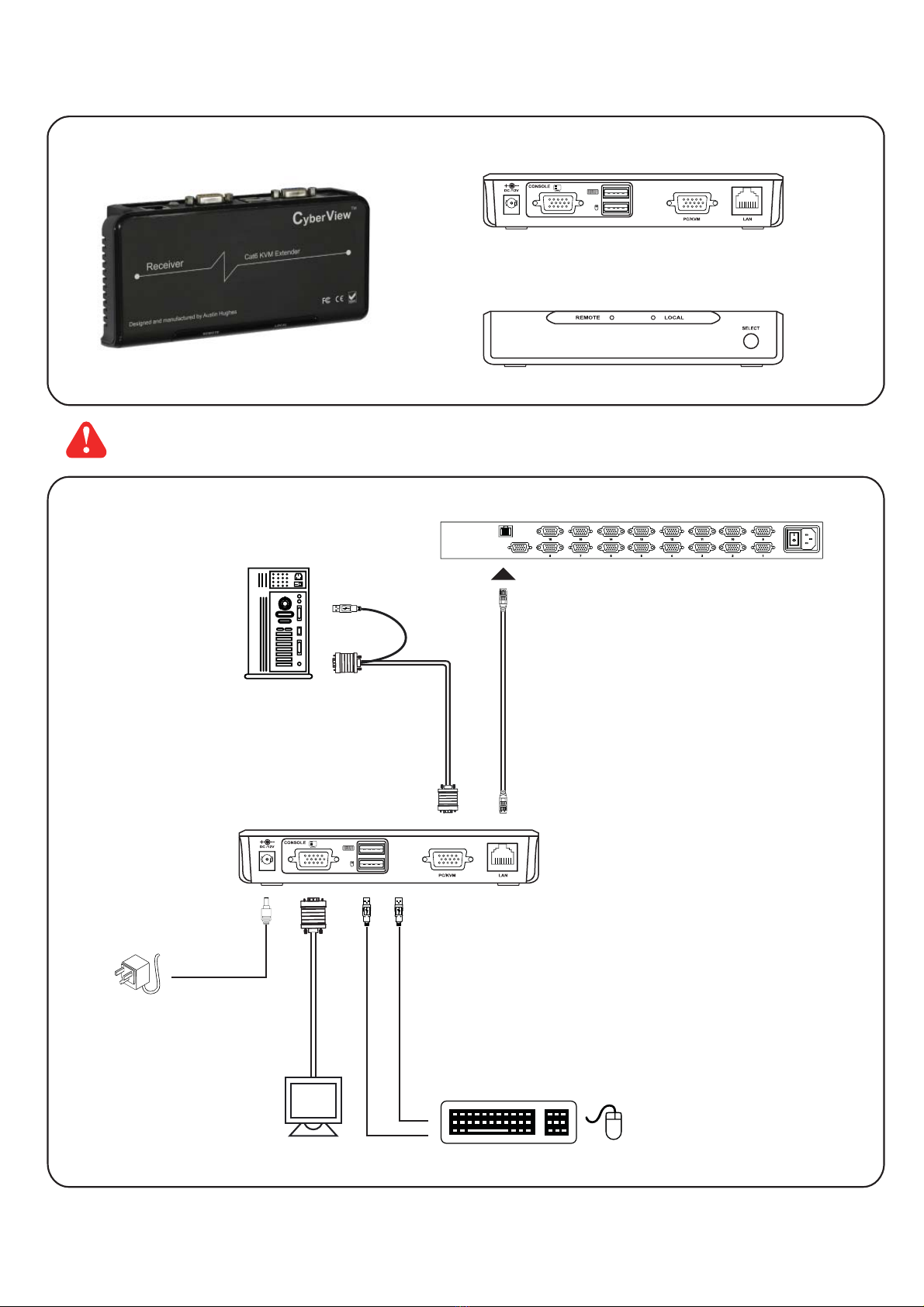

How to use a receiver to connect a remote console

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.14
Combo DB-15 2-console KVM
Cascade
To console VGA port
< 2.4 > KVM Cascade
■Cascade up to 8 levels, 128 servers
■Cascading multiple KVM with CBC-6 cascade cable.
Cascaded KVMs from level 2 to 8 must be the models of CV-S801 / CV-S1601.
When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control
of other slave KVM switches (e.g. level 2 to 8).
CBC-6
■6ft Combo KVM cascade cable
CV-S801
CV-S801
CV-S801
CV-S801
CV-S1601
CV-S1601
CV-S1601
Master KVM
Slave KVM
level 2
Slave KVM
level 8
Slave KVM
level 7
Slave KVM
level 6
Slave KVM
level 5
Slave KVM
level 4
Slave KVM
level 3
Drawer KVM Rear Kit
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.15
Combo DB-15 2-console KVM
< 2.5 > Specifications
-802 -1602
▀KVM Port
Number of ports : 8 or 16
Connector : DB-15 combo connector
Connectivity : USB 2-in-1 KVM cable, up to 6, 10 & 15 feet
▀Local Console : Nil for LCD console drawer version
▀Remote Console
Connector : 1 x DB 15-pin, VGA
Input device : 2 x USB type A for keyboard & mouse
Remote I/O : RJ45 via Cat5 / Cat5e / Cat6 cable up to 150m
Compensation : Auto adjust for cable length
Resolution support : 16:9 - max. 1920 x 1080
16:10 - max. 1920 x 1200
4:3 - max. 1600 x 1200
▀Expansion : Up to 128 servers by 8-level cascade
▀Compatibility
Hardware : HP / IBM / Dell PC, Server and Blade Server
SUN / Mac
OS Support : Windows / Linux / Unix / Mac OS
▀Power
Input : Auto sensing 100 to 240VAC, 50 / 60 Hz
Option DC : 12V / 24V / 48V / 125V DC input
Consumption : Max. 13W
▀Regulatory
Safety : FCC & CE certified
Environment : RoHS3 & REACH compliant
▀Environmental Operating Storage / Non-operating
Temperature : 0 to 55°C degree -20 to 60°C degree
Humidity : 20~90%, non-condensing 5~90%, non-condensing
Altitude : 16,000 ft 40,000 ft
Shock : - 10G acceleration (11ms duration)
Vibration : - 10~300Hz 0.5G RMS random vibration

www.austin-hughes.comUM-CV-751-SKVM-KIT-Q221V1 P.16
Combo DB-15 KVM
-S801
-S1601
KVM Rear Kit
The power of the KVM rear kit may be changed to external power design
based on the LCD console drawer series and model.
-S801
-S1601
PowerCascade
< Part 3 > Combo DB-15 KVM
< 3.1 > Package Contents
back
