1x2 HD Audio/Video Extender and Splitter
Model 103093
User Manual
 Extend signal from an HDMI source to 2
remote displays simultaneously
• Download the user manual at:
www.cablematters.com/dl/103093

www.cablematters.com
1x2 HD Audio/Video Extender and Splitter
1. INTRODUCTION .......................................................................................... 1
1.1 Introduction
1.2 Copyright and Trademarks
1.3 FCC Compliance Statement
2. PRODUCT OVERVIEW
2.1 Package Contents
2.2 Product Description ................................................................................ 2
2.3 Product Features
3. CONNECTION AND OPERATION .............................................................. 3
3.1 Installation Checklist
3.2 Transmitter Panel Connections
3.3 Receiver Panel Connections..................................................................... 4
3.4 Connections Instructions
3.5 EDID Management ................................................................................. 5
3.6 IR Remote Control.................................................................................. 6
3.7 Troubleshooting Notes ............................................................................ 6
4. TECHNICAL SPECIFICATIONS.................................................................. 8
5. WARRANTY AND SUPPORT...................................................................... 9
5.1 Customer Support and Contact Information
5.2 Warranty Information
5.3 Limitations of Liability
Table of Contents

www.cablematters.com
1
1x2 HD Audio/Video Extender and Splitter
1. INTRODUCTION
1.1 Introduction
Thank you for your purchase from Cable Matters® Inc., the ‘Reliable Connectivity’ company. This
User Manual provides an overview of the features and installation of your new
1x2 HD Audio/Video Extender and Splitter
Please read these instructions carefully before connecting, operating or configuring this product.
Please keep this manual for future reference.
Contact [email protected] for questions or product support.
1.2 Copyright and Trademarks
Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All
other trademarks are the property of their respective owners.
Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
1.3 FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This
device must not cause harmful interference, and 2) this device must accept any interference received, including
interference that may cause undesired operation.
2. PRODUCT OVERVIEW
2.1 Package Contents
Please check that the following items are contained in the package:
• 1x 1x2 HD Audio/Video Extender and Splitter Transmitter
• 2x 1x2 HD Audio/Video Extender and Splitter Receiver
• 1x AC Power Adapter
• 3x IR Cables (1xTx and 2xRx)
• 2x Mounting Brackets with screws, Mounting Screws
• 2x HDMI® Cables—6 Feet
• 1x User Manual

www.cablematters.com
1x2 HD Audio/Video Extender and Splitter
2
2.2 Product Description
2.3 Product Features
• Extend up to 2 displays from a single equipment source with 4K 30Hz video and audio up to
131 feet or 1080p HDMI video and audio up to 230 feet
• Support for a local display to mirror the output of the remote displays
• Use a Cat 6 cable instead of a long and heavy HDMI cable
• Supports 4K@30Hz video resolution and YCbCr 4:4:4 8-bit color depth
• HDCP 1.4 support for viewing protected content
• Copy the local or remote display EDID info to the source HDMI device with a switch
• LPCM, Dolby TrueHD, and DTS HD-Master Audio support
• Rugged metal housing construction reduces EMI electromagnetic noise
• Screw-on locking power cords prevents an accidental disconnection of the power
• Surface-mountable with the included brackets and screws
• 2-Pack of HDMI Cables included
The Cable Matters 1x2 HD Audio/Video Extender and Splitter provides the ideal solution for
connecting 2 remote displays with 4K HDMI video and audio up to 131 feet simultaneously (up to
230 feet at 1080p 60Hz). Extend the signal from a computer, video streamer, Blu-ray player or
Cable box to 2 remote displays with HDMI. Control the HDMI source at the far end with an IR
Receiver. An optional local display can mirror the video sent to the remote displays.

www.cablematters.com
3
1x2 HD Audio/Video Extender and Splitter
3. CONNECTION AND OPERATION
3.1 Installation Checklist
Please review this information before installing the 1x2 HD A/V Extender and Splitter
• Installation with a surge protector is recommended to protect the equipment
• Power-off the source and display equipment before connecting
• Check for a nearby AC outlet for the power adapter
• Recommended maximum total HDMI cable distance In/Out is 25/25ft
• IR cables require line-of-sight with the source equipment
• Test the Extender and cables before installing in a permanent location
• Directly connect to a Cat 6 cable, do not use with an active hub, network switch or router

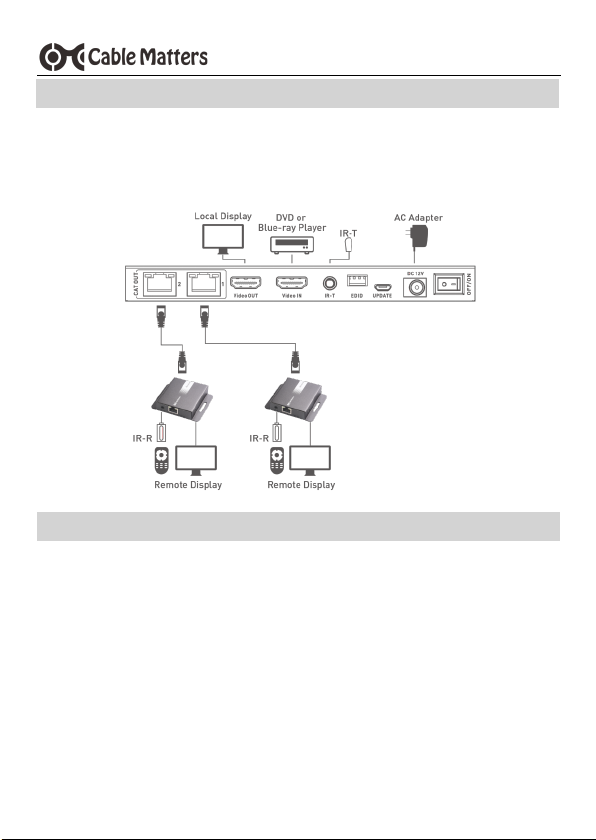

3.2 Transmitter Panel Connections
1. POWER LED: Green when powered
2. CAT OUT1-OUT2: Two RJ45 ports for Cat 6 cable
3. Video OUT : Connect HDMI display to mirror the output of the remote displays
4. Video IN: Connect HDMI source equipment
5. IR-T: 3.5mm port for IR blaster cord
6. EDID: Dip switches to select output Video/Audio format (see page 5 EDID description)
7. UPDATE: Micro USB port for firmware update (if needed)
8. DC 12V: Threaded locking barrel port for power adapter
9. ON\OFF: Power ON\OFF Switch

www.cablematters.com
1x2 HD Audio/Video Extender and Splitter
4

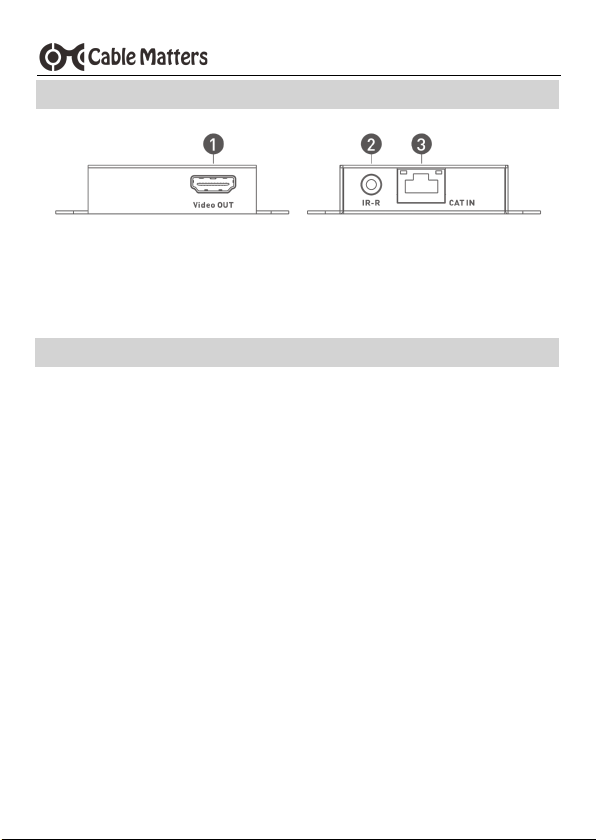

3.3 Receiver Panel Connections
1. Video OUT: Connect to the remote extended display with HDMI
2. IR-R: 3.5mm port for IR Receiver cord
3. CAT IN: RJ45 port for Cat 6 cable
3.4 Connection Instructions
1. Power off all the source equipment and output displays
2. Connect the AC power adapter to the Transmitter and secure the locking ring
3. Connect an HDMI cable to the VIDEO IN port of the Transmitter and the HDMI out port of the
host device. Connect HDMI cables to the Video OUT ports on the receivers and to remote
displays. OPTIONAL: Connect an HDMI cable to the VIDEO OUT port on the Transmitter and
a local display.
4. Connect the Cat 6 cable to the CAT 6 port on the Transmitter and Receiver
5. Connect the IR Transmitter and Receiver cables (See Page 6)
6. Plug the Transmitter power adapter into an AC outlet and depress the On/Off button to turn on
the Transmitter (look for a Green LED)
7. Power on all the equipment and check for a video signal on the extended remote display
8. Select an EDID Mode (See Page 5) if there is no video signal
Notes:
• Test all the equipment and cables before installing permanently
• Don't stack the Cat 6 cables together. Spread them out to get the best network performance

www.cablematters.com
5
1x2 HD Audio/Video Extender and Splitter

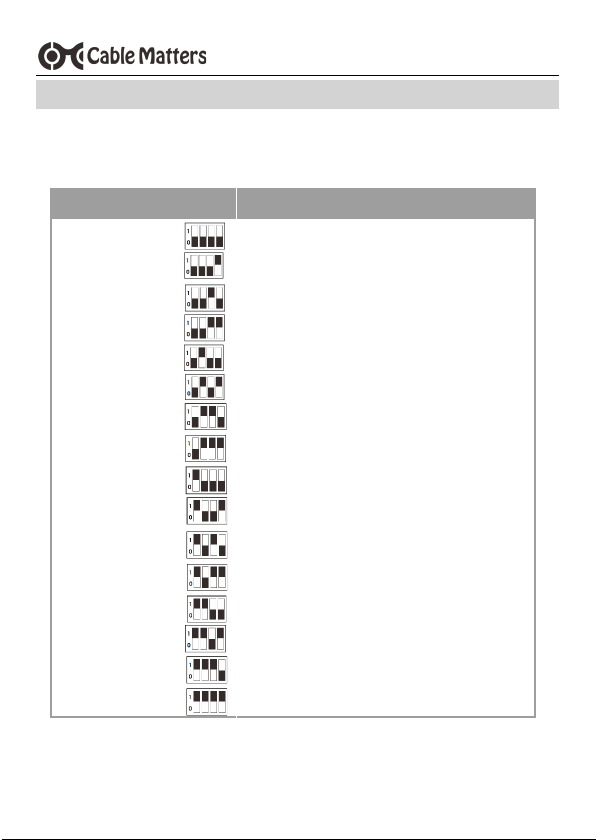

Number EDID Position EDID Description
1 0000 1080p, 2 Channel Audio
2 0001 1080p, DOLBY, DTS 5.1 AUDIO
3 0010 1080p, HD AUDIO
4 0011 1080i, 2 Channel Audio
5 0100 1080i, DOLBY, DTS 5.1 AUDIO
6 0101 1080i, HD AUDIO
7 0110 3D,1080p, 2 Channel Audio
8 0111 3D, 1080p,DOLBY, DTS 5.1 AUDIO
9 1000 3D,1080p, HD AUDIO
10 1001 4K 30Hz, 2 Channel Audio
11 1010 4K 30Hz, DOLBY DIGITAL/DTS 5.1 AUDIO
12 1011 4K 30Hz, HD Audio
13 1100 Copy Loop Out Resolution/Refresh Rate/Audio Settings
14 1101 720p, 2 Channel Audio
15 1110 720p, DOLBY, DTS5.1 AUDIO
16 1111 720p, HD AUDIO
3.5 EDID Management
EDID Selection Notes: Set the dip switches for the audio/video setting above. The
Extender and Splitter should adjust to the new settings within a few seconds.
This 1x2 HD Audio/Video Extender and Splitter can connect HDMI source equipment
and output displays with different video resolutions and audio output settings. These
settings can be individually programmed using the EDID management function.

www.cablematters.com
1x2 HD Audio/Video Extender and Splitter
6

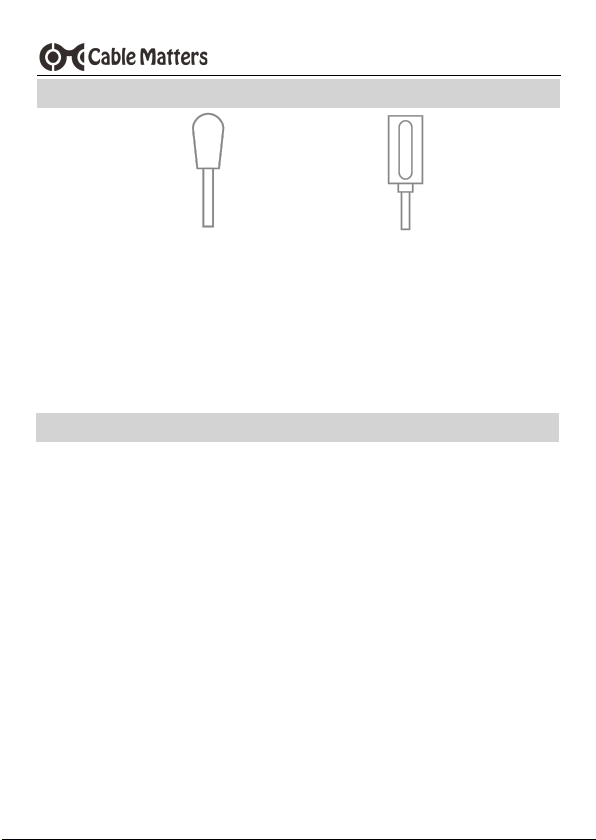

IR Transmitter (Blaster) Cable IR Receiver Cable
IR Transmitter Cable: Connect to the IR-T port on the Transmitter box. Requires line-of-sight with
the HDMI source equipment IR window. Tip: Shine a light on the source box to reveal the IR
window, if it is not labeled. Source equipment should be within 5 feet of the IR-T bulb. (Check your
HDMI source equipment documentation).
IR Receiver Cable: Connect to the IR-R port on the Receiver box. Requires line-of-sight with the
IR remote.
Note: RF and Bluetooth remotes are not compatible.
3.6 IR Remote Control
3.7 Troubleshooting Notes
• Check that all connected equipment have power.
• Check that both the Transmitter and Receiver have power. The green power LED on the
Transmitter and green LED of the Cat 6 port on the Receiver should be lit.
• Check the LEDs on the Receiver’s Ethernet port. A green LED indicates the receiver is powered.
An orange LED indicates data transfer.
• Check that all cables are connected to the correct input and output ports. Secure the power cable
with the locking ring.
• Directly connect the HDMI source equipment to each display to test for compatibility.
• Test the Cat 6 cable with a network tester.
• Try different EDID settings, test with only 1 display (local and extended).
• Test with a different display for compatibility issues.
• Check that the correct video input source and output display is selected.
• Check the audio output settings from the source device or computer.
• Try a lower resolution and/or refresh rate.

www.cablematters.com
7
1x2 HD Audio/Video Extender and Splitter
• Test each HDMI cable by connecting it with other equipment.
• Recommended maximum total HDMI cable distance In/Out is 25/25ft.
• Connecting an HDMI cable with a coupler or wall plate may degrade the signal
transmission.
• Place the Extender away from fluorescent lighting or equipment that generates
electrical noise.
• A ‘Not Supported’ error message may indicate that the connected equipment does
not support HDCP (or more than 2 outputs) for viewing content-protected video.
• Check that the IR window on the source equipment is not blocked. The IR cables
require line-of-sight. Test at a closer range, some IR remotes transmit a weaker
signal.
• Wait 10 seconds for a handshake signal when connecting a computer.
• Unplug and re-plug the HDMI cable.
• Reboot the video source and output displays.
Contact [e-mail] with any questions.

www.cablematters.com
1x2 HD Audio/Video Extender and Splitter
8
HDMI Input 1x HDMI Female
HDMI Output 3x HDMI Female
CAT Ports RJ45 port for Cat 6 cable
IR Ports 1x IR out (Transmitter), 2x IR in (Receiver)
Service 1x Micro USB Female
Power Supply DC 12V/1A with threaded ring
Extender and Splitter Ports (Transmitter and Receiver)
Audio/Video Compatibility
HDMI Compatibility HDMI 1.4b and below
HDCP Compatibility HDCP 1.4
Video Resolution Up to 4K@30Hz
Color Spaces RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8-bit, 10-bit, 12-bit (1080p), 8-bit (4K)
HDMI Audio Formats LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
Mechanical
Transmitter Housing (LxWxH) 6.9 x 3.2 x 0.7 Inches / 12.9 Ounces
Receiver Housing (LxWxH) 3.1 x 2.7 x 0.7 Inches / 4.6 Ounces
Operating Temperature 32F - 104F
Note: Specifications are subject to change without notice
4. TECHNICAL SPECIFICATIONS Model 103093
Miscellaneous
Regulatory Compliance C E, FCC, RoHS, UKCA
Warranty Limited One-Year
