Crystal Pressure 30 Series User manual
30 Series Operation Manual
for the 30 Series Pressure Calibrator
www. .com information@itm.com1.800.561.8187
Contents
Overview...............................................................1
Introduction ............................................................1
Functions ..............................................................2
Operating Instructions ..................................................2
Enclosure ..............................................................4
Specifications ........................................................5
Pressure Ranges, Display Scales, & Resolution.............................8
Model Numbering System ...............................................8
Serial Numbering System................................................8
Safety & Certifications.............................................9
Hazardous Locations ....................................................9
Certications ...........................................................9
Multi-language Safety Instructions .....................................12
Support ...............................................................17
Calibration.............................................................17
Accessories and Replacement Parts .....................................17
Software...............................................................18
Trademarks ............................................................19
Warranty ..............................................................19
Contact Us.............................................................19
www. .com information@itm.com1.800.561.8187
Overview 1
30 Series Operation Manual
Overview
INTRODUCTION
Thank you for choosing a Pressure Calibrator from Crystal Engineering Corporation.
The 30 Series are compact and rugged pressure calibrators designed to bring laboratory accuracy to outdoor eld conditions. Every 30 Series Calibrator is
fully temperature compensated through extensive testing of all measured parameters while being exposed to environments of 0°C (32°F) to 50°C (122°F).
All 30 Series calibrators are intended for gauge pressure measurement. That is, they indicate the dierence between applied pressure and ambient baromet-
ric pressure. The zero button also can be used as a tare function - extending the functionality of the calibrator for special applications.
They weigh less than a pound and advanced technology is employed throughout the product line. Sensors are constructed with stainless steel isolation
diaphragms and permanent oil ll. This means 30 Series products can be used with gases and liquids.
Long battery life is achieved with a low power, RISC (reduced instruction set) type micro-controller for computation of complex algorithms. A 24 bit analog to
digital converter provides internal resolution of 1 part in 16.7 million. Internal resolution always exceeds the displayed resolutions for all measurements. Full
accuracy is maintained even while the low battery icon is ashing.
The 30 Series is specied in percent of reading - instead of percent of scale. Why? Because one 30 Series calibrator could replace several conventional calibra-
tors by covering a wide range of pressure with high accuracy.
The Model 30 does not require any manual adjustments or trimming. All calibration is accomplished via an optically isolated communications port using a
USB physical interface. The optical isolation protects the Model 30 from electrical transients that may appear on the USB connector or cabling to a PC.
Your 30 Series can be customized through the use of our free CongM30™ software. Your personal computer can disable, enable, or modify a variety of
features of your 30 Series.
• Add or create new pressure units and/or disable unused pressure units
• Password protection to prevent unauthorized changes
• Load and save custom congurations
• View and print an as received versus as left change report
• Select your preferred H2O water density: 4°C, 60°F, or 68°F/20°C
• Store a message or identication number
• Adjust (calibrate) the gauge
Finally, the 30 Series is manufactured and serviced by a company that specializes in making pressure measuring equipment.
It’s the only thing we do and that’s why we say:
™
www. .com information@itm.com1.800.561.8187
Functions 2
30 Series Operation Manual
Functions
OPERATING INSTRUCTIONS
To ensure safe and accurate operation, please be familiar with the following warnings:
! WARNING: Severe injury or damage can occur through improper use of pressure instruments! Do not exceed recommended pressure limits of tubing
and ttings. Be certain all pressure connections are secured.
! WARNING: This gauge can display zero pressure when connected to a source of pressure! Do not rely on the display indication before disconnecting - it
may not be indicating true pressure. Never disconnect pressure instrumentation without rst relieving system pressure!
! CAUTION: Never insert any object (other than the ⁄” NPT tting) into the pressure connection! The sensor diaphragm is very thin and can be damaged
or destroyed by solid or sharp objects. Cleaning of the sensor must be done with appropriate solvents only.
Zero
To make sure that the calibrator is performing to its rated accuracy, it should be exercised and re-zeroed whenever exposed to changes in temperature (see
Specications). It’s also good practice to check zero as your nal reading too, as these calibrators should return to a perfect zero reading. The 30 series does
not automatically re-zero when rst turned on. The (zero)button can be used as a “tare”button because it will“zero out”any value the selected range is ca-
pable of displaying. The zero reading may also shift when the calibrator is moved from a vertical to a horizontal orientation. This is due to the oil lling
that transmits the pressure signal from the stainless steel diaphragm to the silicon pressure sensor. The magnitude of the shift is typically 0.3”H2O or less.
Over-range Indication
Over-range conditions will be indicated regardless of the tare value. If the full scale rating of either the low or high pressure sensor are exceeded by 10% or
more, appropriate warning messages will be displayed. Also, if the milliamp input exceeds 55 mA a warning message will appear.
Model 33 Only: These messages will only appear if the parameter being measured is selected for display. For example, if the milliamp input is greater than
55 mA, but milliamps is not selected for display, no over-range warning will be indicated. (The milliamp input is protected by a semiconductor type fuse that
automatically resets once the fault condition is removed.)
Contrast button
The (contrast)button, left of the display, may never have to be pressed. It is provided to compensate in slight contrast changes with temperature and com-
ponent aging. Press the button and the contrast will increase. If you press the (contrast)button repeatedly enough times the display will jump to the least
contrast setting, allowing you to adjust it darker until you get the best contrast and legibility.
www. .com information@itm.com1.800.561.8187
Functions 3
30 Series Operation Manual
Units buttons and mA / % button
Pressing the (units)button updates the display to the next unit selection. The mA button scrolls through direct milliamps, %4-20, and %10-50.

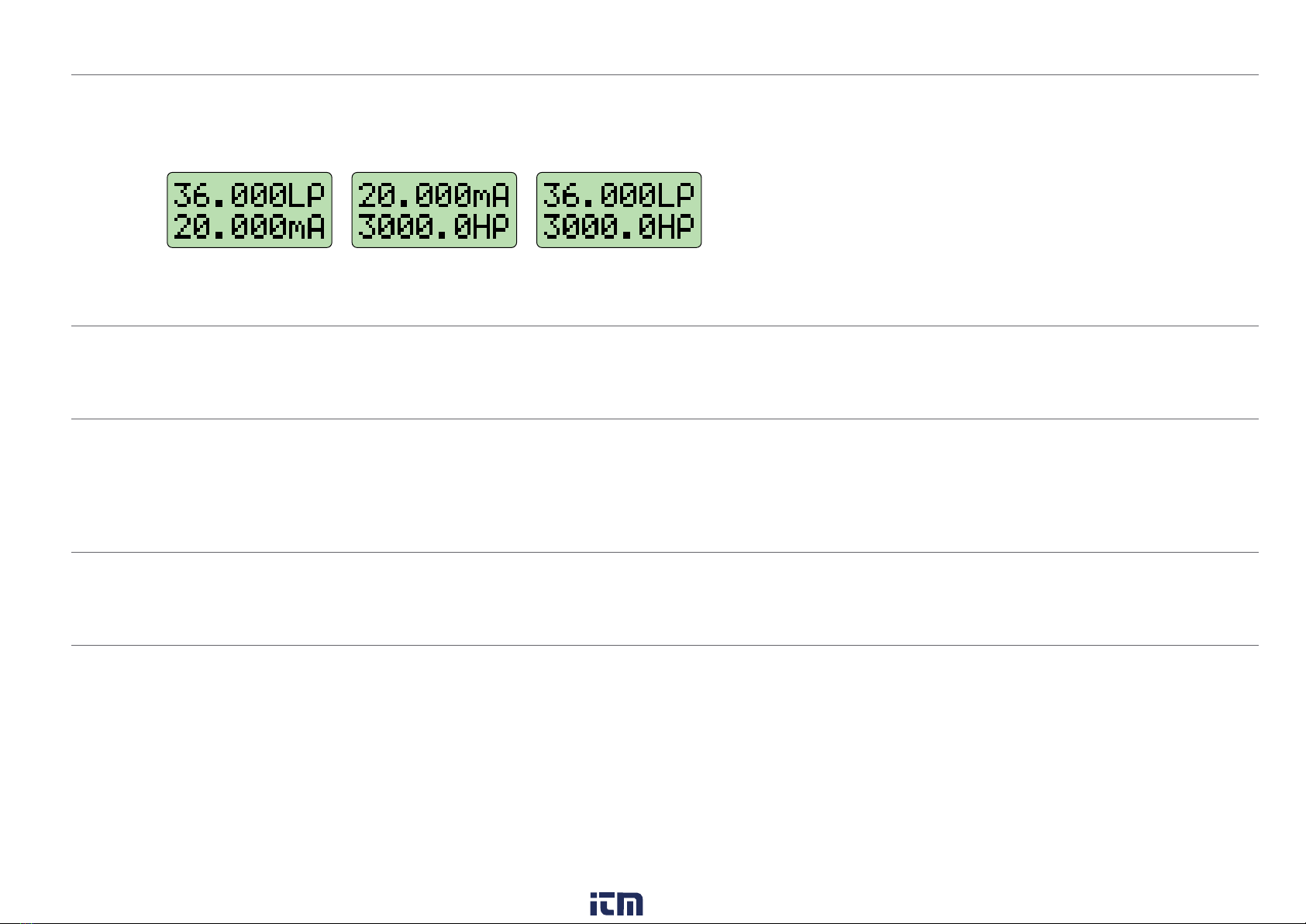

The pressure calibrator will display the following combinations of pressure and/or milliamps:
Top Line
Bottom Lin
e
If LP, HP, or mA are not being displayed, press the respective button and the parameter will appear. If the parameter is already on screen, pressing the cor-
responding button will cause it to cycle to the next scale or units for that button.
On/O button
This function is obvious. What is not obvious is that all the settings are saved when you turn the unit o. When you turn the unit back on it will be set to the
same combinations of ranges and scales. Even the zero or tare value stays the same.
Battery Replacement
The battery is located on top of the unit, under the sliding cover. Batteries must only be changed in a non-hazardous area! The best way to change the
battery is to rst turn o the unit, then replace the battery. All settings will be retained if battery replacement is done this way. If the unit is stored for a long
time, the battery should be removed, to avoid potential damage from battery leakage. If the battery has been removed for storage or the battery was discon-
nected while the unit was on, the unit will automatically reset 5 to 10 seconds after reconnecting the battery.
Reset
If, for some reason the unit needs to be reset, remove the battery. Either wait one minute, or short circuit the battery snap connections with any metal object.
If the reset is successful the unit will begin operating when the battery is reconnected without pressing the (on/o)button.
Measuring Vacuum
All sensors in 30 Series calibrators can be used to measure vacuum, but only ranges rated at 300 PSI (2000 kPa) or less have actually been certied. (Refer to
your calibration certicate.) When measuring pressure less than ambient conditions the display will show a minus (-) sign in the left most position. On some
scales (like kilograms per square centimeter which has 4 decimal places of resolution), this will cause the display to shift right one digit. Resolution won’t be
lost, but part of the range icon will disappear until positive pressure is restored.
! CAUTION: 30 Series calibrators are not recommended for continuous use a high vacuum.
www. .com information@itm.com1.800.561.8187
Enclosure 4
30 Series Operation Manual
Enclosure
Description. . . . . . . . . . . . . . . . . . . . . .Extruded Aluminum with sealed membrane keypad.
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . Model 33 - 400g (14.0 oz); Model 31 - 342g (12.0 oz.);
Model 31, High Pressure - 360g (13.0 oz.)
Weight w/SS Manifold . . . . . . . . . . .Model 33 - 485g (17.0 oz); Model 31 - 428g (15.0 oz.);
Carry Case w/strap. . . . . . . . . . . . . . .PN 2490 (included). Clear cover protects keypad - calibrator can be operated while in case. Also provides a way to hang the
calibrator while in use.
LCD DISPLAY
8 CHARACTER
2 LINE
SENSOR
DIAPHRAGM
LOCATIONS
DIMENSIONS ARE IN MM [INCHES]
137.2
5.40
69.8
2.75
1/8" FNPT
PRESSURE PORTS
PRESSURE PORT VOLUMETRIC DATA:
LP distance to diaphragm (-A- to -B-): 22.4 (0.88")
LP volume: 2 ml (0.13 cubic inches)
HP distance to diaphragm (-A- to -B-): 17.8 (0.70")
HP volume: 1 ml (0.06 cubic inches)
4mm
SHIELDED
BANANA JACKS
29.2
1.15
A
B
www. .com information@itm.com1.800.561.8187
Specications 5
30 Series Operation Manual
Specifications
Note: Accuracy includes all eects of linearity, hysteresis, repeatability, temperature, and stability for one year.
Exposure to environmental extremes of temperature, shock, or vibration may warrant a more frequent period.
Pressure
0 to Full Scale. . . . . . . . . . . . . . . . . . . . ±(0.05% of Reading + Floor Term*)
*Floor Term = 0.005% of FS or display resolution, whichever is greater.
See Pressure Ranges, Display Scales, & Resolution on page 8.
Vacuum
±(0.25% of Reading + Vacuum Floor Term†)
†Vacuum Floor Term (VFT):
For 16 & 36 PSI: VFT = 0.004 PSI
For 300 PSI: VFT = 0.01 PSI
For 1 or 2 bar, & 100 or 200 kPa: VFT = 0.0003 bar or 0.03 kPa
For 20 bar or 2000 kPa: VFT = 0.001 bar or 0.1 kPa
Vacuum operation is not specied for 600 PSI (40 bar/4000 kPa) models and higher. However, all models can be safely connected to vacuum.
The 30 Series calibrator is not recommended for continuous use at high vacuum. Refer to XP2i-DP data sheet for gauges that are intended for continuous
high vacuum use.
Temperature
Operating . . . . . . . . . . . . . . . . . . . . . . . 0° to 50°C (32° to 122°F)
Non-condensing. No change in accuracy over operating temperature range. Gauge must be zeroed to achieve rated specication.
Storage. . . . . . . . . . . . . . . . . . . . . . . . . .-20° to 70°C (-4° to 158°F)
Battery should be removed if stored for more than one month.
SI (metric) Versions
“SI”is the French acronym for the International System of Units. 30 Series products with“KPA” in the part number are intended for markets where only SI units
are permitted. Therefore, these models only have kPa and/or MPa, bar and/or mbar available.
www. .com information@itm.com1.800.561.8187
Specications 6
30 Series Operation Manual
Media Compatibility (LP and HP)
Liquids and gases compatible with PTFE (Polytetrauoroethylene) penetrated, hard anodized aluminum (transducer housing), 316 stainless steel (sensor), and
Viton®(O-ring). (Viton is a registered trademark of Dupont Dow Elastomers.)
Products with the letters“SPSS”in the sux of the part number (e.g.,“IS33-36/3000-SPSS”), have stainless steel manifolds and therefore the only wetted mate-
rials are stainless steel and Viton.
Pressure Conversions
1 PSI = 27.6806 inches of water column (water at 4°C [39.2°F])
703.087 millimeters of water column (water at 4°C [39.2°F])
70.3087 centimeters of water column (water at 4°C [39.2°F])
2.03602 inches of mercury (mercury at 0°C [32°F])
51.7149 millimeters of mercury (mercury at 0°C [32°F])
6.8948 kilopascals
0.070307 kilograms per square centimeter
0.068948 bar
68.948 millibar
0.0068948 megapascals
Note: Other conversions may have been specied at time of order. Refer to your certicate of calibration for details.
Electrical
Range . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 55 mA
Resolution. . . . . . . . . . . . . . . . . . . . . . . 0.001 mA
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . ±(0.025% of reading + 0.001 mA)
Maximum Voltage . . . . . . . . . . . . . . . 30 VDC
Maximum Current . . . . . . . . . . . . . . . 100 mA
Note: When connecting to circuits that included HART transmitters, a 250 ohm resistor must be placed in series with the calibrator, to prevent damage to the
calibrator and any other equipment connected to the loop. mA can be displayed as a percentage, where 0 to 100% corresponds to either 4 to 20 mA or
10 to 50 mA.
www. .com information@itm.com1.800.561.8187
Specications 7
30 Series Operation Manual
Power
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . One Alkaline or Lithium 9V battery
XApproved Batteries
ATEX/IECEx: The 30 Series is Intrinsically Safe only if powered by one of the following battery types:
Approved Battery Type Ta= Marking
Duracell Alkaline 9V, MN 1604
0 to 50° C Ex ia IIC T4 Gb
Energizer Alkaline 9V, 522
Energizer Lithium 9V, L522
Varta High Energy Alkaline 9V, 4922 0 to 45° C
Many other battery types and models have been tested but failed to meet the requirements for potentially explosive atmospheres—do not assume other
models are equivalent.
Do not mix battery types or manufacturers.
CSA: Substitution of components may impair intrinsic safety.
CSA: La substitution de composants peut compromettre la sécurité intrinsèque.
CSA: The 30 Series is Intrinsically Safe only if powered by one of the following battery types:
CSA: Le 30 Series est un système à sécurité Intrinsèque seulement s’il est alimenté par un des Piles de type suivant:
Approved Battery Type
(Approuvé Type de Batterie)
Marking
(Marquage)
Duracell Alkaline 9V, MN 1604 Class I, Division 1, A, B, C, D T4
(Classe I, Division 1, A, B, C, D T4)
Energizer Alkaline 9V, 522
Energizer Lithium 9V, L522
Varta High Energy Alkaline 9V, 4922 Class I, Division 1, A, B, C, D T3C
(Classe I, Division 1, A, B, C, D T3C)
Battery Life . . . . . . . . . . . . . . . . . . . . . . 90 hours typical
Low Battery Indicator . . . . . . . . . . . . Flashing battery icon
Connections
Pressure Fitting. . . . . . . . . . . . . . . . . .⁄" female NPT
Milliamperes . . . . . . . . . . . . . . . . . . . .4mm jacks, 19mm (0.75”) spacing
Communication . . . . . . . . . . . . . . . . .micro USB
! WARNING:Do not use the micro USB serial interface in hazardous locations.
www. .com information@itm.com1.800.561.8187
Specications 8
30 Series Operation Manual
PRESSURE RANGES, DISPLAY SCALES, & RESOLUTION
PSI bar kPa Overpressure PSI inch H2O inch Hg mmHg mmH2O cmH2O kg/cm2bar mbar kPa MPa
16 1 100 6.5 x 0.001 0.01 0.001 0.01 1 0.0001 0.0001 0.1 0.01
36 2 200 3.0 x 0.001 0.01 0.001 0.01 1 0.0001 0.0001 0.1 0.01
300 20 2000 2.0 x 0.01 0.1 0.01 0.1 1 0.001 0.001 0.1
1500 100 10 000 2.0 x 0.1 0.01 0.01 1 0.001
3000 200 20 000 1.5 x 0.1 0.01 0.01 1 0.001
5000 300 30 000 1.5 x 0.1 0.01 0.01 1 0.001
• PSI versions with ranges of 36 PSI and lower include all possible scales except bar.
• bar versions with ranges of 2 bar and lower include all possible scales except inch Hg, cmH2O, and MPa.
• kPa versions are restricted to kPa, MPa, bar and/or millibar, depending on pressure range.
MODEL NUMBERING SYSTEM
Available Units Intrinsic
Safety Model Sensors 1st Pressure
Range Prex
2nd Pressure
Range Prex
Pressure
Unit Manifold
-IS 3 - / -
Standard........... omit Single Sensor ...1PSI.... PSI Standard........omit
Metric units only ... SI Dual Sensor.....3bar ...BAR Stainless Steel...SPSS
kPa ... KPA
SAMPLE PART NUMBERS
IS31-36PSI ...............Calibrator with one sensor (36 PSI)
IS33-36/3000PSI ..........Calibrator with two sensors (36 PSI and 3000 PSI)
IS33-16/1500PSI-SPSS ...Calibrator with two sensors (16 PSI and 1500 PSI) with two stainless steel manifolds
SERIAL NUMBERING SYSTEM
The serial number of your 30 Series is located on the rear of the product. Serial numbers consist of 10 numbers, with the left-most digit of the second
grouping representing the year of manufacturing. For example 043468 was manufactured in 2010.
www. .com information@itm.com1.800.561.8187
Safety & Certications 9
30 Series Operation Manual
Safety & Certifications
HAZARDOUS LOCATIONS
Every 30 Series pressure calibrator includes the following Intrinsic Safety approvals.
II 2G Ex ia IIC T4 Gb
FTZU 06 ATEX 0010X
This product conforms to the following standards:
EN60079-0: 2006 | EN60079-11: 2007
Ex ia IIC T4 Gb
IECEx FTZU 10.0018X
This product conforms to the following standards:
IEC 60079-0: 2007 | IEC 60079-11: 2006
Exia Intrinsically Safe and Non-Incendive for Hazardous
Locations: Class I, Division 1, Groups A, B, C and D,
Temperature Code T4/T3C.
Sécurité intrinsèque et non incendiaire pour dan-
gereux Lieux: Classe I, Division 1, Groupes A, B, C et D,
Code de température T4/T3C.
Milliamp Input Entity Parameters:
Ui = 30V Uo = 9.9V Entity parameters specify the safe voltage, current,
capacitance and inductance that can either be
connected to the device, or is internal to the device.
Ta = 0 to 50° C
Ii = 100mA Io = 2.62mA
Pi = 0.75W Po = 6.5mW
Ci = 0 Co = 3.2uF
Li = 0 Lo = 100uH
! WARNINGS: The following warnings apply to the 30 Series Pressure Calibrator:
• Substitution of components may impair intrinsic safety.
• Replace batteries with approved type in non-hazardous locations only.
• Do not use USB interface in hazardous locations.
CERTIFICATIONS
The 30 Series has been tested and certied to comply with a variety of international standards.
This 30 Series complies with the Australian requirements
for the C-tick mark. The instrument was tested against
AS/NZS 3584, C-tick EMC/EMI requirements.
Crystal Engineering declares that the 30 Series is in ac-
cordance with the ATEX Directive, the Electromagnetic
Compatibility Directive, and the Pressure Equipment
Directive per our declaration(s).
This 30 Series is approved for use as a portable test
instrument for Marine use and complies with Det
Norsjke Veritas’Rules for Classication of Ships, High
Speed & Light Craft and Oshore Standards.
C-tick
ATEX
www. .com information@itm.com1.800.561.8187
Safety & Certications 10
30 Series Operation Manual
EMC EC Declaration of Conformity ATEX EC Declaration of Conformity
DECLARATION OF CONFORMITY
According toISO/IEC 17050-1:2010
Manufacturer’s Name:
Crystal Engineering Corporation
An AMETEK Inc. company
Manufacturer’s Address:
Declares under sole responsibility that the product as originally delivered
Product Name:
Digital Pressure Calibrator
Model Number:
30 Series andIS90 Series
Complies with the essential requirements of the following applicable European Directives, and carries the CE marking accordingly:
EMC Directive 2004/108/EC
Standard
EHSR
EN 55011: 2007
The EN 55011:2009/A1:2010 harmonized standard has been compared to
the standardused forcertification purposes andno changesinthe “state
of the art” applyto the equipment.
EN 61326: 2006
Harmonized
And conforms with the following product standards:
Standard
Description
Class
Status
EHSR
EN 55011: 2007, +A1: 2010
Radiated Emissions
Class B
Pass
Harmonized
EN 61326-1:2006 (EN 61000-4-2: 2009)
ElectrostaticDischarge
Criteria A
Pass
Harmonized
EN 61326-1:2006 (EN 61000-4-3: 2006)
Radiated Immunity
Pass
Harmonized
I hereby declare that the equipment named above hasbeen designed to comply with the relevant sections of the above referenced
specifications. The unit complies with all essential requirements of the Directives.
USA Signatory:
European Signatory:
Crystal Engineering Corporation, an AMETEK Inc. company
708 Fiero Lane, Suite 9, San Luis Obispo, CA 93401, USA
+1 805 595 5477
AMETEK Denmark A/S
Gydevang32-34, 3450 Allerød, Denmark
+45 4816 8000
11 March 2014
______________________________
Division Vice President & Crystal Business Manager
David K Porter, P.E.
DECLARATION OF CONFORMITY
Manufacturer’s Name:
Manufacturer’s Address:
Declares under sole responsibility that the product as originally delivered
Product Name:
Model Number:
Product Options:
Complies with the essential requirements of the following applicable European Directives, and carries the CE marking
accordingly:
And conforms with the following product standards:
Marking
Standard
EHSR
certification purposes and no changes in the “state of the art” apply to the equipment
state of the art”
EC-Type Examination Certificate
______________________________
Division Vice President & Crystal Business Manager
David K Porter, P.E.
4 April 2013
www. .com information@itm.com1.800.561.8187
Safety & Certications 11
30 Series Operation Manual
PED EC Declaration of Conformity
DECLARATION OF CONFORMITY
According to ISO/IEC 17050-1:2004
Manufacturer’s Name: Crystal Engineering Corporation
An AMETEK Inc. company
Manufacturer’s Address:
Declares under sole responsibility that the product as originally delivered
Product Name: nVision Series Reference Recorder XP2i Series and XP2i-DD Series Digital Pressure Gauge
nVision Series Lab Reference 30 Series and IS90 Series Pressure Calibrator
CPF Series Fittings and Hoses M1 Series Pressure Gauge
APM Advanced Pressure Module
Complies with the essential requirements of the following applicable European Directives, and carries the CE marking
accordingly:
Pressure Equipment Directive 97/23/EC
Have been designed and manufactured to the following
Product and Pressure Range Description CE
Mark
Pressure gauges, calibrators, and
recorders (pressure accessories
per guideline 1/6)
The above listed pressure gauges, calibrators and reference recorders are designed
and manufactured in accordance with applicable portions of Annex I, Essential Safety
Requirements, and sound engineering practices. These pressure gauges or calibrators
(classified as pressure accessories per guideline 1/6) have a volume (V) of less than
0.1 liter (Article 3, 1.1.(a) first indent, Group 1 fluids).
Maximum Allowable Pressure (PS)
≤200 bar (2 900 psig) All pressure gauges, calibrators and reference recorders for use on gases or liquids
less than or equal to 200 bar (2 900 psig) are not subject tothe essential requirements
of the directive 97/23/EC (PED, Annex I) will be classed as Sound Engineering Practice
(SEP), and shall not have the CE mark applied.
No
Maximum Allowable Pressure (PS)
> 200 bar (2 900 psig) For pressure gauges, calibrators and reference recorders for use on gases or liquids
above 200 bar (2 900 psig) on Class 1 & 2 gases or liquids, Crystal Engineering
maintains a technical file in accordance with Annex III, Module A (internal production
control) when CE mark is required.
Note: CPF Hoses (MPH
series) not for use with Group 1 fluids and gases
Yes
I hereby declare that the equipment named above has been designed to comply with the relevant sections of the above referenced
specifications. The unit complies with all essential requirements of the Directives.
USA Signatory: European Signatory:
______________________________
Division Vice President & Crystal Business Manager
David K Porter, P.E.
Crystal Engineering Corporation, an AMETEK Inc. company
708 Fiero Lane, Suite 9, San Luis Obispo, CA 93401, USA
+1 805 595 5477
AMETEK Denmark A/S
Gydevang 32-34, 3450 Allerød, Denmark
+45 4816 8000
28 April 2014
www. .com information@itm.com1.800.561.8187
Safety & Certications 12
30 Series Operation Manual
MULTILANGUAGE SAFETY INSTRUCTIONS
Bezpečnostní instrukce pro prostředí s nebezpečím výbuchu –ČESKY (Czech)
• V prostředí s nebezpečím výbuchu nepoužívejte přípojku USB.
• Baterie vyměňujte pouze v bezpečném prostředí. Používejte pouze schválené baterie.
• Za správné použití tohoto přístroje v prostředí s nebezpečím výbuchu odpovídá jeho uživatel.
XSchválené baterie – ČESKY (Czech)
Přístroj 30 Series je jiskrově bezpečný pouze pokud je napájen jedním z následujících typů baterií:
Approved Battery Type Ta= Marking
Duracell Alkaline 9V, MN 1604
0 to 50° C Ex ia IIC T4 Gb
Energizer Alkaline 9V, 522
Energizer Lithium 9V, L522
Varta High Energy Alkaline 9V, 4922 0 to 45° C
Mnoho dalších druhů a typů baterií bylo zkoušeno, ale nesplnily požadavky na jiskrovou bezpečnost - nepředpokládejte, že jiné typy jsou rovnocenné.
Energizer vyrábí Energizer Holdings, Inc. a the Eveready Battery Company, Inc.
Sicherheitshinweise für explosionsgefährdeten Orten –DEUTSCH (German)
• Die USB Schnittstellenverbindung darf niemals in einer explosionsgefährdeten Umgebung benutzt werden.
• Der Batteriewechsel muß ausschließlich in sicherer Umgebung mit den vom Hersteller vorgeschriebenen Batterie-Typen erfolgen.
• Der Benutzer ist für den richtigen Umgang des Digitalmanometers in explosions- gefährdeter Umgebung verantwortlich.
XVom Hersteller vorgeschriebene Batterien –DEUTSCH (German)
Das 30 Series ist nur dann eigensicher, wenn die vom Hersteller vorgeschriebenen Batterien eingetzt werden:
Approved Battery Type Ta= Marking
Duracell Alkaline 9V, MN 1604
0 to 50° C Ex ia IIC T4 Gb
Energizer Alkaline 9V, 522
Energizer Lithium 9V, L522
Varta High Energy Alkaline 9V, 4922 0 to 45° C
Es wurden viele andere Batterietypen vom Hersteller getestet, aber diese haben den Hersteller-Anforderungen für Eigensicherheit nicht entsprochen
Aus diesem Grund dürfen nur vom Hersteller vorgeschriebene Batterie-Typen in das Gerät eingesetzt werden, um die Eigensicherheit zu gewährleisten.
Energizer wird von Energizer Holdings, Inc., und der Eveready Battery Company, Inc. hergestellt.
www. .com information@itm.com1.800.561.8187
Safety & Certications 13
30 Series Operation Manual
Safety Instructions for Hazardous Locations –ENGLISH (English)
• Do not use the USB connector in a hazardous location.
• Replace batteries in non-hazardous locations, with approved batteries, only.
• It is the users responsibility to understand the proper application of this product in potentially explosive atmospheres.
XApproved Batteries –ENGLISH (English)
The 30 Series is Intrinsically Safe only if powered by one of the following battery types:
Approved Battery Type Ta= Marking
Duracell Alkaline 9V, MN 1604
0 to 50° C Ex ia IIC T4 Gb
Energizer Alkaline 9V, 522
Energizer Lithium 9V, L522
Varta High Energy Alkaline 9V, 4922 0 to 45° C
Many other battery types and models have been tested but failed to meet the requirements for Intrinsic Safety - do not assume other models are equivalent.
Energizer is manufactured by Energizer Holdings, Inc., and the Eveready Battery Company, Inc.
Instrucciones de seguridad para zonas peligrosas –ESPAÑOL (Spanish)
• No use el conector USB en zona clasicada.
• Cambie las pilas en zona no clasicada, solo con pilas aprobadas.
• Es responsabilidad del usario comprender la aplicación de este producto en atmósferas potencialmente explosivas
XPilas aprobadas –ESPAÑOL (Spanish)
El 30 Series solo es intrínsecamente seguro si se alimenta con uno de los siguientes tipos de pilas:
Approved Battery Type Ta= Marking
Duracell Alkaline 9V, MN 1604
0 to 50° C Ex ia IIC T4 Gb
Energizer Alkaline 9V, 522
Energizer Lithium 9V, L522
Varta High Energy Alkaline 9V, 4922 0 to 45° C
Se han probado muchos otros tipos de baterías pero han fallado el cumplimiento de los requisitos para la seguridad intrínseca - No asuma que otros modelos
son equivalentes.
Energizer está fabricado por Energizer Holdings, Inc., y por Eveready Battery Company, Inc.
www. .com information@itm.com1.800.561.8187
Safety & Certications 14
30 Series Operation Manual
Instructions de sécurité pour les Zones Dangereuses –FRANÇAIS (French)
• Ne pas utilisez le connecteur USB dans une Zone Dangereuse.
• Remplacez les piles dans des Zones non-dangereuses, avec les piles appropriées, uniquement.
• Il est de la responsabilité de l’utilisateur de bien comprendre l’application appropriée de ce produit en atmosphères explosives.
XPiles approuvées –FRANÇAIS (French)
Le 30 Series est un système à sécurité Intrinsèque seulement s’il est alimenté par un des Piles de type suivant:
Approved Battery Type Ta= Marking
Duracell Alkaline 9V, MN 1604
0 to 50° C Ex ia IIC T4 Gb
Energizer Alkaline 9V, 522
Energizer Lithium 9V, L522
Varta High Energy Alkaline 9V, 4922 0 to 45° C
Beaucoup d’autres types et modèles de Piles ont été examinés mais ne conviennent pas pour répondre aux conditions de sécurité intrinsèque - Ne jamais sup-
posez que d’autres modèles pourraient être équivalents.
Les batteries Energizer sont fabriquées par les sociétés Energizer Holdings inc. et Eveready Battery Inc.
Prescrizioni di Sicurezza per Area Pericolosa –ITALIANO (Italian)
• Non utilizzare il connettore USB in Area Pericolosa.
• Sostituire le batterie in Aree non Pericolose e solamente con Batterie approvate.
• E’ responsabilità dell’utilizzatore comprendere l’adatta applicazione di questo prodotto in atmosfere potenzialmente esplosive.
XBatterie Approvate –ITALIANO (Italian)
L’ 30 Series è a Sicurezza Intrinseca solo se alimentato da uno dei seguenti tipi di batteria:
Approved Battery Type Ta= Marking
Duracell Alkaline 9V, MN 1604
0 to 50° C Ex ia IIC T4 Gb
Energizer Alkaline 9V, 522
Energizer Lithium 9V, L522
Varta High Energy Alkaline 9V, 4922 0 to 45° C
Molti altri tipi e modelli di batteria sono stati testati ma non sono risultati conformi alle richieste per Sicurezza Intrinseca - non supponete che altri modelli
siano equivalenti.
La batteria (Energizer) è fabbricata da Energizer Holdings Inc. e Eveready Battery Company Inc.
www. .com information@itm.com1.800.561.8187
Safety & Certications 15
30 Series Operation Manual
Veiligheidsinstructie voor gebruik in een explosie gevaarlijkeomgeving –NEDERLANDS (Dutch)
• Het gebruik van de USB interface is niet toegestaan in een explosie gevaarlijke omgeving.
• Vervang de batterijen uitsluitend in een niet explosie gevaarlijke omgeving en gebruik alleen batterijen welke zijn goedgekeurd en toegestaan.
• De gebruiker dient er mee bekend te zijn welke gevaren er kunnen optreden in een explosie gevaarlijke ruimte bij gebruik van dit product
Het is de verantwoordelijkheid van de gebruiker om dit product op een juiste wijze toe te passen.
XBatterijen welke zijn goedgekeurd –NEDERLANDS (Dutch)
De 30 Series is alleen intrinsiek veilig bij gebruik van de volgende batterijen:
Approved Battery Type Ta= Marking
Duracell Alkaline 9V, MN 1604
0 to 50° C Ex ia IIC T4 Gb
Energizer Alkaline 9V, 522
Energizer Lithium 9V, L522
Varta High Energy Alkaline 9V, 4922 0 to 45° C
Bij gebruik van andere niet gecerticeerde batterijen vervalt de intrinsiek veilige ATEX certicering.
Een aantal andere batterij merken en types zijn getest maar voldeden niet aan de ATEX voorwaarden voor intrinsieke veiligheid, U mag er daarom niet van
uitgaan dat andere equivalente types wel geschikt zullen zijn.
Energizer wordt gefabriceerd door Energizer Holdings, Inc en de Eveready Battery Company, Inc
Instrukcja Bezpieczeństwa Dla Srefy Zagrożonej Wybuchem–POLSKI (Polish)
• Połączenie USB może byćużywane tylko poza strefązagrożenia wybuchem.
• Wymiana baterii tylko poza strefązagrożenia wybuchem, używażtylko zatwierdzony typ baterii.
• Odpowiedzialnościąużytkownika jest używanie tego produktu we wlaściwy sposób w stree zagrożonej wybuchem.
XZatwierdzone baterie. –POLSKI (Polish)
30 Series wersja Iskrbezpieczna może byćtylko zasilana przez nastepujące typy baterii:
Approved Battery Type Ta= Marking
Duracell Alkaline 9V, MN 1604
0 to 50° C Ex ia IIC T4 Gb
Energizer Alkaline 9V, 522
Energizer Lithium 9V, L522
Varta High Energy Alkaline 9V, 4922 0 to 45° C
Wiele innych typów i modeli baterii przetesowano lecz nie spelniały wymagańIskrobezpieczeństwa - nie przyjmuje sięże inne modele sąrównoważne.
Energizer jest produkowany przez Energizer Holdings, Inc. lub przez Eveready Battery Company, Inc.
www. .com information@itm.com1.800.561.8187
Safety & Certications 16
30 Series Operation Manual
Räjähdysvaarallisten tilojen turvallisuusohjeita –SUOMEN KIELI (Finnish)
• USB väylää/liitintä EI saa käyttää räjähdysvaarallisissa tiloissa.
• Käytettävä ehdottomasti ja ainoastaan hyväksyttyjä paristoja.
• Käyttäjän vastuulla on laitteen käyttö räjähdysvaarallisissa tiloissa.
Mittausovellus ja käyttöympäristö on ehdottomasti selvitettävä ennen käyttöä.
XKäyttöön hyväksytyt paristot –SUOMEN KIELI (Finnish)
30 Series mittari on turvallinen määritellyissä räjähdysvaarallisissa tiloissa ainoastaan, kun käytetään seuraavia paristoja:
Approved Battery Type Ta= Marking
Duracell Alkaline 9V, MN 1604
0 to 50° C Ex ia IIC T4 Gb
Energizer Alkaline 9V, 522
Energizer Lithium 9V, L522
Varta High Energy Alkaline 9V, 4922 0 to 45° C
Monia muita paristotyyppejä on testattu, mutta on osoittautunut, etteivät ne täytä räjähdysvaarallisten tilojen vaatimuksia.
Energizer tuotemerkkiä valmistaa Energizer Holdings, Inc., ja Eveready Battery Company, Inc.
www. .com information@itm.com1.800.561.8187
Support 17
30 Series Operation Manual
Support
CALIBRATION
If adjustment is required, we recommend returning your 30 Series Calibrator to our factory. Factory service oers benets you won’t nd anywhere else.
Factory calibration tests the 30 Series at a variety of temperatures utilizing NIST traceable standards, resulting in calibration certicates that provide perfor-
mance data over temperature. Our calibration facilities are A2LA accredited to ISO 17025:2005 & ANSI/NCSL Z540-1-1994 (A2LA #2601.01). A2LA is interna-
tionally recognized as an accreditation body by the International Laboratory Accreditation Cooperation, ILAC.
Under normal operating conditions, we recommend the 30 Series be calibrated on an annual basis. Your quality system may require more or less frequent
calibration, or your experience, or operating environment may suggest longer or shorter intervals.
Although we prefer that you return the 30 Series to us for calibration, ordinary recertication and/or adjustments may be performed by any qualied
personnel with appropriate training and equipment.
There are no internal potentiometers. The 30 Series contains a“span”factor (userspan), set to approximately 1 (as shipped from the factory).
As components age this may need to be changed to a value slightly higher or lower, to slightly increase or decrease all readings.
This adjustment can be made with a computer through our free CongM30 software.
ACCESSORIES AND REPLACEMENT PARTS
CPF: Crystal Pressure Fittings ()
The Crystal Pressure Fittings & Hose line is purpose-designed for applications in instrumentation, eld testing and pressure calibration. The CPF design im-
proves on standard cone-type ttings with a replaceable O-ring seal. This new sealing method allows users to create leak-free connections, up to 10,000 PSI,
without using tools or thread tape.
Connections between CPF ttings maintain a 4:1 Factor of Safety. When necessary, the 316 Stainless Steel ttings can also be wrench tightened for a vibration-
resistant, metal-to-metal seal. A Safety Weep Hole designed into the side of the tting alerts users, by leaking gas or test uid, before a disconnection under
pressure causes injury or damage.
CPF oers one of the widest selections from a single manufacturer, featuring over 90 adapters to other types like NPT and BSP, and other manufacturers like
HiP and Autoclave. More information about CPF Fittings can be found at crytalengineering.net/cpf.
USB Cable
P/N: 4431 USB A to micro USB Cable 6' [1.8m]
The durable and high-speed Micro-USB cable enables data transfer in the most convenient form.
www. .com information@itm.com1.800.561.8187
Support 18
30 Series Operation Manual
Test Leads
P/N: 1351 Test Lead Kit
Two 4 mm shrouded banana plug, straight to right angle, 122 cm (48 inch) leads with alligator clip and spring loaded hook tip probes.
SOFTWARE
CongM30
CongM30 is free software to customize your calibrator. Eliminate scales you don’t need, calibrate, create custom scales, and password protect the
calibrator from future changes! Requires micro USB cable , PN 4431.
LabVIEW™ Drivers and Digital Interface Instructions
Communicate with your 30 Series Calibrator using National Instrument's LabVIEW, or our Digital Interface Instructions.
www. .com information@itm.com1.800.561.8187
Table of contents
Other Crystal Pressure Test Equipment manuals
