Crystal Vision Indigo DADA208 User manual

DADA208
Digital audio distribution amplifier
Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.
Tel: [phone] Fax: [phone] [e-mail] www.crystalvision.tv

Crystal Vision DADA208 User Manual
122/08/2016
Contents
1Introduction 3
2Card edge operation 5
Using status LEDs 5
On-board jumper link settings 5
3Hardware installation 6
3.1 Selecting rear connectors 6
3.2 Selecting the output module 7
Fitting the output module 7
3.3 Changing the input termination 8
3.4 Selecting single or dual channel mode 9
3.5 Configuring the second channel input 9
3.6 Obtaining an extra output in 1-channel mode 9
3.7 Universal rear connector pinout 11
75Ωdigital audio connections with RM01 11
75Ωdigital audio connections with RM09 (obsolete) 12
75Ωdigital audio connections with RM16 13
75Ωdigital audio connections with RM02 14
75Ωdigital audio connections with RM10 (obsolete) 15
110ΩIN/75ΩOUT digital audio connections with RM13 16
110ΩIN/75ΩOUT digital audio connections with RM21 17
75ΩIN/110ΩOUT digital audio connections with RM12 18
110ΩIN/110ΩOUT digital audio connections with RM11 19
110ΩIN/110ΩOUT digital audio connections with RM03 20
110ΩIN/110ΩOUT digital audio connections with RM35 21

Crystal Vision DADA208 User Manual
222/08/2016
3.8 General purpose interface 23
4Problem solving 25
5Specification 26
Revision 1.
Revision 2. Manual reformatted 13/10/06
Revision 3. RM35 information added 23/10/06
Revision 4. Reference to non-reclocking removed 10/01/07
Revision 5. RM35 pin information corrected 09/01/08
Revision 6. RM02 label information changed 08-08-12
Revision 7. PL12 information removed. S1 information added. 18-03-14

Crystal Vision Introduction
DADA208 User Manual R3.7 322/08/2016
1 Introduction
The DADA208 is a dual channel digital audio distribution amplifier with reclocked
outputs.
It may be configured as a single 1-in/8-out distribution amplifier or as two 1-in/4-out
distribution amplifiers.

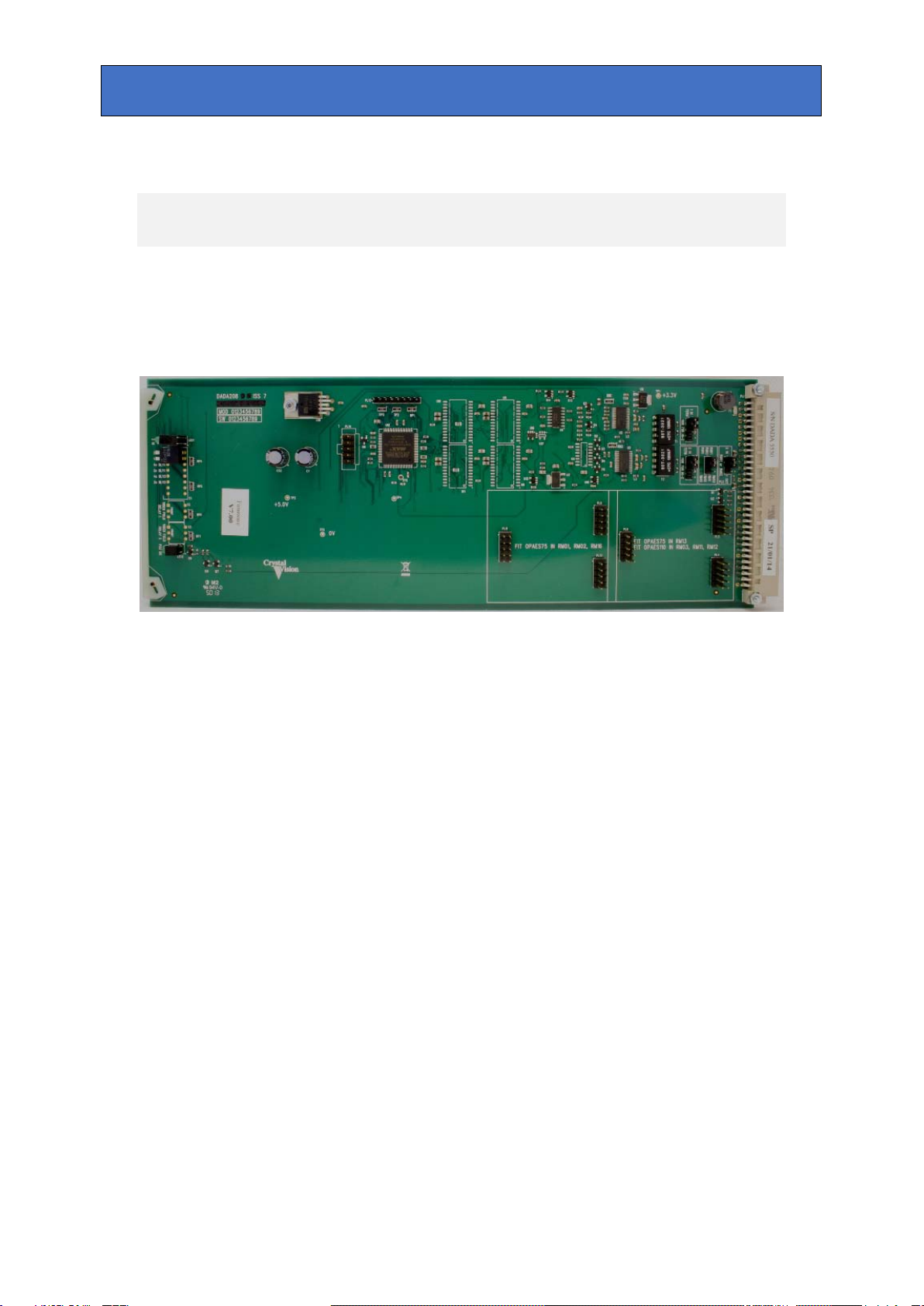

DADA208 dual digital audio DA
It supports either 75Ωor 110Ωinputs and selectable 'piggy-back' output modules allow
either 75Ωoutputs (OPAES-75) or 110Ωoutputs (OPAES-110). The position the output
module plugs into is dependent on the rear connector fitted as explained in the Installation
chapter.
There is a choice of eleven rear connectors that range from single slot to quadruple slot to
allow a mix between high packing density and access to all output connections. They also
provide a mix between BNCs for 75Ωconnections or multiway 'D' and DIN41612
connectors for 110Ωconnections.
DADA208 is a very compact board with up to 24 modules fitting in a 4U frame when a
single slot rear connector is used.
The DADA208 has LED and GPI indication of input presence/failure for each channel.

Crystal Vision Introduction
DADA208 User Manual R3.7 422/08/2016

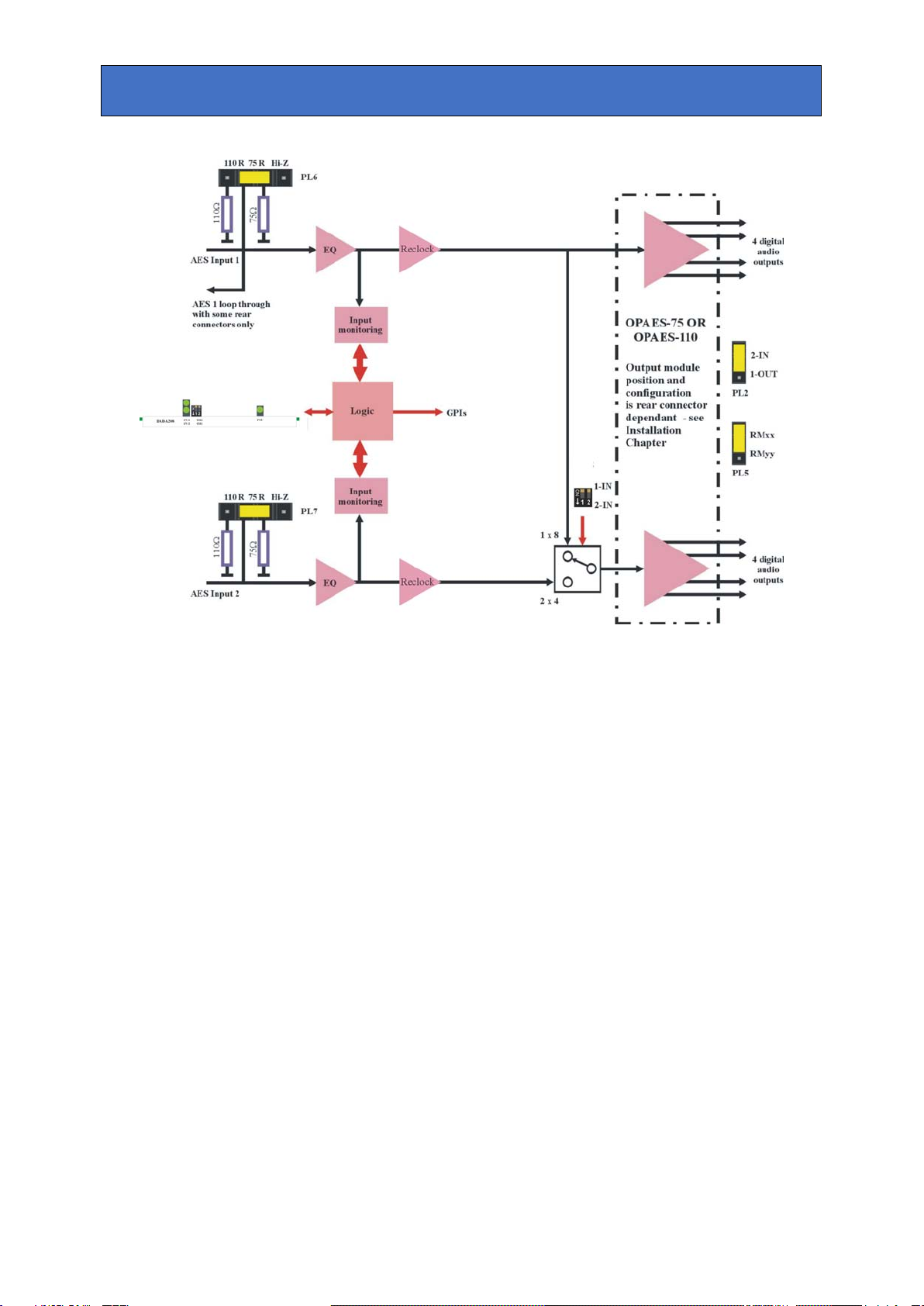

DADA208 reclocked dual digital audio DA
The main features are as follows:
•Dual 1 in 4 out or single 1 in 8 out digital audio distribution amplifier
•Choice of ten rear connectors with variable packing density and either 75Ωor
110Ωconnectors
•GPI/LED input presence indication
•Card edge control
Note:
This manual covers the DADA208. The DADA208N with non re-clocked outputs and the
DADA208D with up to one second of delay are also available.

Crystal Vision Card edge operation
DADA208 User Manual R3.7 522/08/2016
2Card edge operation
The front edge of the DADA208 card provides power rail monitoring and signal status.
DADA208 front edge view
Using status LEDs
LED Location/colour Meaning when lit
IN 1 Green (top) Digital audio present on input 1
IN 2 Green (bottom) Digital audio present on input 2
PSU Green Power supply OK.
On-board jumper link and switch settings
Please refer to Chapter 3 - 'Hardware installation' to set the following options:
•Selecting rear connector and output module
•Changing the input termination – 75Ω, 110Ω or high impedance
•Changing output 2 input source – single (1 x 8) or dual (2 x 4) channel
operation
•Obtaining an extra output in 1-channel mode

Crystal Vision Hardware installation
DADA208 User Manual R3.7 622/08/2016
3Hardware installation
The DADA208 dual channel digital audio distribution amplifier fits into all Crystal
Vision rack frames. All modules can be plugged in and removed while the frame is
powered without damage.
3.1 Selecting rear connectors
When used with a single height rear connector, the Indigo 4 frame will house up to 24
modules, the 2U Indigo or FR2AV frame will house up to 12 modules and dual power
supplies, the 1U Indigo or FR1AV frame will house 6 modules and a single power supply.
The 1U Desk Top Box has a built-in power supply and will house up to 2 modules with a
single height rear connector.
The 4U, 2U and 1U frames have a hinged front panel, which gives access to the PSU and
all modules. The Desk Top Box has a removable front. The universal frame wiring system
allows any of the interface range of modules to be fitted in any position with the use of
removable rear modules.
The following table summarises the rear connectors available.
Connector No of
Slots No of Cards Output Impedance and I/O
RM01 1 1 2x75Ωin/2x75Ωout per channel
RM09 1 1 2x75Ωin/1x75Ωout Ch1, 2x75ΩCh2 with loop-through of Ch1
RM03* 1 1 2x110Ωin/4x110Ωout per channel
RM11* 1 1 2x110Ωin/4x110Ωout per channel
RM12 1 1 2x75Ωin/4x110Ωout per channel
RM21 1 1 2x110Ω in/2x75Ωout per channel
RM13 2 1 2x110Ω in/3x75Ωout per channel
RM16 2 1 2x75Ωin/4x75Ω out per channel with AES (BNC) loop-through of Ch1
RM02 4 3 2x75Ωin/3x75Ωout of Ch1 and 4x75Ωoutput of Ch2
RM10 4 3 2x75Ωin/3x75Ωout per channel with AES (BNC) loop-through of Ch1
RM35** 1 1 2x110Ωin/4x110Ωout per channel
Notes: Table shows no of cards per rear connector.
Passive loop-throughs are independent of the amplifier; the module may be removed
without losing the looped-through source.
*The RM03 uses a 25 way 'D' output connector and the RM11 uses a 26 way High
Density 'D' output connector. **The RM35 uses a DIN41612 64 way a+c connector
For details of fitting rear connectors, please refer to the appropriate frame manual.

Crystal Vision Hardware installation
DADA208 User Manual R3.7 722/08/2016

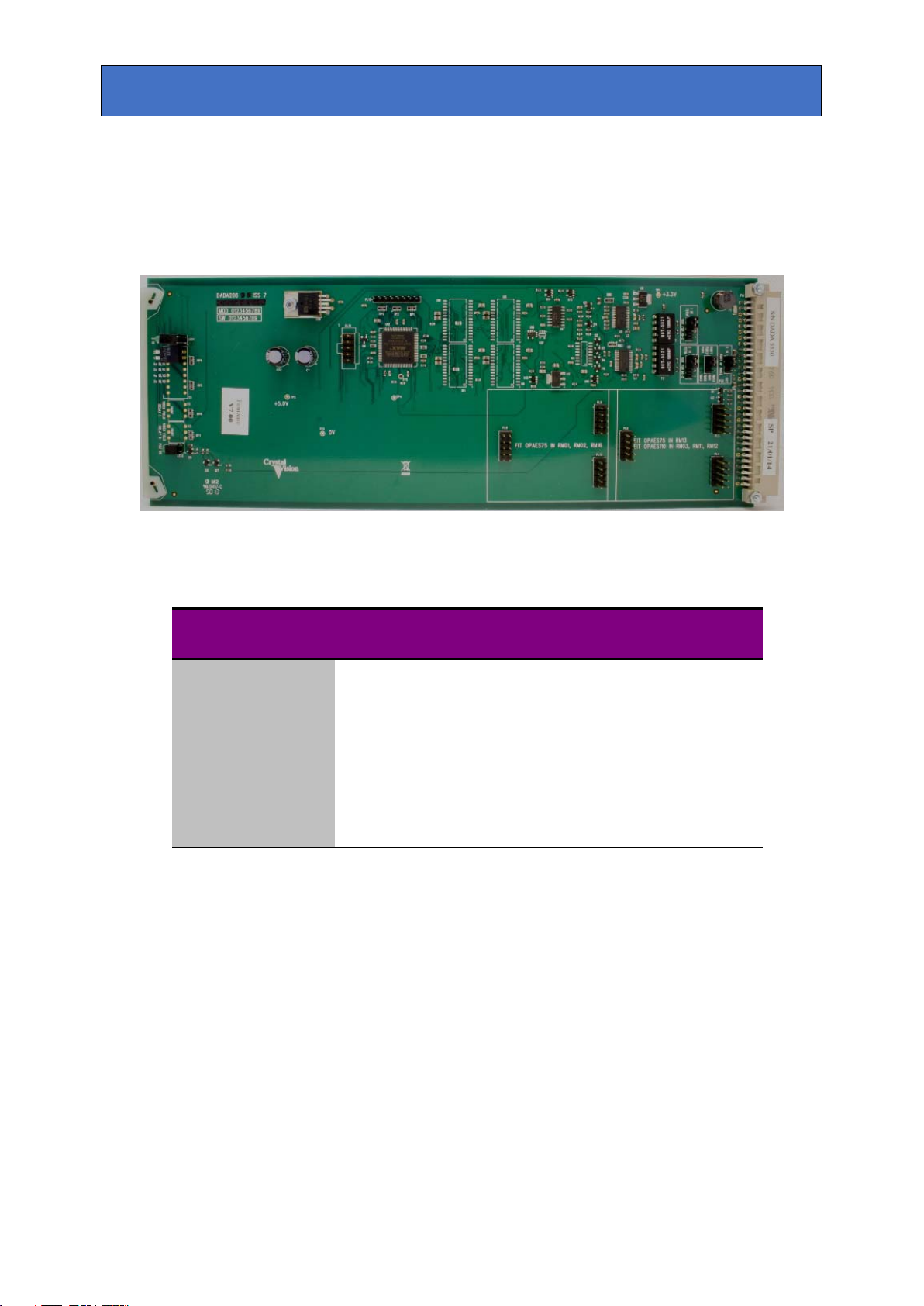

3.2 Selecting the output module
There are two types of output module, one for 75Ωoutputs (OPAES-75) and one for
110Ωoutputs (OPAES-110). The modules are designed to fit in one of two positions near
the edge connector of the board.
DADA208 dual digital audio DA
The position the output module plugs into is dependent on the rear connector fitted as the
following table shows:
Rear Module Input
impedance Output impedance Output module Position
RM01, RM02, RM09,
RM10, RM16 75ΩBNC 75ΩBNC OPAES75 Nearer Handle
(RM01, 02, 16)
RM03, RM11 110ΩD-Type 110ΩD-Type OPAES110 Near edge connector
(RM03, RM11-13)
RM35 110Ω
DIN 41612 110Ω DIN 41612 OPAES110 Near edge connector
(RM03, RM11-13
RM12 75ΩBNC 110ΩD-Type OPAES110 Near edge connector
(RM03, RM11-13)
RM13, RM21 110ΩD-Type 75ΩBNC OPAES75 Near edge connector
(RM03, RM11-13)
Note: Only one piggy-back module should be fitted at any one time.
Silk-screen text for the output module positions may not include later rear connectors
such as the RM09, RM10 and RM21 or RM35.
Fitting the output module
To fit an output module, proceed as follows:
•Offer up the appropriate module to the correct three-header position for the rear
connector in use
•Ensure that the module is component side up
•Press down firmly ensuringthat no pins are bent and that all pins line up with
header sockets

Crystal Vision Hardware installation
DADA208 User Manual R3.7 822/08/2016
3.3 Changing the input termination
Move jumper PL6 (Ch1) and/or PL7 (Ch2) to the appropriate position to set the input
termination to 110Ω, 75Ωor high impedance.
Input 1 termination
PL 6 position Termination Rear connector
110R position (top) Terminated 110 Ω
RM03, RM11, RM35
75R position (middle) Terminated 75 ΩRM01, RM02, RM12,
*RM09, RM10, RM16
Hi-Z position (bottom) High-impedance *RM09, RM10, RM16
Input 2 termination
PL 7 position Termination Rear connector
110R position (top) Terminated 110 ΩRM03, RM11, RM35
75R position (top) Terminated 75 ΩRM01, RM02, RM12,
RM09, RM10, RM16
Hi-Z position (bottom) High-impedance Not applicable
Configuration jumpers PL6 and PL7 can be found near the edge connector of the board.

Crystal Vision Hardware installation
DADA208 User Manual R3.7 922/08/2016

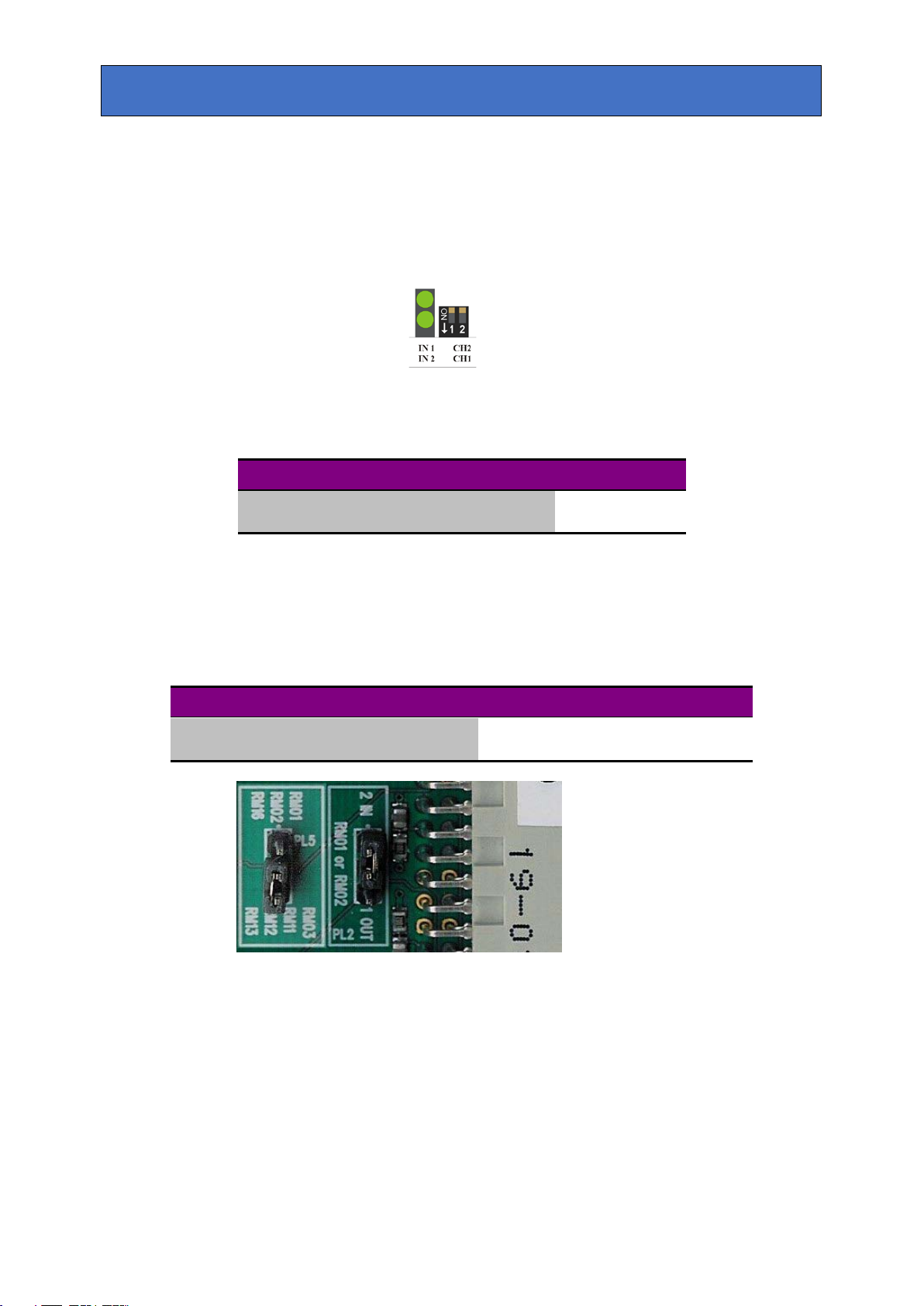

3.4 Selecting single or dual channel mode
The DADA208 may be configured as a single channel (1 x 8) or dual channel (2 x 4)
digital audio distribution amplifier using the board edge switch.
The channel mode is selected by changing the input source for channel 2 using S1 switch
2 as follows:
DADA208 single/dual configuration PL12 Position
4+4 outputs (2-channel mode) CH2 (up)
8 outputs, all from input 1 (1-channel mode) CH1 (down)
3.5 Configuring the second channel input
The second channel input requires that jumper PL5 is placed in accordance with the
following table:
Rear Module PL5 position
RM01, RM02, RM09, RM10, RM16 RM01, RM02, RM16 (top)
RM03, RM11, RM12, RM13, RM21, RM35 RM03, RM11, RM12, RM13 (bottom)
This information is also available in the pin-out tables for each rear connector.
Configuration jumper PL5 can be found near the edge connector of the board.

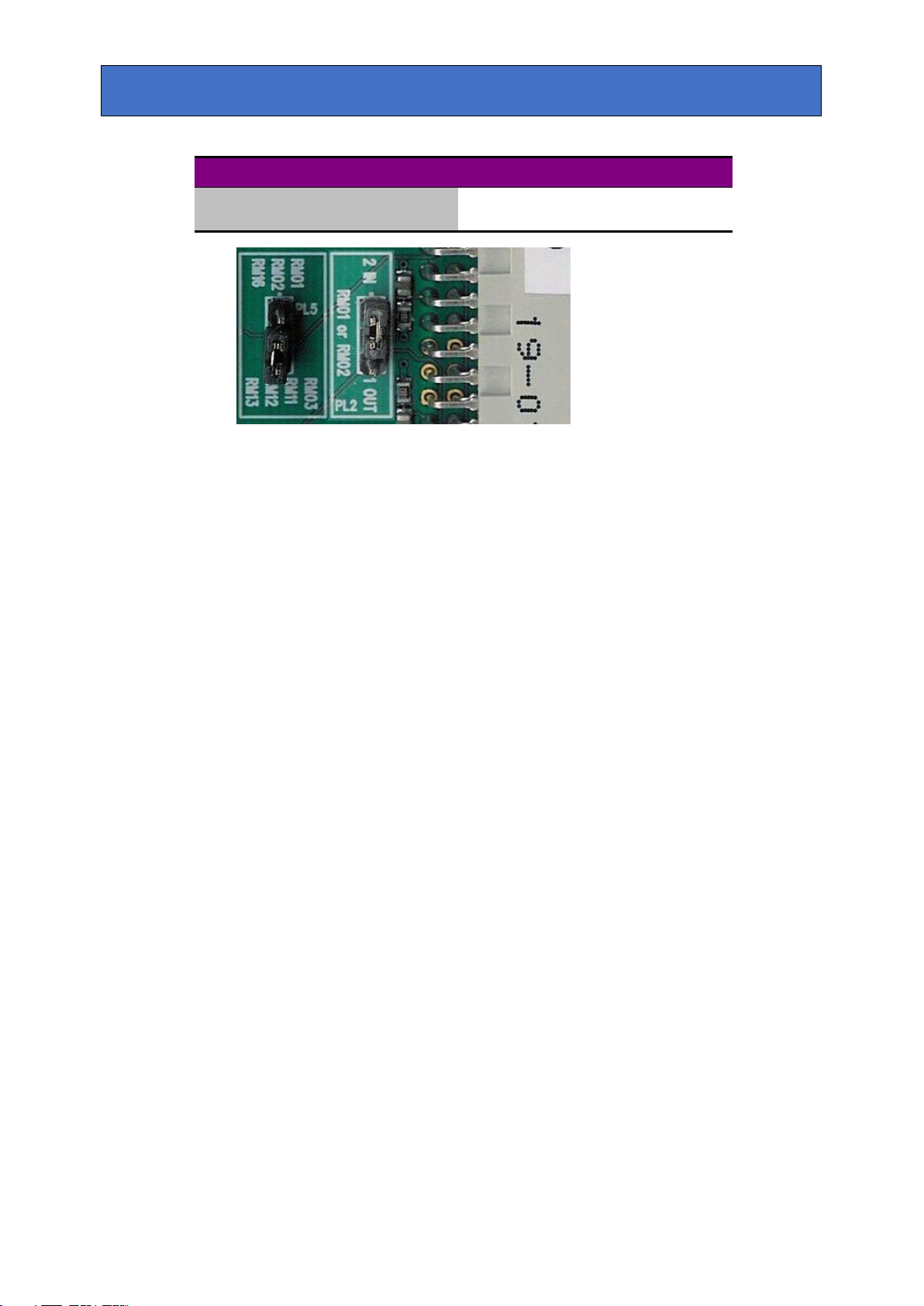

3.6 Obtaining an extra output in 1-channel mode
When the distribution amplifier is in 1-channel mode with an RM01, RM02 or RM10 rear
connector it is possible to configure the second channel input connection as an output
using PL2 as follows:

Crystal Vision Hardware installation
DADA208 User Manual R3.7 10 22/08/2016
'CH2 IN' (RM01), '2' (RM02/RM10) PL2 position
Channel 2 input 2 IN (top - default)
Output in 1-channel mode 1 OUT (bottom)
This information is also available in the pin-out tables for each rear connector.
Configuration jumper PL2 can be found near the edge connector of the board.

Crystal Vision Hardware installation
DADA208 User Manual R3.7 11 22/08/2016
3.7 Universal rear connector pinout

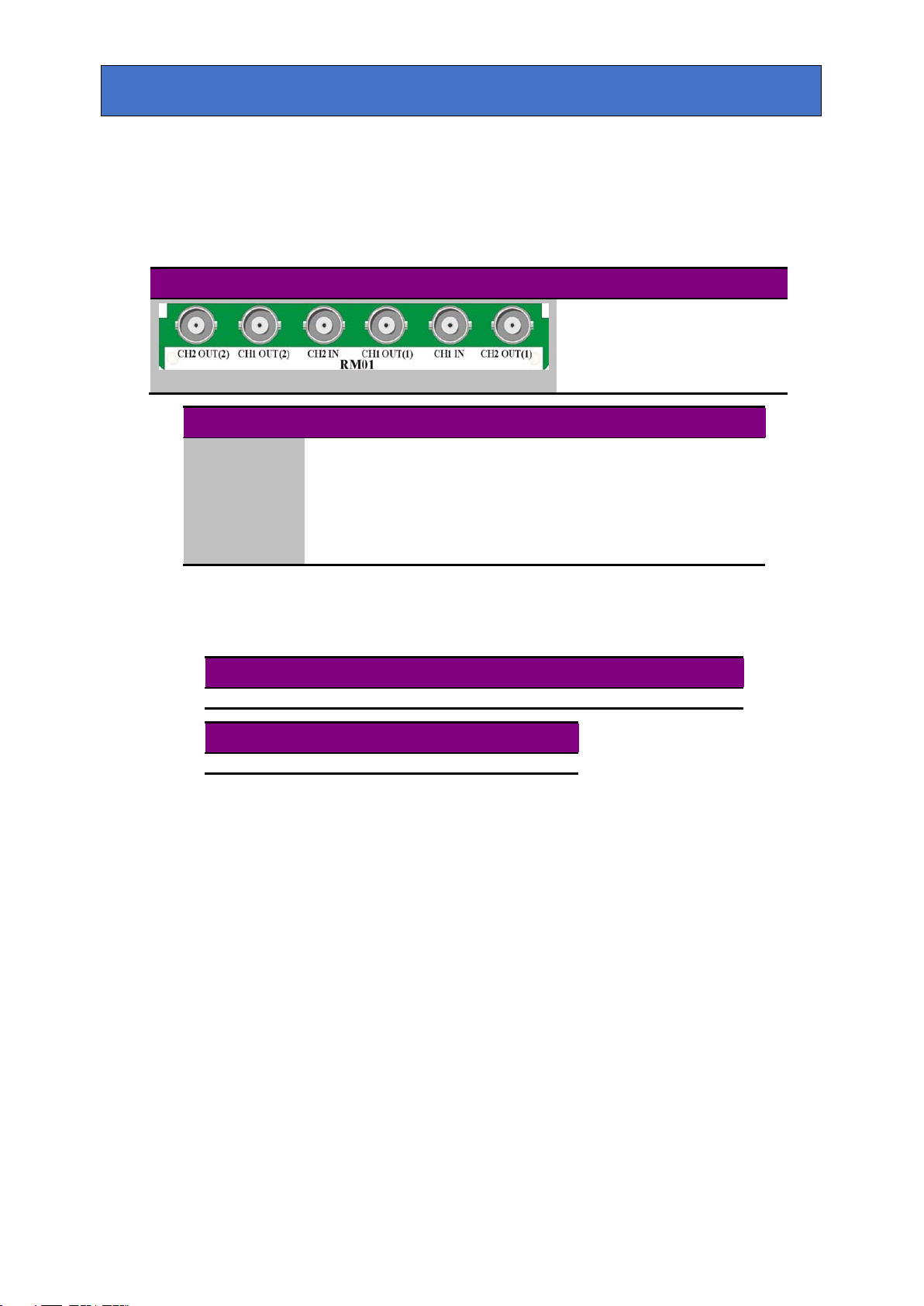

75Ωdigital audio connections with RM01
RM01 fits in all frames Description
RM01 (ZLA00091 artwork)
•24 modules in 4U, 12
modules in 2U, 6 in 1U & 2
in a DTB
• All frame slots can be used
BNC Dual-channel configuration Single-channel configuration
CH2 OUT(1) Output CH2 Output CH1
CH1 IN Input CH1 Input CH1
CH1 OUT(1) Output CH1 Output CH1
CH2 IN Input CH2* Output CH1*
CH1 OUT(2) Output CH1 Output CH1
CH2 OUT(2) Output CH2 Output CH1
Note:
*Channel 2 input can be configured as an output if PL2 is moved to the ‘1 OUT’ position.
DADA208 input link & output board configuration:-
PL6 position PL7 position PL2 position PL5 position
75R 75R See note. RM01, RM02, RM16
Output module type Output module position
OPAES75 RM01, RM02, RM16

Crystal Vision Hardware installation
DADA208 User Manual R3.7 12 22/08/2016
75Ωdigital audio connections with RM09 (obsolete)
RM09 fits in all frames Description
RM09 (ZLA00092 artwork)
•24 modules in 4U, 12
modules in 2U, 6 in 1U & 2
in a DTB
•
All frame slots can be used
BNC Dual-channel configuration Single-channel configuration
IN Input CH 1 Input CH1
LOOP IN Input CH1 Loop-Through Input CH 1 Loop-Through
OUT 1 Output CH 1 Output CH1
OUT 2 Input CH 2* Not used
OUT 3 Output CH 1 Output CH1
OUT 4 Output CH 2 Output CH1
Note:
*Channel 2 input can NOT be configured as an extra output.
DADA208 input link & output board configuration:-
PL6 position PL7 position PL2 position PL5 position
Hi-Z or 75R 75R 2 IN RM01, RM02, RM16
Output module type Output module position
OPAES75 RM01, RM02, RM16

Crystal Vision Hardware installation
DADA208 User Manual R3.7 13 22/08/2016
75Ωdigital audio connections with RM16
RM16 fits in all frames Description
RM16 (ZLA000152 artwork)
•12 modules in 4U, 6 modules in
2U , 3 in 1U, 1 in a DTB
•1 module per rear connector
•6 connections available
•Card fits in upper slot
•No card fits in lower slot
BNC Dual-channel configuration Single-channel configuration
OUT 1A Output CH 1 Output CH 1
CH2 IN Input CH 2 Not used
OUT 1C Output CH 1 Output CH 1
OUT 1D Output CH 1 Output CH 1
OUT 2B Output CH 2 Output CH 1
OUT 2D Output CH 2 Output CH 1
CH1 IN Input CH 1 Input CH 1
LOOP IN CH1 Input CH 1 Loop-Through Input CH 1 Loop-Through
OUT 1B Output CH 1 Output CH 1
OUT 2A Output CH 2 Output CH 1
N/C No connection No connection
OUT 2C Output CH 2 Output CH 1
Note:
*Channel 2 input can NOT be configured as an extra output.
DADA208 input link & output board configuration:-
PL6 position PL7 position PL2 position PL5 position
Hi-Z or 75R 75R 2 IN RM01, RM02, RM16
Output module type Output module position
OPAES75 RM01, RM02, RM16

Crystal Vision Hardware installation
DADA208 User Manual R3.7 14 22/08/2016

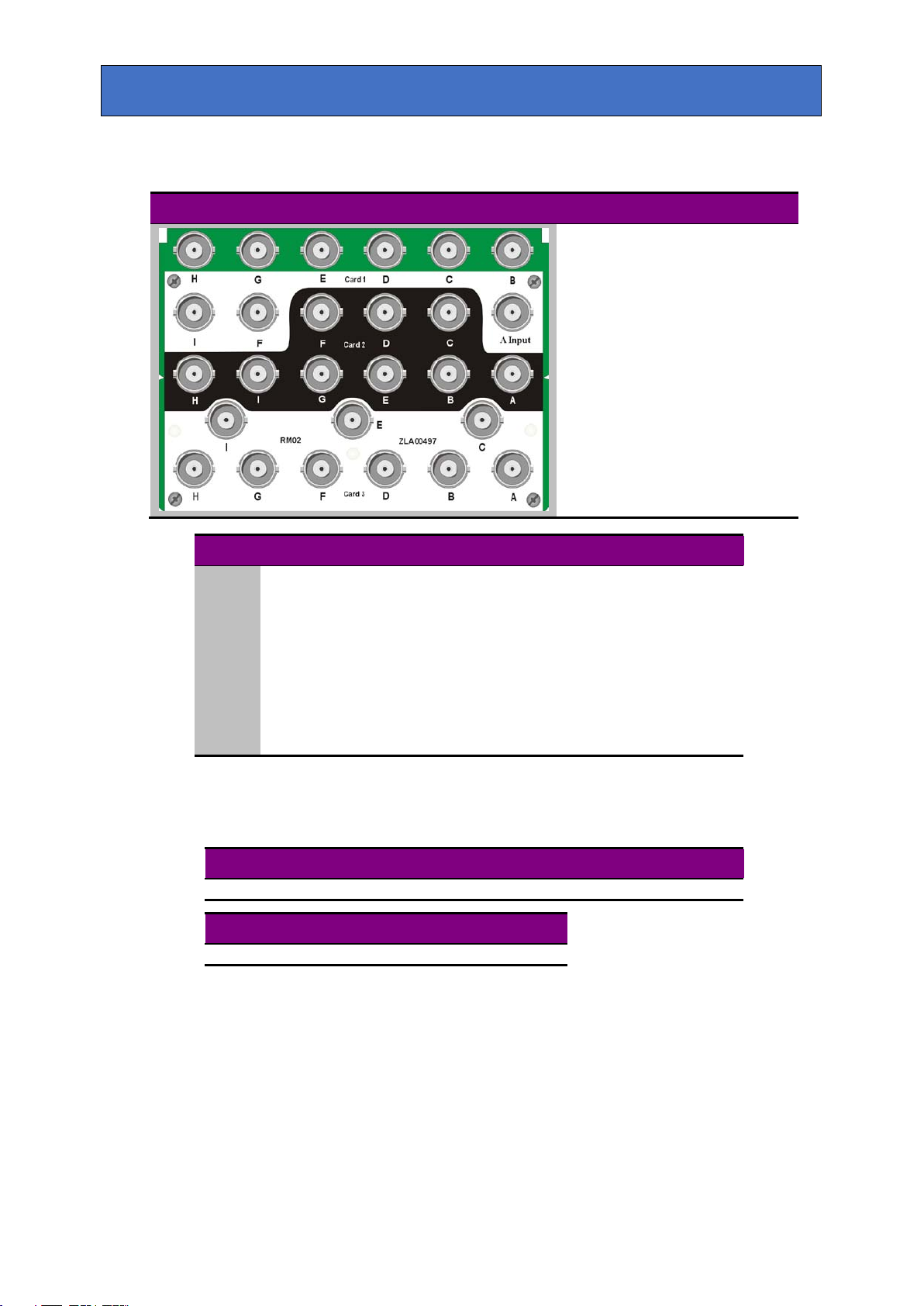

75Ωdigital audio connections with RM02
RM02 fits in a 2U or 4U frame Description
RM02
•18 modules per 4U frame
•9 modules per 2U frame
•3 modules per rear connector
•9 connections available
•Card 1 fits in slots 1, 5 and 9
•Card 2 fits in slots 2, 6 and 10
•Card 3 fits in slots 4, 8 and 12
•No card fits in 3, 7 or 11
BNC Dual-channel configuration Single-channel configuration
A Input 1 Input 1
B
Output 1
Output 1
C Input 2* Output 1*
D Output 1 Output 1
E Output 1 Output 1
F
Output 2
Output 1
G Output 2 Output 1
H Output 2 Output 1
I Output 2 Output 1
Note:
*Channel 2 input can be configured as an output if PL2 is moved to the ‘1 OUT’ position.
DADA208 input link & output board configuration:-
PL6 position PL7 position PL2 position PL5 position
75R 75R See note.
RM01, RM02, RM16
Output module type Output module position
OPAES75 RM01, RM02, RM16

Crystal Vision Hardware installation
DADA208 User Manual R3.7 15 22/08/2016

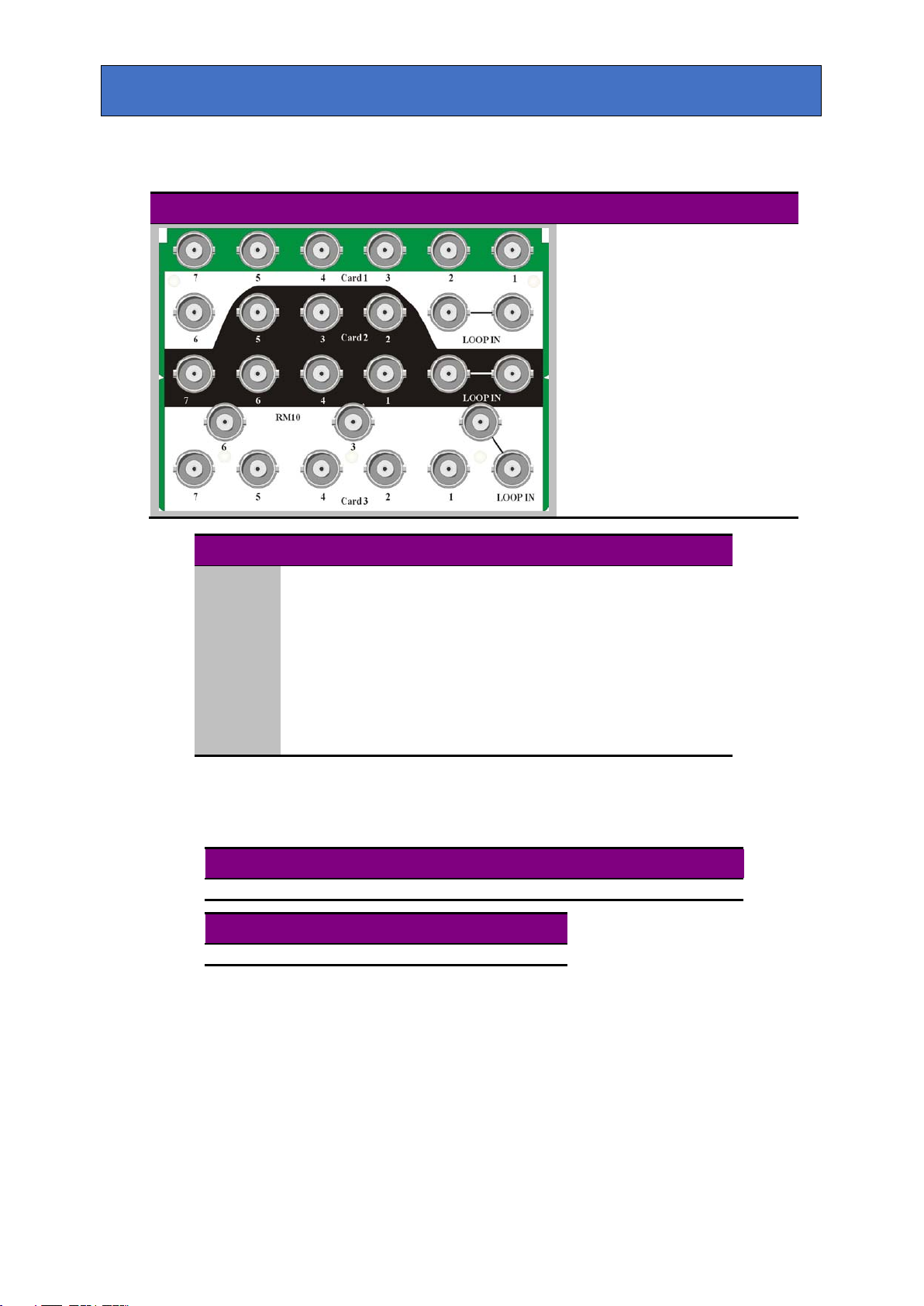

75Ωdigital audio connections with RM10 (obsolete)
RM10 fits in a 2U or 4U frame Description
RM10 (ZLA000121 artwork)
•18 modules per 4U frame
•9 modules per 2U frame
•3 modules per rear connector
•9 connections available
•Card 1 fits in slots 1, 5 and 9
•Card 2 fits in slots 2, 6 and 10
•Card 3 fits in slots 4, 8 and 12
•No card fits in 3, 7 or 11
BNC Dual-channel configuration Single-channel configuration
LOOP-IN Input 1 Input 1
LOOP-IN
Input 1 Loop-Through
Input 1 Loop-Through
1 Output 1 Output 1
2 Input 2* Output 1*
3 Output 1 Output 1
4
Output 1
Output 1
5 Output 2 Output 1
6 Output 2 Output 1
7 Output 2 Output 1
Note:
*Channel 2 input can be configured as an output if PL2 is moved to the ‘1 OUT’ position.
DADA208 input link & output board configuration:-
PL6 position PL7 position PL2 position PL5 position
Hi-Z or 75R 75R See note.
RM01, RM02, RM16
Output module type Output module position
OPAES75 RM01, RM02, RM16

Crystal Vision Hardware installation
DADA208 User Manual R3.7 16 22/08/2016
110ΩIN/75ΩOUT digital audio connections with RM13
RM13 fits in all frames Description
RM13 (ZLA000118 artwork)
•12 modules in 4U, 6 modules in
2U , 3 in 1U, 1 in a DTB
•1 module per rear connector
•6 connections available
•Card fits in upper slot
•No card fits in lower slot
110 Ω digital audio In 15-way D-type socket
Pin Dual-channel configuration Single-channel configuration
10 Audio Input 1 + Audio Input 1 +
9 Audio Input 1 - Audio Input 1 -
1 Input 1 Screen Input 1 Screen
2 Input 2 + Not used
3 Input 2 - Not used
14 Input 2 Screen Not used
75 Ω digital audio out BNC
BNC Dual-channel configuration Single-channel configuration
Out 1A Output 1 Output 1
Out 1B Output 1 Output 1
Out 1C
Output 1
Output 1
Out 2A Output 2 Output 1
Out 2B Output 2 Output 1
Out 2C Output 2 Output 1
IN REF1 No Connection No Connection
IN REF2 No Connection No Connection
LOOP REF1 No Connection No Connection
DADA208 input link & output board configuration:-
PL6 & PL7 position PL2 position PL5 position
110R 2 IN RM03, RM11, RM12, RM13
Output module type Output module position
OPAES75
RM03, RM11, RM12, RM13

Crystal Vision Hardware installation
DADA208 User Manual R3.7 17 22/08/2016

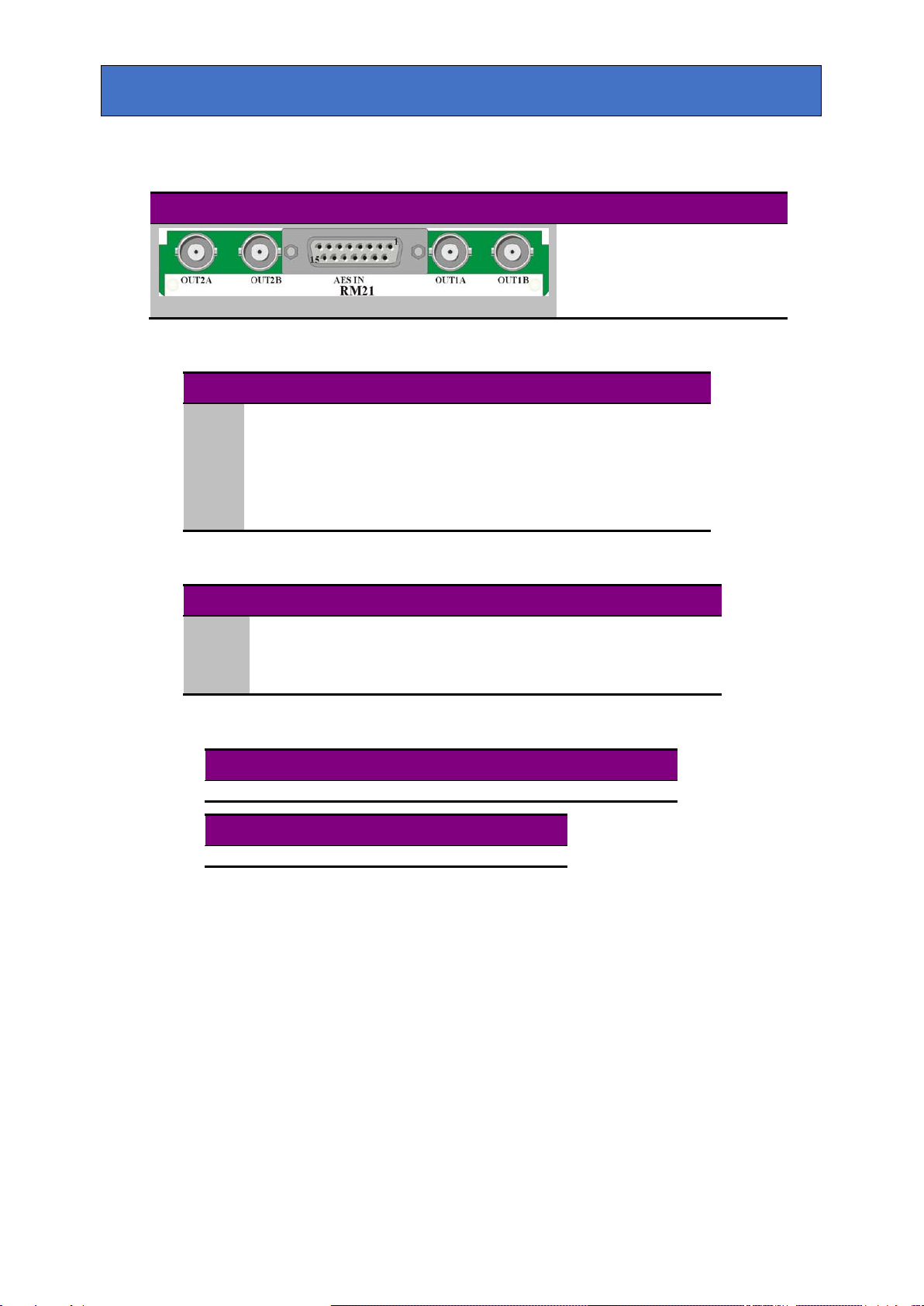

110ΩIN/75ΩOUT digital audio connections with RM21
RM21 fits in all frames Description
RM21 (ZLA000155 artwork)
•24 modules in 4U, 12
modules in 2U, 6 in 1U & 2
in a DTB
•
All frame slots can be used
110 Ω digital audio In 15-way D-type socket
Pin Dual-channel configuration Single-channel configuration
10 Audio Input 1 + Audio Input 1 +
9 Audio Input 1 - Audio Input 1 -
1 Input 1 Screen Input 1 Screen
2 Input 2 + Not used
3 Input 2 - Not used
14 Input 2 Screen Not used
75 Ω digital audio out BNC
BNC Dual-channel configuration Single-channel configuration
Out 1A Output 1 Output 1
Out 1B
Output 1
Output 1
Out 2A Output 2 Output 1
Out 2B Output 2 Output 1
DADA208 input link & output board configuration:-
PL6 & PL7 position PL2 position PL5 position
110R 2 IN RM03, RM11, RM12, RM13
Output module type Output module position
OPAES75 RM03, RM11, RM12, RM13

Crystal Vision Hardware installation
DADA208 User Manual R3.7 18 22/08/2016
75ΩIN/110ΩOUT digital audio connections with RM12
RM12 fits in all frames Description
RM12 (ZLA00095 artwork)
•24 modules in 4U, 12
modules in 2U, 6 in 1U & 2
in a DTB
•
All frame slots can be used
75 Ω digital audio in BNC
BNC Dual-channel configuration Single-channel configuration
1 AES input 1 AES input 1
2 AES input 2 Not used
110 Ω digital audio out 25-way D-type socket
Pin Dual-channel configuration Single-channel configuration
5 Output 1 + Output 1 +
6 Output 1 - Output 1 -
7 Output 1 + Output 1 +
8 Output 1 - Output 1 -
18 Output 1 + Output 1 +
19 Output 1 - Output 1 -
20 Output 1 + Output 1 +
21 Output 1 - Output 1 -
4 Output 1 Screen Output 1 Screen
9 Output 2 + Output 1 +
10 Output 2 - Output 1 -
11 Output 2 + Output 1 +
12 Output 2 – Output 1 -
22 Output 2 + Output 1 +
23 Output 2 - Output 1 -
24 Output 2 + Output 1 +
25 Output 2 - Output 1 -
13 Output 2 Screen Output 1 Screen
DADA208 input link & output board configuration:-
PL6 & PL7 position PL2 position PL5 position
75R 2 IN RM03, RM11, RM12, RM13
Output module type Output module position
OPAES110 RM03, RM11, RM12, RM13

Crystal Vision Hardware installation
DADA208 User Manual R3.7 19 22/08/2016
110ΩIN/110ΩOUT digital audio connections with RM11
RM11 fits in all frames Description
RM11 (ZLA00093 artwork)
•24 modules in 4U, 12
modules in 2U, 6 in 1U & 2
in a DTB
•
All frame slots can be used
110 Ω digital audio in 15 way D-type socket
Pin Dual-channel configuration Single-channel configuration
10 Audio Input 1 + Audio Input 1 +
9 Audio Input 1 - Audio Input 1 -
1 Input 1 Screen Input 1 Screen
2 Input 2 + Not used
3 Input 2 - Not used
14 Input 2 Screen Not used
110 Ω digital audio out 26 way High Density D-type socket
Pin Dual-channel configuration Single-channel configuration
10 Output 1 + Output 1 +
11 Output 1 - Output 1 -
12 Output 1 + Output 1 +
13 Output 1 - Output 1 -
14 Output 1 + Output 1 +
15 Output 1 - Output 1 -
16 Output 1 + Output 1 +
17 Output 1 - Output 1 -
9 Output 1 Screen Output 1 Screen
2 Output 2 + Output 1 +
3 Output 2 - Output 1 -
4 Output 2 + Output 1 +
5 Output 2 – Output 1 -
6 Output 2 + Output 1 +
7 Output 2 - Output 1 -
8 Output 2 + Output 1 +
18 Output 2 - Output 1 -
19 Output 2 Screen Output 1 Screen
DADA208 input link & output board configuration:-
PL6 & PL7 position PL2 position PL5 position
110R 2 IN RM03, RM11, RM12, RM13
Output module type Output module position
OPAES110 RM03, RM11, RM12, RM13
Note:
Ref In BNC is not used.
