Crystal Vision Indigo MADDA 105 User manual

MADDA 105 AND
MADDA 111
MADI (AES10) distribution amplifiers
Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.
Tel: [phone] Fax: [phone] [e-mail] www.crystalvision.tv

Crystal Vision MADDA105/111 User Manual
Contents
1Introduction 2
2Hardware installation 4
2.1 Card installation 4
2.2 Rear module installation 4
Link configuration 5
3Rear module connections 6
3.1 MADDA105 6
3.2 MADDA111 7
4General Purpose Interface 9
4.1 GPI Connections 9
2U frame GPI Connections 9
1U frame GPI connections 10
Indigo DT desk top box GPI connections 10
5Card edge monitoring 11
MADDA105 and MADDA111 11
6Troubleshooting 12
Card edge monitoring 12
Fault finding guide 12
7Specification 13
MADDA105/111 User Manual R1.0 109 August 2016

Crystal Vision Introduction
1Introduction
Designed for transporting a large amount of audio as a block, MADI (AES10) is an audio
signal format used for getting many channels of audio down a single coax cable, with these
multiple AES streams packed together and sent with a higher data rate.
The MADDA105 and MADDA111 audio distribution amplifiers take in a MADI (AES10) data
stream usually containing up to 64 mono audio channels and create multiple copies of this
data stream which can then be sent to different places.
MADDA105 has five outputs and MADDA111 has 11 outputs to provide audio distribution to
all audio areas.
MADDA105 and MADDA111 support the industry standard payload of 64 channels at a
sampling rate of 48 kHz, with sampling rates up to 96 kHz also supported for those requiring
fewer channels in return for the cleanest possible sound.
MADDA105 and MADDA111 include useful signal monitoring, providing both LED and GPI
output indication of signal presence, as well as on-board power supplies fault.
MADDA105/111 User Manual R1.0 209 August 2016

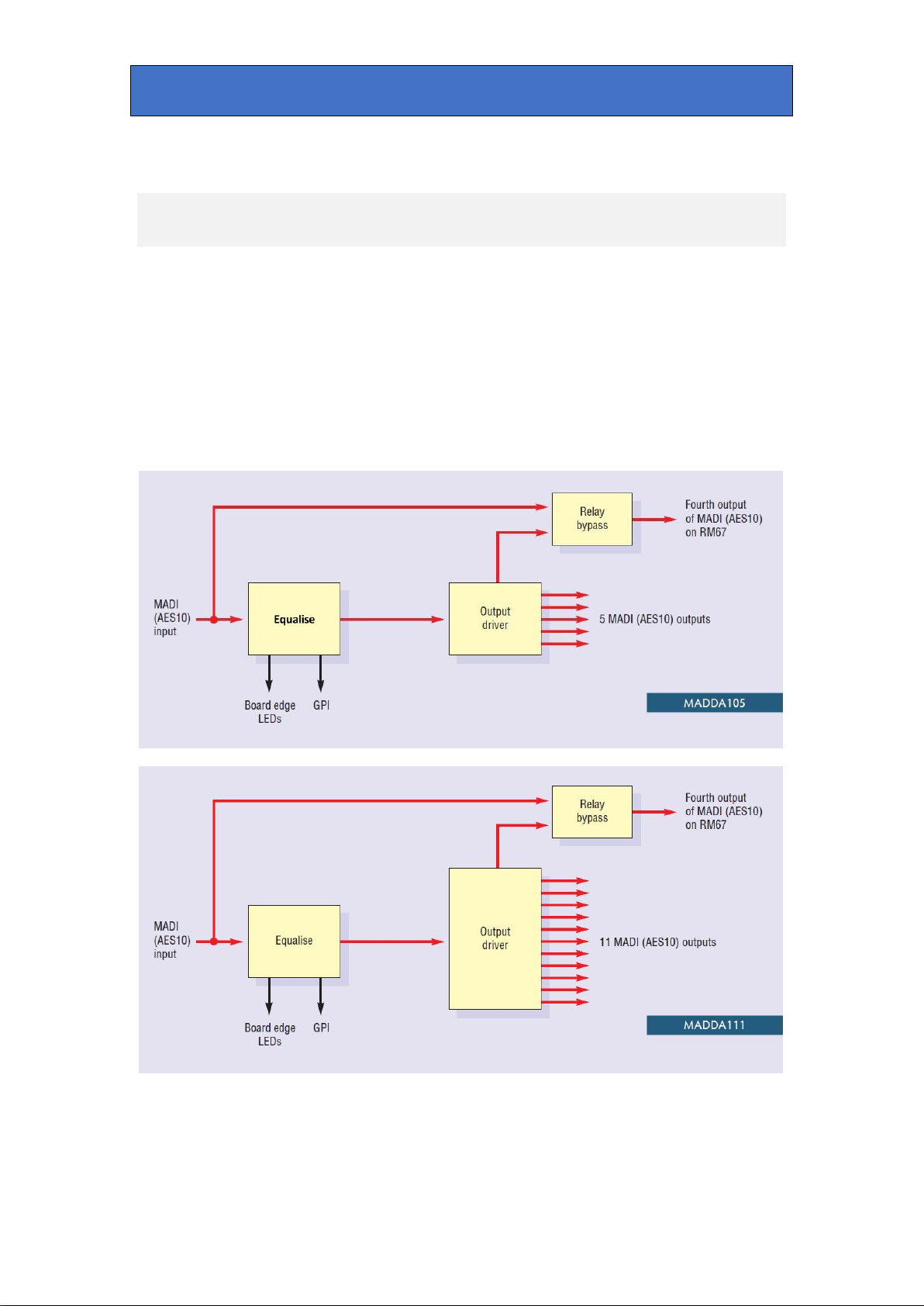

Crystal Vision Introduction
The MADI distribution amplifiers fit in Crystal Vision’s Indigo frames (available in 2U, 1U and
desk top box sizes) alongside the other products and offer a choice of rear modules to suit
your budget and application.
MADDA105 is a space-saving 100mm x 266mm module which sits in one frame slot allowing
up to 12 MADI DAs in 2U. It uses the RM41 or RM67 frame rear modules to access the one
MADI input and five MADI outputs.
MADDA111 is a ‘double decker’ 100mm x 266mm module which sits in two frame slots
allowing up to six MADI DAs in 2U. It uses either the RM41 and RM34 frame rear modules
together or the RM67 and RM34 rear modules together to access the one MADI input and
eleven MADI outputs.
MADDA105 and MADDA111 meet the AES10-2008 specification and allow 56 channels at
sample rates from 32 to 48 kHz with a tolerance of ±12.5%, a nominal 64 channels at sample
rates from 32 to 48 kHz, and 28 channels at sample rates from 64 to 96 kHz with a tolerance
of ±12.5%.
The universal connection system allows a mixture of Crystal Vision modules in the frame.
The modules plug in the front and the rear connectors plug in the rear. Depending on frame
design, a hinged or removable front panel reveals LED indications of input present and PSU
status when opened.
MADDA105/111 User Manual R1.0 309 August 2016

Crystal Vision Hardware installation
2Hardware installation
MADDA105 card
MADDA111 card with piggyback board
2.1 Card installation
The MADDA105 and MADDA111 distribution amplifiers fit into all Crystal Vision rack frames.
All modules can be plugged in and removed while the frame is powered without damage.
Indigo frames have card retention brackets which must be unscrewed to allow access to the
board carriers (see Indigo frame manual for more details). The brackets should be re-fitted,
particularly so for mobile installations.
Make sure that the correct rear module for the card is fitted. Note that the MADDA111 has a
piggyback board and two rear modules need to be fitted in the correct order – see section
Rear module connections.
Ensure that the boards are correctly fitted into both card guides and press firmly home using
the plastic card handle.
2.2 Rear module installation
Firstly, remove the EMC covers from the rear module slot position. Fit the rear module onto
the frame rear connector and screw into position. Ensure the rear module is in the correct
slot. When viewed from the rear, slots number from top to bottom and right to left. Slot one is
the top right slot. See Indigo frame User Manual for more information.
MADDA105/111 User Manual R1.0 409 August 2016

Crystal Vision Hardware installation
Link configuration
There are no user-settable links or controls on either the MADDA105 or the MADDA111.
MADDA105/111 User Manual R1.0 509 August 2016

Crystal Vision Rear module connections
3 Rear module connections
The 2U Indigo 2 frame will house up to 12 single height modules or six dual height modules
and dual power supplies. The 1U Indigo 1 frame will house six single height modules or three
dual height modules and a single or dual power supply. The Indigo DT desk top boxes have a
built-in power supply and will house up to two single height modules or a single dual height
module.
Note: For details of fitting rear connectors please refer to the appropriate frame manual.
MADDA105 can support the following rear modules: RM41 and RM67. The RM41 has a
single MADI input and five MADI outputs and the RM67 has the same number of inputs and
outputs but includes relay bypass whereby the MADI input is automatically routed to one of
the outputs in the event of power failure. Both rear modules are single height.
MADDA111 supports the RM41 and RM67 but in addition must use the RM34 rear module to
accommodate the plug in card that provides the additional outputs. The combination of RM41
+ RM34 or RM67 + RM34 make a combined double height rear module. The RM34 rear
module must always be fitted in the top position.
3.1 MADDA105
RM41 fits in all frames Description
RM41
•12 modules in 2U
•Six in 1U
•Two in a DTB
•All slots can be used
BNC RM41 I/O assignment
MADI IN MADI (AES10) digital audio input
MADI OUT 1 MADI (AES10) digital audio output
MADI OUT 2 MADI (AES10) digital audio output
MADI OUT 3 MADI (AES10) digital audio output
MADI OUT 4
MADI (AES10) digital audio output
MADI OUT 5 MADI (AES10) digital audio output
MADDA105/111 User Manual R1.0 609 August 2016

Crystal Vision Rear module connections

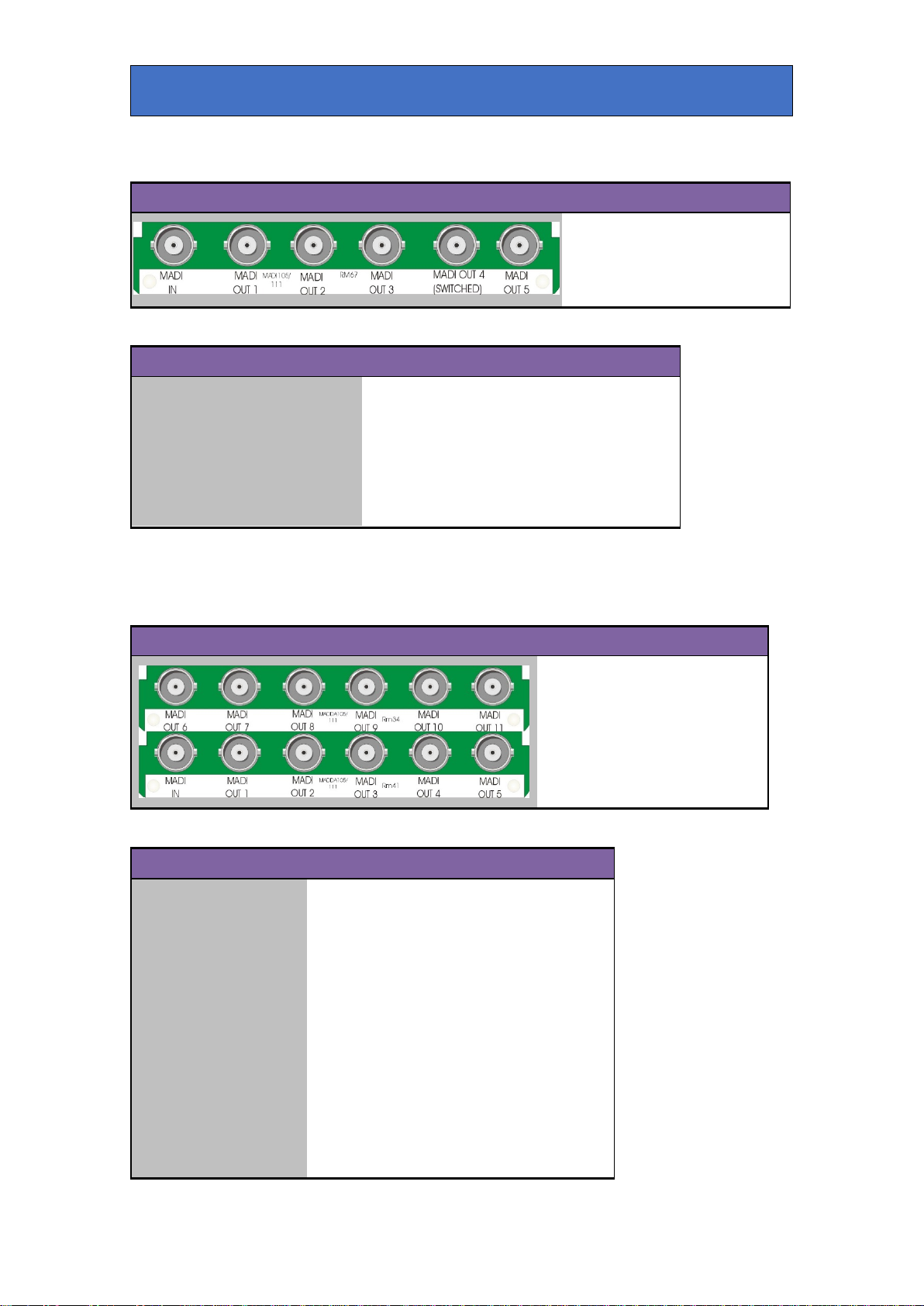

RM67 fits in all frames
Description
RM67
•12 modules in 2U
•Six in 1U
•Two in a DTB
•All slots can be used
BNC RM67 I/O assignment
MADI IN MADI (AES10) digital audio input
MADI OUT 1 MADI (AES10) digital audio output
MADI OUT 2 MADI (AES10) digital audio output
MADI OUT 3 MADI (AES10) digital audio output
MADI OUT 4 (SWITCHED) Switched MADI (AES10) digital audio output
MADI OUT 5 MADI (AES10) digital audio output
3.2 MADDA111
RM41 + RM34 fits in all frames Description
RM41 + RM34
•Six in 2U
•Three in 1U
•One in a DTB
•Two slots used for each
card
BNC RM41 + RM34 I/O assignment
MADI IN MADI (AES10) digital audio input
MADI OUT 1 MADI (AES10) digital audio output 1
MADI OUT 2 MADI (AES10) digital audio output 2
MADI OUT 3 MADI (AES10) digital audio output 3
MADI OUT 4 MADI (AES10) digital audio output 4
MADI OUT 5 MADI (AES10) digital audio output 5
MADI OUT 6 MADI (AES10) digital audio output 6
MADI OUT 7 MADI (AES10) digital audio output 7
MADI OUT 8 MADI (AES10) digital audio output 8
MADI OUT 9 MADI (AES10) digital audio output 9
MADI OUT 10 MADI (AES10) digital audio output 10
MADI OUT 11 MADI (AES10) digital audio output 11
MADDA105/111 User Manual R1.0 709 August 2016

Crystal Vision Rear module connections
RM67 + RM34 fits in all frames
Description
RM67 + RM34
•Six in 2U
•Three in 1U
•One in a DTB
•Two slots used for each
card
BNC RM67 + RM34 I/O assignment
MADI IN MADI (AES10) digital audio input
MADI OUT 1 MADI (AES10) digital audio output 1
MADI OUT 2 MADI (AES10) digital audio output 2
MADI OUT 3 MADI (AES10) digital audio output 3
MADI OUT 4 (SWITCHED) Switched MADI (AES10) digital audio output 4
MADI OUT 5 MADI (AES10) digital audio output 5
MADI OUT 6 MADI (AES10) digital audio output 6
MADI OUT 7 MADI (AES10) digital audio output 7
MADI OUT 8 MADI (AES10) digital audio output 8
MADI OUT 9 MADI (AES10) digital audio output 9
MADI OUT 10 MADI (AES10) digital audio output 10
MADI OUT 11 MADI (AES10) digital audio output 11
MADDA105/111 User Manual R1.0 809 August 2016

Crystal Vision General Purpose Interface
4 General Purpose Interface
The external GPI control lines 'a' to 'f' at the frame remote connectors are provided to allow
remote control and/or remote status indication. Line 'a' is assigned as a GPI output to provide
remote indication of input presence.
The GPI output is fitted with 6800 ohm pull-up to +5V and 270ohm series resistor so it can
drive an LED directly. If the series resistor is shorted out, it can drive a bulb at +45V 500mA
max.
4.1 GPI Connections
Not asserted (nominally 5Vdc) Asserted (<0.5Vdc)
‘a’
No input Input present
‘b’ PSU fault PSU OK
‘c-f’
Not assigned Not assigned
The following tables show the GPI pinout for each frame:
2U frame GPI Connections
GPI lines ‘a’ to ‘f’ of each card connect to one of four rear remote connectors as follows:
Slot no ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
8 (3)
9 (3)
18 (3)
26 (3)
19 (4)
20 (4)
4
7 (3)
16 (3)
17 (3)
25 (3)
10 (4)
11 (4)
5
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
6
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
7
5 (3)
6 (3)
15 (3)
24 (3)
1 (4)
2 (4)
8
4 (3)
14 (3)
13 (3)
23 (3)
3 (4)
4 (4)
9
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
10
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
11
3 (3)
12 (3)
22 (3)
21 (3)
12 (4)
13 (4)
12
10 (3)
11 (3)
19 (3)
20 (3)
21 (4)
22 (4)
Table shows Pin number (Remote number)
Note:
Remote 1 and Remote 3 are 26 way high-density D-Type female sockets. Frame
ground is pin 2 and +5V @500mA is pin 1 in each case.
Remote 2 and Remote 4 are 26 way high-density D-Type male plugs and frame
ground is pin 6 in each case and +5V @500mA is pin 15 on Remote 2.
The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-4 to approximately 1A.
MADDA105/111 User Manual R1.0 909 August 2016

Crystal Vision General Purpose Interface
1U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of two rear remote connectors as follows:
Slot no ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
4
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
5
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
6
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
Table shows Pin number (Remote number)
Note:
Remote 1: 26 way high-density D-Type female socket. Frame ground is pin 2 and
+5V @500mA is pin 1.
Remote 2: 26 way high-density D-Type male plugs and frame ground is pin 6 and
+5V @500mA is pin 15
The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-2 to approximately 1A.
Indigo DT desk top box GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to the rear remote connector as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
Table shows pin number (remote number)
Note:
Remote 1: 26 way high-density D-Type female socket. Frame ground is pin 2 and
+5V @500mA is pin 1.
Remote 2: 26 way high-density D-Type male plugs and frame ground is pin 6 and
+5V @500mA is pin 15
The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-2 to approximately 1A.
MADDA105/111 User Manual R1.0 10 09 August 2016

Crystal Vision Card edge monitoring
5Card edge monitoring
MADDA105 and MADDA111
The front card-edge of the MADDA105 and MADDA111 provides power rail monitoring and
input signal presence.
Note: Slide switch has no function.
MADDA105/111 front edge view
LED Location/colour Meaning when lit
Input Present Green Valid input detected
PSU OK Green Power supply voltages
present
MADDA105/111 User Manual R1.0 11 09 August 2016

Crystal Vision Troubleshooting
6 Troubleshooting
Card edge monitoring
The card edge provides simple monitoring of the board status. This can be used
as an initial aid to troubleshooting.
Fault finding guide
The Power OK LEDs are not illuminated
Check that the frame PSU is functioning – refer to the appropriate frame manual for detailed
information
Check that the card is seated correctly in the frame
There is no MADI output
Check that a valid MADI input is present (input present LED illuminated) and that any cabling
is intact.
Ensure top piggyback card is correctly fitted for MADDA111.
Check that correct rear module is in place and in correct order for MADDA111.
The MADI output is low quality
Check that the maximum cable length has not been exceeded
MADDA105/111 User Manual R1.0 12 09 August 2016

Crystal Vision Specification
7Specification
General
Dimensions 100mm x 266 mm module with DIN 41612 connector
Weight
MADDA105
140g
MADDA111 200g
Power consumption
MADDA105 2.8W
MADDA111 5.2W
Inputs
Audio
MADI (AES10) >250 metres, Belden 8281 or equivalent
Sampling rates supported (as specified in AES10-2008): 32 kHz
to 48 kHz +/- 12.5%, 56 channels; 32 kHz to 48 kHz nominal, 64
channels; 64 kHz to 96 kHz +/- 12.5%, 28 channels
Outputs
MADDA105 Five non-reclocked MADI (AES10) outputs using RM41 or RM67
frame rear modules.
MADDA111 11 non-reclocked MADI (AES10) outputs using RM41 + RM34 or
RM67 + RM34 frame rear modules
Control and status
Indicators Board edge LEDs for PSU OK and signal present
GPI outputs 2 off PSU OK and signal present.Open collector transistors 30V,
270 ohm current limit resistors. Pulled up to +5V through 6800
ohm
Controls None
MADDA105/111 User Manual R1.0 13 09 August 2016
