Crystal Vision Indigo 2AE User manual

Indigo 2AE and Indigo
2SE CoolFlow
2U frames
Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.
Tel: [phone] Fax: [phone] [e-mail] www.crystalvision.tv

Crystal Vision Indigo 2AE and 2SE User Manual
Contents
1Introduction 4
2Installation 7
2.1 General Safety Summary 7
2.2 Rack mounting and ventilation 8
2.3 Frame connectors 9
Connecting mains cables 9
2.4 Configuration Switches 11
2.5 Configuration Switch Settings 12
2.6 Connector pin out 13
2.7 Installing Crystal Vision modules 15
2.8 Indigo power supplies 18
3Control 20
3.1 Setting up and connecting 21
Set up the PC’s Local Area Connection 21
Setting Default IP address 22
Recovery Mode 22
4VisionWeb 24
4.1 VisionWeb ‘Option’ pages 25
About 26
Hardware ID 26
Configuration / Backup-Restore / Auto restore 27
Configuration / Backup-Restore / Manual restore 28
Configuration/Labels 29
Configuration/Network 30
Software Upgrade 31
Diagnostics 31
Configuration/SNMP 31
4.2 Password protecting frames and slots 35
5Virtual Cards 38
5.1 Introduction 38
5.2 What you will need 38
5.3 Summary of what you have to do 38
Indigo 2AE and 2SE User Manual R1.17 1 27 February 2020

Crystal Vision Indigo 2AE and 2SE User Manual
5.4 Step by step Instructions with example 39
Choose the controls 39
Rename the template file 41
Edit the template file 41
Check the edited file against the XML schema 45
Transfer the file to the frame 45
6Frame memory 49
6.1 File Structure 49
6.2 Cards 50
6.3 Frame 51
7Operating the Active Panel 52
7.1 Using the front control panel 52
Selecting a module 52
Changing the Network Settings 53
Control Panel keys overview 54
Updating the display 54
Slot numbers 54
Node numbers 55
8Maintenance 56
Inserting and removing power supplies 56
Replacing the PSU fan 58
Replacing a front panel fan 58
Replacing the mains input fuses 60
9Troubleshooting 62
Reading front panel LED status 62
PSU relays 63
Frequently asked questions 63
10 Specification 65
11 Appendix 1 66
11.1 Telnet access to a frame or card 66
12 Appendix 2 67
12.1 Indigo Frame Software prior to v4.6 67
Setting up and connecting 67
Status 68
Changing the IP Address 68
Adding a frame serial number 69
Indigo 2AE and 2SE User Manual R1.17 2 27 February 2020

Crystal Vision Indigo 2AE and 2SE User Manual
Naming 70
Hostname 71
Reset 71
SNMP 72
12.2 SNMP agent 72
Downloading licences 74
12.3 SNMP Quick Start Guide 75
12.4 Updating software 79
13 Appendix 3 81
13.1 Older frames 81
13.2 Configuration Switches 81
Piano switch 81
Selecting the Cooling Mode 81
Terminating the RS422 Statesman chain 82
Frame Address 82
Status LEDs 83
Lower/Upper slot range 83
Configuring PSUs 83
Revision 8
Ethernet control information added.
02/01/07
Revision 9
PSU-160i information added.
01/03/07
Revision10
Note added to Bus IO table, page 10.
29/08/08
Revision 11
Removed Indigo 2A & Indigo 2S frames (obsolete)
and PSU-75i & PSU-150i (obsolete).
16/06/10
Revision 12
FCC Part 15 warning added to page 6.
22/06/11
Revision 13
Removed references to RS422, added frame
software v4.6 info and moved old frame software info
to Appendix.
23/10/13
Revision 14
Added frame software v5.2 and v5.3 info.
Amalgamated 2AE and 2SE manuals
10/06/16
Revision 15
Configuration/Backup-Restore/Auto restore page
changed from 32 slots to 24 slots on page 28.
15/06/17
Revision 16
Added note about new security introduced with frame
software version V5.9 build 16216 to beginning of
page 20.
05/07/18
Revision 17
Updated Configuration/Network information on Page
30. Updated information on number of images
typically required for software upgrade on Page 31.
Amended note on password protecting frames and
slots on Page 36.
27/02/20
Indigo 2AE and 2SE User Manual R1.17 3 27 February 2020

Crystal Vision Introduction
1 Introduction
The Indigo 2AE and 2SE frames are 2U Ethernet enabled frames for up to 12 modules. The
2AE has an integrated front control panel with display; the 2SE has no integrated front control
panel but has additional cooling and is designated the ‘Indigo 2SE CoolFlow’.
There are configurable rear connectors and space for up to two plug-in power supplies. The
dual supply facility allows for redundancy and continued operation in the event of a power
supply failure.
All models have a hinged front panel that allows easy access to removable fan assemblies,
power supplies and modules.
The Indigo 2AE frame with front control panel open

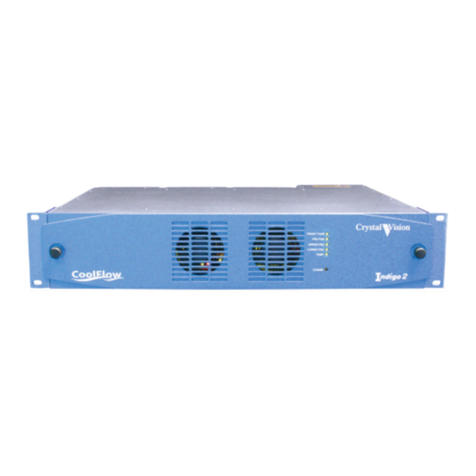

The Indigo 2SE Coolflow front panel.
On the 2SE there are three easily accessible fans. One is fitted on a detachable plate in front of
the PSUs and the other two are attached to the rear of the front panel. The frame can be
operated with the front panel open, with an optical sensor on the front panel switching the PSU
fan on and the front panel fans off. The PSU fan only runs when the frame is open. If one of the
front panel fans should fail or operate too slowly, the other front panel fan is automatically
switched to full power and an alarm asserted. A frame temperature sensor mounted above the
top central module position (slot 5) also controls fan speed. There are two cooling modes:
automatic and maximum. With automatic cooling both front panel fans run continuously,
increasing in speed as the temperature inside the frame goes up. In maximum cooling mode
both front panel fans are set to maximum speed. This mode is ideal for equipment bays where
noise is not a concern.
On the 2AE there are two easily accessible fans. One is fitted on a detachable plate in front of
the PSUs and the other is attached to the rear of the front panel. Only one of the fans is
essential in normal operation. If one of the fans should fail, the closed frame can still operate
indefinitely with an ambient temperature of 40 degrees. A frame temperature sensor mounted
Indigo 2AE and 2SE User Manual R1.17 4 27 February 2020

Crystal Vision Introduction
above the top central module position (slot 5) also controls fan speed. There are three cooling
modes: quiet, normal and maximum. In normal operation both fans operate at reduced power to
keep the unit cool but quiet. If the front panel is opened an optical sensor switches the PSU fan
to fast operation and the panel fan off. A wire on the fan gives a reliable indication of its speed
and if it fails or operates to slowly the other fan is automatically switched to full power and an
alarm raised. Quiet mode is used with a lightly loaded frame with a low ambient temperature:
where the frame temperature is below 450C the panel fan is switched off and the PSU fan runs
at minimum speed.
Warning: Although it is possible to operate the frame with the front panel open, the frame
may not meet electromagnetic compatibility (EMC) requirements in this condition.
The Indigo PSUs have a built-in processor, which communicates with the front panel display
processor (referred to as a PIC) and monitors power rail voltage levels (+5.75V and -6.0 V). The
PSUs also store their own serial number in non-volatile memory.
The panel processor regularly receives status updates from the PSU processors about power
rails. This allows the front panel to update its status LEDs and control the alarm changeover
relay. The relay contacts are available on the Remote 2/4 connector on the rear of the frame.
There are five two-colour LEDs on a front panel, with green indicating a normal condition and
red an abnormal condition. If the LED is unlit, this indicates an inactive condition such as a
single PSU fitted or PSU fan not running with the front panel closed.
The Indigo 2AE status LEDs
Indigo 2SE Coolflow status LEDs
Indigo 2AE and 2SE User Manual R1.17 5 27 February 2020

Crystal Vision Introduction
The following LED status indications may be seen:
LED
Colour
Notes
Front Fan
Unlit
Green
Red
Door open
Normal operation
Change the panel fan
PSU Fan
Unlit
Green
Red
Door closed and fan idle
Door open and fan operational
Change PSU fan
Upper PSU
Unlit
Green
Red
No upper PSU detected
Normal operation
Change upper PSU
Lower PSU
Unlit
Green
Red
No lower PSU detected
Normal operation
Change lower PSU
Temp
Green
Red
Normal operation
Internal temperature too high (approx. 650C)
Comms
No function*
*Note: Serial RS422 control from Statesman or third party applications is no longer supported.
All connections should be made via Ethernet. Crystal Vision AE and SE frames running v4.6
software or later support VisionWeb, Statesman Lite, ASCII and HTTP/JSON control protocols.
An optional SNMP licence can be purchased to enable control and monitoring via SNMP.
Contact Crystal Vision Support for protocol documentation.
Indigo 2AE and 2SE User Manual R1.17 6 27 February 2020

Crystal Vision Installation
2 Installation
2.1 General Safety Summary
The following warnings are intended for user guidance and safety.
Ground This product must be grounded through the grounding conductor of the power cord.
Power cable Use only power cords that meet the required specification for this product.
Fuses To avoid fire hazard use only fuses of the type and rating specified.
Service These servicing instructions are for use by qualified personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that contained in this manual unless
you are qualified to do so. Refer all servicing to qualified service personnel.
Apart from procedures described in this manual there are no user serviceable parts within
the frame. If the frame requires any other servicing it should be returned to the manufacture
or dealer.
On no account should the unit be powered whilst any covers are removed.
Ventilation The unit must have adequate ventilation. Installation should be in standard 19" racks with
cool air circulation available at the front. The left and right ventilation grilles must not be
obstructed.
EMC To comply with EMC regulations the following guidelines should be observed:
Do not operate this unit for extended periods with the front panel open.
Do not use the frame unless all the rear connector positions are filled, either with Crystal
Vision Rear Modules, or with Crystal Vision blanking plates.
Do not operate the equipment with covers or panels removed.
General To avoid electric shock do not operate this product in wet or damp conditions.
To avoid injury or fire hazard do not operate this product in an explosive atmosphere.
Only use this rack in conjunction with Crystal Vision modules designed for that purpose.
The Indigo 2AE and Indigo 2SE CoolFlow frames are capable of housing the
Crystal Vision range of optical modules. Although these modules are not
capable of causing personal injury, care should be exercised when exposing
unshielded optical signals not to look directly into the light beam.
Indigo 2AE and 2SE User Manual R1.17 7 27 February 2020

Crystal Vision Installation
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at their own expense.
2.2 Rack mounting and ventilation
The unit must have adequate ventilation. Install in standard 19" racks with cool air circulation at
the front and with both side ventilation grilles unobstructed.
Indigo 2AE airflow
Indigo 2SE CoolFlow airflow
Install the Indigo frame in a standard 19-inch rack as follows:
•Mount in the rack and secure via the rack ears
•Allow adequate space for the fan intakes at the front and the exhaust through the left and
right sides
Indigo 2AE and 2SE User Manual R1.17 8 27 February 2020

Crystal Vision Installation
2.3 Frame connectors
The following connectors are available at the rear of the frame:
Connector
Function
Notes
IEC (top)
Upper PSU AC input
85 to 264V, fuse under flap
IEC (bottom)
Lower PSU AC input
85 to 264V, fuse under flap
Remote 1
GPI and DC out
Refer to pinout tables
Remote 2
GPI, serial, upper PSU alarm relay and
DC out
Refer to pinout tables
Remote 3
GPI and DC out
Refer to pinout tables
Remote 4
GPI, lower PSU alarm relay and DC out
Refer to pinout tables
RS422 in/bus
RS422 control using CAT5 cabling
Refer to pinout tables
Ethernet
Ethernet control using CAT5 cabling
Refer to pinout tables
All frame connectors are grouped together behind the PSUs at the rear of the frame.
Indigo 2AE/2SE rear connectors
Connecting mains cables
To connect the Indigo 2AE/2SE frame to AC mains proceed as follows:
•Power the unit by connecting an IEC power cord(s) to the upper and/or lower IEC
connectors depending on the number of installed power supply modules.
Indigo 2AE and 2SE User Manual R1.17 9 27 February 2020

Crystal Vision Installation
Mains cables must have a minimum current rating of 6A and are fitted with an IEC 320 female
connector which includes a protective ground connection and meets relevant local safety
standards.
Tip: To reduce the risk of electric shock, if two power supply cords are used, plug each power
supply cord into separate branch circuits employing separate service grounds.
Note: The fuse holder is part of the mains inlet. The mains cable must be disconnected before the
fuse can be accessed. Replace the fuse only with one of the same type and rating. Refer to
the Maintenance section of the Troubleshooting guide for more information.
Indigo 2AE and 2SE User Manual R1.17 10 27 February 2020

Crystal Vision Installation
2.4 Configuration Switches
The Indigo 2AE and Indigo 2SE CoolFlow frames both make use of a 6-way DIL configuration
switch mounted on the front panel CPU board to change the hardware configuration. The DIL
switch functions are identical for both frame types although the CPU boards are different.
Indigo 2AE
On the upper edge of the Indigo 2AE front panel PCB, the 6-way DIL configuration switches and
reset switch can be found. This PCB was fitted early 2015 – see Appendix 3 for older frames.
Indigo 2AE CPU board.
‘Reset’ switch on side of board
Indigo 2SE CoolFlow
The CPU board is mounted on the rear of the front panel. This PCB was fitted after August
2013 – see Appendix 3 for older frames. Also on this board is a status ‘Link’ LED. This LED is
useful for troubleshooting the network link. The link LED will be illuminated whenever the frame
is connected to a network. Should this LED not be lit, check the cable connection between the
frame and network outlet. The ‘Term’ switch terminates the RS422 chain which was used by
older pre-Ethernet enabled frames and is no longer supported by Crystal Vision.
Indigo 2SE CoolFlow CPU board
Indigo 2AE and 2SE User Manual R1.17 11 27 February 2020

Crystal Vision Installation
2.5 Configuration Switch Settings
The following applies to both the Indigo 2AE and the Indigo 2SE CoolFlow frames fitted with
the 6-way DIL configuration switch (see Appendix 3 for other, older arrangements). Note: The
switch is only read after reset or on power up:
Switch
Function
Notes
1
Fan
Normally up (best cooling), down for quieter running.
2
Fan
Normally up (auto), down for front panel fans full speed.
3
Unused.
4
PSU
Normally up (two PSUs fitted), down if one PSU fitted.
5
Address Range
Should be left in default (up) position.
6
Default IP address
Normally up. Down sets recovery mode which forces the
frame IP address to 10.0.0.201.and allows a new IP
address to be set.
Indigo 2AE/SE configuration switch functions.
Cooling mode
Switches 1 and 2 of the four-position DIL switch control the three cooling modes - normal, quiet
and maximum - as follows:
Switch 1 & 2
Function
Notes
Both up Normal cooling Both fans run continuously increasing in speed as
the temperature inside the frame goes up.
1 down, 2 up Quiet mode For use with a lightly loaded frame for low ambient
temperature. When the frame temperature is below
approximately 45°C the panel fan is switched off
and the PSU fan runs at minimum speed. If the
frame temperature goes above 45°C it reverts to
normal cooling and goes back to quiet mode when
frame temperature falls below 42°C.
1 up, 2 down Maximum
cooling mode In Maximum cooling mode both fans never run below near maximum speed. Fan speed increases
to maximum at high frame temperature. This mode
is ideal for equipment bays where noise is not a
concern.
Both down Reserved for
future use Operates as normal mode with current software.
Note: Quiet mode is dependent on PSUs and PSU fans not being in an alarm state.
For the Indigo 2SE only one of the fans is essential in normal operation and if
one of the fans should fail, the closed frame can still operate indefinitely with an
ambient temperature of 40°C.
Warning: Although it is possible to operate the frame with the front panel open, the frame
may not meet electromagnetic compatibility (EMC) requirements in this
condition.
Indigo 2AE and 2SE User Manual R1.17 12 27 February 2020

Crystal Vision Installation
PSU Configuration
If a power supply is not fitted in either the upper or lower slots, the position of configuration switch
4 on the top right of the front panel PCB must be set down. If both power supplies are fitted,
switch 4 is set up. If the switch is set down and there are two power supplies fitted, the LOWER
PSU LED will flash from GREEN to OFF every two to three seconds to warn that the switch is set
incorrectly.
Address Range
The slot address range switch was used when two frames were paired together to make one
large frame with 24 slots. As this practice is no longer used, switch 5 should be left in the up
position.
Default IP address
Switch 6 in the down position sets the active front panel into recovery mode with the default IP
address of 10.0.0.201. Recovery mode enables frame firmware updates and also forces the
frame to accept network communications at address 10.0.0.201. Should the frame’s IP address
be unknown, then forcing to the default address will allow access by a web browser whereby the
network settings may be changed.
See section Control for more information on establishing an Ethernet connection with a frame.
Reset switch
Press this switch to reset the CPU following a software upgrade or when resetting the IP
address to its default value.
2.6 Connector pin out
Remote Control / GPI Connections
Each frame slot has six connections that are brought out to one or more of the four high density
D-Type connectors on the rear of the frame labelled Remote 1 to 4. These connections are
referred to as lines 'a' to 'f'. The functions assigned to them are dependent on the module
inserted in each slot, but a typical use is as a GPI line. Refer to the documentation supplied with
each Crystal Vision module to determine the actual functions assigned.
Pin number
Remote 1 - function
Remote 3 - function
1
+5.3V +/- 10% dc out
+5.3V +/- 10% dc out
2
Frame GND
Frame GND
3
Slot 9 GPI ‘a’
Slot 11 GPI ‘a’
4
Slot 6 GPI ‘a’
Slot 8 GPI ‘a’
5
Slot 5 GPI ‘a’
Slot 7 GPI ‘a’
6
Slot 5 GPI ‘b’
Slot 7 GPI ‘b’
7
Slot 2 GPI ‘a’
Slot 4 GPI ‘a’
8
Slot 1 GPI ‘a’
Slot 3 GPI ‘a’
9
Slot 1 GPI ‘b’
Slot 3 GPI ‘b’
10
Slot 10 GPI ‘a’
Slot 12 GPI ‘a’
11
Slot 10 GPI ‘b’
Slot 12 GPI ‘b’
12
Slot 9 GPI ‘b’
Slot 11 GPI ‘b’
13
Slot 6 GPI ‘c’
Slot 8 GPI ‘c’
Indigo 2AE and 2SE User Manual R1.17 13 27 February 2020

Crystal Vision Installation
14
Slot 6 GPI ‘b’
Slot 8 GPI ‘b’
15
Slot 5 GPI ‘c’
Slot 7 GPI ‘c’
16
Slot 2 GPI ‘b’
Slot 4 GPI ‘b’
17
Slot 2 GPI ‘c’
Slot 4 GPI ‘c’
18
Slot 1 GPI ‘c’
Slot 3 GPI ‘c’
19
Slot 10 GPI ‘c’
Slot 12 GPI ‘c’
20
Slot 10 GPI ‘d’
Slot 12 GPI ‘d’
21
Slot 9 GPI ‘d’
Slot 11 GPI ‘d’
22
Slot 9 GPI ‘c’
Slot 11 GPI ‘c’
23
Slot 6 GPI ‘d’
Slot 8 GPI ‘d’
24
Slot 5 GPI ‘d’
Slot 7 GPI ‘d’
25
Slot 2 GPI ‘d’
Slot 4 GPI ‘d’
26
Slot 1 GPI ‘d’
Slot 3 GPI ‘d’
Remote 1 and Remote 3 connections (26-way high density D-Type socket)
Note:
The total current available from the 5.3V dc outputs is limited to approximately 1.5 Amps.
To maintain EMC compliance only good quality screened cable assemblies should be used.
Pin number
Remote 2 - function
Remote 4 - function
1
Slot 5 GPI ‘e’
Slot 7 GPI ‘e’
2
Slot 5 GPI ‘f’
Slot 7 GPI ‘f’
3
Slot 6 GPI ‘a’
Slot 8 GPI ‘e’
4
Slot 6 GPI ‘f’
Slot 8 GPI ‘f’
5
Relay close on fault,
upper PSU
Relay close on fault, lower
PSU
6
Frame GND
Frame GND
7
RX+ bus RS422
N/C
8
TX- RS422 o/p
N/C
9
TX+ RS422 o/p
N/C
10
Slot 2 GPI ‘e’
Slot 4 GPI ‘e’
11
Slot 2 GPI ‘f’
Slot 4 GPI ‘f’
12
Slot 9 GPI ‘e’
Slot 11 GPI ‘e’
13
Slot 9 GPI ‘f’
Slot 11 GPI ‘f’
14
Relay common, upper
PSU
Relay common, lower PSU
15
+5.3V +/- 10% dc out
N/C
16
RX-bus RS422
N/C
17
TX+ bus RS422
N/C
18
RX+ RS422 i/p
N/C
19
Slot 1 GPI ‘e’
Slot 3 GPI ‘e’
20
Slot 1 GPI ‘f’
Slot 3 GPI ‘f’
21
Slot 10 GPI ‘e’
Slot 12 GPI ‘e’
22
Slot 10 GPI ‘f’
Slot 12 GPI ‘f’
23
Relay open on fault,
upper PSU
Relay open on fault, lower
PSU
24
N/C
N/C
25
TX-bus RS422
N/C
26
RX- RS422 i/p
N/C
Remote 2 and Remote 4 connections (26-way high density D-Type plug)
Indigo 2AE and 2SE User Manual R1.17 14 27 February 2020

Crystal Vision Installation
Note:
The total current available from the 5.3V dc outputs is limited to approximately 1.5 Amps.
To maintain EMC compliance only good quality screened cable assemblies should be used.
Note:
Serial RS422 control from third party applications is no longer supported. All
connections should be made via Ethernet.
Power supply relay connections
The power supply module has a changeover relay to indicate if the frame is in an alarm state
caused by a power supply problem, a fan stopping or an overheating frame.
Upper Power Supply Relay Connections:
Description
Pin number
relay common
Remote 2 pin 14
open on fault
Remote 2 pin 23
close on fault
Remote 2 pin 5
Lower Power Supply Relay Connections:
Description
Pin number
relay common
Remote 4 pin 14
open on fault
Remote 4 pin 23
close on fault
Remote 4 pin 5
Note:
The current though the relay contacts should be limited to a maximum of 200mA.
RJ45 Ethernet connector
Pin number
Function
1
TD+
2
TD-
3
RD+
4 and 5
Not used – 75 ohm resistor to GND in frame
6
RD-
7 and 8
Not used – 75 ohm resistor to GND in frame
2.7 Installing Crystal Vision modules
The Indigo 2AE/2SE frame has 12 slots for Crystal Vision video or audio cards. Signal
connections are made through rear modules.
The inside of the frame can be accessed to change the modules by pulling forward the two black
knobs, one on each side of the front panel.
Indigo 2AE and 2SE User Manual R1.17 15 27 February 2020

Crystal Vision Installation
The Indigo 2AE frame with front control panel open
Warning: Although the frame can be operated with the front panel open, the frame may not meet
electromagnetic compatibility (EMC) requirements in this condition.
Module positions
Module positions are numbered 1 to 12 as shown here:
The Indigo 2AE/2SE frame showing slot numbers (and left hand retaining bracket removed)
Before fitting or removing signal modules one or more retaining brackets may need to be
removed. Retaining brackets prevent the modules from being inadvertently removed or from
coming out during transit. They may also prove useful in OB vehicles when travelling over rough
ground.
Inserting modules
To insert a module proceed as follows:
•Remove the two screws holding the bracket adjacent to the slot intended for the module
and keep both the screws and bracket in a safe place
•Insert the module into the appropriate guides and push it fully home
•Refit the retaining brackets if required
Indigo 2AE and 2SE User Manual R1.17 16 27 February 2020

Crystal Vision Installation
The Indigo 2AE/2SE frame with two modules fitted in slots 1 and 2
Removing modules
To remove single modules simply pull on the handle and withdraw them from the frame, with the
retaining brackets removed.
All Crystal Vision cards can be inserted and removed whilst the frame is powered without
damage.
Rear connectors
The frame will be supplied with an appropriate selection of rear connectors for any cards installed
in it at the time of order. Unused slots will be fitted with blanking plates.
Details of signal types and pinouts are given in the documentation supplied with each Crystal
Vision video or audio card.
The Indigo 2AE/2SE frame rear view with EMC covers removed for slots 1 to 4
The rear modules are screwed in place to ensure EMC compliance.
To access the rear connector motherboard the appropriate EMC covers and retaining screws
must be removed.
Fitting rear connectors
To fit a rear connector, proceed as follows:
•Disconnect the mains power leads from the frame
•Remove the rear relevant EMC cover(s) at the rear of the frame by unscrewing the fixing
screws
•Push fit the selected rear connector onto the appropriate frame slots
•Refit EMC covers and replace the fixing screws
Indigo 2AE and 2SE User Manual R1.17 17 27 February 2020

Crystal Vision Installation
The Indigo 2AE/2SE frame rear view with EMC covers fitted.
The Indigo 2AE/2SE frame showing the use of EMC covers and the use of single, double and
quad rear connectors
Warning: To maintain product safety and EMC compliance the rear of the frame should be
filled with Crystal Vision rear connectors and/or EMC covers and held in place with
fixing screws before power is reapplied.
2.8 Indigo power supplies
The Indigo 2AE/2SE frame is supplied with the 160W rated PSU-160i. It is possible to use the
older PSU-75i and PSU-150i but it is preferred that these are not mixed in any one frame.
PSU-160i - top view
Note: Care should be taken if mixing power supply types. It is not recommended to combine the
PSU-75i with anything other than a second PSU-75i. The Indigo power supply modules are
not compatible with similar PSUs used in FR2AV and FR1AV frames.
Monitoring power supply status
A signal from the each of the power supplies is routed through the frame wiring to the front panel
electronics. This allows an indication by the UPPER PSU LED and LOWER PSU LED of the
status of one or both power supplies.
Indigo 2AE and 2SE User Manual R1.17 18 27 February 2020

Crystal Vision Installation
A faulty condition is indicated when the corresponding LED is red and a normal condition when it
is green. If only one PSU is fitted, the corresponding LED will be unlit.
The status of the PSUs can also be investigated using VisionWeb control, the VisionPanel
control panels, Statesman Lite PC control, as well as the Indigo 2AE integrated control panel as
shown in the section Operating the Active Panel.
Configuring PSUs
The number of fitted PSUs must agree with the configuration switch settings – see section
PSU Configuration.
Indigo 2AE and 2SE User Manual R1.17 19 27 February 2020
