Crystal Vision Indigo ADP 310 User manual

ADP 310
Audio delay and processor for
discrete AES or analogue audio
Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.
Tel: [phone] Fax: [phone] [e-mail] www.crystalvision.tv

Crystal Vision ADP 310 User Manual
Contents
1Introduction 4
2Hardware installation 6
2.1 Board configuration 6
Link Configuration 6
2.2 Input and output piggyback boards 7
3G-AIP2 Analogue Input 7
3G-AOP2 Analogue Output 8
DIOP4 AES I/O 8
Fitting the I/O piggybacks onto the main board 9
3Rear modules and signal I/O 10
Rear module connections with RM47 10
Rear module connections with RM74 12
4General Purpose Interface 13
Introduction 13
Alarms 14
2U frame GPI connections 14
1U frame GPI connections 15
Indigo DT desk top box GPI connections 15
5Control and Status monitoring 16
5.1 Card edge controls 16
Card edge buttons 16
Card edge rotary control 16
Reading card edge LEDs 17
Navigating card edge menus 17
5.2 Using the front control panel 18
Selecting an ADP 310 18
Control Panel keys overview 19
Updating the display 19
Menu Structure 20
ADP 310 User Manual R1.21 19 June 2019

Crystal Vision ADP 310 User Manual
Controlling cards via VisionWeb 21
6Control Descriptions 23
Status Menu 23
Status 23
Audio Settings Menu 24
Delay, Invert & Mono 24
Audio Gain 25
AES Output Router 26
AOP Output Router 27
Presets, Reset & GPI/Os Menu 28
Presets 28
Resets 29
GPO5 / GPO6 Alarms 29
Silence Alarm Delay 30
7Troubleshooting 31
Card edge monitoring 31
Basic fault finding guide 31
8Specification 32
9Appendix 1 34
Statesman 34
Introduction 34
Statesman operation 34
Control Descriptions 35
Status 36
Reference Status 36
Sub PCB Type 36
Audio Input 37
Aip/AES Audio Ip 38
AES Input Dly 38
Audio Delay 38
Audio Gain 39
Channel Gain 40
ADP 310 User Manual R1.22 19 June 2019

Crystal Vision ADP 310 User Manual
AOP Router 41
Audio OP Chs 41
Embed Mute 41
AES Output Router 42
Audio Op Channels 42
Diop Mutes 43
GPI outputs AES I/O 43
GPO5 / GPO6 44
GPI outputs Analogue I/O 45
GPO5 / GPO6 46
Presets and Reset 47
Preset 47
Board Reset 48
Revision 1 Moved Statesman info to Appendix. Added VisionWeb. 25/08/14
Revision 2 Added note about removal of card edge control in 2018. 19/06/19
ADP 310 User Manual R1.23 19 June 2019

Crystal Vision Introduction
1 Introduction
ADP 310 is a processor for analogue or 24-bit 48 kHz digital audio.
Audio signals are input and output as either two analogue stereo pairs or four AES
stereo pairs.
Audio signals can be gain controlled by +/- 18dB, delayed by up to 400mS, inverted,
muted, stereo to mono converted and shuffled. Asynchronous AES signals are
automatically resampled if not Dolby E encoded.
There are two slots for analogue or digital I/O piggybacks of which there are three
types: 3G-AIP2, 3G-AOP2 and DIOP4. The 3G-AIP2 piggyback has four analogue
inputs; 3G-AOP2 has four analogue outputs; DIOP4 has four stereo AES pairs.The
front slot (nearest handle) is for audio inputs and can be fitted with a 3G-AIP2 or
DIOP4 piggyback. The rear slot (nearest edge connector) is for audio outputs and can
be fitted with a 3G-AOP2 or DIOP4 piggyback. It is not possible to mix analogue and
digital signals, so an ADP 310 will be fitted with either a 3G-AIP2 + 3G-AOP2
combination or two DIOP4.
The main features are as follows:
•Optimise the audio: each channel has individual gain control and
stereo to mono conversion. The audio level can be increased or
decreased to match the rest of the system: each mono audio channel
offers individual gain control, adjustable between +18dB and -18dB in
0.1dB steps. Audio channels can be muted and stereo pairs
converted to mono. Audio channels can be delayed by up to 400mS.
Dolby E signals automatically bypass all audio processing.
•Audio resampling: Asynchronous 48 KHz AES signals automatically
resampled unless Dolby E encoded.
•Control of ADP 310 is by VisionWeb web browser software. Control
can additionally be from an active front panel on the frame, a remote
panel or via SNMP. Card edge control was also available prior to
2018.
•GPI control of configuration set-ups and status alarms.
•Supports the following rear module connectors: RM47, RM74.
•Compatible with Crystal Vision standard frames available in 2U, 1U
and desk top box.
.
ADP 310 User Manual R1.24 19 June 2019

Crystal Vision Introduction
ADP 310 Functional Block Diagram
Block Diagram Description
All analogue or digital audio is passed to audio processing blocks where gain and
delay adjustments are made after resampling. Dolby E encoded signals
automatically bypass the audio processing stage.
The outputs of the audio processing block are inputs to an 8x8 router which feeds
the plug-in output piggyback. In this way any of the eight digital channels or four
analogue channels can be routed to any output channel.
An analogue Black and Burst or tri-level syncs reference must be applied to provide
a stable clock to lock to the incoming AES and analogue audio.
ADP 310 User Manual R1.25 19 June 2019

Crystal Vision Hardware installation
2Hardware installation
2.1 Board configuration

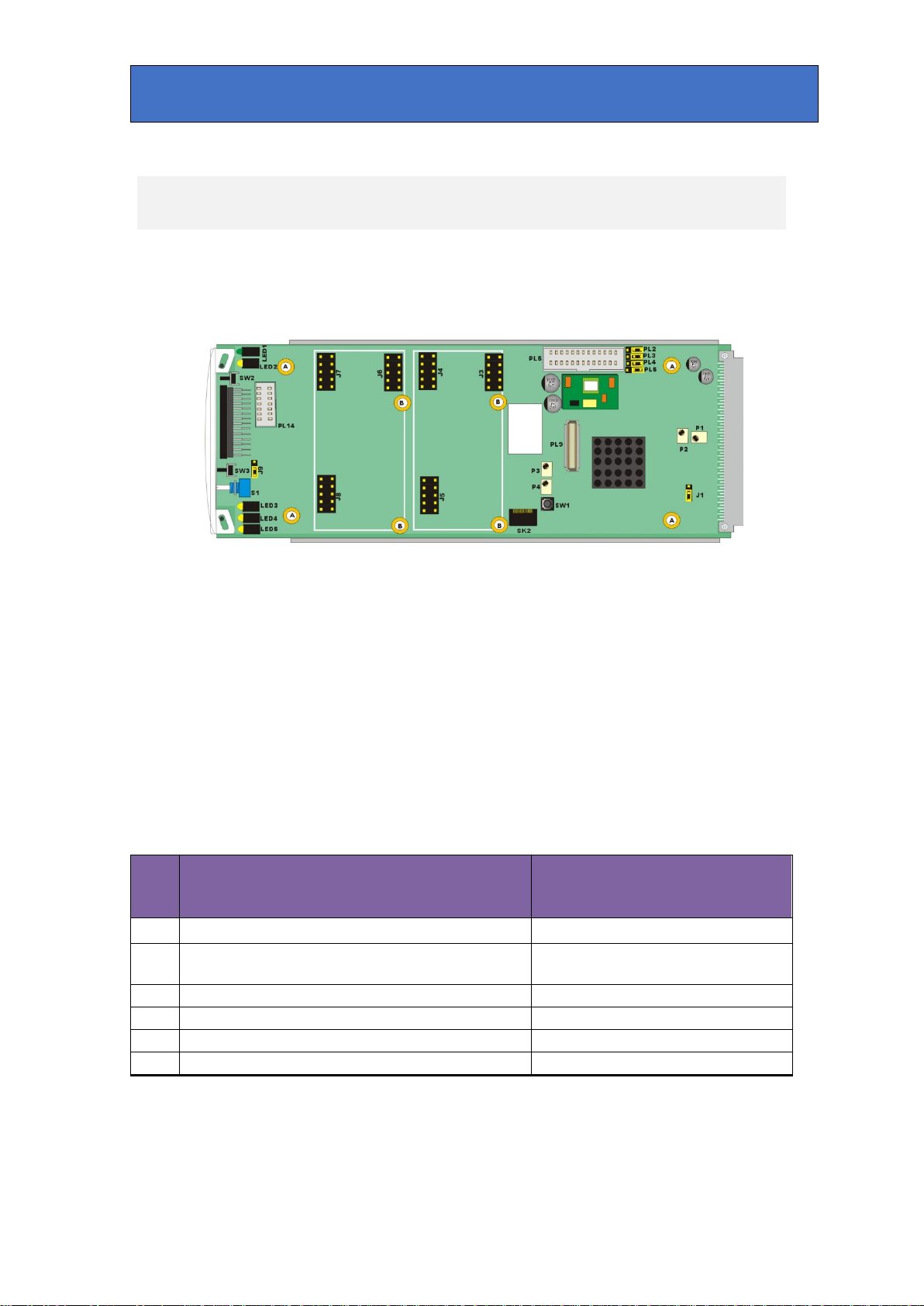

ADP 310 board top-side
Note: The potentiometers P1, P2, P3 and P4 have been factory set and should NOT be
adjusted.
Holes marked ‘B’ are for the fitting of the I/O piggybacks.
Link Configuration
There are four user-settable links on the ADP 310. These are PL2-5, all other links should be left
in the position shown in the above picture. PL2-5 set whether the board’s GPI inputs are used as
GPIs or as an extra serial I/O port.
Link Towards front of board or Up Towards the rear of board or
Down
J1
Sync input unterminated
Sync input terminated by 75 ohm
J9 Debug mode – forces board’s IP address to be
10.0.0.201
Normal mode (factory set, do not
alter)
PL2
GPI 1 Input = RS422 Rx+
GPI 1 Input = GPI 1
PL3
GPI 2 Input = RS422 Rx-
GPI 2 Input = GPI 2
PL4
GPI 3 Input = RS422 Tx+
GPI 3 Input = GPI 3
PL5
GPI 4 Input = RS422 Tx-
GPI 4 Input = GPI 4
ADP 310 User Manual R1.26 19 June 2019

Crystal Vision Hardware installation
2.2 Input and output piggyback boards
The ADP 310 board has two positions where one of three types of I/O module can
be plugged in to enable analogue or digital input and output. The front position is for
audio inputs and the rear for outputs.
The three types of piggybacks are 3G-AIP2, 3G-AOP2 and DIOP4. The only valid
combinations are shown in the table below:
AES I/O Analogue I/O
FRONT DIOP4 3G-AIP2
REAR DIOP4 3G-AOP2

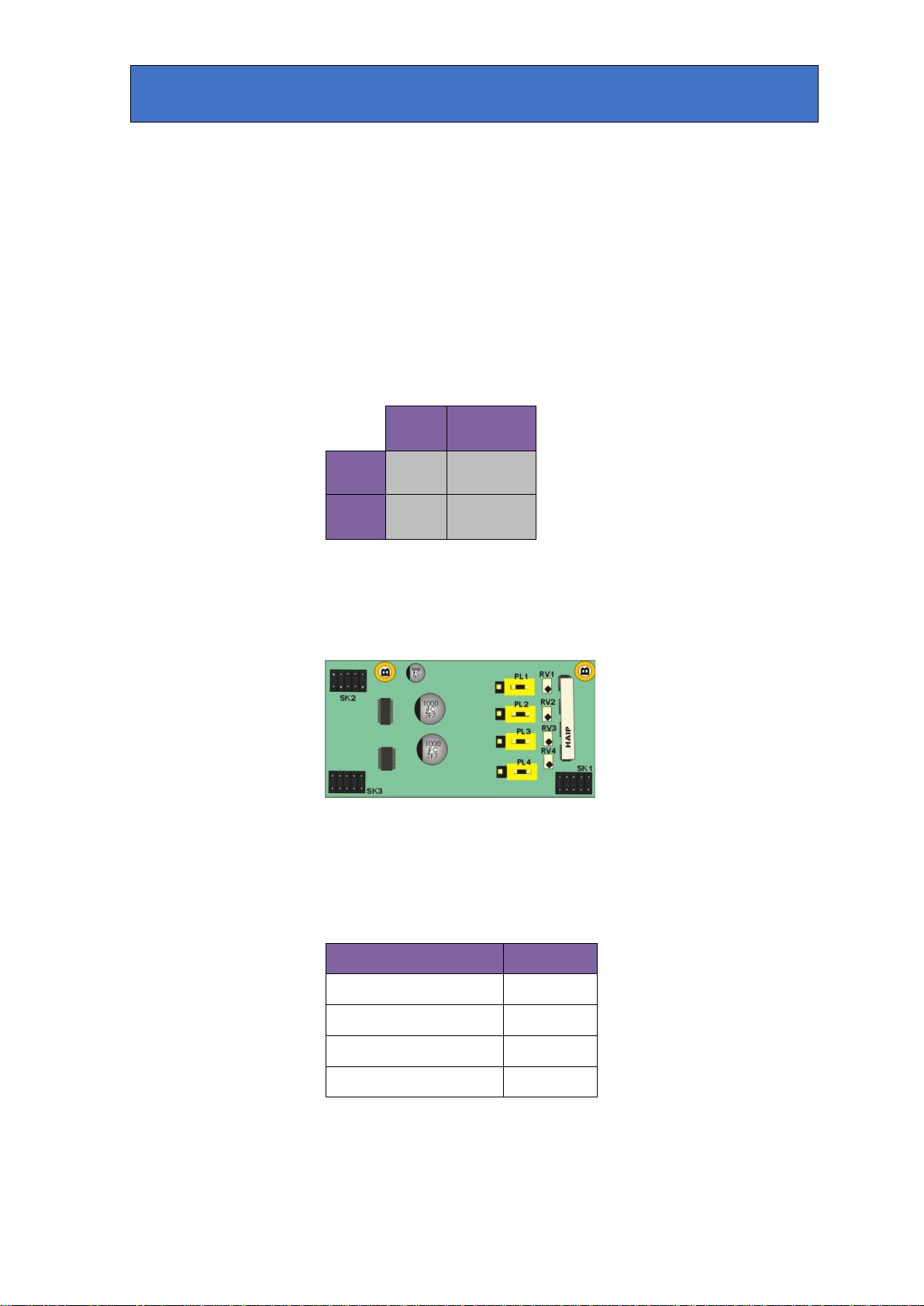

3G-AIP2 Analogue Input
This analogue module has four balanced audio inputs. The links PL1-4 allow 0dBFS
to be set to +18dBu (to the right, towards SK1) or +24dBu (to the left, towards
SK2/3). The adjacent potentiometers RV1-4 are factory set and should NOT be
adjusted.
3G-AIP2 Channel number Link number
CH1 PL1
CH2 PL2
CH3 PL3
CH4 PL4
Table showing links controlling the input gain of the 3G-AIP2 channels
ADP 310 User Manual R1.27 19 June 2019

Crystal Vision Hardware installation
3G-AOP2 Analogue Output
This analogue piggyback has four balanced audio outputs. The links PL1-4 set
0dBFS to +18dBu (to the right, towards SK2/3) or +24dBu (to the left, towards SK1).
The four potentiometers P1-P4 are factory set and should NOT be adjusted.
Table showing links controlling the output gain of the 3G-AOP2 channels
DIOP4 AES I/O
This digital audio piggyback has four AES stereo pairs that are individually
configured as inputs or outputs by software. There are no links or user-adjustments
on this card.
3G-AOP2 Channel number Link number
CH1 PL1
CH2 PL2
CH3 PL3
CH4 PL4
ADP 310 User Manual R1.28 19 June 2019

Crystal Vision Hardware installation
Fitting the I/O piggybacks onto the main board
Example showing 3G-AIP2 and 3G-AOP2 piggybacks fitted
The I/O piggybacks plug onto the main board such that main board plugs J3, J4, J5
and J6, J7, J8 align with piggyback sockets SK2, SK3, SK1. With the component
side of the module top-most, align the piggyback sockets carefully with the plugs
and push firmly. Insert the plastic rivets supplied with the fitting kit through the main
board from the underside so they protrude through the piggyback board, then push
the rivet peg firmly to splay the end to lock the piggyback board in position.
ADP 310 User Manual R1.29 19 June 2019

Crystal Vision Rear modules and signal I/O
3 Rear modules and signal I/O
The 2U Indigo 2 frame will house up to 12 single height modules with a single or dual
power supply. The 1U Indigo 1 frame will house six single height modules and a
single or dual power supply. The Indigo DT desk top boxes have a built-in power
supply and will house up to two single height modules. All modules can be plugged in
and removed while the frame is powered without damage.
Note: For details of fitting rear connectors please refer to the appropriate frame manual.
ADP 310 can support the following rear modules: RM47, RM74.
Rear module connections with RM47
The RM47 being a single height module will allow maximum packing density with the
maximum number of outputs available. Eight channels of audio AES stereo pairs or
eight mono analogue channels are presented as balanced I/O on the 26-way high
density D-Type connector.
RM47 rear module connector
Description
RM47
•12 ADP 310 modules per
Indigo 2 frame
•Six per Indigo 1 frame
•Two per Indigo DT
•
All frame slots can be used
BNC connections
BNC I/O assignment
NC No user connection
SYNC IN
Analogue Black and Burst or tri-level reference video
NC
No user connection
NC No user connection
26-way D-type Audio Connections
The 26-way audio ‘D’ connector RM47 module can be used for analogue or digital, inputs or
outputs - or a mixture of both depending on the I/O modules fitted. Half of the I/O channels on
the rear module are connected to the front I/O (nearest handle) module position and the
remainder to the rear module position. The DIOP4 will normally be configured as 110 ohm
balanced operation when using this rear module. In the ADP 310 the front piggyback position
is always dedicated to inputs and the rear for outputs. Note that analogue output channel
numbers are numbered C9-12.
ADP 310 User Manual R1.210 19 June 2019

Crystal Vision Rear modules and signal I/O
Module
position I/O Pin-out
GND 1
Analogue audio input C1 / AES1
{
+ 2
- 3
Analogue audio input C2 / AES2
{
+ 4
Front
(Input)
- 5
Analogue audio input C3 / AES3
{
+ 6
- 7
Analogue audio input C4 / AES4
{
+ 8
- 18
GND 9
Analogue audio output C9 / AES5
{
+ 14
- 15
Analogue audio output C10 / AES6
{
+ 10
Rear
(Output)
- 11
Analogue audio output C11 / AES7
{
+ 16
- 17
Analogue audio output C12 / AES8
{
+ 12
- 13
GND 19, 20, 23, 24
NC 21, 22, 25, 26
RM47 audio I/O connector wiring
ADP 310 User Manual R1.211 19 June 2019

Crystal Vision Rear modules and signal I/O
Rear module connections with RM74
The RM74 is a dual height module presenting the eight unbalanced AES stereo pairs
on 75 ohm BNC connectors. The DIOP4 I/O piggybacks must be used with this rear
module as there is no provision for analogue audio I/O.

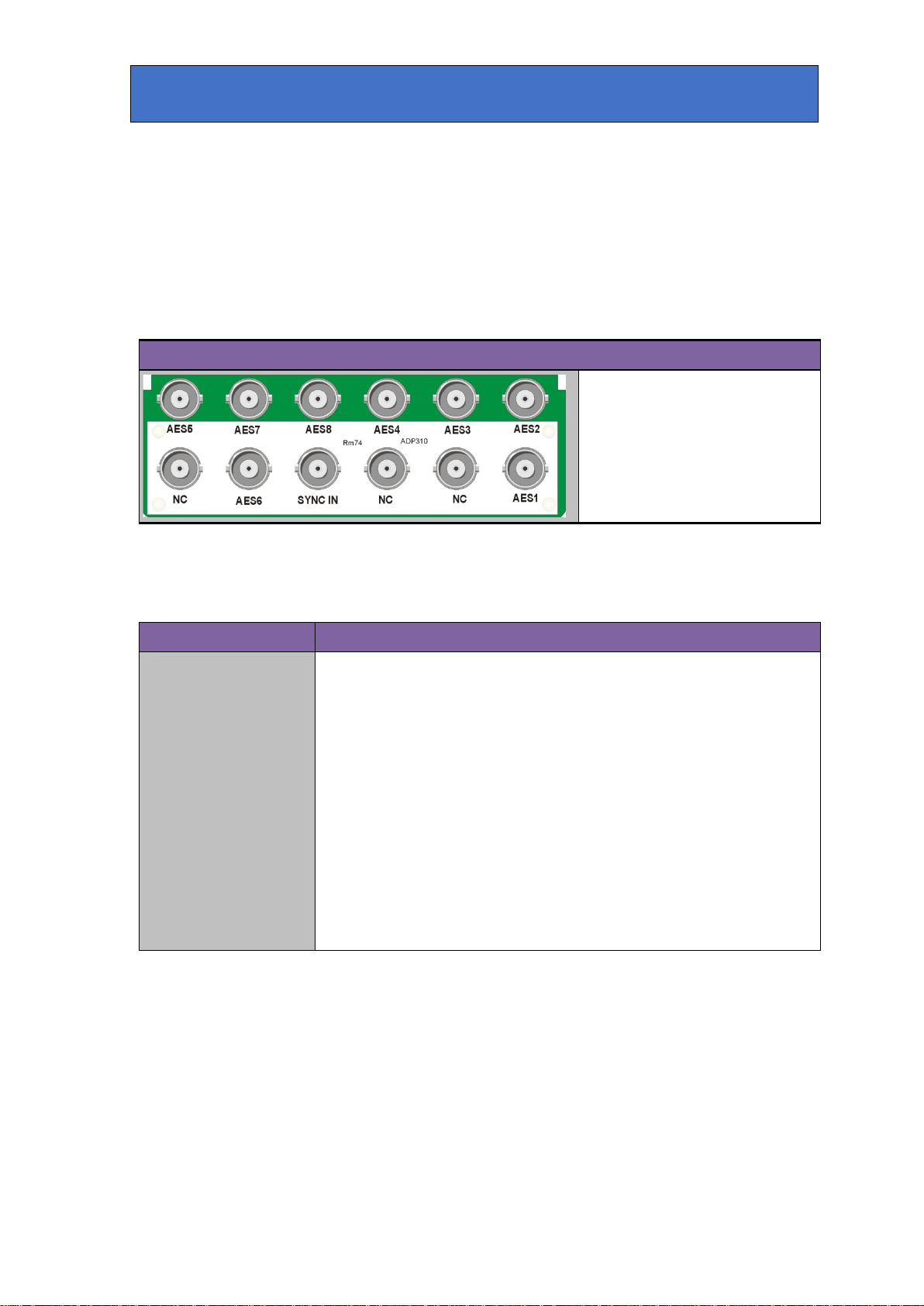

RM74 rear module connector
Description
RM74
•Six ADP 310 modules per
Indigo 2 frame
•Three per Indigo 1 frame
•One per Indigo DT
•Alternate frame slots can be
used
BNC Connections
BNC I/O assignment
AES5
AES5 stereo pair 75 ohm output
AES7
AES7 stereo pair 75 ohm output
AES8
AES8 stereo pair 75 ohm output
AES4
AES4 stereo pair 75 ohm input
AES3
AES3 stereo pair 75 ohm input
AES2
AES2 stereo pair 75 ohm input
NC
No user connection
AES6
AES6 stereo pair 75 ohm output
SYNC IN
Analogue Black and Burst or tri-level sync reference
NC
No user connection
NC
No user connection
AES1
AES1 stereo pair 75 ohm input
ADP 310 User Manual R1.212 19 June 2019

Crystal Vision General Purpose Interface
4 General Purpose Interface
Introduction
Each frame slot has up to six connections ‘a-f’ for GPI control and monitoring. These
connections are available at the rear of the frame on the 26-way D-Type remote
connectors.
ADP 310 has four GPI inputs and two GPI outputs.
Each General Purpose Interface (GPI) input is fitted with a 6800Ω resistor connected
to the internal +5V and in the following table, this equates to logic ‘H’, so with no
connections to the GPI lines, preset 1 (logic ‘HHHH’) will be selected.
Each General Purpose Interface (GPI) output has a 270Ω resistor in series with its
output. This allows for an external LED to be driven, connected to a DC voltage of
+5V.
The GPI inputs can be programmed to automatically recall a previously saved preset
configuration. The 16 user preset configurations are selected using binary notation.
The two outputs can be programmed to assert themselves for a number of different
alarm conditions.
GPI Low (<1V) High (+5V)
1 ‘a’ Recall preset bit 1
See following table for user preset control
2
‘b’
Recall preset bit 2
3 ‘c’ Recall preset bit 4
4 ‘d’ Recall preset bit 8
5 ‘e’ Alarms (See alarm table) Alarm condition No alarm
6 ‘f’ Alarms (See alarm table) Alarm condition No alarm
Table showing the six GPI functions
GPI
Bit 8
Bit 4
Bit 2
Bit 1
GPI
Bit 8
Bit 4
Bit 2
Bit 1
Preset
Preset
1
H
H
H
H
9
L
H
H
H
2
H
H
H
L
10
L
H
H
L
3
H
H
L
H
11
L
H
L
H
4
H
H
L
L
12
L
H
L
L
5
H
L
H
H
13
L
L
H
H
6
H
L
H
L
14
L
L
H
L
7
H
L
L
H
15
L
L
L
H
8
H
L
L
L
16
L
L
L
L
Binary coding of GPI inputs to recall preset configurations
ADP 310 User Manual R1.213 19 June 2019

Crystal Vision General Purpose Interface
Alarms
GPI Out 5 and 6 (e, f) can be configured to be asserted (logic ‘L’) for a selection of
error conditions.
There are, in total, a maximum of nine separate alarms for AES audio I/O and three
for analogue audio I/O. All alarm conditions can be applied to either GPI output. The
following table lists the maximum number of alarms available. See Section 6 ‘Control
Descriptions’ for more details of alarms.
Reportable error conditions No. of
alarms
Reference video missing 1
AES input channel pair missing 4
AES input channel pair silent 4
Analogue input channel pair silent 2
Alarm Tables
2U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to two of four rear remote connectors as
follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
8 (3)
9 (3)
18 (3)
26 (3)
19 (4)
20 (4)
4
7 (3)
16 (3)
17 (3)
25 (3)
10 (4)
11 (4)
5
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
6
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
7
5 (3)
6 (3)
15 (3)
24 (3)
1 (4)
2 (4)
8
4 (3)
14 (3)
13 (3)
23 (3)
3 (4)
4 (4)
9
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
10
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
11
3 (3)
12 (3)
22 (3)
21 (3)
12 (4)
13 (4)
12
10 (3)
11 (3)
19 (3)
20 (3)
21 (4)
22 (4)
Table shows pin number (remote number)
Note:
Remote 1 and Remote 3 are 26-way high-density D-Type female
sockets. Frame ground is pin 2 and +5V @500mA is pin 1 in each case.
Remote 2 and Remote 4 are 26-way high-density D-Type male plugs
and frame ground is pin 6 in each case and +5V @500mA is pin 15 on
Remote 2.
Note: The +5V output is protected by self-resetting thermal fuses, which
limit the total output current available from Remotes 1-4 to
approximately 1A.
ADP 310 User Manual R1.214 19 June 2019

Crystal Vision General Purpose Interface
1U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to two rear remote connectors as follows:
Slot no.
‘a’ pin
‘b’ pin
‘c’ pin
‘d’ pin
‘e’ pin
‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
4
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
5
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
6
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
Table shows pin number (remote number)
Note:
Remote 1: 26-way high-density D-Type female socket. Frame ground
is pin 2 and +5V @500mA is pin 1.
Remote 2: 26-way high-density D-Type male plugs and frame ground
is pin 6 and +5V @500mA is pin 15.
Note: The +5V output is protected by self-resetting thermal fuses,
which limit the total output current available from Remotes 1-2 to
approximately 1A.
Indigo DT desk top box GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to two rear remote connectors as follows:
Slot no.
‘a’ pin
‘b’ pin
‘c’ pin
‘d’ pin
‘e’ pin
‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
Table shows pin number (remote number)
Note:
Remote 1: 26-way high-density D-Type female socket. Frame ground
is pin 2 and +5V @500mA is pin 1.
Remote 2: 26-way high-density D-Type male plugs and frame ground
is pin 6 and +5V @500mA is pin 15.
Note: The +5V output is protected by self-resetting thermal fuses,
which limit the total output current available from Remotes 1-2 to
approximately 1A.
ADP 310 User Manual R1.215 19 June 2019

Crystal Vision Control and Status monitoring
5Control and Status monitoring
ADP 310 controls and status can be accessed by either the card edge control,
the rack front panel or by ‘VisionWeb’ remote control web browser software. ADP
310 is aware of what optional boards are fitted and adjusts the card edge/front
panel menu tree accordingly to reflect the options available. For instance, if
analogue audio piggybacks are fitted, then no provision is shown for selecting
digital audio sources or outputs. Similarly, the VisionWeb GUI also only shows
the functionality of the fitted options.
Board edge control was removed from ADP 310 in 2018. Therefore the card edge
control information detailed below is only relevant for older versions of the
product.
5.1 Card edge controls

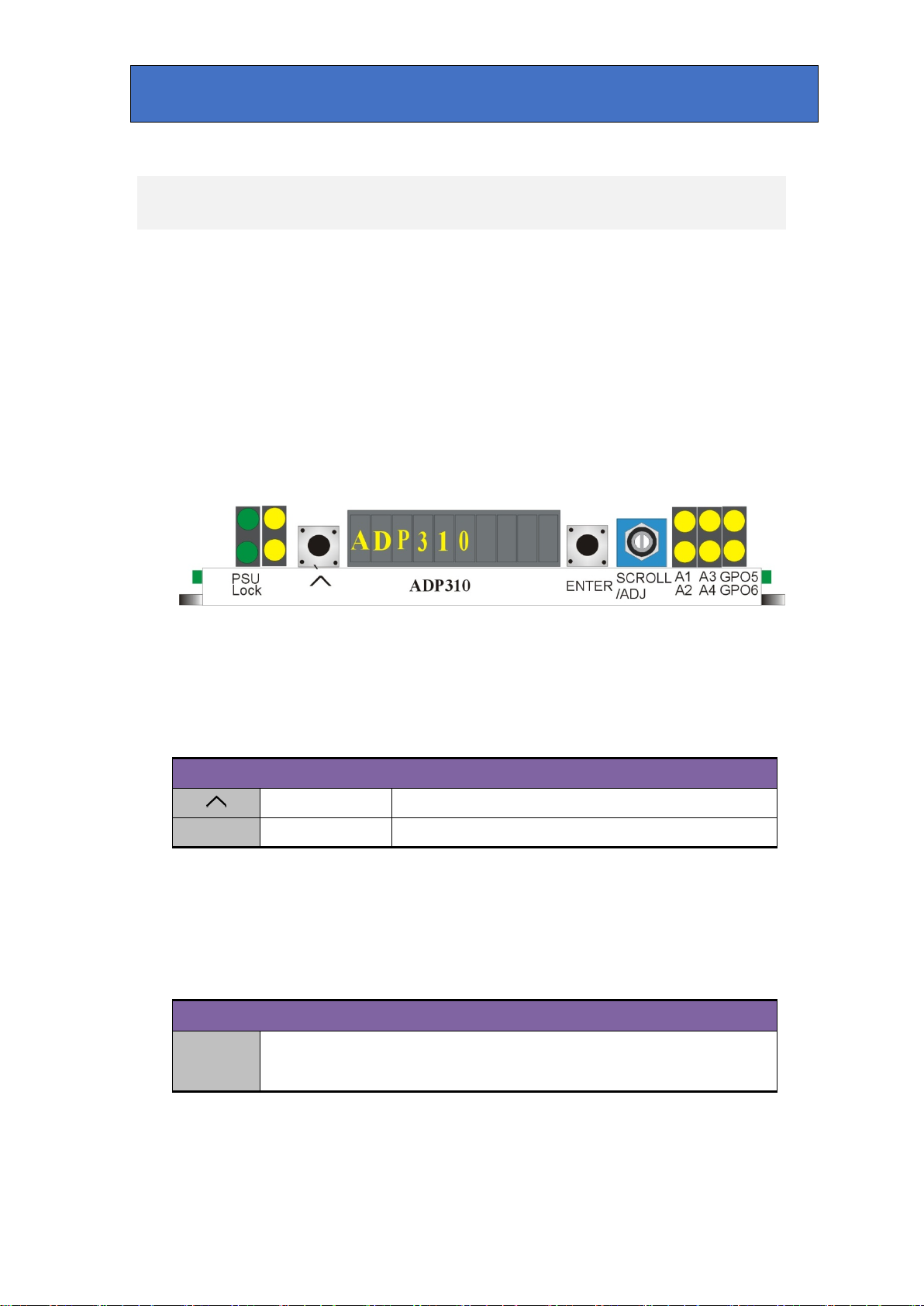

ADP 310 board edge
Card edge buttons
The two tactile push button switches allow the operator to navigate within the menu
structure.
.
Button Function Normal state Up, Action Down
Up Menu Push to jump up a menu level or cancel a selection.
ENTER Select/Action Push to select a menu and to action and confirm a change.
Card edge rotary control
The board edge rotary encoder is used to navigate through the menu categories and
adjust parameter values.
Control Function
SCROLL/
ADJ
Rotate SCROLL/ADJ to identify a menu category. In combination with the
ENTER button select and ADJUST to change the current level or select a further
option.
Note: The rotary control can access menus and parameter values by
clockwise or anti-clockwise rotation.
ADP 310 User Manual R1.216 19 June 2019

Crystal Vision Control and Status monitoring
Reading card edge LEDs
Card edge LEDs may be used in conjunction with status information from any
connected remote status panel display or from VisionWeb if available.
Refer also to the troubleshooting chapter for more help with solving problems and
monitoring status information.
The following table summarises the card edge LED functions and colours:
Name
LED
Colour
Function when ON
Function when Off
PSU Green Good power supply (PSU) rails
One or more of the monitor
supplies is out of specification
Lock
Green
A1
Yellow
AES input 1 present
AES input 1 not present
A2
Yellow
AES input 2 present
AES input 2 not present
A3
Yellow
AES input 3 present
AES input 3 not present
A4
Yellow
AES input 4 present
AES input 4 not present
GPO5
Yellow
GPO 5 active / low
GPO 5 inactive / high
GPO6
Yellow
GPO 6 active / low
GPO 6 inactive / high
Navigating card edge menus
To access the card edge menu system proceed as follows:
•Press the up-arrow [ ] until a top menu category is reached
•Rotate the SCROLL/ADJ control until the desired menu category is
found
•Press ENTER to enter the sub-menus of that category
•Rotate SCROLL/ADJ to select a sub-menu
•Press ENTER to select the desired function. Selection will be indicated
by the text being displayed in italic text
•Rotate ADJUST to make the desired change to the selected parameter.
The display changes to italics to indicate that a change has been made
and requires confirmation
•When required push ENTER to action the change. The display will
return to normal non-italic text.
•Use the up-arrow [ ] and SCROLL/ADJ control to navigate to further
menus
ADP 310 User Manual R1.217 19 June 2019

Crystal Vision Control and Status monitoring
5.2 Using the front control panel
At power up, the LEDs of all eight control panel keys will illuminate briefly. Once the
panel has completed its power up and configuration sequence the panel will enter its
status mode and display the current software version and frame IP address.
‘Status’ menu showing current software version and IP address
Selecting an ADP 310
To continue with control panel operation or configuration, press the ‘Device’ key once.
The control panel will display the name of the card that first responds to the polling
request together with its location number. The location number consists of the frame
number plus the card position in the frame. Rotate the Shaft control to poll through
the available cards. Use the F2 soft key to toggle between the card’s serial number
and issue number with modification level.
‘Device’ menu showing ADP 310 in slot 1.01
In the example above, the card displayed is located in the first frame in slot number 1.
When the desired card is selected press the ENTER key to access that card’s HOME
menu.
ADP 310 User Manual R1.218 19 June 2019

Crystal Vision Control and Status monitoring
The ADP 310 home menu
Rotate the shaft control to scroll through the menu structure and press ENTER to
select the sub-menus. Press HOME at any time to return to the home menu.
ADP 310 Reference Status sub-menu
Press ENTER to select the Reference Status menu or SCROLL to display other sub-
menus. See description of menu structure below for list of sub-menus.
Control Panel keys overview
The functions assigned to the control panel keys are:
•DEVICE – enters ‘device’ menu to select a card or show available cards.
•ASTERISK (*) – selects ‘network configuration’ menu.
•F1 to F4 – soft keys not currently used by ADP 310.
•HOME – returns to top of ADP 310’s menu structure.
•ENTER – accept current selection.
•Up arrow – used to move up through the menu structure.
•Rotary control – shaft encoder used to select sub-menus or variable data.
Updating the display
The values displayed on an active front panel are only updated when an adjustment
is made and when changing menu level. If changes occur through the use of card
edge controls or other remote control, the text displayed on the active front panel will
not be updated immediately. If necessary, use the upward arrow to leave and then re-
enter a menu to update the display.
ADP 310 User Manual R1.219 19 June 2019
