CDB5460 Evaluation Board and Software
Features
lDirect Shunt Sensor and Current
Transformer Interface
lRS-232 Serial Communication with PC
lOn-board 80C51 Microcontroller
lOn-board Voltage Reference
lLab Windows/CVITM Evaluation Software
-Register Setup & Chip Control
-FFT Analysis
-Time Domain Analysis
-Noise Histogram Analysis
lOn-board Data SRAM
lIntegrated RS-232 Test Mode
General Description
The CDB5460 is an inexpensive tool designed to evalu-
ate the functionality and performance of the CS5460.
The CS5460 Data Sheet is required in conjunction with
the CDB5460 evaluation board.
The evaluation board includes an LT1019 voltage refer-
ence, an 80C51 microcontroller, an RS232 transceiver,
and firmware. The 8051 controls the serial communica-
tion between the evaluation board and the PC via the
firmware, enabling quick and easy access to all ofthe
CS5460’s registers and functions.

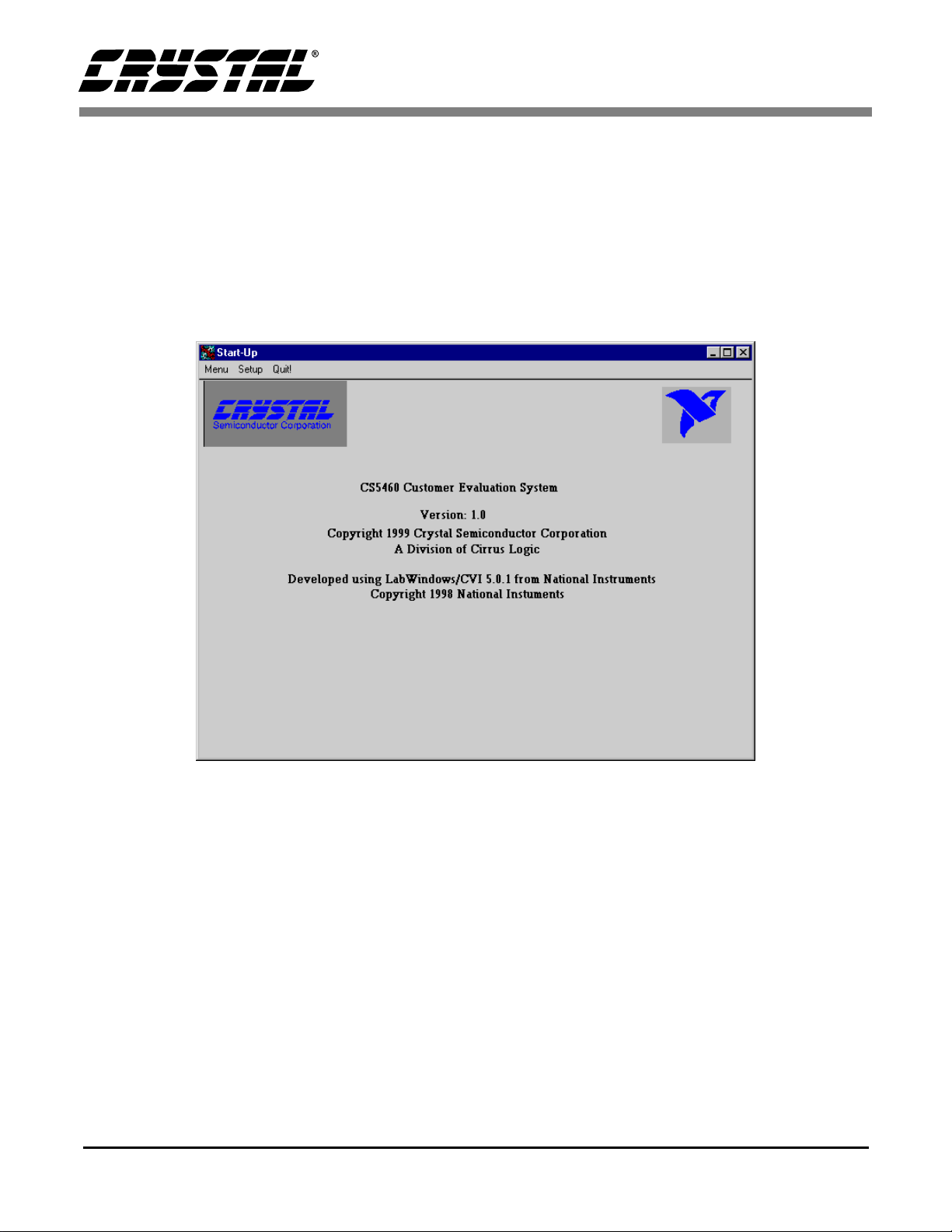

The CDB5460 includes software for Data Capture, Time
Domain Analysis, Histogram Analysis, and Frequency
Domain Analysis.
ORDERING INFORMATION
CDB5460Evaluation Board
MAR ‘99
DS279DB1

CDB5460
2DS279DB1
TABLE OF CONTENTS
PART I: HARDWARE ..........................................................................................3
Introduction .................................................................................................3
Evaluation Board Overview ........................................................................3
Analog Section .....................................................................................3
Digital Section ......................................................................................3
Power Supply Section ..........................................................................9
Using the Evaluation Board ........................................................................9
PART II: SOFTWARE ........................................................................................10
Installation Procedure ...............................................................................10
Using the Software ...................................................................................10
Selecting and Testing a COM Port ...........................................................11
Register Access in the Setup Window ......................................................11
Conversion Window ..................................................................................12
Viewing Pulse Rate Output Data ..............................................................13
Data Collection Window Overview ............................................................13
Config Window ..........................................................................................14
Collecting Data Sets .................................................................................14
Retrieving Saved Data From a File ...........................................................15
Analyzing Data ..........................................................................................15
Histogram Information ..............................................................................15
Frequency Domain Information ................................................................15
Time Domain Information .........................................................................16
PCB LAYOUT .................................................................................................... 20
Contacting Cirrus Logic Support
For a complete listing of Direct Sales, Distributor, and Sales Representative contacts, visit the Cirrus Logic web site at:
http://www.cirrus.com/corporate/contacts/
IBM, AT and PS/2 are trademarks of International Business Machines Corporation.
Windows is a trademark of Microsoft Corporation.
Lab Windows and CVI are trademarks of National Instruments.
SPI
TM
is a trademark of Motorola.
Microwire
TM
is a trademark of National Semiconductor.
Preliminary product information describes products which are in production, but for which full characterization data is not yet available. Advance product infor-
mation describes products which are in development and subject to development changes. Cirrus Logic, Inc. has made best efforts to ensure that the information
contained in this document is accurate and reliable. However, the information is subject to change without notice and is provided “AS IS” without warranty of
any kind (express or implied). No responsibility is assumed by Cirrus Logic, Inc. for the use of this information, nor for infringements of patents or other rights
of third parties. This document is the property of Cirrus Logic, Inc. and implies no license under patents, copyrights, trademarks, or trade secrets. No part of
this publication may be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means (electronic, mechanical, photographic, or
otherwise) without the prior written consent of Cirrus Logic, Inc. Items from any Cirrus Logic website or disk may be printed for use by the user. However, no
part of the printout or electronic files may be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means (electronic, mechanical,
photographic, or otherwise) without the prior written consent of Cirrus Logic, Inc.Furthermore, no part of this publication may be used as a basis for manufacture
or sale of any items without the prior written consent of Cirrus Logic, Inc. The names of products of Cirrus Logic, Inc. or other vendors and suppliers appearing
in this document may be trademarks or service marks of their respective owners which may be registered in some jurisdictions. A list of Cirrus Logic, Inc. trade-
marks and service marks can be found at http://www.cirrus.com.

CDB5460
DS279DB1 3
PART I: HARDWARE
Introduction
The CDB5460 evaluation board provides a quick
means of evaluating the CS5460 Analog-to-Digital
Converters (ADCs) and Computational Unit. The
CDB5460 evaluation board’s analog section oper-
ates from either a single +5 V or dual ±2.5 V power
supply. The evaluation board interfaces the
CS5460 to an IBMTM compatible PC via an RS-
232 interface. To accomplish this, the board comes
equipped with an 80C51 microcontroller and a 9-
pin RS-232 cable which physically interfaces the
evaluation board to the PC. Additionally, analysis

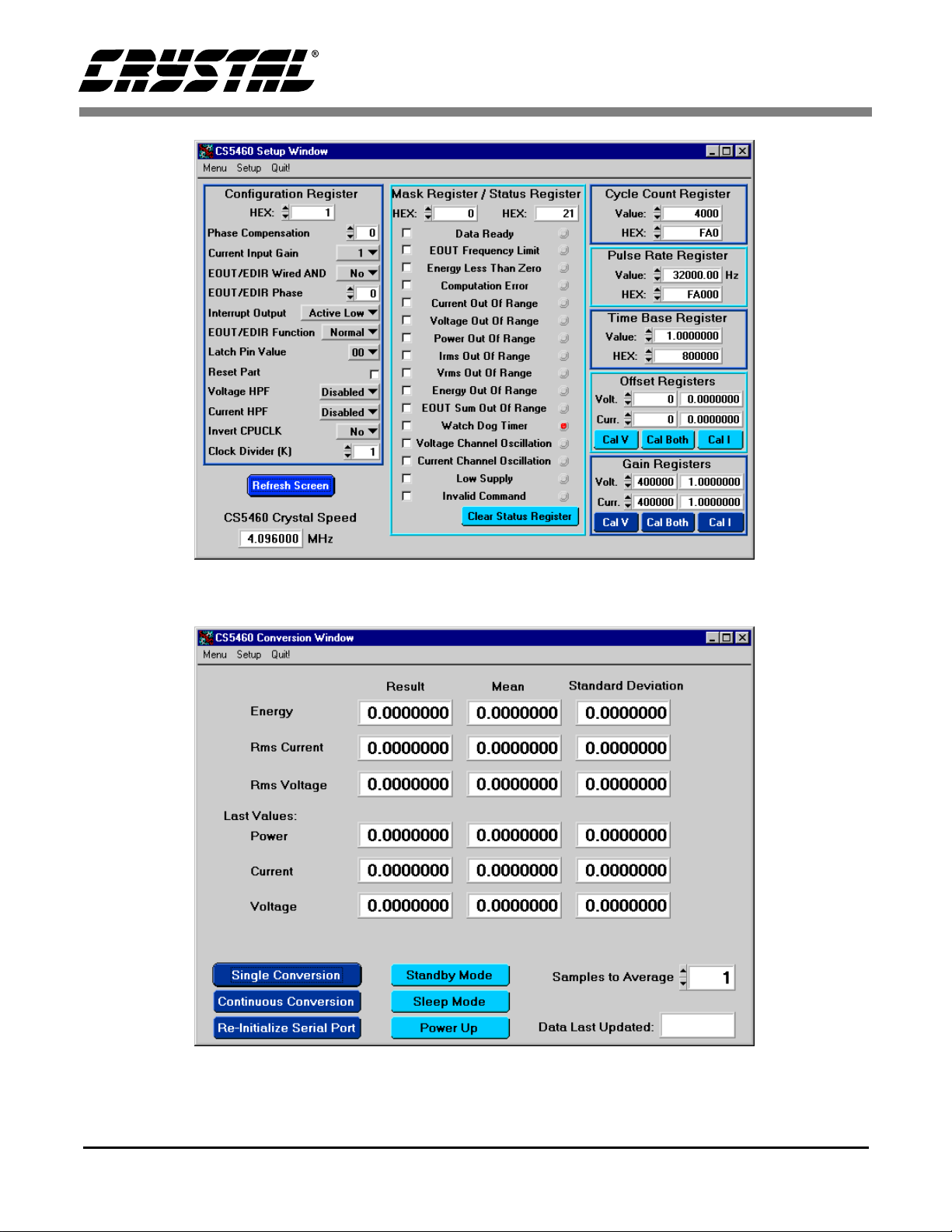

software provides easy access to the internal regis-
ters of the CS5460, and provides a means todisplay
the performance in the time domain or frequency
domain.
Evaluation Board Overview
The board is partitioned into two main sections: an-
alog and digital. The analog section consists of the
CS5460 and a precision voltage reference. The dig-
ital section consists of the 80C51 microcontroller,
32 Kilobytes of SRAM, the hardware test switches,
the reset circuitry, and the RS-232 interface. The
board also has a user friendly power supply con-
nection.
Analog Section
The CS5460 is designed to accurately measure and
calculate: Energy, Instantaneous Power, IRMS, and
VRMS while operating from a 4.096 MHz crystal.
As shown in Figure 1 there are four BNC connec-
tors (J9, J10, J11, J12) provided for converter input
connections. A Shunt Sensor or Current Trans-
former can be connected to the converter’s current
inputs via J10 (IIN+) and J9 (IIN-). A voltage di-
vider can be connected to the converter’s voltage
input via J12 (VIN+) and (J11) (VIN-). Note, a
simple RC network filters the sensor’s output to re-
duce any interference picked up by the input leads.
The 3 dB corner of the filter is approximately 50K
Hz differential and common mode.
The evaluation board provides three voltage refer-
ence options, on-chip, on-board and external, as
shown in Figure 2. Table 1 illustrates the options
available. With HDR4’s jumpers in position RE-
FOUT, the on-chip reference provides 2.5 volts.
With HDR4’s jumpers in position LT1019, the
LT1019 provides 2.5 volts (the LT1019 was chosen
for its low drift, typically 5ppm/°C). By setting
HDR4’s jumpers to position REF+, the user can
supply an external voltage reference to J2’s REF+
and VA- inputs. Application Note 4 on the web
(http://www.cirrus.com/products//pubs.html) de-
tails various voltage references.
The CS5460 serial interfaces are SPITM and Mi-
crowireTM compatible. The interface control lines
(CS, SDI, SDO, and SCLK) are connected to the
80C51 microcontroller via port one. To interface an
external microcontroller, these control lines are
also connected to HDR6 (Header 6). However to
accomplish this, the evaluation board must be mod-
ified in one of three ways: 1) cut the interface con-
trol traces going to the microcontroller, 2) remove
resistors R4, R7, R8, and R13, or 3) remove the mi-
crocontroller.
Digital Section

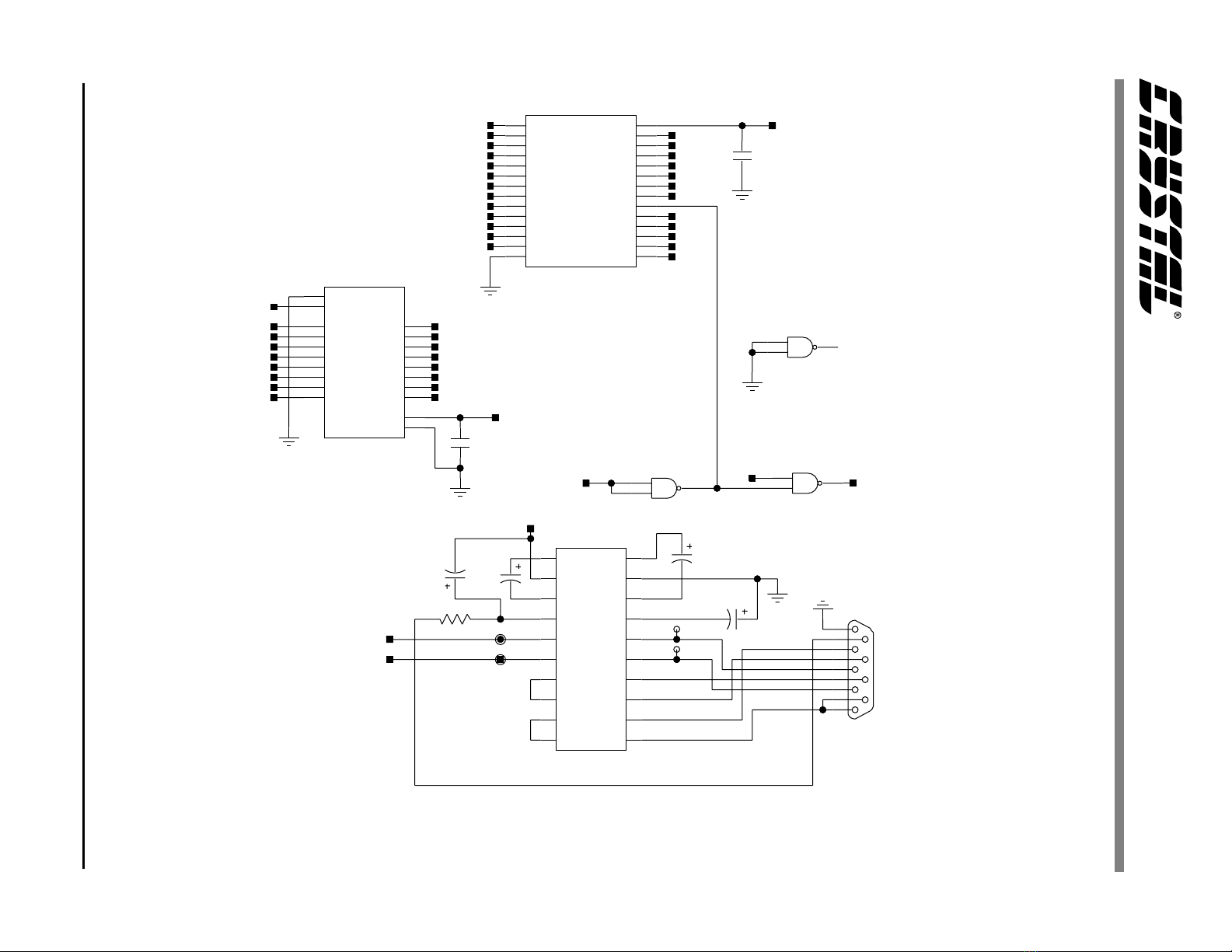

Figures 3 and 4 illustrate the schematic of the digi-
tal section. It contains the microcontroller, test
Reference Description HDR4
LT1019 Selects on board
LT1019 Reference
(5ppm/°C)
REF+ Selects external
reference
REFOUT Selects the reference
supplied by CS5460
Table 1. Reference Selection
O O LT1019
O O REF+
O O REFOUT
O O LT1019
O O REF+
O O REFOUT
O O LT1019
O O REF+
O O REFOUT
