DFI CS30-TC User manual

CS30-TC/TL
CS32-TC/TL
CS35-TC/TL
Rev. A+
System Board Users Manua
Carte Mère Manue Pour Uti isateur
System-P atine Benutzerhandbuch
Tab ero E ectrónico de Sistema Manua de Usuario
51600139

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 001. All Rights Reserved.
Trademarks
Microsoft® MS-DOS®, WindowsTM, Windows® 95, Windows® 98,
Windows® 98 SE, Windows® ME, Windows® 000 and Windows
NT® 4.0 are registered trademarks of Microsoft Corporation. Intel®,
Pentium® III and CeleronTM are registered trademarks of Intel
Corporation. VIA CyrixIII is a registered trademark of VIA
Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
 Use the correct AC input voltage range.
To reduce the risk of electric shock:
 Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
 Danger of explosion if battery incorrectly replaced.
 Replace only with the same or equivalent type recommend by
the manufacturer.
 Dispose of used batteries according to the battery
manufacturers instructions.
Joystick or MIDI port:
 Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on C ass B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.

4
Quick Setup Guide

Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
nglish......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
spañol (Spanish)..................................................
5
30
49
70
91
Onboard VGA (VGA port)
AGP slot for AGP card
AGP slot for GPA card
ü
û
ü
CS35-xxCS32-xxCS30-xx
û
ü
û
ü
ü
ü
xx denotes TC or TL.
- TC: supports onboard audio
- TL: supports onboard audio and onboard LAN

5

Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1. Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
1
15
5

6
Quick Setup Guide

Quick Setup
Guide

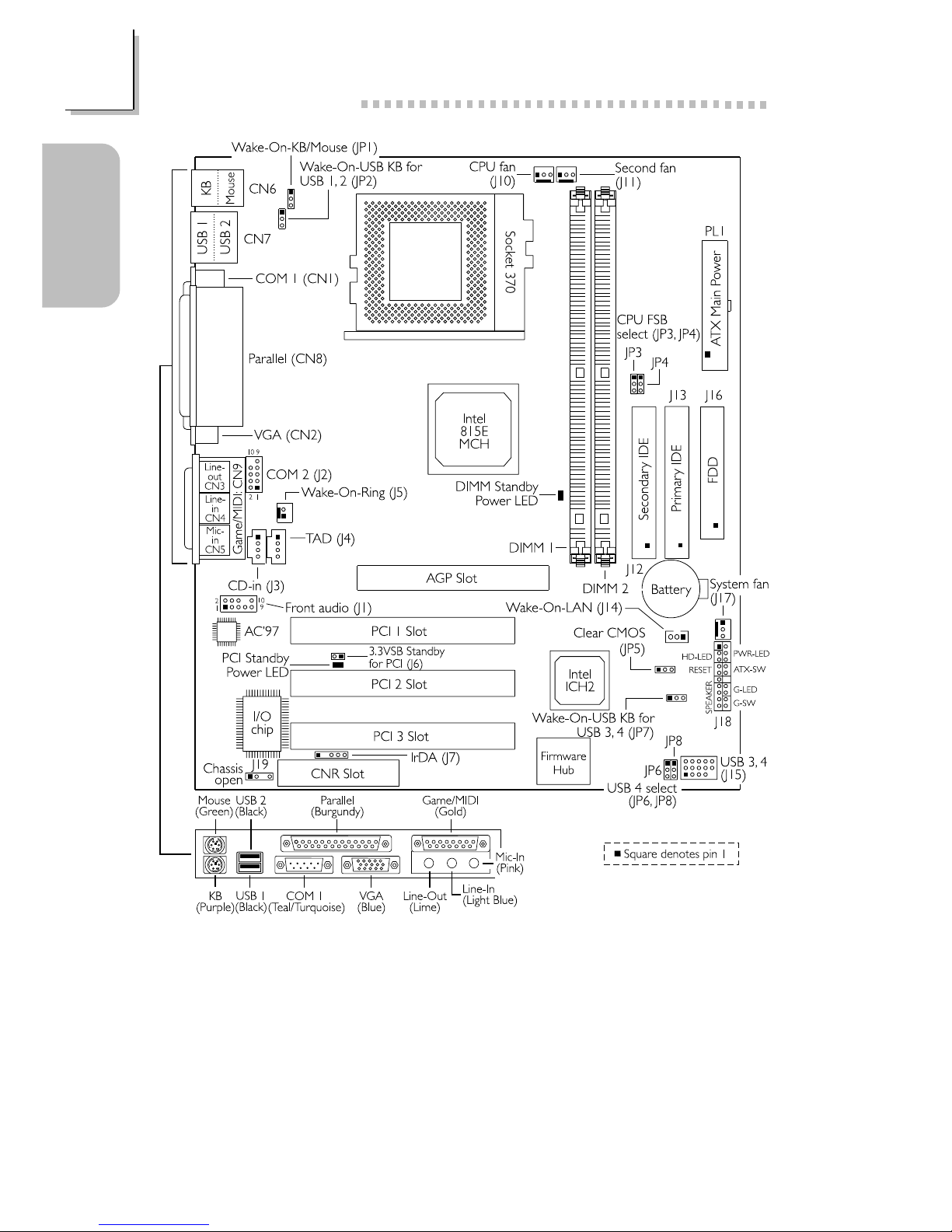

1.1 System Board Layout
CS30-TC
(Uses Intel® 815EG and supports onboard audio)

7

Quick Setup Guide
Quick Setup
Guide

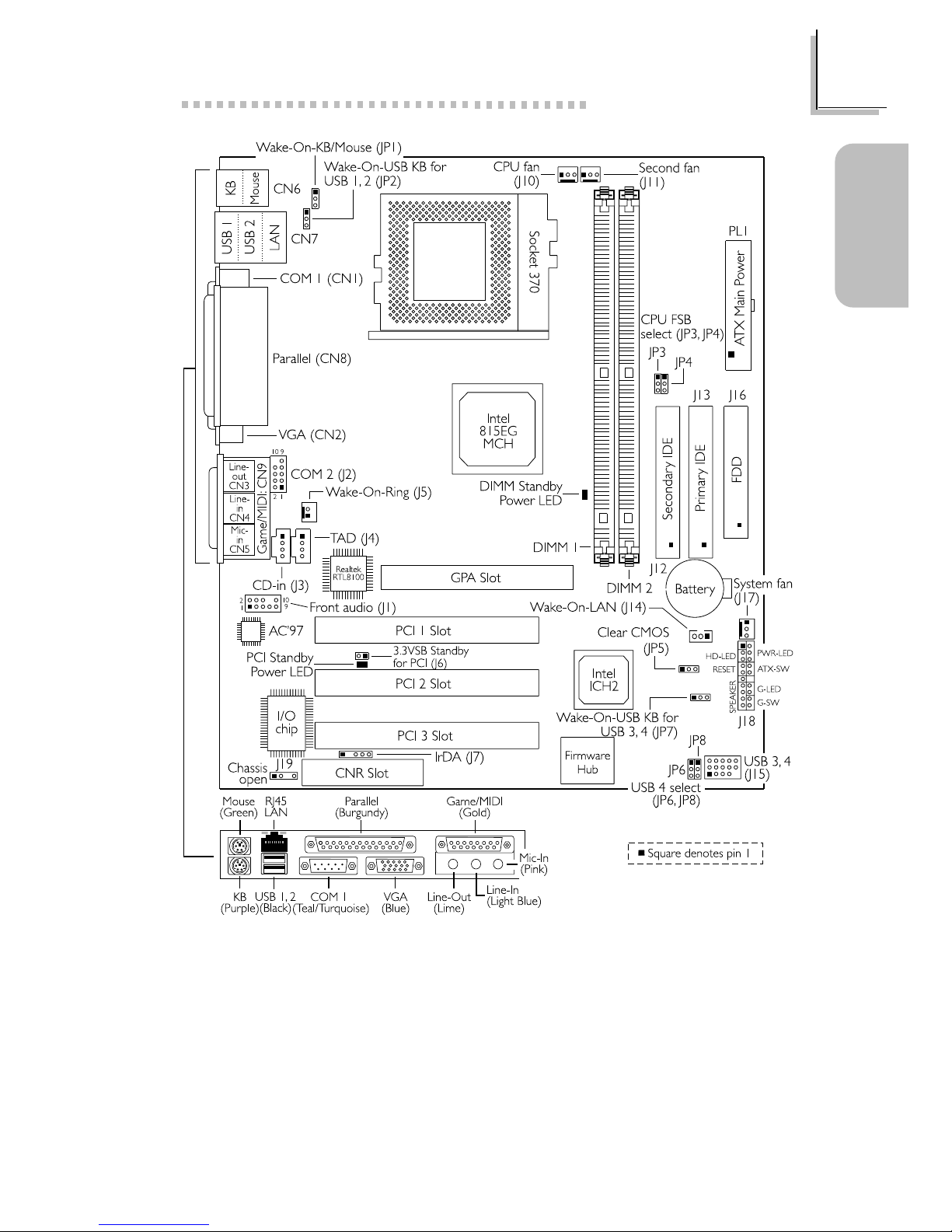

CS30-TL
(Uses Intel® 815EG, supports onboard audio and onboard LAN)

8
Quick Setup Guide

Quick Setup
Guide

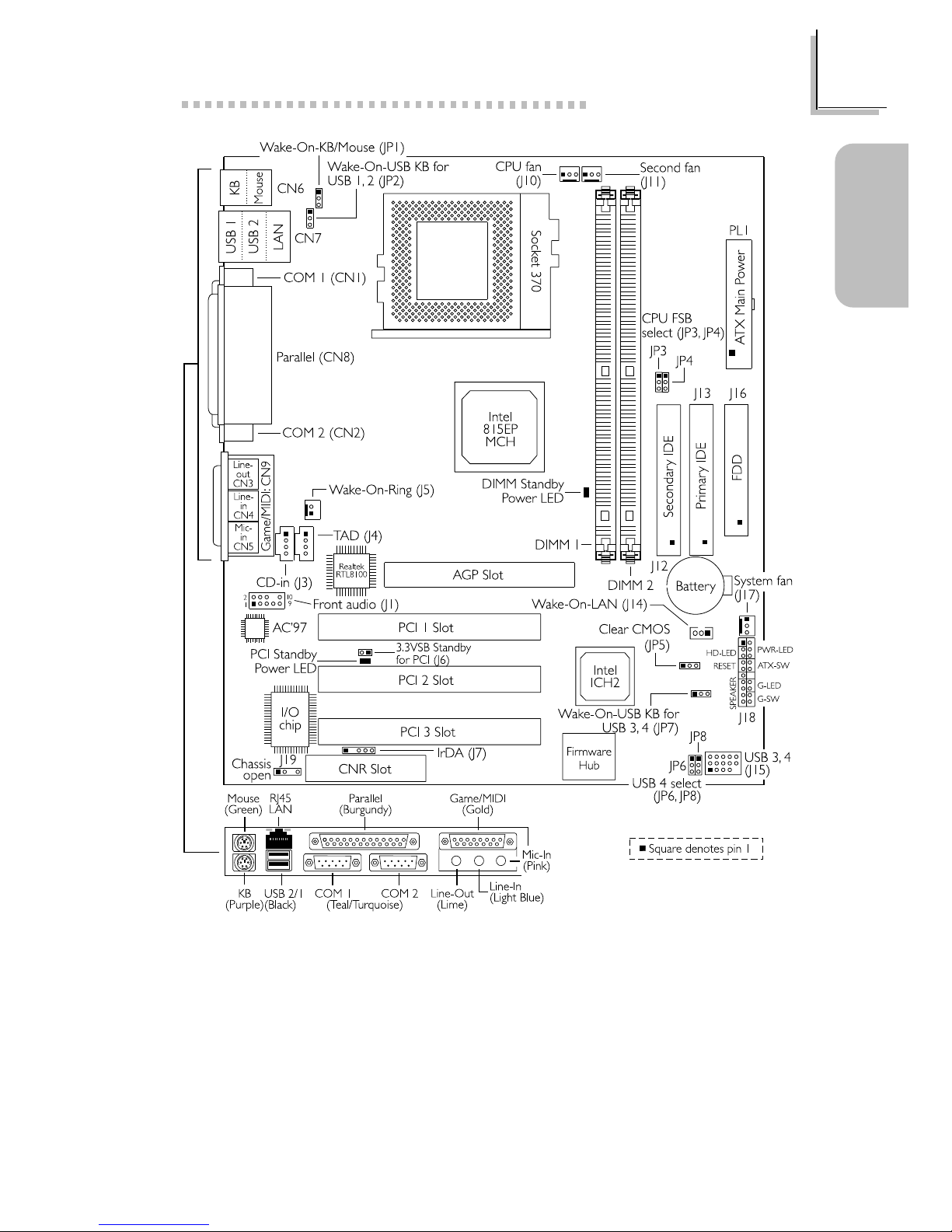

CS32-TC
(Uses Intel® 815EP B-step and supports onboard audio)

9

Quick Setup Guide
Quick Setup
Guide
CS32-TL
(Uses Intel® 815EP B-step and supports onboard audio and onboard LAN)

10
Quick Setup Guide

Quick Setup
Guide
CS35-TC
(Uses Intel® 815E B-step and supports onboard audio)

11

Quick Setup Guide
Quick Setup
Guide
CS35-TL
(Uses Intel® 815E B-step and supports onboard audio and onboard LAN)
Note:
he illustrations on the following pages are based on the CS35- L
system board, which is the board that supports onboard VGA and
onboard LAN.

1
Quick Setup Guide

Quick Setup
Guide
1.2 Jumpers
1.2.1 CPUs Front Side Bus - JP3 and JP4
Important:
Some processors, when overclocked, may result to the processors or
systems instability and are not guaranteed to provide better system
performance. If you are unable to boot your system due to
overclocking, make sure to set these jumpers back to their default
settings.
1- On
-3 On
All Off
1
3
1
3
1
3
CPU/DIMM
Auto*
66/100MHz
100/100MHz
133/100MHz
133/133MHz
JP3
1- On
-3 On
All Off
All Off
-3 On
JP4
1- On
-3 On
-3 On
All Off
All Off
* denotes default setting

13

Quick Setup Guide
Quick Setup
Guide
1.2.2 Clear CMOS Data - JP5
1.2.3 Wake-On-Keyboard / Wake-On-Mouse - JP1
1- On:
Disable the Wake-On-
KB/Mouse function
(default)
-3 On:
Enable the Wake-On-
KB/Mouse function
Important:
he 5VSB power source of your power supply must support
≥ 720mA.
-3 On:
Clear CMOS Data
1- On: Normal
(default)
1 3
1 3
1
3
1
3

14
Quick Setup Guide

Quick Setup
Guide
1.2.4 Wake-On-USB Keyboard - JP2 and JP7
1- On:
Disable the Wake-
On-USB Keyboard
function (default)
-3 On:
Enable the Wake-
On-USB Keyboard
function
Important:
 If you are using the Wake-On-USB Keyboard function for 2 USB
ports, the 5VSB power source of your power supply must
support ≥ 1.5A.
 If you are using the Wake-On-USB Keyboard function for 4 USB
ports, the 5VSB power source of your power supply must
support ≥ 2A.
1.2.5 USB 4 Select - JP6 and JP8
1- On:
USB 4 on J15
(default)
-3 On:
USB 4 on CNR
1 3
1
3
JP
JP7
13
1
3
JP
JP7
1
3
JP6 JP8
1
3
JP6 JP8

15

Quick Setup Guide
Quick Setup
Guide
1.3 Ports and Connectors
1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
Make sure to turn off your
computer prior to connecting or
disconnecting a mouse or
keyboard. Failure to do so may
damage the system board.
PS/ Mouse
PS/ Keyboard
1.3.2 Parallel Port
Parallel Port

16
Quick Setup Guide

Quick Setup
Guide
1.3.4 Universal Serial Bus Ports
The Wa k e-On-USB Keyboard
function, when enabled, allows a
USB keyboard to wake up a
system that is in the S3 (STR -
Suspend To RAM) state.
1 VCC
UP -
3 UP +
4 Ground
5 Key
6 VCC
7 UP3-
8 UP3+
9 Ground
10 Ground
11 Ground
1 Ground
13 UP +
14 UP -
15 VCC
Onboard USB Ports (USB 1 / 2)
Additional USB Ports (USB 3 / 4)
1.3.3 RJ45 Fast- thernet Port (CS30-TL, CS32-TL and
CS35-TL)
RJ45 LAN

17

Quick Setup Guide
Quick Setup
Guide
1.3.5 Serial Ports
CS30-TC/TL and CS35-TC/TL
COM 1
Serial Port
One card-edge bracket mounted
with a serial port cable is provided
for connecting the COM
secondary serial port.
CS32-TC/TL
COM 1
Serial Port COM
Serial Port

18
Quick Setup Guide

Quick Setup
Guide
1.3.7 Game/MIDI Port and Audio Jacks
1.3.6 VGA Port (CS30-TC/TL and CS35-TC/TL)
VGA Port
Game/MIDI Port
Audio Jacks
Line-out
Line-in
Mic-in
Additional Line-out/Mic-in (J1)
1Mic+
Ground
3N. C.
4 AuD_Vcc (Avcc)
5 AuD_R-Out
6N. C.
7N. C.
8 Key
9 AuD_L_Out
10 N. C.
Onboard Game/MIDI / Audio

19

Quick Setup Guide
Quick Setup
Guide
1.3.8 Internal Audio Connectors
1 Left audio channel
Ground
3 Ground
4 Right audio channel
1 Modem-out (from modem)
Ground
3 Ground
4 Modem-in (to modem)
CD-in
TA D
1.3.9 Floppy and ID Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
FDD
IDE

0
Quick Setup Guide

Quick Setup
Guide
1.3.11 Fan Connectors
1 Ground
Power
3 Sense
1 Ground
On/Off
3 Sense
1 Ground
On/Off
3 Sense
CPU Fan
System Fan
Second Fan
1.3.10 IrDA Connector
1 VCC
Key
3 IRRX
4 Ground
5 IRTX
The sequence of the pin functions
on some IrDA cable may be
reversed from the pin function
defined on the system board. Make
sure to connect the cable to the
IrDA connector according to their
pin functions.
