SOLTEK SL-65LIV-T User manual

R
SL-65LIV-T USER MANUAL v1.0
The Soul Of Computer Technology

Product Model : SL-65LIV-T
Manual Revision : V1.0
Release Date : Au ust 2001
• Intel celeron and PIII processors are trademarks of Intel Corporation.
• VIA, VT8601T APO O P E133T and VT82C686B are trademarks of VIA Corporation.
T
his User’s Guide & Technical Reference is to help system manu-
facturers and end-users set up and install the mainboard.
Every effort has been made to ensure that the information in this
manual is accurate. Soltek Computer Inc. is not responsible for print-
ing or clerical errors. Information in this document is subject to
change without notice and does not represent a commitment on the
part of Soltek Computer Inc.
No part of this manual may be reproduced, transmitted, translated
into any language in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose
without the express written permission of Soltek Computer Inc.
Companies and products mentioned in this manual are for identification
purpose only. Product names appearing in this manual may or may
not be registered trademarks or copyrights of their respective
companies.
Soltek Computer inc. provides this manual “As is “ without warranty
of any kind, either express or implied, including but not limited to
the implied warranties or conditions of merchantability or fitness for
a particular purpose. In no event shall Soltek computer inc. be
liable for any loss or profits, loss of business, loss of use or data,
interruption of business, or for indirect, special, incidental, or
consequential damages of any kind, even if Soltek computer inc.
has been advised of the possibility of such damages arising from
any defect or error in this manual or product.
Copyright © 2001 Solt k Comput r Inc. All Rights R s rv d.
NOTICE

SOLTEK AROUND THE WORLD
SOLTEK COMPUTER INC.
Address : 7F, No. 306-3, Ta-Tung Rd, Sec.1, Hsi-Chih, Taipei-
Hsien, Taiwan, R.O.C.
Telephone : [phone]
Fax : [phone]
E-mail : [email protected]
Web site : http://www.soltek.com.tw
SOUL TECHNOLOGY EUROPE B.V.
Address : Hongkongstraat 55, 3047 BP Rotterdam. The Neth-
erlands
Telephone : [phone]
Fax : [phone]
E-mail : [email protected]
Web site : http://www.soultech-europe.com

65LIV-T
4
CONTENT
CHAPTER 1 INTRODUCTION ................................................. 8
1-1 MAINBOARD SPECIFICATION ................................................. 9
1-1.1 CPU ................................................................................................... 9
1-1.2 CHIPSET ........................................................................................... 9
1-1.3 AWARD BIOS V6.0 ........................................................................... 9
1-1.4 EXPANSION S OTS ......................................................................... 9
1-1.5 ADVANCED HIGH-PERFORMANCE DRAM CONTRO ER .......... 9
1-1.6 SOUND CONTRO ER .................................................................... 9
1-1.7 MU TI-I/O FUNCTION .................................................................... 10
1-1.8 INTEGRATED HIGH PERFORMANCE 2D/3D GRAPHICS
CONTRO ER ................................................................................ 10
1-1.9 POWER MANAGEMENT ................................................................ 10
1-1.10 FORM FACTOR ............................................................................ 10
1-1.11 HARDWARE MONITOR ................................................................ 11
1-1.12 OTHERS ....................................................................................... 11
1-2 MAINBOARD AYOUT --- 65 IV-T .......................................... 12
1-3 CHIPSET SYSTEM B OCK DIAGRAM................................... 13
CHAPTER 2 HARDWARE SETUP......................................... 15
2-1 CPU INSTA ATION ............................................................... 16

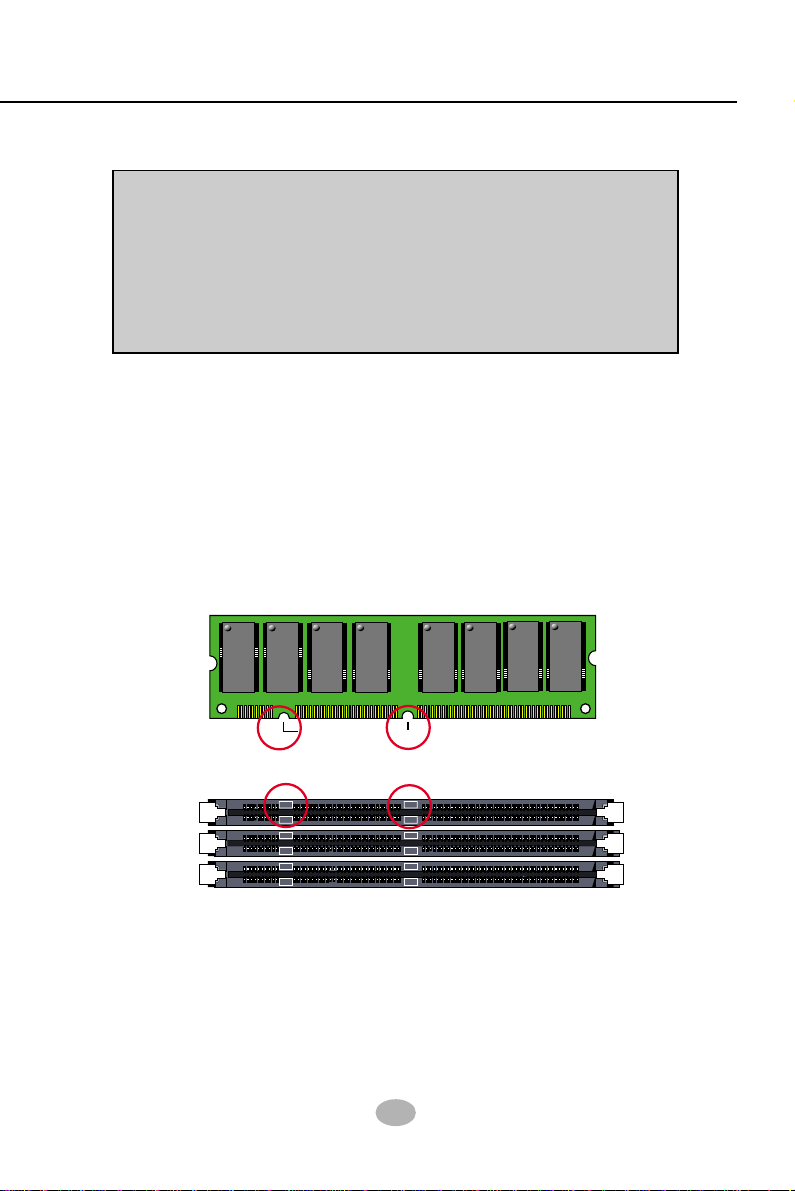

2-2 MEMORY INSTA ATION ....................................................... 17

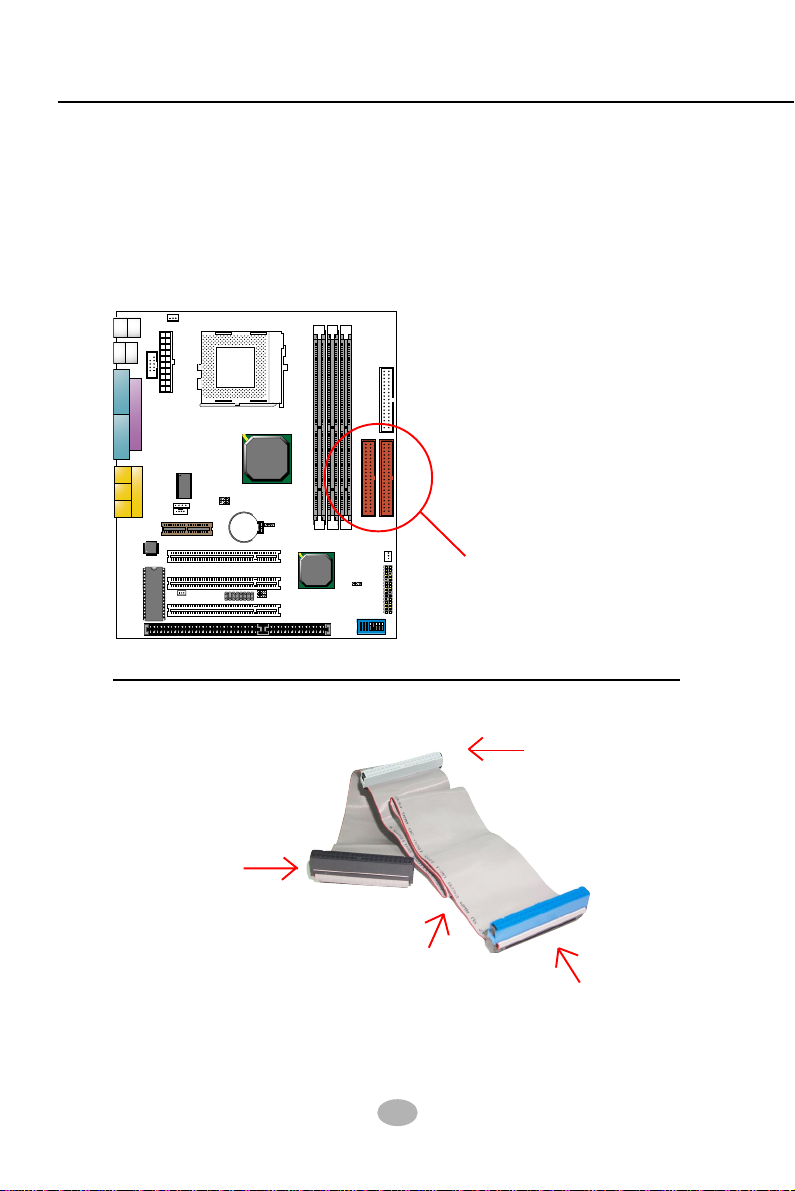

2-3 HDD/FDD INSTA ATION....................................................... 18
2-4 SWITCH SETTING FOR CPU FREQUENCY AND VO TAGE 20
2-4.1 CPU BUS RATIO SE ECT (By SW1 DIP1~DIP4) .......................... 20
2-4.2 FSB Frequency SE ECT (By SW1 DIP5~DIP8) ............................. 21
2-5 JUMPER SETTING FOR DEVICES ON BOARD .................... 22
2-5.1 JP2/JP3 System Controller 2.5V Core Voltage Select .................... 22

5
2-5.2 JP7 Power ost Resume ................................................................. 23
2-5.3 JP8/JP9 USB Port Select ................................................................ 23
2-5.4 JBAT1 For Clear CMOS DATA ........................................................ 24
2-6 CONNECTORS CONFIGURATIONS ...................................... 25
2-6.1 On Board FAN Connector (JFAN1, JFAN2) .................................... 25
2-6.2 JWO 1 Wake On AN .................................................................... 26
2-6.3 CD-ROM Audio Connector (CD_IN1/CD_IN2) ................................ 26
2-6.4 Complex Header CON1 ................................................................. 27
2-6.5 ATX Power Supply Connector ......................................................... 28
2-6.6 Chassis Panel Connector ............................................................... 29
2-6.7 Serial Port Connector ...................................................................... 30
2-6.8 USB2 Header .................................................................................. 31
2-6.9 PS/2 Mouse And PS/2 Keyboard .................................................... 31
2-7 IRQ DESCRIPTION ................................................................. 32
CHAPTER 3 SOFTWARE SETUP ......................................... 34
3-1 VIA CHIPSET DRIVER INSTA ATION (4-IN-1 DRIVER) ...... 35
3-2 ONBOARD VGA DRIVER INSTA ATION .............................. 38
3-2.1 Install P E133T VGA Driver For Windows 95/98/SE ...................... 38
3-2.2 Install P E133T VGA Driver For Windows NT4.0 ........................... 38
3-2.3 Install P E133T VGA Driver For Windows ME .............................. 39
3-2.4 Install P E133T VGA Driver For Windows 2000 ............................ 39
3-3 AC’97 AUDIO DRIVER INSTA ATION .................................. 40
CHAPTER 4 BIOS SETUP ..................................................... 42
4-1 WHAT IS BIOS SETUP............................................................ 43
4-2 HOW TO RUN BIOS SETUP ................................................... 43
4-3 WHAT IS CMOS ...................................................................... 43

65LIV-T
6
4-4 WHAT IS POST ....................................................................... 43
4-5 BIOS UPGRADE ..................................................................... 43
4-5.1 Before Upgrading BIOS .................................................................. 44
4-5.2 Upgrade Process ............................................................................ 44
4-6 BIOS SETUP --- CMOS SETUP UTI ITY................................ 48
4-6.1 CMOS SETUP UTI ITY .................................................................. 48
4-6.2 STANDARD CMOS SETUP ............................................................ 49
4-6.3 ADVANCED BIOS FEATURES ....................................................... 52
4-6.4 ADVANCED CHIPSET FEATURES ................................................ 57
4-6.5 INTEGRATED PERIPHERA S ....................................................... 61
4-6.6 POWER MANAGEMENT SETUP ................................................... 66
4-6.7 PNP / PCI CONFIGURATION ......................................................... 73
4-6.8 PC HEA TH STATUS ...................................................................... 76
4-6.9 FREQUENCY/VO TAGE CONTRO .............................................. 78
4-6.10 OAD OPTIMIZED DEFAU TS..................................................... 80
4-6.11 SET SUPERVISOR / USER PASSWORD .................................... 80
4-6.12 SAVE & EXIT SETUP.................................................................... 81
4-6.13 EXIT WITHOUT SAVING .............................................................. 81
APPENDICES ......................................................................... 83
APPENDIX-1 TECHNICA TERMS .............................................. 84
APPENDIX-2 IDENTIFYING BIOS VERSION AND BIOS PART
NUMBER ................................................................ 85
APPENDIX-3 IDENTIFYING MAINBOARD MODE NUMBER .... 87

7
ITEM LIST CHECKUP
Mainboard
====Support CD
====User’s Manual
====Bundled Bonus Pack CD
====Bundled Bonus Pack Manual
====Temperature Sensor Cable
ATA66/100 IDE Cable
====RS232 Cable
FDD Cable

65LIV-T
8
CHAPTER 1
INTRODUCTION
• This chapter briefly introduces the characteristics of this mainboard.
It includes the information regarding the chipset, CPU types, built-in
functions and layout. Users will have more ideas about mainboards
after reading this chapter.
This chapt r contains th following topics :
1-1 MAINBOARD SPECIFICATION
1-2 MAINBOARD LAYOUT
1-3 CHIPSET DIAGRAM

Chapter 1 Introduction
9
1-1.1 CPU
• Supporting Intel® FC-PGA370 Pentium IIITM up to 1GHz.
• Supporting Intel® FC-PGA 370 Celeron up to 850MHz.
• Supporting VIA Cyrix III processors up to 800MHz.
• Supporting 66 to 200 MHz system bus speed.
• Supporting processor voltage Auto-Detect circuit.
• Supporting Intel® FC-PGA2 processors.
1-1.2 CHIPSET
• VIA VT8601T APPO O P E133T System controller.
• VIA VT82C686B PCI to ISA bridge.
1-1.3 AWARD BIOS V6.0
• Plug & Play V1.0.
• Flash Memory for easy upgrade.
• BIOS writing protection.
• Year 2000 compliant.
• Redstrom Overclocking Tech.
1-1.4 EXPANSION SLOTS
• Three PCI bus Mater slots.
• One ISA slot.
• Three DIMM slots.
• One AMR slot.
1-1.5 ADVANCED HIGH-PERFORMANCE DRAM CONTROLLER
• Supporting PC133 and PC100 SDRAM SDRAM up to 3 DIMMs.
• 64-bit data width and 3.3V DRAM interface.
• Supporting up to 768MB memory space.
• Different DRAM types may be used in mixed combinations.
• PCI-2.2 compliant, 32 bit 3.3V PCI interface with 5V tolerant inputs.
1-1.6 SOUND CONTROLLER
• SoundBlaster Pro Hardware and Direct Sound Ready AC’97 Digital
Audio Controller with Codec Onboard.
1-1 MAINBOARD SPECIFICATION

65LIV-T
10
1-1.7 MULTI-I/O FUNCTION
• Two Ultra DMA 33/66/100 Master Mode PCI EIDE ports.
• Two UART’s for Complete Serial Ports.
• Dedicated IR connector:
-- Third serial port dedicated to IR function either through the two complete serial
ports or the third dedicated port Infrared-IrDA (HPSIR) and ASK (Amplitude Shift
Keyed) IR.
• Multi-mode parallel connector supporting:
-- Standard mode, ECP and EPP.
• Floppy Disk connector supporting:
-- Two FDDs connector with drive swap support .
• Universal Serial Bus connector supporting:
--- USB v1.1 and Intel Universal HCI v1.1 compatible.
--- 2 built-in USB connectors and one USB Header (USB2) which requires an
optional USB cable to provide 2 more optional USB ports.
• PS/2 Keyboard connector.
• PS/2 Mouse connector.
1-1.8 INTEGRATED HIGH PERFORMANCE 2D/3D GRAPHICS
CONTROLLER
• 64-bit Single Cycle 2D/3D Graphics Engine.
• Supporting 2 to 8 Mbytes of Frame Buffer.
• Integrated 24-bit 230MHz True Color DAC.
• Extended Screen Resolutions up to 1600x1200.
• Extended Text Mode 80 or 132 columns by 25/30/43/60 rows.
1-1.9 POWER MANAGEMENT
• ACPI 1.0 compliant (Advanced Configuration and Power Interface).
• APM V1.2 compliant ( egacy power management).
• Supporting ACPI POS mode (Power On Suspend).
• Supporting Wake On AN (WO ) & Wake On Modem.
• Supporting real time clock (RTC) with date alarm, month alarm, and century
field.
1-1.10 FORM FACTOR
• ATX form factor 4-layer PCB.
• Mainboard size: 24.5cm x 21.0cm.

Chapter 1 Introduction
11
1-1.11 HARDWARE MONITOR
• Programmable control, status, to provide monitoring and alarm for flexible
desktop management of hardware temperature (software provided in
support CD).
• 5 positive voltage statuses monitoring.
• 2 Fan-speeds statuses monitoring.
1-1.12 OTHERS
• Clock generator supporting 1MHz linear clock setting.

65LIV-T
12

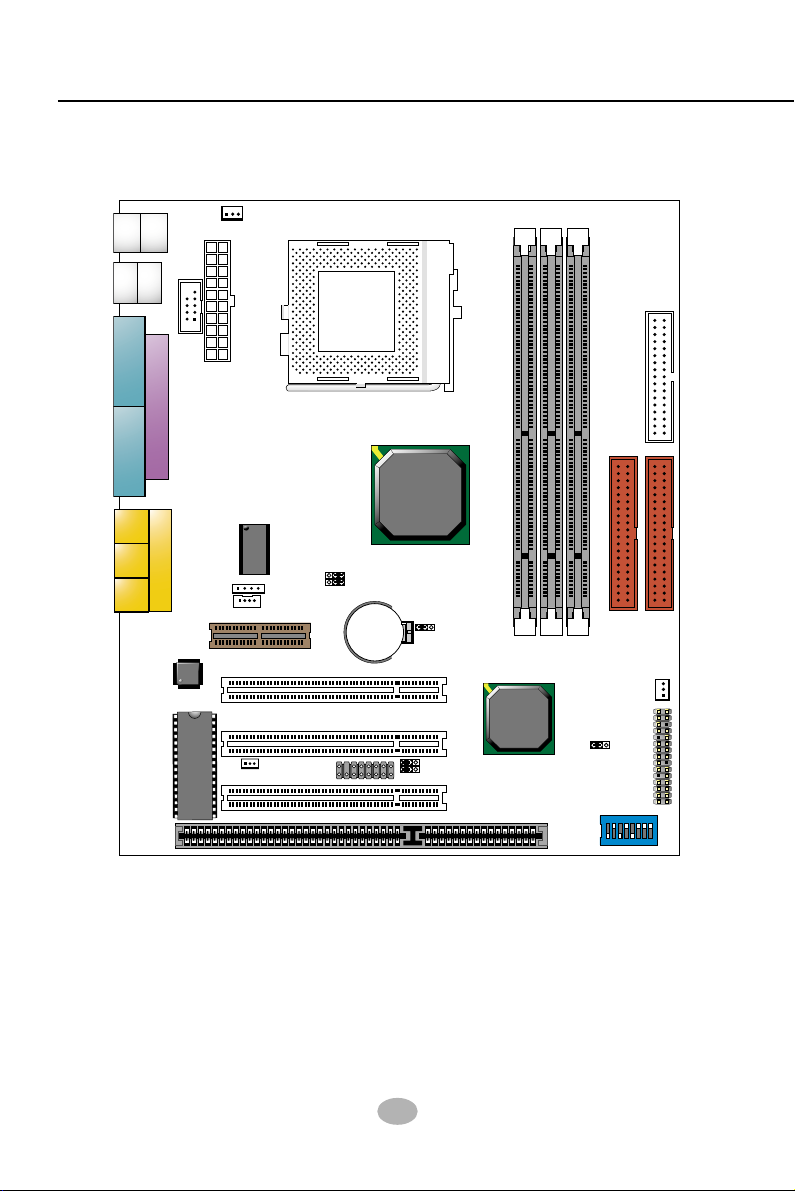

ISA
PCI 1
PCI 2
PCI 3
Li
Batt ry
VIA
VT82C
686B
SW1 ONDIP
8 7 6 5 4 3 2 1
VIA
VT8601T
1 3 JBAT1
DIMM1 DIMM2 DIMM3
FDD1
IDE2 IDE1
SOCKET 370
JFAN1
JFAN2
LPT1
COM1VGA
GAME/MIDI PORT
LINE OUT
LINE IN
MIC
USB1 USB0 PS/2
MOUSE PS/2 K/B
low r
low r upp r upp r
COM2
SPK RST PWR/LED SLED
HDD/LED IR PW_BNEXT SMI
J2 J3
++
--
+-
1
30
AMR
ATX POWER
1 3
JP2
JP3
1 3
JP7
AC'97
Cod c
JWOL1
USB2
1
16
1 3
JP8
JP9
1 4
1 4
CD_IN1
CD_IN2
Clock G n rator
FLASH BIOS
1 3
1-2 MAINBOARD LAYOUT --- 65LIV-T
Using non-compliant memory with higher bus clock (over clocking) may
severely compromise the integrity of system.

Chapter 1 Introduction
13
1-3 CHIPSET SYSTEM BLOCK DIAGRAM
Diagram of VT8601T APOLLO PLE133T System Block wit VT82C686B
PCI-to-ISA Sout Bridge
ATA
33/66/100
4X USB
VT8601T
PCI Slo s
33MHz,
32-bi PCI
64-bi 133/100/66 MHz
133/100/66 MHz
PC133/PC100 SDRAM
Socke 370
Celeron/PIII
CPU
Serial Por
Floppy Disk
Parallel Por
EPROM
AC-97
MC-97
LPC
In egra ed
AC-97 Audio
AC-Link
FSB
VT82C
686B

65LIV-T
14
MEMO
MEM
O

Chapter 2 Hardware Setup
15
CHAPTER 2
HARDWARE SETUP
ATTENTION !!!
1. Pl as r f r to your proc ssor installation or oth r
docum ntation attach d with your CPU for d tail d
installing instruction.
2. Installing a h at sink and cooling fan is n c ssary for
prop r h at dissipation from your CPU. Uncorr ct d
installation may r sult in ov rh ating and damag of
your CPU.
3. B for changing th s tting of CPU Vcor from BIOS
program, us r SHOULD mak sur of corr ct sp cifi-
cation both of CPU CLOCK and RATIO. Uncorr ct d
s tting may caus damag to your CPU.
2-1 CPU INSTALLATION
2-2 MEMORY INSTALLATION
2-3 HDD/FDD INSTALLATION
2-4 SWITCH SETTING FOR CPU FREQUENCY AND
VOLTAGE
2-5 JUMPER SETTING FOR DEVICES ON BOARD
2-6 CONNECTORS CONFIGURATION
2-7 IRQ DESCRIPTION
This chapt r contains th following topics :

65LIV-T
16
WARNING
• Make sure that +5V DCV and +3.3 DCV of your power supply are suitable
for the processor.
• Any attempt to operate the Celeron or III processor without a suitable
cooling Fan will damage processor and other component.
2-1 CPU INSTALLATION
Make sure that the CPU is
placed into the socket tightly.
Then lower down the lever to
complete the CPU installation.
3
SOCKET 370
Take notice of the red circles
as shown here. While inserting
the CPU into the socket, you
can find out there is a definite
pin orientation for CPU and
socket.
2
SOCKET 370
Pull out the lever from the socket,
and then raise the lever up to a
90-degree angle.
1
SOCKET 370

Chapter 2 Hardware Setup
17
R moving DIMM
• Press down the holding clips on both sides of a DIMM socket and the
module will be released from it.
Installing DIMM
• Make sure you have the correct memory module type for your mainboard.
• Insert the module(s) as shown below, DIMMs have 168-pins and two
notches that will be matched by the onboard DIMM socket. Memory
modules are installed by inserting them straight into the slot until they
“click” in the right place. They only fit in one direction, so do not force
them in by a wrong direction.
WARNING!!!
• Make sure to unplug your power supply before adding or removing memory
modules or other system components. Failure to do so may cause severe
damage to both your mainboard and expansion cards.
• Be careful when inserting or removing DIMM. Forcing a DIMM in or out
of a socket improperly may damage the memory module or the socket.
Some DIMMs which contain EDO or F M DRAM are incompliant with
the mainboard. The M/B supports 3.3V true SDRAM DIMMs only.
2-2 MEMORY INSTALLATION
168-Pin DIMM Notch K y D finitions(3.3V)
DRAM K y Position Voltag K y Position
Unbuff r d 3.3V

65LIV-T
18
ISA
PCI 1
PCI 2
PCI 3
Li
Batt ry
VIA
VT82C
686B
SW1
ONDIP
8 7 6 5 4 3 2 1
VIA
VT8601T
1 3
JBAT1
DIMM1 DIMM2 DIMM3
FDD1
IDE2 IDE1
SOCKET 370
JFAN1
JFAN2
LPT1
COM1VGA
GAME/MIDI PORT
LINE OUT
LINE IN
MIC
USB1 USB0 PS/2
MOUSE PS/2 K/B
low r
low r upp r upp r
COM2
SPK RST PWR/LED SLED
HDD/LED IR PW_BNEXT SMI
J2 J3
++
--
+-
1
30
AMR
ATX POWER
1 3
JP2
JP3
1 3
JP7
AC'97
Cod c
JWOL1
USB2
1
16
1 3
JP8
JP9
1 4
1 4
CD_IN1
CD_IN2
Clock G n rator
FLASH BIOS
1 3
Hard Disk Drive Connector:
Orient the red markings on the
IDE ribbon cable to Pin1.
• To install HDD (Hard Disk Drive), you may connect the cable’s blue connector to
the mainboard’s primary (IDE1) or secondary (IDE2) connector, and then
connect the gray connector to your slave device and the black connector
to your master device. If you install two hard disks, you must configure the
second drive to Slave mode by setting its jumper accordingly. Please
refer to your hard disk documentation for the jumper settings.
2-3 HDD/FDD INSTALLATION
Gray connector
Blue connector
IDE Cabl
red line
Black connector

Chapter 2 Hardware Setup
19
• To install FDD (Floppy Disk Drive), you may connect the end with single
connector to the board, and connect the other end with two plugs to the
floppy drives.
Floppy Disk Drive Connector:
Orient the red line on the
floppy ribbon cable to Pin1.
FDD Cabl
To 1st Floppy Drive
To mainboard
To 2nd Floppy Drive
red line
ISA
PCI 1
PCI 2
PCI 3
Li
Batt ry
VIA
VT82C
686B
SW1
ONDIP
8 7 6 5 4 3 2 1
VIA
VT8601T
1 3
JBAT1
DIMM1 DIMM2 DIMM3
FDD1
IDE2 IDE1
SOCKET 370
JFAN1
JFAN2
LPT1
COM1VGA
GAME/MIDI PORT
LINE OUT
LINE IN
MIC
USB1 USB0 PS/2
MOUSE PS/2 K/B
low r
low r upp r upp r
COM2
SPK RST PWR/LED SLED
HDD/LED IR PW_BNEXT SMI
J2 J3
++
--
+-
1
30
AMR
ATX POWER
1 3
JP2
JP3
1 3
JP7
AC'97
Cod c
JWOL1
USB2
1
16
1 3
JP8
JP9
1 4
1 4
CD_IN1
CD_IN2
Clock G n rator
FLASH BIOS
1 3

65LIV-T
20
2-4.1 CPU BUS RATIO SELECT (By SW1 DIP1~DIP4)
• Normally, the Bus Ratio (Frequency Multiplier) of your processor is locked
by processor’s Vendor and setting of the CPU Bus Ratio will have no
effect.
• The Bus Ratio Setting is available on unlocked processors only.
SW1 DIP1 ~ DIP4 SETTING
6.0x 6.5x
7.0x 7.5x
8.5x 9.5x
11.0x10.5x
8.0x
9.0x
10.0x
11.5x 12.0x
ONDIP
8 7 6 5 4 3 2 1
ONDIP
8 7 6 5 4 3 2 1
ONDIP
8 7 6 5 4 3 2 1
ONDIP
8 7 6 5 4 3 2 1
ONDIP
8 7 6 5 4 3 2 1
ONDIP
8 7 6 5 4 3 2 1
ONDIP
8 7 6 5 4 3 2 1
ONDIP
8 7 6 5 4 3 2 1
ONDIP
8 7 6 5 4 3 2 1
8 7 6 5 4 3 2 1
ONDIP
ONDIP
8 7 6 5 4 3 2 1
ONDIP
8 7 6 5 4 3 2 1
8 7 6 5 4 3 2 1
ONDIP
ONDIP
8 7 6 5 4 3 2 1
5.5x
(d fault)
2-4 SWITCH SETTING FOR CPU FREQUENCY AND VOLTAGE
