SECTION 2 - INSTALLATION
IMPORTANT
IT IS THE CUSTOMERS RESPONSIBILITY TO REPORT ANY
CONCEALED OR NON-CONCEALED DAMAGE TO THE
FREIGHT COMPANY.
A. INSTALLATION OPTIONS & KIT AVAILABILITY
If the installation will require two or three ovens to be stacked,
you must use the separately-available Stacking Kit (P N
T2114STACK). One Kit is required for a two-stack, while two
kits are required for a three-stack. Stacking more than three
ovens is not permitted.
Wherever the Stacking Kits instructions are different from those
listed below, follow the instructions provided with the Kit.
B. ASSEMBLY
1. Installing th L gs
a. Carefully tilt the oven onto its rear side. The front
(controller) side should be facing directly upwards.
b. Thread the four legs into the holes provided on the
bottom of the oven. Tighten them until they are secure.
2. Installing th Conv yor End Trays
a. Press one of the conveyor end trays down over the
end plate of the conveyor frame, as shown in Figure
2.
b. Fasten the end tray in place with one of the supplied
8-32x3 8 screws, as shown in Figure 2.
c. Repeat the above steps to install the second end tray
at the opposite end of the conveyor frame.
CAUTION
THE SUPPLIED LEGS AND THE END TRAYS MUST BE
FASTENED IN PLACE BEFORE OPERATING THE OVEN.
Th toast rs pow r cord and plug provid an l ctrical
ground conn ction. A s parat quipot ntial ground con-
n ction must also b mad if r quir d by national or local
cod s.
Consult all applicabl national and local cod s for furth r
l ctrical conn ction r quir m nts.
1. Before proceeding with the electrical connection, check
that the electrical supply matches the ovens requirements.
Refer to the serial plate and to the Electrical Specifications
table (in Section 1 of this Manual).
WARNING
ENSURE THAT BOTH THE CIRCUIT BREAKER/
FUSED DISCONNECT AND THE POWER ON/OFF (I/
O) SWITCH ARE IN THE O (OFF) POSITION BEFORE
PROCEEDING.
WARNING
ENSURE THAT ANY PACKING MATERIAL RESIDUE
HAS BEEN REMOVED FROM INSIDE THE OVENS
COOKING CHAMBER.
2. Singl -phas Mighty Ch f ov ns only:
Check that the appropriate receptacle is available for
the power cord plug.
Insert the power cord plug into its receptacle.
3. Thr -phas Mighty Ch f ov ns only:
Remove the two screws that hold the rear cover panel
in place; then, remove the cover panel.
Insert the end of the electrical supply through the
connector shown in Figure 3.
Attach the electrical supply wires to their terminal block
connections, as shown in Figure 3.
Secure the supply wires to the floor of the electrical
compartment using the supplied cable clamp. The
wires must not interfere with the drive chain and
sprocket. See Figure 3.
Secure the supply as it passes through the connector
on the outside wall of the oven.
Replace the rear wall of the oven and fasten it in place.
4. If required by national or local codes, connect an
equipotential ground wire to the lug shown in Figure 3.
The equipotential ground connection must meet all
applicable national and local code requirements.
C. ELECTRICAL CONNECTION
IMPORTANT
Wiring diagrams for th ov n ar provid d on pag s 9-10
of this Manual.
Th l ctrical conn ction to th ov n r quir s a circuit
br ak r/fus d disconn ct. Consult applicabl national and
local cod r quir m nts to d t rmin th rating of th
br ak r/disconn ct. El ctrical sp cifications ar list d on
th ov ns s rial plat and in th El ctrical Sp cifications
tabl (in S ction 1 of this Manual).

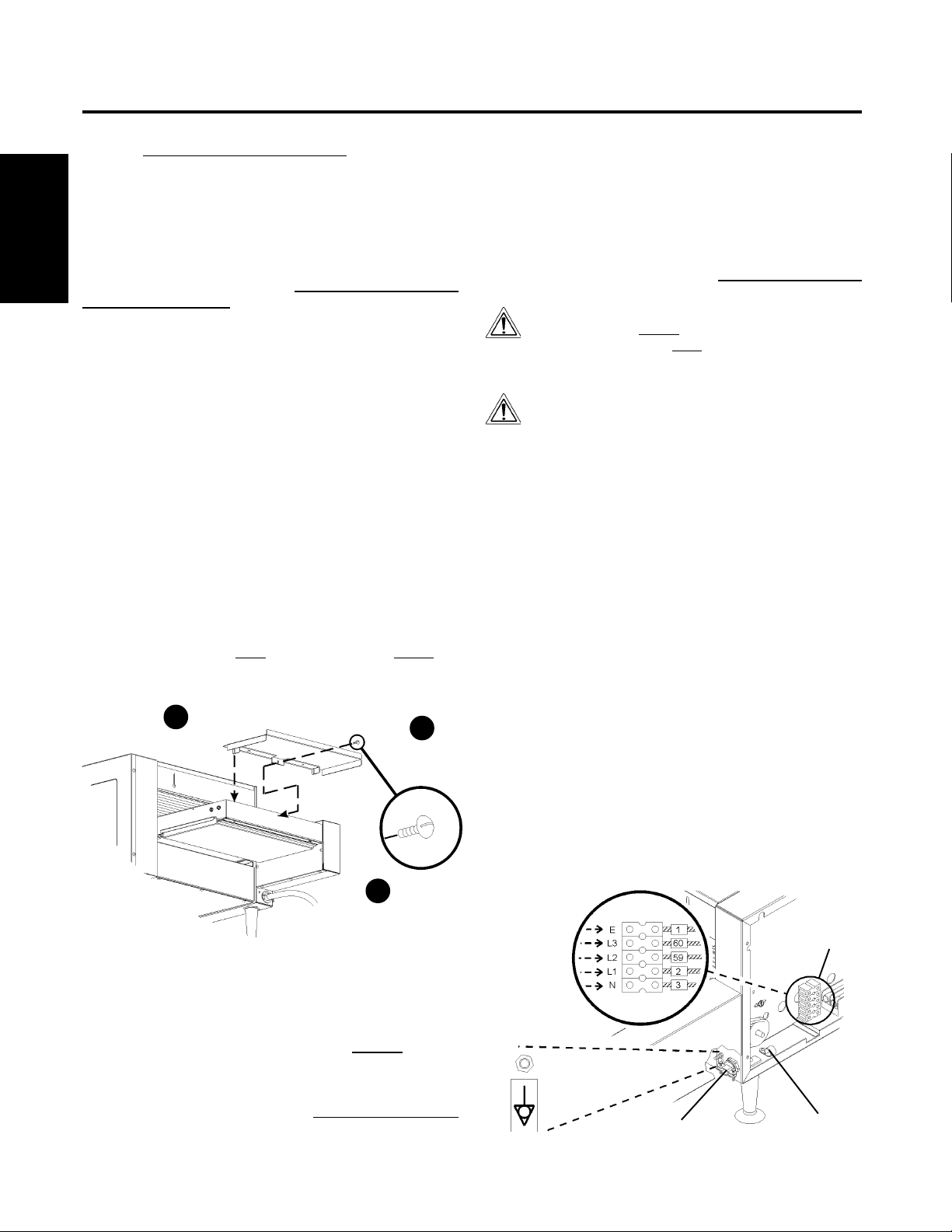

Figure 2 - End Tra Installation
Position tray
1
asten in
place
with screw
2
Repeat for
second tray
3
Figure 3 - Electrical Connections
