Cub Cadet RT 65 Setup guide

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Il l u s t r a t e d Pa r t s Ma n u a l

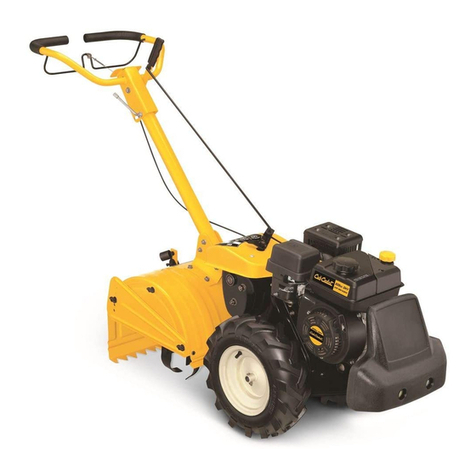

Rear Tine Tiller — Model RT 65
Form No. 769-05453
(January 20, 2010)

RT 65 Gear Case Assembly
20
3
28
19
46
16
3435
1637
16 37
29
10
11
14
50
38
24 38
2
3351
45
27
15
48
42
12
28
31
41
47
18
38
5
38
21
36
36
4
43
8
26
9
25 39
22 7
23 44
37
40
30 37 16
16
38
46
33
1
38
6
52
47
49
32
17
13
29
12
2

Ref. Part Number Description
1. 611- 0 021 Shaft Assembly, Tine, 18T
2. 611- 012 8 Shaft Assembly, Jack
3. 611- 012 9 Shaft Assembly, Shift Input
4. 611- 0 4074 A Shaft Assembly, Wheel, 33T
5. 617-0058 Gear Assembly, 30T Reverse Idler
6. 617-0059 Gear Assembly, 30T Tine Idler
7. 617-0060 Sprocket Assembly, 9T Tine Input
8. 617-0061 Sprocket Assembly, 10T Whl Input
9. 617-0062 Gear Assembly, 11T
10. 686-0108A-0637 RH Chain Case Housing Assembly
11. 710-0376 Hex Head Screw, 5/16-18 x 1.00
12. 710-0599 Screw, 1/4-20 x 0.500
13. 710-0604A Screw, :5/16-18 x 0.625
14. 710-3008 Hex Head Screw, 5/16-18 x .75
15. 711-1349 Input Shaft, .75
16. 712-0378 Nut, Hex, 7/16-20
17. 712-3004A Nut, Flangelock, 5/16-18
18. 913-0367 Endless Chain, #420 x 50 Links
19. 913-0484 Endless Chain, #50 x 54 Links
20. 716-0865 Snap Ring, .500
21. 717- 0853A Clutch Collar
22. 717-1582 Gear Spur, 44T
23. 717-1583 Gear Spur, 30T
24. 717-1584 Gear Spur, 30T
25. 717-1585 Gear Spur, 44T
26. 717-1587 Gear Spur, 44T
27. 717-1594 Gear Spur, 16T
Ref. Part Number Description
28. 921-0378 Shaft Seal, 1.0
29. 721-0379 Shaft Seal, .75
30. 786-0238 Positioner Gear Bracket
31. 726-0277 Tapered Cap Plug
32. 932-0496 Compression Spring, .230 OD
33. 936-0163 Washer, Flat, 1.03 x 1.62 x .03
34. 936 - 0171 Washer, Lock, 7/16
35. 936-0226 Washer, Flat,.474 x .879 x .064
36. 936-0351 Washer, Flat, .760 ID x 1.50 OD
37. 736-0407 Washer, Bell,.45 x 1.00 x .062
38. 736-0518 Washer, Thrust, .445 x 1.92 x .060
39. 736-3088 Washer, Flat,1.595 x .635 x .062
40. 686-04129-0637 LH Chain Case Housing
41. 950-0671 Spacer, .75 x 2.0 x .50
42. 738-0645 Shaft Detent, .5 DIA
43. 738-0648 Shaft, Jack, .625 x 2.385
44. 738-1013 Shaft, Jack, .6250 x 5.0050
45. 941-0600 Ball Bearing, 17 x 40 x 12:6203
46. 941-0420 Flange Bearing, 1.0 x 2.5 x 1.38
47. 741-0421 Flange Bearing, .75 x 2.5 x 1.38
48. 941- 0563 Ball Bearing, 17 x 40 x 12:6203
49. 741-0862 Ball, Detent, .250
50. 750-0258 Spacer, .315 x .750 x .375 LG
51. 950-0570 Spacer, 1.0 ID x 2.0 OD x.5 LG
52. 750-0664 Spacer, .505 ID x .88 OD x .440
—986-04074A Gear Case Assembly Complete
RT 65 Gear Case Assembly
3

RT 65 Handle & Tine Assembly
13
1
38
2
3
32
46
34
54
30
42
29
45
20
8
17
28
16
14
30
41
33
35
34 40
37
31
47
18
5
11
25
34
36
31
38 39
34
34
10
6
19
22
4
20
15
23
9
21
43
44
12
7
35
48
65
26
52
49
51
50
55
56
64
59
57
58
61
54
62
60
53
24
27
63
4

RT 65 Handle & Tine Assembly
Ref. Part Number Description
1. 747-1152 Shaft Rod
2. 649-0034-4021 Lower Handle Tube Assembly
3. 649-0041-4021 Upper Handle Assembly
4. 710-0946 Screw, 1/4-20 x 0.625
5. 710-3005 Hex Head Screw, 3/8-16:1.25
6. 710-3056 Hex Head Screw, 5/16-18 x 3.25
7. 911- 0 415 Clevis Pin, .375 X 1.75
8. 712-0324 Hexlock Nut, 1/4-20
9. 712-0379 Flangelock Nut, 3/8-24
10. 912-0429 Hexlock Nut, 5/16-18
11. 714-0147 Cotter Pin, .125 X 1.75 INTERNAL
12. 720-0210A Small Tee Knob
13. 720-0278A Foam Grip, .970 x 11.0
14. 720-0313 Grip, .1875 x 1.00
15. 726-0273 Battery Clamp, 5/16
16. 726-0317 Cable Tie, 8.5 LG
17. 735-0246A End Plug
18. 936 - 0117 Washer, Flat, .385 x .620 x .033
19. 736-0242 Washer, Bell, .340 x .872 x .060
20. 736-3090 Washer, Flat, .260 x .720 x .060
21. 938-0958 Spacer, Shoulder, .50 x .190 x .360
22. 747-1219-0637 Clutch Bail
23. 784- 0190 Handle Adjustment Crank
24. 784-0191 Hex Nut Retainer Bracket
25. 786-0120-0637 Tiller Depth Control
26. 786-0181-4021 Shaft Rod Lever
27. 735-0127 Washer, Rubber, .33 ID x .125
28. 914-0104 Cotter Pin, .072 x 1.12 LG
29. 686-0044B-4021 End Cover Assembly
30. 710 - 0176 Hex Head Screw, 5/16-18 x 2.75
31. 710-3008 Hex Head Screw, 5/16-18 x .75
32. 710-3022 Hex Head Screw, 3/8-16 x 2.75
33. 710-04482 Hex Head Flange, 3/8-16 x .875
Ref. Part Number Description
34. 712-04063 Flangelock Nut, 5/16-18
35. 712-04065 Flangelock Nut, 3/8-16
36. 712-0421 Wing Nut, 5/16-18 W/ Bell Washer
37. 926-0106 Speed Nut Cap, 1/4 ROD
38. 736-0204 Washer, Flat, .344 x .62 x .033
39. 938-0849 Screw, Hex, 5/16-18 x .75
40. 747-0432 Tiller Flap Rod
41. 750-0885A Spacer, .322 x .625 x 2.00
42. 786-0090A-4021 Side Shield
43. 786-0113A-4021 Rear Tine Shield
44. 786-0176-4021 RH Handle Mount Bracket
45. 786-0177-4021 LH Handle Mount Bracket
46. 786-0178A-4021 Tine Shield
47. 786-0179-0637 FRT Tine Shield Bracket
48. 786-0180-0637 FRT Tine Shield Spacer Bracket
49. 686-0109A Shift Crank Assembly
50. 710 -1017 Screw, ⁄-14 x .625
51. 915- 0120 Spiral Pin, ⁄ x 1.0
52. 784-0208D-4021 Shift Cover
53. 911- 0 415 Clevis Pin
54. 712-3054 Hex Nut, ⁄-24
55. 742-0305A-0637 13” Articulating Tine
56. 938-0689 Shoulder Bolt
57. 936-0253 Bell Washer, .515” ID x 1.14” OD
58. 938-0688 Shoulder Bolt
59. 784-0160-0637 Tine Adapter Assembly, 18”
60. 714-04043 Internal Cotter Pin
61. 936-0169 Lock Washer
62. 784-0161-0637 Tine Adapter Plate
63. 731-07556 Cap
64. 936-0208 Washer, Flat, .51 x 1.5 x .07
65. 710-1307 Stud, 5/16-18 x .75
5

RT 65 Drive System
27
129
26
4
35
38
36
37
34
32
33
33
29
32
3
30
41
40
39
31
24
13 15
7
21
20
5
16
22
23
11
2
13
8
25
28
10
17
1
18
Wheel shaft shown
for reference only.
6

RT 65 Drive System
Ref. Part Number Description
1. 6 86 - 0111- 0 637 Belt Cover Bracket Assembly
2. 710-0237 Hex Bolt, ⁄-24 x .62”
3. 710-0412 Hex Bolt, ⁄-28 x .75”
4. 710-0520 Hex Washer Screw, ⁄-16 x 1.50”
5. 710-1039 Hex Bolt, ⁄-24 x 1.0
6. 710-0599 Hex Washer Screw
7. 710-3005 Hex Cap Screw, ⁄-16 x 1.25
8. 712-0266A Lock Jam Nut, ⁄-16
9. 912-0267 Hex Nut, ⁄-18
10. 914-0104 Internal Cotter Pin
11. 936-0104 Hairpin Clip
12. 936 - 0119 Lock Washer, ⁄”
13. 936-0176 Flat Washer, .25 ID x .93 OD
14. 936-0271 Spring Washer, .317 ID x .625 OD
15. 936-0329 Lock Washer, ⁄” ID
16. 936-0452 Bell Washer, .396 ID x 1.14 OD
17. 938-0876 Shoulder Nut, ⁄-20
18. 74 6 -1117 Clutch Cable
19. 747-1159 Idler Pulley Rod
20. 954-0434 V-Belt
21. 756-0405 Flat Idler w/ Flange, 3.75 OD
Ref. Part Number Description
22. 756-0971 Outer Engine Pulley Half
23. 756-0972 Inner Engine Pulley Half
24. 756 -1162 Input Pulley
25. 786-0064A Idler Bracket
26. 786-0185A-0637 Belt Keeper Bracket
27. 786-0187-0637 Shift Cover Bracket
28. 786-0193-0637 Idler Belt Keeper
29. 934-04231 Wheel Assembly, 16.0 x 4.6 x 8
30. 936-3020 Flat Washer, .271 ID x .630 OD
31. 784-0158A-4021 Belt Cover
32. 710-0606 Hex Head Screw, ⁄-20
33. 712-04064 Flange Lock Nut, ⁄-20
34. 710-0382 Hex Bolt, ⁄-13 x 5.0
35. 912-0206 Hex Nut, ⁄-13
36. 723-0381 Counterweight, 40 lbs.
37. 936-0326 Flat Washer
38. 936-0921 Lock Washer, ⁄
39. 710-0653 Hex Screw, ⁄-20 x .375
40. 710 -1017 Screw, ⁄-14 x .625
41. 712-0392 Lock Nut
7

8
RT 65 Honda GCV190LA Cylinder
Ref. Part Number Description
1. 12000-Z0Y-415 Cylinder Assembly
2. 12310-Z0J-000 Head Cover
3. 12355-ZL8-000 Breather Cover , Valve Assembly
4. 90013-883-000 Flange Bolt, 6 X 12
5. 90014-952-000 Flange Bolt, 6 X 14
6. 91201-Z0Y-003 Oil Seal, 25.4 X 62 X 6
7. 98079-56846 Spark Plug (BPR6ES NGK)
CYLINDER
1-2 2006 American Honda Motor Co., Inc. MAY, 2006 1-C1
Z1A0E0300
MODEL TYPE
A =GC190A a =MHA2
E-3
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1CYLINDER ASSY. ...................................... -------- -------- 1 12000-Z1A-0000 7907462
2COVER, HEAD............................................ -------- -------- 1 12311-ZL8-D00 6325211
3COVER, BREATHER
(BREATHER VALVE ASSY.) .................. -------- -------- 1 12355-ZL8-000 5580006
4BOLT, FLANGE (6X12) (CT200) ................ -------- -------- 4 90013-883-000 0636845
5BOLT, FLANGE (6X14) .............................. -------- -------- 1 90014-952-000 0803619
6OIL SEAL (25.4X62X6)................................ -------- -------- 1 91201-ZL8-003 5581038
7SPARK PLUG (BPR6ES) (NGK) ................ -------- -------- 1 98079-56846 1441112
8

9
RT 65 Honda GCV190LA Crankcase Cover
Ref. Part Number Description
1. 1130 0 -Z0Y-Y06 Crankcase Cover Assembly
3. 15650-Z0L-000 Oil Filler Cap Assembly
4. 15625-ZE6-000 Oil Filler Cap Gasket
5. 16510-ZM0-010 Governor Assembly
6. 16531-ZE1-000 Governor Slider
7. 16541-ZM0-000 Governor Arm Shaft
8. 90121-952-000 Flange Bolt, 6 x 25
9. 90131-883-000 Drain Plug Bolt
10. 90451-ZE1-000 Thrust Washer, 6mm
11. 90602-ZE1-000 Governor Holder Clip
13. 91202-ZL8-003 Oil Seal, 28 x 41.25 x 6
14. 94101- 06800 Plain Washer, 6mm
15. 94109-12000 Drain Plug Washer, 12mm
16. 94251-08000 Lock Pin, 8mm
17. 94301-08200 Dowel Pin, 8 x 20
OIL PAN
MAY, 2006 2006 American Honda Motor Co., Inc. 1-3
Z1A0E0600B
MODEL TYPE
A =GC190A a =MHA2
E-6
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1COVER ASSY., CRANKCASE (Q-TYPE) .. -------- -------- 1 11300-Z1A-600 7356249
3CAP ASSY., OIL FILLER ............................ -------- -------- 1 15600-ZF0-003 6435895
4GASKET, OIL FILLER CAP ........................ -------- -------- 1 15625-ZE1-003 4497947
5GOVERNOR ASSY. .................................... -------- -------- 1 16510-ZL8-000 5611108
6SLIDER, GOVERNOR ................................ -------- -------- 1 16531-ZE1-000 1427251
7SHAFT, GOVERNOR ARM ........................ -------- -------- 1 16541-ZL8-000 5611124
8BOLT, FLANGE (6X25) .............................. -------- -------- 8 90121-952-000 0748111
9BOLT, DRAIN PLUG .................................. -------- -------- 2 90131-896-650 1986231
10 WASHER, THRUST (6MM) ........................ -------- -------- 1 90451-ZE1-000 2413862
11 CLIP, GOVERNOR HOLDER...................... -------- -------- 1 90602-ZE1-000 2456697
13 OIL SEAL (28X41.25X6).............................. -------- -------- 1 91202-ZL8-003 5581046
14 WASHER, PLAIN (6MM) ............................ -------- -------- 2 94101-06800 0345900
15 WASHER, DRAIN PLUG (12MM)................ -------- -------- 2 94109-12000 0171868
16 PIN, LOCK (8MM)........................................ -------- -------- 1 94251-08000 0115527
17 PIN, DOWEL (8X20).................................... -------- -------- 2 94301-08200 1417369
9

10
CRANKSHAFT
1-4 2006 American Honda Motor Co., Inc. MAY, 2006 1-C2
Z1A0E0700C
MODEL TYPE
A =GC190A a =MHA2
E-7
Engine
Serial Number
Ref Description From To QTY Part Number H/C
4CRANKSHAFT (M-TYPE) .......................... -------- -------- 1 13310-Z1A-660 7399470
6WASHER, THRUST .................................... -------- -------- 1 90402-ZL8-000 5581012
1
2
RT 65 Honda GCV190LA Crankshaft
Ref. Part Number Description
1. 13310-Z0Y-610 Crankshaft (M-Type)
2. 90402-ZL8-000 Thrust Washer
10

11
RT 65 Honda GCV190LA Piston
Ref. Part Number Description
1. 13010-Z0Y-014 Piston Ring Set (Teikoku)
2. 13101-Z0Y-010 Piston
3. 13111-Z0Y- 0 0 0 Piston Pin
4. 13200-Z0Y-000 Connecting Rod Assemblt
5. 90001-ZE1-000 Connecting Rod Bolt
6. 90551-ZE0-000 Piston Pin Clip, 13mm
11

12
RT 65 Honda GCV190LA Camshaft
CAMSHAFT
1-6 2006 American Honda Motor Co., Inc. MAY, 2006 1-C3
Z1A0E0900
MODEL TYPE
A =GC190A a =MHA2
E-9
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1SEAL, VALVE STEM .................................. -------- -------- 1 12209-ZM0-003 6839831
2PULLEY, CAM ............................................ -------- -------- 1 14320-Z0Y-000 7357346
3SHAFT, CAM PULLEY ................................ -------- -------- 1 14324-ZL8-000 5580063
4BELT, TIMING (84HU7 G-200).................... -------- -------- 1 14400-Z0J-014 7058985
5ARM, IN. VALVE ROCKER ........................ -------- -------- 1 14431-Z0J-000 7526122
6ARM, EX. VALVE ROCKER ........................ -------- -------- 1 14441-Z0J-000 7526130
7SHAFT, ROCKER ARM .............................. -------- -------- 2 14461-ZL8-000 5580105
8VALVE, IN. .................................................. -------- -------- 1 14711-ZL8-000 5580113
VALVE, IN. .................................................. -------- -------- 1 14711-Z0J-000 7647118
9VALVE, EX. ................................................ -------- -------- 1 14721-ZL8-000 5580121
10 SPRING, VALVE ........................................ -------- -------- 2 14751-ZL8-000 5580139
11 RETAINER, IN. VALVE SPRING ................ -------- -------- 2 14771-ZE1-000 1426980
12 SCREW, TAPPET ADJ. .............................. -------- -------- 2 90012-333-000 0294819
13 NUT, TAPPET ADJ. .................................... -------- -------- 2 90206-001-000 0004598
14 O-RING (6.8X1.9) ........................................ -------- -------- 1 91301-ZM0-V31 6315873
Ref. Part Number Description
1. 12209 -ZM0 - 003 Valve Stem Seal
2. 14320-Z0Y-000 Cam Pulley
3. 14324-ZL8-000 Cam Pulley Shaft
4. 14400-Z0J-014 Timing Belt, 84HU& G-200
5. 14431-Z0J-000 Internal Valve Rocker Arm
6. 14441-Z0J-000 External Valve Rocker Arm
7. 14461-ZL8-000 Rocker Arm Shaft
8. 14711-Z0J-000 Internal Valve
—14711-Z0J-000 Internal Valve
9. 14721-ZL8-000 External Valve
10. 14751-ZL8-000 Valve Spring
11. 14777-Z0J-000 Internal Valve Spring Retainer
12. 90012-333-000 Tappet Adjustable Screw
13. 90206-001-000 Tappett Adjustble Nut
14. 91301-ZM0-V31 O-Ring, 6.8 x 1.9
12

13
RT 65 Honda GCV190LA Recoil Starter
RECOIL STARTER
MAY, 2006 2006 American Honda Motor Co., Inc. 1-7
Z1A0E1100
MODEL TYPE
A =GC190A a =MHA2
E-11
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1STARTER ASSY., RECOIL *NH1* (BLACK) -------- -------- 1 28400-Z1A-013ZA 7855729
STARTER ASSY., RECOIL *R280*
(POWER RED) ........................................ -------- -------- 1 28400-Z1A-013ZB 7855737
2KNOB, RECOIL STARTER ........................ -------- -------- 1 28461-ZL8-003 5580634
3ROPE, RECOIL STARTER (#3.5X52") ...... -------- -------- 1 28462-ZL8-003 5611454
Ref. Part Number Description
1. 28400-Z0Y-V202A Recoil Starter Assembly (Black)
—28400-Z1A-013ZB Recoil Starter Assembly (Power Red)
2. 28461-ZL8-003 Recoil Starter Knob
3. 28462-ZL8-003 Recoil Starter Rope, #3.5 x 52”
13

14
FAN COVER
1-8 2006 American Honda Motor Co., Inc. MAY, 2006 1-C4
Z1A0E1200
MODEL TYPE
A =GC190A a =MHA2
E-12
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1COVER, FAN *NH1* (BLACK) .................... -------- -------- 1 19611-Z1A-000ZA 7388663
COVER, FAN *R280* (POWER RED) ........ -------- -------- 1 19611-Z1A-000ZB 7388671
2BOLT, STUD................................................ -------- -------- 3 90043-ZL8-000 5581004
3NUT, FLANGE (6MM).................................. -------- -------- 3 90201-ZM0-000 6478812
RT 65 Honda GCV190LA Fan Cover
Ref. Part Number Description
1. 19610-Z0L-851ZA Fan Cover (Black)
—19610-Z0L-850ZE Fan Cover (Power Red)
2. 90043-ZL8-000 Stud Bolt
3. 19619-ZL8-300 Flange Nut, 6mm
14

15
RT 65 Honda GCV190LA Carburetor
CARBURETOR
MAY, 2006 2006 American Honda Motor Co., Inc. 1-9
Z1A0E1400A
MODEL TYPE
A =GC190A a =MHA2
E-14
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1GASKET SET .............................................. -------- -------- 1 16010-883-015 3088416
2FLOAT SET ................................................ -------- -------- 1 16013-ZL1-003 5580162
3CHAMBER SET, FLOAT ............................ -------- -------- 1 16015-ZL8-003 5611033
4SCREW SET .............................................. -------- -------- 1 16016-Z1A-013 7443823
5SCREW SET, DRAIN .................................. -------- -------- 1 16024-124-760 0640052
6SCREW SET B............................................ -------- -------- 1 16028-ZE0-005 1441518
7SCREW SET .............................................. -------- -------- 1 16029-ZG0-901 5580170
8CARBURETOR ASSY. (BB61E B) .............. -------- -------- 1 16100-Z1A-013 7866106
9VALVE, FLOAT
(CARBURETOR NO.).............................. -------- BB61E A 1 16155-ZL8-003 5611058
VALVE, FLOAT
(CARBURETOR NO.).............................. BB61E B -------- 1 16155-ZL8-013 7983315
10 NOZZLE, MAIN............................................ -------- -------- 1 16166-Z1A-003 7541238
11 INSULATOR, CARBURETOR .................... -------- -------- 1 16211-ZL8-000 5580238
12 GASKET, INSULATOR................................ -------- -------- 1 16212-ZL8-000 5580246
13 GASKET, CARBURETOR .......................... -------- -------- 2 16221-883-800 4581120
14 GASKET, CARBURETOR (CHOKE SIDE) -------- -------- 1 16228-ZL8-000 5580253
15 GUIDE, AIR ................................................ -------- -------- 1 19650-ZL8-000 5611421
Ref. Part Number Description
1. 16010-883-015 Gasket Set
2. 16013-ZL1- 003 Float Set
3. 16015-887-782 Float Chamber Set
4. 16016-ZG0-W00 Screw Set
5. 16 024 -ZE1- 811 Drain Screw Set
6. 16028-ZE0-005 Screw Set B
7. 16029-ZG0-901 Screw Set
8. 16100-Z0Y-821 Carburetor Assembly, BB65C A
9. 16155-ZM0-013 Float Valve
10. 16166-Z1A-003 Main Nozzle
11. 16211-ZL8-000 Carburetor Insulator
Ref. Part Number Description
12. 16212-ZL8-000 Insulator Gasket
13. 16221-887-800 Carburetor Gasket
14. 16228-ZL8-000 Carburetor Gasket (Choke Side)
15. 19650-ZM0-000 Air Guide
16. 93500-05006-1H Pan Screw, 5 x 6
17. 95002-02080 Tube Clip, B8
18. 95003-07008-60M Vinyl Bulk Hose (4X7X8000, 4X7X150)
19. 99101-124-0650 Main Jet, #70
—99101-124-0650 Main Jet, #65
—99101-124-0680 Main Jet, #68
15

16
RT 65 Honda GCV190LA Air Filter
AIR CLEANER
MAY, 2006 2006 American Honda Motor Co., Inc. 1-11
Z1A0E1500
MODEL TYPE
A =GC190A a =MHA2
E-15
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1TUBE, BREATHER...................................... -------- -------- 1 15721-ZL8-000 5611025
2ELEMENT, AIR CLEANER.......................... -------- -------- 1 17211-ZL8-003 6718159
3HOUSING, AIR CLEANER .......................... -------- -------- 1 17220-ZL8-000 5611314
4GASKET, AIR CLEANER ............................ -------- -------- 1 17228-ZL8-000 5580436
5COVER, AIR CLEANER .............................. -------- -------- 1 17231-Z0J-020 7423122
6BOLT, FLANGE (6X112) (CT200) .............. -------- -------- 2 90003-ZL8-000 5611660
Ref. Part Number Description
1. 15721-ZM0-000 Breather Tube
2. 17211-ZL8-023 Air Cleaner Element
3. 17220-ZM0-020 Air Cleaner Housing
4. 17228-ZM0-000 Air Cleaner Gasket
5. 17231-Z0L- 040 Air Cleaner Cover
6. 90003-ZM0-000 Flange Bolt, 6 x 112
16

17
RT 65 Honda GCV190LA Muffler
MUFFLER
1-12 2006 American Honda Motor Co., Inc. MAY, 2006 1-C6
Z1A0E1600B
MODEL TYPE
A =GC190A a =MHA2
E-16
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1MUFFLER.................................................... -------- -------- 1 18310-ZL8-010 5611389
2PROTECTOR, MUFFLER .......................... -------- -------- 1 18321-Z0L-000 7388655
4GASKET, MUFFLER .................................. -------- -------- (1) 18381-ZL8-305 5737457
6SHROUD, MUFFLER .................................. -------- -------- 1 19664-ZL8-000 5611439
7BOLT, FLANGE (6X79) (CT200) ................ -------- -------- 2 90004-ZL8-000 5580972
8BOLT, FLANGE (6X12) (CT200) ................ -------- -------- 3 90013-883-000 0636845
9SCREW, TAPPING (4X6)............................ -------- -------- 2 90055-ZE1-000 1431121
10 ARRESTER, SPARK .................................. -------- -------- (1) 18350-ZL8-000 5656012
11 PLATE, ARRESTER NUMBER .................. -------- -------- (1) 18356-ZL8-000 5611397
12 SCREW, TAPPING (4X6)............................ -------- -------- (1) 90055-ZE1-000 1431121
13 ARRESTER KIT, SPARK ............................ -------- -------- (1) 06180-Z0J-000 8213597
Ref. Part Number Description
1. 18310-Z0J-000 Muer
2. 18321-Z0L-000 Muer Protector
4. 18381-ZL8-305 Muer Gasket
6. 19664-ZL8-000 Muer Shroud
7. 90004-ZL8-000 Flange Bolt, 6 x 79
8. 90013-883-000 Flange Bolt, 6 x 12
9. 90055-ZE1-000 Tapping Screw, 4 x 6
10. 18350-ZL8-000 Spark Arrester
11. 18356-ZL8-000 Arrester Number Plate
12. 90055-ZE1-000 Tapping Screw, 4 x 6
13. 06180-Z0J-000 Spark Arrester Kit
17

18
RT 65 Honda GCV190LA Fuel System
Ref. Part Number Description
1. 16854-ZH8-000 Supporter Rubber, 107mm
2. 16950-ZM0-003 Fuel Pump Assembly
3. 16952-ZA8-800 Fuel Strainer
4. 17511-Z0L-010 Fuel Tank
5. 17514-Z0L-000 Fuel Filler Neck Seal
6. 17516-Z0L-000 Tank Mounting Clip
7. 17532-Z0L-000 Tank Mounting Rubber, A
8. 17533-Z0L-000 Tank Mounting Rubber, B
9. 17534-Z0L-000 Tank Mounting Nut
10. 17620-Z0J -800 Fuel Cap Assembly
11. 17636-Z0L-000 Fuel Level Gauge
Ref. Part Number Description
12. 17701-Z0L-810 Fuel Tank Tube
13. 17702-ZM0-800 Fuel Tube
14. 33609-GK4-620 Collar
15. 93891-05010-08 Screw-Washer, 5 x 10
16. 95002-02080 Tube Clip, B8
17. 95002-02100 Tube Clip, B10
18. 95002-7000 Tube Clip, C11
19. 95002-40800-08 Tube Clamp, D8
20. 95002-41000-08 Tube Clamp, D10
21. 95002-41200-08 Tube Clamp, D12
18

19
RT 65 Honda GCV190LA Flywheel
FLYWHEEL
MAY, 2006 2006 American Honda Motor Co., Inc. 1-15
Z1A0E1900C
MODEL TYPE
A =GC190A a =MHA2
E-19
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1KEY, SPECIAL WOODRUFF (25X18) ........ -------- -------- 1 13331-357-000 0348433
2COIL ASSY., IGNITION .............................. -------- -------- 1 30500-Z0J-003 6859722
3FLYWHEEL ................................................ -------- -------- 1 31110-Z0J-013 7399538
5WIRE, STOP SWITCH ................................ -------- -------- 1 32195-Z0J-000 6859730
6HOLDER, STOP SWITCH WIRE ................ -------- -------- 1 36103-ZE1-000 1429141
8BOLT, FLANGE (6X20) (CT200) ................ -------- -------- 1 90022-888-010 0671552
9NUT, FLANGE (14MM)................................ -------- -------- 1 90213-S3Y-000 6352561
Ref. Part Number Description
1. 13331-357-000 Special Woodru Key, 25 x 18
2. 30500-Z0J-003 Ignition Coil Assembly
3. 31105-Z0Y-010 Flywheel
5. 32195-ZM0-800 Stop Switch Wire
6. 51125-Z0L-003 Stop Switch Wire Holder
8. 90022-888-010 Flange Bolt, 6 x 20
9. 90213-S3Y-000 Flange Nut, 14mm
19

20
RT 65 Honda GCV190LA Controls
CONTROL (1)
1-16 2006 American Honda Motor Co., Inc. MAY, 2006 1-C8
Z1A0E2200
MODEL TYPE
A =GC190A a =MHA2
E-22
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1CONTROL ASSY......................................... -------- -------- 1 16500-ZL8-000 5611074
2ARM, GOVERNOR...................................... -------- -------- 1 16551-ZL8-000 5611132
3ROD, GOVERNOR...................................... -------- -------- 1 16555-ZL8-000 5611140
4SPRING, GOVERNOR ................................ -------- -------- 1 16561-Z0J-000 7557010
5SPRING, THROTTLE RETURN .................. -------- -------- 1 16562-ZL8-800 5927033
6LEVER, CONTROL .................................... -------- -------- 1 16571-ZL8-000 5611181
7SPRING, LEVER ........................................ -------- -------- 1 16574-ZE1-000 1427384
8WASHER, CONTROL LEVER .................... -------- -------- 1 16575-ZL8-000 5611215
9SPACER, CONTROL LEVER...................... -------- -------- 1 16578-ZE1-000 1427400
10 BASE, CONTROL........................................ -------- -------- 1 16580-ZL8-000 5611256
11 ROD, CHOKE CONTROL .......................... -------- -------- 1 16611-ZL8-000 5611272
12 GROMMET, CHOKE ROD .......................... -------- -------- 1 16613-893-000 0788596
13 PLATE, SIDE .............................................. -------- -------- 1 19612-ZL8-000 5656020
14 SWITCH ASSY., ENGINE STOP (N.O) ...... -------- -------- 1 35120-ZL8-003 5611520
15 BOLT, FLANGE (6X12) (CT200) ................ -------- -------- 1 90013-883-000 0636845
16 BOLT, FLANGE (6X14) .............................. -------- -------- 2 90014-952-000 0803619
17 BOLT, GOVERNOR ARM .......................... -------- -------- 1 90015-ZE5-010 2418671
18 NUT, SELF-LOCK (6MM) ............................ -------- -------- 1 90114-SA0-000 1410182
Ref. Part Number Description
1. 16500-ZL8-000 Control Assembly
2. 16551-ZM0-010 Governor Arm
3. 16555-Z0L-800 Governor Rod
4. 16561-ZM0-V30 Governor Spring
5. 16562-ZM0-000 Throttle Return Spring
6. 16612-ZM0-V30 Control Lever
7. 16574-ZE1-000 Lever Spring
8. 16575-ZE2-W00 Control Lever Washer
9. 16578-ZE1-000 Control Lever Spacer
10. 16580-Z0L-810 Control Base
11. 16674-ZM0-V30 Choke Control Rod
Ref. Part Number Description
12. 16613-893-000 Choke Rod Grommet
13. 19612-ZL8-000 Side Plate
14. 35120-ZL8- 003 Engine Stop Switch Assembly
15. 90013-883-000 Flange Bolt, 6 x 12
16. 90014-952-000 Flange Bolt, 6 x 14
17. 90015-ZE5-010 Governor Arm Bolt
18. 90114-SA0-000 Self-lock Nut, 6mm
19. 93892-04012-00 Screw-Washer, 4 x 12
20. 94050-06000 Flange Nut, 6mm
21. 94103-04000 Plain Washer, 4mm
20
