Cura1 3500R User manual
UM-051
3500R - ActiveCare Monitor
All our products are supplied with a full warranty and are guaranteed
to be free from defects in material and workmanship.
Compatible & Optional Accessories
All cura1 Cordless Pad / Mat Transmitters & Call Buttons
2900 DoorAlert Monitor, 2721 iBeam, 2698 Universal Transmitter, 3501
ActiveCare LCD Pager, 3503 Wireless Door Switch, 2406 Plug Pack 6
VDC, 2642 Caregiver Reset Key, 3504 ActiveCare Mounting Bracket
What’s in the box?
cura1
10 Gray Street, Kilkenny South Australia 5009
1300-12-CARE (2273)
www.cura1.com
3500R ActiveCare
Monitor
2406 6 VDC
Plug Pack
3504 Mounting
Bracket
3 X AA
Batteries
Quick Start
User Guide 2642 Caregiver
Reset Key
Clearing a bed, chair or floor mat alarm
In an alarm condition the monitor will display the slot number and
a device type LED will light up. This alarm condition will continue
until one of the following events occurs:
• The patient or resident returns to the bed or chair.
• The caregiver resets the monitor. In this case, if the RESET button
is pressed, then the alarm will silence but the alarm will still be
visible on the display. To clear the alarm press and hold the RESET
button until the display clears. The alarm has now been reset.
Monitor Display During Alarm
The Slot Number + PAD LED
The Slot Number + PAD LED
The Slot Number + CALL LED
The Slot Number + CALL LED
The Slot Number + SENSOR/DOOR LED
The Slot Number + SENSOR/DOOR LED
Device Type
Cordless Bed/Chair Pad
Cordless Floor Mat
Call Button
Pendant
DoorAlert System
Other Sensors
Set t = Call Forward Setting
0 Forwarding OFF
1 Not used
2 Not used
3 Signals to 3501 ActiveCare Pager
Call forwarding to a pager
The monitor can be congured to forward calls (alarms) to a 3501
ActiveCare Pager. To enable call forwarding place the monitor into
programming mode (see above).
Now apply a Caregiver Key to the SELECT 1 application point until
the rst digit displays a“t”. Then use the SELECT 2 application point
to select the setting from the table below:
Alarm tone
There are two alarm tones that can be selected. To change the alarm
tone place the monitor into programming mode (see overleaf).
Apply a Caregiver Key to the SELECT 1 application point until the
tens digit displays a“b”. Then using the SELECT 2 application point
to select either (tone) 1 or (tone) 2.
Area code
If several monitors are being used in a facility, then setting an Area
Code will ensure pagers only receive alarms from their specied
area. Please refer to the full documentation or your cura distributor
for instructions on how to do this.
Pause setting
The monitor can be programmed to allow sta to pause all pad
alarms for a designated time period. Please consult the full
documentation or your distributor if you would like to enable this
feature.
Pad alarm delay setting
The monitor can be programmed to automatically delay a pad alarm
for a designated time period. Please consult the full documentation
or your distributor if you would like to enable this feature.
Programming Mode
Press & hold the PROGRAM button while simultaneously
repeatedly applying a Caregiver Reset Key to the SELECT 1
application point until“A0”is displayed.
OPERATION & ADDITIONAL CONFIGURATION
PTO for Quick Start Guide
Device type
indication
POWER & BATTERY
Indicates monitor status
REVIEW - Cycle
through calls from the
last 15 minutes
SELECT 1 & SELECT 2
Caregiver Key
application points for
programming & pairing
DEVICE LOST & DEVICE
BATTERY indicators for
paired devices
MORE INFORMATION
For detailed information of all 3500R monitor functions please
refer to the full technical manual for this product or contact your
cura1reseller.
Power socket for 2406
6 VDC Plug Pack
LOCK switch prevents
accidental activation of
programming & pairing
modes
Apply CareGiver Key
to SELECT 1 or
SELECT 2
application points for
selecting & scrolling
during pairing &
programming
QUICK START GUIDE
3500R - ActiveCare Monitor quick setup for use with cura1cordless pads, mats, buttons and sensors.
1
Step
Insert 3 x AA Alkaline Batteries and connect the
2404 Plug Pack.
Back View
3
1. Place monitor in pairing mode - Ensure the LOCK switch is OFF.
Press and hold the PROGRAM button for approx 5 seconds. The
monitor will initiate a long beep and briey display“PP” to conrm
that it is in programming mode. Now release the PROGRAM button.
The monitor will display the rst memory slot “01”.
2. To select a dierent memory slot - (from 01 to 60) you can use
the SELECT 1 and SELECT 2 application points to increment the tens
digit and the units digit respectively, until the desired memory slot
has been selected.
3. Add a device to a memory slot - simply triggering an alarm on
the device you want to add*.
*Note: When adding a pad transmitter, turn the transmitter from
OFF to ON for the pairing process (instead of creating an alarm
condition with the pad or mat).
Note: Multiple device types can be added to the same memory slot
- eg pad/mat, door sensor and call button.
Deleting wireless devices from a memory slot
Place monitor into pairing mode (see 3.1 above).
Use the SELECT 1 and SELECT 2 application points to scroll through
the memory slots and once the desired slot is selected, hold RESET
for approx 5 seconds. The device type indicator LED(s) turn o to
indicate that the device(s) are no longer present in the memory.
Important: Test system operation after programming and before
every use.
Step
Pair cordless devices to a memory slot
Step
Test prior to use
5
Create an alarm condition for every device that is connected to
the monitor and ensure the monitor responds correctly.
Use a Phillips screwdriver to open the battery compartment and
insert three new AA batteries (supplied).
Replace cover and secure the screw.
Connect the supplied plug pack & switch the power on. Ensure the
plug pack is used at all times during operation. It is strongly
recommended to also have batteries installed. Batteries must be
removed from the device while it’s in storage.
Note: Whenever the plug pack or battery power is connected the
monitor will beep once to conrm that power is connected.
2
Step
Mounting

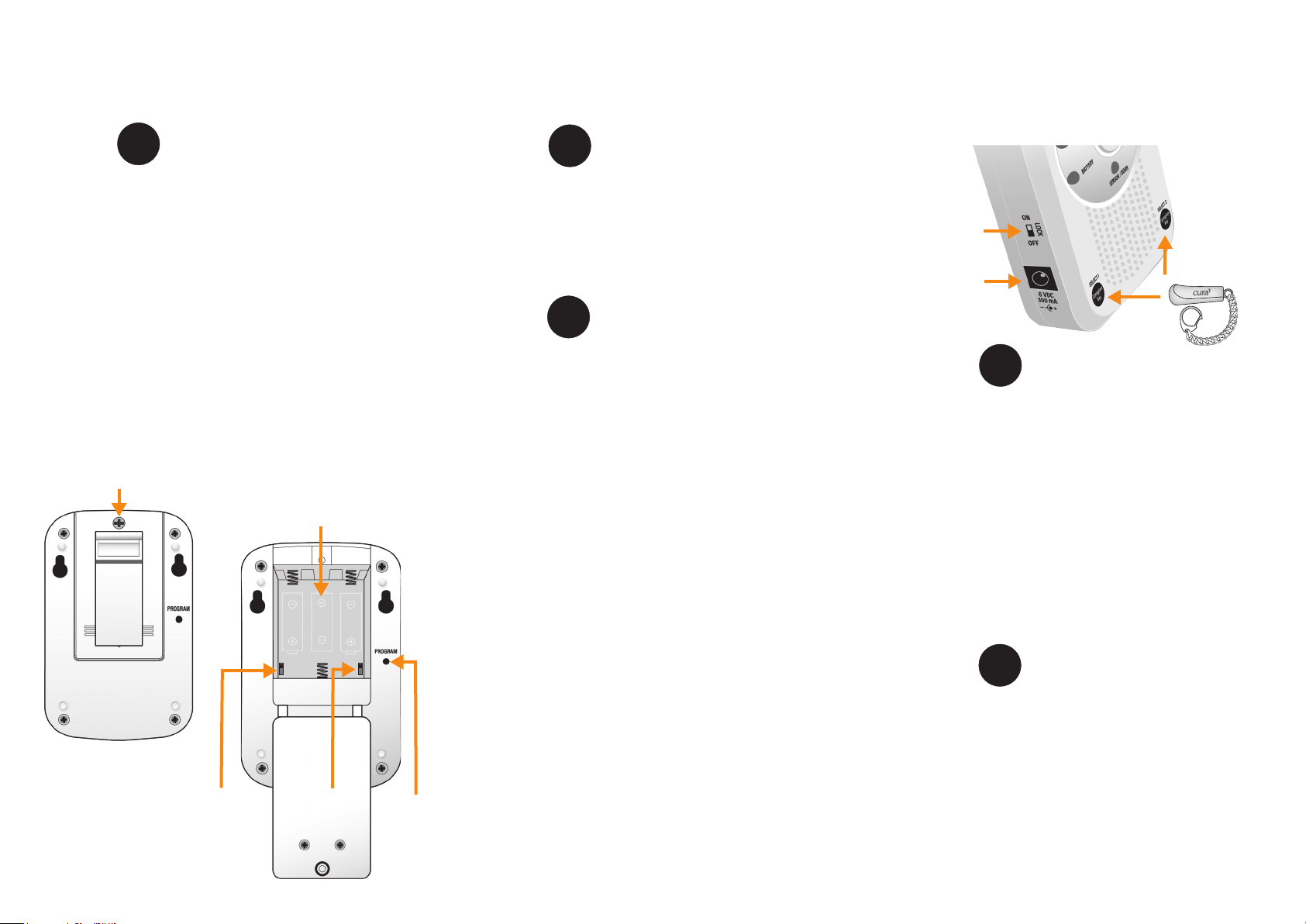

The monitor unit can be xed to a wall using the supplied
mounting bracket. Optionally, the monitor can simply be placed
directly on a table or desk.
Use screwdriver, (accepts both Phillips or
flat head) to undo screw & slide battery
cover UP to open.
4
Step
Configuration - Track, Pause, Delay & Lock
Some of the following features may need to be set up or enabled,
depending on your specic conguration requirements.
Tracking - Can be used to check that all paired cordless pad
transmitters are still in range and communicating with the system.
To enable tracking, slide the TRACKING switch to the ON position.
Alarm Forward - Alarms can be forwarded to a pager. For
instructions, PTO and nd Call forwarding to a pager.
Lock - After programming is complete turn this to“On” to prevent
accidental changes during normal usage.
Pause and Delay - For information about these features, PTO.
Insert 3 X AA alkaline batteries
into battery compartment.
VOLUME
High / Low PROGRAM
button
TRACKING
On / Off
