Currys Essentials CFSEWH14 User manual

INSTRUCTION MANUAL
SINgLe OveN
CFSeWH14/CFSeSv14
CFSEWH14/SV14_IB.indd 1 31/03/2015 15:54

Contents
Safety Warnings............................................................................................................................ 3
Unpacking..................................................................................................................................... 5
Product Overview......................................................................................................................... 6
Front View ...................................................................................................................................................................6
Control Panel..............................................................................................................................................................6
Before Using the Cooker .............................................................................................................. 7
Using the Hotplates...................................................................................................................... 7
First Time Use of the Hotplates............................................................................................................................7
Controlling the Hotplates......................................................................................................................................7
Choosing the Right Cookware.............................................................................................................................7
Shelf Positions............................................................................................................................................................8
Using the Oven ............................................................................................................................. 8
First Time Use of the Oven ....................................................................................................................................8
Oven Function Selector Control....................................................................................................................... 10
Temperature (Thermostat) Control.................................................................................................................10
Using the Grill ............................................................................................................................. 11
First Time Use of the Grill....................................................................................................................................11
Cooking Using the Grill .......................................................................................................................................11
Attaching the Grill Pan Handle.........................................................................................................................11
Cleaning Instructions ................................................................................................................. 12
Cleaning the Hotplates........................................................................................................................................12
Cleaning the Outside of the Cooker...............................................................................................................12
Cleaning the Oven Door Glass..........................................................................................................................12
Cleaning the Inside of the Oven ......................................................................................................................12
Removing the Oven Door .......................................................................................................... 13
Removing the Oven Door Glass for Easier Cleaning................................................................ 14
Replacing the Oven Lamp.......................................................................................................... 14
Installation .................................................................................................................................. 15
Adjusting the Feet ...................................................................................................................... 16
Moving the Cooker ..................................................................................................................... 16
Stability Bracket ......................................................................................................................... 16
Electrical Connection ................................................................................................................. 17
Energy Saving Tips and Energy Label ....................................................................................... 18
Product Fiche and Specications .............................................................................................. 19
CFSEWH14/SV14_IB.indd 2 31/03/2015 15:54

3
Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
• It is recommended that this appliance is installed by a qualied electrical
engineer. The manufacturer is not responsible for any damage caused by
incorrect installation.
• Check whether there is any damage to the appliance after you have
unpacked it. If any damage is found, do not use the appliance and
contact the store where you purchased it.
• This appliance is for indoor domestic use only.
• For disconnection from the mains supply you must have a switch with
a contact separation of at least 3.0 mm in all poles and suitably rated that
provides full disconnection, this must be incorporated in the xed wiring
in accordance with the local wiring rules.
• If your mains cable gets damaged, it should be replaced by an authorized
service agent or qualied electrician in order to avoid a hazard.
• The oven must be used in a well ventilated location and installed on
at/level ground.
• Only operate your appliance in a dry atmosphere.
• Keep the electrical cables of your other appliances away from hot areas;
do not let them touch the appliance.
• Ensure that the appliance is switched o at the mains supply switch
and allowed it to completely cool down before cleaning, replacing the
oven lamp or performing any maintenance to avoid the possibility of an
electric shock or burns.
• Use of your appliance creates moisture in the room in which it is placed,
make sure that your kitchen is well ventilated. Maintain the natural
ventilation ducts properly.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without
supervision.
CFSEWH14/SV14_IB.indd 3 31/03/2015 15:54

4
• Children should be supervised to ensure that they do not play with
the appliance.
• During use the appliance becomes hot. Care should be taken to avoid
touching the heating elements inside the oven or the hotplates.
• The appliance and its accessible parts become hot during use. Young
children should be kept away.
• Unattended cooking on a hob with fat or oil can be dangerous and may
result in re. NEVER try to extinguish a re with water, but switch o the
appliance and then cover the ame e.g. with a lid or a re blanket.
• Danger of re: Do not store items in, on or near the oven other than the
accessories supplied.
• When the oven is hot never touch the oven glass or any other parts that
get hot. Allow the oven to cool before touching these parts.
• Do not use harsh abrasives cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
the glass shattering.
• Before starting to use your appliance, keep curtains, tulle, paper
or ammable materials away from your appliance. Do not keep
combustible or ammable things in or on the appliance.
• This appliance is for cooking purposes only. It must not be used for other
purposes, for example room heating.
• Do not use steam cleaners for cleaning the appliance.
• Do not rest any items on or stand on the open door.
• If the hob surface is cracked, switch o the appliance to avoid possibility
of electric shock.
• Take care when handling parts with glass, knocks, chips, heavy handling
and dropping could cause the glass to shatter.
• The glass oven door uses toughened glass and is designed to break into
many‘nugget’ size pieces if it breaks. These pieces will still have sharp
edges, please handle broken glass with care.
• The appliance is not intended to be operated by means of an external
timer or separate remote-control system.
• The supplied stability bracket or a recognized cooker stability device
must be tted.
• This appliance is not designed to be used with hob guards. Use of
inappropriate hob guards can cause accidents.
CFSEWH14/SV14_IB.indd 4 31/03/2015 15:54

5
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

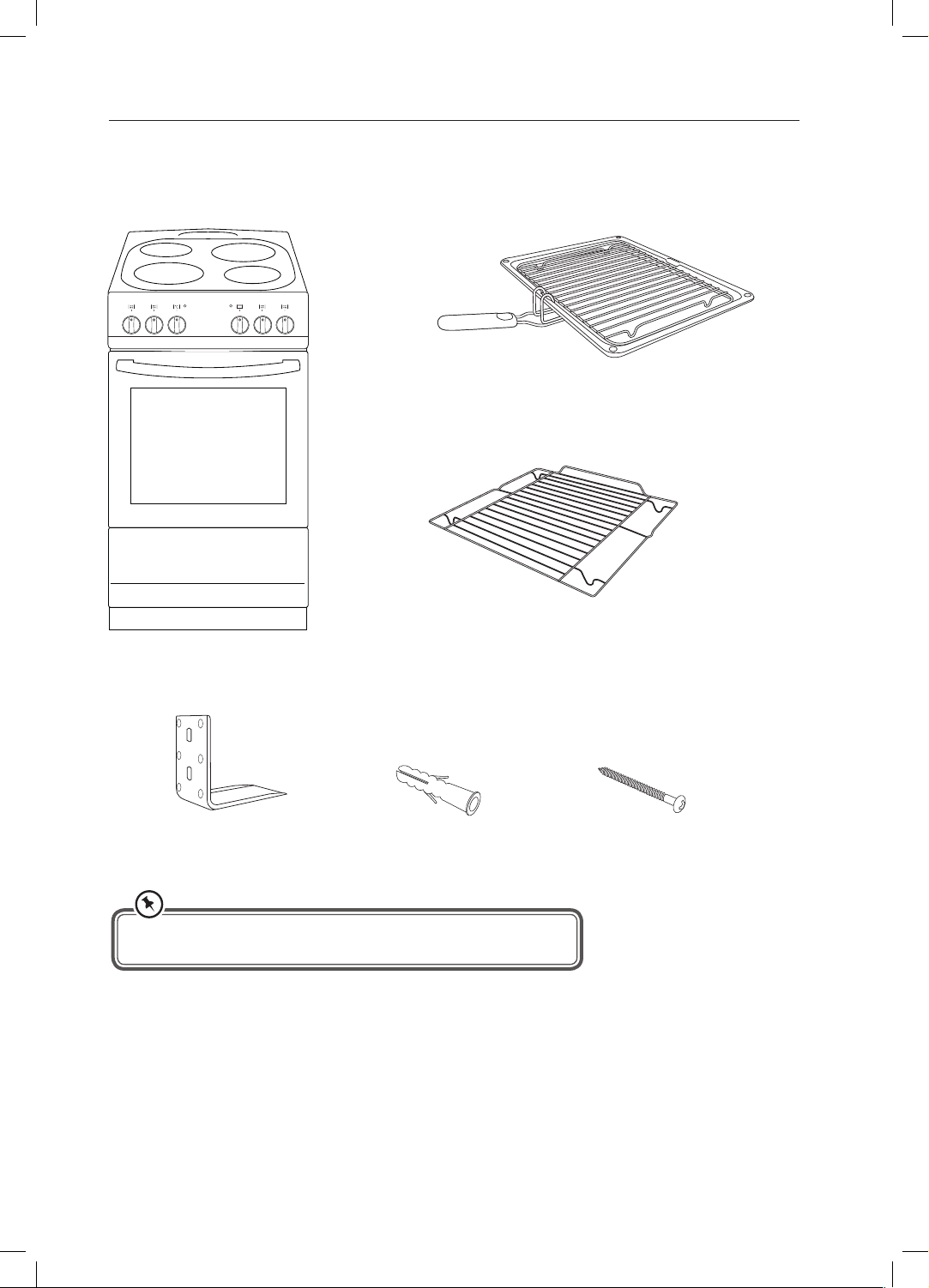

The following items are included:
Grill Pan x 1
Grill Rack x 1
Grill Pan Handle x 1
The Main Unit
Wall plug x2 Screw x2Stability Bracket x1
* All images are for indication only; please refer to your individual unit for actual item.
Wire Shelf x 2
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
CFSEWH14/SV14_IB.indd 5 31/03/2015 15:54

6
Product Overview
Front View
Control Panel
1
3
4
5
6
6
2
3 4 5
1 2
6 7 8
1. Thermostat lamp
2. Oven/hob active lamp
3. Front left hot plate control
4. Rear left hot plate control
5. Temperature control
6. Oven function selector
7. Rear right hot plate control
8. Front right hot plate control
* All images are for indication only; please refer to your individual unit for actual item.
1. Hot plates
2. Control panel
3. Oven shelf
4. Front ap
5. Oven door
6. Levelling feet
CFSEWH14/SV14_IB.indd 6 31/03/2015 15:54

7
Before Using the Cooker
Before using your new cooker, please:
• Make sure all the controls are turned o.
• Read this Instruction/Installation Manual, taking special note of the “Safety Warnings” section.
• Turn the mains power on.
This appliance is for cooking purposes only.
It must not be used for other purposes, for example
room heating.
Using the Hotplates
First Time Use of the Hotplates
• Heat the appliance on maximum, making sure the room is well ventilated as there may be a little smoke and
odour. This is normal, and is due to the protective substance on the appliance which protects it during shipping
from the factory. Switch the appliance o once the smoke and odour has stopped. This can take up to
30 minutes.
The chrome rings may discolour, this is normal
and not a fault with the cooker
Controlling the Hotplates
1. Rotate the control on the selected hotplate clockwise or anti-clockwise
to the heat level you require. The yellow hotplate warning light will
illuminate to show a hotplate is turned on.
2. When you have nished cooking rotate the control back to the “0”
position. The hotplate warning lamp will turn o.
Choosing the Right Cookware
• Do not use cookware with jagged edges or a curved base.
• Make sure that the base of your pan is smooth, sits at, and is the same size as the cooking zone.
Always centre your pan on the cooking zone.
0
1
2
3
* All images are for indication only; please refer to your individual unit for actual item.
CFSEWH14/SV14_IB.indd 7 31/03/2015 15:54

8
Using the Oven
First Time Use of the Oven
• Ensure that nothing has been left in the oven. Remove
any insert cards, packaging, labels or plastic bags and
the grill pan handle.
• Before connecting the power, carefully wipe the inner
cavity wall and housing with a damp cloth and hot
water containing a little washing-up liquid.
• Clean all the detachable parts in hot water containing a
little washing-up liquid before using.
• Heat the appliance on maximum, making sure the room is well ventilated as there may be a little smoke and
odour. This is normal, and is due to the protective substance on the appliance which protects it during shipping
from the factory. Switch the appliance o once the smoke and odour has stopped. This can take up to
30 minutes.
50
100
150
200
250
00
* All images are for indication only; please refer to your individual unit for actual item.
Shelf Positions
1. On the wall of the inner cavity there are 5 dierent
shelf guide slots. You can place the shelf at dierent
heights to achieve the best cooking performance
depending on the temperature setting and the size
of food. Position 1 is the highest grill position. The
smallest distance allowed between the food and the
upper heating element is 30 mm
2. Always monitor the food during operation to
ensure that you are not overcooking it.
3. For heavy food, use a baking pan rather than the
oven shelf.
Grill position
1
2
3
4
5
• Under no circumstances should the oven be lined with aluminium foil as overheating may occur.
• Do not place dishes or baking trays directly onto the base of the oven as it becomes very hot and damage
may occur.
• Bread may catch re if the toasting time is too long. Close supervision is necessary during toasting.
• During use, this appliance becomes hot. Care should be taken to avoid touching hot surfaces,
e.g., oven door, heating elements.
• Accessible parts may become hot when in use. Children should be kept away.
CFSEWH14/SV14_IB.indd 8 31/03/2015 15:54

9
• Insert the shelf with the back stop to the back as show. Make sure it is pointing upwards. This will prevent
dishes falling o the back of the shelf.
• You will notice that about half way along each shelf, it has a curve on each side. This is the rest position of the
shelf when pulling the shelf out of the oven. It will rest in the recess on the oven side wall. This prevents the
shelf from tilting forward when removing cooking pots and trays.
Rest point
recess
Rest point
CFSEWH14/SV14_IB.indd 9 31/03/2015 15:54

10
Oven Function Selector Control
This control is used to select the cooking functions. Turn the control clockwise or anti-clockwise to select the
required function.
1. Turn the control to the required setting. The yellow operation light will illuminate.
2. To switch o the oven, turn the control anti-clockwise to the ”O“ position. The operation light will go out.
Switches on the oven lamp independently of all other functions.
The oven’s thermostat, indicator lamp and upper and lower heating
elements will be switched on.
The oven’s thermostat, indicator lamp and the lower heating element
will be switched on.
The oven’s thermostat, indicator lamp and the upper heating element
will be switched on.
The oven’s indicator lamp and grill heating element will be switched on.
Temperature (Thermostat) Control
This control is used to select the cooking temperature. Turn the control clockwise to select the required
temperature.
1. Turn the control to the required temperature. The red thermostat light will illuminate.
2. The thermostat light will go out once the set temperature is reached. The oven is ready to use.
3. Turn the control anti-clockwise to the ”O“ position when switching the oven o. The thermostat light
will go out.
The temperature can be set from 50°C - 250°C. Select the desired temperature, as follows:
To keep food warm 50 - 100°C position
For traditional oven cooking 50 - 250°C position
For all types of grilling The grill temperature can’t be adjusted
If accurate temperatures are required then this should be checked using an oven thermometer available
at most cookware shops.
* All images are for indication only; please refer to your individual unit for actual item.
CFSEWH14/SV14_IB.indd 10 31/03/2015 15:54
