Instruction Manual
P.N.: C510WM11-001
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Temp.
On/Off
/
Thank you for purchasing your new Currys Essentials Washing Machine.
We recommend that you spend some time reading this installation/instruction
manual in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
Water Supply Hose x 1
P.N.: 301101000843
WA S H I N G M AC H I N E
INSTALLATION/ INSTRUCTION MANUAL
C510WM11
C510WM11_IB_final110505.indd 4 05/05/2011 2:50 PM

INSTALLATION
5
Additional space (240mm) is required for the rear side of the washing machine. This is to allow
enough space for the water hose and drain hose.
Installing Your Washing Machine
Please read and follow the instructions carefully.
• In addition to the instructions mentioned here, special regulations of the relevant water and power
supply companies may apply. If in doubt, have the washing machine connected by a qualified
technician.
• The washing machine is heavy - caution when lifting it. Do not lift by projecting components (e.g.
washing machine door).
• Warning: Frozen hoses may tear/burst. Do not install washing machine in outdoor areas or where
there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of trapping or kinking.
Choosing the Right Location for Your Washing Machine
• Make sure there’s enough space for your washing machine.
• Install your washing machine on a flat, stable surface to avoid excessive vibration and noise.
• Don’t install your washing machine in direct sunlight or in a place where temperatures reach
freezing.

Sloping
surface
Unstable Bumpy
surface
Two or more people are required to carry
the washing machine.
• Start by tilting the washing machine backwards.
• One person should stand behind it, holding the rear of the top panel. The other person should grip
the bottom feet at the front.
• Don’t touch the door opening button while holding.
• Check that you have all the required accessories for installation.
• Entrust the installation of the washing machine to a qualified technician or service agent.
C510WM11_IB_final110505.indd 5 05/05/2011 2:50 PM

INSTALLATION
6
Moving and Installing
Removing the Anchor Bolts
Four anchor bolts keep the interior of the washing machine in place while it’s being moved.
They need to be removed before installation. Use a spanner (not supplied) and follow the instructions
detailed below.
Don’t run the washing machine without removing the bolts, as this can cause excessive
vibrations.
Moving the Washing Machine from One Location to Another
Make sure to fix the anchor bolts prior to moving the washing machine.
Before you move the washing machine
• Shut off the tap and run the washing machine to drain the water. Drain any remaining water from
the pump hose.
• Depressurise the water supply hose and remove it.
• Disconnect the mains cable.
• Attach the anchor bolts.

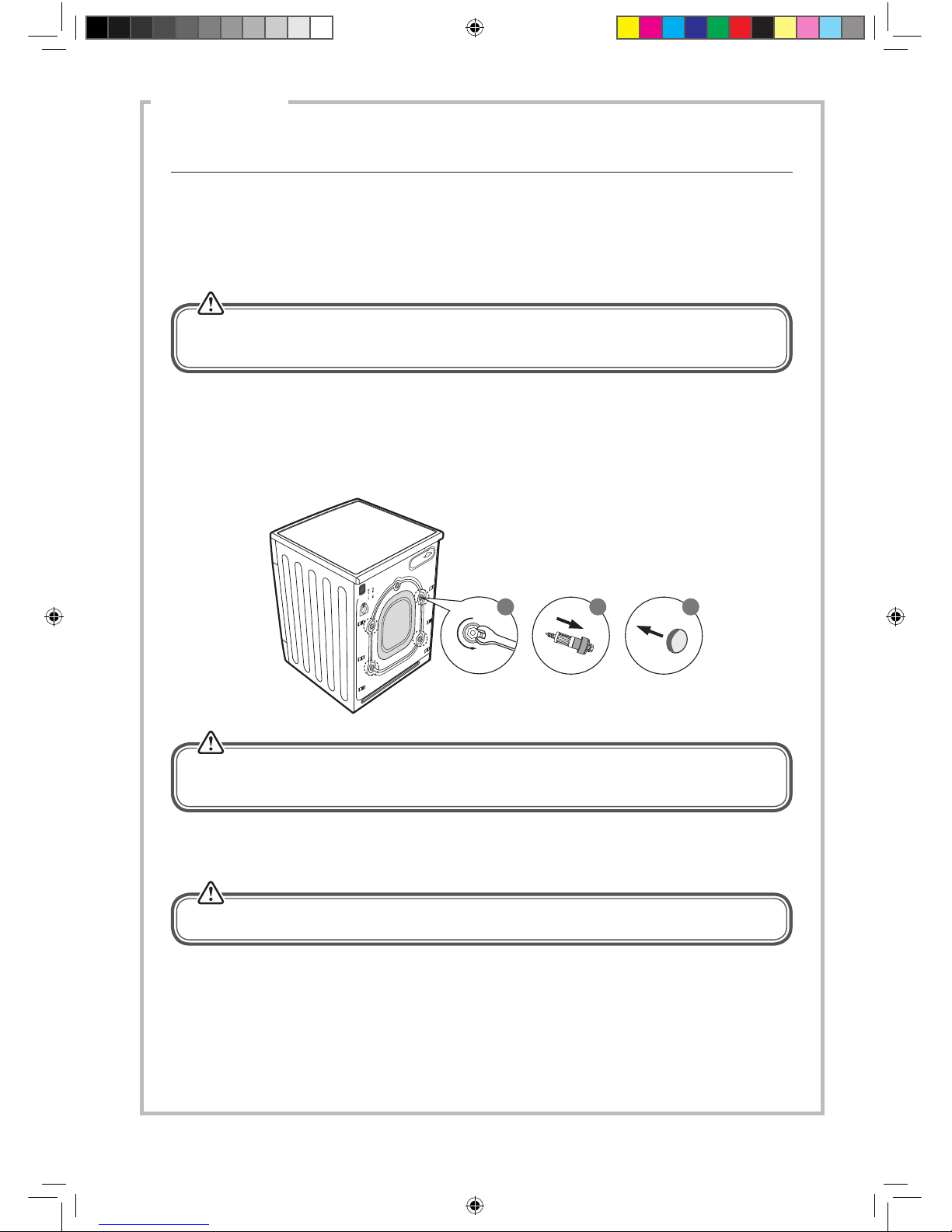

To remove the anchor bolts:
1. Use a spanner to loosen the four bolts. They are located at the rear side of the washing machine.
2. Pull the bolts out horizontally. Make sure the entire bolt is removed.
3. Remove the 4 plastic bolt guides if not removed with the bolt.
1 2 3
You’ll need the anchor bolts again if you move the washing machine, so make sure you keep
them in a safe place.
C510WM11_IB_final110505.indd 6 05/05/2011 2:50 PM

INSTALLATION
7
Hose and Cable Lengths
Temp.
On/Off
/
Cotton QuickWash
CottonIntensive
Spin
DrumClean
Synthetic
Wool
Lingerie
How to connect from the left side
~80cm
~90cm
~85cm
~130cm
~40cm
~135cm
min. 60cm
max. 100cm
How to connect from the right side
Levelling the Washing Machine
There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine
is level.
1. On each stand, loosen the lock nut by turning it clockwise with a spanner.
2. Adjust all four feet in this way.
3. Use a spirit level to ensure the washing machine is level.
4. Tighten each lock nut by turning them anti-clockwise (towards the
washing machine body), again using a spanner.
Ensure all four lock nuts are tightened securely. Check the feet are still bolted to
the washing machine - if they’re unbolted, the washing machine will move around.
Water Supply Hose
Points to remember
• Follow the instructions in this section to avoid water leaks.
• Don’t connect the hose to a combination tap.
• Don’t twist, squash, modify or cut the hose.
• Optimum water pressure in the main pipe is 0.02 MPa - 1.0 MPa. If the water pressure is set higher
than this, you will need to install a depressurising valve. Water-flow from the tap should be more
than 5 litres per minute. If you’re unsure, ask a qualified technician to connect the hose.
• This unit must only be connected to cold water mains using the new water inlet hose provided.
Connecting the Water Supply Hose
1. Attach the hose to a tap, and tighten the
plastic joint by hand.
2. Open the tap slowly and check that there
are no leaks around the joint.
Lock nut
3/4”
min. 10 mm
3/4”
min. 10 mm
Plastic joint
The joint is subject to water pressure.
C510WM11_IB_final110505.indd 7 05/05/2011 2:50 PM

INSTALLATION
8
Leak-proof System - Overflow Detection
This system is designed to prevent water leaks from the washing machine. If water collects in the
washing machine above a certain level, this function prevents the washing machine overflowing by
stopping the water supply and activating the drain pump.
Water Drain Hose
Points to remember:
• Don’t twist, pull out or bend the drain hose.
• Your washing machine should be no more than 100cm from the drain outlet.
Draining to a sink or wash-basin
• Secure the drain hose in position, so it can’t drop out of the basin.
• Don’t block the basin’s drain outlet, and make sure that the drainage through it is sufficient.
• Don’t let the tip of the drain hose dip into the drained water, as this can cause the water to flow
back into the washing machine.
U-Shape Holder
Draining to a wash-basin Draining to a drain hose
Connecting to the Mains Supply
For your safety:
• Do not use a mains plug adapter or extension cable.
• If the mains cable or mains plug are damaged, stop using them and call a qualified technician for
assistance.
Installation Check List
By now, you should have installed the washing machine.
Let’s go through the checklist to ensure that the installation has been done correctly!
Questions Checkbox
Anchor bolts - Have you removed them and attached the cover caps properly?
4 levelling feet Are they bolted securely to the washing machine?
Are they standing flat?
Power supply - Is the household dedicated mains socket, fully rated at AC220V to
240V independently?
Location - Is your washing machine on a flat, stable surface? Does it run without
vibrating?
Water Supply Hose - Is it free from leaks and is the water supply normal?
Water Drain Hose - Is it free from leaks and is it draining normally?
C510WM11_IB_final110505.indd 8 05/05/2011 2:50 PM

9
Temp.
On/Off
/
Product Overview
The unit
The Detergent
Compartment
Service Panel
The Control
Panel
Drain Hose
Window
C510WM11_IB_final110505.indd 9 05/05/2011 2:50 PM

10
Control Panel
Temp.
On/Off
/
Cotton Quick Wash
Cotton Intensive
Spin
Drum Clean
Synthetic
Wool
Lingerie
Power and Programme
Selection Dial
Dierent wash programmes
can be selected according to
your wash requirements.
Temperature
Shows the temperature
for the programme you’ve
selected. You can choose
your own temperature for
some programmes.
Start / Pause
Press to start your
wash. Press while
in operation to
pause your wash.
Power
Press to turn on/o
the machine.
• If you need to change a setting, press Start / Pause button and then re-select the desired
program.
• Water is poured into the washing machine to perform an inspection at the time of shipment
from the factory, so there may be drops of water or condensation in the washing machine. This is
not an indication of a malfunction.
C510WM11_IB_final110505.indd 10 05/05/2011 2:50 PM
