Currys CDW45W18 Service manual

Freestanding Dishwasher
Installation / Instruction Manual
CDW45W18 / CDW45S18
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 1 28/03/2018 16:10

Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 2 28/03/2018 16:10

Contents
Safety Warnings........................................................................................................................... 5
Unpacking.................................................................................................................................... 8
installation ................................................................................................................................... 9
Location .....................................................................................................................................................................9

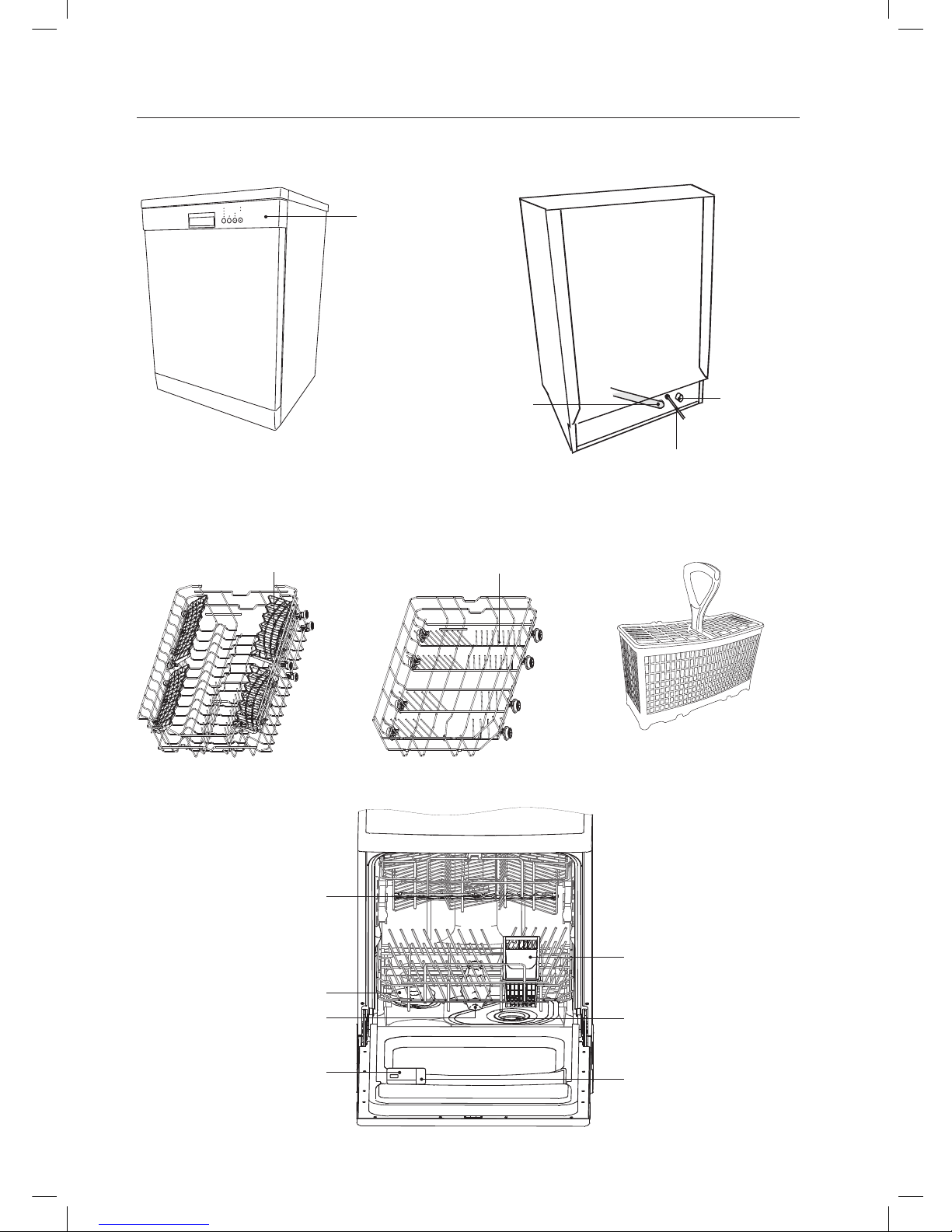

Product Overview...................................................................................................................... 13
Front View ...............................................................................................................................................................13
Upper Basket..........................................................................................................................................................13
Internal View...........................................................................................................................................................13
Lower Basket ..........................................................................................................................................................13
Rear View.................................................................................................................................................................13
Cutlery Basket........................................................................................................................................................13
Control Panel..........................................................................................................................................................14
Before Operating....................................................................................................................... 15
To Open The Door ................................................................................................................................................15
To Close The Door.................................................................................................................................................15

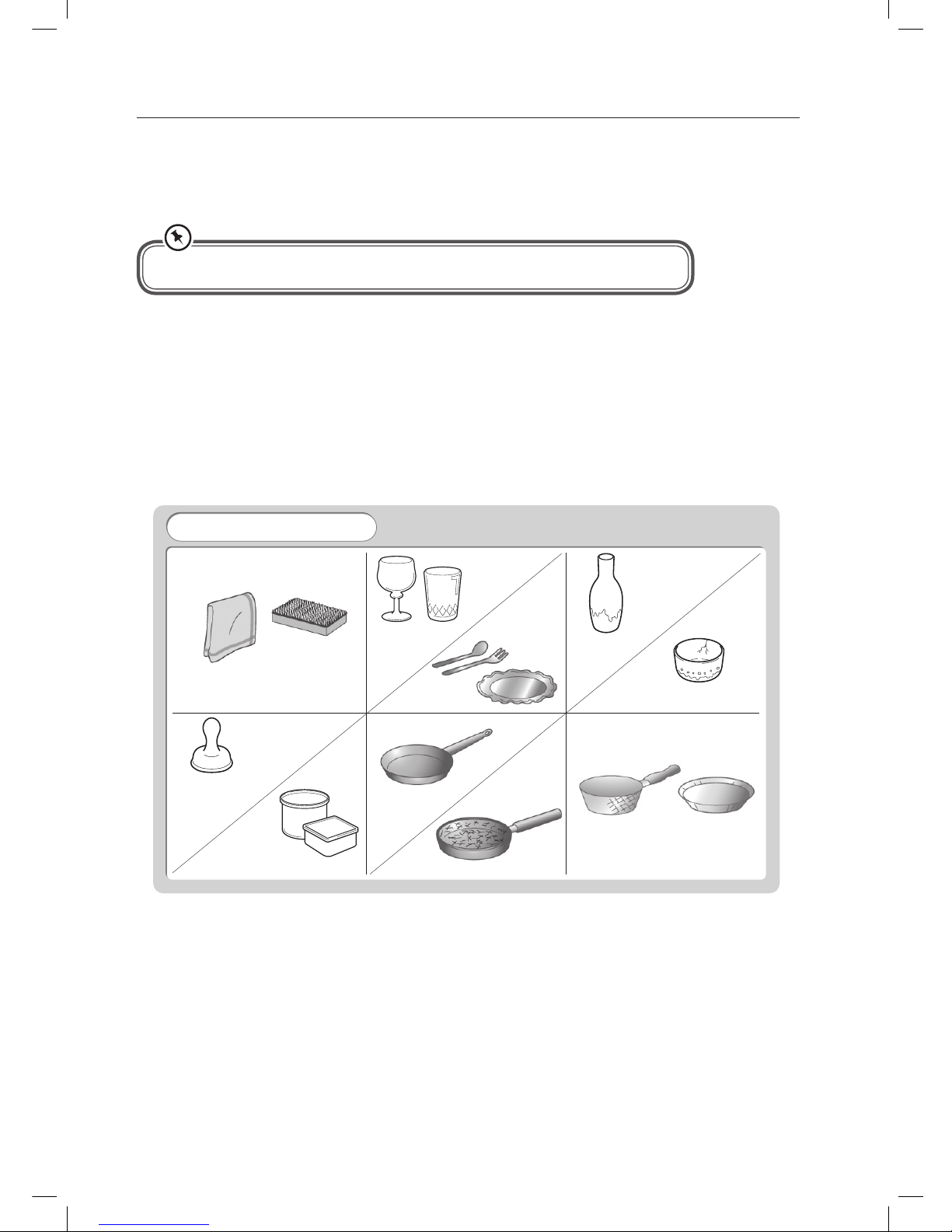

Items Not Suitable for Use in the Dishwasher............................................................................................15
Adding Detergent Or Detergent Tablet ................................................................................... 16
Adding Rinse Aid ....................................................................................................................... 17
Adjusting the Rinse Aid Reservoir..................................................................................................................18

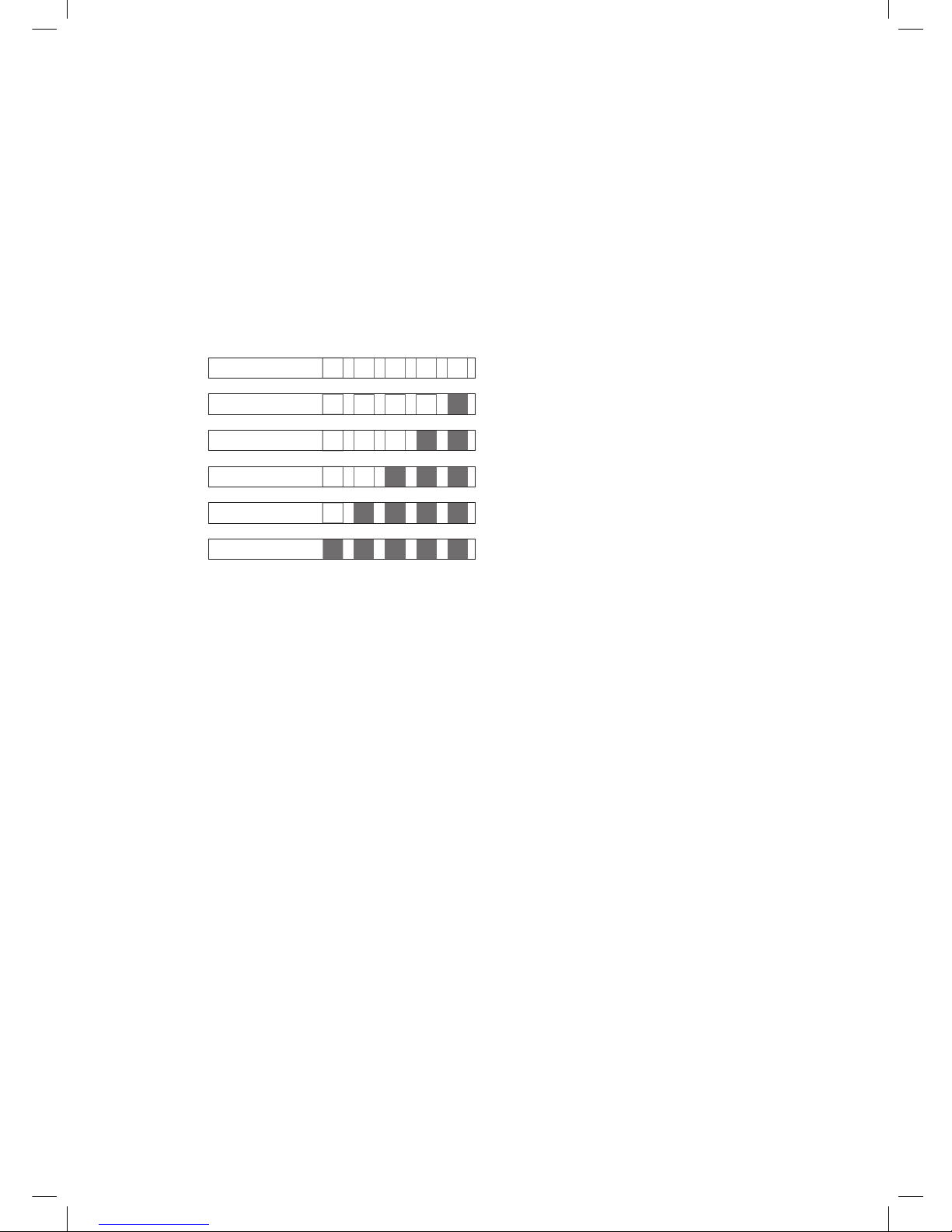

Testing your Water Hardness............................................................................................................................19

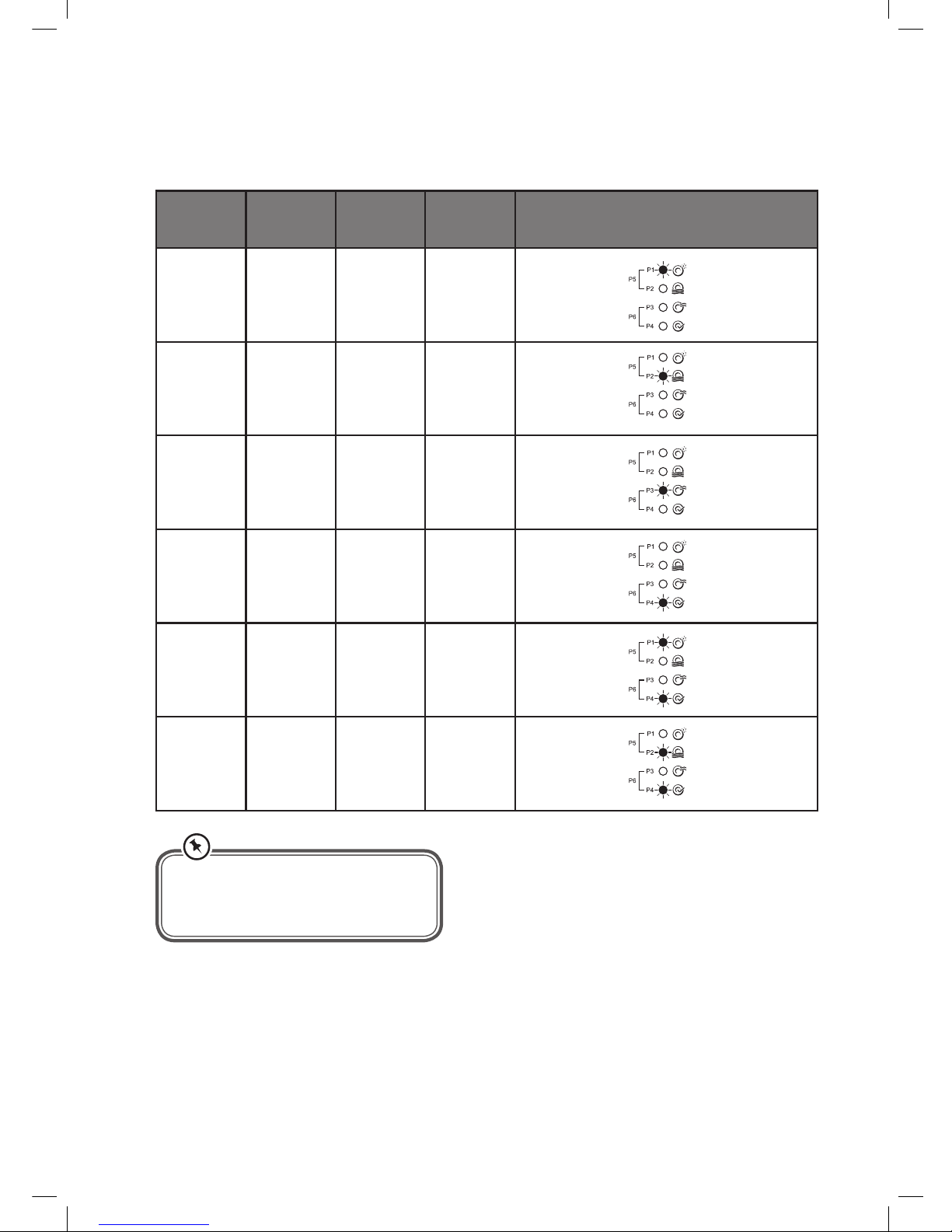

Setting the Salt Consumption Level..............................................................................................................20
Adding Salt .............................................................................................................................................................21
Loading the Dishwasher ........................................................................................................... 22
Before Loading the Dishwasher......................................................................................................................22
Upper Basket..........................................................................................................................................................23
Adjusting the Upper Basket..............................................................................................................................23
Hinged Cup Rack ..................................................................................................................................................24
Loading the Upper Basket for 10 Place Settings.......................................................................................24
Lower Basket ..........................................................................................................................................................24
Loading the Lower Basket for 10 Place Settings .......................................................................................25
Cutlery Basket........................................................................................................................................................25
Loading the Cutlery Basket...............................................................................................................................25
Wash Cycle Table........................................................................................................................ 26
Starting a Wash Cycle ................................................................................................................ 27
Changing a Programme ............................................................................................................ 27
Cancelling a Programme........................................................................................................... 27
Selecting Half Load Mode......................................................................................................... 28
Cancelling Half Load Mode...............................................................................................................................28
At the End of a Programme....................................................................................................... 28
Setting a Timer Delay ................................................................................................................ 28
Switch o the Power and Water When Not in Use................................................................... 29
Unloading The Dishwasher....................................................................................................... 29
Cleaning After Use..................................................................................................................... 29
External Care ..........................................................................................................................................................29
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 3 28/03/2018 16:10

The Door and the Door Seal.............................................................................................................................29
The Control Panel .................................................................................................................................................29
Internal Care...........................................................................................................................................................30
Filtering System.....................................................................................................................................................30
Spray Arms..............................................................................................................................................................31
Frost Precaution ........................................................................................................................ 31
Moving the Dishwasher ............................................................................................................ 31
Maintenance for a Prolonged Period of Non-Operation ........................................................ 32
Hints and Tips ............................................................................................................................ 33
Fault Code ...............................................................................................................................................................33
Technical Problems..............................................................................................................................................34
Disposal of the Dishwasher ...................................................................................................... 35
Disposal of Packing Material .................................................................................................... 35
Product Fiche and Specications ............................................................................................. 36
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 4 28/03/2018 16:10

5
Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
• Read all instructions carefully before using the dishwasher and keep
them for future reference.
• Retain the manual. If you pass the dishwasher onto a third party, make
sure to include this manual.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory and mental capabilities, or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Keep ventilation openings in the dishwasher enclosure clear of
obstructions.
• Choose a location for your dishwasher away from heat sources such
as radiators or fires.
• Young children should be supervised to ensure that they do not play
with the dishwasher.
• Keep mains cable out of reach from children.
• Keep children away from detergents and rinse aids. These may cause
chemical burns in the mouth, throat and eyes or asphyxiation.
• Keep children away from the dishwasher when the door is open.
• Switch off water and power and unplug before fitting or removing
tools/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
• Never use a damaged machine.
• If the mains cable is damaged, it must be replaced by the manufacturer,
its service agent or a qualified technician in order to avoid a hazard.
• Keep the power unit, mains cable and plug away from water.
• Never exceed the maximum capacities.
• 2 people are required to lift this dishwasher.
• Only use the dishwasher for its intended domestic use.
• This appliance is for indoor domestic use only.
• Do not use with an extension lead or external timer.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 5 28/03/2018 16:10

6
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS
WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT
REPAIRS YOURSELF.
• Do not sit or stand on the door or dish rack.
• Do not move your dishwasher by holding the door or its edges.
Hold the dishwasher around its sides or base when moving it.
• Do not touch the heating element during or immediately after use.
• Do not operate your dishwasher unless all enclosure panels are
properly in place. Open the door very carefully when there is a
programme running, as there is a risk of hot water spraying out of
the appliance.
• Do not place any heavy objects on the open door. The appliance
could tip.
• When loading items to be washed:
1. Locate sharp items so that they will not damage the door seal;
2. Warning: Knives and other utensils with sharp points must be loaded
in the basket with the points downwards or placed horizontally.
• Do not allow plastic items to come into contact with heating element.
• Check that the detergent receptacle is empty after completion of the
wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe
or equivalent.
• Use only detergent and rinse aids designed for an automatic
dishwasher.
• The mains plug must be made easily accessible or an easily accessible
switch must be incorporated in the fixed wiring with at least 3mm
contact separation in all poles.
• The door should not be left in the open position since this could
present a tripping hazard.
• For energy saving, always remember to switch the dishwasher off when
you have finished using it.
• The dishwasher should not be left unattended when in use.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 6 28/03/2018 16:10

7
• Improper connection of the equipment-earthing conductor
could result in a risk of electric shock.
• The wires in the cord are coloured as follows:
• Green and Yellow = Earth,
• Blue = Neutral,
• Brown = Live.
• Check with a qualified electrician or service representative if you
are in doubt whether the appliance is properly earthed or the
plug does not fit correctly.
• Never modify the plug provided with the appliance.
• Remove the door to the washing compartment when removing
an old dishwasher from service or discarding it.
• During installation, the power supply cord must not be excessively
or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new
hose sets.
• The maximum number of place settings to be washed is 10.
• The maximum permissible inlet water pressure is 1Mpa, and the
minimum permissible inlet water pressure is 0.03Mpa.
• It is recommended to switch off the power and water when the
appliance is not in use.
• Capacity - 10 place settings
• Product dimensions - 820 mm - 850 mm (H) x 448 mm (W) x 598 mm (D)
• Aperture dimensions - 820 mm - 850 mm (H) x 450 mm (W) x 570 mm (D)
• For supporting and fixing the appliance see the Installation section.
Earthing Instructions
WARNING: THIS APPLIANCE MUST BE EARTHED.
• This appliance is equipped with a mains cable having an
equipment-earthing conductor and an earthing plug.
• The plug must be plugged into an appropriate outlet that is
installed and earthed in accordance with local standards
and requirements.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 7 28/03/2018 16:10

8
This product has been wet tested to ensure correct operation. As a result some water may remain
inside the unit. This is normal and safe. Remove any water droplets from the exterior if necessary.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.

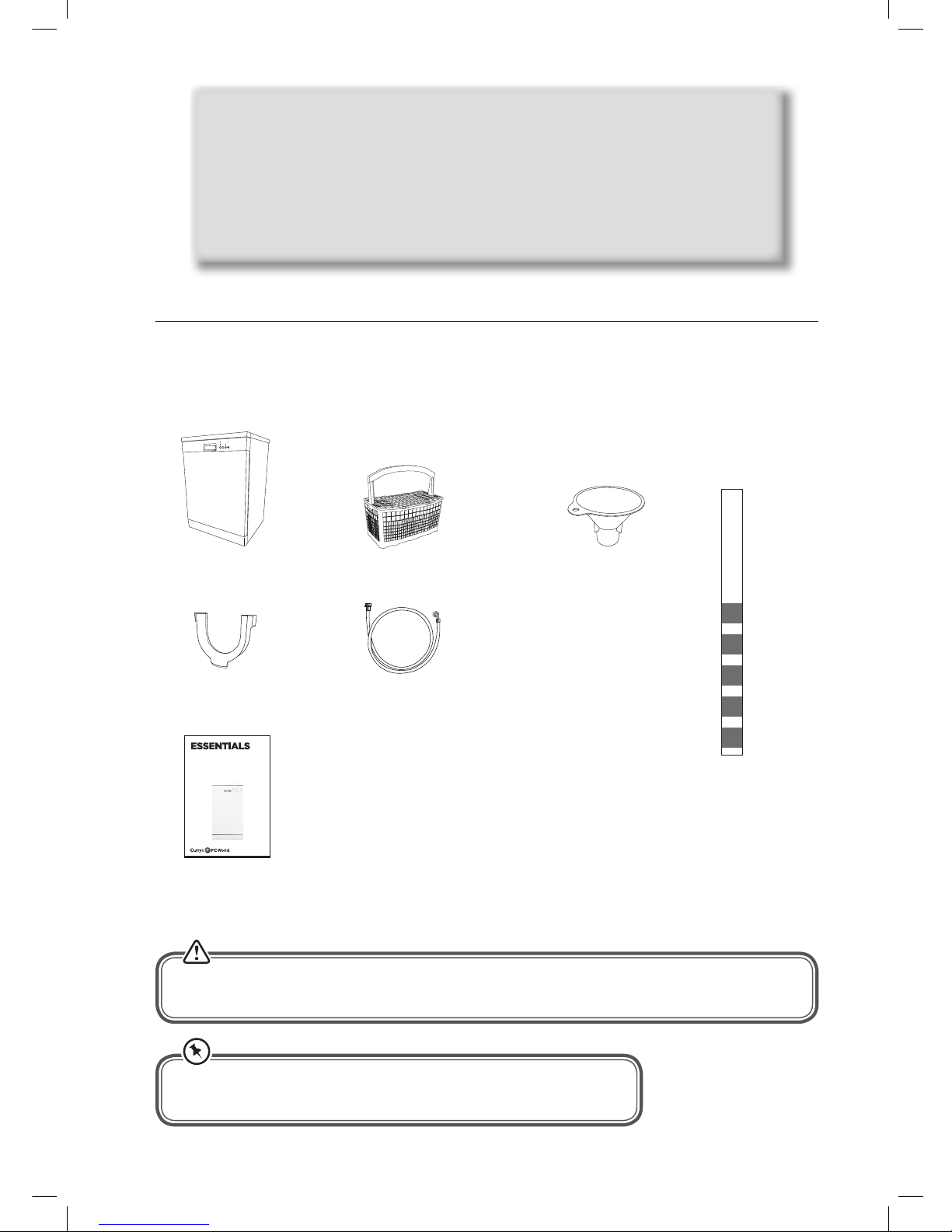

The following items are included:
Thank you for purchasing your new Currys Essentials Dishwasher.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this installation/instruction manual
in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
Main Unit
Instruction Manual x 1
U-Shape Hose Holder X 1 Water Supply Hose X 1
Cutlery Basket Salt Funnel
Water Hardness
Testing Strip
Freestanding Dishwasher
Installation / Instruction Manual
CDW45W18/ CDW45S18
* All images are for indication only; please refer to your individual unit for actual item.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 8 28/03/2018 16:10

INSTALLATION
9
450450
5050
570598
448
448
815-870
820-850
unit in mm level level
level
level
min.100min.100
815-870820-870 570570
1. Please ensure the dishwasher is installed
by a qualified technician.
Location
When selecting a position for your freestanding
dishwasher you should make sure the installation
surface is flat and firm, and the room is well
ventilated. Avoid locating your dishwasher near
a heat source, eg. cooker, boiler or radiator.
Extreme cold ambient temperatures may also
cause the appliance not to perform properly.
This dishwasher is not designed for use in
a garage or outdoor installation.
2. Ensure there is sufficient clearance on each
side of the unit to allow slight sideways
movement for servicing when required. Good
levelling is essential for correct closure and
sealing of the door. When the unit is correctly
levelled, the door should not catch the
inner liner on either side of the cabinet. The
adjustable feet may be loosened or tightened
in order to obtain the optimum levelling of
the unit.
installation
All parts removed must be saved to do
the reinstallation in the future. Ensure
the dishwasher is unplugged and empty.
We recommend that 2 people handle the
dishwasher during installation.
* All images are for indication only; please refer to your individual unit for actual item.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 9 28/03/2018 16:10

INSTALLATION
10

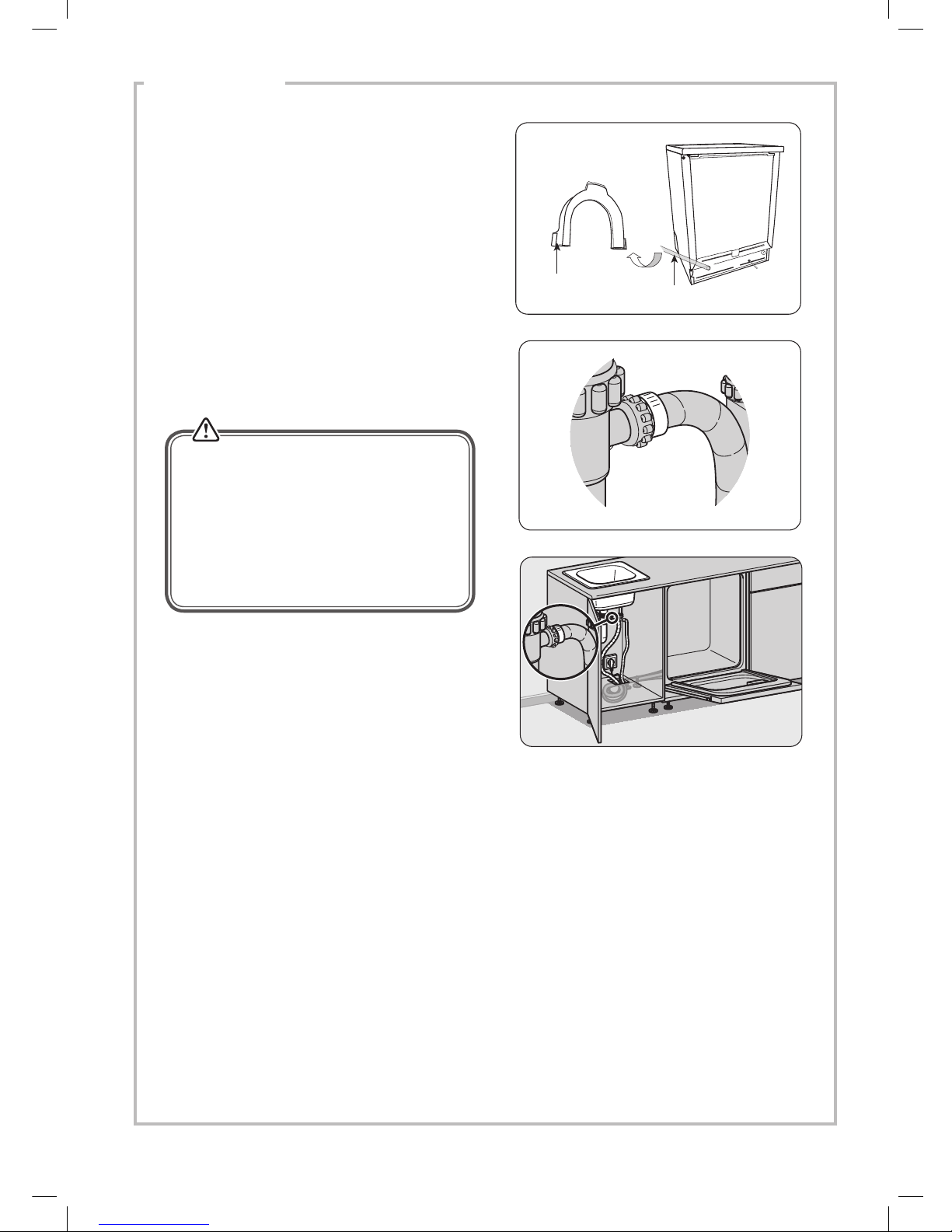

4. Position the dishwasher next to a water tap
and a drain. Ensure the water inlet and drain
hoses are not kinked or squashed. The unit
must not stand on the mains cable.
3. Do not connect the unit to the mains socket
before installation. Ensure you are not
installing the unit right in front of the mains
socket. This is to avoid potential damage to
the back of the unit.
5. Adjust the adjustable feet to obtain the
optimum levelling of the unit. The adjustment
of the rear feet is via a centre screw at the front.
* All images are for indication only; please refer to your individual unit for actual item.
Making sure the dishwasher is level is very
important. If its not level the door may not
seal properly and it may leak.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 10 28/03/2018 16:10

INSTALLATION
11
* All images are for indication only; please refer to your individual unit for actual item.

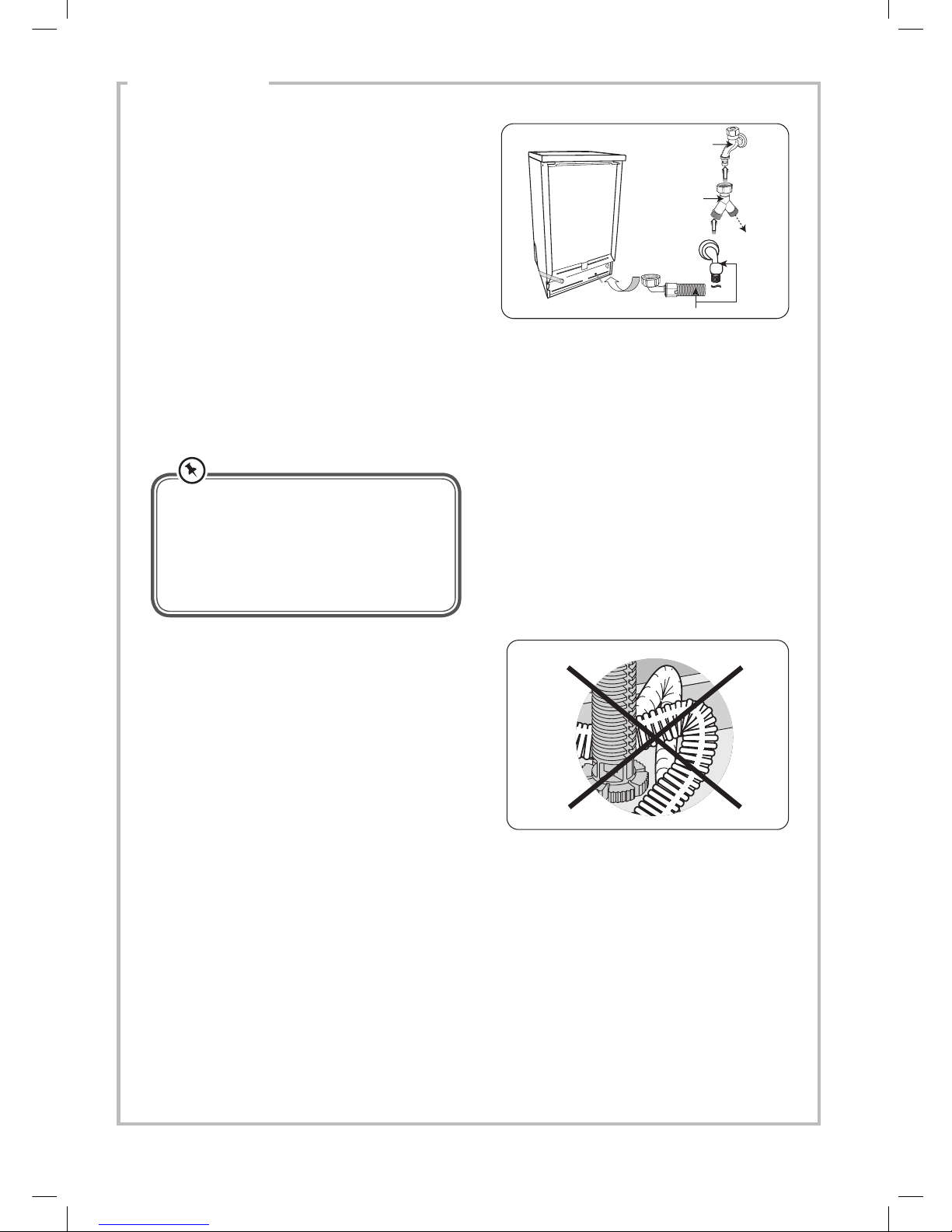

6. Make sure your plumbing is suitable for use
with the dishwasher. If in doubt contact
a qualified plumber. This unit MUST BE
connected to COLD WATER MAINS using the
new water supply hose. OLD HOSE SETS MUST
NOT BE RE-USED. The water pressure from the
water mains needs to be at a minimum of 0.03
MPa and a maximum of 1.00MPa.
• Connect one end of the water supply hose
to your dishwasher, and then connect the
other end of the hose to your water mains.
Please ensure the black rubber seal is
in place.
• After connecting the hose, turn on your
water mains and check for leaks.
• Connect the dishwasher to the mains
socket.
You may use a Y-adaptor (not included)
for an additional water feed for another
appliance, for example a washing
machine. This is only applicable for cold
water mains. A Y-adaptor is available from
most DIY stores.
• Do not bend or kink your drain hose.
water mains
Y-Adaptor
(not included)
Connect
to another
appliance
if required.
water supply hose
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 11 28/03/2018 16:10

INSTALLATION
12
* All images are for indication only; please refer to your individual unit for actual item.
• You may use the U-shaped drain hose
holder to secure your drain hose and to
avoid kinking it.
• Secure the water drain hose to the waste
pipe to avoid it coming off during the
washing process.
U-shaped drain
hose holder water drain hose
• The waste pipe must only be connected
to the foul drains and not the surface
water drainage system.
• The water drain hose should be placed
between 40 cm and 100 cm from the
floor level and must not be extended,
otherwise the unit may not be able to
expel the waste water properly.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 12 28/03/2018 16:10

13
Product Overview
Front View
Upper Basket
Internal View
Rear View
Lower Basket Cutlery Basket
Spray Arm
Cutlery Basket
Filtering System
Rinse Aid Dispenser
Spray Arm
Salt Reservoir
Detergent Dispenser
Cup Racks
* All images are for indication only; please refer to your individual unit for actual item.
control panel
water inlet
(connect to
supply hose)
drain hose
mains cable (connect to
mains socket)
Spikes
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 13 28/03/2018 16:10

14
1. Program Settings Indicator
• The LED indicates which program you are
selecting when pressing the Pbutton.
2. Wash Cycle Status Indicator
• The LED indicates the progress of the wash
cycle.
Filling - Heating & Washing - Rinsing -
Drying/Finished.
3. Delay Timer Indicator
• Shows if a delay timer is set for 3, 6 or 9
hours.
4. Rinse Aid Indicator
• Shows if rinse aid needs adding.
5. Salt Indicator
• Shows if salt needs adding.
Control Panel
6. Program Button
• Press to select one of the 6 wash programs.
7. Start/Pause and Reset Button
• Press to start or pause the wash cycle.
• Press and hold for 3 seconds to reset the
wash cycle.
8. Timer Delay/ Half Load Button
• Press to select a timer delay of 3, 6 or 9
hours.
• Press and hold for 3 seconds to select half
load.
9. ON/OFF Button
• Press to turn the dishwasher power on and
off.
10. Door Handle
* All images are for indication only; please refer to your individual unit for actual item.
CDW45W18
9876
54321
10
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 14 28/03/2018 16:10

15
Before Operating
To Open The Door
• Pull the door handle.
• If the door is opened during operation, open the door slightly to avoid water spillage.
• Wooden cutlery and crockery or items with wooden parts may discolour and fade. The glue used in these
items is not dishwasher-proof and wooden handles may come loose after being washed in a dishwasher.
• Craft items, antiques, valuable vases and decorative glassware are also not suitable for dishwashers.
• Plastic items (e.g. tupperware) which are not heat resistant may melt or loose shape due to the high
temperature in the dishwasher.
• Copper, brass, tin and aluminium items may discolour or become matt.
• Clouding may occur on glasses and delicate glassware after frequent washing. Do not wash delicate
glassware or glassware containing lead crystal, in a dishwasher. Wash delicate glassware by hand instead.
• Silver and aluminium parts have a tendency to discolour during washing. Residues like egg white, egg
yolk and mustard often cause discolouring and staining on silver. Therefore, please clean the residues
from silver immediately after use.



The following items are not suitable
Towels and
sponges
Small plastic
items
(Milk bottle
nipple)
Plastic items
that are not
dishwasher safe
Cast iron
pans
Scratched non-stick cookware
Copper pots and pans
Crystal
glasses
Silverware
Valuable
vases
Cracked / chipped china
To Close The Door
• After loading the dishes, push the baskets fully into the dishwasher.
• Lift the door upwards and push until it clicks into position.
• Do not slam the dishwasher door.
Items Not Suitable for Use in the Dishwasher
When purchasing new crockery and cutlery, please make sure they are dishwasher-proof. Some items are
not suitable for dishwashers.
If the door is opened during operation, all functions are automatically interrupted.
* All images are for indication only; please refer to your individual unit for actual item.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 15 28/03/2018 16:10

16
Please follow the steps below to fill the detergent dispenser.
1. Push the button on the lid of the detergent
dispenser the flap with slide open.
Adding Detergent Or Detergent Tablet
Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly,
please use no more than the correct amount of detergent. Fill the detergent dispenser with detergent
power or tablet.
2. Fill the detergent dispenser with detergent
powder or insert the detergent tablet. The
marking indicates the filling level.
Bleach and
Countertop
detergent Irritant
3. Slide the lid firmly so that it clicks into place.
25
15
OR
MAX
Push to open
25
15
OR
MAX
* All images are for reference only; please refer to your individual unit for actual item.
• Keep detergents and bleaches out of the reach of children.
• Irritating to eyes.
• Avoid contact with eyes. In case of contact with eyes, rinse immediately with plenty of water
and seek medical advice.
• If swallowed, seek medical advice immediately.
Slide to close
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 16 28/03/2018 16:10

17
Adding Rinse Aid
Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and
helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into
the reservoir. This model is designed to use liquid rinse aids only.
Please follow the steps below to pour the rinse aid into the storage reservoir. The amount will dispense
automatically.
1. Open the rinse aid compartment.
2. Fill with the compartment with
rinse aid up to the MAX level
mark. Be careful not to overfill the
reservoir. Wipe up any spills.
3. Close the rinse aid compartment.
• Rinse aid warning light will
illuminate when the reservoir
is running out of rinse aid and
requires refilling.
If the water hardness in your area is soft, you may not need rinse aid as
it may cause white film to develop on your dishes.
25
15
OR
MAX
If you decide to use a detergent tablet, you may not
need to add rinse aid into the rinse aid reservoir.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 17 28/03/2018 16:10

18
Rinse Aid
level
Rinse Aid
Dose
Rinse Aid level
indicator
1No rinse aid
released
21 dose is
dispensed
32 doses are
dispensed
43 doses are
dispensed
54 doses are
dispensed
Adjusting the Rinse Aid Reservoir
The rinse aid reservoir has five settings. Both the recommended setting and the factory setting is “4.” If the
dishes are not drying properly or are spotted, adjust to the next higher number until your dishes are spot-
free. If you fine they are spotted with rinse aid when the cycle has finished the reduce the level.
1. With the dishwasher switched off press and hold the PROGRAM button, while holding the PROGRAM
button down press the ON/OFF button.
2. Keep holding the PROGRAM button (approx 5 seconds) until all the lights flash twice.
One or more of the Program Indicator light will be on, which indicates which rinse aid level is currently set.
3. Press the PROGRAM button to scroll through the levels, see the rinse aid table.
4. When the desired level is selected press the ON/OFF button. The level is now saved.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 18 28/03/2018 16:10

19
Testing your Water Hardness
The washing effectiveness of your machine depends on the softness of the tap water. For this reason,
your machine is equipped with a system that reduces the hardness in mains water supply. The washing
effectiveness will increase when the system is correctly set. To find out the water hardness level of water
in your area, contact your local water board or determine water hardness level by using the test strip (if
available).
1. Open the testing strip.
2. Run your cold tap for a minute then fill a cup/glass with water.
3. Dip the testing strip into the water for 1 second.
4. Shake off the excess water and wait 1 minute for the result.
Results Table
Level 1
Level 2
Level 3
Level 4
Level 5
Level 6
No Lime
Very low lime content
Low lime content
Medium lime content
Medium/High lime content
High lime content
Now you have your water hardness result you can set your dishwashers salt consumption level to match.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 19 28/03/2018 16:10

20
Your dishwasher is set to water hardness level 3 in the factory, to change the level follow the instructions
below:
1. With the dishwasher switched off press and hold the PROGRAM button, while holding the PROGRAM
button down press the ON/OFF button.
2. Keep holding the PROGRAM button until all the lights flash on once then release.
One or more of the Program Indicator light will be on, which indicates which hardness level is currently set.
3. Press the PROGRAM button to scroll through the levels, see the salt consumption table above.
4. When the desired level is selected press the ON/OFF button. The level is now saved.
1˚dh (German degree) = 0.18 mmol/l
1˚fh (French degree) = 0.1 mmol/l
1˚Clark (British degree) = 0.142 mmol/l
Water
Hardness
level
German
Hardness
dH
French
Hardness
dF
British
Hardness
dE
Hardness level indicator
1 0-5 0-9 0-6
2 6-11 10-20 7-14
3 12-17 21-30 15-21
4 18-22 31-40 22-28
5 23-31 41-55 29-39
6 32-50 56-90 40-63
Setting the Salt Consumption Level
Salt consumption must be adjusted to correspond to the water hardness level in your area. If you don’t
know how hard the water in your home is, please ask the company that supplies water in your area.
It is recommended that adjustments should be made in accordance with the following chart.
Currys Essentials Freestanding Dishwasher CDW45W18 Manual.indd 20 28/03/2018 16:10
