Currys ESSENTIALS CDW60W16/A User manual

Freestanding Dishwasher
Installation / Instruction Manual
CDW60W16/A / CDW60B16/A / CDW60S16/A
CDW60W_B_S16/A_IB_RC_171116_grace.indd 1 16/11/17 6:08 pm

CDW60W_B_S16/A_IB_RC_171116_grace.indd 2 16/11/17 6:08 pm

Contents
Safety Warnings...................................................................................................................................5
Unpacking............................................................................................................................................8
Installation ...........................................................................................................................................9
Location ...............................................................................................................................................................................9

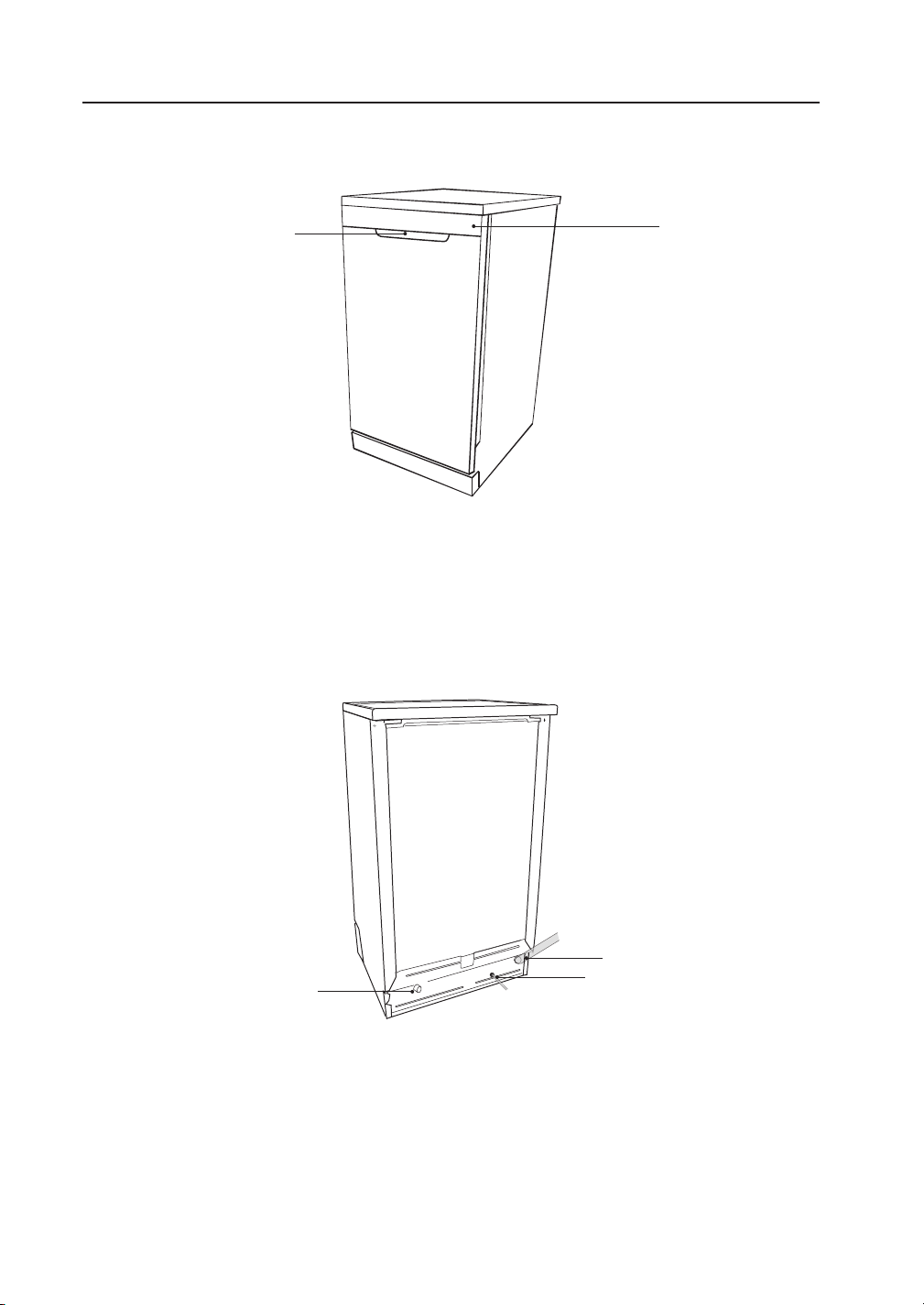

Product Overview..............................................................................................................................13
Front View ........................................................................................................................................................................ 13
Rear View .......................................................................................................................................................................... 13
Internal View.................................................................................................................................................................... 14
Control Panel................................................................................................................................................................... 15
Before Operating...............................................................................................................................16
To Open the Door.......................................................................................................................................................... 16
To Close the Door .......................................................................................................................................................... 16
Items Not Suitable for Use in the Dishwasher..................................................................................................... 16
Adding Detergent Powder or Detergent Tablet..............................................................................17
Adding Rinse Aid ...............................................................................................................................18
Adjusting the Rinse Aid Reservoir ........................................................................................................................... 18
Adding Salt.........................................................................................................................................19
Adjusting Salt Consumption..................................................................................................................................... 20
Loading the Dishwasher ...................................................................................................................21
Before Loading the Dishwasher............................................................................................................................... 21
Upper Basket................................................................................................................................................................... 22
– Adjusting the Upper Basket.............................................................................................................................22
– Loading the Upper Basket................................................................................................................................22
– Hinged Cup Rack..................................................................................................................................................23
Lower Basket ................................................................................................................................................................... 23
– Hinged Spikes .......................................................................................................................................................23
– Loading the Lower Basket ................................................................................................................................24
Cutlery Basket................................................................................................................................................................. 24
Operation ...........................................................................................................................................25
Starting a Wash Cycle................................................................................................................................................... 25
Changing a Programme.............................................................................................................................................. 25
At the End of a Programme ....................................................................................................................................... 25
Switching O the Unit ................................................................................................................................................. 26
Unloading the Dishwasher ........................................................................................................................................ 26
Delay Start........................................................................................................................................................................ 26
Half Load........................................................................................................................................................................... 26
Wash Cycle Table................................................................................................................................27
Cleaning After Use.............................................................................................................................28
External Care ................................................................................................................................................................... 28
– The Door and the Door Seal.............................................................................................................................28
– The Control Panel.................................................................................................................................................28
Internal Care.................................................................................................................................................................... 28
CDW60W_B_S16/A_IB_RC_171116_grace.indd 3 16/11/17 6:08 pm

– Filtering System....................................................................................................................................................28
– Spray Arms .............................................................................................................................................................29
Frost Precaution ................................................................................................................................29
Moving the Dishwasher ....................................................................................................................29
Maintenance After a Prolonged Period of Non-Operation ............................................................30
Hints and Tips ....................................................................................................................................30
Technical Problems....................................................................................................................................................... 30
General Problems.......................................................................................................................................................... 31
Disposal of the Dishwasher ..............................................................................................................32
Disposal of Packing Material ............................................................................................................32
Specications.....................................................................................................................................33
Product Fiche .....................................................................................................................................34
CDW60W_B_S16/A_IB_RC_171116_grace.indd 4 16/11/17 6:08 pm

5
Safety Warnings
For your continued safety and to reduce the risk of injury or electric shock,
please follow all the safety precautions listed below.
• Read all instructions carefully before using the dishwasher and keep
them for future reference.
• Retain the manual. If you pass the dishwasher onto a third party, make
sure to include this manual.
• Keep ventilation openings in the dishwasher enclosure clear of
obstructions.
• Choose a location for your dishwasher away from heat sources such as
radiators or fires.
• Young children should be supervised to ensure that they do not play
with the dishwasher.
• Keep mains cable out of reach of children.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Keep the appliance and its cord out of reach of children less than 8
years old.
• Keep children away from detergents and rinse aids. These may cause
chemical burns in the mouth, throat and eyes or asphyxiation.
• Keep children away from the dishwasher when the door is open.
• Switch off water and power and unplug before fitting or removing
tools/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
• Never use a damaged machine.
• If the mains cable is damaged, it must be replaced by the manufacturer,
its service agent or a qualified technician in order to avoid a hazard.
• Keep the power unit, mains cable and plug away from water.
• Never exceed the maximum capacities.
• 2 people are required to lift this dishwasher.
• Only use the dishwasher for its intended domestic use.
• This appliance is intended for indoor household use and similar
applications such as:
- farm houses and by clients in hotels, motels and other residential
type environment;
- bed and breakfast type environment;
- catering and similar non-retail applications.
CDW60W_B_S16/A_IB_RC_171116_grace.indd 5 16/11/17 6:08 pm

6
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS
WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT
REPAIRS YOURSELF.
• Do not sit or stand on the door or dish rack.
• Do not move your dishwasher by holding the door or its edges. Hold
the dishwasher around its sides or base when moving it.
• Do not touch the heating element during or immediately after use.
• Do not operate your dishwasher unless all enclosure panels are
properly in place. Open the door very carefully when there is a
programme running, as there is a risk of hot water spraying out of the
appliance.
• Do not place any heavy objects on the open door. The appliance could
tip.
• When loading items to be washed:
1. Locate sharp items so that they will not damage the door seal;
2. Warning: Knives and other utensils with sharp points must be loaded
in the basket with the points downwards or placed horizontally.
• Do not allow plastic items to come into contact with heating element.
• Check that the detergent receptacle is empty after completion of the
wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or
equivalent.
• Use only detergent and rinse aids designed for an automatic
dishwasher.
• Other means for disconnection from the supply must be incorporated
in the fixed wiring with at least 3mm contact separation in all poles.
• The door should not be left in the open position since this could
present a tripping hazard.
• For energy saving, always remember to switch the dishwasher off
when you have finished using it. The dishwasher should not be left
unattended when in use.
• Remove the door to the washing compartment when removing an old
dishwasher from service or discarding it.
• During installation, the power supply cord must not be excessively or
dangerously bent or flattened.
• Do not tamper with controls.
• The new hose-set supplied with the appliance is to be used and old
hose-set should not be reused.
• The maximum number of place settings to be washed is 12.
CDW60W_B_S16/A_IB_RC_171116_grace.indd 6 16/11/17 6:08 pm

7
• The maximum permissible inlet water pressure is 1 MPa, and the
minimum permissible inlet water pressure is 0.04 MPa.
Earthing Instructions
WARNING: THIS APPLIANCE MUST BE EARTHED.
• This appliance is equipped with a mains cable having an
equipment-earthing conductor and an earthing plug.
• The plug must be plugged into an appropriate outlet that is
installed and earthed in accordance with local standards and
requirements.
• Improper connection of the equipment-earthing conductor
could result in a risk of electric shock.
• The wires in the cord are coloured as follows:
• Green and Yellow = Earth,
• Blue = Neutral,
• Brown = Live.
• Check with a qualied electrician or service representative if you
are in doubt whether the appliance is properly earthed or the
plug does not t correctly.
• Never modify the plug provided with the appliance.
CDW60W_B_S16/A_IB_RC_171116_grace.indd 7 16/11/17 6:08 pm

8
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Main Unit
Detergent Measuring Spoon
(1 full spoon = 20g (approx.))

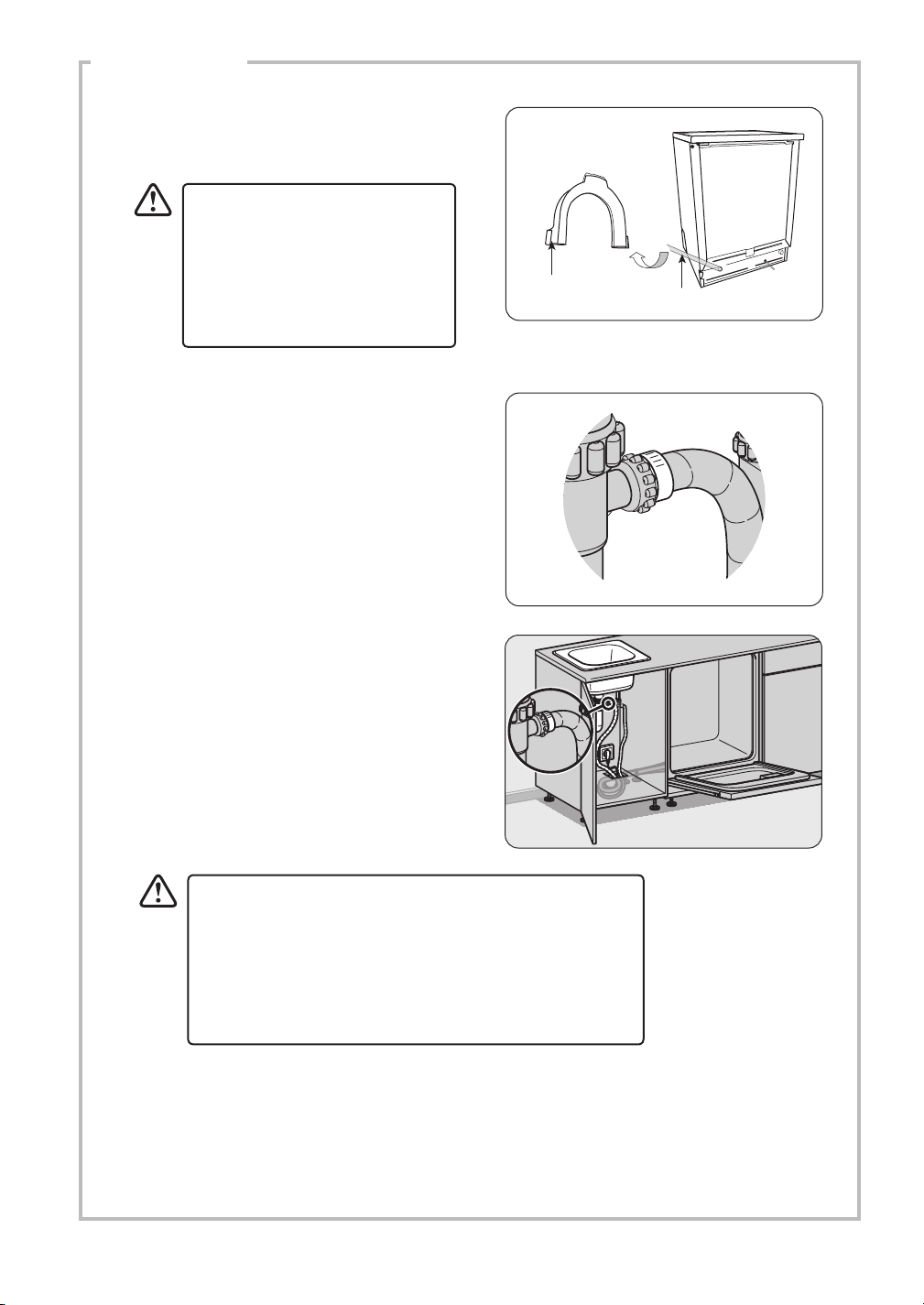

U-shape Hose HolderSalt Funnel
Measuring Cup
(approx 60ml)
Water Supply Hose
Cutlery Basket
Condensation Strip
Instruction Manuai
Instruction
Manual
Thank you for purchasing your new product.
We recommend that you spend some time reading this instruction
manual in order that you fully understand all the operational features it
oers.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
This product has been wet tested to ensure
correct operation. As a result some water may
remain inside the unit. This is normal and
safe. Remove any water droplets from the
exterior if necessary.
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
CDW60W_B_S16/A_IB_RC_171116_grace.indd 8 16/11/17 6:08 pm

INSTALLATION
9

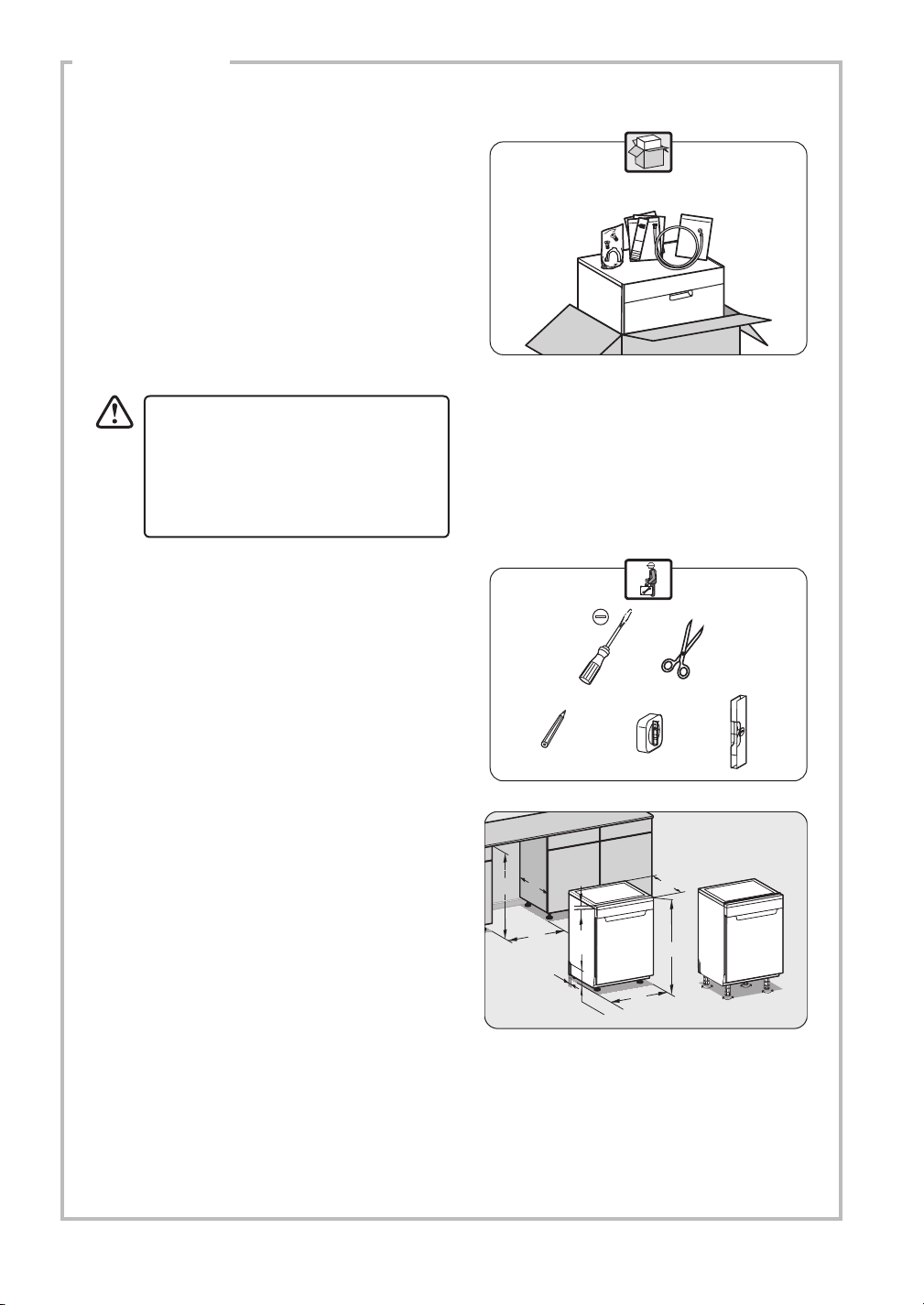

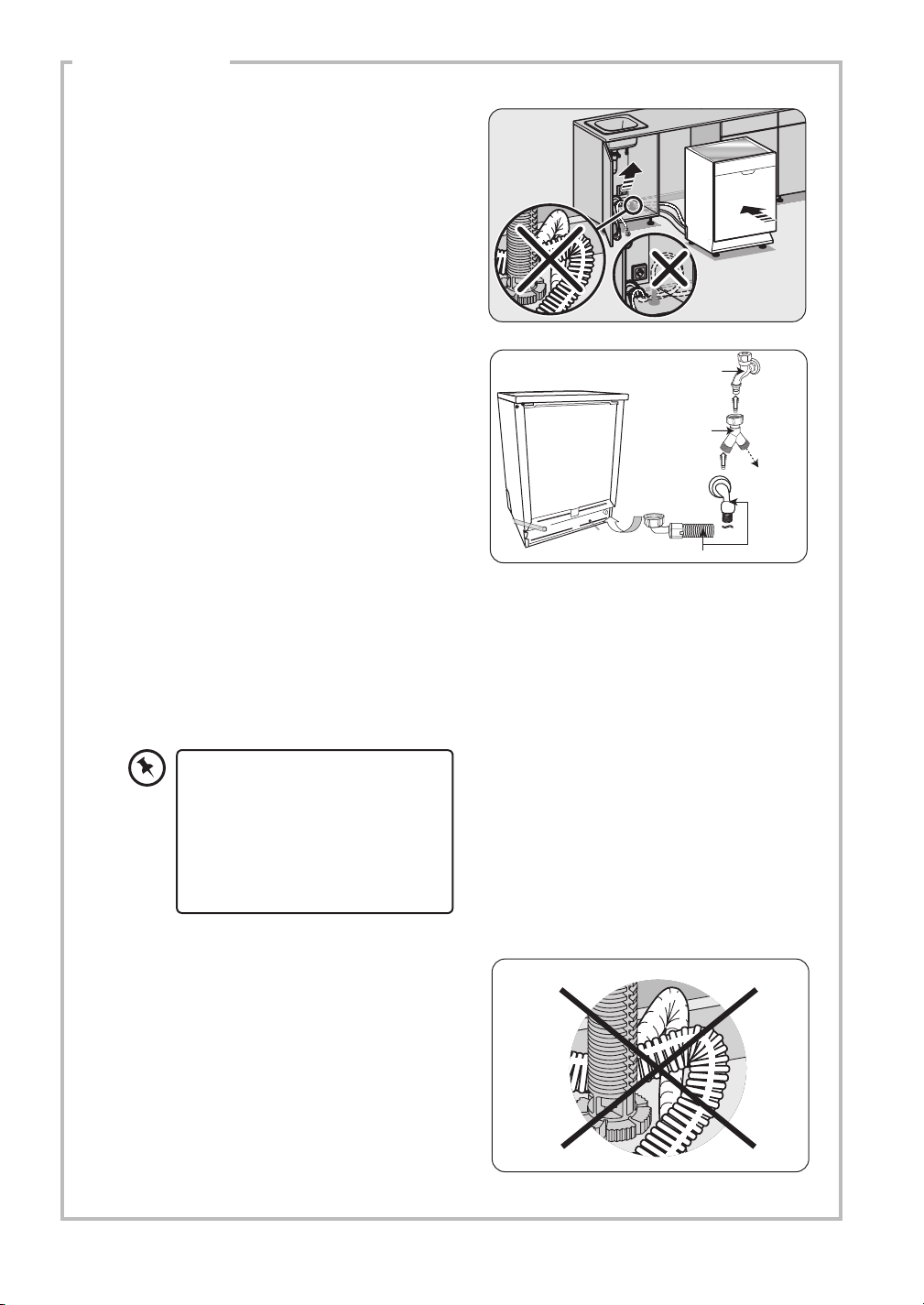

1. Please ensure the dishwasher is installed
by a qualied technician. Refer to the tools
required.
Location
When selecting a position for your dishwasher
you should make sure the installation surface
is at and rm, and the room is well ventilated.
Avoid locating your dishwasher near a heat
source, eg. cooker, boiler or radiator. Extreme
cold ambient temperatures may also cause
the appliance not to perform properly. This
dishwasher is not designed for use in a garage
or outdoors.
Do not cover the dishwasher. When installing,
ensure that free space is left at the sides.
2. Ensure there is clearance each side of the
unit to allow slight sideways movement for
servicing when required. Good levelling is
essential for correct closure and sealing of
the door. When the unit is correctly levelled,
the door should not catch the inner liner on
either side of the cabinet. The adjustable
feet may be loosened or tightened in order
to obtain the optimum levelling of the unit.
The gure outlines the minimum
dimensions required to accommodate the
dishwasher within tted kitchen furniture
units.
3030
level level
level
level
610
845
850 650
min.100
80
603
598
units in mm
All parts removed must be saved to
do the reinstallation in the future.
Ensure the dishwasher is unplugged
and empty. We recommend that 2
people handle the dishwasher during
installation.
CDW60W_B_S16/A_IB_RC_171116_grace.indd 9 16/11/17 6:08 pm

INSTALLATION
10
4. The condensation strip must be tted
to the underside of the worktop above
your dishwasher to protect it against any
moisture. Its purpose is to protect your
worktop’s underside from steam rising from
the dishwasher.
• Ensure the surface is clean prior to
sticking the condensation strip to the
underside of the worktop.
• Remove the backing paper from the
condensation strip.
3. Do not connect the unit to the mains socket
before installation. Ensure you are not
installing the unit right in front of the mains
socket. This is to avoid potential damage to
the back of the unit.
• Stick the condensation strip to the
underside of the worktop.
5. The worktop can be removed by removing
the xing screws located at the rear of the
dishwasher. After removing the screws, lift
and push the worktop forward to release
the lugs from the front section of the
dishwasher. The polystyrene block and the
lugs should be saved for future use.
Leave some space
Stick the Condensation Strip
under the worktop, where you
want to install the dishwasher.
Remove
Remove
Remove
Unscrew
Failure to attach the
condensation strip could
result in damage to the
underside of your worktop!
CDW60W_B_S16/A_IB_RC_171116_grace.indd 10 16/11/17 6:08 pm
