Currys CID45B13 User manual
INSTRUCTION MANUAL
DISHWASHER
CID45B13
Contents
Unpacking.................................................................................................................................... 8
Installation ................................................................................................................................... 9
Location ..................................................................................................................................................................... 9
Product Overview...................................................................................................................... 15
Internal View...........................................................................................................................................................15
Upper Basket .........................................................................................................................................................15
Rear View .................................................................................................................................................................15
Lower Basket .........................................................................................................................................................15
Control Panel..........................................................................................................................................................16
Wash Cycle Table........................................................................................................................ 17
To Open the Door................................................................................................................................................18
To Close the Door .................................................................................................................................................18
Items Not Suitable for Use in the Dishwasher............................................................................................18
Adding Detergent or Detergent Tablet.................................................................................... 19
Adding Rinse Aid ....................................................................................................................... 20
Adjusting the Rinse Aid Reservoir..................................................................................................................20
Adding Salt .............................................................................................................................................................21
Adjusting Salt Consumption............................................................................................................................22
Loading the Dishwasher ........................................................................................................... 23
Before Loading the Dishwasher......................................................................................................................23
Upper Basket..........................................................................................................................................................24
Adjusting the Upper Basket..............................................................................................................................24
Loading the Upper Basket for 9 Place Settings..........................................................................................24
Lower Basket ..........................................................................................................................................................25
Hinged Spikes........................................................................................................................................................25
Hinged Cup Rack ..................................................................................................................................................25
Loading the Lower Basket for 8 Place Settings..........................................................................................26
Cutlery Basket........................................................................................................................................................26
Starting a Wash Cycle ................................................................................................................ 27
Changing a Programme ............................................................................................................ 27
At the End of a Programme....................................................................................................... 27
Switching O the Unit............................................................................................................... 28
Unloading the Dishwasher ....................................................................................................... 28
Delay Start.................................................................................................................................. 28
Cleaning After Use..................................................................................................................... 29
External Care ..........................................................................................................................................................29
- The Door and the Door Seal ..................................................................................................................29
- The Control Panel ......................................................................................................................................29
Internal Care...........................................................................................................................................................29
- Filtering System..........................................................................................................................................29
- Spray Arms...................................................................................................................................................30
Frost Precaution ........................................................................................................................ 30
Moving the Dishwasher ............................................................................................................ 30
Maintenance After a Prolonged Period of Non-Operation .................................................... 30
Hints and Tips ............................................................................................................................ 31
Fault Code ...............................................................................................................................................................31
Technical Problems..............................................................................................................................................31
Disposal of the Dishwasher ...................................................................................................... 33
Disposal of Packing Material .................................................................................................... 33
Specications............................................................................................................................. 34
5
Safety Warnings
For your continued safety and to reduce the risk of injury or electric shock,
please follow all the safety precautions listed below.
• Read all instructions carefully before using the dishwasher and keep them
for future reference.
• Retain the manual. If you pass the dishwasher onto a third party, make sure
to include this manual.
• Keep ventilation openings in the dishwasher enclosure clear of obstructions.
• Choose a location for your dishwasher away from heat sources such as
radiators or fires.
• Young children should be supervised to ensure that they do not play with
the dishwasher.
• Keep mains cable out of reach of children.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years
old.
• Keep children away from detergents and rinse aids. These may cause
chemical burns in the mouth, throat and eyes or asphyxiation.
• Keep children away from the dishwasher when the door is open.
• Switch off water and power and unplug before fitting or removing tools/
attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
• Never use a damaged machine.
• If the mains cable is damaged, it must be replaced by the manufacturer, its
service agent or a qualified technician in order to avoid a hazard.
• Keep the power unit, mains cable and plug away from water.
• Never exceed the maximum capacities.
• 2 people are required to lift this dishwasher.
• Only use the dishwasher for its intended domestic use.
6
• This appliance is intended for indoor household use and similar applications
such as:
- farm houses and by clients in hotels, motels and other residential type
environment;
- bed and breakfast type environment;
- catering and similar non-retail applications.
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS
WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.
• Do not sit or stand on the door or dish rack.
• Do not move your dishwasher by holding the door or its edges. Hold the
dishwasher around its sides or base when moving it.
• Do not touch the heating element during or immediately after use.
• Do not operate your dishwasher unless all enclosure panels are properly in
place. Open the door very carefully when there is a programme running, as
there is a risk of hot water spraying out of the appliance.
• Do not place any heavy objects on the open door. The appliance could tip.
• When loading items to be washed:
• Locate sharp items so that they will not damage the door seal;
• Warning: Knives and other utensils with sharp points must be loaded in the
basket with the points downwards or placed horizontally.
• Do not allow plastic items to come into contact with heating element.
• Check that the detergent receptacle is empty after completion of the wash
cycle.
• Do not wash plastic items unless they are marked dishwasher safe or
equivalent.
• Use only detergent and rinse aids designed for an automatic dishwasher.
• Other means for disconnection from the supply must be incorporated in the
fixed wiring with at least 3mm contact separation in all poles.
• The door should not be left in the open position since this could present a
tripping hazard.
7
• For energy saving, always remember to switch the dishwasher off when you
have finished using it. The dishwasher should not be left unattended when
in use.
• Remove the door to the washing compartment when removing an old
dishwasher from service or discarding it.
• During installation, the power supply cord must not be excessively or
dangerously bent or flattened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets.
• The maximum number of place settings to be washed is 9.
• The maximum permissible inlet water pressure is 1Mpa, and the minimum
permissible inlet water pressure is 0.04Mpa.
Improper connection of the equipment-earthing conductor could result in a
risk of electric shock.
• The wires in the cord are coloured as follows:
Green and Yellow = Earth,
Blue = Neutral,
Brown = Live.
• Check with a qualified electrician or service representative if you are in
doubt whether the appliance is properly earthed or the plug does not fit
correctly.
• Never modify the plug provided with the appliance.
earthing instructions
WARNING: THIS APPLIANCE MUST BE EARTHED.
• This appliance is equipped with a mains cable having an equipment-
earthing conductor and an earthing plug.
• The plug must be plugged into an appropriate mains socket that
is installed and earthed in accordance with local standards and
requirements.
8
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
This product has been wet tested to ensure correct operation. As a result some water may remain
inside the unit. This is normal and safe. Remove any water droplets from the exterior if necessary.
If items are missing or damaged please contact Partmaster (UK only).
Tel: 0844 800 3456 for assistance.
The Main Unit
Lower Hook X 2
Detergent Measuring Spoon X 1
1 full spoon = 20g (approx.)
Door Template X 1
ST4 screws X 10
ST3.9x13 screws (white) X 2
Condensation Strip X 1
ST3.9x13 screws (black) X 2
3.5x25 screws X 2
Instruction Manual X 1
U-Shape Hose Holder X 1
Salt Funnel X 1
Hop Hook X 2
Measuring Cup X 1
60ml (approx.)
Water Supply Hose X 1
Cutlery Basket
4x18 screws X 2
4x20 screws X 2
Thank you for purchasing your new Currys Dishwasher.
We recommend that you spend some time reading this instruction manual in order that you
fully understand all the operational features it offers. You will also find some hints and tips to
help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future
reference.
Instruction
Manual
INSTALLATION
9

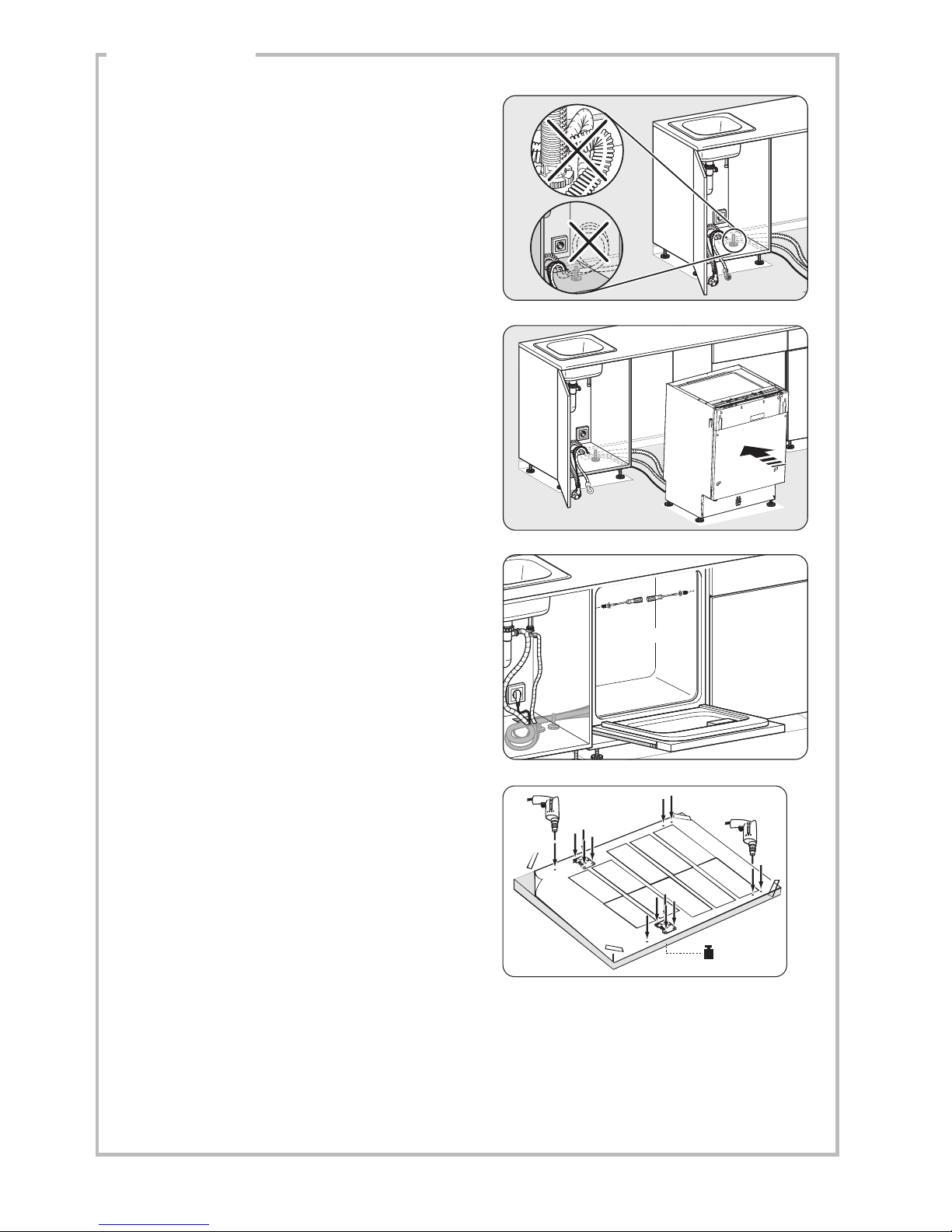

1. Please ensure the dishwasher is installed by a
qualified technician. Refer to the tools required.
Location
When selecting a position for your dishwasher you
should make sure the installation surface is flat
and firm, and the room is well ventilated. Avoid
locating your dishwasher near a heat source, e.g.
cooker, boiler or radiator. Extreme cold ambient
temperatures may also cause the appliance not to
perform properly. This dishwasher is not designed
for use in a garage or outdoor installation.
Do not drape the dishwasher with any covering.
When installing, ensure that free space is left at the
sides.
2. Ensure there is sufficient clearance on each side
of the unit to allow slight sideways movement
for servicing when required. Good levelling is
essential for correct closure and sealing of the
door. When the unit is correctly levelled, the
door should not catch the inner liner on either
side of the cabinet. The adjustable feet may be
loosened or tightened in order to obtain the
optimum levelling of the unit.
level
level
level level
screw
cone
gear
level
Installation

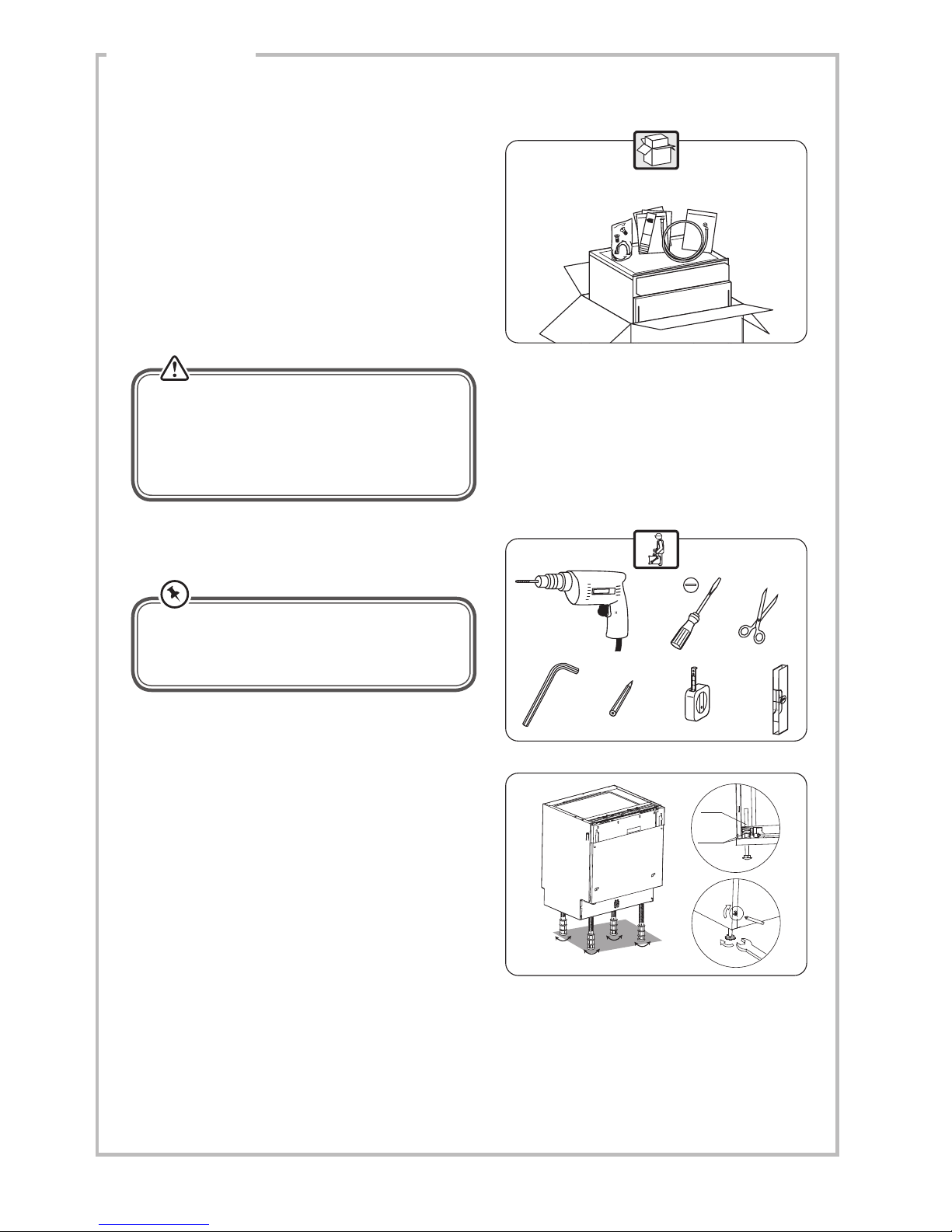

All parts removed must be saved to do
the reinstallation in the future. Ensure
the dishwasher is unplugged and empty.
We recommend that 2 people handle the
dishwasher during installation.
The supplied door template also contains
installation steps which will assist
installation.
INSTALLATION
10

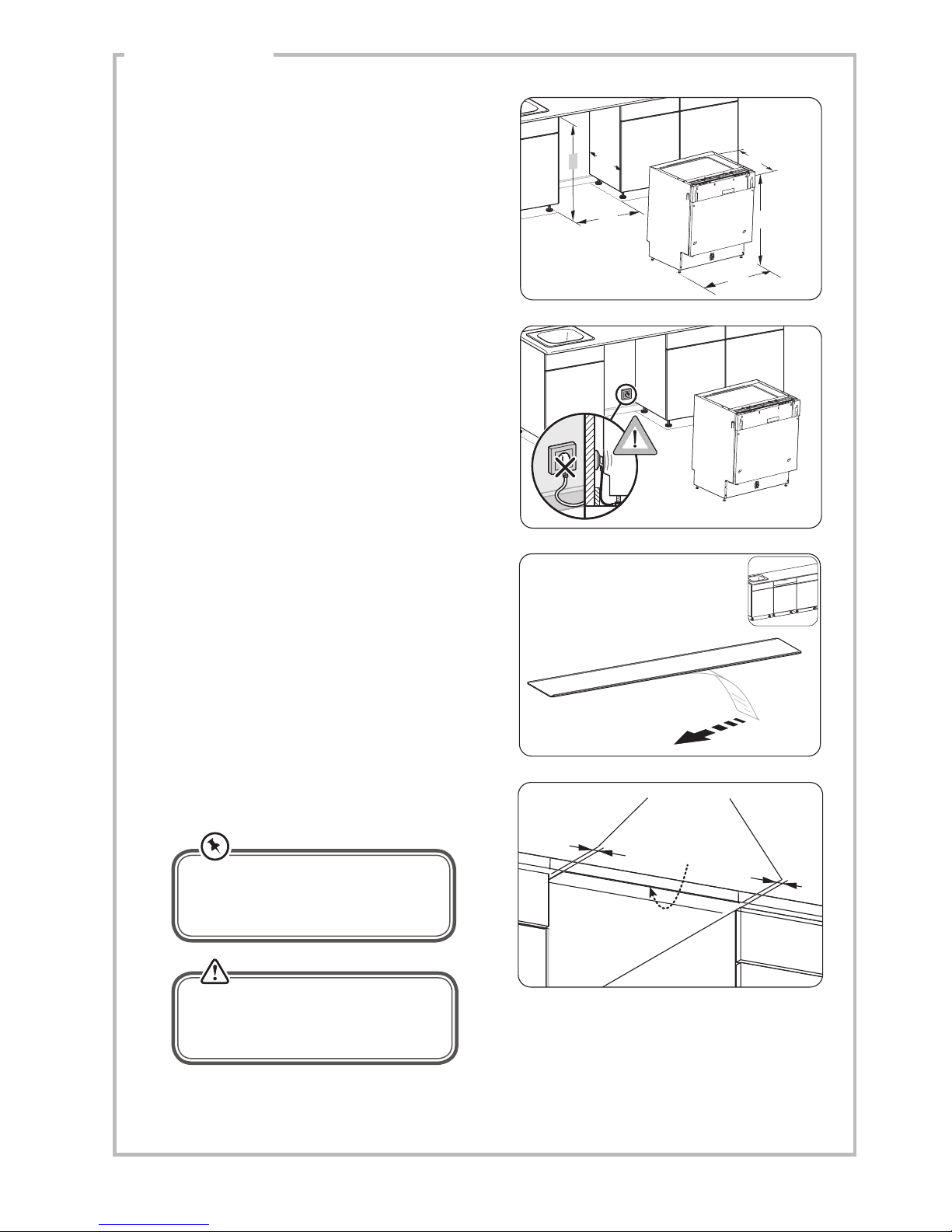

3. The height of the unit is 820 mm. The figure
outlines the minimum dimensions required
to accommodate the dishwasher within fitted
kitchen furniture units.
820
450
560
445
540
820
unit in mm
4. Do not connect the unit to the mains socket
before installation. Ensure you are not installing
the unit right in front of the mains socket. This
is to avoid potential damage to the back of the
unit.
5. The condensation strip must be fitted to the
underside of the worktop above your dishwasher
to help protect it against, and reduce potential
liability moisture. Its purpose is to protect your
worktop’s underside from steam rising from the
dishwasher.
Remove the backing paper from the
condensation strip.
Ensure the surface is clean prior to
sticking the condensation strip to
the underside of the worktop.
Leave some space
Stick the Condensation
Strip under the worktop,
where you want to
install the dishwasher.
6. Stick the condensation strip to the underside of
the worktop.
Failure to attach the condensation
strip could result in damage to the
underside of your worktop!
INSTALLATION
11
7. Position the dishwasher next to a water tap and
a drain. Ensure the water inlet and drain hoses
are not kinked or squashed. The unit must not
stand on the mains cable.
8. To secure the dishwasher under the table top,
tighten the screws through the sides of the unit
into the adjoining cabinetry.
<4.5kg
9. Tape the supplied Door Template to the
dishwasher door. Make sure the top of the
template is at the top of the door. Drill the
required holes following the depth and diameter
shown on the Door Template.
INSTALLATION
12
10. Install the Aesthetic Panel onto the dishwasher door. Ensure the aesthetic panel weight is a
minimum of 3kg and a maximum of 6kg. After the aesthetic panel is installed, the tension of the
dishwasher door spring can be adjusted by rotating the adjusting bolt. If the tension is right, the
door will remain horizontal in the fully open position.
4 X 18 screw
Cover
Spacer for
aesthetic
panel
Hook for
aesthetic panel
Aesthetic panel
Outer door of
dishwasher
Lower hook
Hop hook
ST4 countersunk
head screw
11. Ensure to tighten the screws on both sides of
the dishwasher door and to secure the Aesthetic
Panel.
Rubber cover
Screw
4*14 screw
Loosen
12. Adjust the bolt to loosen or tighten the tension
of the dishwasher door.
INSTALLATION
13
• Do not bend your drain hose.

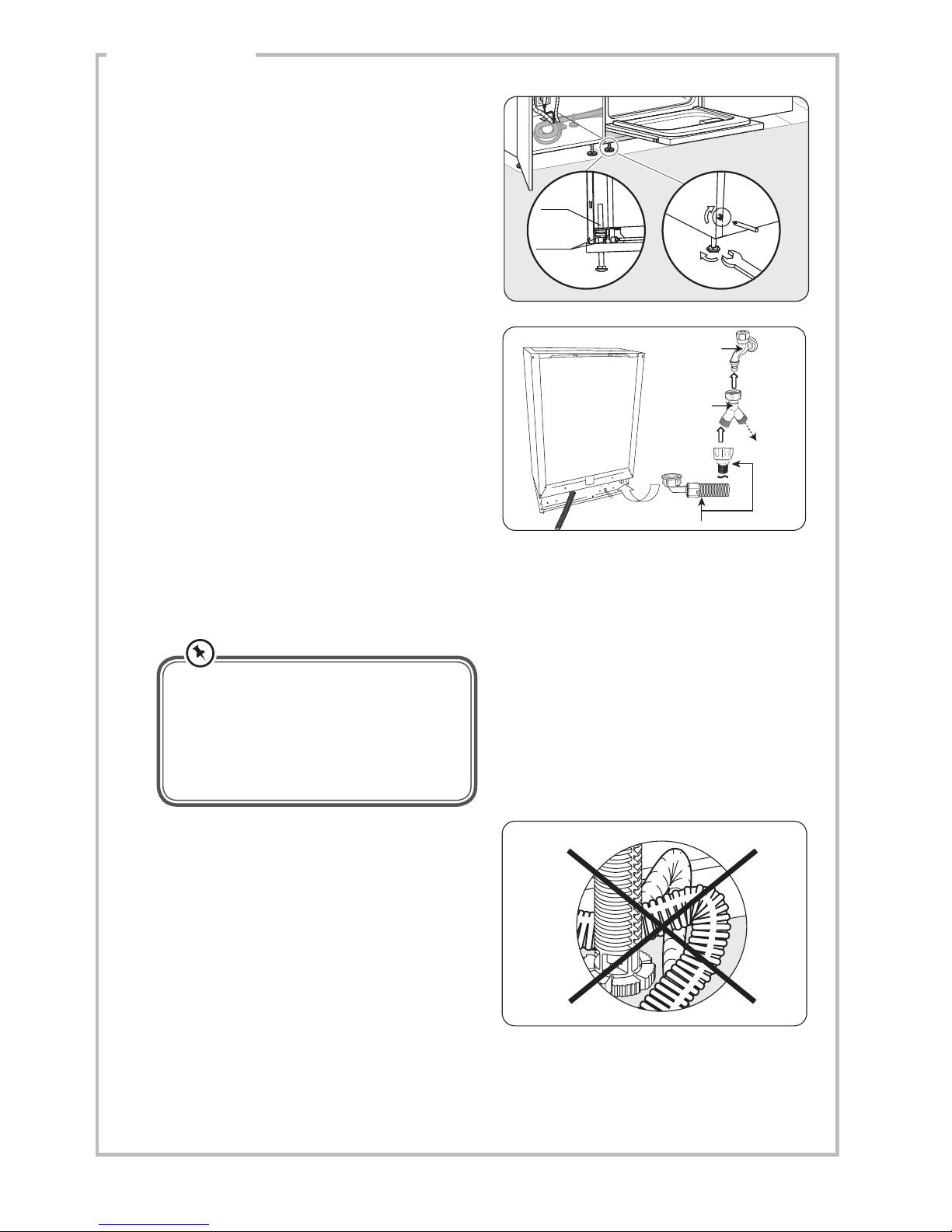

14. Make sure your plumbing is suitable for use with
the dishwasher. If in doubt contact a qualified
plumber. This unit MUST BE connected to COLD
WATER MAINS using the new water supply hose.
OLD HOSE SETS MUST NOT BE RE-USED. The
water pressure from the water mains needs to
be at a minimum of 0.04 MPa and a maximum of
1.00 MPa.
• Connect one end of the water supply hose to
your dishwasher, and then connect the other
end of the hose to your water mains. Please
ensure the black rubber seal is in place.
• After connecting the hose, turn on your water
mains and check for leaks.
• Connect the dishwasher to the mains socket.
water mains
water supply hose
Y-Adaptor
(not included)
Connect to
another
appliance
if required.
You may use a Y-Adaptor (not included)
for an additional water feed for another
appliance, for example a washing
machine. This is only applicable for cold
water mains. A Y-Adaptor is available
from most DIY stores.
screw
cone
gear
level
13. Adjust the adjustable feet again to obtain the
optimum levelling of the unit.
INSTALLATION
14

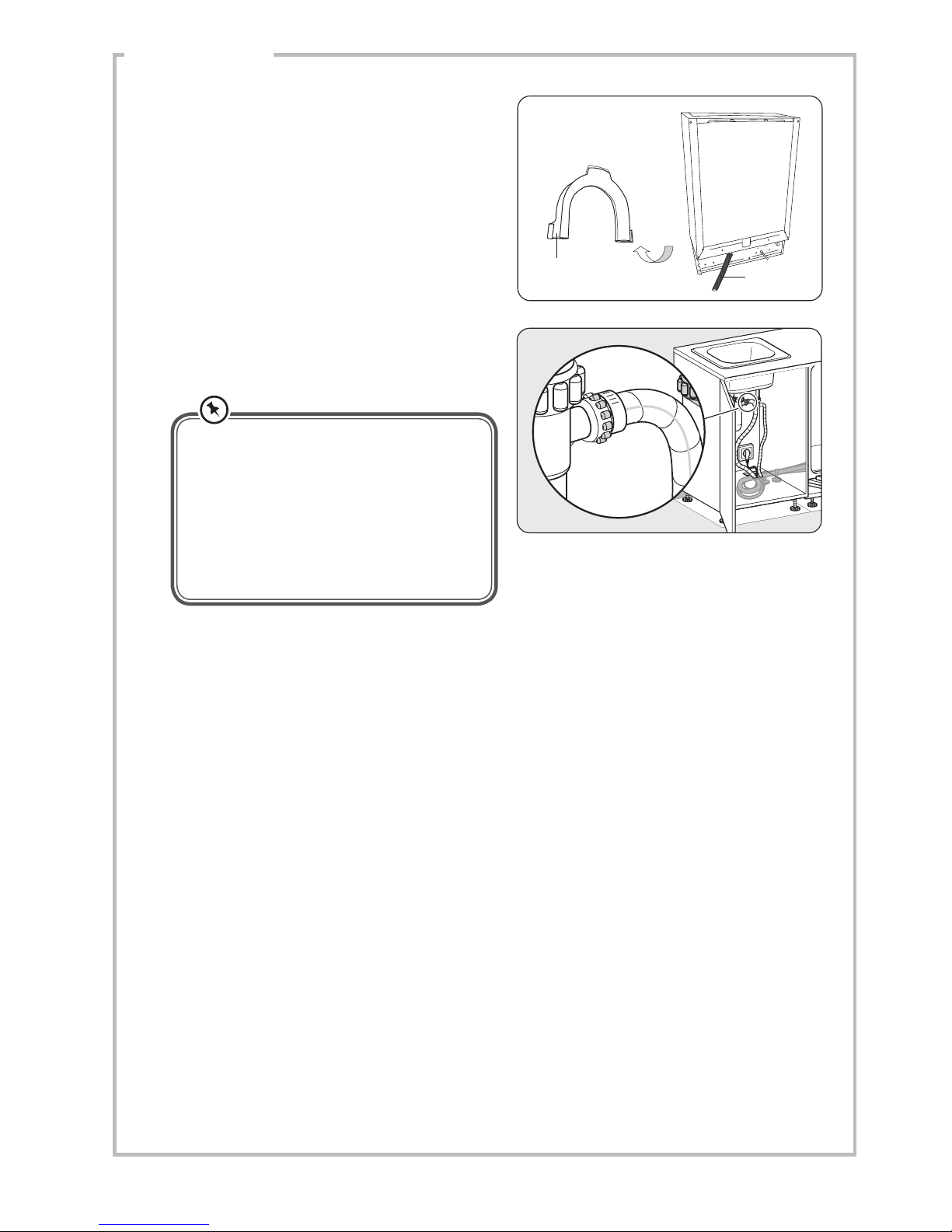

water drain
hose
U-shaped drain
hose holder
• You may use the U-shaped drain hose holder
to secure your drain hose and to avoid
bending it.
• The waste pipe must only be connected
to the foul drains and not the surface
water drainage system.
• The water drain hose should be placed
between 40 cm and 100 cm from the
floor level and must not be extended,
otherwise the unit may not be able to
expel the waste water properly.
• Secure the water drain hose to the waste pipe
to avoid it coming off during the washing
process.
15
Product Overview
Internal View
Rear View
Upper Basket Lower Basket
Upper
Basket
Rinse Aid
Reservoir
Detergent
Dispenser
Spray Arm
Filter
Cup Rack
Lower
Basket
Spray Arm
Filtering System
Salt Reservoir
Water Inlet
Mains Cable
Drain Outlet
Drain Hose
16

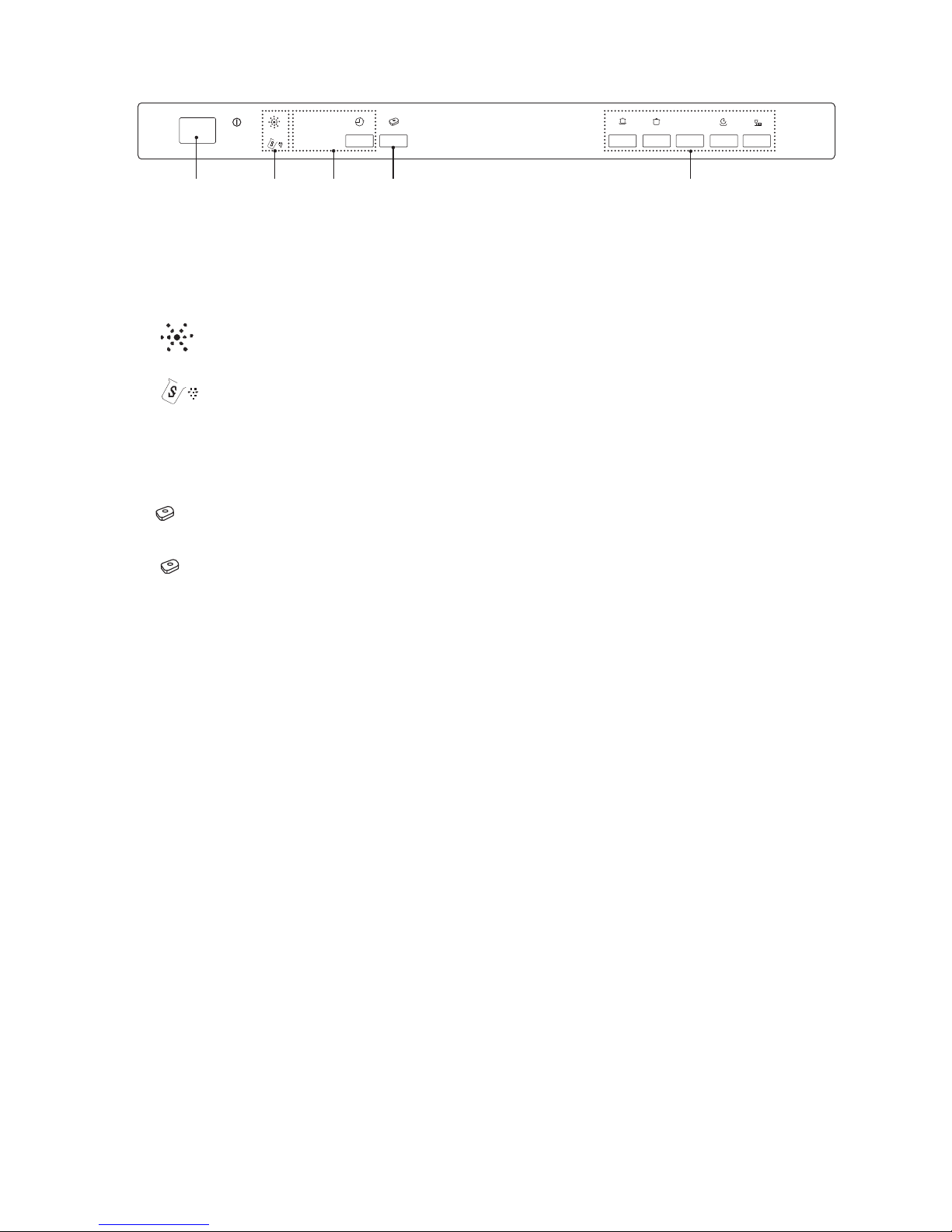

Control Panel
3h 9h
6h 12h
1h
ECO
1 2 3 4 5
1. On/Off Button
• To turn the dishwasher on and off.
Power On light
• Illuminates when On/Off button is pressed.
2. Rinse Aid Refill Warning Light
• Illuminates when the rinse aid dispenser needs refilling.
Salt Refill Warning Light
• Illuminates when the salt reservoir needs refilling.
3 Delay Start Button and Indicator Lights
• Press to preset the wash timer and delay the starting time by up to 12 hours.
• Illuminates when different delay start time is selected: 3 hours, 6 hours, 9 hours or 12 hours.
4. Function Button
• Press to select the 3 in 1 function in washing cycle.
Indicator Light
• Illuminates when the 3 in 1 function is selected.
5. Programme Control Buttons
• Press to select your required washing programme.
17
Wash Cycle Table
Programme
Cycle
Selection
Information
Process
Detergent
Amount
(Pre-wash/
Main wash)
Running
Time
(min.)
Energy
Consumption
(Kwh)
Water
Consumption
(I)
Rinse
Aid
Intensive • For heavies soiled
crockery and
normally soiled pots,
pans, dishes etc with
dried on soiling.
• Pre-wash
(50°C)
• Wash (65°C)
• Rinse
• Rinse
• Rinse (55°C)
• Drying
• Pre-wash
(4g)
• Main wash
(23g)
120 1.13 16.0
Normal • For normally soiled
loads, such as pots,
plates, glasses and
lightly soiled pans.
• Pre-wash
(50°C)
• Wash (55°C)
• Rinse
• Rinse (65°C)
• Drying
• Pre-wash
(4g)
• Main wash
(23g)
155 1.09 13.0
ECO
(EN50242)
• This is a Standard
programme. It is
suitable for cleaning
normally soiled
tableware and is
the most efficient
programme in terms
of its combined
energy and water
consumption
for that type of
tableware.
• Pre-wash
• Wash (50°C)
• Rinse (60°C)
• Drying
• Pre-wash
(4g)
• Main wash
(23g)
160 0.77 12.5
1 hour
Express
1h
• For lightly soiled
loads that do not
need excellent
drying efficiency.
• Wash (60°C)
• Rinse
• Rinse (50°C)
• Drying
• Main wash
(27g)
60 0.77 10.0
Rapid • A shorter wash for
lightly soiled loads
and quick wash.
• Wash (40°C)
• Rinse
• Rinse (40°C)
• Main wash
(15g)
30 0.50 9.0
* To comply with Standards of Performance, i.e. EN50242, please ensure to use economy washing cycle for the test.
3 in 1 function is available only for intensive, normal, or economy washing cycle.
If you choose to use detergent tablet in these washing cycles, please do not add rinse aid.
Condensing dry technology
• Energy is saved by drying the dishes using the remaining heat after the last rinse cycle.
• Wash cycle times are extended due to this drying method.
• Some wash programmes do not have a drying function, please refer to the Wash Cycle Table for
more details.
18
To Open the Door
• Pull the door handle.
• If the door is opened during operation all functions are automatically interrupted.
To Close the Door
• After loading the dishes, push the baskets fully into the dishwasher.
• Lift the door upwards and push until it clicks into position.
• Do not slam the dishwasher door.
Items Not Suitable for Use in the Dishwasher
When purchasing new crockery and cutlery, please make sure they are dishwasher-proof. Some items are
not suitable for dishwashers.
• Wooden cutlery and crockery or items with wooden parts may discolour and fade. The glue used in
these items is not dishwasher-proof and wooden handles may come loose after being washed in a
dishwasher.
• Craft items, antiques, valuable vases and decorative glassware are also not suitable for dishwashers.
• Plastic items (e.g. tupperware) which are not heat resistant may melt or loose shape due to the high
temperature in the dishwasher.
• Copper, brass, tin and aluminium items may discolour or become matt.
• Clouding may occur on glasses and delicate glassware after frequent washing. Do not wash delicate
glassware or glassware containing lead crystal, in a dishwasher. Wash delicate glassware by hand
instead.
• Silver and aluminium parts have a tendency to discolour during washing. Residues like egg white, egg
yolk and mustard often cause discolouring and staining on silver. Therefore, please clean the residues
from silver immediately after use.

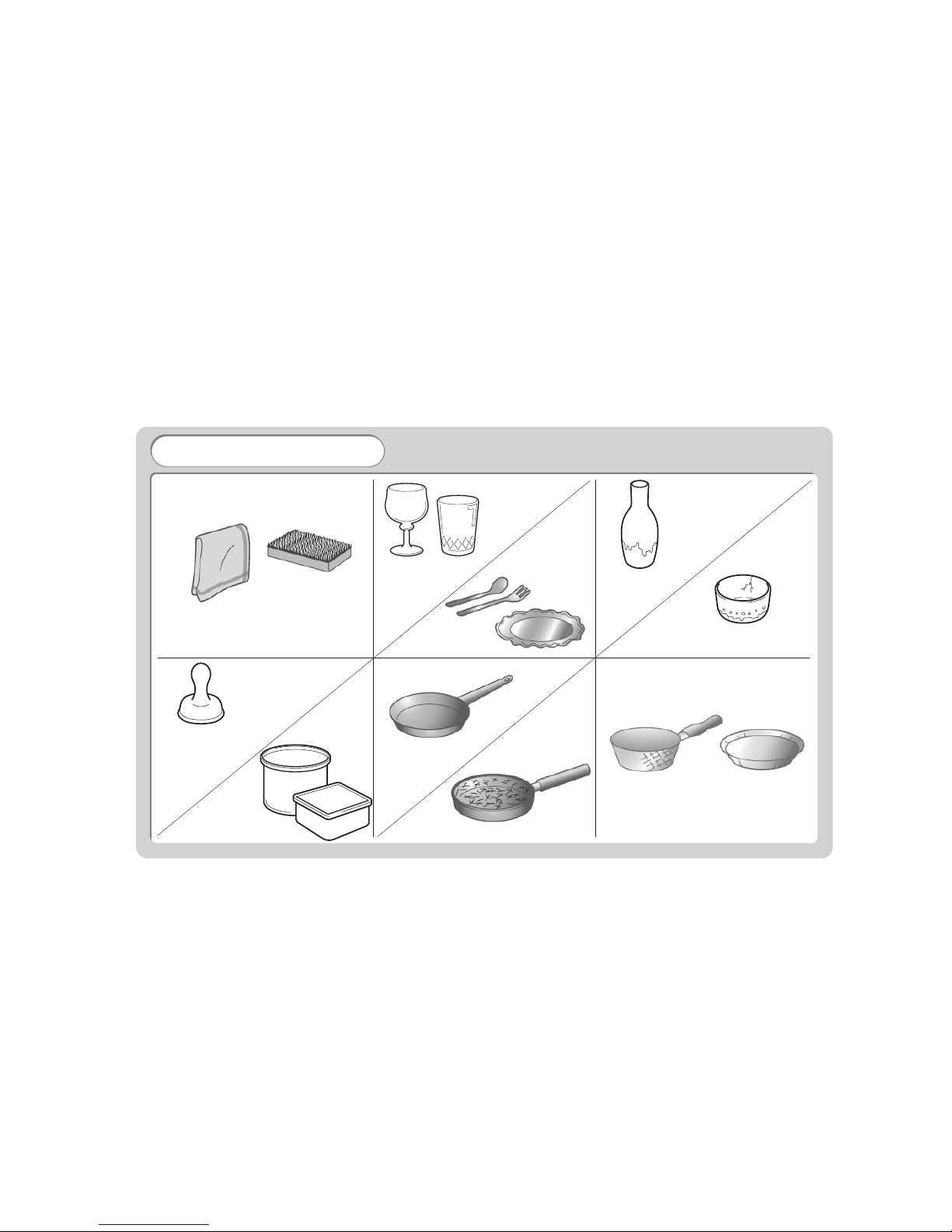

The following items are not suitable
Towels and sponges
Small plastic items
(Milk bottle nipple)
Plastic items that are
not dishwasher safe
Cast iron pans
Scratched non-stick cookware
Copper pots and pans
Crystal glasses
Silverware
Valuable vases
Cracked / chipped china
19
• Keep detergents and bleaches out of the reach of children.
• Irritating to eyes.
• Avoid contact with eyes. In case of contact with eyes, rinse immediately
with plenty of water and seek medical advice.
• If swallowed, seek medical advice immediately.
Adding Detergent or Detergent Tablet
Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly,
please use no more than the correct amount of detergent. Fill the detergent dispenser with detergent
powder or tablet.
Please follow the steps below to fill the detergent dispenser.
1. Push the button on the lid of the detergent
dispenser in the direction of the arrow until the
flap springs open.
2. Fill the detergent dispenser with detergent
powder or insert the detergent tablet. The
marking indicates the filling level.
Bleach and
Countertop detergent Irritant
pre-wash detergent chamber
main wash detergent chamber
or
3. All programmes with pre-wash need an additional
detergent dosage that must be placed in the
pre-wash detergent chamber (please refer to the
wash cycle table). This detergent will take effect
during the pre-wash phase.
4. Close the lid firmly so that it clicks into place.
You can choose to add a detergent tablet
alone or to add detergent powder to both
the main wash detergent chamber and the
pre-wash detergent chamber for your selected
wash cycle.
push up from the right side
20
Adding Rinse Aid
Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and
helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into
the reservoir. This model is designed to use liquid rinse aids only.
Please follow the steps below to pour the rinse aid into the storage reservoir. The amount will dispense
automatically.
1. Turn the cap and open as indicated.
2. When the cap-open marking is aligned, you
may lift the cap up.
3. Pour the rinse aid in until the level indicator
turns completely black in colour. Close the
cap.
4. Be careful not to overfill the reservoir. Wipe up
any spills.
open
rinse aid indicator
Adjusting the Rinse Aid Reservoir
The rinse aid reservoir has six settings. Both the recommended
setting and the factory setting is “4”. If the dishes are not drying
properly or are spotted, adjust the dial to the next higher number
until your dishes are spot-free.
• If the water hardness in your area is soft, you may not need rinse aid as it may cause white film to
develop on your dishes.
• If there is some rinse aid residue left on your dishes, please turn the rinse aid dispenser dial to 1.
• If you decide to use a detergent tablet, you do not need to add rinse aid.
• Rinse aid warning light will illuminate when the reservoir is running out of rinse aid and
requires refilling.
• Alternatively, you can judge the amount of rinse aid by checking the rinse aid indicator right
next to the reservoir’s cap. When the indicator is black, it means it is full. When it is clear, it
means it is almost empty.
Table of contents
Other Currys Dishwasher manuals
