Curtis DVDR5000 User manual

DVDR5000
DVD RECORDER
DVD + REWRITABLE
Manufactured under license from Dolby Laboratories."Dolby",
"Pro Logic"and the double-D symbol are trademarks of Dolby
Laboratories.Confidential Unpublished Works. 1992-1997
Dolby Laboratories,Inc.all rights reserved.
C

35
SYMPTOMS ANDCORRECTION
Trouble shooting Guide Check the followingguide for apossible correction toa problem
before contacting customerservice.
Symptom
No power
No picture
No sound
Black & White
The playback
picture Has
occasional distortion
Brightness is
unstable or noises
are produced on
playback pictures
The DVD video
player does notstart
playback
MP3 won't readdisc
or It skips
The remote control
does not work
Properly
The recorder cannot
record.
Some keys do not
work
The image is
distorted.
Correction
Connect the powerplug into the wall outlet securely.
Verify theconnection from the DVD video output to the TV video input. Then
Switch TV to appropriate mode(video 1)
Connect the videocable into the jacks securely. Refer to your television
owners manual.
Connect the audiocables into the jacks securely.
Verify theconnection from the DVD audio output to the TV or receiver audio
input. Then switch to the appropriate source on the receiver. Refer to your
Audio amplifierowners manual.
Damaged S connector(bent pin)
Asmall amount of picture distortion may appear because of a poor quality
video/sound transfer todisc. This is especially trueof some discs
Manufactured between 1997-1998.
Scratched disc
Connect the DVDplayer directly through the TV and not throughany other
source. What you'reviewing is the effect of the copy protectioncircuitry
Required on allDVD players.
If you don'thave a video input on your TV, you must purchase an Therefore
Adapter fromyour dealer.
Place the discwith the graphics side up.
Place the discon the disc tray correctly inside the guide.
Make sure thedisc is free from scratches & fingerprints.
Press the SETUPbutton to turn off the menu screen.
Cancel the parentallock function or change the parental lock level. (The
Pre-set password is3308.)
Turn thepower off then disconnect thepower plug and reinsert it back into
the wall. Retryagain.
Use region 1discs only.
Return disc asthe software edition used may not be compatible with the
player. Checkweb site for instruction.
Use new editionsof software such as Voyetra Audio station4, Adaptec's
“Easy CD Creator”,NTI or Roxio's Toast Titanium.
Make sure MP3file are not encoded with a variable bit rate such as
provided by RealNetworks.
Replace the batterieswith new ones.
The type of the disc is wrong, it's not a DVD+RW or DVD+Rdisc.
The disc is recorded full.
The disc (DVD+R,DVD+RW) is locked, it should be unlocked.
The DVD+R has been finalized.
The type of the disc is wrong, it's not a DVD+RW or DVD+Rdisc.
The unit is in record mode or it is recording.
The setup of interlaced or Progressive is wrong.
Press the PS/ISbutton to switch from each other.

Safety Precautions
The lightning flash with an arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated” dangerous voltage” within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE, DUE TO THE HIGH RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT OPEN THE CABINET DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. ONLY QUALIFIED SERVICE PERSONNEL SHOULD
ATTEMPT THIS.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, AND FULLY
INSERT.
This Digital Video Player employs a Laser System. To prevent direct exposure to the laser beam, do
not try to open the Enclosure. Visible laser radiation emits when open and interlocks are defeated.
Use of controls, adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
DO NOT STARE INTO BEAM.
To ensure proper use of this product, please read this owner's manual carefully and retain for future
reference. Should the unit require maintenance, contact an authorized service location. Only qualified
service personnel should remove the cover.
WARNING:
CAUTION:
CAUTION:
1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCETHE RISK OF ELECTRIC
SHOCK, DO NOT REMOVECOVER (OR BACK).
NO USER-SERVICEABLE PART INSIDE. REFER
SERVICING TO QUALIFIEDSERVICE PERSONNEL
Since it isvery usual for DVD movies to be released at different times in different regions of the world, all players have region codes and
disks can havean optional region code. If you load a disk of a different region code to your player, you will see the region code node
notice on thescreen. The diskwill not play, and shouldbe unloaded.
CLASS 1
LASER PRODUCT
L
I
S
T
E
D
3046730
CERTIFIED TO
CAN/CSA-E60065
CONFORMS TO
UL STD. 6500
34

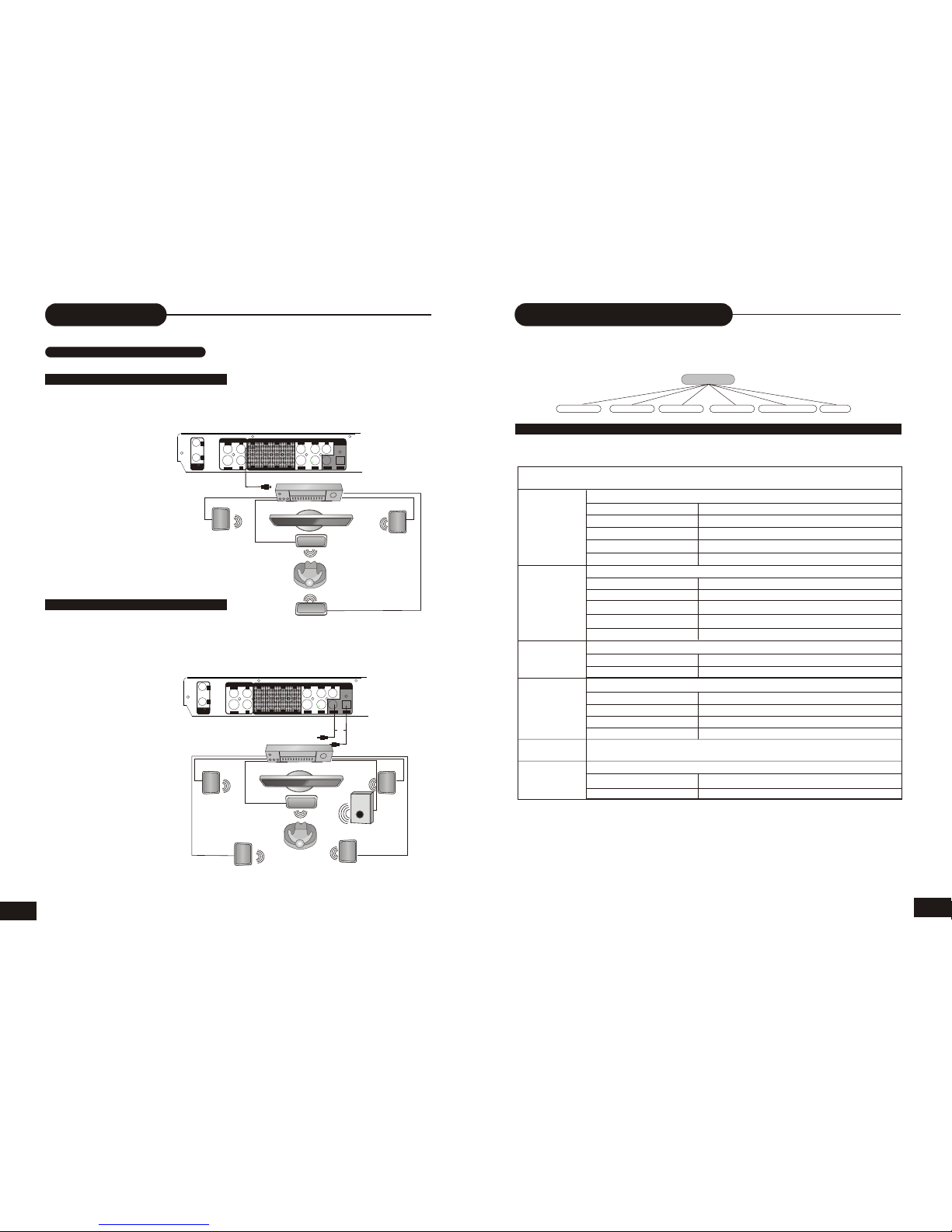

Specifications
DVD Player
TV System NTSC/PAL
Compatible Discs DVD+R, DVD, CD, Mp3,
DVD+RW,CD-R, CD-RW
Recordable discs format DVD+RW, DVR-R
Resolution Ratio Greater Than 500 lines
Video S/N Ratio 65dB
Frequency Response fs (96KHz/24bit)
4Hz - 44KHz:+/-2dB
Audio S/N Ratio 95dB
Degree of Distortion <0.01%
D/A Converter 192KHz/24bit
Video Out 1Vp-p
S-Video Out Y: 1Vp-p(75 )
C: 0.3Vp-p(75 );
Audio Out 2.0V
5.1 Channel,2Channel mixed
Digital Audio Output Optical, Coaxial
Connections YUV, CVBS
S-Video
Remote Control
Transmitter Infrared Ray
Signal Range Approximately 15'
Power Source 2 AAA Batteries
General
Power Supply AC 120V~60Hz
Consumed Power 35W
Standby Power <3W
Size (WxHxD) 430x48x308mm
Because its products are subject to continuous
improvement, We reserves the right to modify
product design and/or specifications without
notice and without incurring any obligations.
""

CAUTION: Use ofcontrols or adjustments or performance ofprocedures other than those specified hereinmay result in
hazardous radiation exposure.
Please carefully studythis manual and always keep itavailable. There are, however, some installation and operation precautions
which You should beaware of.
1.Read Instructions -All the safety and operatinginstructions should be read before theproduct is operated.
2.Retain Instructions -The safety and operating instructions should be retained for future reference.
3.Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.
4.Follow Instructions -All operating and use instructionsshould be followed.
5.Cleaning - Unplugthis product from the wall outletbefore cleaning. Do not use liquidcleaners or aerosol cleaners. Use adamp
cloth for cleaning.
6.Attachments - Donot use attachments not recommended bythe product manufacturer as they maycause hazards.
7.Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a
wet basement; ornear a swimming pool; and thelike.
8.Accessories - Donot place this product on anunstable cart, stand, tripod, bracket, ortable. The product may fall, causing serious
injury to achild or adult, and serious damageto the product. Use only witha cart, stand, tripod, bracket, or table recommended by the
manufacturer, orsold with the product. Anymounting of the product should followthe manufacturer’s instructions, and should usea
mounting accessory recommended by the manufacturer.
9.Aproduct and cartcombination should be moved with care.Quick stops, excessive force, and unevensurfaces may cause the
product and cartcombination to overturn.
1 0. Ventilation - Slotsand openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to
protect it fromoverheating, and these openings must notbe blocked or covered. The openingsshould never be blocked by placing the
product on abed, sofa, rug, or other similarsurface. This product should not be placed in a built-in installation such as a bookcase or
rack unless properventilation is provided or the ma n u f a ct u r e r’s instructions have been adhered to.
11.Power Sources- This productshould be operated only from thetype of power source indicated onthe marking label. If you are not
sure of thetype of power supply to yourhome, consult your product dealer orlocal power company. For productsintended to operate
from battery power, or othersources, refer to the operating instructions.
Safety Information
12.Grounding or Polarization This product may be equipped with a
polarized alternating-current line plug (a plug having one bladewider than
the other). Thisplug will fit into the power outlet only one way, This is a
safety feature. Ifyou are unable to insert theplug fully into the outlet, try
reversing the plug.If the plug should still failto fit, contact your electrician to
replace your obsoleteoutlet. Do not defeat the safetypurpose of the
polarized plug.
Alternate Warnings This product isequipped with a three-wire grounding-
type plug, aplug having a third (grounding) pin.This plug will only fit into a
grounding-type power outlet.This is a safety feature, If you are unable to
insert the pluginto the outlet, contact your electricianto replace your
obsolete outlet. Donot defeat the safety purpose ofthe grounding-type plug.
13.Power-Cord Protection Power-supply cords should be routed so that
they are notlikely to be walked on orpinched by items placed upon or
against them, payingparticular attention to cords at plugs,convenience
receptacles, and thepoint where they exit from theproduct.
14.Protective AttachmentPlug The product is equipped with an attachment
plug having overloadprotection. This is a safety feature. See instruction
Manual for replacementor resetting of protective device. Ifreplacement of
the plug isrequired, be sure the service technicianhas used a replacement
plug specified bythe manufacturer that has the sameoverload protection as
the original plug.
15.Outdoor AntennaGrounding - If an outside antennaor cable system is connected tothe product, be sure the antenna or cable
system is groundedso as to provide some protectionagainst voltage surges and built-up staticcharges. Article 810 of theNational
Electrical Code,ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding
of the lead-inwire to an antenna discharge unit,size or grounding conductors, location ofantenna-discharge unit, connection to
grounding electrodes, andrequirements for the grounding electrode.
16.Lightning - Foradded protection for this product duringa lightning storm, or when itis left unattended and unused for long periods
of time, unplugit from the wall outlet anddisconnect the antenna or cable system.This will prevent damage to the product due to
lightning and powerlinesurges.
17.Power Lines -An outside antenna system shouldnot be located in the vicinityof overhead power lines or other electric light or
power circuits, orwhere it can fall into suchpower lines or circuits. When installingan outside antenna system, extreme careshould
be taken tokeep from touching such power linesor circuits as contact with themmight be fatal.
1 8.Overloading -Do not overload wall outlets, extensioncords, or integral convenience receptacles asthis can result in a riskof fire
or electric shock.
19.Object and LiquidEntry - Never push objects ofany kind into this product throughopenings as they may touch dangerous voltage
points or short-outparts that could result in afire or electric shock. Never spillliquid of any kind on the product.
20.Servicing - Donot attempt to service this productyourself as opening or removing coversmay expose you to dangerous voltage or
other hazards. Referall servicing to qualified service personnel.
2 1.Damage RequiringService - Unplug this product fromthe wall outlet and refer servicingto qualified service personnel under the
following conditions:
a. When thepower-supply cord or plug is damaged.
b. If liquidhas been spilled, or objects havefallen into the product.
c. If theproduct has been exposed to rainor water.
d. If theproduct does not operate normally byfollowing the operating instructions. Adjustonly those controls that are coveredby the
operating instructions asan improper adjustment of other controlsmay result in damage and willoften require extensive work by a
qualified technician torestore the product to its normaloperation.
e. If theproduct has been dropped or damagedin any way, and
f. When theproduct exhibits a distinct change inperformance - this indicates a needfor service.
22.Replacement Parts -When replacement parts are required, besure the service technician has usedreplacement parts specified
by the manufactureror have the same charateristics asthe original part. Unauthorized substitutions mayresult in fire, electric shock,
or other hazards.
23.Safety Check -Upon completion of any service orrepairs to this product, ask theservice technician to perform saftey checks to
determine that theproduct is in proper operating condition.
24.Wall or Ceiling Mounting - The product shouldbe mounted to a wall orceiling only as recommended by the manufacturer.
25. Heat -The product should be situated away from heat sources such as radiators, heat registers, stoves or other products
(including amplifiers) thatproduce heat. 2

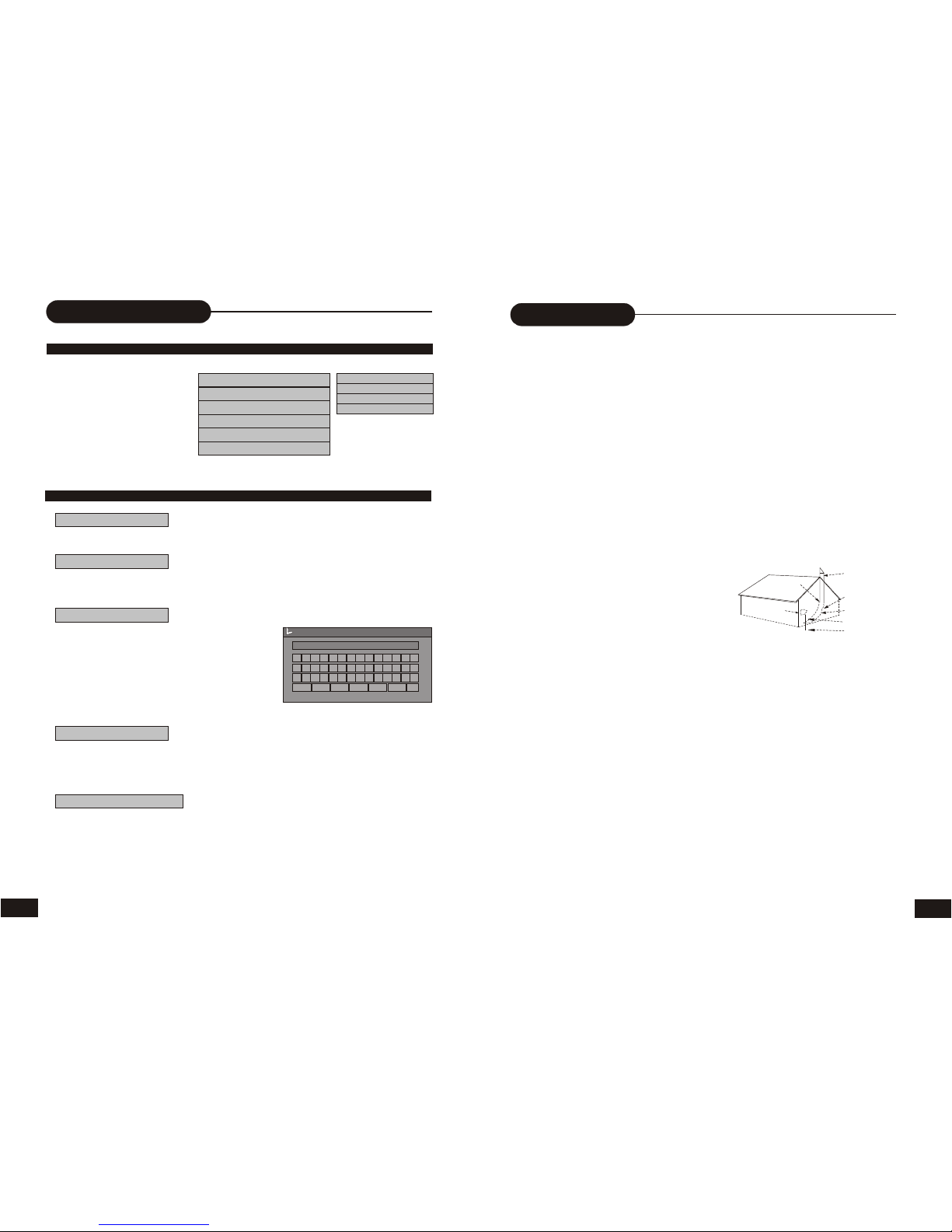

FIGURE A
EXAMPLE OF ANTENNAGROUNDING
AS PER NATIONALELECTRICALCODE
ANTENNA
LEAD
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUD CLAMP
POWER SERVICE
GROUNDING ELECTRODE
SUSTEM
(NEC ART 250, PARTH)
NEC-NA TIONALELECTRICALCODE
S2898A
ELECTRIC
SERVICE
EQUIPMENT
GROUND
CLAMP
Editing
33
EDITING ADISC OF A DVD+RW
1.Insert a DVD+RW on the disc tray.
2.Press DISC OPER to access the
disc editing menu.
3. Highlight each icon by pressing
UP/DOWN. The corresponding
description of each operation will
be displayed on the screen(i.e.
Erase disc, Rename disc, Record
new title etc.)
4. Press SELECT to run the
operation.
Play
Rename disc
Finalize disc
Record a new title
DVD+R Display
DVD+RW Display
Play
Erase disc
Rename disc
Record a new title
Overwrite disc
Lock disc

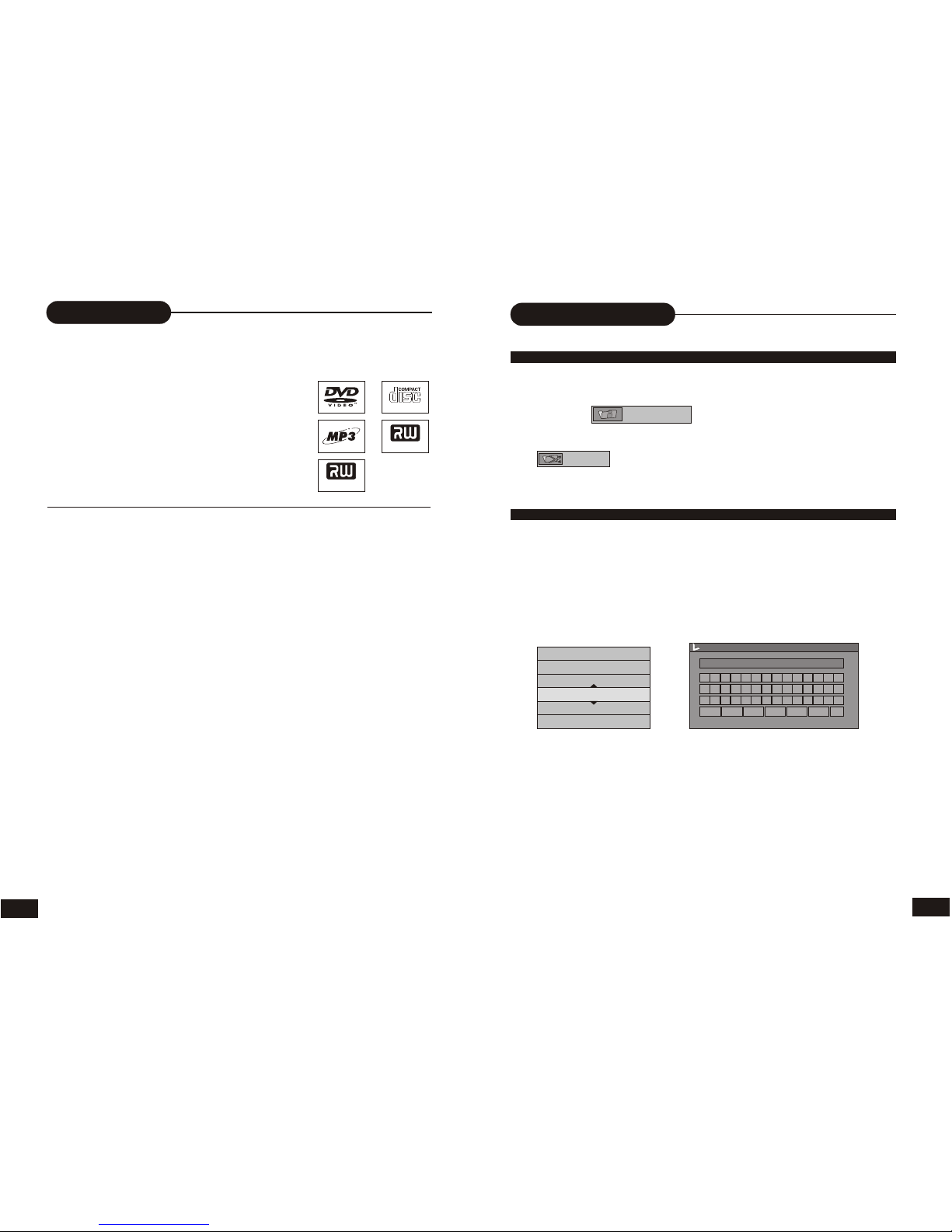

EDITING ADISC OF A DVD+RW OR DVD+R
ERASE (only DVD+RW )
Press SELECT to begin erasing.
Press the direction keys (UP/DOWN/RIGHT/LEFT) to
highlight the one which you want to input, and press
SELECT to confirm it.
The control bars of the last line in the keyboard is for
editing command. Select OK to save the name.
Note:
The maximum length of the title name is up to
9 characters.
Play
Press SELECT to playback from the disc.
Erase disc
Rename disc
A B C D E F G H I J K 01 2
L M N OPQR S T UV345
W X Y Z ( ) _ : ?. 678 9
Space Caps BkSp Delete Clear Exit OK
Disc name
W_
Lock disc
Finalize disc
LOCK(only DVD+RW )
When the icon displays LOCK, it shows your current disc is LOCKED. . If your disc is
LOCKED, you cannot make any changes. Choose UNLOCK to be able to edit disc.
Highlight the icon and press SELECT. It will take a few minutes to finalize the disc.
Note:
If a DVD+R has been finalized, you can not record or edit the disc. If you want to make
your disc compatible with the other DVD player, you should go on FINALIZE operation.
Finalize(only DVD+R)

Introduction
Your DVDR5000 Design combines the function a lities of a
DVD player and recorder. As a DVD player, you will be able
to enjoy full length movies with true cinema picture quality,
and stereo or multichannel sound (depending on the disc
and your playback system). Unique features of this player
include YUV & S-video outputs for greater
picture clarity.
What’s more, as a DVD Video Recorder, it has some of the
key features that allow you to record programs conveniently
such as:
• A complete DVD+RW/DVD+R recorder.
• Preset recording
• Playback of pre-recorded or user-recorded DVDs and CDs
• View, edit and play from a pre-recorded DVD+RW.
DIGITAL AUDIO
DVD + ReWritable
DV D + R
MP
UNPACKING
When shipping the player, the original shipping carton and packing comes in handy. For
maximum protection, re-pack the unit as it was originally packed at the factory. It is normal for
your changer tray to partially open after you have unpacked the unit. This is a feature designed
to allow easier access to disc inside the tray during diagnostics.
First check and identify the contents of your player package, as listed below:
- DVDR5000
- Remote control
- RCA cables (3) x2 (1 yellow, 1 red, and 1 white)
- Owner’s manual
If any item should be damaged or missing, please inform your supplier without delay.
Keep the packaging materials as you may need them to transport your player in the future.
WHERE TO PLACE YOUR DVD RECORDER
1. Place the unit on a firm, flat surface.
2. When you place this player near a radio or VCR the playback picture may become poor and/or
distorted. In this situation, move the DVD video player away from the other units.
3. Keep away from direct sunlight & domestic heating equipment.
4. If placed in a cabinet, please allow at least 2.5 cm (1 inch) of free space around the player for
proper ventilation.
TO OBTAIN ACLEAR PICTURE
This player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are
dirty or worn down, the picture quality will become poor. To obtain a clear picture, we recommend
regular inspection and maintenance (i.e. cleaning or parts replacement) every 1,000 hours of use
depending on the operating Environment. For details, please contact your nearest dealer.
3
Editing
32
TITLE ICON AND SPLITTITLE
EDIT TITLE NAME
From the control bar, select the sixth icon, press SELECT .
When you want to set the current frame as the icon of the current title,
Press SELECT with displayed.
From the control bar, select the seventh icon, press SELECT .
When is selected by pressing SELECT, a new title marker will be added
to the current point.
SPLIT TITLE
1.Insert a recorded DVD+RW on the disc tray.
The Index Picture screen pops up.
2.Use the direction keys to highlight the title which you want to edit.
3.Press RIGHT, the edit bar appears on the screen while playing back.
Press UP/DOWN to highlight one icon and SELECT it.
4.From the control bar, select the fourth icon, press SELECT .
On the screen, there appears a keyboard:
Play title
Erase title
Edit title
Rename title
Overwrite title
Overwrite disc
Press the direction keys (UP/DOWN/RIGHT/LEFT) to highlight the one which you want to input, and
press SELECT to confirm it.
The control bars of the last line in the keyboard is for editing command.
Select OK to save the name.
Note:
The maximum length of the title name is up to 9 characters.
A B C D E F G H I J K 01 2
L M N OPQR S T UV345
W X Y Z ( ) _ : ?. 678 9
Space Caps BkSp Delete Clear Exit OK
Title name
TITLE_
INDEX PICTURE

Table of Contents
4
Safety Precautions……………………....…1
Safety Information………………….…....…2
Introduction……………………………........3
Table of Contents……………………...…...4
Caution................................................. 5
Identification of Controls…………...…....6

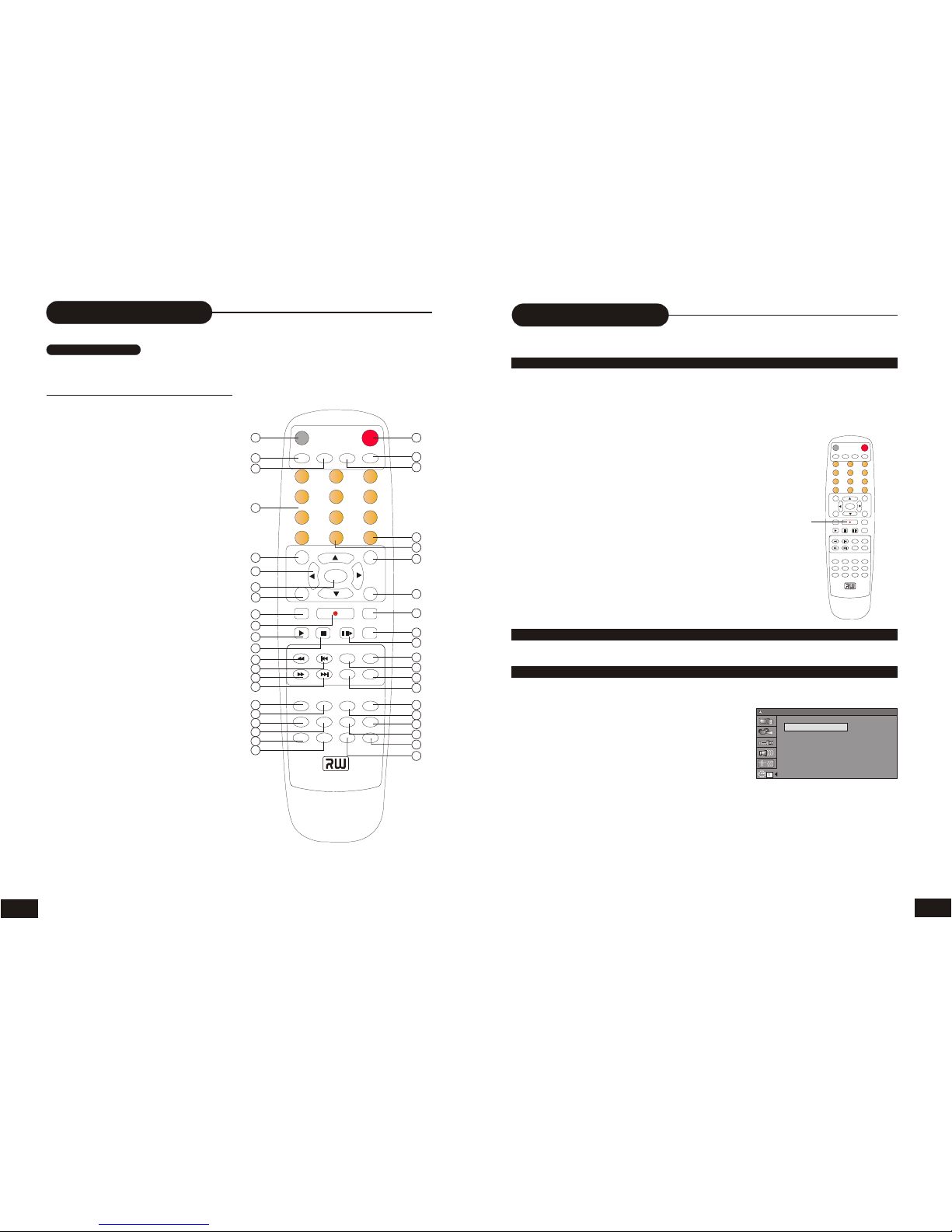

About the Remote Control......................7
Connection…………………………….….....9
MP3……................................…….........13
Playing Back a Disc…………………........14
Playing a Normal Disc…………….…........14
Playing a DVD+RW or DVD+R Disc……...15
General Features……………………....…..15
Locating a Specific Title,
Chapter or Track…………………….........17
Playing Repeatedly……..……………......19
Playing in Random Order……………......20
Selecting Camera Angles, Languages
& Audio Settings…………………........….21
Playing in Favorite Order………..……... 22
Selecting Subtitles……………….…....... 23
Using the On-screen Display………….……..24
Setting the Parental Lock…………………..…25
Customizing DVD Function Settings…..…..26
Recording Options………………………….….26
Channel Search……………………..……….…..27
Normal Recording…………………..………...…27
One-Touch Record………………….…….…..…28
Time Record……………………………......…….29
Editing……………………………………….…...30
Editing a Title of DVD+RW………………...……31
Editing a Disc of DVD+RW or DVD+R….…......33
Specifications……………………………...……34
Trouble Shooting Guide…………………...….35
Editing
31
CHAPTER EDITING
From the control bar, select the fourth icon, press SELECT repeatedly. It will cycle as
follows:
When is selected by pressing SELECT, a new chapter marker will be added
to the current point.
When is selected by pressing SELECT, the marker of the current chapter
will be deleted.
When is selected by pressing SELECT, all of the chapter markers will
be deleted.
Note:
From the second icon in the control bar, the above operation can be viewed.
If only one chapter is available in the current title, there is only to select.
From the control bar, select the fifth icon, press SELECT.
When the icon displays , it shows the current chapter is visible, and you
can select it to hide it by pressing SELECT.
When the icon displays , it shows the current chapter is invisible, and you
can select it to unhide it by pressing SELECT.
CHAPTER HIDE OR UNHIDE
Chapter marker Insert marker
Insert marker
Insert marker
Delete marker
Delete marker
Delete all markers
Delete all markers
Hide chapter
Unhide chapter

CAUTION
1. To prolong the life of your equipment, please do not use scratched, dusty or
poor quality discs.
2.You will need to FINALIZE a disc after recording, to play on other equipment.
You cannot record or make changes to a disc once it is FINALIZED. Please
keep the disc clean at all times to prevent damage.
3You cannot record more than one type of format on one disc.(i.e. NTSC or PAL
cannot be recorded on the same disc.)
4.A DVD+RW is a + Rewritable disc, which can be recorded on repeatedly.
5.To prevent damage to a disc, do not turn the power off or perform other
functions, while editing.
6.Your DVD RECORDER cannot record from the following:
- Videotapes with copyright protection
- DVD’s with copyright protection
- Cable TV broadcasts with copyright protection
5
Editing
30
1.Insert a recorded DVD+RW on the disc tray.
The Index Picture screen pops up.
2.Use the direction keys to highlight the title
which you want to edit.
3.Press EDIT, the edit bar appears on the
screen while playing back.
Press RIGHT/LEFT to highlight one icon and
enter it, press UP/DOWN to select a sub-item.
EDITING ATITLE OF DVD+RW
4.Press EDIT to quit the menu.
View current title/total title
View current chapter/total
chapter
Current operation status
Chapter editing Select to add one
chapter, or delete the current/all
chapters, details see the next page.
Chapter hide or unhide Select to
hide the current chapter,, details
see the next page
Title face or Title name Select to
set the current image played back to
the face of the title or select to name
the current title, details see the next
page.
Title Timer
Divide current two titles are current
point
Hide chapter
Chapter marker
Chapter:01/01
PLAY
Title:04/04
Index picture
Split title
T- Elapsed: 0:00:02
EDIT MODE
Hide chapter
Chapter marker
Chapter:01/01
PLAY
Title:04/04
Index picture
Split title
T- Elapsed: 0:00:02

OPEN/CLOSE PLAY SOURCESTOP
DV INPUT VIDEO S-VIDEO L---- AUDIO ----R RECORD
STANDBY/ON
DVD+ ReWritable
120V~60Hz
IN
OUT
TV75
ANTENNA
INPUT
R
VIDEO
S-VIDEO
L
VIDEO OUTPUT
AUDIO OUTPUT
Y
FL
SRSW
SL
C
L
RFR
CB
CR
VIDEO
S-VIDEO OPTICALCOAXIAL
MIXED 5.1CH
DIGITAL
OUTPUT
MUTE
PLAY
STOP PAUSE/STEP
ADD/CLEAR NAVIGATION
SELECT
OPEN/CLOSE STANDBY/ON
SCAN
SETUP TITLE
TIMER REC/OTR EDIT
AVTV
DV
DISCOPER MENU
CH+
REV PREV
FWD NEXT CH-
VOL+
VOL-
AUDIO SUBTITLE ANGLE RETURN
REPEAT SLOW ZOOM
GOTO
V-Mode
PROG
DISPLAY
RANDOM
0
//
1 2 3
4 5 6
7 8 9
DVD+ ReWritable
6
OPEN/CLOSE PLAY SOURCE
STOP
DV INPUT VIDEO S-VIDEO L---- AUDIO ----R RECORD
RJ-100 DVRW
STANDBY/ON
DVD + ReWri table
Identification of Controls
FRONT PANEL
REAR PANEL
1.STANDBY/ON
2. OPEN/CLOSE
3.RECORD
4.PLAY
5.STOP
6.SOURCE
1. RF SIGNAL INPUT
2. RF SIGNAL OUTPUT
3. COMPOSITE VIDEO INPUT(REAR)
4.S-VIDEO INPUT
5. AUDIO INPUT (REAR LEFT/RIGHT)
6.AUDIO OUTPUT (MIXED)
1
910 11
234 5 6
7 8
7.DIGITAL VIDEO INPUT
8.AUDIO INPUT (FRONT LEFT)
9.AUDIO INPUT (FRONT RIGHT)
10.COMPOSITE VIDEO INPUT(FRONT)
11.S-VIDEO INPUT(FRONT)
1
23456891112 10 7
7. 5.1CH AUDIO OUTPUT
8. COMPOSITE VIDEO OUTPUT
9. S-VI DEO OUTPUT(REAR)
10. DIGITAL AUDIO-COAXIAL OUTPUT
11. DIGITAL AUDIO- OPTICAL OUTPUT
12. COMPONENT OUTPUT FOR
PROGRESSIVE SCAN
Source
Quality
ONCE
Start
End
Item Editor
Confirm
DV
SP
0 1/0 1 /0 0
1 4 : 4 1
1 5 : 1 1
Cancel
Recording Options
29
1.First setup the clock of your system as “CLOCK SETUP” on page 26.
It is recommended to setup your local date and time.

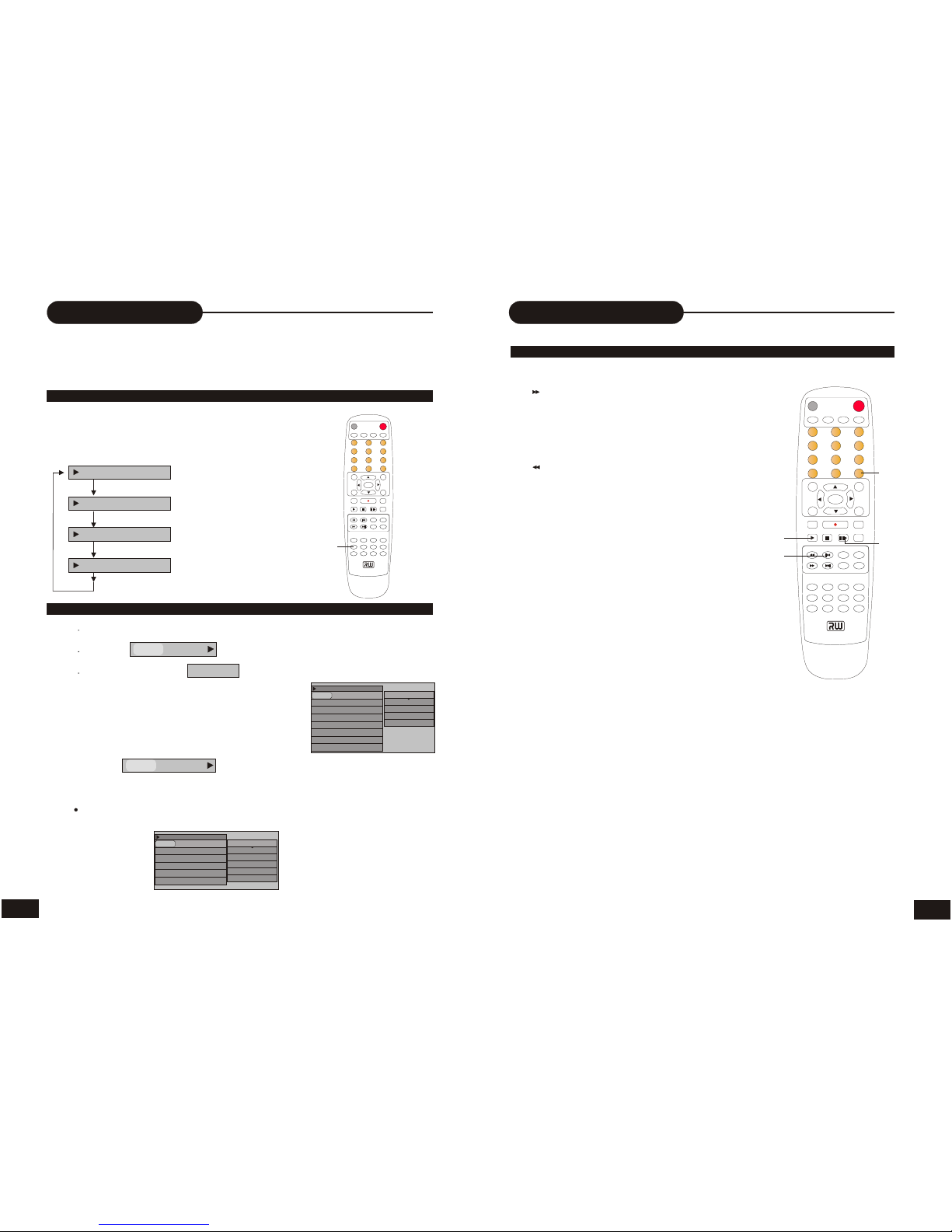

2.Press TIMER, the record scheduler will pop up.
TIMER RECORD
Note:
If you want to delete a scheduled recording, highlight the specific schedule and press ADD/CLEAR.
2.Use UP/DOWN to select one schedule, and press SELECT to access Item Editor as below:
In each item you can also use direction keys to highlight and press SELECT to choose your
setting:
Signal input source, details see page 27,step 3.
Record quality, details see
page 27 setup record quality.
Record frequency, once, daily or weekly.
Mm/dd/yy
Start time for recording
End time for recording
3.Select CONFIRM to save your settings.
4.Five minutes before the schedule recording is to begin, Record Prompt Menu will appear.
Press Confirm to continue or press Cancel to delete. If no instructions are given, the unit will
record automatically.
Note:
In standby mode, your recorder can wake up in 2 minutes before recording.
During recording, you can press STOP to suspend the recording.
ADVD+RW/DVD+R can record for upto 360 minutes.
SELECT
TIMER
STOP
Source Quality Date Start End
DV SP 12/01/03 14:41 15:11
Ch057 HQ 12/31/03 12:44 13:05
1
2
3
4
5
6
Record scheduler
SP DAILY 07:03 08:33 Rear CVBS
W
W
W

MUTE
PLAY
STOP PAUSE/STEP
ADD/CLEAR NAVIGATION
SELECT
OPEN/CLOSE STANDBY/ON
SCAN
SETUP TITLE
TIMER REC/OTR EDIT
AVTV
DV
DISC OPER MENU
CH+
REV PREV
FWD NEXT CH-
VOL+
VOL-
AUDIO SUBTITLE ANGLE RETURN
REPEAT SLOW ZOOM
GOTO
PS/IS
PROG
DISPLAY
RANDOM
0
//
1 2 3
4 5 6
7 8 9
DVD+ ReWritable
Identification of Controls
7
REMOTE CONTROL
THE INSTRUCTIONS BELOW DESCRIBE THE
FUNCTIONS OF THE REMOTE CONTROL
1. OPEN/CLOSE
2. DV
3. TV
4. NUMBERS
5. SETUP
6. DIRECTION
(UP/DOWN/LEFT/RIGHT)
7. SELECT
8. MENU
9. TIMER
10.REC/OTR
(RECORD/ONE-TOUCH RECORD)
11.PLAY
12.STOP
13.REVERSE
14.PREVIOUS
15.FWD
16.NEXT
17.AUDIO
18.SUBTITLE
19.REPEAT
20.SLOW
21.PROG
22.RANDOM
23.STANDBY/ON
24.SCAN
25.AV(SOURCE)
26.NAVIGATION
27.ADD/CLEAR
28.TITLE
29.DISC OPER
30.EDIT
31. MUTE
32.PAUSE/STEP
33.VOLUME+
34.CHANNEL+
35.VOLUME-
36.CHANNEL-
37.RETURN
38.ANGLE
39.DISPLAY
40.ZOOM
41.GOTO
42.PS/IS(PROGRESSIVE / INTERLACE SCAN)
MUTE
PLAY
STOP
PAUSE/STEP
ADD/CLEAR NAVIGATION
SELECT
OPEN/CLOSE STANDBY/ON
SCAN
SETUP TITLE
TIMER REC/OTR EDIT
AVTV
DV
DISC OPER MENU
CH+
REV PREV
FWD NEXT CH-
VOL+
VOL-
AUDIO
SUBTITLE
ANGLE RETURN
REPEAT SLOW ZOOM
GOTO
PS/IS
PROG
DISPLAY
RANDOM
0
//
1 2 3
4 5 6
7 8 9
DVD + ReWritable
1
2
23
24
26
28
29
30
31
33
37
39
35
32
34
38
40
41
42
36
27
25
3
4
5
6
7
8
9
11
13
15
17
19
21
14
16
18
20
22
12
10
28
Recording Options
ONE-TOUCH RECORD
1. During normal recording, press RECORD, the recorder will automatically stop in 30 minutes.
2. The recording time will extend for another 30 minutes with each press.
The length of recording time is determined by disc capacity and record quality.
With your setting, if it will exceed the capacity of the disc, OTR will be cancelled, and switched to
normal record.
3. If you want to stop recording, press STOP.
HOW TO SWITCH TO PLAYBACK MODE
When the recording is suspended, you can press PLAYto switch to normal playback mode.
CLOCK SETUP
1. During stop status, press SETUP to access the Setup Menu.
2. Use RIGHT/LEFT to highlight the CLOCK icon as the
right figure.
3. With “Date (mm/dd/yy)” highlighted, press SELECT,
and input the local date by numbers, press SELECT
again.
4. With “Time (hh:mm:ss)” highlighted, press SELECT,
and input the local time by numbers, press SELECT again.
Note:
If you want to cancel input, press RETURN.
Date(mm/dd/yy) 0 1 / 0 1 / 0 0
1 4 / 2 9 / 5 2
Time(hh:mm:ss)
SYSTEM SETUP -CLOCK
REC/OTR

8
APP 5M

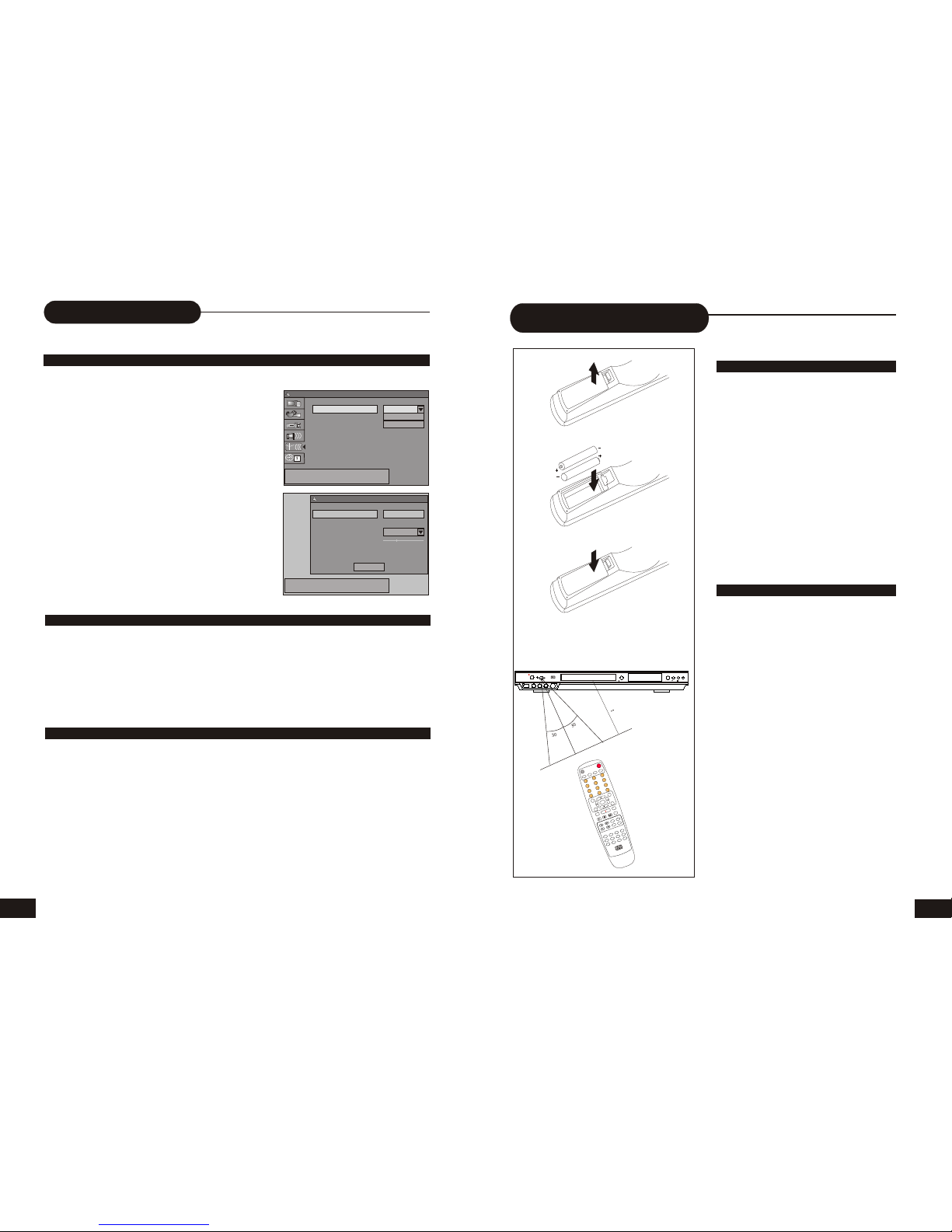

1. Push the leaf spring down and out to
remove the battery compartment cover.
2. Insert two size AA batteries according to the
"+" and "-" markings.
3. Make sure the batteries have been properly
installed, then close the battery compartment cover.
Notes:
Do not mix different types together, or old
batteries with new batteries.
If the remote control will not be used for an
extended period of time, remove the batteries to
prevent corrosion.
To prevent corrosion resulting in damage,
remove exhausted batteries immediately. When
the remote control appears not to operate
normally, replace both batteries.
Typical life for the batteries provided with this
product is about 6 months. The life expectance
may vary according to the use status.
Point the remote controller toward the remote
sensor on your DVD home theater center. Upon
receipt of the signal from the remote controller, the
equipment will operate accordingly.
The description in this Manual is based on the
buttons on the equipment. You may use the
counterparts on the remote controller to do the same.
Notes:
Do not place this equipment in a place exposed
to direct sunlight or strong light source like inverting
fluorescent light, or else it may interfere with correct
operation of the remote controller.
When other similar remote controller is used in
the same room, or when this product is used near
other equipment using infrared ray, interference with
the operation of this remote controller may occur.
Do not place any object on the remote controller,
or else it may cause unintentional depression of the
buttons and waste the batteries unnecessarily.
The front of the chassis should not be glazed
with color glass, or else it may cause interference
with normal operation of the remote controller.
Any barrier between the remote controller and
remote sensor will inactivate any operation of the
remote controller.
The operating range between the remote
controller and the equipment shall be no more than
5 meters (16 inches). When the operating range
becomes shorter, replace the batteries with new
ones.
Battery Installation
Use of the remote controller
OPERATING INSTRUCTIONS
OF THE REMOTE CONTROLLER
27
Recording Options
CHANNEL SEARCH
To record TV programs, you should search TV channels first.
1. Press SCAN to access the TV setup menu.
2. Use the UP/DOWN button to highlight SCAN
and press SELECT.
It will search channels automatically.
During auto-searching, press STOPto cancel
searching.
3. To browse the found channels, use the UP/
DOWN button to highlight EDIT and press
SELECT to setup it, press UP/DOWN to Name,
and you can also input numbers and press SELECT.
In the SKIP column, If a channel cannot be found, it
will be highlighted “YES”.
4. If you want to skip one channel, select the
corresponding channel. Use the UP/DOWN button
to highlight the channel you want to skip and press
SELECT. Press the UP/DOWN button to highlight
YES, and press SELECT,
5.use UP/DOWN to highlight the OK and press SELECT.
6. Press SETUP again to exit.
NORMAL RECORDING
SETUP RECORD QUALITY
1. Make connections illustrated as page9-12.
2. Insert a recordable DVD+RW or DVD+R into the recorder.
3. Press DV.TV or AV to select the input source which you have connected as step 1.
F-A/V: Front Audio/Video Input (on the front panel)
R-A/V: Rear Audio/Video Input (on the rear panel)
F-SV: Front S-Video (on the front panel)
R-SV: Rear S-Video (on the rear panel)
TV: (you can select it by pressing CHANNEL+/- or input the assigned number of the
channel to select your desired one directly)
DV: Digital vidicon
4. Press RECORD to start recording.
If you want to stop recording, press STOP.
If the DVD+RW or DVD+R is new, it will take about three minutes to stop.
1. Press SETUP during stop status.
2. Press direction keys (UP/DOWN) to select.
3. Select default quality.
HQ: Perfect quality, nearly 60 minutes in a blank disc
SP: Standard play quality, nearly 120 minutes in a blank disc
EP: Extend play, nearly 240 minutes in a blank disc
SLP: Standard long play, nearly 360 minutes in a blank disc
Tuner input source
Scan channels
Modify channel information
Standard
SCAN
EDIT
SYSTEM SETUP - CHANNEL SCAN
Select source of TV program.
Name
Frequency
Fine tune
Skip
CH 001
55.25MHz
OK
CHANNEL EDIT
NO
UP/DOWN to change item, SELECT to edit,
0~9 or CH+/CH- to Change Channel
MUTE
PLAY
STOP
PAUSE/STEP
ADD/CLEARNAVIGATION
SELECT
OPEN/CLOSE
STANDBY/ON
SCAN
SETUPTITLE
TIMERREC/OTREDIT
AV
TV
DV
DISCOPER
MENU
CH+
REVPREV
FWDNEXTCH-
VOL+
VOL-
AUDIO
SUBTITLE
ANGLERETURN
REPEATSLOWZOOM
GOTO
PS/IS
PROG
DISPLAY
RANDOM
0
/
/
123
4 56
789
DVD+ReWritable
OPEN/CLOSE PLAY SOURCESTOP
DVINPUT VIDEO S-VIDEO L----AUDIO ----R RECORD
STANDBY/ON
DVD+ReWritable
