CyberHome HGL 1710 User manual

TM
JPG
17” HDTV-READY LCD TELEVISION
With Built-In DVD Player
Operation Guide
CH-HGL 1710
HDTV
R E A D Y

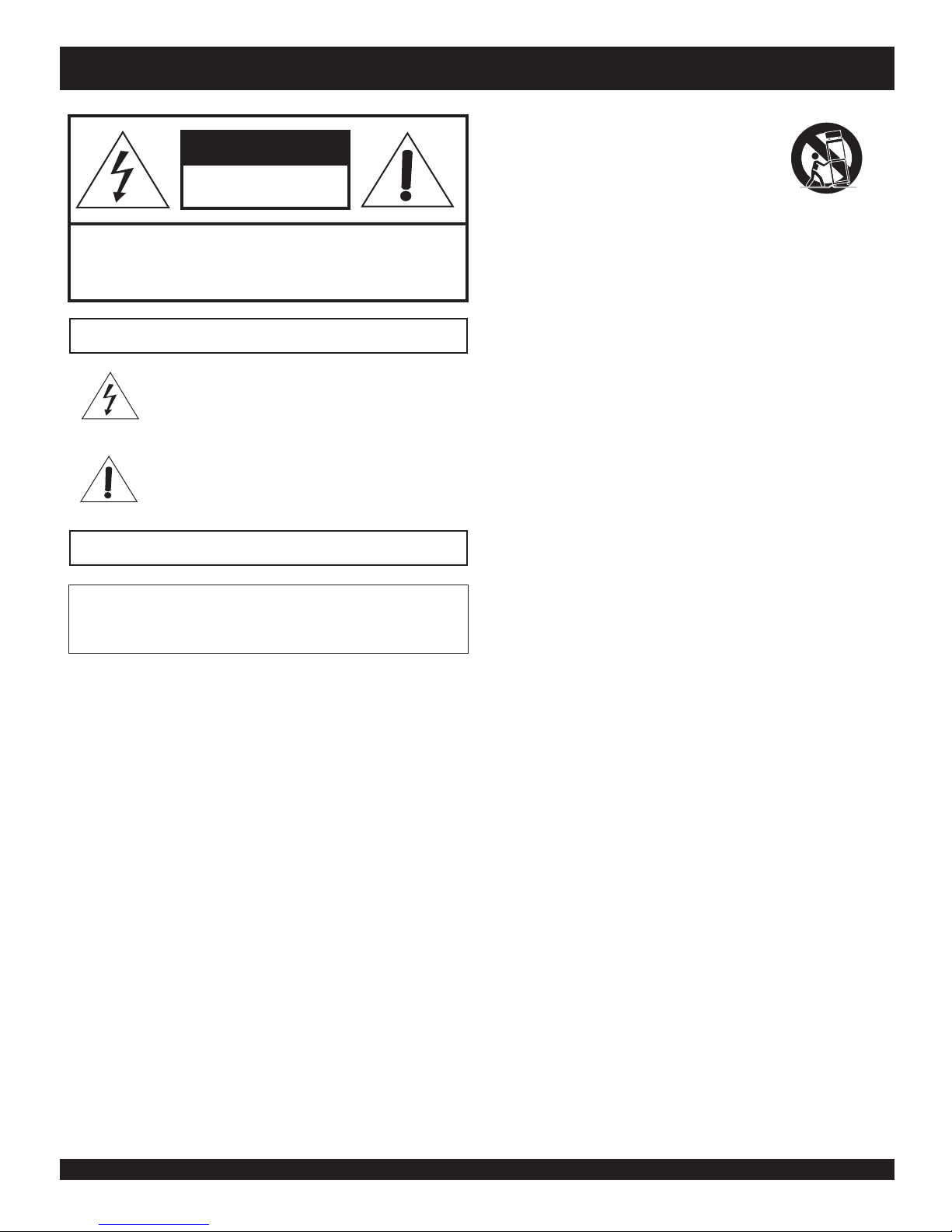

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and servicing instructions in the literature
accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL FOR SERVICING.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the presence
of not isolated dangerous voltage within the inside of the
product that may be sufficient magnitude to constitute a risk of
electric shock to persons.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
ANNOYING INTERFERENCE, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE AND ONLY USE THE RECOMMENDED ACCESSORIES.
Read these instructions - When using this unit, basic precautions

outlined in this section should always be followed.
Keep these instructions - Retain this user manual for future

reference.
Heed all warnings - Follow all warning labels on the product, and

the safety instructions in this manual.
Follow all instructions - Adhere to the instructions outlined in this

manual and on the unit.
Clean only with a dry cloth - Unplug the unit before cleaning. Do

not use any liquid or detergents for cleaning.
Do not block any ventilation opening. Install in accordance with

the manufacture's instructions.
Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Do not defect the safety purpose of the polarized plug. A polarized

plug has two blades with one wider than the other. The wide blade
is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete
outlet.
Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
Only use attachments / accessories specified by the manufacturer.

The apparatus shall not be exposed to dripping or splashing and no

objects filled with liquids, such as vases, shall be placed on the
apparatus.
Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart / apparatus combination to
avoid injury from tip-over.
Unplug this apparatus during lightning storms or

when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such
as when the power-supply cord or plug is damaged, liquid has
been spilled, objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, or when the unit does not
operate normally, or has been dropped.
Power cord protection - To avoid any malfunctions of the unit

and to protect against electric shock, fire or personal injury,
please observe the following:
a) Hold the plug firmly when connecting or disconnecting the
AC power cord to this unit.
b) Do not connect or disconnect the AC power cord with wet
hands.
c) Keep the AC power cord away from heating appliances.
d) Never put any heavy object on the AC power cord.
e) Do not attempt to repair or reconstruct the AC power cord in
any way.
Remove dust, dirt, etc. on the plug at regular intervals.

If the unit has been dropped or otherwise damaged, turn off the

power and disconnect the AC power cord.
If smoke, odors or noises are emitted from the unit, turn off the

power and disconnect the AC power cord.
Placement - Avoid placing the unit in areas of direct sunlight,

heating radiators, closed automobiles, high temperature (over 35°
C (95° F)), high humidity (over 90%), excessive dust, vibration,
impact or where the surface is tilted, as the internal parts may be
seriously damaged.
Non-use periods - When the unit is not used, turn the power off.

When the unit is unused for a long period of time, the unit should

be unplugged from the household AC outlet.
No fingers or other objects inside - Touching internal parts of this

unit is dangerous and may cause serious damage to the unit. Do
not attempt to disassemble the unit.
Do not put any foreign object on the disc tray.

Keep away from water and magnets.

Keep the unit away from flower vases, tubs, sinks, etc. If liquids

are spilled into the unit, serious damage could occur.
Keep magnetic objects, such as speakers, distant from the player.

Stacking - Place the unit in a horizontal position and do not place

anything heavy on it.
Do not place the unit on amplifiers or other equipment which

may become hot.
Condensation - Moisture may form on the lens in the following

cases: a) immediately after a heater has been turned on b) in a
steamy or very humid room c) the unit is moved from a cold
environment to a warm one.
If moisture forms inside this unit, it may not operate properly. In

this case, turn off the power and wait about one hour for the
moisture to evaporate.
Noise interference while a broadcast is being received -

depending on the reception condition of the TV, interference may
appear on the TV screen while you are watching a TV broadcast,
if the unit is switched on. This is not a malfunction of the unit or
the TV. To watch a TV broadcast, turn off this unit.
SAVE THESE INSTRUCTIONS
SAFETY INSTRUCTIONS
Explanation of warning symbols
Read the following instructions carefully
2

CONTENTS
INTRODUCTION Start/Stop/Pause Playback . . . . . . . . . . . . . . . . . . 24
Fast Forward/Fast Reverse . . . . . . . . . . . . . . . . . 24
Features.................................4
SlowMotionPlayback.....................24
Optical disc compatibility . . . . . . . . . . . . . . . . . . . 4
SkipNext/Previous.......................24
Caringforopticaldiscs.....................4
GOTOMenu............................25
GETTING STARTED Repeating a Disc/Title/Chapter . . . . . . . . . . . . . . 25
Checking the package contents . . . . . . . . . . . . . . . 5 Multi-anglefunction ......................26
To use the remote control . . . . . . . . . . . . . . . . . . . 6 Usingsubtitles...........................26
Installing the remote control battery . . . . . . . . . . . 6 UsingZoom.............................26
Operating the remote control. . . . . . . . . . . . . . . . . 6 Mute...................................27
ChangingAudioTracks....................27
FUNCTIONAL OVERVIEW Saving bookmarks. . . . . . . . . . . . . . . . . . . . . . . . .27

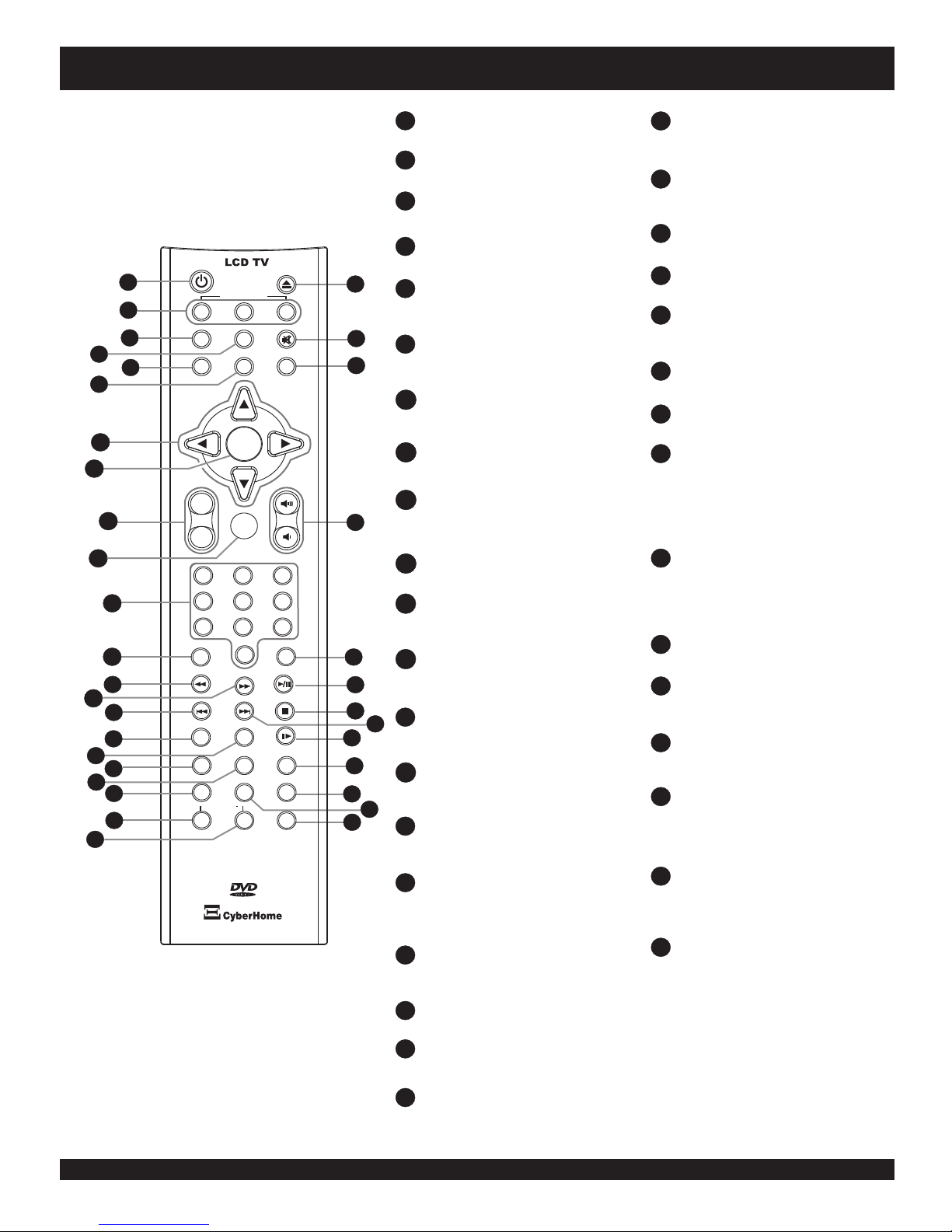

Remote control functions. . . . . . . . . . . . . . . . . . . . 7 Program-Create a custom playlist . . . . . . . . . . . . 28
Top & Side panel functions . . . . . . . . . . . . . . . . . . 8

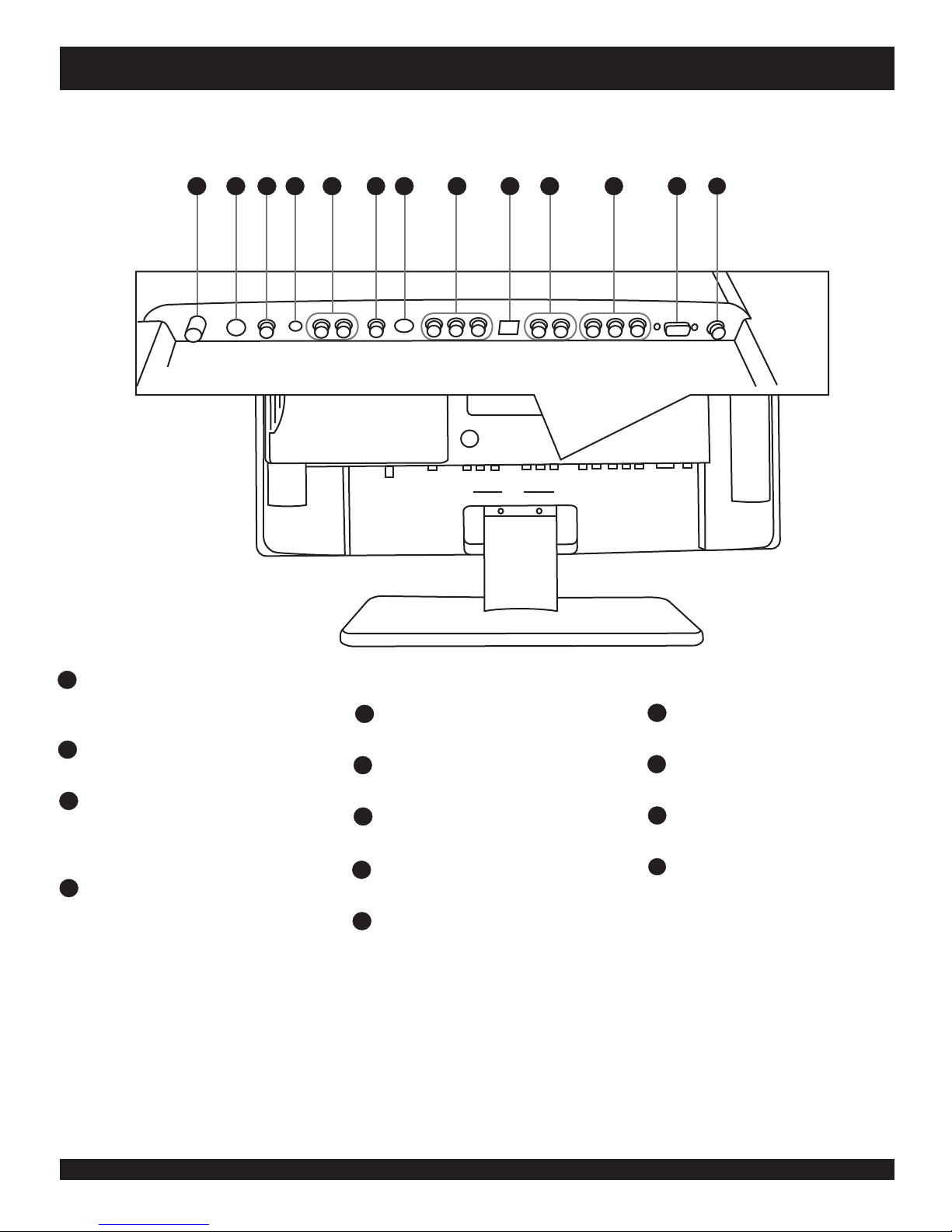

Backpanelconnections.....................9 MP3 and JPG FILES
CONNECTIONS TO TELEVISION Usingthenavigator-MP3...................29
JPGslideshowfeatures....................30
Power .................................10
Antenna/CableTV ......................11 THE DVD PLAYER SETUP MENU
Component/S-Video/Composite/LR (Input 1). . . 12 Usingthesetupmenu .....................31
VGA/Component/LR (Input 1) . . . . . . . . . . . . . . 13 Parental Lock/Password Options. . . . . . . . . . . . . 32

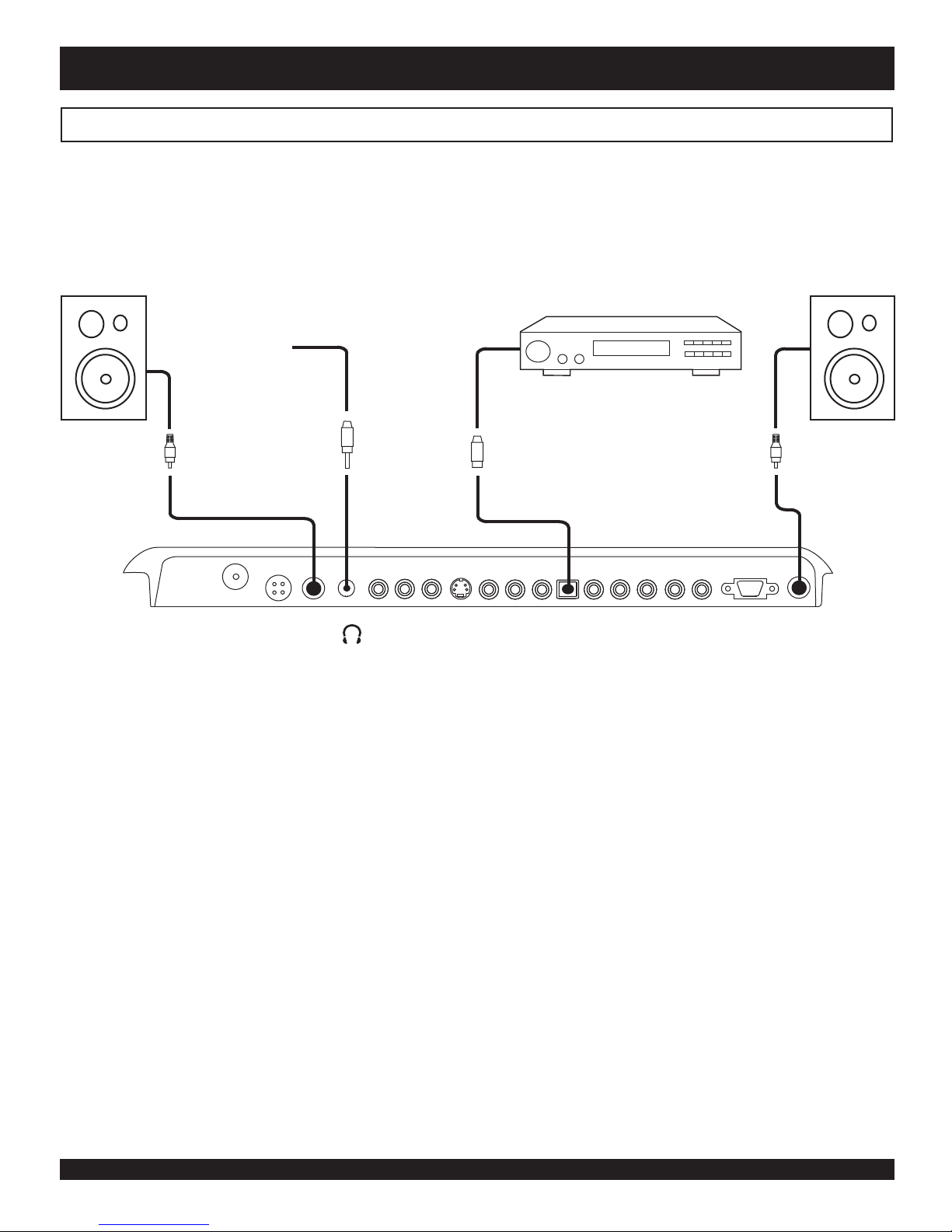

Audio Output connections. . . . . . . . . . . . . . . . . . 14 Others-Menu Color/Version/Factory Settings . . . 32
GETTING STARTED Videosetuppage.........................32
Audiosetuppage.........................33
Poweringontheunit......................15
DVD Language setup page . . . . . . . . . . . . . . . . . 33
Selecting between TV/DVD/AV mode . . . . . . . . 15
TELEVISION OPERATION MAINTENANCE
Channel Setup-Autoscan . . . . . . . . . . . . . . . . . . 15 .......................................34
ChannelSetup-Manual ....................15 TROUBLESHOOTING
ParentalLock............................16
.......................................35
PasswordChange/New...................16
ClosedCaption ..........................17 APPENDIX A
Audio Setup-Equalizer/Surround/etc . . . . . . . 17,18 .......................................36
Video Setup-Source/Contrast/Brightness/etc . 18,19
On-Screen Display (OSD) . . . . . . . . . . . . . . . 19,20 APPENDIX B
Timer-Set Time/On-Off Time/Sleep . . . . . . . . 20,21 Using a VESA-compliant wall or desk mount . . 37
SystemInformation.......................21
SAP...................................21 SPECIFICATIONS
Aspect .................................22 .......................................38
INDEX
DVD PLAYER OPERATION .......................................39
Insertingadisc...........................23
UsingDiscMenus........................24
3

Labels
Tapes
Labeling Side
Surface

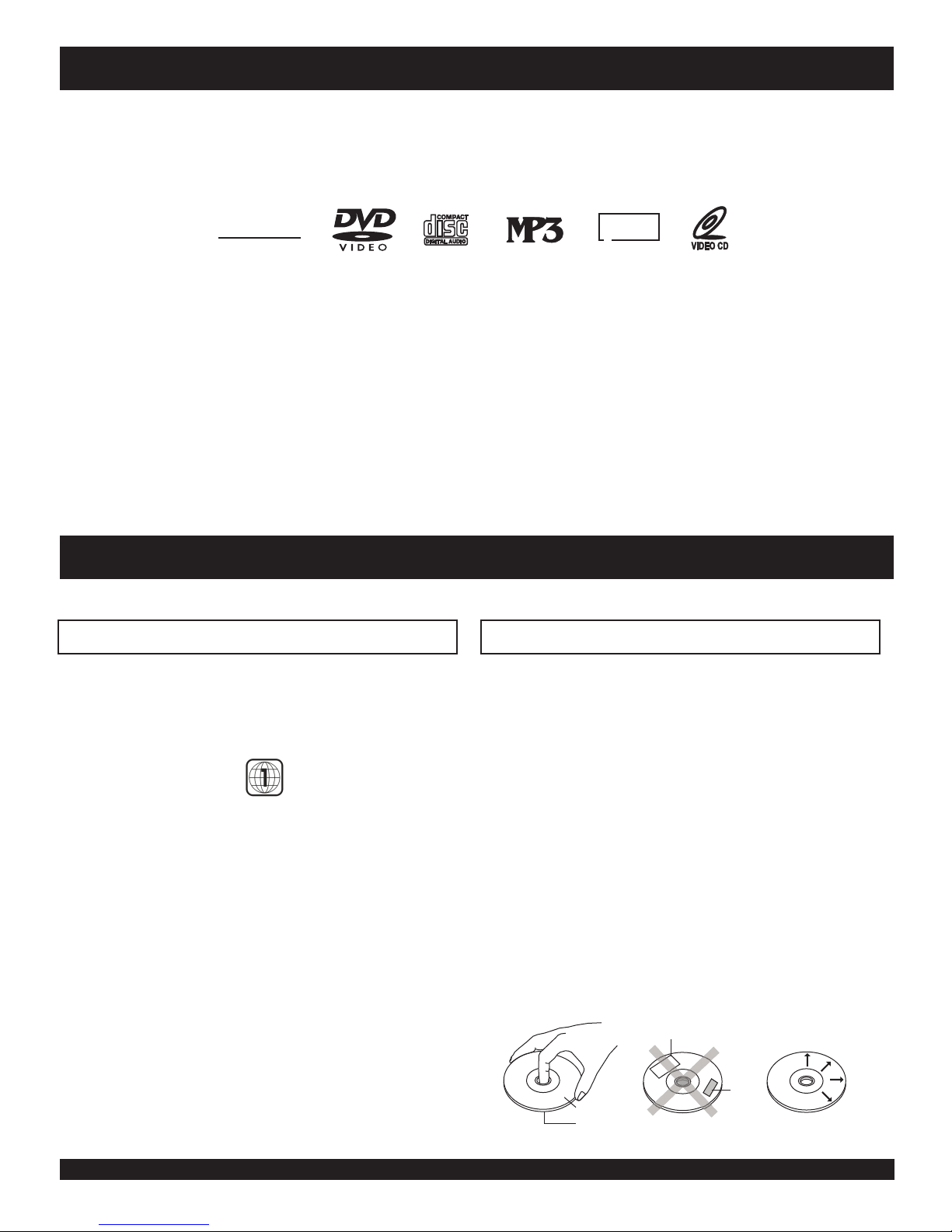

Optical disc compatibility
This unit plays DVDs recorded for a particular region.

The region mark on the back of the player must
correspond to that on any DVD discs you wish to play.
Units sold in North America are coded for Region 1,
and marked as shown:
This unit supports CD-R/RW discs recorded with MP3

or JPG files, and in VCD format.
MP3 files must be named with the extension “.MP3”

JPG files must be named with the extension “.JPG”

JPG images must be saved with “standard” encoding,

rather than “progressive” encoding.
Discs created with personal computers may have

problems playing due to differences in recording
software settings, disc formats and other factors.
Hold a disc by the rim or with an index finger in the

central hole. Never touch the signal surface.
Finger prints or stains on the surface of the disc may

cause signal loss.
Use a soft cloth and wipe in a radiating manner from

the center of the disc to the outer rims when cleaning
the disc surface.
Never add labels or adhesive tapes on the discs and be

careful not to scratch or damage the disc surface.
To prevent discs from becoming bent or deformed,

they should be vertically kept in the disc storage case.
To prevent damage, avoid leaving discs in your car,
where they may be subject to direct sunlight and high
temperature.
Do not use any disc accessory to improve the audio

quality, disc protective solutions or lens cleaner. These
products may damage the disc surface.
Caring for Optical Discs
DISC COMPATIBILITY / CARE
4
FEATURES
HDTV - Ready TV and Monitor.

Wide Screen

Plays DVD, VCD, CD-ROM, MP3, JPG and other

disc types.
Progressive Scan or Component Video, S-Video and

Composite Video Outputs.
Optical digital output.

Advanced playback functions: Slow playback, repeat

playback, parental controls, MP3 player, JPG player,
Zoom In/Out, track selection, on-screen display and
more.
JPG
TM
The CH-HGL 1710 is a High Definition-ready Television (HDTV) with built-in DVD player. The built in tuner enables
you to enjoy all of your cable TV or Off-the-Air (OTA) stations. It is also equipped with component inputs to support
720p and 1080i HD scan rates. It’s got everything you need to make it your centerpiece for an exciting home theater
system. Now you can start enjoying today’s hottest DVD movies with superb video quality. Welcome to the digital
revolution!
HDTV
R E A D Y

GETTING STARTED
Make sure the package contents are complete
In addition to the TV/Monitor/DVD player, your package should contain the following accessories. Check the contents of the package
carefully, as some items may be located under the packing foam.
Remote control Remote Control Batteries * This operation manual
and warranty card
5
* In some models, the battery is pre - installed in the remote control, see page 6 in this manual for further instructions.
AC Power Converter
AC Power Cable
PC VGA Cable

If the remote control functions better when it is closer to

the unit, the battery may need to be replaced.
In case of any leakage of the battery, dispose of the battery

right away and avoid touching the chemical discharge.
Make sure to clean the remote control’s battery
compartment before installing a new battery.
30 30
Operating the remote control
When using the remote control, be sure to stay within a 30
degree angle of the sensor on the receiver. Keep in mind that
any obstructions between the remote control and the receiver
will affect performance.
GETTING STARTED
Notes on battery
To replace the batteries in the remote control, the battery door
must first be removed. Push down on the battery door release
latch, see step 1, then push the door in a downward direction, see
step 2. Place the batteries into the battery compartment as
pictured below to complete the installation.
6
Replacing the remote control battery
GETTING STARTED
6
+
-
+
-
2
1
Push in
Slide
down
Battery Polarity
Orientation

REMOTE CONTROL FUNCTIONS
REPEAT 1/ALL
Used with DVD discs, 1/ALL repeats a
chapter, title or disc.
REPEAT A-B
Sets the beginning and ending of a time
segment to repeat.
EJECT
Ejects disc from DVD player.
MUTE
Toggle switch to turn audio on or off.
JUMP
Used to switch back and forth between
last two TV channels previously seen.
VOLUME
Increases or decreases audio volume.
TITLE
Accesses Menus on DVD Discs.
PLAY / PAUSE
Plays a disc, chapter or track. Selects
options in menus. While playing disc,
press again to pause audio track or video
on a still frame. Press again to resume
play.
STOP
Press once to stop current disc play but
holds resume location. Press again to
completely stop play - also required for
some setup functions.
SKIP NEXT
Press to skip to the next chapter or track.
SLOW
While on pause, press to advance in slow
speed.
ANGLE
Selects between the multiple angle views
on supported DVD's.
BOOKMARK
Press to store the current point on the disc
as a bookmark that can be accessed
quickly without searching.
PROGRAM
Create a custom play list of selected
tracks and sequence.
RETURN
Returns to the previous menu accessed.
POWER
Turns the unit ON or to STANDBY.
INPUT SELECT
Press to select video source.
SAP
SAP (Secondary Audio Program) selection
EQ
Selects audio equalization mode.
ASPECT
Selects between wide or normal viewing
modes.
DISP
Brings up the on-screen display showing
information for the playback session.
ARROWS
Use to navigate disc menus, on-screen setup
menu, etc.
ENTER
Selects options in menus.
CHANNEL UP/DOWN
Press to change TV channel up (CH+) or
down (CH-).
MENU
Accesses the system setup menu.
NUMERIC KEYPAD
Used to enter numeric values while setting
presets, using GOTO and more.
SETUP
Accesses the DVD player’s on-screen
setup menu for settings adjustment.
FAST REVERSE
Scan in fast reverse on DVD's and other
discs.
FAST FORWARD
Scan in fast forward on DVD's and other
discs.
SKIP PREVIOUS
Press to skip to the previous chapter or
track.
MENU / PBC
Accesses the root menu on DVD Discs.
With VCD discs, turns the PBC function
On/Off.
GOTO
Press to navigate to a specific chapter.
Follow with corresponding number key.
SUBTITLE
Selects available subtitles on DVD.
AUDIO
Selects audio tracks on DVD discs.
ZOOM
Press to magnify and shrink the screen
with DVD discs.
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
3131
32
33
34
35
23
24
25
26
27
28
29
30
3131
32
33
34
35
11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
EJECT
POWER
INPUT SELECT
DVDAVTV
SAP EQ
JUMP
DISP
ASPECT
ENTER
CH+
CH-
MENU
1 2 3
4 5 6
7 8 9
SETUP TITLE
0
GOTO
MENU/PBC
SUBTITLE AUDIO ANGLE
ZOOM PROGRAM BOOKMARK
REPEAT RETURN
1/ALL A-B

TOP & SIDE PANEL FUNCTIONS
8
Side Panel View
1
2
3
4
5
6
7
CHANNEL SELECTOR/DVD PLAYER STOP/PLAY/PAUSE
For TV mode, use to select available channels with the UP and DOWN arrows. For
DVD mode, use to stop, play or pause playback.
VOLUME CONTROL
Adjust the audio level with the UP and DOWN arrows.
ENTER/EJECT
For TV mode, press to confirm selection from the Menu. For DVD mode, press to
eject a disc inside the disc tray.
MENU
Press to enter the TV system menu.
INPUT
Press to select Audio or Video sources.
POWER
Press to power on the unit.
DISC SLOT
Insert DVD, CD or VCD’s into this slot for playback.
DISC EJECT
Press to eject a disc from player.
8
7
8
/ /
CH/ CH/
23456 1
POWER
INPUT
MENU
ENTER/VOLUME
Top View

BACK PANEL CONNECTIONS
Bottom View
Rear Panel View
INPUT 1
AUDIO (L + R)
Left and right audio inputs for INPUT1
VIDEO 1
Composite video input for INPUT1
S-VIDEO
S-Video input for INPUT1
Pr, Pb, Y
Component video input for INPUT1
S/PDIF OUT OPTICAL
Optical output for 5.1 digital audio
from the DVD player
INPUT 2
AUDIO (L + R)
Left and right audio inputs for INPUT2
Pr, Pb, Y
Component video input for INPUT2
VGA
VGA video input for INPUT2
SPEAKER OUTPUT (L)
You may attach an external speaker
(not included) to this port to extend the
LEFT speaker.
ANTENNA IN
Connect to your cable or antenna
source
POWER INPUT
Attach the power adapter to this port
SPEAKER OUTPUT (R)
You may attach an external speaker
(not included) to this port to extend the
RIGHT speaker.
HEADPHONES
Use this to connect external
headphones (not included)
7
8
9
10
11
12
13
1
2
3
4
6
5
78910
11 12 13 1234
6
5
9

Connecting your unit to a power source.
Locate the power input located on the back of the unit. Connect the appropriate
end of the included power adapter to the unit.
Press the power key on the remote or the power button
to power on the unit. The power LED will change to green
color.
1110
CONNECTIONS
Plug power adapter into your household AC outlet. The
power LED on the front of the unit is now red.
When disc playback remains paused for a period of about 3 minutes,
the screen saver will load, protecting the television from “screen
burn”, which could occur if an unusually bright image is displayed
on-screen for an extended period of time.
About the screen saver
POWER
INPUT
DC +12V
3
2
1
10
11
EJECT
POWER
INPUT SELECT
DVDAVTV
SAP EQ
JUMP
DISP
ASPECT

Connecting you unit to an external antenna or cable TV signal.
In order to use this unit as a television or monitor, you will need to make a video connection to your TV. There are several
connections supported:
Composite Video - The most widely used connection, using RCA-type cables (not included).

S-Video - A higher quality connection that requires a special S-Video cable (not included).

Component Video - The highest quality video connection, typically used with HD receivers (not included).

RGB (VGA) - Mostly used with a PC, though some HD receivers use this type of connection (included).

This unit ships with an RGB cable for connection to personal computers or HD receivers with a standard DB-15 VGA output socket.
First, use a coaxial RF cable (not supplied) to connect
your antenna input to a video source such as an aerial
antenna or cable TV signal provided by your cable
company.
Press the POWER key on the remote control or the TV to
power on TV.
On your remote control, select the video input by
pressing TV.
The TV will now display the channel it is on.
1110
CONNECTIONS
11
Coaxial RF Cable
(Not Supplied)
Coaxial RF Cable
Antenna, Cable or
Set-Top Box Input
3
1
3
4
2
11
EJECT
POWER
INPUT SELECT
DVDAVTV
SAP EQ
JUMP
DISP
ASPECT

Connecting your unit to an external video source - Input 1
CONNECTIONS
AUDIO
R
VIDEO S-VIDEO Pr Pb Y
INPUT 1
DVD player supporting
Component/P-SCAN Video Output
VCR supporting Composite Out
VCR supporting S-Video Out
S
S-VIDEO
VIDEO IN 1
L
R
L
V
Pr
Pb
Y
YCbCr IN 1
A composite connection is the most widely used type of connection. This connector is colored yellow, and is normally
accompanied by stereo audio inputs, colored red and white for stereo channels right and left, respectively. Your unit
also support S-Video and Progressive Scan video input connections. The audio input will work with all three video
inputs supported by INPUT 1.
COMPONENT VIDEO, the highest quality video connection,
requires a special Component/P-SCAN Video Cable (not
included), with separate connectors for the Y, Pb/Cb, and Pr/Cr
signals. You can only use the Progressive Scan Video Input
feature with a source (DVD player) supporting Component
1
S-VIDEO, is a higher quality connection than standard
composite video, and requires a special S-Video cable (not
included). The S-Video connector is distinguishable by its 4 pins,
as shown below. If your VCR, or other source, has an S-Video
input, it's recommended that you use this type of connection for
better picture quality.
2
COMPOSITE VIDEO, on your TV, the composite
video input is also available.
3
1
2
3
Obtain a special Component Video Cable and
connect the YCbCr outputs from your source to
those on your TV.
Press the “AV” key repeatedly on the remote control
to select the “YPbPr1” input. The TV will display
the Video input on-screen.
A
B
YPbPr1
Obtain a special S-Video Cable and connect the S-
Video outputs from your source to those on your TV.
Press the “AV” key to select “S-Video”.
A
Obtain a Composite Video Cable and connect to
the VIDEO input from your source to TV. Press
the “AV” key repeatedly until the “AV 1”
appears on-screen.
A
12
11
EJECT
POWER
INPUT SELECT
DVDAVTV
SAP EQ
JUMP
DISP
ASPECT

Connecting your unit to an external video source - Input 2
NOTE: To use the HGL 1710 as a video monitor, you will need to purchase a separate component cable set or composite
video and audio cables. To use your unit as a PC monitor, a VGA cable is provided.
CONNECTIONS
AUDIO
R
Pr Pb Y
INPUT 2
Computer supporting VGA Video Out
DVD player supporting P-Scan Video Out AUDIO IN 2
L
R
L
Pr
Pb
Y
VGA IN
VGA
YCbCr IN 2
VGA
VGA INPUT, accepts video output from a source such as a
personal computer.
1
Connect the included VGA cable to your source, a
computer, and the other end to the VGA input to
your TV.
Press the “AV” key repeatedly on the remote control
to select the “VGA” input. The TV will display the
Video input on-screen as shown below..
A
B
VGA
1
2
COMPONENT VIDEO, the highest quality video connection,
requires a special Component/P-SCAN Video Cable (not
included), with separate connectors for the Y, Pb/Cb, and Pr/Cr
signals. You can only use the Progressive Scan Video Input
feature with a source (DVD player) supporting Component
2
Obtain a special Component Video Cable and
connect the YCbCr outputs from your source to
those on your TV.
Press the “AV” key repeatedly on the remote control
to select the “YPbPr2” input. The TV will display
the Video input on-screen.
A
B
13
11
EJECT
POWER
INPUT SELECT
DVDAVTV
SAP EQ
JUMP
DISP
ASPECT

Audio Output Connections
Your unit features a variety of audio line outputs for connection to a receiver or other device.
Use the SPEAKER R and SPEAKER L outputs to connect your unit to external speakers (not included).

Use the headphone jack to connect to a pair of headphones (not included) for a private listening environment.

Optical digital audio outputs send an encoded digital bitstream, suitable for receivers with Dolby or DTS decoding capability.

These outputs require special cables not included.
CONNECTIONS
²
Receiver with Digital Audio Input
Headphones
SPEAKER
OUTPUT(R)
SPEAKER
OUTPUT(L)
SPDIF OUT
OPTICAL
RL
14

GETTING STARTED
15
Main Setup
Video
Audio
TV
VGA
OSD
TIMER
System
Navigating the System Menu
The System Setup Menu may be accessed in two ways: 1) Using
the remote control unit, or 2) by using the control buttons on top
of your TV set.
Press the Menu key on the remote
control or on the unit. The Main Setup
menu will appear on-screen.
1
Use the 5/6keys on the remote or
the CH 5/6keys on the unit to
navigate the menu. Use the ENTER
key on the remote or the unit make
selections.
2
Use the MENU key to return to an
upper layer of the menu.
3
Selecting TV or DVD Player Mode
Press either TV, AV or DVD keys on
the remote control to select a display
mode.
1
Select different display modes for this unit. It can be a TV with
different audio and video input modes, a computer monitor or
play DVDs, Cds or VCDs with the unit’s DVD player.
TV - For TV tuner mode.
AV - Press this key repeatedly to
cycle through the various inputs
available and MONITOR ( VGA) mode.
DVD - Press this keys to select DVD,
CD or VCD and other supported
formats for playback mode.
TV mode -Auto Scan Channels
Main Setup
Video
Audio
TV
VGA
OSD
TIMER
System
Press the “TV” key on the remote
control.
1
Press the MENU key on the remote,
use the 6key to select “TV”. Press
ENTER, select “INSTALL” from the
next menu and press ENTER again.
2
Select “TV System” and press
ENTER. Select the menu item which
best fits your TV source, AIR, CABLE,
etc.
3
Press MENU, then use the 6key to
select “Auto Search” and press
ENTER to search for channels, an on-
screen dialog box will appear as
4
Once the channel search is finished,
you are now ready to watch your
favorite programs. Use the CH +/-
key or the number keys to select a
channel.
5
Auto Search
28%
TV mode - Manual Channel Programming
Main Setup
Video
Audio
TV
VGA
OSD
TIMER
System
Press the “TV” key on the remote
control. Use the number keys to
select a channel.
1
Television
ENTER
CH+
CH-
MENU
11
EJECT
POWER
INPUT SELECT
DVDAVTV
SAP EQ
JUMP
DISP
ASPECT
11
EJECT
POWER
INPUT SELECT
DVDAVTV
SAP EQ
JUMP
DISP
ASPECT
11
EJECT
POWER
INPUT SELECT
DVDAVTV
SAP EQ
JUMP
DISP
ASPECT
INPUT
MENU
ENTER/

Enter Password
TELEVISION
Press the6keys to select Chan. Add.
3
Follow steps 1 thru 3 and use Chan.
Del to delete a channel.
4
16
TV mode - Manual Channel Programming
Press the MENU key on the remote,
use the 6key to select “TV”. Press
ENTER, select “INSTALL” from the
next menu and press ENTER again.
2

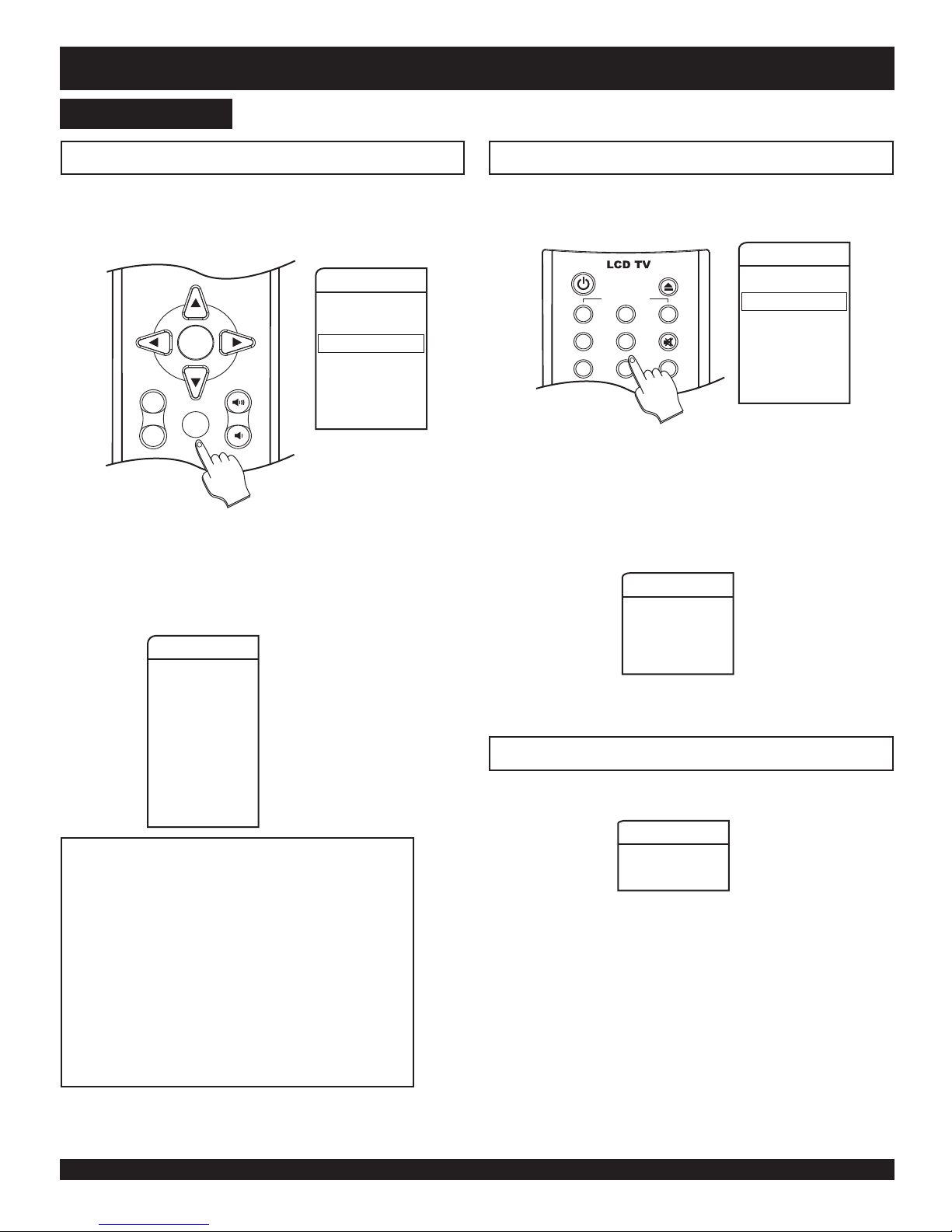

TV mode - Lock
V-chip technology allows parents to use the TV rating codes to
block programs that they feel are inappropriate for their children
to watch.
Main Setup
Video
Audio
TV
VGA
OSD
TIMER
System
A dialog box will appear, input “0000”
with the remote then press ENTER.
2
The dialog box below will appear, use
the arrow keys on the remote to
navigate this menu, press ENTER to
BLOCK or UNBLOCK your selection.
3
Press the MENU key on the remote,
use the 6key to select “TV”. Press
ENTER, select “TV Parental” from the
next menu and press ENTER again.
1
TV-Y - All children
TV-Y7 - Directed to older children
TV-G - General audience
TV-PG - Parental guidance suggested
TV-14 - Parents strongly cautioned
TV-MA - Mature audience only
* * * *
TV Parental Status
TV - Y Unblock
TV - Y7 Unblock
TV - G Unblock
TV - PG Unblock
TV - 14 Unblock
TV - MA Unblock
Change Password
TV mode - Change Password
TV - PG Unblock
TV - 14 Unblock
TV - MA Unblock
Change Password
The password can also be changed to fit your needs. Below is the
steps to change your password for Parental Level.
A dialog box will appear, input “0000”
with the remote then press ENTER.
2
Press the MENU key on the remote,
use the 6arrow key to select “TV”.
Press ENTER, select “TV Parental”
from the next menu and press ENTER
again.
1
The dialog box below will appear, use
the 5/6keys on the remote to
navigate and select CHANGE
PASSWORD, press ENTER to select.
3
A dialog box will appear, input you're
a new 4 digit password and press
ENTER.
4
The next dialog box will ask you to
verify your new password, press
ENTER when finished. Your new
password is now saved.
5
New Password
* * * *
Verify Password
* * * *
!Keep your antenna away from power lines and
other forms of interference for best reception.
!After setting up your channels, use the CH+ or CH-
keys on the remote or top panel to tune your
desired channel.
¤Notes on CHANNEL RECEPTION
Television
!The default factory password is “0000”.
!The Super Password, which can never be erased,
is “0850”.
¤Notes on Passwords
ENTER
CH+
CH-
MENU

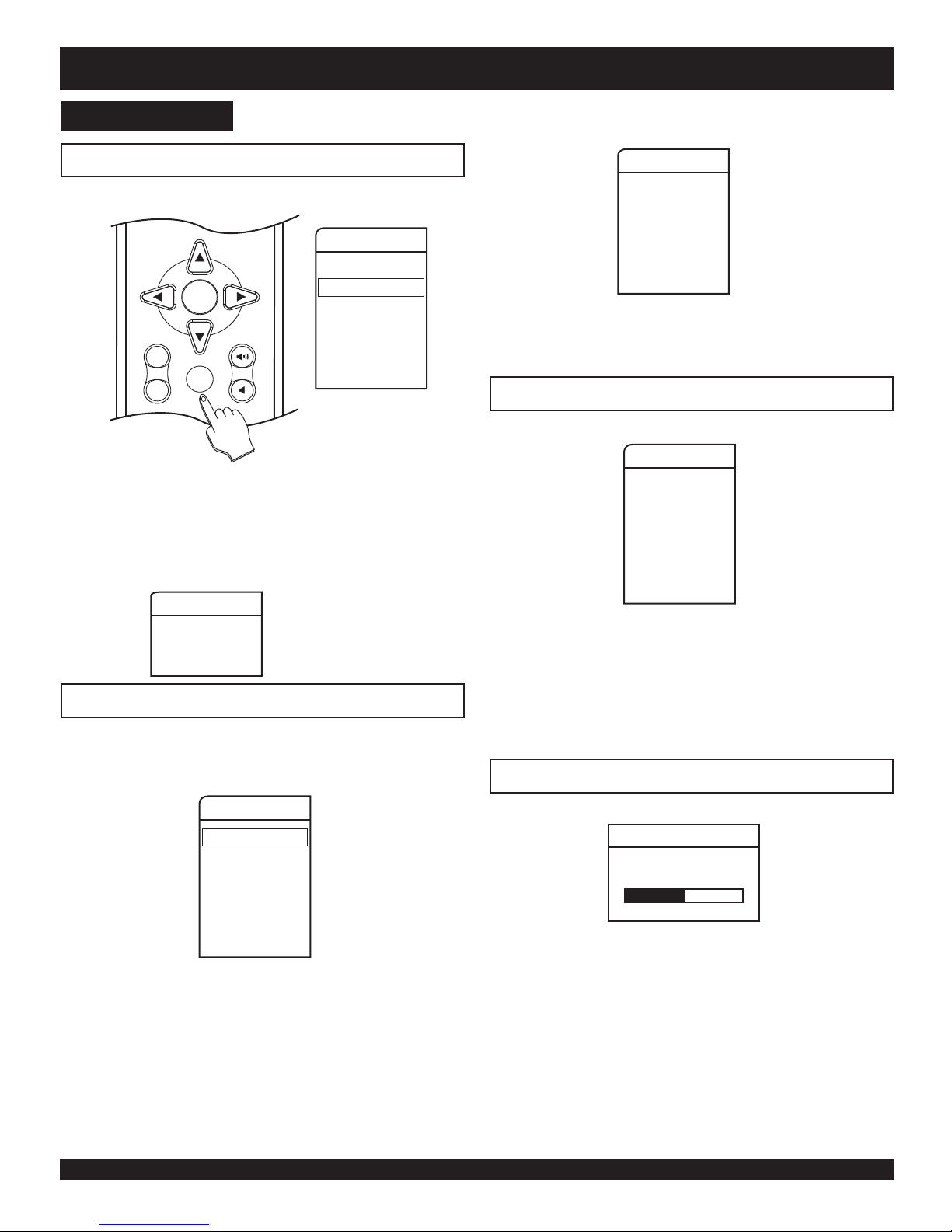

TV mode - Closed Caption
This unit has a built in decoder that provides a visual depiction of
the audio portion of a television program in the form of written
words across the screen. It allows you to read the dialogue of a
television program or other information.
A dialog box will appear, use the5/6
keys to navigate then press ENTER to
select options.
2
Press the MENU key on the remote,
use the 6key to select “TV”. Press
ENTER, select “CC Control” from the
next menu and press ENTER again.
1
Main Setup
Video
Audio
TV
VGA
OSD
TIMER
System
CC Control
CC1
CC2
CC3
CC4
Text1
Text2
Text3
Text4
OFF
!Not all TV broadcasts include closed caption
signals.
!Sometimes TV stations broadcast four different
caption signals on the same channel. By selecting
from CC 1 to CC 4, you can choose which signal
you view. CC 1 is usually the signal with the
captions, while another mode might show
demonstration or programming function.
!Your TV might not receive caption signals normally
if; poor reception is encountered, an old or bad
recorded tape is being played or any strong
interference with the TV signal.
¤Notes on Closed Caption
TV mode - Audio Setup - Equalizer
Use the Audio menu to select different options for your listening
desires. The equalizer setup will allow you to select from
different EQ presets from MOVIE, VOCAL, FLAT or MUSIC.
Main Setup
Video
Audio
TV
VGA
OSD
TIMER
System
A dialog box will appear, use the5/6
keys to navigate then press ENTER to
select options.
2
Press the MENU key on the remote,
use the 6key to select “AUDIO”.
Press ENTER, select “Equalizer” from
the next menu and press ENTER
again.
1
Equalizer
FLAT
MOVIE
MUSIC
VOCAL
TV mode - Audio Setup - Surround
Surround
OFF
ON
A dialog box will appear, use the5/6
keys to navigate then press ENTER to
select options.
2
Press the MENU key on the remote,
use the6key to select “AUDIO”.
Press ENTER, select “Surround”
from the next menu and press ENTER
again.
1
17
Use the Surround selection to simulate surround sound effects
from speakers on the TV unit.
You can also press the EQ key on the
remote control repeatedly to cycle
through these selections.
3
Television
TELEVISION
ENTER
CH+
CH-
MENU
11
EJECT
POWER
INPUT SELECT
DVDAVTV
SAP EQ
JUMP
DISP
ASPECT

18
TV mode - Audio - TV Audio
Use this menu item to select different audio features for this unit.
A dialog box will appear, use the
5/6keys to navigate then press
ENTER to select options.
2
Press the MENU key on the remote,
use the6key to select “TV”. Press
ENTER, select “TV Audio” from the
next menu and press ENTER again.
1
Main Setup
Video
Audio
TV
VGA
OSD
TIMER
System
TV Audio
MONO
STEREO
SAP
TV mode - Video
This unit provides the ability for you to change various video
settings including brightness, contrast and many other settings.
Use the following settings to setup your TV to your visual
enjoyment.
Press the MENU key on the remote,
select “VIDEO”, then press ENTER.
1
Main Setup
Video
Audio
TV
VGA
OSD
TIMER
System
Video Setup
Source
Contrast
Brightness
Color Temp
Saturation
Sharpness
Use the 5/6keys to navigate the
menu and select a video option to
select and adjust. Press ENTER to
confirm your selection.
2
TV mode - Video - Source
Use the Source option to select input source, TV or DVD mode.
Source
TV
AV 1
S Video
YPbPr 1
YPbPr 2
VGA
DVD
A dialog box will appear, use the5/6
keys to navigate then press ENTER to
select options.
2
Press the MENU key on the remote,
use the6key to select “Video”.
Press ENTER, select “Source” from
the next menu and press ENTER
again.
1
TV mode - Video - Contrast
Use this selection to adjust the Contrast of the TV picture.
Contrast
128
2
Press the MENU key on the remote,
use the 6arrow key to select
“Video”. Press ENTER, select
“Contrast” from the next menu and
press ENTER again.
1
A dialog box will appear, use the
3/4keys to decrease/increase the
contrast level.
Television
TELEVISION
ENTER
CH+
CH-
MENU

TV mode - Video - Brightness
Use this selection to adjust the Brightness of the TV picture.
A dialog box will appear, use the
3/4keys to decrease/increase the
brightness level.
2
Press the MENU key on the remote,
use the6key to select “Video”.
Press ENTER, select “Brightness”
from the next menu and press ENTER
again.
1
Brightness
128
TV mode - Video - Color Temp
Use this selection to adjust the Color Temp of the TV picture.
2
Press the MENU key on the remote,
use the6key to select “Video”.
Press ENTER, select “Color Temp”
from the next menu and press ENTER
again.
1
Color Temp
NORMAL
WARM
COOL
USER R
USER G
USER B
Use the 5/6keys to navigate the
menu and select an option to adjust.
Press ENTER to confirm your
selection.
19
TV mode - Video - Saturation
Use this selection to adjust the Saturation of the TV picture.
A dialog box will appear, use the3/4
arrow keys to decrease/increase the
saturation level.
2
Press the MENU key on the remote,
use the 6key to select “Video”.
Press ENTER, select “Saturation”
from the next menu and press ENTER
again.
1
Saturation
128
TV mode - Video - Sharpness
Use this selection to adjust the Sharpness of the TV picture.
A dialog box will appear, use the3/4
keys to decrease/increase the
saturation level.
2
Press the MENU key on the remote,
use the6key to select “Video”.
Press ENTER, select “Sharpness”
from the next menu and press ENTER
again.
1
Sharpness
5
OSD - TIMEOUT
Use this selection to adjust the amount of time the On-Screen
Display will remain displayed on-screen. It can be programmed
in increments of 5 seconds from 5 to 60 seconds.
A dialog box will appear, use the3/4
arrow keys to decrease/increase the
amount of time.
2
Press the MENU key on the remote,
use the6key to select “OSD”. Press
ENTER, select “TIMEOUT” from the
next menu and press ENTER again.
1
OSD
Timeout 5 SEC
H POSITION
V POSITION
Main Setup
Video
Audio
TV
VGA
OSD
TIMER
System
Television
TELEVISION

OSD - H POSITION
Use this selection to adjust the Horizontal position of the On-
Screen Display.
Use the 3/4keys to move the OSD
menu to your desired horizontal
position.
2
Press the MENU key on the remote,
use the6arrow key to select “OSD”.
Press ENTER, select “H POSITION”
from the next menu.
1
Use this selection to set the time you would like the TV to power
on.
After setting the ON TIME, select ON
to enable and OFF to disable this
feature.
4
Use the 5/6keys to
increase/descrease the values and
the ENTER key to move between the
hour and minute fields.
3
OSD
TIMEOUT
V POSITION
5 SEC
H POSITION
OSD - V POSITION
Use this selection to adjust the Vertical position of the On-Screen
Display.
Use the 3/4keys to move the OSD
menu to your desired vertical
position.
2
Press the MENU key on the remote,
use the6 key to select “OSD”. Press
ENTER, select “V POSITION” from
the next menu.
1
OSD
TIMEOUT
H POSITION
5 SEC
V POSITION
TIMER - SET TIME
Use this selection to adjust the time related functions for the TV.
Use the 3/4keys to navigate the
menu and the 5/6keys to
increase/decrease the time settings.
Use the ENTER key to move from the
hour, minute and seconds fields.
2
Press the MENU key on the remote,
use the6key to select “TIMER”.
Press ENTER, select “SET TIME”
from the next menu.
1
Main Setup
Video
Audio
TV
VGA
OSD
TIMER
System
20
SET TIME
02 : 28 : 18
TIMER
SET TIME
ON TIME
OFF TIME
SLEEP TIMER
TIMER - ON TIME
Use the 5/6keys to navigate the
menu and the ENTER key to confirm
your selection. A dialog box will
appear prompting you for the time to
power on your TV.
2
Press the MENU key on the remote,
use the6key to select “TIMER”.
Press ENTER, select “ON TIME” from
the next menu.
1
ON TIME
OFF
ON
SET
SET ON TIME
00 : 00
Use this selection to set the time you would like the TV to power
off.
After setting the OFF TIME, select ON
to enable and OFF to disable this
feature.
4
Use the 5/6to increase/descrease
the values and the ENTER key to
move between the hour and minute
fields.
3
TIMER - OFF TIME
Use the 5/6keys to navigate the
menu and the ENTER key to confirm
your selection. A dialog box will
appear prompting you for the time to
power on your TV.
2
Press the MENU key on the remote,
use the6key to select “TIMER”.
Press ENTER, select “OFF TIME”
from the next menu.
1
OFF TIME
OFF
ON
SET
SET OFF TIME
00 : 00
Television
TELEVISION
