CYCLOPS CL480 User manual

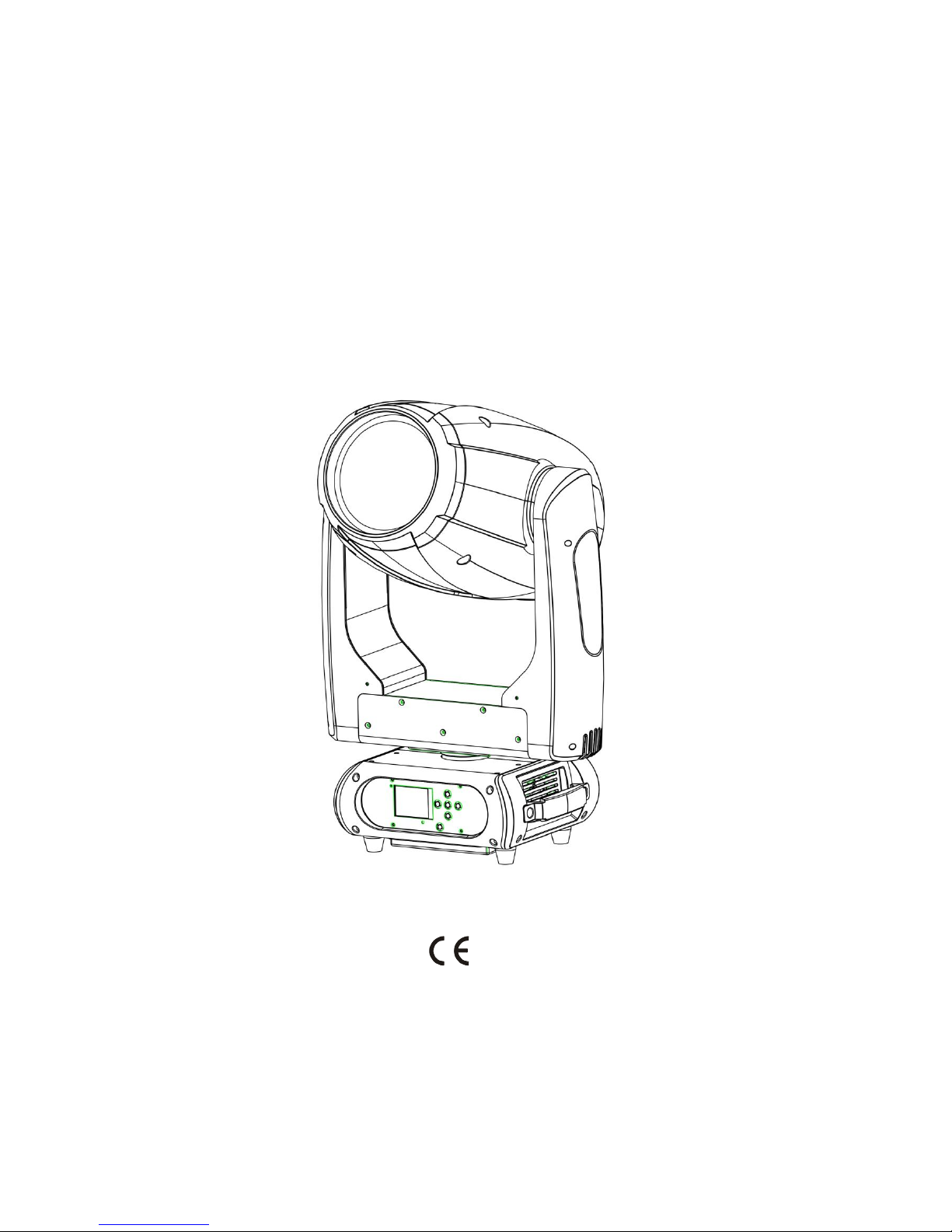

CYCLOPS CL480
BEAM SPOT HEAD
USERS GUIDE

1
1. Product Introduction:
1.1 Before unpack the fixture, pls make sure that the packing is in good condition, following items will be found in the
box:
-The fixture
-This users guide
-3m DMX cable
-1.5m power cable with powercon
-Omega bracket for hanging installation
-Safety chain
1.2 Specification
Source
Light source: Osram Sirius HRI 440W
Led life: 2.000 hours
Luminous Flux: 24000lumen, 260000lux@10m@beam, 109000lux@10m@spot
Control: Remote on/off via DMX
Ballast: switching mode power supply
Optical System
Beam angle: 2°-40° beam, 3°-45°spot
X/Y
Pan: 630° (4.0 sec) or 540°(3.58 sec), Tilt: 265° (2.8 sec)
3 phase motor
16-bit resolution
Auto repositioning
Colors
three color wheels with CMY fading + 15 color filters
Bidirectional rainbow effect
Color bounce effect for sequential colors on the wheel
Gobos
Rotating gobo wheel: 6 dichroic, indexable and interchangeable rotating gobos
Static gobo wheel: 18 metallic fixed Gobos (6 beam reducer)
Animation wheel
Real indexable and gobo shaking
Distinctive gobo animation effect
Features
DMX channels: 31/32/18/20
Color wheel: CMY+15 colors
Rotating gobo wheel: 6+1 gobos
Static gobo wheel:18+open
Zoom: 2°-40° beam, 3°-45°spot
Motorized focus
Full range 0-100% dimmer
Various strobe
Frost
6-Linear+ 3 facets prism
RDM function to change DMX address, display flip, X/Y Reverse and so on

2
RDM read voltage, current and power consumption of lamp
Software upgrade via DMX
Hibernation when lost DMX for preset time
Indicate temperature info of base, arm and lamp
Fan speed auto change according to temperature
Artnet control
Display
2.4inch super nice LCD display with friendly English/ Chinese/French/Spanish menu
Auto lock
Flip
Back-up communicating IC

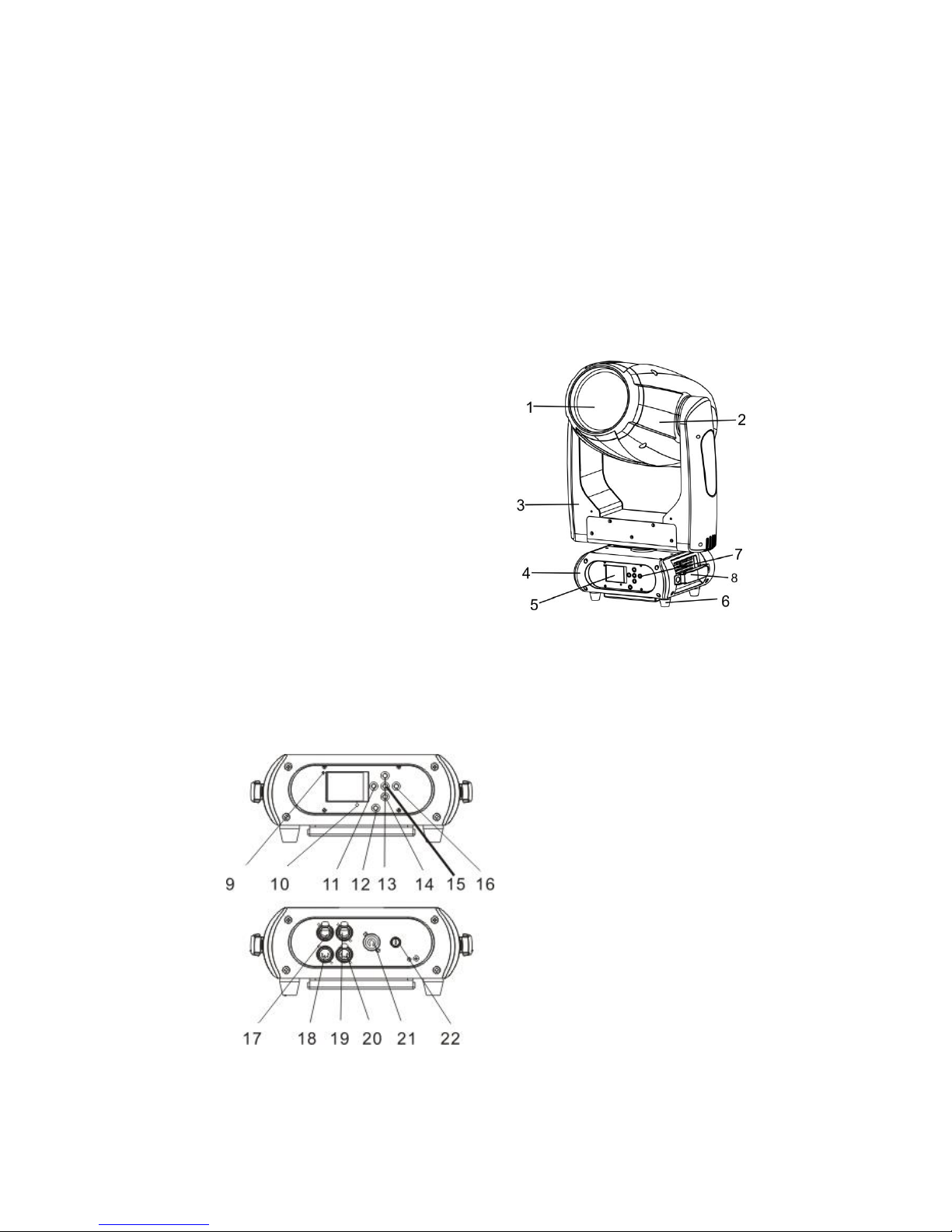

1.3 Description of the Device
1. Project lens
2. Head
3. Arm
4. Base
5. Display
6. Foot stand
7. Operation button
8. Handle
9. Wireless indicator
10. Mic
11. Left button
12. Battery indicator
13. Up button
14. Down button
15. Enter button
16. Right button
17. Ethernet out
18. 5-pin DMX in
19. Ethernet in
20. 5-pin DMX out
21. Powercon in
22. Fuse

3
1.4 Colors and Gobos
Open
1
UV
2
Blue
3
Dark pink
4
Light bule
5
Sky bule
6
Linear Cyan
7
Red
8
Light orange
9
Orange
10
Brown
11
Dark red
12
Linear Magenta
13
Green
14
Megenta
15
Light orange
16
Dark Green
17
Grass green
18
Linear Yellow

4
Static gobo wheel
Rotating gobo wheel (slot-in-out gobos)
2. Safety and maintenance Information
2.1 Safety Info
Before operate this unit, please carefully read this users guide and keep if needed in future. It’s
necessary to respect following rules.
The disposal of the device after lifecycle could damage the environment, need to take it to special
company for recycling or return to authorized dealer.
The products referred to in this manual conform to the European Community Directives and are
therefore marked with CE logo.
Keep this device away from children and unauthorized users, the manufacturer will not take
responsibility for the damage due to any disregard of the information provided in this manual and
wrong operation.
Before operate the device, pls make sure the fixture is in good housing, ensure pan and tilt can rotate
in its complete range.
--0.5m
Pls make sure minimal 0.5m distance need to kept between the fixture to any flammable material.
The device can only run with 100-240v voltage, 50/60Hz power, don’t connect to any other wrong
power. Disconnect the device from main power before open the shield or maintenance.
The device is designed only for indoor usage, pls keep it away from moisture. Do not expose the
device under the sun or directly to any other lighting source.
Never look directly into the projecting lens when the fixture is power on, the light may trigger
epileptic seizures in photosensitive persons or persons with epilepsy. Especially at beam effect,
extreme caution and observance of these safety instructions is mandatory.

5
Don’t put or install the device on a surface that subject to vibration or bumps.
Ta=45℃
The device is supposed to work in the temperate range -15° C and +45° C, do not use the device
when the temperate exceed this range.
The lens, shield need to be replaced when obviously broken, never use the device when the shield is
not completed closed.
Safety I class device, need to be earth connected.
When the fixture is hanged overhead, the safety rope must be fixed to the bottom of the device to
the appropriate fixing point.
Always carry the device by the handles, do not take the head or arm directly for transportation.
2.2 Maintenance
2.2.1 Operation only allowed to qualified person, damages due to unprofessional operation or remove of any parts
inside will not be considered in warranty service. There are no serviceable parts inside the device or package, service
only leaves to authorized dealers.
2.2.3 Never allow the optical components contact with oil, fat or any other liquid.
2.2.4 A regular clearance of the device is needed for long-term usage, this is very helpful to maintain the lifetime and
brightness need to use a soft and lint-free cloth to clean the optical system, fan and air flowing tunnel.
2.2.5. Trouble Shooting
Problems
Possible reasons
Checking or solutions
Device not power up
Powercon or power cable damaged
Faulty power supply
Change a good power cable to try
Replace new power supply
Pan/Tilt error or vibrate
Faulty Pan/Tilt PCB
Faulty opto sensor
Cable loosen
Replace PT001 PCB
Replace opto sensor OP001
Check the cable connect to OP001
Lamp off
Temperature protection
Fan not working
Faulty Lamp
Dimmer and strobe set at 0
Faulty power supply
Check the temperature from menu
Check the fan speed info from menu
Replace new Lamp
Set dimmer and strobe channel at 255
Replace new power supply
Device not response to DMX
Faulty communication IC
Faulty display PCB
Wrong DMX addressing
Faulty DMX cable
Replace the IC with back-up one in the display PCB
Replace new display PCB
Check the address and setting
Change to a good DMX cable
2.2.6 Replacement of the fuse
Need to replace with same type and rating, which originally installed in the device.
Step One: Unplug power cable from main power.
Step Two: Unscrew the fuse holder out of the housing with a screwdriver.
Step Three: Remove the broken fuse and replace with an exact same type of new fuse.
Step Four: Insert the fuse holder back to the housing and screw tight and reconnect power.

6
3. Installation
3.1 The device could be either put on a solid and
even Surface, or mounted upside down or sideways
like left picture.
3.2 The mounting place must be sufficient stable
and be able to support a weight of 10 times of the
unit’s weight. When the fixture is hanged, always
additionally secure the device with the safety chain,
fasten the safety rope at a suitable position so that
the maximum fall of the projector will be 20 cm
3.3 How to do mounting installation.
Step one: Installation the clamp onto the omega bracket;
Step two: Install the clamp and bracket on the bottom of panel, fasten the quick-locks;
Step three: Install the whole device onto appropriate truss and fasten the clamps, tight the safety rope with the truss or
other fixing point at a suitable position that drop down distance not exceed 20 cm.
4. Control menu
4.1 Meaning of the icon in menu
CONNECT
LIGHT
INFOMATION
SET
PROGRAM

7
4.2 Menu tree
Default setting shadowed. Mark with ①can be basic reloaded, ②be program reloaded, ③can be private reloaded.
Connec
t
DMX Address①
XXX
DMX address setting
Wireless①
(Wireless Module)
Wireless Enabled
Artnet①
(Only Artnet Module)
Artnet Enabled
Light
Turn On/Off
Automatic
DMX Control
(Only HID Lamp)
ON/OFF
ON/OFF
ON/OFF
Turn On the lamp
Lamp On/off when
power on
DMX control or not
(HID Lamp)
Max Temperature①
80~139℃/176~282℉
Lamp off if
temperature
continuously over for
2minutes
Lamp Adjust①
PAN……
Adjust value of channel
Information
Time Info.
Current XXXX(Hours)
Fixture Life XXXX(Hours)
Lamp Life XXXX(Hours) (Only HID Lamp)
Fixture boot time
Fixture total run time
Lamp total run time
Lamp Info.
(Only HID Lamp)
Voltage
Current
Power
HID Lamp Information
(HID Lamp)
Temperature
Near Lamp Temp (depends on fixture)
Temperature Sensors
Fans Speed
Near Lamp Fan (depends on fixture)
Fan speed Sensors
Channel Value
PAN……
Display value of
channel
Error Message
Pan,Tilt……
Error channels
Fixture Model
xxxxxxxxxxxx
Display model brand
and model
Software Ver
1U01 V1.0.00……………..
Version of each IC
Set
Reset
All
Pan&Tilt
:
Reset all
Reset Pan&Tilt
:
Movment
Pan Reverse①
Tilt Reverse①
Pan Degree①
Encoders①
Pan/Tilt Mode①
ON/OFF
ON/OFF
630/540
ON/OFF
Stand/Smooth
Pan Reverse
Tilt Reverse
Choose Pan Degree
Encoder wheel on/off
Choose pan/tilt mode

8
UI Set
Mic Sens. ③
No Signal①
Temperature. C/F①
Fans Mode①
Hibernation①
Backlight①
Flip Display①
Display Bright③
Brand Show①
Key Lock①
Language③
0~99%,60%
Close/Hold/Auto/Music
Fahrenheit /Celsius
Auto Speed /High Speed
OFF, 01M~99M，15M
02~60m 02m
ON/OFF
00~31 10
ON/OFF
ON/OFF
En/Fr/Sp/简/繁
Sensitivity of Mic
Mode when no signal
Temperature at ℃/℉
Fans mode
Sleeping mode
Show backlight time
Display 180°reverse
Display Brightness
Show brand or not
Key lock on/off
Language Select
Fixture Set
(Only Led Lamp)
Theater Mode
Dimmer Curve
Halogen(Only RGB Led)
ON/OFF
Curve1……
Off/2700k/3200k/5600k
Theater Mode
Dimmer Curve(Only
Led)
Halogen(Only RGB Led)
Users
User Mode①
Standard
Extended
:
User
Standard mode
Extended mode
:
User program mode
Edit User③
Max Channel = XX
PAN = CH01
:
Edit users mode
Calibration③
-Password-
Pan
:
=XXX
=XXX
:
Password: 050
Calibrate channel value
Fixture ID③
Name
-Password-
PID Code
Name
Password: 050
Set PID of RDM
Wireless Set①
(Wireless Module)
DMX On Cable
Reset Connect
ON/OFF
ON/OFF
DMX Send Out
Reset Connect
Ethernet Set③
(Only Artnet
Module)
IP Address
IP Mask
Universe
DMX On Cable
2.x.x.x
255.0.0.0
0
ON/OFF
Ethernet Set
(Only Artnet Module)
Reload Default
Basic Reload(①)
Program Reload(②)
---Password---
Private Reload(③)
All Reload
Update Fixture
ON/OFF
ON/OFF
XXX
ON/OFF
ON/OFF
ON/OFF
Basic Reload
Program Reload
Password: 050
Private Reload
All Reload
Software upgrade
Program
Play①
DMX Receive
Slave Receive
Sequence
Music
Slave Receive 1,2,3
Master / Alone
Master / Alone
DMX Receive
Choose slave position
Run Sequence
Music mode
Select Chase②
Chase Part 1
Chase Part 2
Chase Part 3
Chase 1 ~ 8 Chase 1
Chase 1 ~ 8 Chase 2
Chase 1 ~ 8 Chase 3
Select and run auto
program

9
Edit Chase②
Chase 1
:
Chase 8
Chase Test
Step 01
Step 64
=SCxxx
=SCxxx
Test
Beginning scene
Ending scene
Edit Scenes②
Edit Scene 001
~ Edit Scene
250
Pan,Tilt,……
--Fade Time--
--Secne Time--
DMX Input
=xxx
=xxx
=xxx
Input manual scene
Modify manually fading
time
Modify manually scene
time
Input scene from
exterior controller
Scenes Record
ScXX=>ScXX
Auto Input scenes
5. DMX connection and DMX protocol
5.1 DMX addressing:
5.1.1 The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive
instructions from the external controller. For independent control, each fixture must be assigned its unique address
control channels. For example, this device has four channel modes: 31/32/18/20, if we set the mode at standard 31
channels mode, and there are several models need to be independently controlled, we just simply address first fixture
at 1, and second fixture at 32, third one at 63, etc.
If the devices have the same address, they will behave synchronically.
DMX addressing is limited, don’t set the address so high that without enough control channels for the fixtures.
Display is flashing when no DMX signal is received.
5.1.4 Connection: us DMX cable with 5 pin XLR-plugs to connect the controller with the fixture or one fixture with
another.

10
5.2 DMX chart
Channel
name
function
Min
DMX
Max
DMX
St
Ex
Ba1
Ba2
1
1
1
1
Pan
Pan Coarse
0
255
2
2
2
Pan fine
Pan Fine
0
255
3
3
2
3
Tilt
Tilt Coarse
0
255
4
4
4
Tilt fine
Tilt Fine
0
255
5
5
3
5
Movment
Speed
fastest to Slowest
0
255
6
Movment
Function
Normal
0
15
Movement With Backout
16
31
TBD
32
255
6
7
Shutter
Function
Normal Shutter Functions
0
15
Pulse-effect Forward
16
31
Pulse-effect Reverse
32
47
Random Strobe
48
63
TBD
64
255
7
8
Shutter
Normal Shutter Functions
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Pulse-effect Forward
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Pulse-effect Reverse
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Random Strobe
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255

11
4
6
Shutter
Shutter closed
0
31
No function (shutter open)
32
63
Strobe effect slow to fast
64
95
No function (shutter open)
96
127
Pulse-effect in sequences
128
159
No function (shutter open)
160
191
Random strobe effect slow to fast
192
223
No function (shutter open)
224
255
8
9
5
7
Dimmer
Dimmer(Close to Open)
0
255
9
10
Color1
Function
Indexed
0
15
Indexed With BackOut
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Color Bounce
80
111
TBD
112
255
10
11
Color1
Indexed & Indexed With BackOut&Color Bounce
Position 1 (Open)
0
20
Position 2
21
41
Position 3
42
62
Position 4
63
83
Position 5
84
104
Position 6
105
125
Position 7
126
146
Position 8
147
167
Position 9
168
188
Position 10
189
209
Position 11
210
230
Position 12
231
255
Forward Spin
Stop to fastest
0
255
Reverse Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
6
8
Color1&Cyan
Indexed
Cyan 0->100%
0
127
Position 1
128
129
Position 2
130
131
Position 3
132
133
Position 4
134
135
Position 5
136
137
Position 6
138
139
Position 7
140
141
Position 8
142
143
Position 9
144
145

12
Position 10
146
147
Position 11
148
149
Indexed With Bounce
Position 1
150
159
Position 2
160
169
Position 3
170
179
Position 4
180
189
Position 5
190
199
Position 6
200
209
Position 7
210
223
Forward Wheel Spin
Stop to fastest
224
239
Reverse Wheel Spin
Stop to fastest
240
255
11
12
Color2
Function
Indexed
0
15
Indexed With BackOut
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Color Bounce
80
111
TBD
112
255
12
13
Color2
Indexed & Indexed With BackOut&Color Bounce
Position 1 (Open)
0
20
Position 2
21
41
Position 3
42
62
Position 4
63
83
Position 5
84
104
Position 6
105
125
Position 7
126
146
Position 8
147
167
Position 9
168
188
Position 10
189
209
Position 11
210
230
Position 12
231
255
Forward Spin
Stop to fastest
0
255
Reverse Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
7
9
Color2&
Magenta
Indexed
Magenta 0->100%
0
127
Position 1
128
129
Position 2
130
131
Position 3
132
133
Position 4
134
135

13
Position 5
136
137
Position 6
138
139
Position 7
140
141
Position 8
142
143
Position 9
144
145
Position 10
146
147
Position 11
148
149
Indexed With Bounce
Position 1
150
159
Position 2
160
169
Position 3
170
179
Position 4
180
189
Position 5
190
199
Position 6
200
209
Position 7
210
223
Forward Wheel Spin
Stop to fastest
224
239
Reverse Wheel Spin
Stop to fastest
240
255
13
14
Color3
Function
Indexed
0
15
Indexed With BackOut
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Color Bounce
80
111
TBD
112
255
14
15
Color3
Indexed & Indexed With BackOut&Color Bounce
Position 1 (Open)
0
20
Position 2
21
41
Position 3
42
62
Position 4
63
83
Position 5
84
104
Position 6
105
125
Position 7
126
146
Position 8
147
167
Position 9
168
188
Position 10
189
209
Position 11
210
230
Position 12
231
255
Forward Spin
Stop to fastest
0
255
Reverse Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
8
10
Color3&
Indexed

14
Yellow
Yellow 0->100%
0
127
Position 1
128
129
Position 2
130
131
Position 3
132
133
Position 4
134
135
Position 5
136
137
Position 6
138
139
Position 7
140
141
Position 8
142
143
Position 9
144
145
Position 10
146
147
Position 11
148
149
Indexed With Bounce
Position 1
150
159
Position 2
160
169
Position 3
170
179
Position 4
180
189
Position 5
190
199
Position 6
200
209
Position 7
210
223
Forward Wheel Spin
Stop to fastest
224
239
Reverse Wheel Spin
Stop to fastest
240
255
15
16
Cyan
Cyan 0->100%
0
255
16
17
Magenta
Magenta 0->100%
0
255
17
18
Yellow
Yellow 0->100%
0
255
18
19
Rot Gobo
Function
Indexed
0
15
Indexed With BackOut
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Shake
80
95
TBD
96
255
19
20
Rot Gobo
Indexed & Indexed With Backout&Shake
Position 1 (Open)
0
35
Position 2
36
71
Position 3
72
107
Position 4
108
143
Position 5
144
179
Position 6
180
215

15
Position 7
216
255
Forward Wheel Spin
Stop to fastest
0
255
Reverse Wheel Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
9
11
Rot Gobo
Indexed
Position 1 (Open)
0
6
Position 2
7
13
Position 3
14
20
Position 4
21
27
Position 5
28
34
Position 6
35
41
Position 7
42
48
Indexed With Backout
Position 1 (Open)
49
55
Position 2
56
62
Position 3
63
69
Position 4
70
76
Position 5
77
83
Position 6
84
90
Position 7
91
97
Indexed With Shake
Position 2
98
118
Position 3
119
139
Position 4
140
160
Position 5
161
181
Position 6
182
202

16
Position 7
203
223
Forward Wheel Spin
Stop to fastest
224
239
Reverse Wheel Spin
Stop to fastest
240
255
20
21
Gobo Rot
Function
Continuous
0
15
Forward Spin
16
31
Reverse Spin
32
47
Forward Animate Rotate
48
63
Forward Animate Rotate With Backout
64
79
Reverse Animate Rotate
80
95
Reverse Animate Rotate With Backout
96
111
TBD
112
255
21
22
Gobo Rot
Continuous
Positioning from 0-360 degrees
0
255
Forward Spin
Stop to fastest
0
255
Reverse Spin
Stop to fastest
0
255
Forward Animate Rotate & Forward Animate Rotate With
Backout
Stop to fastest
0
255
Reverse Animate Rotate & Reverse Animate Rotate With
Backout
Stop to fastest
0
255
10
12
Gobo Rot
Continuous
Positioning from 0-360 degrees
0
191
Forward Animate Rotate
Stop to fastest
192
207
Reverse Animate Rotate
Stop to fastest
208
223
Forward Spin
Stop to fastest
224
239
Reverse Spin
Stop to fastest
240
255
22
23
Gobo
Function
Indexed
0
15
Indexed With BackOut
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Shake
80
95
TBD
96
255
23
24
Fixed Gobo
Indexed & Indexed With Backout&Shake
Position 1 (Open)
0
12

17
Position 2
13
25
Position 3
26
38
Position 4
39
51
Position 5
52
64
Position 6
65
77
Position 7
78
90
Position 8
91
103
Position 9
104
116
Position 10
117
129
Position 11
130
142
Position 12
143
155
Position 13
156
168
Position 14
169
181
Position 15
182
194
Position 16
195
207
Position 17
208
220
Position 18
221
233
Position 19
234
255
Forward Wheel Spin
Stop to fastest
0
255
Reverse Wheel Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
11
13
Fixed Gobo
Indexed
Position 1 (Open)
0
1
Position 2
2
3
Position 3
4
5

18
Position 4
6
7
Position 5
8
9
Position 6
10
11
Position 7
12
13
Position 8
14
15
Position 9
16
17
Position 10
18
19
Position 11
20
21
Position 12
22
23
Position 13
24
25
Position 14
26
27
Position 15
28
29
Position 16
30
31
Position 17
32
33
Position 18
34
35
Position 19
36
37
Indexed With Backout
Position 1 (Open)
38
39
Position 2
40
41
Position 3
42
43
Position 4
44
45
Position 5
46
47
Position 6
48
49
Position 7
50
51
Position 8
52
53

19
Position 9
54
55
Position 10
56
57
Position 11
58
59
Position 12
60
61
Position 13
62
63
Position 14
64
65
Position 15
66
67
Position 16
68
69
Position 17
70
71
Position 18
72
73
~ Position 19
74
75
Indexed With Shake
Position 2
76
83
Position 3
84
91
Position 4
92
99
Position 5
100
107
Position 6
108
115
Position 7
116
123
Position 8
124
131
Position 9
132
139
Position 10
140
147
Position 11
148
155
Position 12
156
163
Position 13
164
171
Position 14
172
179
