CYCLOPS Sparkly 480 SBW User manual

1
Sparkly 480 SBW
WEIGHT：25K
POWER：600W
BEAM+SPOT+WASH

2
ITEM
Item...........................................................................................................................02
1.Product introduce ...............................................................................................03
2.Fixture size............................................................................................................03
3.Parts introduce.................................................................................................... 04
4.Safety information...............................................................................................05
5.Packing and shipping .........................................................................................07
6.AC power............................................................................................................. 07
7.Lamp model and replace.................................................................................... 07
8.Color and gobo description................................................................................ 09
9.Control panel operate..........................................................................................10
10.DMX Channels...................................................................................................14
11.PCB Driving board............................................................................................23
STATEMENT
The product is good packing when ship out the factory. All users should strictly abide by the
warnings and instructions stated in this manual, any damage and results due to misuse and the
neglect of this operating manual will be excluded from the deal responsibility this manual will not
informed in additionally if have technical changes.

3
1. PRODUCTION INTRODUCE
Thank you for choosing this Sparkly 480 SBW products, this model is the moving head
light which is the latest development of the smart, efficient products, beautiful shape, smooth
R & D, combined with the advanced technology of today's stage lighting products with
international advanced electronic control technology and excellent user-friendly industrial
design, fully comply with CE standard, accepted international standard DMX512 signal
mode .
Sparkly 480 SBW use efficient lamp and short distance condenser system, coupled with
the high-quality optical lens components, gorgeous color and clear gobos, sharp and uniform
output light. Chinese/English language selected.
Operate menu intuitive and fast; the display can be inverted 180 °. DMX512 channels
optional. Horizontal scan: 540 ° vertical scanning 270 °. The color wheel is combined with
white and 11 colors. The static gobos is combined with white and 17gobos, the rotation gobo
is combined with white and 9 gobos. Two rotation prism, one is 8 facet prism, one is 4 linear
prism, and one is 16 facet prism. Each 2 prism can mixed together. Frost function.
0-100% mechanical dimming, mechanical strobe, speed adjustable strobe effect and gobo
shaking effect, over-heat protection function.
2 FIXTURE SIZE

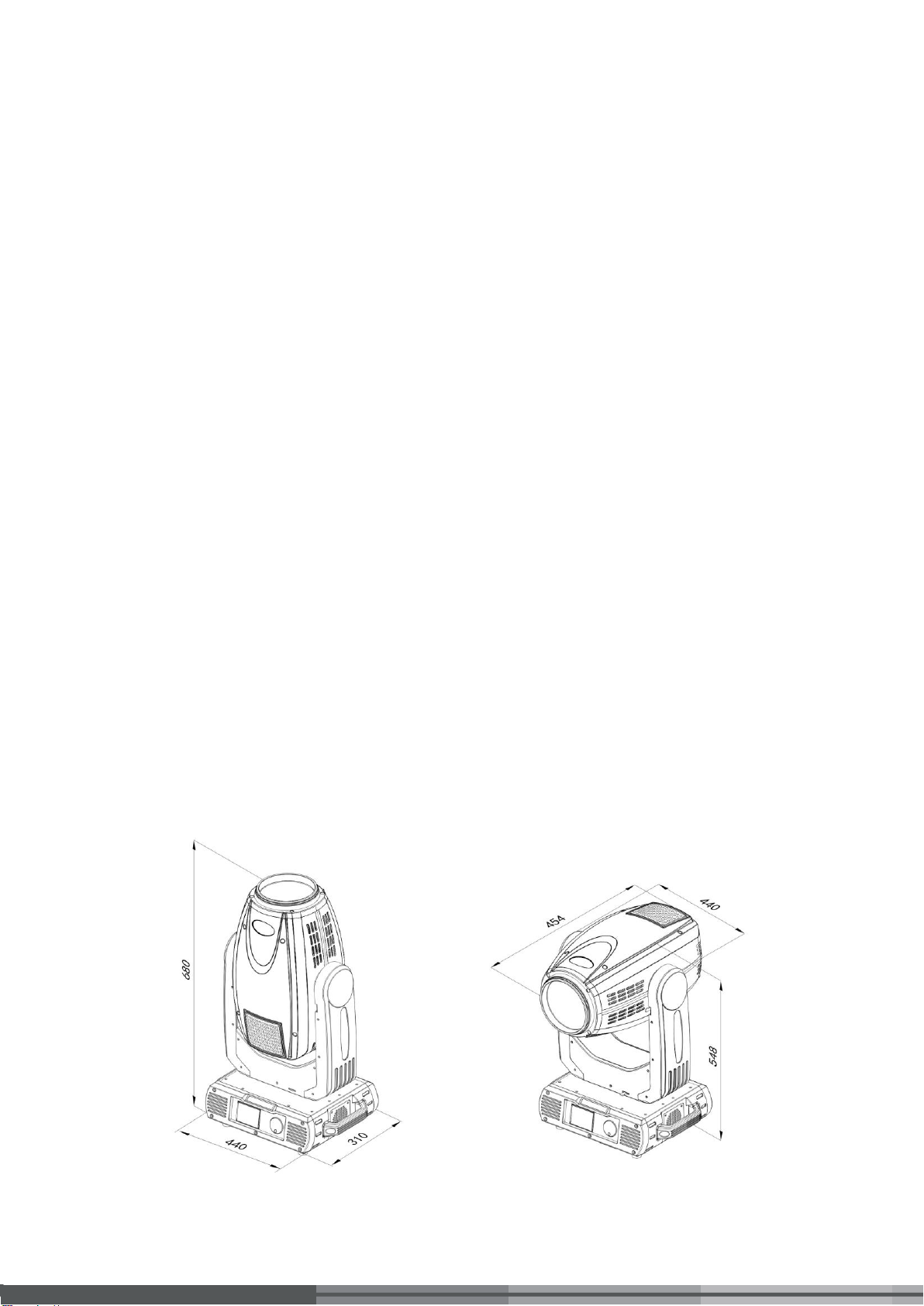

Size：440（L）×310（W）×680（H）mm

4
3. PARTS INTRODUCE
01
02
03
04
05
06 07

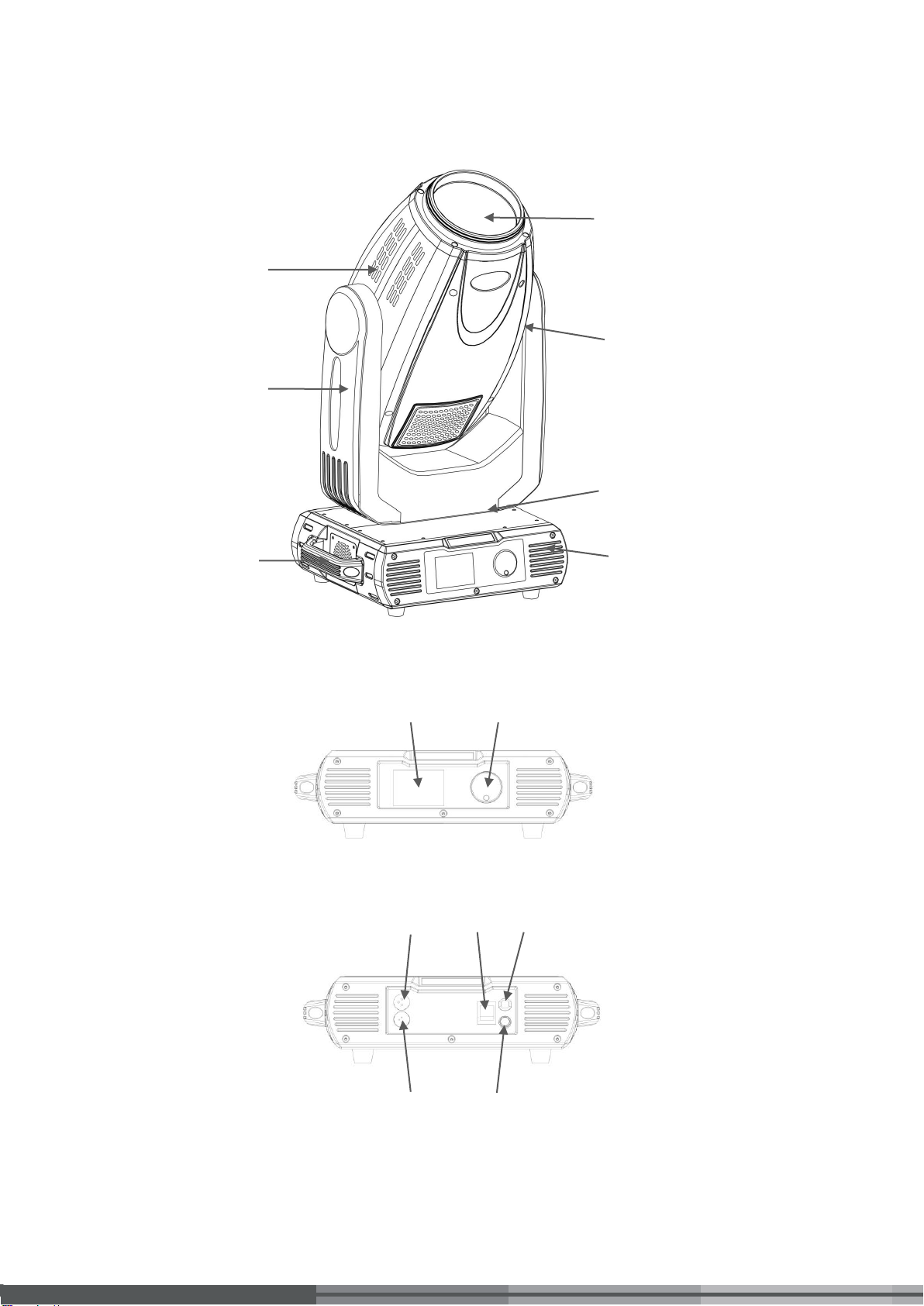

Sparkly 480 SBW each part of product structure and main composition product name description
for better know the light unit.
Sparkly 480 SBW Control panel function introduction, mark for the part name on the
panel, familiar with the function of every part.
01 —Lens
02 —Body
03 —Tilt Lock
04 —Arm
05 —Pan Lock
06 —Handle
07 —Light base
01
02
01
03
04
02
05
01 —LCD display
02 —Control wheel
01 —DMX In
02 —DMX Out
03 —Power Switch
04 —Power In
05 —Fuse

5
4. SAFETY INFORMATION
Safety warning message:
This product is only suitable for professional use, and does not apply to security for other purposes.
After you got the lights, please check the package whether have any damage caused by
transportation. If there is any damage, do not use this fixture, and please contact the dealer or
manufacturer as soon as possible. This product is only suitable for indoor, IP20 protection class.
Lamps should be kept dry to avoid Moisture, overheating or dusty environment. Prevent lamps
come into contact with water or any other liquid. The use of this product should pay attention to:
fire, heat, electric shock, ultraviolet radiation, the lamp to explode or
Shedding caused serious or fatal injury. Need to read the instructions before use energized or
installing. Follow through the operation of security methods and pay attention to the warning signs
on the specification and equipment. If you have any problem for how to safely operate the
equipment. Please contact your dealer.
4.1 ANTI-HIGH TEMPERATURE
ta=40°C
Please don’t use the equipment if the temperature above 40℃
4.2 BURST PREVENTION
The lens should be changed if had damaged or any problems. Don’t change the non-original
manufacturer lens.
Len size：Φ158×43 mm
4.3 TO PREVENT FALLING WOUNDING
Please don’t move the package by one person only.
When Hang the fixture, please must verify that the facilities to be able to withstand the
weight of the lamps at least 10 times more.
Please make sure the Mounting hardware is strong enough no any damage, and insurance for
the safety rope as auxiliary security fixed in other facilities will need to verify before
installation. Installing or removing the equipment, to make the pulley below the work
location.
4.4 UA PROTECTION AND THE BULB EXPLOSION
Prohibit straight viewpoint with exposed bulbs to avoid UV damage to the eyes;
Do not use the equipment without the lens screen and the lid;
The lens and the light head covers should be timely replaced if any damage to rupture
The Fixture should be used with the protection screen together.
4.5 PREVENTION OF ELECTIC SHOCK
The electrical connection must only be carried out with corresponding qualifications;
Before installing, make sure you use the power voltage lamps must comply with the identified
power, voltage and have an overload or leakage protection;

6
Each lamp must be properly grounded, installed in accordance with the relevant standards;
Cut off the power when stall or replace the lamp and the fuse;
Prohibit the use of a lightning storm or wet environment.
4.6 TO PREVENT BURNING OR FIRE
1. The fixture can be mounted directly on the surface of ordinary combustible
material.
2. Do not short-circuit temperature protection switch or fuse, use the specified type of fuse.
3. The equipment must be installed away from inflammable and explosive materials.
4. The equipment should be projected range of 15 meters away objects and projectiles
temperature less than 60 ° C 15m
5. Fan or ventilation, at least in the range of 0.5 meters can not be an obstacle.
6. Do not place any object on the lens.
7. Handling at least allow the device to cool for 20 minutes.
8. Do not replace the non-original parts.
4.7 TRANSPORT PROTECT LOCK
In order to protect the light, there is a protect lock; during the transport, the lock catch
position need lock in the center, and the fixture keep in vertical state.
4.8 ABOUT PACKING
1. Before packed, make sure power is off, and wait for at least 20mins for cooling down.
2. Before clean the fixture, make sure X, Y axis protect lock closed.
3. After packed by plastic bag, high-lift the fixture with two handles besides the product. Put
the product into the fly-case up-side-down.
4. After packed the product, put the accessory into the accessory case, then closed and lock the
fly-case.
5. Fly-case only up stacked two layers. Prohibited upside down
6. When packed with carton box, equipment should be put into the foam first, then set into a
carton, pay attention to the vertical position.
4.9 UNPACKING
Note: Before unpacking check the damage is whether due to the transportation or not, if you find any
such damage, please do not use this item, and contact with the dealer or manufacturer as soon as
possible.
1. Open the fly-case, and discover the inside plastic bag.
2. High-lift the product by two handles beside the bottom base and move it out.
3. Before power on, make sure you have opened the X, Y axis lock!
Attention!
Must use two clamps fix the fixture, and tighten the clamps with1/4 lock, only fully
clockwise rotate 90 °then can lock the fasteners. Add one safety insurance rope on the hole of

7
light base. Please pay attention not connect to the transport handle.
Attention! One product only can accept one input one output.DMX512 cable must use the
professional shielded twisted pair cable; standard loudspeaker cable is not reliable to control the
long-range data. 24AWG cable is suitable for more than 300 meters long-distance signal
transmission and must add\ DMX 512 signal amplifier.
Do not use two outputs to separate the connection, if separate a continuous connection to branch,
DMX512 splitter is necessary.
If use the DMX512 splitter. At first connect DMX512 Splitter input terminal to controller .And
then connected from the splitter output terminal to next device.
Do as above guide to connect other device, and finally coupled with terminal insertion
5. PACKAGE
BS440C packed with fly-case of two in one ,or carton box. Attach follow accessory.
ACCESSORY
CONTENT
QUANTITY
USER MANUAL
1
HANG FIXTURE
1
SIGNAL CABLE
2
6. AC POWER
VOLTAGE, POWER, FUSE SPECIFICATION
Input Voltage
Total Power
Frequency
110-240V
600W
50/60HZ
Fuse voltage
Electronic current
Specification
250V
10A
5×20
BS440C Power connection attention:
Attention! The equipment must be operated by professionals; Make sure that the voltage of power
supply must be comply with the voltage identified on the lamp, and must have an overload or
leakage electrical protection.
Live wire(L)
Null(N)
Ground wire
RED
BLUE
Yellow +Green
7. LAMP MODELAND REPLACE
BS440C LAMP
LAMP MODEL
POWER
LIFE/HOUR
LUMEN
OSRAM SIRIUS
HRI 440W
440w
1500 HOURS
114900Lux

8
WARNING! There is a safety hazard or damage if install similar bulb To reduce
the risk of damage to light, do change the lamp before using time over 125% of
lamp life .
LAMP REPLACE
Attention! When replace the lamp is forbidden to touch lamp with bare hand, to avoid the greasy
dirt stains filament. Filament must be kept clean. Disconnect the power. Before replace lamp,
fixture need 20 minutes for lamp cooling. Fasten the head with Y axis protect lock in 60 °
position.

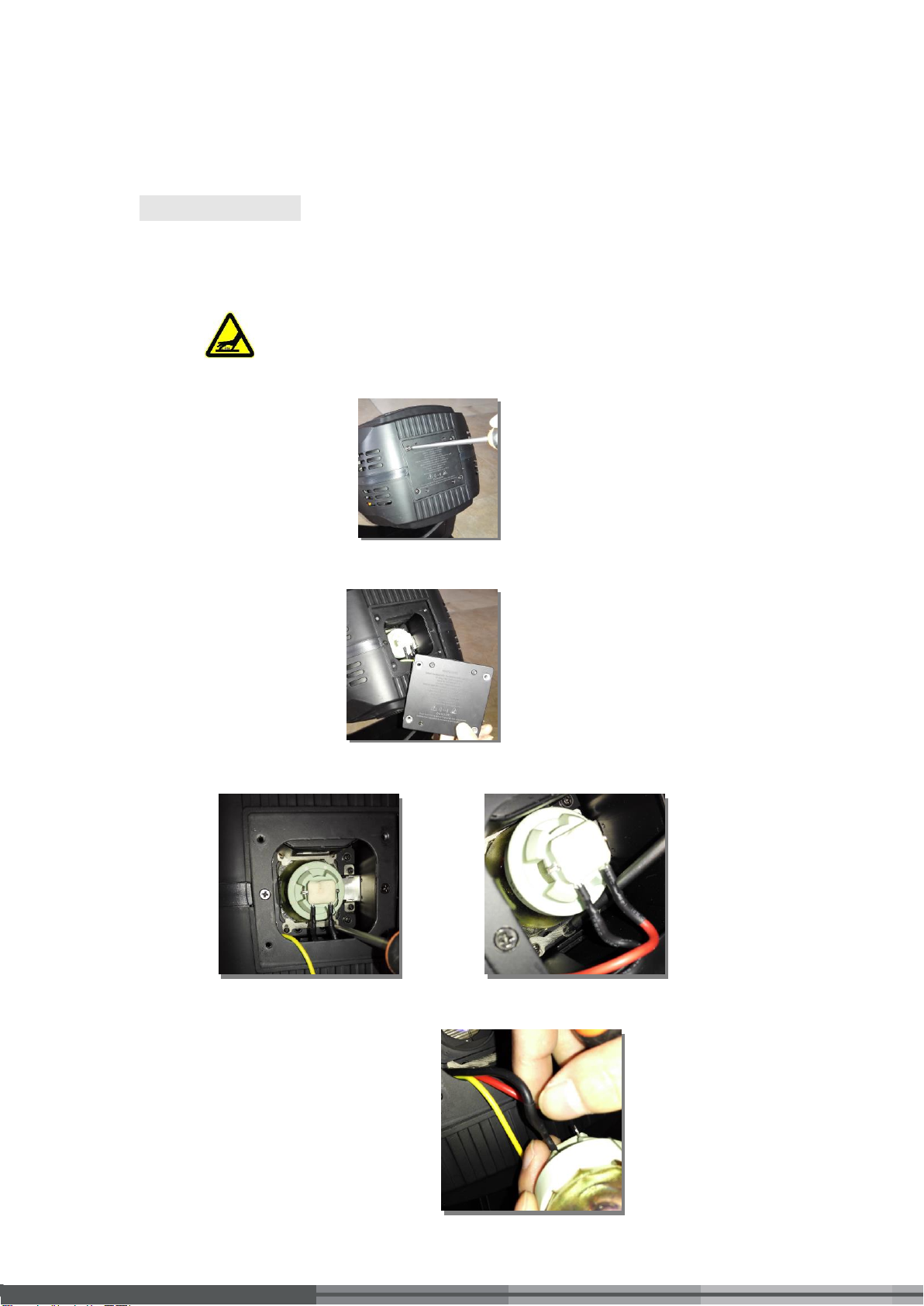

1. Use cross screwdriver to open the light body cover(picture 1)
（1）
2. After open the cover, you can see the lamp inside, please wait the lamp be cool after used but
not touch it in hot status. (picture 2)
（2）
3. One hand press the lamp holder, another hand hold the lamp, and pull out the wires (picture 3,4)
（3）（4）
4. After take apart the lamp, please check the inside glasses, clear it will make the light better
effect. (Picture 5)
（5）
5. Install the lamp after replaced.

9

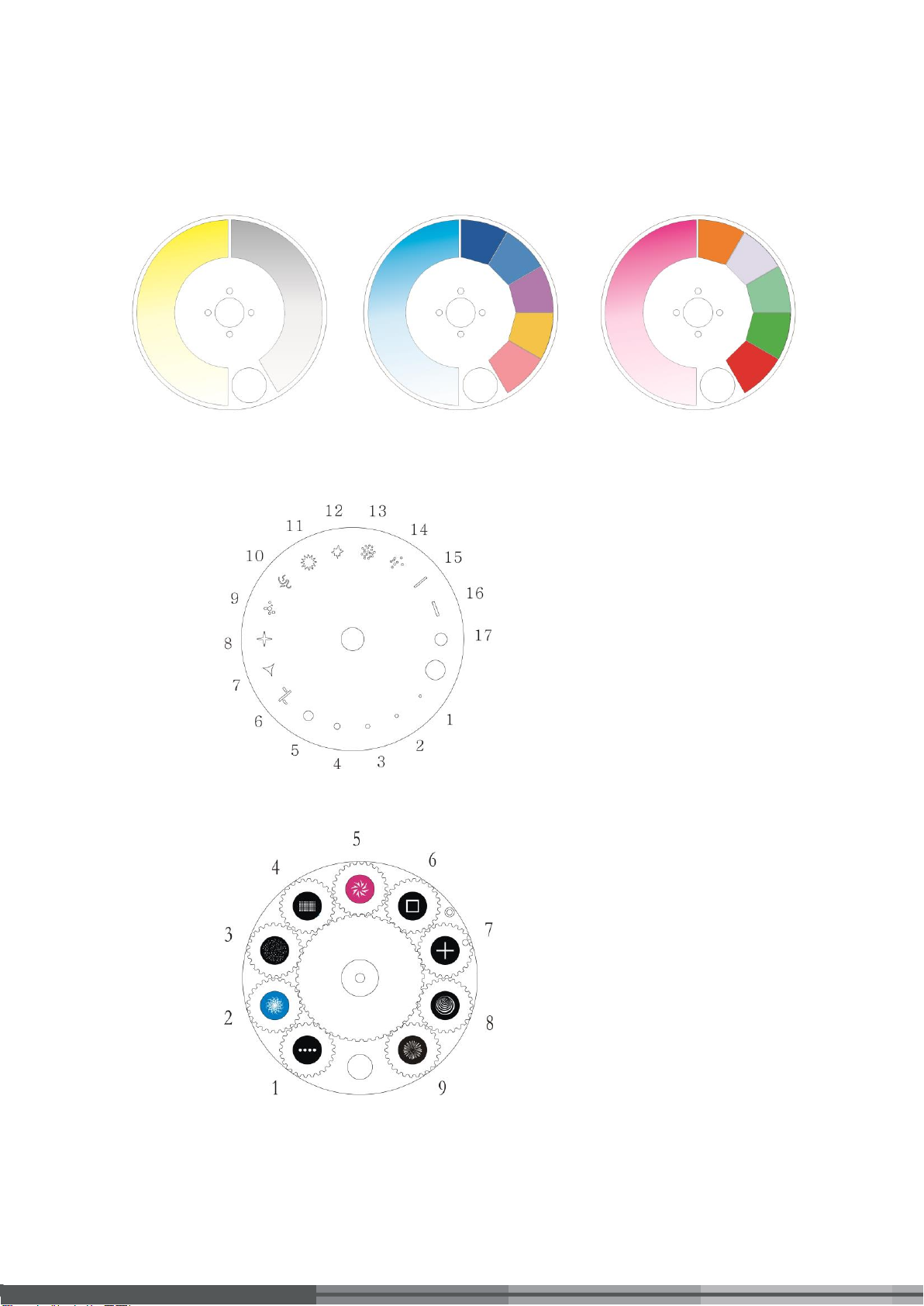

8. COLOR WHEEL, GOBO WHEEL
BS440C color wheel with colors+ CMY, pure colors, perfect effect;
BS440C Static gobo wheel with 17gobos +white, Rich gobos;
BS440C Rotate gobo wheel with 9gobos+white, smooth gobo rotation, replace easily;
Two rotation prism, one 8 facet prism, one linear 4 prism, one fixed 16 prism, each two
prism can combined using together. Frost function.

10
9. CONTROL PANEL
Touch screen display：Display the data information and control operation;
Control wheel: can turn right, left and enter;
Turn left: Data increasing, scroll menu;
Turn right: Data diminishing, scroll menu;
Enter: OK
9.2. CONTROLPANEL MENU OPERATE
Main Menu
Submenu 1
Submenu2
Function
SET
Function description
DMX
ADDRESS
<<
1-512
to address 1
<
address up
>
address down
<<
to address 512
SAVE
save and back
ESC
back
FEATURES
SETTING
Run Mode:
DMX
DMX
Wire
no function
Aoto
no function
Channel Mode:
20CH
20CH mode
24CH
24CH mode
30CH
30CH mode
Pan Reverse:
Off
Pan Scan Normal
On
Pan Scan Reverse
Tilt Reverse:
Off
Tilt Scan Normal
On
Tilt Scan Reverse
Opto Check:
Off
Pan/Tilt optical sensor testing off
On
Pan/Tilt optical sensor testing on
CONTROL
WHEEL
TOUCH
SCREEN
DISPLAY

11
PT Speed:
Noml
Pan/Tilt Scan Speed setting
normal
Slow
Pan/Tilt Scan Speed setting
slow
Fast
Pan/Tilt Scan Speed setting
fast
Pan Angle:
360
Pan Scan Angle setting 360
540
Pan Scan Angle setting 540
630
Pan Scan Angle setting 630
Singl Clear:
Off
keep signal data
On
clear signal data
Full Colour:
Off
half color function
On
full color function
ShortCut:
Off
Shortcust off for colors and gobos
On
Shortcust open for colors and gobos
ADV.
ADVANCED FUNCTION
RST.
Re-setting and back
SAVE
Save and back
ESC
Back
ADVANCED
FUNCTION
Redress
ZEROSETTING
Pan:
0-255
Adjust the begging state
Tilt:
Static Gobo:
Rot Gobo:
Colour:
Colour2:
Colour3:
Focus:
Zoom:
Dimmer:
Prism:
Beam:
Beam Rot:
Frost:
SAVE
Save and back
>
<
ESC
back
ChanlDef
No function

12
FactSett
Only factory only
UseManage
Limit
LimitTime
No function
LimitCont
No function
DefConfig
YES
Return to default
NO
back
FacConfig
SAVE
Save and back
EPRT
for factory only
ESC
back
ESC
back
UNLOCK
Verify1:
0-255
need password
Verify2:
KEY
need password
ESC
back
MANUAL
LAMP REST
ALL MOTER
All step motor(do not adjust it )
XY
MOTER
Pan/Tilt step motor adjust(do not
adjust it )
PART
MOTER
Other step motor( except Pan/Tilt)
YES
The chosen step motor reset
ESC
Back
TEST RUN
AUTO
Auto
SOUND
Sound
ESC
Back
SMULATE
DMX
Pan:
0-255
Control Channel on display
Pan Fine:
Tilt:
Tilt Fine:
PT Speed:
Special Fun:
Colour:
Colour2:
Colour3:
Cyan Colour:
Magenta Colour:
Yellow Colour:
Static Gobo:
Rot Gobo:
Gobo Rot:
Prism:
Prism Rot:
Frost:

13
Zoom:
Zoom Fine
Focus:
Focus Fine:
Strobe:
Dimmer:
>
Value+1
<
Value-1
ESC
Back
ESC
Back
SYSTEM
INFO
DMX VALUE
CH00-CH32
0-255
DMX value number
REST INFO
Colour:
Right/Error
For factory only
Rot Gobo:
Static Gobo:
Pan:
Tilt:
Gobo Rot:
Prism:
Beam:
Prism Rot:
Beam Rot:
Zoom:
Focus:
Pan Opto:
Tilt Opto:
ESC
Back
OTHER INFO
Run Time:
0-9999
Machine runing hours
Run Count:
0-9999
How many time of the Machine
power on and off
Residue T:
Most
Running time adjust(do not adjust)
Residue C:
Most
(do not adjust)
Type:
280W
Mode No
Temp:
0
No function
Fan 1:
0-9999
Fan 1 speed
Fan 2:
0-9999
Fan 2 speed
DisVersion:
Vxxx
Version of display software
XY Version:
Vxxx
Version of Pan/Tilt software
M1 Version:
Vxxx
Software Version M1
M2 Version:
Vxxx
Software Version M2
ESC
Back
ESC
Back

14
DISPLAY
SETTING
Light Set:
1-7Lev
Back Ground light level
Light Off:
On
Keep back ground light on
1Min
Back light turn off after 1 min
2Min
Back light turn off after 2 mins
3Min
Back light turn off after 3 mins
Menu Back:
Off
Turn off the menu and back
1Min
Menu back after 1 min
2Min
Menu back after 2 mins
3Min
Menu back after 3 mins
Light Flash:
Off
Back ground light flash function off
On
Back ground light flash function on
Touch Cali:
Off
Touch screen calibration on
On
Touch screen calibration off
SAVE
Save and back
ESC
Back
LAMP
SETTING
Lamp
Default:
Off
Lamp off
On
Lamp on
Manual Lamp:
Off
Lamp off by manual
On
lamp on by manual
Lamp Time
0000-9999
Lamp time
Lamp State
Off
Lamp off
On
Lamp on
Lamp Off:
10M
After 10 mins no signal come in,
Lamp off
Lifh
No signal come in , lamp keep
lighting
10.DMX Channels
24CH Mode
20CH Mode
DMX Value
Function
1
1
0－255
Pan
2
*
0－255
Pan Fine
3
2
0－255
Tilt
4
*
0－255
Tilt Fine
5
3
0－255
Pan Tilt speed adjust
6
4
Marco
0－129
No function
130－139
Lamp on
140－149
Pan Tilt Reset

15
150－159
No function
160－169
All the small step motor Reset
170－199
No function
200－209
whole light Reset
210－229
No function
230－239
Lamp off
240－255
No function
7
5
Color 1
0
White
28
White+Pink
50
Pink
80
Pink+Light Orange
100
Light Orange
129
Light Orange+Light Purple
150
Light Purple
181
Light Purple+Blue
204
Blue
235
Blue+Deep Blue
255
Deep Blue
8
6
Color 2
0
White
28
White+Deep Red
50
Deep Red
80
Deep Red+Deep Green
100
Deep Green
129
Deep Green+Light Green
150
Light Green
181
Light Green+UV Blue
204
UV Blue
235
UV Blue+Deep Orange
255
Deep Orange
9
7
Color 3
0-255
CTO
10
8
0-255
Cyanine
11
9
0-255
Magenta
12
10
0-255
Yellow
13
11
Static gobo
0－3
No function
4－7
Gobo1
8－12
Gobo2
13－16
Gobo3
17－20
Gobo4
21－24
Gobo5

16
25－29
Gobo6
30－33
Gobo7
34－37
Gobo8
38－41
Gobo9
42－46
Gobo10
47－50
Gobo11
51－54
Slim Beam1
55－58
Slim Beam2
59-63
Slim Beam3
64－67
Slim Beam4
68－71
Slim Beam5
72-113
Run from fast to slow
114-117
Pause
118-159
Run from slow to fast
Gobo shake from slow to fast
160-165
Gobo1Shake
166－170
Gobo2Shake
171－176
Gobo3Shake
177－181
Gobo4Shake
182－187
Gobo5Shake
188－193
Gobo6Shake
194－198
Gobo7Shake
199－204
Gobo8Shake
205－209
Gobo9Shake
210－215
Gobo10Shake
216－220
Gobo11Shake
221－226
Slim Beam1Shake
227－232
Slim Beam2Shake
233－237
Slim Beam3Shake
238－243
Slim Beam4Shake
244-248
Slim Beam5Shake
249－255
Big Beam Shake
14
12
Rotation Gobo( postion Mode)
0
No function
1－4
Biggest White（Uniform effect）
5－7
Gobo1
8－10
Gobo2
11－13
Gobo3
14－16
Gobo4
17－19
Gobo5
20－22
Gobo6
23－25
Gobo7
26－28
Gobo8

17
29－31
Gobo9
Rotation Gobo(Gobo rotation Mode)
32－34
Gobo1
35－37
Gobo2
38－40
Gobo3
41－43
Gobo4
44－46
Gobo5
47－49
Gobo6
50－52
Gobo7
53－55
Gobo8
56－59
Gobo9
Gobo Shake index from slow to fast
60－67
Gobo1Shake
68－75
Gobo2Shake
76－83
Gobo3Shake
84－91
Gobo4Shake
92－99
Gobo5Shake
100－107
Gobo6Shake
108－115
Gobo7Shake
116－123
Gobo8Shake
124－129
Gobo9Shake
Gobo Shake rotation from slow to fast
130－137
Gobo1Shake
138－145
Gobo2Shake
146－153
Gobo3Shake
154－161
Gobo4Shake
162－169
Gobo5Shake
170－177
Gobo6Shake
178－185
Gobo7Shake
186－193
Gobo8Shake
194－199
Gobo9Shake
200－227
Rotation,Clockwise from fast to slow
228－229
Pause
230－255
Rotation Anti-clockwise from slow to fast
15
13
Gobo Rotation
If Rotation Gobo in position mode
0－255
Index
If Rotation Gobo in Gobo rotation mode
0
Pause
1－127
Rotation Anti-clockwise from fast to slow
128-129
Pause
130－255
Rotation clockwise from slow to fast

18
16
14
Prism（Prism rotation is in position mode）
0－5
No function
6－25
Prism1
26－50
Prism2
51－75
Prism3
76－100
Prism4
101－125
Prism5
Prism rotation is in rotation mode
126－150
Prism1
151－175
Prism2
176－200
Prism3
201－225
Prism4
226－255
Prism5
17
15
Prism Rotation（position mode）
0－255
Index
Prism rotation ( rotation mode)
0－1
No function
2－127
Rotate Clockwise from fast to slow
128－129
Pause
130－255
Rotate Anti-clockwise from slow to fast
18
16
Frost
0－64
No function
65－255
Frost changable
19
17
Zoom
0－255
Linear Zoom
20
*
0－255
Zoom Fine
21
18
0－255
Focus
22
*
0－255
Focus Fine
23
19
Strobe
0－31
Strobe Close
32－63
Strobe Open
64－95
Strobe from slow to fast
96－127
Strobe Open
128－143
From fast to slow,slow close fast open
144－159
From slow to fast,fast open slow close
160－191
Strobe Open
192－223
Random Strobe from slow to fast
224－255
Strobe Open
24
20
Dimmer
0-255
Linear Dimmer

19
30CH Mode
DMX Value
Function
1
0－255
Cyanine
2
0－255
Magenta
3
0－255
Yellow
4
Color1
0
White
28
White+Pink
50
Pink
80
Pink+Light Orange
100
Light Orange
129
Light Orange+Light Purple
150
Light Purple
181
Light Purple+Blue
204
Blue
235
Blue+Deep Blue
255
Deep Blue
5
Color 2
0
White
28
White+Deep Red
50
Deep Red
80
Deep Red+Deep Green
100
Deep Green
129
Deep Green+Light Green
150
Light Green
181
Light Green+UV Blue
204
UV Blue
235
UV Blue+Deep Orange
255
Deep Orange
6
Color 3
0-255
CTO
7
Strobe
8
Dimmer
0－31
Strobe Close
32－63
Strobe Open
64－95
Strobe from slow to fast
96－127
Strobe Open
128－143
From fast to slow,slow close fast open
144－159
From slow to fast,fast open slow close
160－191
Strobe Open
192－223
Random Strobe from slow to fast
224－255
Strobe Open
9
Dimmer Fine
10
Static Gobo

20
0－3
No function
4－7
Gobo1
8－12
Gobo2
13－16
Gobo3
17－20
Gobo4
21－24
Gobo5
25－29
Gobo6
30－33
Gobo7
34－37
Gobo8
38－41
Gobo9
42－46
Gobo10
47－50
Gobo11
51－54
Slim Beam1
55－58
Slim Beam2
59-63
Slim Beam3
64－67
Slim Beam4
68－71
Slim Beam5
72-113
Run from fast to slow
114-117
Pause
118-159
Run from slow to fast
Gobo Shake from slow to fast
160-165
Gobo1Shake
166－170
Gobo2Shake
171－176
Gobo3Shake
177－181
Gobo4Shake
182－187
Gobo5Shake
188－193
Gobo6Shake
194－198
Gobo7Shake
199－204
Gobo8Shake
205－209
Gobo9Shake
210－215
Gobo10Shake
216－220
Gobo11Shake
221－226
Slim Beam1Shake
227－232
Slim Beam2Shake
233－237
Slim Beam3Shake
238－243
Slim Beam4Shake
244-248
Slim Beam5Shake
249－255
Big Beam Shake
11
Effect Gobo(Empty)
12
Effect Gobo Rotation(Empty)
13
Rotation Gobo
1－4
Biggest White（Uniform mode）
5－7
Gobo1
