Owner’s Manual
IMPORTANT!
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE

Important Safety Information
We thank you for choosing our product. To guarantee your safety and health,
please use this equipment correctly. Please read the information as below
carefully before using this equipment.
1. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment
is assembled, maintained and used properly.
2. Before starting any exercise program you should consult your doctor to
determine if you have any medical or physical conditions that could put
your health and safety at risk, or prevent you from using the equipment
properly. Your doctor’s advice is essential if you are taking medication
that affects your heart rate, blood pressure or cholesterol level.
3. Be aware of your body’s signals. Incorrect or excessive exercise can
damage your health. Stop exercising if you experience any of the
following symptoms: pain, tightness in your chest, irregular heartbeat,
extreme shortness of breath, lightheadedness, dizziness or feelings of
nausea. If you do experience any of these conditions you should consult
your doctor before continuing with your exercise program.
4. Keep children and pets away from the equipment. The equipment is
designed for adult use only.
5. Use the equipment on a solid, flat level surface with a protective cover
for your floor or carpet. To ensure safety, the equipment should have at
least 0.6meters of free space all around it.
6. Before using the equipment, check that the nuts and bolts are
Assemblely tightened. Always use the equipment as indicated. If you find
any defective components while assembling or checking the equipment,
or if you hear any unusual noises coming from the equipment during use,
stop immediately. Do not use the equipment until the problem has been
rectified.
7. There are many functions of the computer, which value will show when
using the equipment according the amount of exercise ,here warmly
remind you that the value of heart pulse just give you some reference.
8. Wear suitable clothing while using the equipment. Avoid wearing loose
clothing that may get caught in the equipment or that may restrict or
prevent movement.
9. This equipment is designed for indoor and family use only。Maximum
weight of user: 120KG.
10.Care must be taken when lifting or moving the equipment so as not to
injure your back
11.Please save this manual and assembling tools well.
12.The equipment is not suitable for therapeutic use.

EXPLODED VIEW:
19
35
34
32
33
33
32 31
31
22
39
21
35
19
33
19
18
#41 S13-14-15
S14
S13
S15
36L
1
12
2
8
9
3
4
7
11
12
7
36R
5
6
13
20
24
25
26
27
28 29
30
40
37
37
17
38
13a
10
10
10
23

Inner exploded view：
51
52 53
54
55
56 57
83
82 80
79
81
62
77
62
58
84
67
68
69
70
71
74
72
73
76
75
67
51
49
86
86
43L
85
43R
86
87
86
85
87
84
87
36
50
59
78
58
59
61
62
63
65
64
63
62
61
60
58 59
60
66
68 69 70
22
87
87
88
89
88
89
88
89
87
68
90
48
48
46L
44 45
47
45 44
46R
16
91
15
14

Parts and tools:
#19 d8*Φ20*2*R30 8PCS
#18 M8*16*S6 4PCS
#39 M16*1.5*27*Φ56 1PC
#41 S6 1PC
#42 S13-14-15 1PC

PARTS LIST
NO.
Description
QTY
NO.
Description
QTY
1
End cap Φ25*16
2
34
front stabilizer
1
2
Hand pulse slice forΦ25tube
2
35
Nut M8*H16*S13
4
3
washer d6*Φ12*1
2
36L/R
Pedal HD-16C 1/2"
2
4
screw ST4*19*Φ7
2
37
Adjustable end capΦ
60*45.5*74.5*74.5
2
5
grommet Φ12*11*Φ3
1
38
rear stabilizer
1
6
handlebar
1
39
Knob M16*1.5*27*Φ56
1
7
Foam grip Φ23*3*550
2
40
Main frame
1
8
Clamp cover 77*54*50
1
41
spanner S13-14-15
1
9
Bolt M8*60*20
1
42
Spanner S6
1
10
spring washerd8
8
43L/R
Chain cover
2
11
Hand pulse wire
2
44
Plug Φ25*7
2
12
screw M5*12*Φ8
2
45
Nut M10*1.25*H7.5*S14
2
13
console
1
46L/R
Crank
2
14
Motor
1
47
RING-SHIELD d17
1
15
Screw ST4.2*19*Φ8
4
48
Bearing 6203-2RS
2
16
Sensor
1
49
Screw ST4.2*16*Φ8
1
17
Handlebar post
1
50
Bolt M6*45*S10
1
18
screw M8*16*S6
4
51
Nut M6*H5*S10
2
19
Arc washer d8*Φ20*2*R30
8
52
SpacerΦ22*Φ18*6.5
1
20
Trunk wire
1
53
Bolt M6*16*S10
4
21
Front cover 140.9*97*84
1
54
Round magnet Φ15*7
1
22
Sensor wire
1
55
Belt plate
Φ220*20*Φ17*4-Φ6*Φ60-6PJ
1
23
Adaptor
1
56
Axle SetΦ
17*228*69*78.5*4-M6*Φ60
1
24
Ellipse bush
PT70*30*PT60*20*L145*10
1
57
Belt 6PJ360
1
25
Saddle post
1
58
Bolt M6*12*S10
3
26
Bolt M8*20*Φ50
1
59
Washer d6*Φ16*1.5
3
27
Washer d8*Φ20*2
1
60
Screw M6*10*Φ12
5
28
Square end cap J40*20*17
2
61
Fixed plate t1.5*56*76
2
29
Horizontal seat post
1
62
Bearing 6001-2RS
4
30
Saddle 98-2
1
63
Bearing block Φ72*11
2
31
End cap with wheelΦ60*Φ70*95
2
64
AxleΦ20*103
1
32
Screw ST3*10*Φ5.6
2
65
Flywheel 3*Φ240*40
1
33
Bolt M8*73*20*H5
4
66
screw M6*8*Φ12
1

67
Bolt M6*16*S10
2
81
Screw M8*12*Φ10*5*S12
1
68
Spring washer d6
6
82
Washer d12*Φ17*0.5
1
69
Washer d6*Φ12*1.2
2
83
Nylon nut M8*H7.5*S13
1
70
RING-SHIELD d12
2
84
Crank cover Φ44*10
2
71
Axle φ12*70*14*45.5*M6
1
85
disc φ189*10.5
2
72
Magnet board
1
86
Screw ST4.2*16*Φ8
4
73
Pull springΦ1.5*Φ15*44*N10
1
87
Screw ST4.2*19*Φ8
7
74
Screw ST3*10*Φ5.6
5
88
Washer d5*Φ13*1
8
75
Square magnet 40*25*10
4
89
Screw ST4*16*Φ8
8
76
Magnet positioning 45.5*130*10.
1
90
Nut M6*H6*S10
4
77
idler Φ39*Φ34*24
1
91
Power Wire
1
78
Wave washer d12*Φ15.5*0.3
1
79
Pull springΦ2.2*Φ12*51*N12
1
80
Idler holder
1

Assembly
Step 1:
36R
33
33
34
36L
40
33
38
46L
46R
19
35
35
19
10
10
22
#33 M8*73*20*H5 4PCS
#19 d8*Φ20*2*R30 4PCS
#35 M8*H16*S13 4PCS
#10 d8 4PCS
a. Assemble front stabilizer（34）and rear stabilizer（38）to main frame （40）
with bolt （33）, arc washer （19）,spring washer(10) and nut （35）.
b. Assemble pedal（36L/R) to the crank（46L/R）with spanner.

step 2:
21
19
18
S6
#18 M8*16*S6 4PCS
#19 d8*Φ20*2*R30 4PCS
22
20
40
17
22
20
#10 d8 4PCS
10
a. Put front cover（21）on the handlebar post（17）, put trunk wire (20 )through
he handlebar post（17）, connect sensor wire（22）and trunk wire（20）, then
insert the handlebar post（17）into the mainframe（40）,
b. Assemble handlebar post （17 ）on mainframe （40 ）with screw
（18）,spring washer(10), arc washer（19）and front cover（21）.

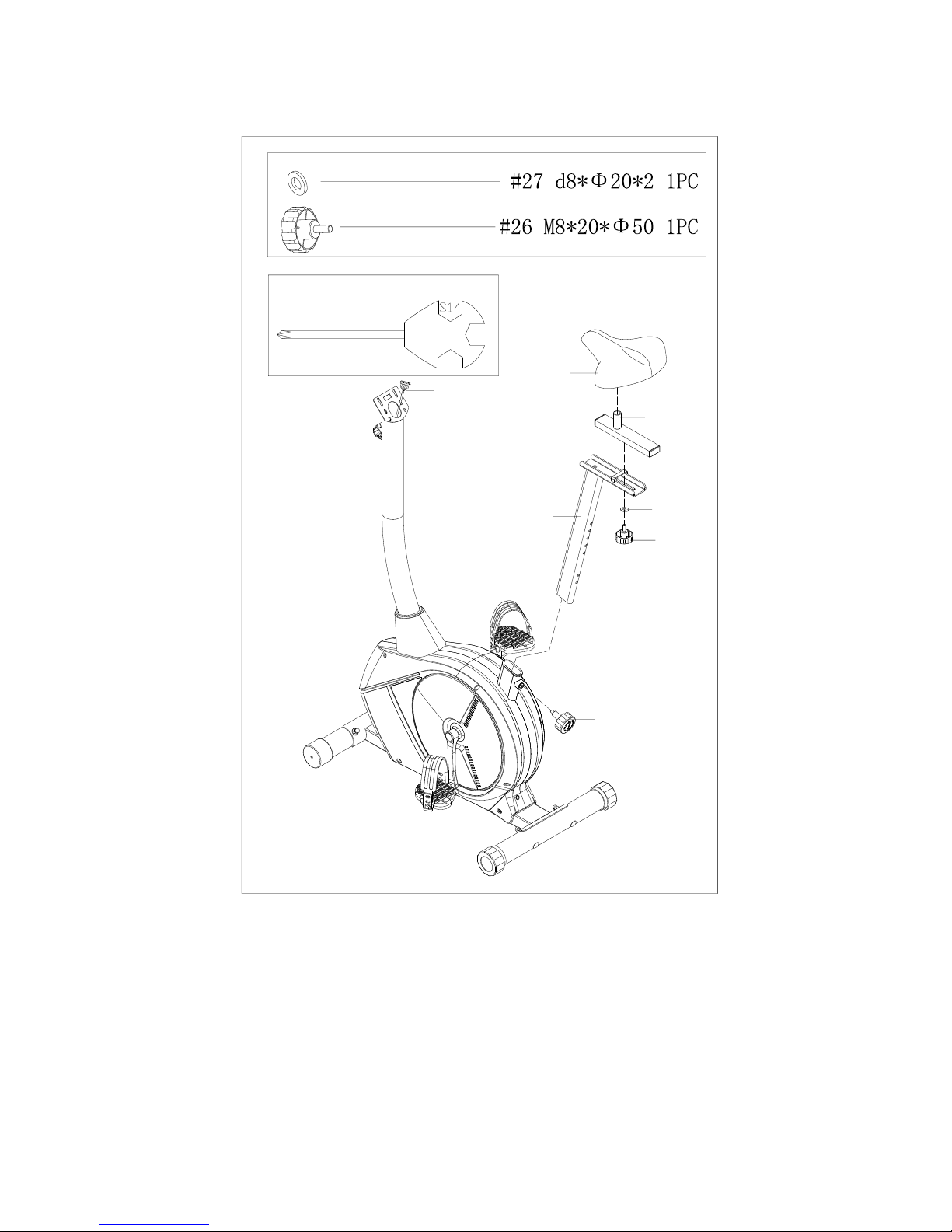

Step 3:
25
26
27
29
30
39
40
20
a. Insert saddle post（25）into mainframe（40）, lock it with knob（39）
after adjust it to suitable position.
b. Lock the horizontal saddle tube（29）on saddle post（25）with washer
（27）and knob（26）.
c.Lock the saddle（30）on the horizontal saddle tube（29）.

Step 4：
11
6
12
20
17
20
13a
913
13a
8
a. Assemble the handlebar（6）on handlebar post（17）with bolt（9）
and the clamp cover (8).
b. Connect trunk wire（20）with console wire（13a), lock the console
（13）on the handlebar post（17）with screw（12）
C.Insert the hand pulse wire plug (11)into the back hole of console
（13）.Assemble finished.
