Cylinda DM4350FiD User manual

User manual
DM4350FiD

Thank you for choosing this product.
This user manual contains important information on safety and instructions intended to
assist you in the operation and maintenance of your appliance.
Please take the time to read this user manual before using your appliance and keep this
book for future reference.
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE 
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly

CONTENTS
1 SAFETY INSTRUCTIONS .............................................................................. 1
1.1 General Safety Warnings ..............................................................................................1
󰀬 .....................................................................................................2
1.3 During Usage..................................................................................................................3
2 INSTALLATION ................................................................................................ 6
2.1 Machine Positioning ......................................................................................................6
2.2 Water Connection..........................................................................................................6
2.3 Water Inlet Hose.............................................................................................................6
2.4 Drain Hose (Model Depending)......................................................................................7
2.5 Electrical Connection......................................................................................................7
3 TECHNICAL SPECIFICATIONS ..................................................................... 8
3.1 General Sppearance ......................................................................................................8
 .................................................................................................8
4 BEFORE USING THE APPLIANCE ............................................................. 10
󰀬 ....................................................................10
4.2 Salt Usage (IF AVAILABLE)..........................................................................................10
4.3 Fill The Salt (IF AVAILABLE) ........................................................................................10
󰀬.......................................................................................................................11
4.5 Water Hardness Table ..................................................................................................11
󰀬.................................................................................................11
4.7 Setting ..........................................................................................................................11
4.8 Detergent Usage ..........................................................................................................11
4.9 Filling The Detergent ....................................................................................................12
4.10 Using Combined Detergents ......................................................................................12
4.11 Rinse-aid Usage .........................................................................................................12
4.12 Filling The Rinse-aid And Setting ...............................................................................12
5 LOADING YOUR DISHWASHER.................................................................. 14
5.1 Recommendations .......................................................................................................14
5.2 Alternative Basket Loads..............................................................................................18
6PROGRAMME TABLE................................................................................... 19
7THE CONTROL PANEL................................................................................ 21
8CLEANING AND MAINTENANCE................................................................ 25
8.1 Filters............................................................................................................................25
8.2 Spray Arms...................................................................................................................25
8.3 Drain Pump...................................................................................................................26
9 TROUBLESHOOTING .................................................................................. 27

EN - 1
1 SAFETY INSTRUCTIONS
1.1 General Safety Warnings
• Read these instructions carefully before using your
appliance and keep this manual for future reference.
Please check the packaging of your machine
before installation and the outer surface of the
machine once the packaging has been removed. Do
not operate the machine if it appears damaged or if
the packaging has been opened.
• Packaging materials protect your machine from any
damage that might occur during transportation. The
packaging materials are environmentally friendly
as they are recyclable. Use of recycled material
reduces raw material consumption and decreases
waste production.
This appliance can be used by children aged from
8 years and above, and by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning the use of the
appliance in a safe way and understand hazards
involved. Children should not be allowed to play with
the appliance.
Remove packaging and keep it out of reach of
children.
Keep children away from detergents and rinse
aids.

EN - 2
There may be some residue left in the machine
after washing. Keep children away from the machine
when it is open.
1.2 Installation Warnings
• Choose a suitable and safe place to install your
machine.
• Only original spare parts should be used with the
machine.
Unplug the machine before installation.
Your machine must only be installed by an
authorised service agent. Installation by anyone other
than an authorised agent may cause your warranty to
be void.
Check that the indoor electrical fuse system is
connected in line with safety regulations.
All electrical connections must match the values on
the plate.
Ensure the machine does not stand on the
electrical supply cable.
Never use an extension cord or a multiple socket
connection.
The plug should be accessible after the machine is
installed.
• After installation, run your machine unloaded for the

The machine must not be plugged in during
positioning.

EN - 3
Always use the coated plug supplied with your
machine.
If the electrical cable is damaged, it should only

• Connect the hose directly to the water inlet tap. The
pressure supplied by the tap should be a minimum
of 0.03 MPa and a maximum of 1 MPa. If the
pressure exceeds 1 MPa, a pressure relief valve

1.3 During Usage
• This machine is for domestic use only; do not use
it for other purposes. Commercial use will void the
guarantee.
Do not stand, sit or place loads on the open door
the dishwasher.
Only use detergents and rinse aids produced

responsible for any damage that may occur due to
misuse.
Do not drink water from the machine.
Due to the danger of explosion, do not place any
chemical dissolving agents into the machine’s washing
section.
• Check the heat-resistance of plastic items before
washing them in the machine.
Only put items in the machine which are suitable for


EN - 4
Do not open the door while the machine is in
operation, hot water may spill out. Safety devices
ensure the machine stops if the door is opened.
The machine door should not be left open. It may
cause accidents.
Place knives and other sharp objects in the cutlery
basket in a blade-down position.
For models with the automatic door-opening
system, when the EnergySave option is active, the
door will open at the end of a program. To prevent
damage to your dishwasher, do not attempt to close
the door for one minute after it has opened. For
󰀨
after a programme has ended. Do not stand in front of
the door after the auto-open signal sounds.
In the case of a malfunction, repair should only
be performed by an authorised service company,
otherwise the warranty will be void.
Before repair work, the machine should be
disconnected from the mains. Do not pull the cable to
󰀨
Operation at a low voltage will cause a decline in
performance levels.
For safety, disconnect the plug once a program has

To avoid an electric shock, do not unplug the
machine with wet hands.

EN - 5
Pull the plug to disconnect the machine from the
mains, never pull on the cord.

EN - 6
2 INSTALLATION
2.1 Machine Positioning
When positioning the machine, place it in
an area where dishes can be easily loaded
and unloaded. Do not put the machine in
an area where the ambient temperature
falls below 0°C.
Read all warnings located on the packaging
before removing the packaging and
positioning the machine.
Place the machine close to a water tap
and drain. Take into consideration that the
connections will not be altered once the
machine is in position.
Do not hold the machine by its door or
panel.
Leave an adequate distance around the
machine to allow ease of movement when
cleaning.
Ensure the water inlet and outlet
hoses are not squeezed or trapped
and that the machine does not stand on the
electrical cable while positioning.
Adjust the feet so the machine is level and
balanced. The machine should be placed

and the door of the machine will not close
properly.
Please install the decorative panel
as indicated on the assembly sheet.
Otherwise, the door may not open properly
and steam leakage problem may occur.
2.2 Water Connection

inlet supply in order to prevent damage to
your machine due to contamination (sand,
rust, etc.) from indoor plumbing. This will
also help prevent yellowing and deposit
formation after washing.
Note printing on the water inlet hose!
If models are marked with 25°, the water
temperature may be max. 25 °C (cold
water).
For all other models:
Cold water preferred; hot water max.
temperature 60 °C.

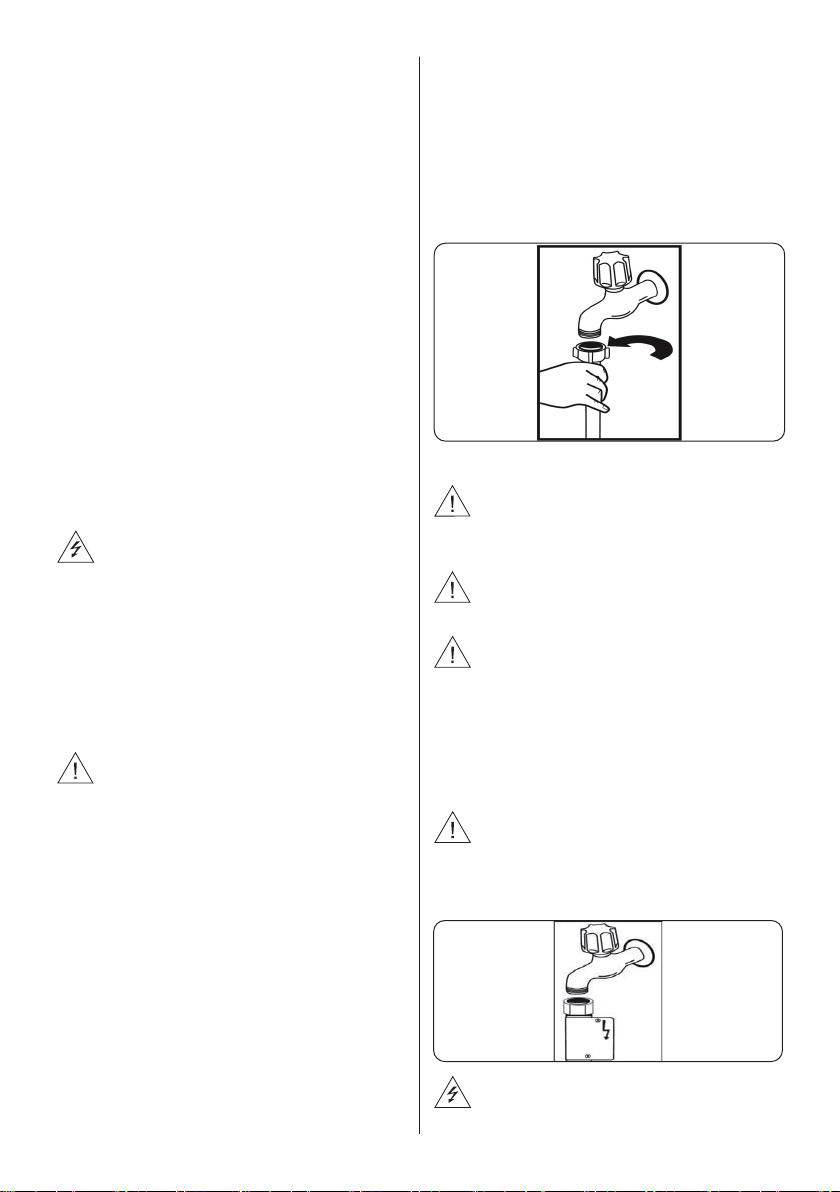

2.3 Water Inlet Hose
WARNING: Use the new water inlet
hose supplied with your machine, do not
use an old machine’s hose.
WARNING: Run water through the
new hose before connecting.
WARNING: Connect the hose
directly to the water inlet tap. The pressure
supplied by the tap should be a minimum
of 0.03 MPa and a maximum of 1 MPa. If
the pressure exceeds 1 MPa, a pressure

connection.
WARNING: After the connections are
made, turn the tap on fully and check
󰀨

An Aquastop water spout is available
with some models. Do not damage it
or allow it to become kinked or twisted.

EN - 7
2.4 Drain Hose (Model Depending)
Connect the water drain hose directly to
water drain hole or to the sink outlet spigot.
This connection should be minimum 50

dishwasher is placed.
IMPORTANT: Items will not wash
properly if a drain hose longer than 4 m
is used.
2.5 Electrical Connection
WARNING: Your machine is set to
operate at 220-240 V. If the mains voltage
supply to your machine is 110 V, connect

between the electrical connection.
Connect the product to a
grounded outlet protected by a fuse
complying with the values in the

The earthed plug of the
machine must be connected to
an earthed outlet supplied by suitable
voltage and current.
In the absence of earthing
installation, an authorised
electrician should carry out an earthing
installation. In the case of use without
earthing installed, we will not be
responsible for any loss of use that may
occur.
The plug on this appliance
may incorporate 13A fuse depending on
the target country. (For Example UK,
Saudi Arabia)

EN - 8
3 TECHNICAL SPECIFICATIONS
1
2
3
4
5
6
7
8
9
10
11
12
3.1 General Sppearance
1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control panel
8. Detergent and rinse-aid dispenser
9. Cutlery basket
10. Salt dispenser
11. Upper basket track latch
12. Turbo Drying Unit: This system
enhances the drying performance of your
dishes.
13. Interior Light (Four spot): Provides
illumination inside the dishwasher with four
light sources from three surface, helping
with loading and unloading.
3.2 
Capacity 15 place
settings
Dimensions
Height
Width
Depth
820-870 (mm)
598 (mm)
570 (mm)
Net weight 39 kg
Operating

frequency
220-240V
50 Hz
Total current 10(A)
Total power 1900(W)
Water supply
pressure
Maximum:
1 (Mpa)
Minimum:
0.03 (Mpa)
13
13 13

EN - 9
RECYCLING
• Some machine components and
packaging consist of recyclable
materials.
• Plastics are marked with the
international abbreviations:(>PE<,
>PP<, etc. )
• The cardboard parts consist of recycled
paper. They can be put into waste
paper containers for recycling.
• Material unsuitable for domestic waste
must be disposed of at recycling
centres.
• Contact a relevant recycling centre to
obtain information about disposal of
different materials.
PACKAGING AND THE ENVIRONMENT
• Packaging materials protect your
machine from damage that may occur
during transportation. The packaging
materials are environmentally friendly
as they are recyclable. The use of
recycled material reduces raw material
consumption and therefore decreases
waste production.
CE Declaration of Conformity
We declare that our products meet the
applicable European Directives, Decisions
and Regulations and the requirements
listed in the standards referenced.
Disposal of Your Old Machine
The symbol on the product or
on its packaging indicates that
this product may not be treated
as household waste. Instead, it
shall be taken to the applicable
collection point for the recycling
of electrical and electronic
equipment. By ensuring
this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling this product, please contact
your local city office, your household waste
disposal service or the shop where the
product was purchased.

EN - 10
4 BEFORE USING THE
APPLIANCE
4.1 Preparing Your Dishwasher For First
Use
• Make sure the electricity and supply

indicated in the installation instructions
for the machine.
• Remove all packaging material inside the
machine.
• Set the water softener level.
• Fill the rinse aid compartment..
4.2 Salt Usage (IF AVAILABLE)
For a good washing function, the
dishwasher needs soft, i.e. less calcareous
water. Otherwise, White lime residues
will remain on the dishes and the interior
󰀨
machine’s washing, drying and shining

the softener system, the ions forming the
hardness are removed from the water and
the water reaches the softness required to
obtain the best washing result. Depending

water, these ions that harden the water
accumulate rapidly inside the softener
system. Therefore, the softener system
has to be refreshed so that it operates with
the same performance also during the next
wash. For this purpose, dishwasher salt is
used.
Machine can only be used by special
dishwasher salt to soften the water. Do not
use any small grained or powdered type
of salts which can easily soluble. Using
any other type of salt can damage your
machine.
4.3 Fill The Salt (IF AVAILABLE)
To add softener salt, open the salt
compartment cap by turning it counter
clockwise. (1) (2)
compartment with 1 kg salt and water (3)

using a funnel (4)
Replace the cap and close it. After every
20-30 Cycles add salt into your machine

3 4
1 2
SALT
Only add water to the salt compartment


use in dishwashers.
When you start your dishwasher, the salt

put the softener salt in prior to starting your
machine.

do not start the machine immediately, run
a short washing program to protect your
machine against corrosion.

EN - 11

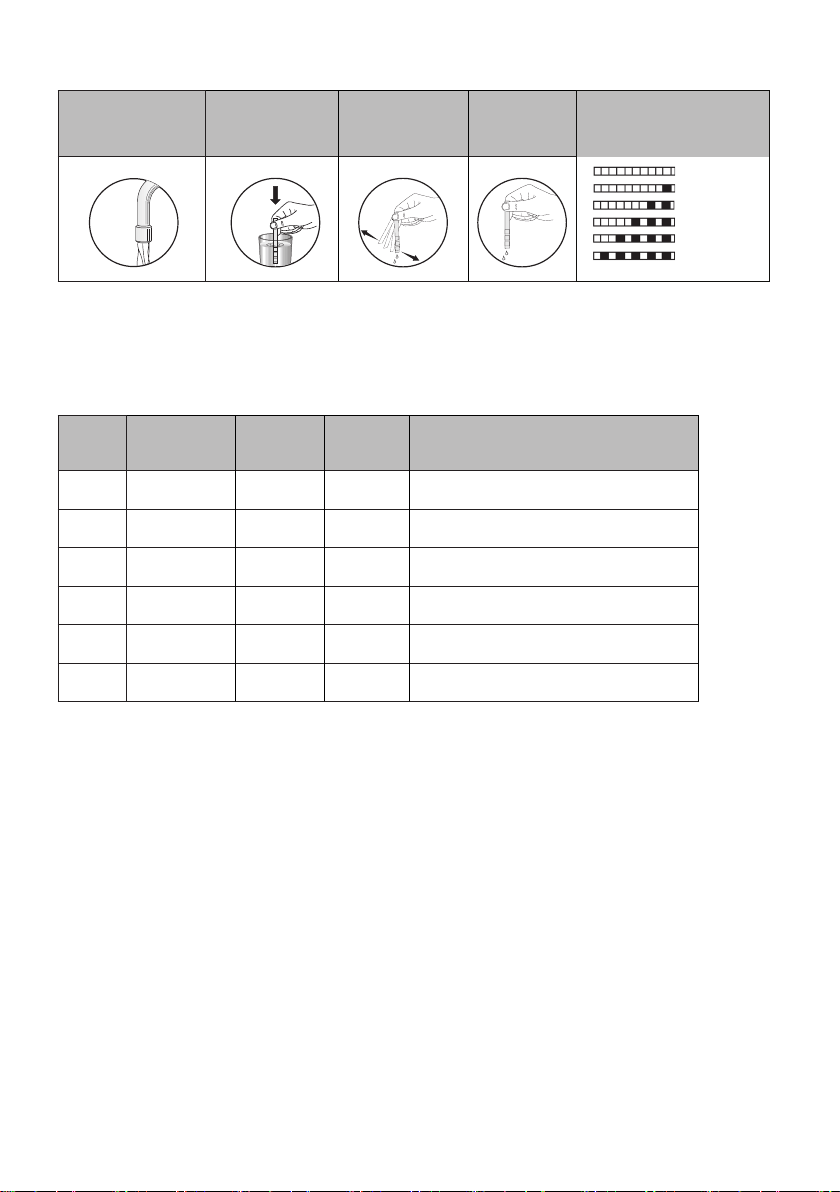

4.4 Test Strip
Run water through
the tap (1min.)
Keep the strip in
the water (1sec) Shake the strip. Wait (1min.) Set the hardness level of your machine.
1
2
3
4
5
6
1
1
second
1
NOTE: The factory hardness level setting is “3”. If the water is well water or has a

4.5 Water Hardness Table
Level German dH French
dF
British
dE Indicator
1 0-5 0-9 0-6 L1 is shown on the display.
2 6-11 10-20 7-14 L2 is shown on the display.
3 12-17 21-30 15-21 L3 is shown on the display.
4 18-22 31-40 22-28 L4 is shown on the display.
5 23-31 41-55 29-39 L5 is shown on the display.
6 32-50 56-90 40-63 L6 is shown on the display.
4.6 Water Softener System
The dishwasher is equipped with a water softener which reduces the hardness in the

company or use the test strip (if available).
4.7 Setting
In order to change the salt level, follow the below steps:
• Touch the programme button and hold it down.
• Turn on the machine.
• Hold down the Programme button until “SL” disappears.
• The machine will display the last setting.
• Set the level by touching the Programme button.
•󰀨
4.8 Detergent Usage

minute
in

EN - 12
cool, dry places out of reach of children.
Add the proper detergent for the selected
program to ensure the best performance.
The amount of detergent needed depends
on the cycle, load size, and soil level of
dishes.

compartment more than required; otherwise
you can see whitish streaks or bluish layers
on glass and dishes and may cause glass
corrosion. Continued use of too much
detergent may cause machine damage.
Using little detergent can result in
poor cleaning and you can see whitish
streaksin hard water. See the detergent
manufacturer’s instructions for a further
information.
4.9 Filling The Detergent
Push the latch to open the dispenser and
pour in the detergent.
Close the lid and press it until it locks in

before the start of each programme. If the
dishes are heavily soiled, place additional
detergent in the pre-wash detergent
chamber.
DETERGENT
4.10 Using Combined Detergents
These products should be used according
to the manufacturer’s instructions.
Never put combined detergents into the
interior section or the cutlery basket.
Combined detergents contain not only
the detergent but also rinse-aid, salt
replacement substances and additional
components depending on the combination.
We recommend you do not use combined
detergents in short programmes.
Please use powder detergents in such
programmes.
If you encounter problems when using
combined detergents, please contact the
detergent manufacturer.
When you stop using combined detergents,
make sure that water hardness and rinse
aid settings are set to the correct level.
4.11 Rinse-aid Usage
The rinse aid helps to dry the dishes
without streaks and stains. Rinse-aid is
required for stain-free utensils and clear
glasses. The rinse aid is automatically
released during the hot rinse phase. If
rinse aid dosage setting set too low, whitish
stains remains on dishes and dishes do not
dry and washed clean. If rinse aid dosage
setting set too height, you can see bluish
layers on glass and dishes.
4.12 Filling The Rinse-aid And Setting

the rinse-aid compartment cap. Fill the
compartment with rinse aid to the MAX
level and then close the cap. Be careful not

wipe up any spills.
In order to change the rinse aid level,
follow the below steps:
• Touch the programme button and hold it
down.
• Turn on the machine.
• Hold down the Programme button until
“rA” disappears. Rinse aid setting follows
water hardness setting.
• The machine will display the last setting.
• Change the level by touching the
programme button.
•󰀨
The factory rinse aid level setting is “4”.
If the dishes are not drying properly or are
spotted, increase the level. If blue stains
form on your dishes, decrease the level.

EN - 13
Level Brightener Dose Indicator
1 Rinse-aid not
dispensed
r1 is shown on the
display
2 1 dose is
dispensed
r2 is shown on the
display
3 2 doses are
dispensed
r3 is shown on the
display.
4 3 doses are
dispensed
r4 is shown on the
display.
5 4 doses are
dispensed
r5 is shown on the
display.

EN - 14
5 LOADING YOUR DISHWASHER
For best results, follow these loading
guidelines.
Loading the household dishwasher up to the
capacity indicated by the manufacturer will
contribute to energy and water savings.
Manual pre-rinsing of tableware items leads
to increased water and energy consumption
and is not recommended You can place
cups, glasses, stemware, small plates,
bowls, etc. in upper basket. Do not lean long
glasses against one another or they cannot
remain steady and may receive damage.
When placing long stem glasses and
goblets, lean them against the basket edge
or rack and not against other items.
Place all containers such as cups, glasses
and pots into the dishwasher with the
opening facing downwards otherwise water
can collect on items.
If there is cutlery basket in machine, you
are recommended to use the cutlery grid
in order to obtain the best result. Place all
large (pots, pans, lids, plates, bowls etc.)
and very dirty items in the lower rack.
Dishes and cutlery should not be placed
above each other.
WARNING: Take care not to obstruct
the rotation of spray arms.
WARNING:Make sure after loading
the dishes do not prevent opening the
detergent dispenser.
5.1 Recommendations
Remove any coarse residue on dishes
before placing the dishes in the machine.
Start the machine with full load.
Do not overload the drawers or place
dishes in the wrong basket.
WARNING: To avoid any possible
injuries, place long-handle and sharp-
pointed knives with their sharp points facing
down or horizontally on the baskets.

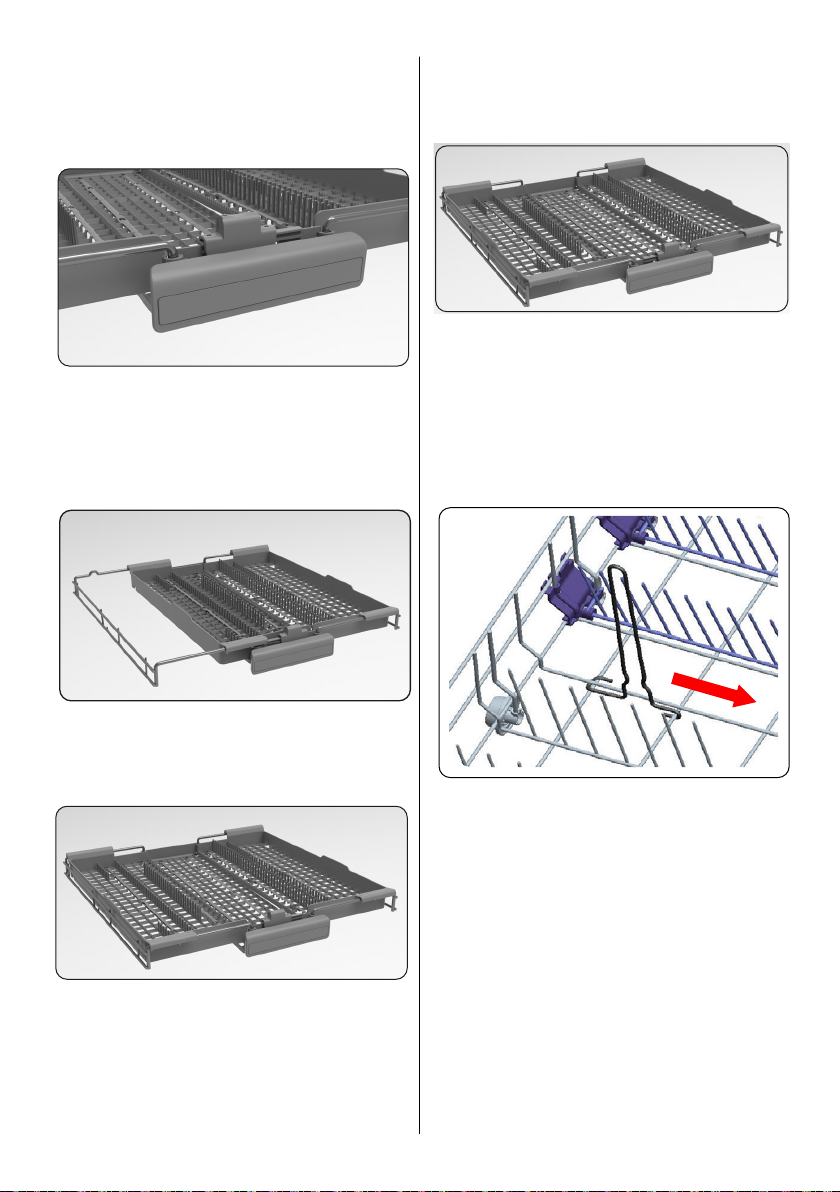

Four Folding Racks (15 pc)
The folding racks allow easier placement of
larger items, such as pots and pans. Each
section can be folded separately. The racks
can be raised up, or folded down, as shown
in the images.
1
2

EN - 15
Upper Basket Height Adjustment When
Full
The upper basket includes a mechanism
that allows the height of the basket to
be adjusted to the upper (1), lower (2)
or middle (3) position without having to
remove the basket. Grasp the basket on
both sides and pull it up or down, ensuring
that both sides of the upper basket are in
the same position.
1
2
3
Height Adjustable Rack (peg type)
The height adjustable racks enable glasses
and cups to be placed on or under the
racks. The racks can be adjusted to 2
󰀨
also be placed on the racks horizontally.
1
2

EN - 16
Upper Cutlery Basket








The middle part of the upper basket can
be movable down and up to obtain more
space.
WARNING: Knives and other sharp objects
must be placed horizontally in the cutlery
basket.
Bottle Rack
The bottle rack can be used to wash large
open containers, such as bowls, pans, or
tupperware, as well as items that are tall,
such as jugs. The bottle rack can be pulled
out in the direction of the arrow, as shown
below.

EN - 17

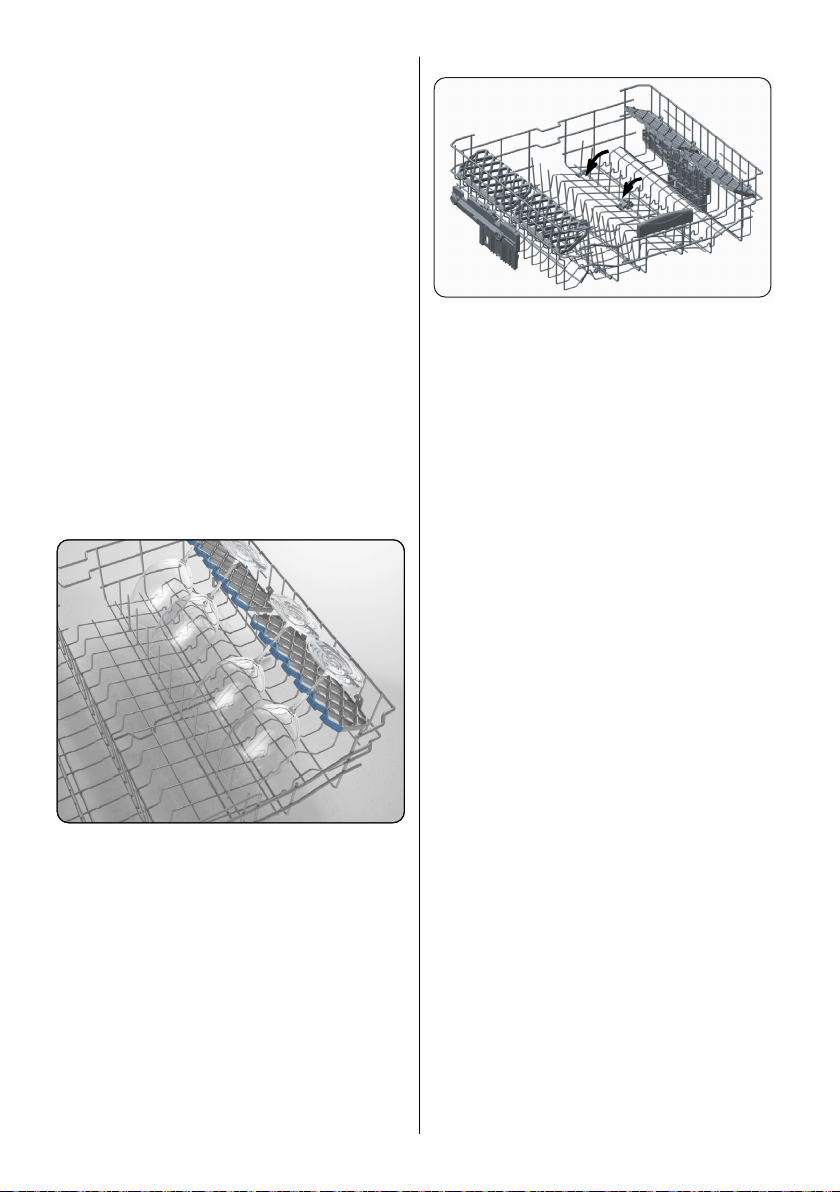

SOFT TOUCH
Top basket

These racks are designed to increase
the capacity of the top basket. You can
place your glasses and cups on the racks.
You can adjust the height of these racks.
Thanks to this feature, you can place
󰀨
these racks.
Thanks to height adjustment plastics
mounted on the basket, you can use your
󰀨
can place long forks, knives and spoons
on these racks laterally, so that they do not
block the revolution of propeller.
The soft touch feature on the racks serves

The wineglass is placed in the area shown
at the picture.
Foldable racks
Foldable racks on the upper basket are


each part can be folded separately, or all of
them can be folded and larger spaces can


