CYP CH-2606RX User manual

CH-2606RX
HDBaseT to HDMI/USB Receiver
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in
use to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2019/04/25 Preliminary release

CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................1
4. System Requirements......................................2
5. Features............................................................2
6. Operation Controls and Functions.................3
6.1 Front Panel ................................................. 3
6.2 Rear Panel.................................................. 4
6.3 IR Cable Pinouts ........................................ 5
6.4 RS-232 Pinout and Defaults ...................... 5
7. Connection Diagram ......................................6
8. Specications ..................................................7
8.1 Technical Specications .......................... 7
8.2 Video Specications................................. 8
8.3 Audio Specications............................... 10
8.3.1 Digital Audio................................... 10
8.3.2 Analog Audio ................................. 10
8.4 Cable Specications .............................. 11
8.5 HDBaseT Features.................................... 12
9. Acronyms .......................................................13

1
1. INTRODUCTION
This HDBaseT 2.0 Receiver is a great solution for receiving
uncompressed HD audio and video as well as Ethernet and control via
a single run of Cat.5e/6/7 cable over distances of up to 100 meters.
Multiple data and control signal types are supported, including USB 2.0,
IR, RS-232 and LAN connections. An independent balanced analog
stereo audio output is also provided to support easy audio signal
extension from compatible Transmitters. The HDBaseT input supports
receiving resolutions up to a maximum of 4K@30Hz (4:4:4, 8-bit) or
4K@60Hz (4:2:0, 8-bit) from a compatible HDBaseT Transmitter.
When paired with this unit’s standard Transmitter, 2 switchable USB 2.0
host (Type B) connections are available (1 on the Transmitter, 1 on the
Receiver) which can connect to devices on up to 6 USB 2.0 (Type A)
ports (3 on the Transmitter, 3 on the Receiver) forming a highly exible
KVM extension conguration (Note: Only 1 USB host may be active at
a time).
This Receiver (PSE) can provide PoH (Power over HDBaseT) power to
the connected HDBaseT Transmitter (PD) (compatible Transmitters
only), allowing for greater exibility within different installation
scenarios. This unit is controllable via a front panel button.
2. APPLICATIONS
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• 1× HDBaseT to HDMI/USB Receiver
• 1× 24V/2.7A DC Power Adapter
• 1× 3.5mm to IR Blaster Cable
• 1× 3.5mm to IR Extender cable
• 1× Shockproof Feet (Set of 4)
• 1× Operation Manual

2
4. SYSTEM REQUIREMENTS
• HDMI receiving equipment such as an HDTV, monitor or audio
amplier.
• A compatible HDBaseT 2.0 Transmitter with PoH (PD) support is
recommended.
• The use of Premium High Speed HDMI cables, and industry standard
Cat.6, Cat.6a or Cat.7, is highly recommended.
5. FEATURES
• HDMI 2.0 and DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• HDBaseT 2.0 compatible
• 1 HDBaseT input and 1 HDMI output
• 3 USB 2.0 Type A ports and 1 USB 2.0 Type B port
• Supports HDBaseT input resolutions up to 4K@60Hz (4:2:0, 8-bit)
• HDMI output supports resolutions up to 4K@60Hz (4:2:0, 8-bit)
• HDBaseT input receives video, audio, and data over a single
Cat.5e/6/7 cable and can reach distances up to 100m/230ft at 4K
when using Cat.6a/7
• HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet,
PoH (PSE), and control (bi-directional IR/RS-232/USB 2.0)
• Supports CEC bypass
• Supports pass-through of audio formats including LPCM (up to 8
channels), Bitstream and HD Bitstream from HDMI sources
• Reception of independent analog stereo audio extension
• Flexible USB host selection using the front panel button
Note: Multiple USB hosts may be connected at once (up to 2 total,
between the Tx and a compatible Rx unit) with a single selected
host active at a time
• Supports local power, or power via PoH from Receiver (PSE) to
Transmitter (PD) (compatible Receivers only)
• Controllable via a front panel button

3
6. OPERATION CONTROLS AND FUNCTIONS

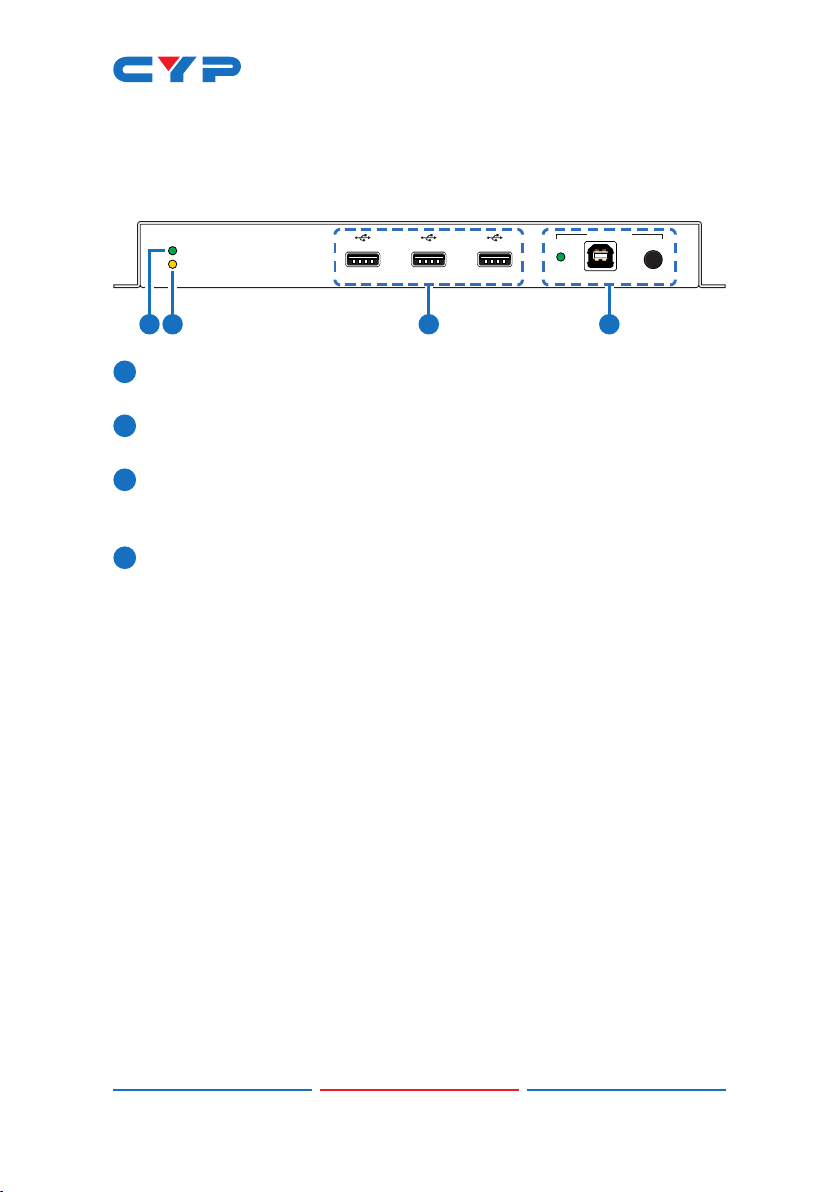

6.1 Front Panel
USB SELECT
POWER
LINK
1 2 3 4
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2LINK LED: This LED will illuminate solidly when a live connection with
a compatible Transmitter is active.
3USB 2.0 (Type A) Ports: Connect directly to standard USB 2.0
peripherals such as a mouse, keyboard or ash drive to extend
their USB functionality to the designated Host Port.
4USB SELECT Button & LED: Press this button to toggle between the
USB Host Ports on the Receiver or compatible Transmitter. The LED
will illuminate to indicate which USB Host Port is currently active.
If the LED is off, the USB Host Port on the connected Transmitter is
active.
Note: Changing the USB host will force the HDBaseT connection
to briefly disconnect while it reconfigures. The connected host
(PC, laptop, etc.) may also take a moment to detect all available
devices.
USB 2.0 (Type B) Port: Connect directly to a standard USB host such
as a PC or laptop to extend its USB functionality to all currently
connected USB devices.
Note: Multiple USB hosts may be connected at once (up to 2 total,
between the Tx and a compatible Rx unit) with a single selected
host active at a time

4

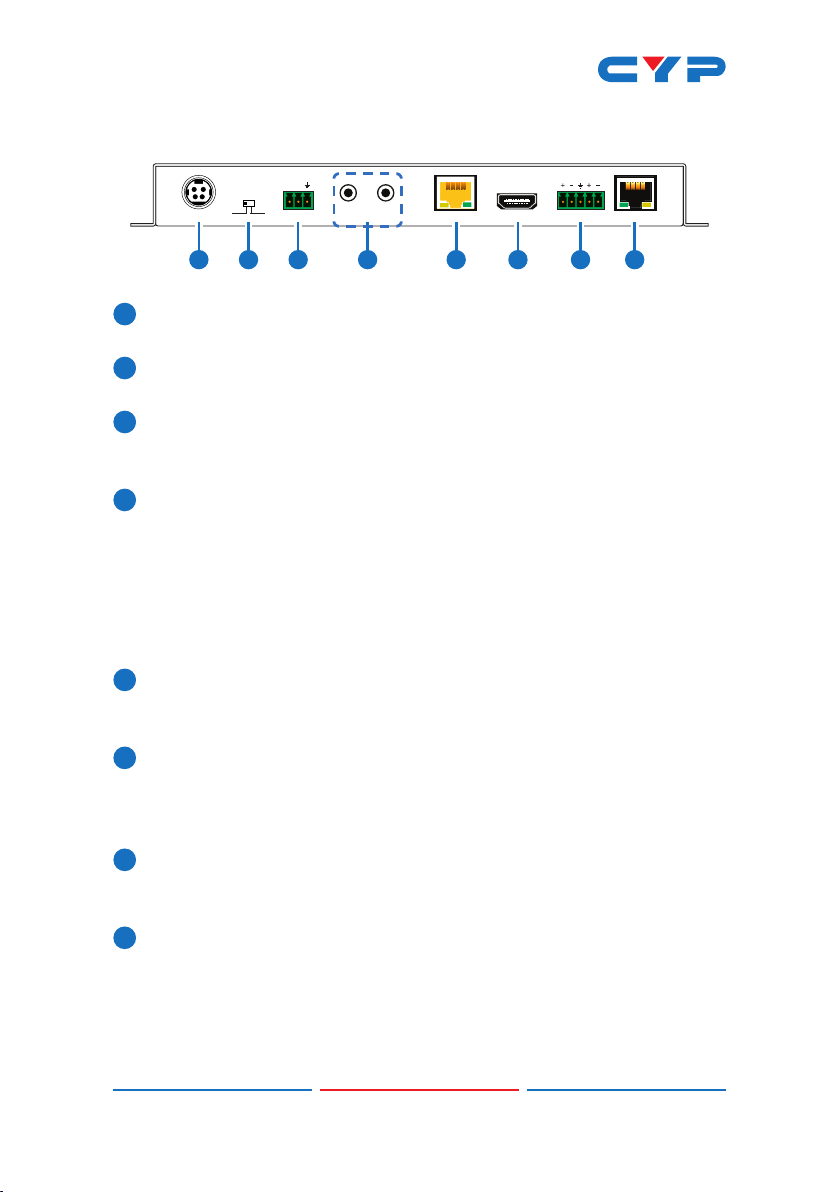

6.2 Rear Panel
LANANALOG OUTHDMI OUTCAT 5e/6/7 INIR INIR OUTSERVICEDC 24V
ON OFF
TXRX
BYPASS LR
RS-232
1 2 3 4 5 6 7 8
1DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power.
2SERVICE Switch: This switch is reserved for factory use only. The
default setting is “OFF”.
3BYPASS RS-232 Terminal Block: Connect to a PC, laptop, or serial
controllable device with a 3-pin adapter cable for the extension of
RS-232 signals between both ends of the HDBaseT connection.
4IR OUT Port: Connect to the provided IR Blaster to transmit IR signals
from the other end of the HDBaseT connection to devices within
direct line-of-sight of the IR Blaster.
IR IN Port: Connect to the provided IR Extender to receive IR
control signals and extend them to devices connected to the
other end of the HDBaseT connection. Ensure that the remote
being used is within direct line-of-sight of the IR Extender.
5CAT 5e/6/7 IN Port: Connect to a compatible HDBaseT Transmitter
with a single Cat.5e/6/7 cable for reception of all data signals. PoH
will also be supplied to a connected compatible PD Transmitter.
6ANALOG OUT Terminal Block: Connect to powered speakers or an
amplier for balanced analog stereo audio output. This will output
the independent audio channel sent by compatible HDBaseT
Transmitters.
7LAN Port: Connect to an Ethernet supporting device or to your
local network, as appropriate, to extend the network to both ends
of the HDBaseT connection.
8LAN Port: Connect to an Ethernet supporting device or to your
local network, as appropriate, to extend the network to both ends
of the HDBaseT connection.

5
6.3 IR Cable Pinouts
IR Blaster
Cabl
e
1
2
3
Infrared
Power
Not U
sed
IR Extender
Cabl
e
1
2
3
Infr
ared
Power
Ground
6.4 RS-232 Pinout and Defaults
1
2
3
RxD
GND
TxD
3-pin
Terminal Block

6

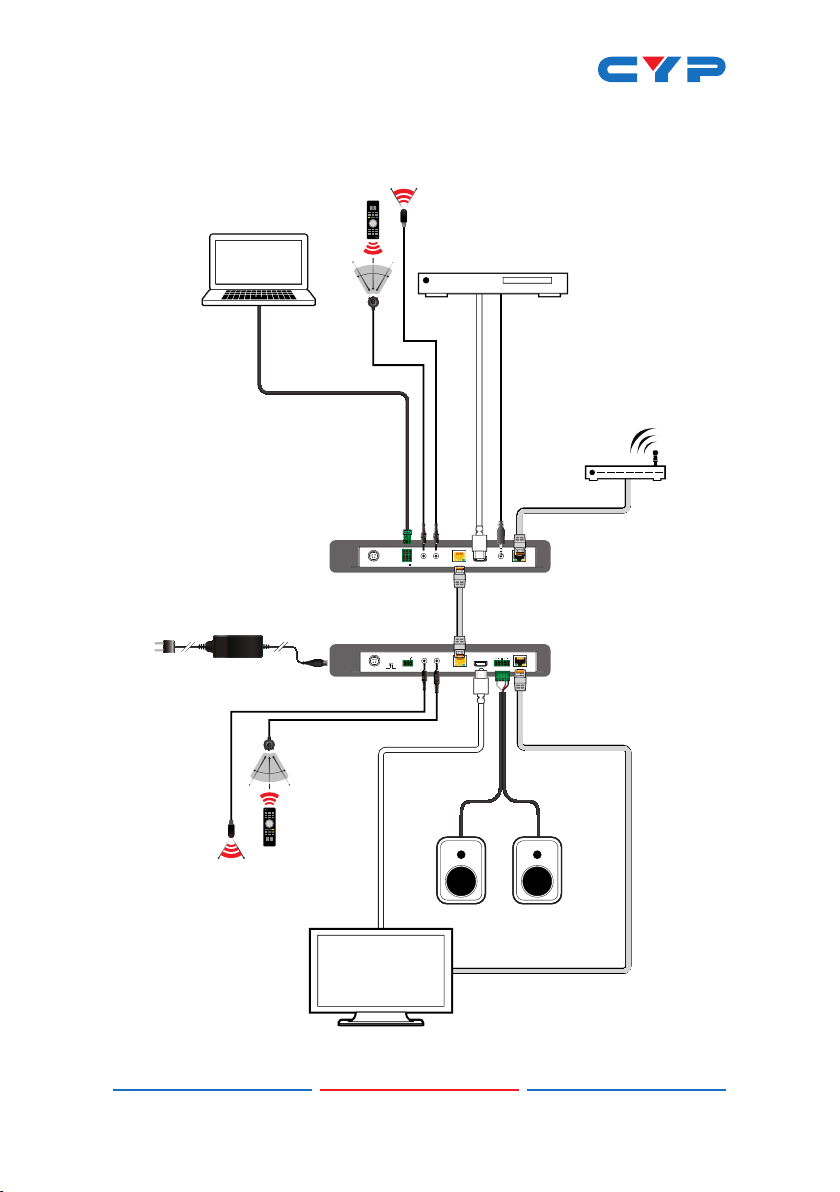

7. CONNECTION DIAGRAM
LAN
TX
RX
LOCAL
RS-232
L/R IN LANHDMI INCAT 5e/6/7 OUTIR OUTIR INDC 24V TXRX
BYPASS
RS-232
LANANALOG OUTHDMIOUTCAT 5e/6/7 INIR INIR OUTSERVICEDC 24V
ON OFF
TXRX
BYPASS LR
RS-232
7m3m 3m
60°
1.5m
60°
7m3m 3m
60°
1.5m
60°
Audio
Input
HDMI
Input
HDMI
Output
Smart TV
Powered
Speakers
LAN
PC
Media Player

7
8. SPECIFICATIONS
8.1 Technical Specications
HDMI Bandwidth 10.2Gbps
HDBaseT Bandwidth 10.2Gbps
Input Ports 1×HDBaseT (RJ-45)
Output Ports 1×HDMI (Type-A)
1×Stereo Audio (5-pin Terminal Block)
Pass-through Ports 1×IR Extender (3.5mm)
1×IR Blaster (3.5mm)
3×USB 2.0 (Type A)
1×USB 2.0 (Type B)
1×RS-232 (3-pin Terminal Block)
1×LAN (RJ-45)
IR Frequency 30 – 50kHz
(30 – 60kHz under ideal conditions)
Baud Rate Up to 115200
Power Supply 24V/2.7A DC
(US/EU standards, CE/FCC/UL certied)
ESD Protection (HBM) ±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions (W×H×D) 231.5mm×25mm×108mm [Case Only]
231.5mm×25mm×110mm [All Inclusive]
Weight 647g
Chassis Material Metal (Steel)
Chassis Color Black
Operating Temperature 0˚C – 40˚C/32˚F – 104˚F
Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity 20 – 90% RH (Non-condensing)
Power Consumption 40.44W

8
8.2 Video Specications
Supported Resolutions (Hz)
Input Output
HDBaseT HDMI
720×400p@70/85  
640×480p@60/72/75/85  
720×480i@60  
720×480p@60  
720×576i@50  
720×576p@50  
800×600p@56/60/72/75/85  
848×480p@60  
1024×768p@60/70/75/85  
1152×864p@75  
1280×720p@50/60  
1280×768p@60/75/85  
1280×800p@60/75/85  
1280×960p@60/85  
1280×1024p@60/75/85  
1360×768p@60  
1366×768p@60  
1400×1050p@60  
1440×900p@60/75  
1600×900p@60RB  
1600×1200p@60  
1680×1050p@60  
1920×1080i@50/60  
1920×1080p@24/25/30  
1920×1080p@50/60  

9
Supported Resolutions (Hz)
Input Output
HDBaseT HDMI
1920×1200p@60RB  
2560×1440p@60RB  
2560×1600p@60RB  
2048×1080p@24/25/30  
2048×1080p@50/60  
3840×2160p@24/25/30  
3840×2160p@50/60 (4:2:0)  
3840×2160p@24, HDR10  
3840×2160p@50/60 (4:2:0), HDR10  
3840×2160p@50/60  
4096×2160p@24/25/30  
4096×2160p@50/60 (4:2:0)  
4096×2160p@24, HDR10  
4096×2160p@50/60 (4:2:0), HDR10  
4096×2160p@50/60  

10
8.3 Audio Specications
8.3.1 Digital Audio
HDMI Input/Output
LPCM
Max Channels 8 Channels
Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192
Bitstream
Supported Formats Standard & High-Denition
8.3.2 Analog Audio
Analog Output
Max Audio Level 1Vrms
THD+N < −80dB@0dBFS 1kHz (A-wt)
SNR > 80dB@0dBFS
Frequency Response < ±1dB@20Hz~20kHz
Crosstalk < −80dB@10kHz
Impedance 470Ω
Type Balanced

11
8.4 Cable Specications
Cable Length
1080p 4K30 4K60
8-bit 12-bit
(4:4:4)
8-bit
(4:4:4)
8-bit
High Speed HDMI Cable
HDMI Output 15m 10m 5m 
Ethernet Cable
Cat.5e/6 100m 90m 
Cat.6a/7 100m 100m 
Bandwidth Category Examples:
• 1080p (FHD Video)
- Up to 1080p@60Hz, 12-bit color
- Data rates lower than 5.3Gbps or below 225MHz TMDS clock
• 4K30 (UHD Video)
- 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit color
- Data rates higher than 5.3Gbps or above 225MHz TMDS clock but
below 10.2Gbps
• 4K60 (UHD+ Video)
- 4K@50/60Hz (4:4:4, 8-bit)
- 4K@50/60Hz (4:2:0, 10-bit HDR)
- Data rates higher than 10.2Gbps

12
8.5 HDBaseT Features
HDBaseT Feature Set Receiver
Video & Audio Extension Supported
LAN Extension Supported
Send power to Transmitter Supported (PoH)
Accept power from Transmitter Unsupported
IR Extension Supported
RS-232 Extension Supported
USB 2.0 Extension Supported

13
9. ACRONYMS
ACRONYM COMPLETE TERM
AV Audio/Video
AVLC Adaptive Visually Lossless Compression
AVR Audio/Video Receiver or Recorder
Cat.5e Enhanced Category 5 cable
Cat.6 Category 6 cable
Cat.6a Augmented Category 6 cable
Cat.7 Category 7 cable
CEC Consumer Electronics Control
CLI Command-Line Interface
DAC Digital-to-Analog Converter
DVI Digital Visual Interface
EDID Extended Display Identication Data
HD High-Denition
HDBT HDBaseT
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDR High Dynamic Range
HDTV High-Denition Television
IR Infrared
KVM Keyboard/Video/Mouse
LAN Local Area Network
LED Light-Emitting Diode
LPCM Linear Pulse-Code Modulation
PC Personal Computer
PD Powered Device
PoH Power over HDBaseT
PSE Power Sourcing Equipment

14
ACRONYM COMPLETE TERM
SDTV Standard-Denition Television
UHD Ultra-High-Denition (10.2Gbps)
UHD+ Ultra-High-Denition Plus (18Gbps)
UHDTV Ultra-High-Denition Television
USB Universal Serial Bus
VGA Video Graphics Array
WUXGA (RB) Widescreen Ultra Extended Graphics Array
(Reduced Blanking)
XGA Extended Graphics Array

CYPRESS TECHNOLOGY CO., LTD.
www.cypress.com.tw
