Sky Sat Royal HD PVR Ready User manual

Full HD Digital Two Tuner
Receiver
Digital Innovation Life
User's Manual
Sky Sat Royal HD PVR READY
www.skysat.bg

www.skysat.bg

3
INDEX
INDEX..................................................................................................................................... 3
Precautions ........................................................................................................................... 5
1. Important Safety Instructions......................................................................................................5
2. Notice .........................................................................................................................................5
3. Copyright....................................................................................................................................6
4. Disclaimer...................................................................................................................................6
5. Trademarks ................................................................................................................................6
Before You Begin.................................................................................................................. 8
1. Main Features ............................................................................................................................8
2. Accessories..............................................................................................................................10
Hardware Description..........................................................................................................11

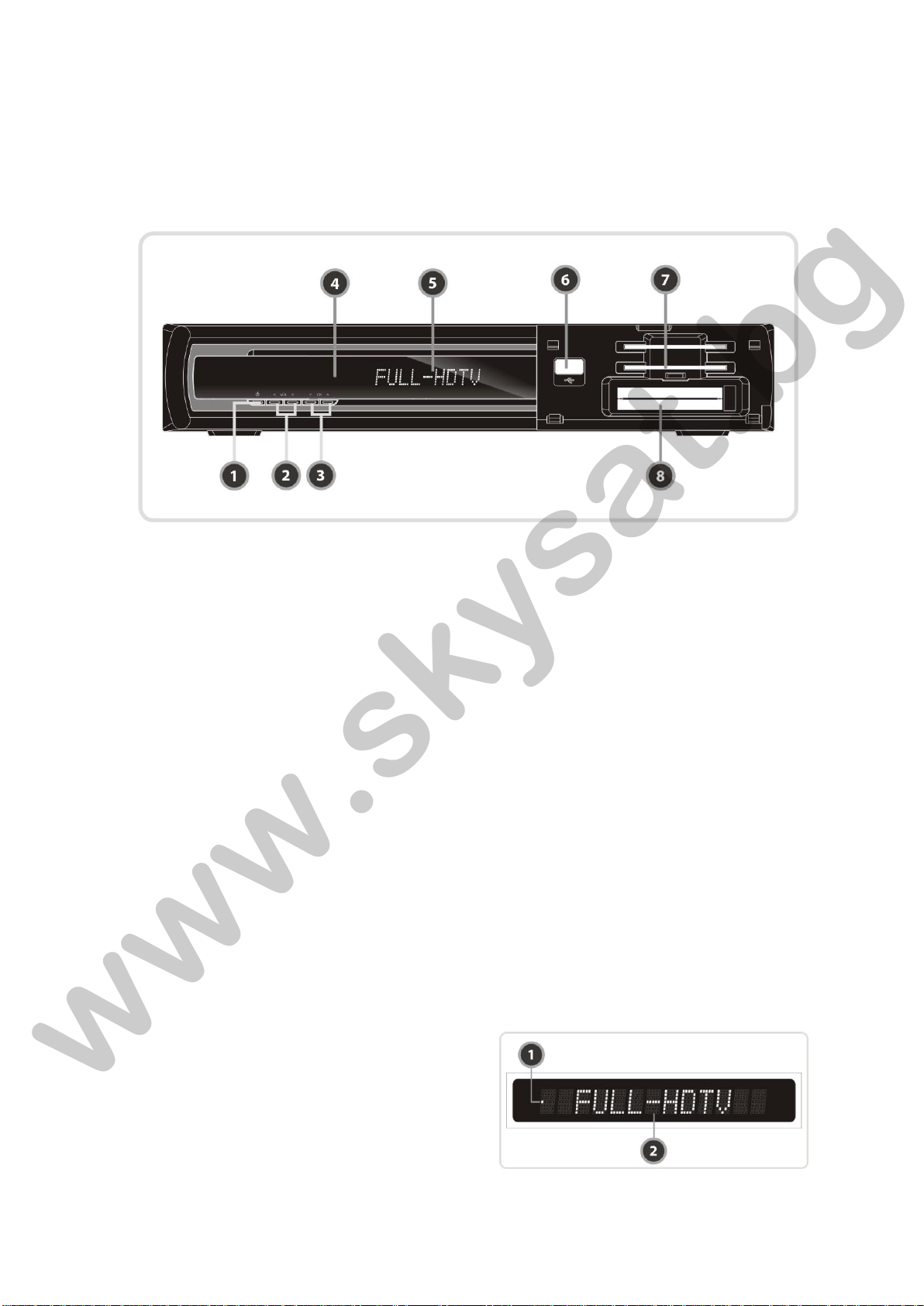

1. Front Panel Configuration ........................................................................................................11
2. VFD(Vacuum Fluorescent Display)..........................................................................................11

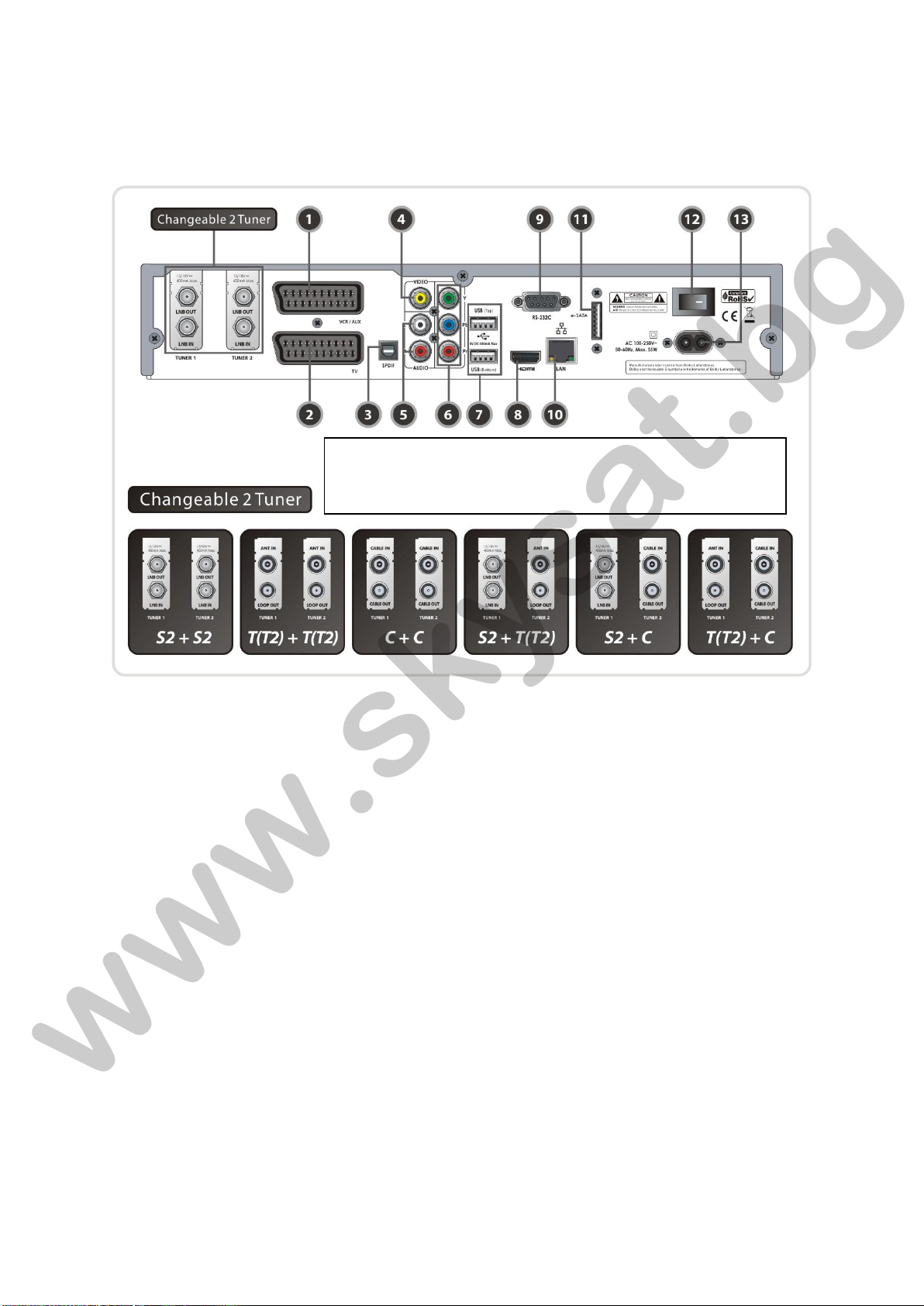

3. Rear Panel Configuration.........................................................................................................12

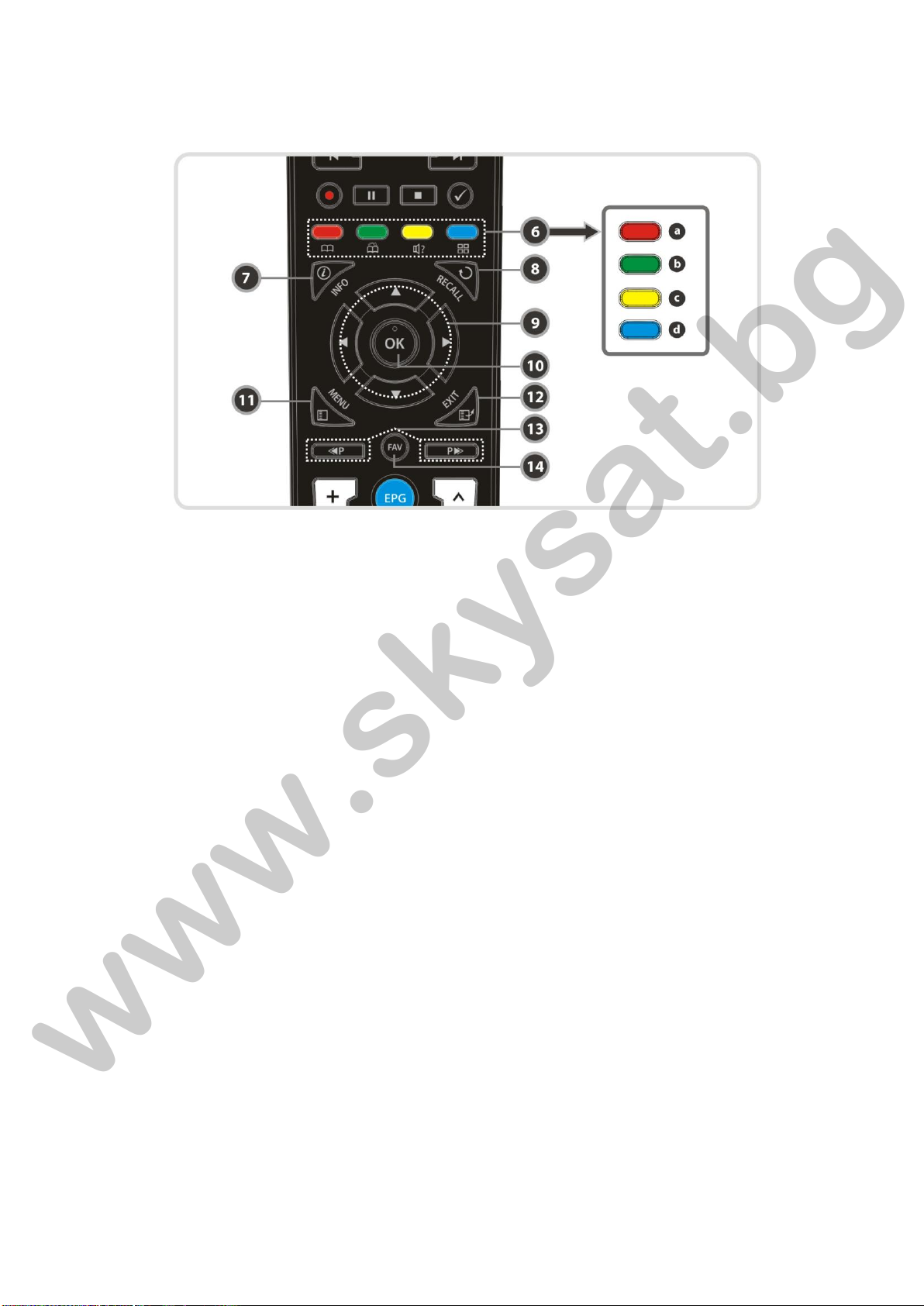

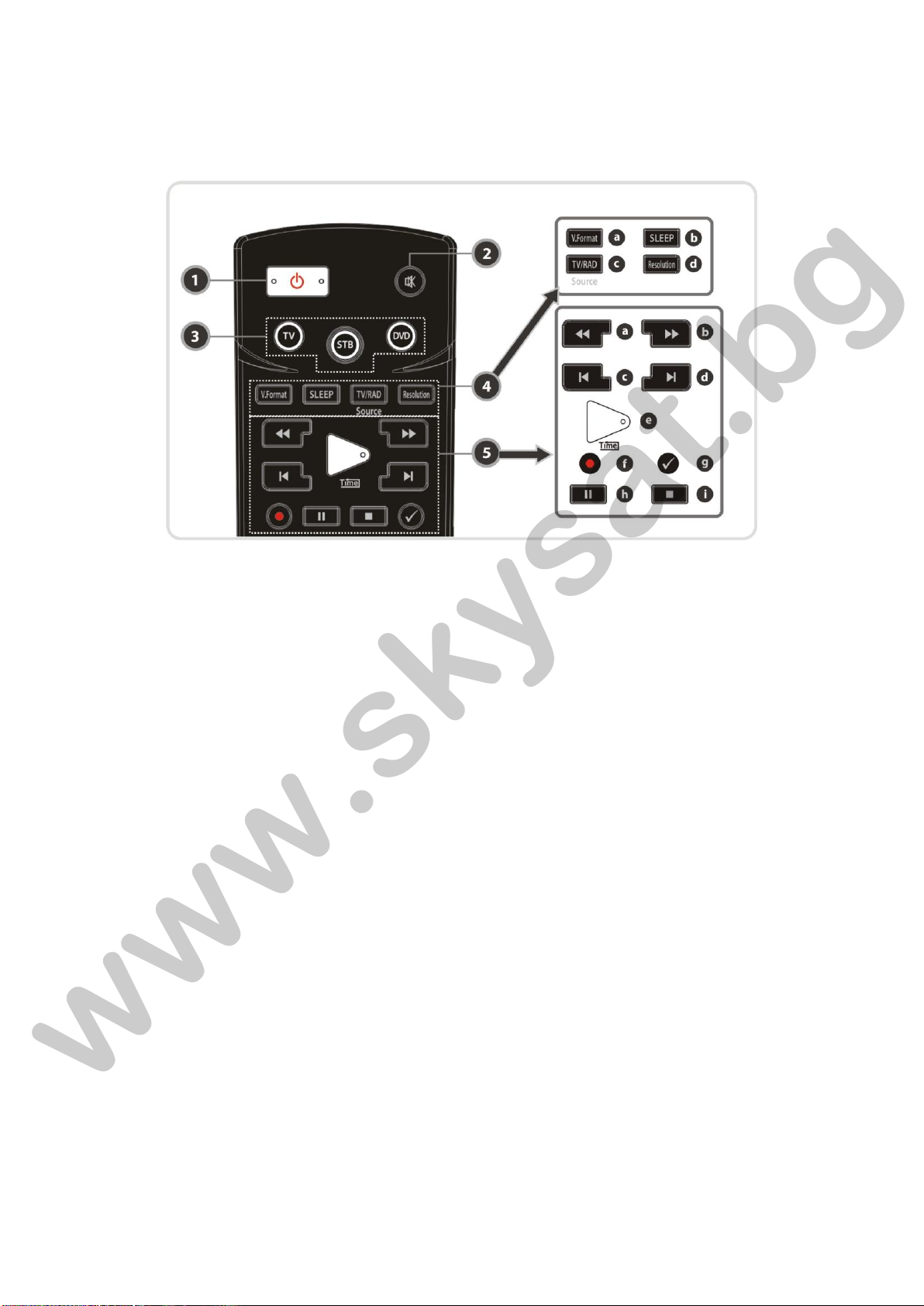

4. Remote Control Unit.................................................................................................................18
5. Multi-Brand IR Remote Controller Setting................................................................................23
Connecting diagram ........................................................................................................... 24
1. Receiver to A/C power..............................................................................................................24
2. Receiver to TV with Digital A/V Output.....................................................................................24
3. Receiver to TV withAnalog A/V Output....................................................................................26
4. Receiver to TV and VCR..........................................................................................................27
5. Connecting to Antenna Cable ..................................................................................................28
5.1 In case of S2 + S2 (Satellite + Satellite) tuners................................................................28
5.2 In case of T(T2) + T(T2) (Terrestrial + Terrestrial) tuners.................................................29
5.3 In case of C + C (Cable + Cable) tuners..........................................................................29

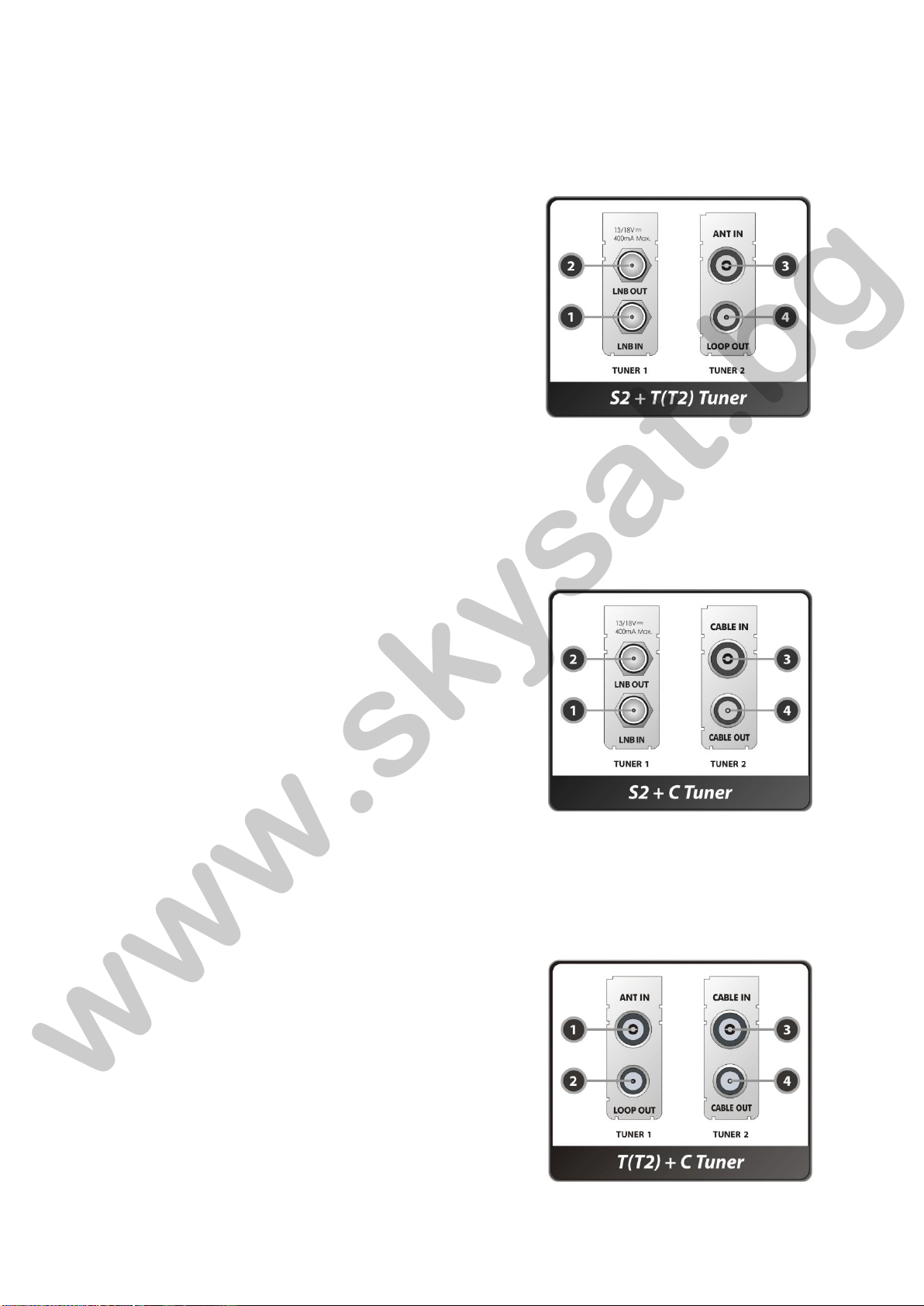

5.4 In case of S2 + T(T2) (Satellite + Terrestrial) tuners ........................................................30
5.5 In case of S2 + C (Satellite + Cable) tuners.....................................................................30
5.6 In case of T(T2) + C (Terrestrial + Cable) tuners..............................................................30
Guide of Functions ............................................................................................................. 31
1. Selecting a Service...................................................................................................................31
1.1 Using CH UP/DOWN buttons..............................................................................................31
1.2 Using Service List ...............................................................................................................31
1.3 Using Simple Service List ...................................................................................................31
1.4 Using Recent Service List...................................................................................................32
2. Information Window..................................................................................................................32
3. Multi-Picture Display.................................................................................................................32
4. Electronic Program Guide (EPG).............................................................................................32
5. Favorite Group .........................................................................................................................33
6. Volume Control.........................................................................................................................33
7. Pause .......................................................................................................................................33
8. Subtitle .....................................................................................................................................34
9. Audio Control............................................................................................................................34
10.Teletext.....................................................................................................................................35
11. PIP (Picture in Picture).............................................................................................................35
www.skysat.bg

4
PVR (Personal Video Recorder) Function ........................................................................ 37
1. Recording.................................................................................................................................37
1.1 Recording methods.............................................................................................................37
1.2 Recording Edit.....................................................................................................................39
1.3 Long Time recording ...........................................................................................................39
1.4 Pause during recording.......................................................................................................39
2. Time Shifting.............................................................................................................................41
3. Playback (Play List)..................................................................................................................42
3.1 Recorded Files....................................................................................................................42
3.2 Imported Files .....................................................................................................................43
3.3 Music...................................................................................................................................43
3.4 Photo...................................................................................................................................43
4. Bookmark.................................................................................................................................44
5. Trick mode................................................................................................................................45
Menu Map ............................................................................................................................ 46
Main Menu of Guide............................................................................................................ 47
1. System Tools............................................................................................................................47
1.1 Storage Manager.................................................................................................................47
1.2 Timer Settings.....................................................................................................................48
1.3 Service List Manager ..........................................................................................................48
1.4 Data Transfer.......................................................................................................................51
2. Configuration............................................................................................................................52
2.1 Recording Option................................................................................................................52
2.2 Parental Control ..................................................................................................................53
2.3 Display Setting....................................................................................................................53
2.4 Time Setting........................................................................................................................55
2.5 Language Setting................................................................................................................55
2.6 A/V Output Setting ..............................................................................................................56
3. Installation ................................................................................................................................57
3.1 Dish Setting.........................................................................................................................58
3.2 Positioner Setting................................................................................................................60
3.3 Service Search....................................................................................................................61
3.4 Network Setting...................................................................................................................65
3.5 System Recovery................................................................................................................66
3.6 System Information.............................................................................................................66
4. Utility.........................................................................................................................................67
4.1 Calculator............................................................................................................................67
4.2 Calendar..............................................................................................................................67
4.3 CAS (Conditional Access System)......................................................................................67
4.4 Plugin ..................................................................................................................................69
4.5 YouTube..............................................................................................................................70
Troubleshooting.................................................................................................................. 72
Specifications...................................................................................................................... 74
Code Table for Universal Remote Control Unit................................................................ 77
1. Key Table..................................................................................................................................77
2. TV Brands ................................................................................................................................79
3. VCR Brands .............................................................................................................................91
4. DVD Brands .............................................................................................................................98
www.skysat.bg

5
Precautions
1. Important Safety Instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not reverse the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or third prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
WARNING : To Prevent fire or shock hazard do not expose the set to rain or moisture.
2. Notice
These servicing instructions are for use by qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
