Cypher labs Algorhythm solo-r User manual

Uncompressed. Uncommon. Unlocked.

The AlgoRhythm Solo -R® delivers uncompressed, high quality audio from iPod®, iPhone® to

portable headphone ampliﬁers, or home audio systems.

Contents

About

Features

Technical

Made For

Connections

Q&A

Battery

Warranty Info

Easy to Carry:

The Cypher Labs AlgoRhythm Solo -R®is lightweight and compact for travel and consists

of an all aluminum body for maximum durability.

Portable Digital Audio from Apple Devices:

Customers will appreciate our award winning portable audio products designed to unlock

the high resolution features of the most popular digital music players from Apple.

Stylish:

Along with unrivaled sound quality and cutting-edge features, the AlgoRhythm Solo -R®

is streamlined pure audio functionality, featuring precision machined aluminum and clean

looking environmentally friendly packaging.

Leading Edge Technology:

We deliver high-resolution digital audio to your favorite audiophile equipment. Cypher Labs

products are engineered and manufactured to the highest standards, featuring state-of-

the-art processors, top of the line digital-to-analog converters, analog output stages, and

audiophile-grade components throughout. They are powered via lithium-polymer battery

technology for portability and clean DC power delivery. A built-in intelligent charging system

offers ease of use to our customers, high battery cycle life and easy battery replacement.

SOLO -dB

1 2www.cypherlabs.com

The Cypher Labs AlgoRhythm Solo -R® streams bit-perfect digital audio from Apple iPhone®

or iPod® devices to headphone ampliﬁers, powered speakers or home audio equipment.

Asynchronous conversion of the Apple USB output (not a “pass through”of the line-out)

Listen to high quality movie audio on your video capable Apple Device

Charge Apple Devices while playing

Long play time – up to14 hours – begin and end with a fully charged Apple iPhone®or iPod®

Full charge from AC power in under 4 hours

3.5mm (1/8”)analog stereo out to

ampliﬁer (line level)

RCA SPDIF out (to external DAC)

High end 24 bit DAC

Sample depth16 bit from Apple devices

Frequencies supported on Apple devices:

44.1 / 48.0 @ 16 bit

Li-polymer battery 5800mAh - AC

switching is totally isolated

Dimensions 112mm x 73mm x 22 mm

AC adapter input voltage 100 -240 volts;

50/60hz switching, output to Solo -R 9

volts 2 amps, tip positive, barrel plug

measures 2.1mm x 5.5mm

FEATURES

TECHNICAL

3 4www.facebook.com/cypherlabs

Newer devices coming on the market from Apple should also

work. Older devices, such as ﬁrst generation iTouch or older

video iPod devices may yield unexpected results. However,

behavior of Apple models not listed as supported may differ,

especially in older models. We recommend against using any

model older than those listed above.

DESIGNED FOR

5 6www.cypherlabs.com

How do I connect the AlgoRhythm Solo -R®to Apple Products?

Make sure to align the connection on the bottom of the iPod with the multi-pin metal

connector located on the included synch to USB cable. Do not force the iPod connection or

you may damage the multi-pin connector and damage your device. The USB end attaches to

the AlgoRhythm Solo -R.

CONNECTIONS

Can I attach the AlgoRhythm Solo -R®to my computer’s USB port and hear 24/192

quality music?

No, only to Apple devices. If you need dual source connectivity, purchase the AlgoRhythm

Solo -dB®.

How do I connect to Apple Products?

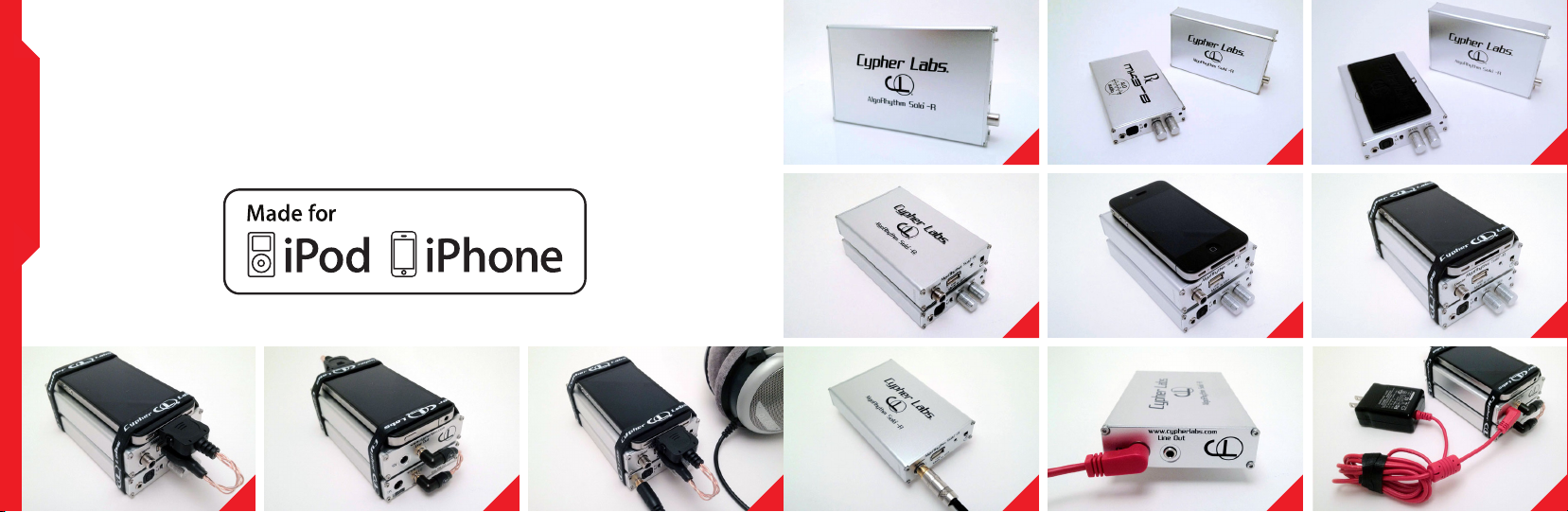

Stack your AlgoRhythm Solo -R® on the headphone ampliﬁer, with the included pad

separating them, then add your Apple device on the AlgoRhythm Solo -R. Add the straps to

bundle your devices. Add cables to complete the set up. Turn on the Apple device, the amp

and ﬁnally the AlgoRhythm Solo -R.

CONNECTIONS

1 2 3

4 5 6

11 1210987

How do I make the analog connection?

Connect your chosen 1/8” (3.5mm) cable to the AlgoRhythm Solo -R® analog line-level output

to the corresponding analog input on your headphone ampliﬁer, other analog input device.

Both analog and digital outputs work at the same time.

Make sure to align the connection on the bottom of the iPod with the multi-pin metal

connector located on the included synch to USB cable. Do not force the iPod connection or

you may damage the multi-pin connector and damage your device. The USB end attaches to

the AlgoRhythm Solo -R®. To remove the iPod from the Cypher Labs AlgoRhythm Solo -R®,

grasp the iPod and pull on the cable head.

Always make the connection in this order:

CONNECTIONS

Make sure the AlgoRhythm Solo -R® is turned off

Attach all cables, connect the USB cable to the

Apple device and to the AlgoRhythm Solo -R®

Turn on the Apple devices, if not already on

Turn on the AlgoRhythm Solo -R®

12www.facebook.com/cypherlabs

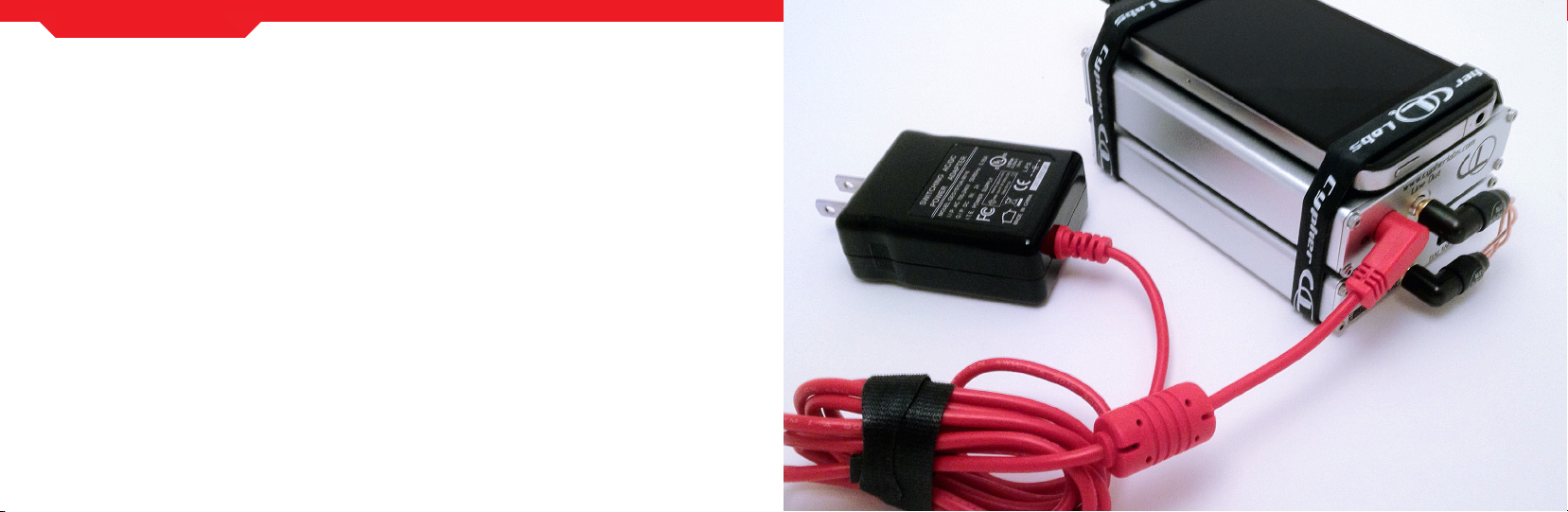

How do I connect the AlgoRhythm

Solo -dB to AC power?

Check to make sure that the power cord shipped

with your AlgoRhythm Solo -R® has been

manufactured for operation at your AC line voltage

or that you are using the proper plug adapter

for your country. Damage caused by improper

operation is not covered by Cypher Labs warranty.

How do I make the digital connection?

Connect your chosen cable from the S/PDIF Coaxial

Digital Audio output on the AlgoRhythm Solo –R®

to the corresponding digital input on your Digital

to Analog Converter, Digital A/V Receiver or Digital

Preamp/Processor. Both analog and digital outputs

work at the same time.

How do I reset my iPod if it locks up?

iPod – Toggle the Hold switch on and off (slide it to Hold, then turn it off again). Press and hold

the Menu and Select buttons until the Apple logo appears, about 6 to 10 seconds. You may need

to repeat this step. iPod touch – Press and hold the Sleep/Wake button and the Home button at

the same time until you see the Apple logo.

Why should I keep my iPod ﬁrmware up to date?

Make sure that your iPod ﬁrmware is up to date. You can make sure that your iPod ﬁrmware is up

to date when you sync your iPod with iTunes. Select “Check for Updates” in iTunes to make sure

that you have the latest ﬁrmware.

PRODUCT INFO

I want to play music without using an ampliﬁer. Can I do that?

Not really. The analog line level output volume is not adjustable. The line level out is best used

for delivering the audio stream to powered speakers or an ampliﬁer, either a headphone amp

or home amp.

13 www.cypherlabs.com

How should I clean my product?

Use a dry polishing cloth or a free cloth to wipe the exterior only. Be careful not to use water

or get any liquid inside the product. Solvents will damage the ﬁnish, do not use them.

15 PRODUCT INFO

What if the connection is not made after a few seconds?

When you dock your iPod, the AlgoRhythm Solo -R® ﬁrst initiates a handshake with

the iPod. Sometimes the cable connection is not complete or an application error has

occurred on the iPod. Try restarting the iPod and try the connection again. Make sure you

have attached your output cables to the correct input jack on your ampliﬁer or DAC.

How come I can’t hear my music immediately when I dock my iPod?

When you dock your iPod, the AlgoRhythm Solo -R® ﬁrst initiates a handshake with

the iPod and the iPod veriﬁes communication with the AlgoRhythm Solo -R. Once the

handshake has taken place, the AlgoRhythm Solo -R has access to the audio stored on your

Apple device and will stay synced until it is undocked. The communication usually takes

just a second or two. You will note the charging symbol on the Apple Device indicates it is

receiving power.

www.cypherlabs.com

How is the battery life of the iPod when using the AlgoRhythm Solo -R®?

As you know, batteries are ubiquitous and are long lasting these days, but power

management is complex. Even Apple forums are ﬁlled with comments and questions

about battery run times, life-span, etc. We all know that real world experience will vary

from theoretical or laboratory data. At the end of this section, we’ve included some

recommendations for getting the most out of your Apple and Cypher Labs batteries.

When beginning with a fully charged iPod or iPhone you should expect to get up to 14

hours of continuous play time, and at the end of the battery life your iPod or iPhone will

still be fully charged. If you begin with a less than fully charged iPod or iPhone then play

time will vary. The battery has a high capacity and recharges quickly. Apple device model,

OS version, temperature, altitude, age, type of ﬁle used, device settings, etc. all impact

power usage.

Apple Device USB output processing requires more power since it does not allow the

Apple Device to go into low power mode. This is overcome by providing a large capacity

battery to charge the Apple device while playing.

Always update to the latest

OS version from Apple

Turn off Wi-Fi

Turn off 3G (Wi-Fi + 3G model)

Use Airplane Mode (Wi-Fi + 3G model)

in low- or no-coverage areas

Minimize use of location services

Turn off push notiﬁcations

Fetch new data less frequently

Turn off push mail

Auto-check fewer email accounts

Use Auto-brightness, or in iPod Classic

models turn off backlighting

Set EQ to off

Set cover-ﬂow to off

Use the screen less frequently

Manage the use of downloaded applications

that prevent the screen from dimming

Lock your Apple device when not in use

Use Your Apple device regularly

For proper reporting of the battery’s state

of charge for both Apple and Cypher Labs

devices, go through at least one charge

cycle per month

Apple Lossless ﬁles should be used for

longest battery life, since they are the fastest

to decompress

Turn off the AlgoRhythm Solo -R®when not in use

These are settings you can adjust to minimize power consumption

See www.apple.com/batteries for more information.

The AlgoRhythm Solo -R® is battery powered. Can I replace the battery?

Yes, the battery connection is designed so that customers with reasonable knowledge of

electronics can replace the battery. The battery should last for many charge cycles, but

everything wears out over time. Contact us at [email protected] for warranty service

and product support.

BATTERY

Power switch indicators

On position (up):

Solid Blue = On

No LED = Battery depleted

Red LED = Battery low

Aqua = Charging

Off position (down)

No Light = Off

Solid Green = Charging

Purple = Charged

18www.facebook.com/cypherlabs

www.cypherlabs.com

CYPHER LABS is pleased to offer suggestions on the use of its various products. However, CYPHER LABS neither assumes responsibility for any omissions or errors

nor assumes liability for any damages that result from the use of its products in accordance with information provided by CYPHER LABS, either verbal or written.

CYPHER LABS warrants only that the parts manufactured by it will be as specified and free of defects.

Except as otherwise provided herein, no other warranties, expressed or implied, are made with respect to these products; including, but not limited to, any implied

warranty of merchantability or fitness for a particular purpose. CYPHER LABS, LLC assumes no liability for any damages, losses or expenses resulting directly or

indirectly from product use.

CYPHER LABS, LLC warrants our products to be free of defects in materials and workmanship for a period of

one (1) year from the date of purchase. Your warranty period will be measured from your date of purchase.

You must provide proof of purchase in the form of a purchase receipt, invoice or other valid purchase

document. We request that you contact us if you feel your product is not working properly. We can often

solve product issues by phone or e-mail, saving you the time and expense of returning the unit. If we require

you to return the product, contact us via email and we will issue a Return Authorization to expedite the

handling of your warranty claim. We will repair or replace any defective product or part when notiﬁed within

the warranty period, and will return the product via domestic ground shipping at no charge. The following

issues do not result from a manufacturing defect and are not covered under this warranty:

This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of being

damaged as a result of excessive corrosion; or current, heat, moisture or vibration; misapplication; misuse or other

operating conditions outside of CYPHER LABS’s control

Damage resulting from severe impact, crushing or mechanical harm

Normal wear and tear

Failed batteries

Any action of the purchaser, including but not limited to mishandling, operation outside of design limits, improper

repair, or unauthorized modiﬁcation

Components which wear are not warranted, including but not limited to contact points and fuses

WARRANTY

19 www.cypherlabs.com

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

“Made for iPod” and “Made for iPhone,” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been

certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory
