1. Introduction
The CY4521 EZ-PD™ CCG2 Evaluation Kit (EVK) is based on the CCG2 product family of Cypress’s USB Type-C
microcontrollers. This EVK is primarily intended to be an evaluation vehicle for USB Type-C host and client systems that
house a Type-C connector as well as for notebook applications. For USB Power Delivery (PD), the base board and daughter
card can be configured as a downstream facing port (DFP) or an upstream facing port (UFP). The kit also serves as a platform
to evaluate other features of Type-C such as SuperSpeed USB and DisplayPort data transfer.
1.1 Kit Contents
The CY4521 EZ-PD CCG2 EVK consists of the following contents:
CCG EVK Base Board
CY4521 CCG2 Daughter Card (mounted on the CCG EVK Base Board)
24-V DC 65 W Power Adapter (24 V, 2.7 A)
USB 3.0 Type-A to Type-B cable
USB Type-C to Type-A adapter
USB 2.0 Type-A to Mini-B Cable
Quick Start Guide
1.1.1 Hardware Not Included With Kit
The CY4521 EZ-PD CCG2 EVK does not come with all of the hardware needed to perform the demonstrations documented
in sections SuperSpeed USB Demo, DisplayPort Demo, SuperSpeed USB and DisplayPort Demo and Dead Battery Demo
of the Kit Operation chapter. The following items are not included:
SuperSpeed USB flash drive needed for the SuperSpeed USB Demo section.
DisplayPort cables needed for the DisplayPort Demo section. They are required to make connections from a PC to the
CCG EVK base board. If the PC has a mini-DisplayPort, then a mini-DisplayPort to DisplayPort cable will be required. If
the PC has a DisplayPort, then a DisplayPort to DisplayPort cable will be required. Recommended cables are listed in
Recommended Cables and Adapters section.
USB Type-C to DP/HDMI/VGA adapter and USB Type-C Multiport Adapter to connect a display monitor and a USB flash
drive to the CY4521 EZ-PD CCG2 EVK. Recommended adapters and cables needed for them to connect to monitors
are listed in Recommended Cables and Adapters section.

Introduction
CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 8
A digital multimeter to measure voltage for the Dead Battery Demo section. A standard multimeter is required to measure
the output voltage on the CCG EVK base board.
A USB Type-C Power Adapter for the Dead Battery Demo section
1.2 Getting Started
For instructions on how to runa quick demonstration and observe kit functionality, refer to the SuperSpeed USB Demo section.
That section also provides complete instructions on configuring the CCG EVK base board and CY4521 CCG2 daughter card.
1.3 List of Recommended Hardware
1.3.1 Recommended Cables and Adapters
See Table 1-1 to obtain a set of cables recommended to work with this kit –the cables that you need will depend on the
hardware you are connecting to the kit (i.e. the PC display output type and the monitor input type). This kit is not shipped with
these cables and adapters and they are required to run the DisplayPort Demo and Dead Battery Demo.
Table 1-1. List of Recommended Cables and Adapters
No.
Description
For Hardware
Manufacturer
MPN
Vendor Link
1
DisplayPort to DisplayPort Cable (6”, gold
plated)
PC with DisplayPort
Cable Matters
102005-6
Amazon Link
2
Mini DisplayPort to DisplayPort Cable (3”,
gold plated)
PC with Mini DisplayPort
Cable Matters
101007-BLACK-3
Amazon Link
3
Type-C to Display Port Adapter
Monitor with DisplayPort
Belinda
-
Amazon Link
4
Type-C to HDMI Adapter
Monitor with HDMI
Cable Matters
-
Amazon Link
5
Type-C to VGA Adapter
Monitor with VGA
Cable Matters
-
Amazon Link
6
Type-C Power Adapter that supports 9V or
above
All
Apple
-
Apple Store
Link
7
Type-C Multiport Adapter
Monitor with HDMI and USB
SuperSpeed flash drive
Apple
-
Apple Store
Link
Monitor with VGA and USB
SuperSpeed flash drive
Apple
Apple Store
Link
Monitor with HDMI and USB
SuperSpeed flash drive
Samsung
-
Amazon Link
Use item 1 or 2 in Table 1-1 to connect the PC’s DisplayPort or Mini-DisplayPort to the DisplayPort of CY4521 EZ-PD CCG2
EVK. Depending on the display monitor you have, use item 3, 4 or 5 in Table 1-1 to connect from the USB Type-C port of the
CY4521 EZ-PD CCG2 EVK to the display monitor itself. Use item 6 to run the Dead Battery Demo.
1.4 Acronyms
Table 1-2. Acronyms Used in this Document
Acronym
Definition
ADC
Analog-to-Digital Converter
CC
Configuration Channel
CCG
Cable Controller Generation
DFP
Downstream Facing Port
DP
DisplayPort
DRP
Dual Role Port

Introduction
CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 9
Acronym
Definition
EC
Embedded Controller
EMCA
Electronically Marked Cable Assembly
EMI
Electromagnetic Interference
ESD
Electrostatic Discharge
EVK
Evaluation Kit
FET
Field-Effect Transistor
GPIO
General-Purpose Input/Output
HID
Human Interface Device
HPD
Hot Plug Detect
IC
Integrated Circuit
I2C
Inter-Integrated Circuit
IDE
Integrated Development Environment
LED
Light-Emitting Diode
PMIC
Power Management Integrated Circuit
PS
Power Supply
PSoC®
Programmable Systems-on-Chip
PWM
Pulse-Width Modulation
QFN
Quad Flat No-lead (package)
SS
SuperSpeed
SWD
Serial Wire Debug
UART
Universal Asynchronous Receiver Transmitter
UFP
Upstream Facing Port
USB
Universal Serial Bus
USB-PD
Universal Serial Bus Power Delivery
XRES
External Reset I/O Pin

CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 10
2. Kit Installation
This chapter describes the procedure to install the CY4521 EZ-PD CCG2 EVK software.
2.1 CY4521 EZ-PD™CCG2 EVK Kit Software Installation
To install the kit software, follow these steps:
a. Download the latest kit software setup file “CY4521 EZ-PD CCG2 EVK Complete Setup” from the kit’s website:
www.cypress.com/CY4521. This package contains the kit hardware files, firmware binaries and the kit documentation
(User Guide, Quick Start Guide, and Release Notes). Double-click on the executable to start the installation. Click Next
when the screen shown in Figure 2-1 appears.
Figure 2-1. CY4521 EZ-PD CCG2 EVK Installer Screen
b. Select the required Installation Type and click Next to start the install (Figure 2-2). For first-time installation, it is
recommended that you select “Typical” as the Installation Type.

Kit Installation
CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 11
Figure 2-2. Installation Wizard
c. Accept the license agreement for the software components and click Next (Figure 2-3).
Figure 2-3. License Agreement

Kit Installation
CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 12

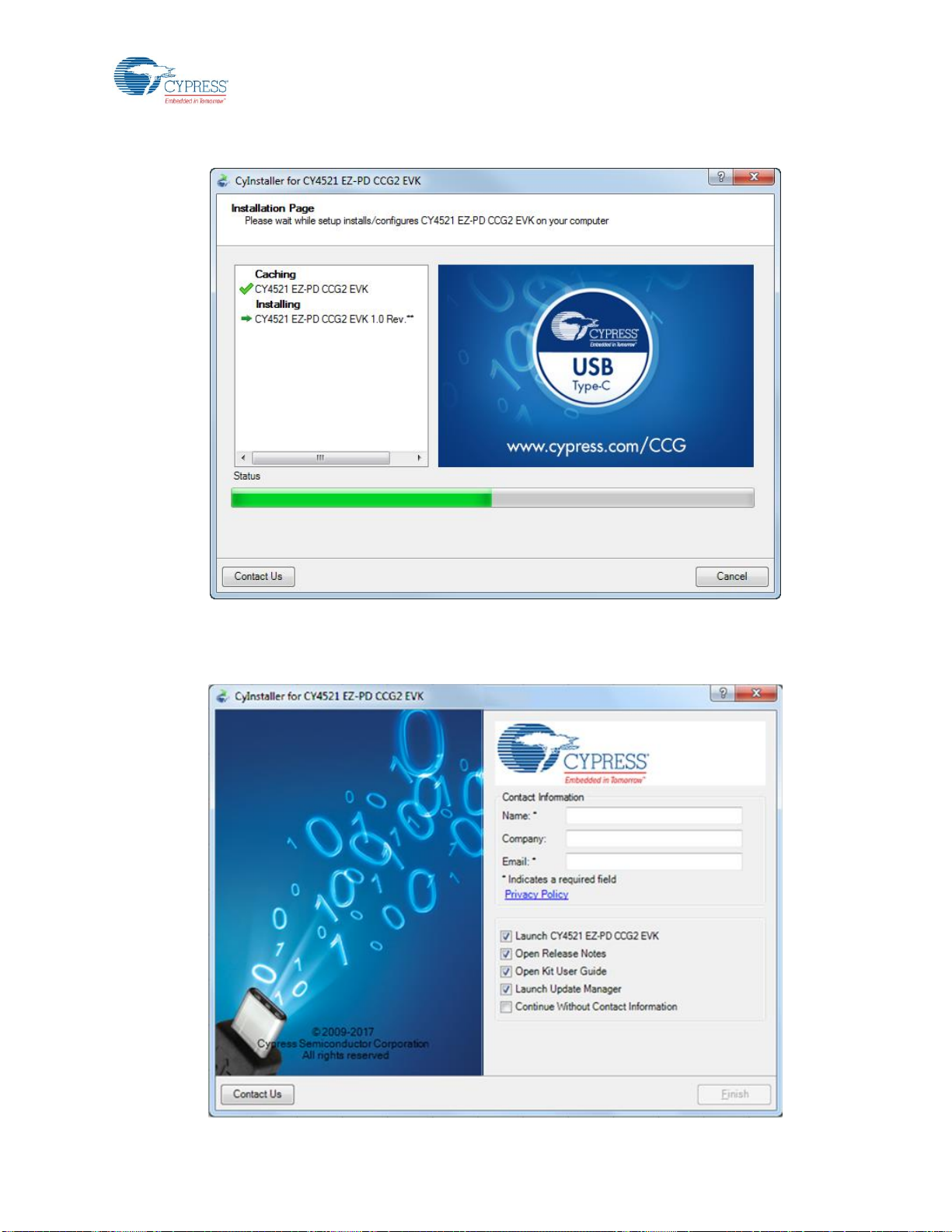

d. Figure 2-4 shows the installation progress.
Figure 2-4. Installation Progress
e. Enter Contact Information or select Continue Without Contact Information and click Finish. (Figure 2-5).
Figure 2-5. Software Installation Complete

Kit Installation
CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 13
f. When installation is complete, you have the option to Launch Cypress Update Manager (Figure 2-6) to ensure you
have the latest software package. Click the Check for updates button at the bottom of the window. If “No Updates”
appears adjacent to the CY4521 EZ-PD CCG2 EVK, click the Exit button. If there are updates, click the Update button
to download and install the latest kit package.
Figure 2-6. Cypress Update Manager
Note: You can launch the Cypress Update Manager at any time from Start > All Programs > Cypress > Cypress
Update Manager.
g. After the installation is complete, the contents are available at the following location: <Install Directory>\CY4521
EZ-PD CCG2 EVK\1.0.
Note: On the Windows 32-bit platform, the default <Install Directory> is C:\Program Files\Cypress; on the Windows
64-bit platform, it is C:\Program Files(x86)\Cypress.

CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 14
3. CY4521 EZ-PD™ CCG2 EVK Hardware
Details
The CY4521 EZ-PD CCG2 EVK consists of a CCG EVK base board and a CCG2 daughter card. The CCG2 device is mounted
on the daughter card, which is connected to the base board. The hardware architecture of CY4521 is captured in Figure 3-1.
Figure 3-1: CY4521 EZ-PD CCG2 EVK Architecture
PC
DP
USB3.0
USB2.0
CCG Base Board
CCG2
Daughter
Card
DP
Type-C
Port
SS USB
Type-B
Connector
USB
Type-C
Redriving
Switch
24V DC
power
adapter
USB-
Serial
CC
I2C
Power
Display
Port
Lines
USB
Lines
DP –DisplayPort
USB2.0 –Used only for programming
Power
Management
EZ-PD™
CCG2
Power
Control Ckt
The CCG EVK base board consists of a DC input, a USB Type-C Redriving Switch IC, a DisplayPort input, a SuperSpeed
Type-B port, and one Type-C port. The CCG2 daughter card consists of the CCG2 device and a USB-Serial IC to provide a
USB interface for debugging and programming. The CC lines of the CCG2 device are connected to the Type-C port. The USB
Type-C Redriving Switch IC is controlled by the CCG2 device over an I2C interface.
The CY4521 EZ-PD CCG2 EVK has power provider and consumer path control circuitry to showcase EZ-PD CCG2’s ability
to switch its power role from a provider to a consumer and vice versa. This EVK has over-voltage and over-current protection
circuitry for VBUS and it also supports programming of the EZ-PD CCG2 device over SWD and I2C interfaces. The EVK
supports PCs, notebooks, tablets, and other applications that would host a Type-C interface. It is primarily intended as an
evaluation vehicle for USB host systems that house a Type-C connector.

CY4521 EZ-PD™ CCG2 EVK Hardware Details
CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 15
3.1 CCG EVK Base Board
The CCG EVK base board is an evaluation board equipped with a Type-C port, a SuperSpeed USB Type-B port, and a
DisplayPort interface. It is primarily intended as a demonstration board for notebook designs that house a Type-C connector.
The board also serves as a vehicle to evaluate the alternate modes for Type-C, using the DisplayPort demo as an example.
3.1.1 Block Diagram
The block diagram of the CCG EVK Base board is shown in Figure 3-2. It has an on-board Type-C connector for the USB-
PD interface and a daughter card interface connector to connect the CCG2 daughter card. It also includes a SuperSpeed
USB Type-B port, and a Display Port connector to source video. The SuperSpeed USB signals and Display Port signals are
connected to the Type-C connector through a USB Type-C Redriving Switch controlled by the CCG2 device. A DC power
adapter provides input voltage to the onboard Power Management IC (PMIC). The output voltage from the PMIC can be
selected using two voltage selection lines, controlled by the CCG2 device. This CCG EVK base board along with the CCG2
daughter card helps to convert any desktop or notebook PC with legacy USB ports to operate as a Type-C USB host.

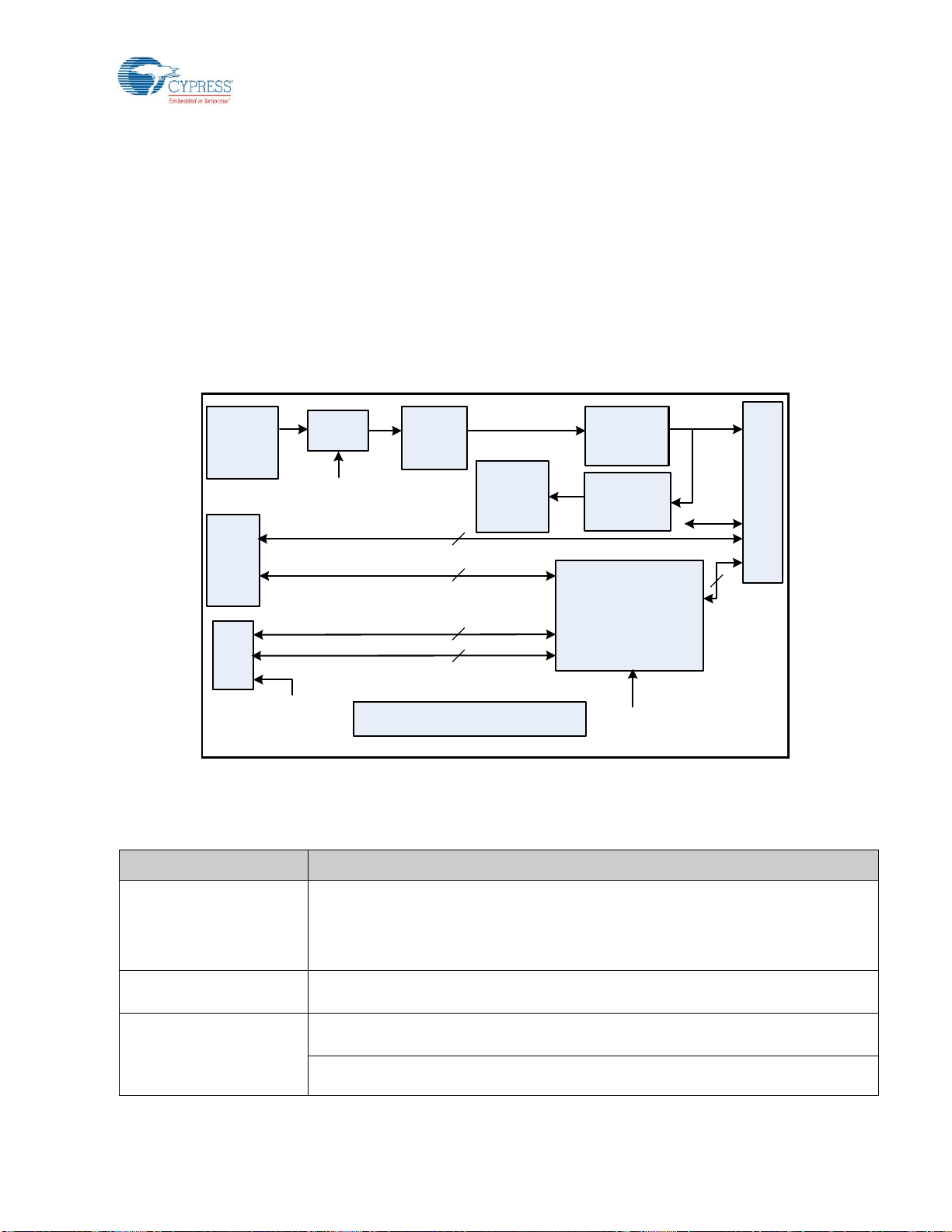

Figure 3-2: CCG EVK Base Board Block Diagram
Power
Input
Header
USB Type-C
Redriving Switch
Type-C Receptacle
PMIC
USB
Super
Speed Port
Display
Port
CC
from
CCG2
Data
Lanes
(Tx/Rx)
Control from
CCG2
D+/D-
4
8
2
AUX Lines
2
USB SuperSpeed
Lines
DisplayPort
Lines
Hot Plug Detect
(HPD)
Voltage Selection
lines from CCG2
VBUS
DC
Power
Jack
VBUS
Provider
Control
VBUS
Consumer
Control
Power
Output
Header
8
CCG2 Daughter Card Interface
Connector
3.1.2 Features
Table 3-1 shows the features of the CCG EVK base board.
Table 3-1: CCG EVK Base Board Features
Feature
Description
Power
The 24V input provided to the hardware is converted into the voltage to be provided on
the Type-C port using a PMIC. The output voltage of the PMIC is controlled by CCG2.
Power can also be consumed from Type-C connector for dead battery functionality.
Note: The DC power adapter provided with the kit can support only up to 2.7A (at 24 V).
This kit will not work with 5V DC power adapters.
CCG2 Daughter Card
Interface Connector
Provides interface to connect the CCG2 daughter card to the CCG EVK base board
Type-C Plug orientation,
Detection and Alternate
modes
I2C interface between the CCG2 device and the USB Type-C Redriving Switch to select
between ‘SuperSpeed USB and 2-lane DisplayPort or ‘4-lane DisplayPort’ combinations
Hot Plug Detect (HPD) for Display Port Alternate Mode operation

CY4521 EZ-PD™ CCG2 EVK Hardware Details
CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 16
3.1.3 Connectors and Jumper Settings

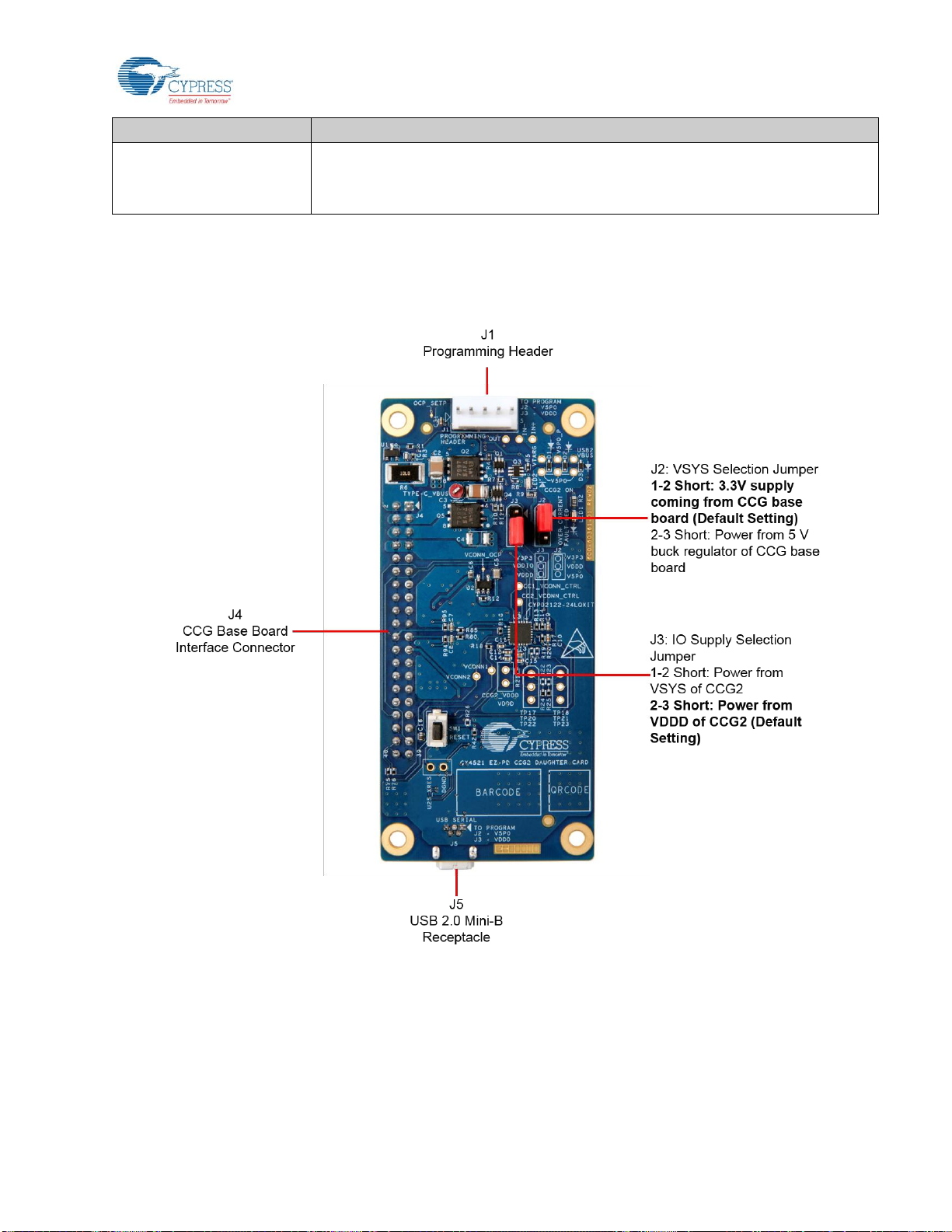

Figure 3-3 shows the CCG EVK base board connectors and default settings of the jumpers. Table 3-2 contains the detailed
description of the connectors and jumper settings.
Figure 3-3: CCG EVK Base Board Connectors
Table 3-2: CCG EVK Base Board Connector/Jumper Description
Connector/Jumper
Description
Default
J1
24V DC power jack to connect the DC power adapter to the CCG EVK base board
NA
J2
SuperSpeed USB Type-B connector (receptacle)
NA
J3
USB Type-C Connector (receptacle)
NA
J4
DisplayPort Connector
NA
J5
USB 2.0 Mini-B Connector (receptacle)
NA

CY4521 EZ-PD™ CCG2 EVK Hardware Details
CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 17
Connector/Jumper
Description
Default
J6
USB Serial Debug Header
This connector
is not populated
J7
Header for voltage measurement when CCG2 acts as a power consumer or power output header
NA
J8
CY4521 CCG2 Daughter Card Interface Connector
NA
Pin 1,2: Regulated input power from 24-VDC terminal (J12) of CCG EVK Base Board
(USB_P_PWR)
Pin 3,4: Power from VBUS of Type-C Connector (Type-C_VBUS)
Pin 5,6: Regulated output power to 20-Vdc terminal (J7) from USB_C_PWR pin of CCG2
daughter card
Pin 7: GND
Pin 8: GND
Pin 9: I2C_SCL
Pin 10: VBUS_DISCHRG
Pin 11: I2C_SDA
Pin 12: CCGx SWDIO
Pin 13: Over Current Protection Pin
Pin 14: CCGx SWD_CLK
Pin 15: AC_Adapter_Detect
Pin 16: CCGx XRES
Pin 17: VSEL2
Pin 18: I2C_ADDR0
Pin 19: 5 V
Pin 20: VCONN Monitor
Pin 21: CC1
Pin 22: CC2
Pin 23: 3.3 V
Pin 24: VBUS_P_CTRL
Pin 25: RXD
Pin 26: VBUS Monitor
Pin 27: TXD
Pin 28: I2C_INT_EC
Pin 29: MUX_DP_AUXN
Pin 30: VBUS_C_CTRL
Pin 31: MUX_DP_AUXP
Pin 32: Over Voltage Protection Pin
Pin 33: SBU2
Pin 34: I2C_SDA_EC
Pin 35: SBU1
Pin 36: Hotplug Detect
Pin 37: I2C_SCL_EC
Pin 38: TP12
Pin 39: VSEL1
Pin 40: TP11
J9
Debug Connector
NA
Pin 1,2: Power from VBUS of Type-C Connector (Type-C_VBUS)
Pin 3: CCGx SWDIO
Pin 4: CCGx XRES
Pin 5: CCGx CC1
Pin 6: CCGx CC2
Pin 7: I2C_SCL_EC
Pin 8: I2C_SDA_EC
Pin 9: I2C_INT_EC
Pin 10: Hotplug Detect
Pin 11: I2C_SCL
Pin 12: SW1/I2C_SDA
Pin 13: SW2
Pin 14: Over Current Protection Pin
Pin 15: CCGx SWD_CLK
Pin 16: Over Voltage Protection Pin
Pin 17: VSEL1
Pin 18: VSEL2
Pin 19: VBUS_P_CTRL
Pin 20: VBUS_DISCHRG
Pin 21: VBUS_Monitor GPIO
Pin 22: VBUS_C_CTRL
Pin 23: GND
Pin 24: GND
J10
I2C Connector
This connector
is not populated
Pin 1: I2C_SDA_EC
Pin 2: I2C_SCL_EC
Pin 3: I2C_INT_EC
Pin 4: GND
J11
User LED jumper for connecting LED to GPIO
Pin 1: SWD_IO
Pin 2: LED
Shorted
J12
Header for voltage measurement when CCG2 acts as a power provider or power input header.
NA

CY4521 EZ-PD™ CCG2 EVK Hardware Details
CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 18
3.2 CY4521 CCG2 Daughter Card
The CCG2 daughter card is equipped with the CYPD2122-24LQXIT of the CCG2 device family and a CY7C65215-32LTXI
USB-Serial Bridge Controller to provide a USB interface for debugging and programming. This CCG2 daughter card, when
assembled with the CCG EVK base board supports Type-C host applications such as notebooks and tablets.
3.2.1 Block Diagram
Figure 3-4 shows the CCG2 daughter card block diagram.

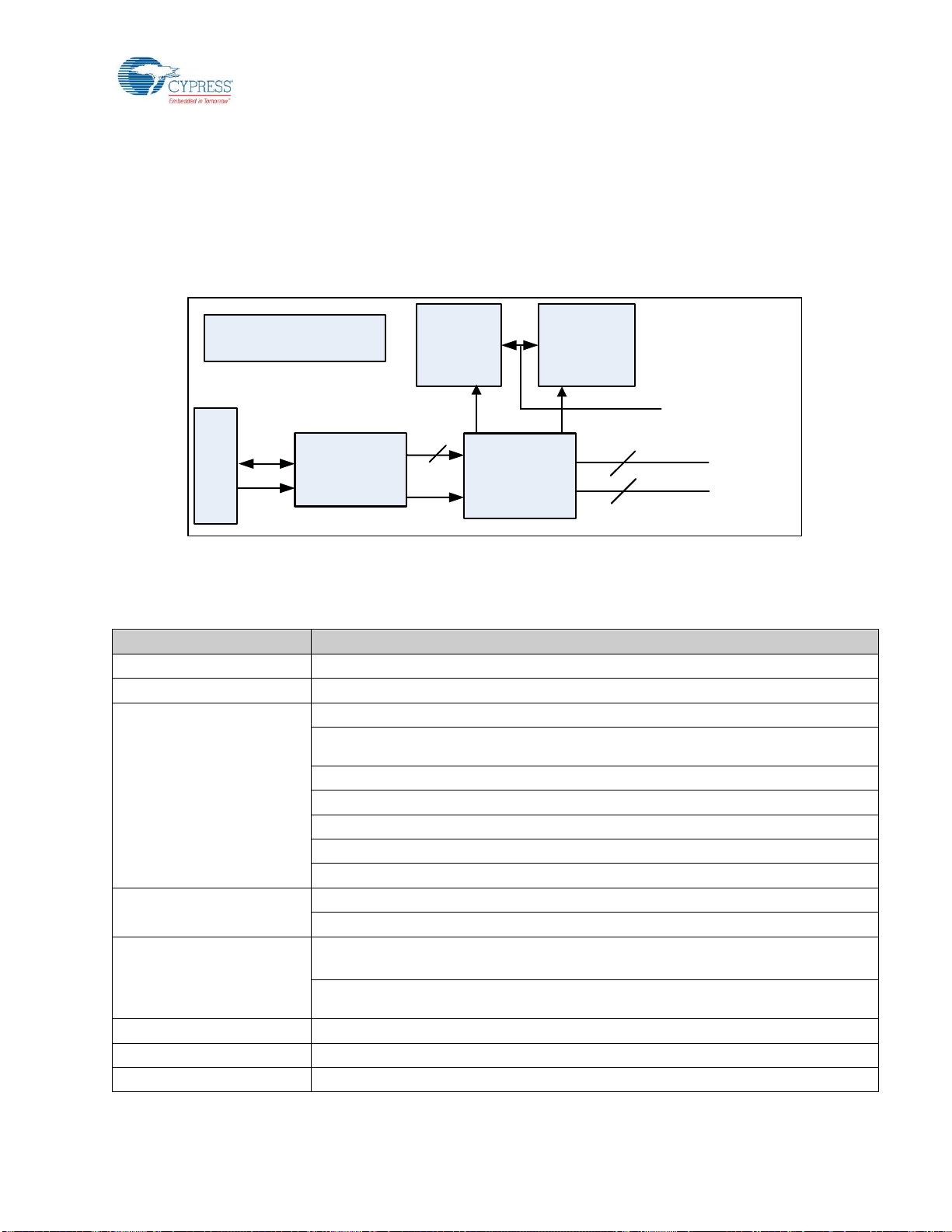

Figure 3-4 CCG2 Daughter Card Block Diagram
USB-Serial
Device
USB2.0 Mini
Port
VBUS
I2C
D+/D-
Power
Consumer
Control
Circuitry
Power
Provider
Control
Circuitry VBUS to
Type- C Port
VBUS_P_CTRL VBUS_C_CTRL
2
2CC_P1 to Type-C Port
2AUX_P1 to SBU MUX
EZ-PD™
CCG2
Device
I2C_INTR
CCG Base Board
Interface Connector
3.2.2 Features
Table 3-3 lists the features of the CCG2 daughter card.
Table 3-3: CCG2 Daughter Card Features
Feature
Description
CCG2 part number
CYPD2122-24LQXIT
CCG2 package
24-pin QFN
USB PD/ Type-C
Ability to support DRP, DFP, and UFP
Type-C VBUScurrent setting via ajumper that selects one of the three Rp values. These three values
correspond to the three currents as defined in the Type-C specification.
VBUS provider field-effect transistor (FET) control for cold socket
VBUS consumer FET control
VBUS discharge FET control
Ability to present either Rd or Rp on CC line
Dead battery support
OVP and OCP
VCONN or VBUS over-current protection
VBUS over-voltage protection
Plug orientation, Detection and
Alternate modes
Five MUX-select pins to select between SuperSpeed USB and 2-lane or 4-lane DisplayPort
Hot Plug Detect (HPD) for DisplayPort Alternate Mode of operation
USB 2.0 Type-B Mini
USB 2.0 Mini-B receptacle connected to USB-to-Serial device
I2C interface
I2C pins and interrupt output pin for connecting to an Embedded Controller (EC)
Programming
SWD pins to debug/program CCG2 using Cypress MiniProg3

CY4521 EZ-PD™ CCG2 EVK Hardware Details
CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 19
Feature
Description
Power
5 V from USB 2.0 Mini B (Connector J5 of CY4521 CCG2 daughter card)
5 V from MiniProg3 (Connector J1 of CY4521 CCG2 daughter card)
3.3 V/ 5 V power supply from the CCG EVK base board
3.2.3 Connectors and Jumper Settings
Figure 3-5 shows the CCG2 daughter card connectors and default settings of the jumpers. Table 3-4 contains the detailed
description of the connectors and jumper settings.
Figure 3-5: CCG2 Daughter Card Connectors/Jumper Settings

CY4521 EZ-PD™ CCG2 EVK Hardware Details
CY4521 EZ-PD™ CCG2 Evaluation Kit Guide, Doc. No. 002-15712 Rev. *A 20
Table 3-4: CCG2 Daughter Card Connector/Jumper Description
Connector/Jumper
Description
Default
J1
Programming header
Pin 1: VTARG
Pin 2: GND
Pin3: CCG2_XRES
Pin4: CCG2_SWD_CLK
Pin5: CCG2_SWD_IO
NA
J2
VSYS selection jumper:
1 and 2 short: Select the power from 3.3-V supply coming from the CCG EVK base board
2 and 3 short: Select the power from 5-V buck regulator of the CCG EVK base board
1 and 2 short
J3
I/O supply selection jumper:
1 and 2 short: Select the power from VSYS of CCG2 device
2 and 3 short: Select the power from VDDD of CCG2 device
2 and 3 short
J4
CCG Base Board Interface Connector
NA
Pin 1,2: Regulated input power from 24-VDC terminal (J12) of the CCG EVK Base Board
(USB_P_PWR_P1)
Pin 3,4: Power from VBUS of Type-C Connector of the CCG EVK Base Board (TYPE-
C_VBUS_P1)
Pin 5,6: Regulated output power to 20-VDC terminal (J7) of the CCG EVK Base Board
(USB_C_PWR_P1)
Pin 7: GND
Pin 8: GND
Pin 9: I2C_SCL
Pin 10: VBUS_DISCHRG_P1
Pin 11: I2C_SDA
Pin 12: SWDIO
Pin 13: USB Provider Power Sense Pin
Pin 14: SWD_CLK
Pin 15: AC_Adapter_Detect
Pin 16: XRES
Pin 17: VSEL2
Pin 18: UART2_RX
Pin 19: 5 V
Pin 20: UART2_TX
Pin 21: CC1
Pin 22: CC2
Pin 23: 3.3 V
Pin 24: VBUS_P_CTRL0
Pin 25: TXD
Pin 26: VCONN
Pin 27: RXD
Pin 28: I2C_INT_EC
Pin 29: DP_AUXN_P1
Pin 30: VBUS_C_CTRL0
Pin 31: DP_AUXP_P1
Pin 32: GPIO/P2.4
Pin 33: SBU2
Pin 34: I2C_SDA_EC
Pin 35: SBU1
Pin 36: Hotplug Detect
Pin 37: I2C_SCL_EC
Pin 38: DPlus
Pin 39: VSEL1
Pin 40: DMinus
J5
USB 2.0 Mini-B connector (receptacle)
Connected to USB-Serial device and used for programming CCG2 device
NA
