Cypress CTB-100G User manual

Precautions
Features
1. Do not expose this product to direct sunlight.
2. Keep the unit away from radiator, heat sources and magnetic field.
3. Do not place it in very dusty or humid locations.
4. Use this unit in a horizational position only.
5. Do not put heavy object on top of the converter.
6. Put the unit in an open space that has a good ventilation.
7. Keep the unit away from TV or other electronic equipment if the
unit is affected.
8. Unplug the unit from the power supply when it is not to be used for
a long period time.
1.Restores distorted or de-shaped vertical and horizontal sync. and color burst.
2. Eliminate picture jittering and ensure stable image on screen through
Dual-field full-frame reconstruction.
3. Correct time error of video that normally associated with VCR source.
4. Adjust Brightness,Color, Tint, Sharpness and Contrast to improve
video picture.
5. A true multisystem Time Base Corrector automatically processes video
input of any systems-NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM.
6. Digital comb filter for input Y/C separation offers best output quality.
7. Built-in automatic gain control (AGC) ensures 1 Vp-p output signal
(input level ranges from 0.5 Vp-p to 2 Vp-p).
8.
Automatically sending out color bar patterns when there is no
video signal presents on the input.
9. Built-in TBC/Genlock capability for synchronizing multiple asynchronous
video sources. (CTB-100G)
10. Ideal for use in rectifying any video errors and abnormal picture.
1

Operation Controls and Functions
Front Panel
1. Input video system indicator
AUTO, N3, N4, PAL, PAL M, PAL N, SECAM
1. Illuminates when input auto detection mode is selected.
2. Illuminates when input system is set to NTSC 3.58.
3. Illuminates when input system is set to NTSC 4.43.
4. Illuminates when input system is set to PAL (BDGIK).
5. Illuminates when input system is set to PAL M.
6. Illuminates when input system is set to PAL N.
7. Illuminates when input system is set to SECAM.
Note: When in auto detection mode one of the system indicator will also
illuminate to show vieo system of the input.
2. Picture adjustment controls:
1. Select: Press this button repeatedly to choose the picture adjustment you
wish to do.
Each depression of the button will toggle through adjustment
controls as follows:
SystemContrastBrightnessColorTintSharpness
2. : Press the button for adding picture effects value.
3. : Press the button for reducing picture effects value.
4. Reset: When pressing reset button, the setting of the selected control will be
reset to its default value.
Press reset for over 3 seconds, all controls will be reset to their default
values.
Auto/Manual detection mode: Press the " Select " button to choose " System"
function on the top row LEDs. And then press Reset button to switch between
Auto and Manual detection mode for the input.
+
+
-
2
2
1
3
Tint
Color
Bright
Contrast
System
ASPN PM
Sharpness
PN4 N
Select
Reset
+
-
Multi-system Time Base Corrector
1
AS
PN PM
Sharpness
Tint
Color
PN4N
Bright
Contrast
System
Select
Reset
+
-
2
3
CTB-100G
CTB-100

Operation Controls and Functions
Front Panel
3. Picture adjustment indicators:
1. System Indicator:
When system adjustment is selected, use Reset button to choose auto or
manual input detection.
When manual detection is selected. Use , to select the output
system you want .
2. Contrast indicator:
When it lights up, use or button to adjust picture contrast.
3. Brightness indicator:
When it lights up, use or button to adjust picture brightness.
4. Color indicator:
When it lights up, use or button to adjust picture color.
5. Tint indicator:
When it lights up, use or button to adjust tint of the
picture(NTSC only).
6. Sharpness indicator:
When it lights up, use or button to adjust picture sharpness.
+
+
-
+
-
+
-
+
-
+
-
+
-
3
2
1
3
Tint
Color
Bright
Contrast
System
ASPN PM
Sharpness
PN4 N
Select
Reset
+
-
Multi-system Time Base Corrector
CTB-100G
1
AS
PN PM
Sharpness
Tint
Color
PN4N
Bright
Contrast
System
Select
Reset
+
-
2
3
CTB-100

Operation Controls and Functions

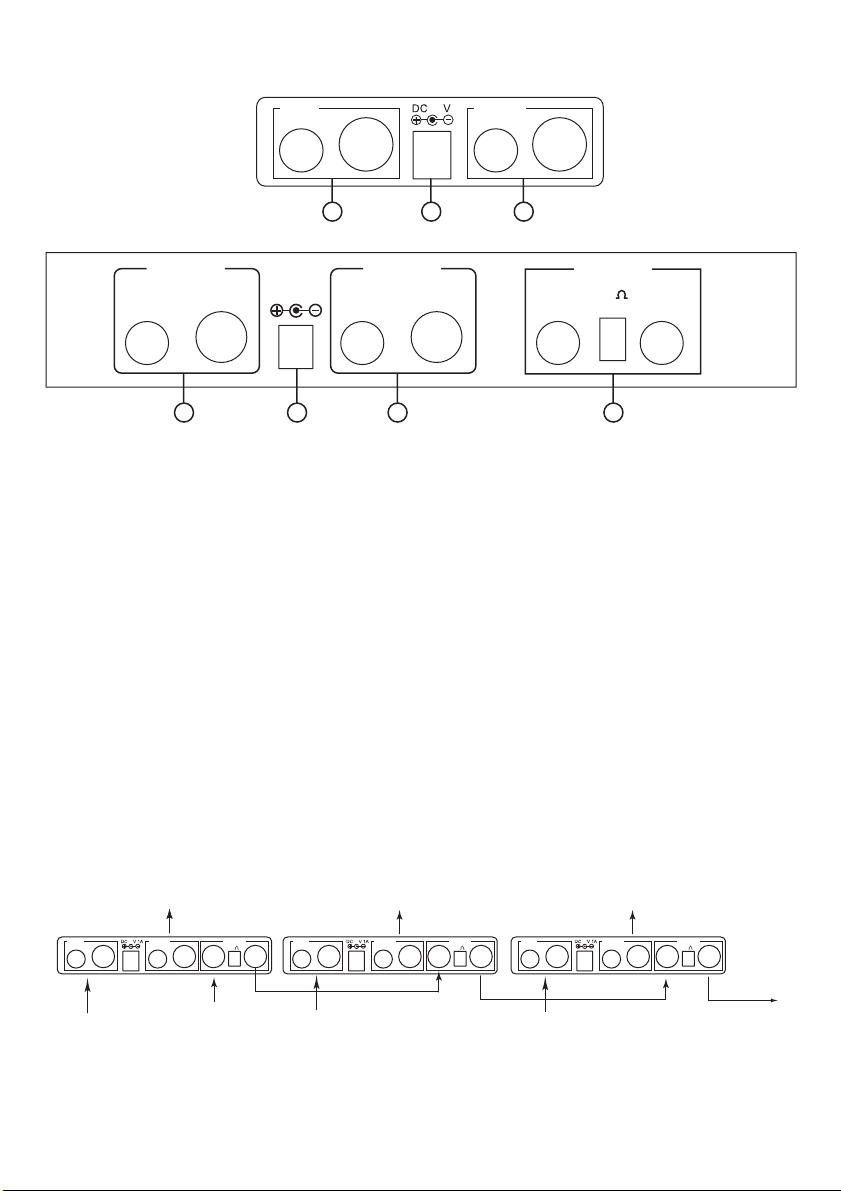

Rear Panel
1. Video input:
There are one video and one S-Video on the input. The unit will automatically
detect the video input when either one of the input is connected.
When both inputs are connected, S-Video input has the priority.
2. Video out:
CTB-100 offers two different formats of video out simultaneously-composite,
and S-Video.
3. DC 12V 1A
4. Genlock input/Genlock output:(Only available on CTB-100G)
CTB-100G offers TBC/Genlock function in which video input is time base
corrected and genlocked to the sync of another video (Genlock in),
therefore making the two video output synchronized.
The full frame processing also reconstruct the sync burst and timing of the
video input and provide an error-free video output.
The video system of the video input and genlock input must be the same.
If they are different, the output video will be abnormal.
Genlock out is a loop-through of Genlock input which made possible the
synchronization between multiple video sources by connecting
Genlock out to the Genlock in of the next unit,and repeat it.
You can synchronize as many video sources as you like by cascading many
CTB-100G in series.
INPUT
V
S
OUTPUT
V
S
15
13 2
1324
INPUT
V
S
OUTPUT GENLOCK
V75
SIN OUT
12
INPUT
V
S
OUTPUT GENLOCK
V75
SIN OUT
12
INPUT
V
S
OUTPUT GENLOCK
V75
SIN OUT
12
Video 1
Video 1
CTB-100G CTB-100G
CTB-100G
Genlock in Genlock out
Video 1Video 1 Video 2 Video 3
Video 2 Video 3
Genlock out Genlock out
Synchronous
Synchronizing multiple video sources
75 ohm connection and Installation load switch:
When CTB-100G Genlock out is not connected to the Genlock in of
another unit, set the switch to ON. Set to OFF if it is connected to another unit.
4
CTB-100
CTB-100G
S
DC 15V
VS VOUT
IN 75
INPUT OUTPUT GENLOCK
OFF
ON

Connection and Installation
Video Cassette Recorder
Laser Disc
PAL
NTSC
or
SECAM
Satellite Receiver
Camcorder
DC Adaptor
NTSC or PAL
Video Recorder
TV
Genlock In
Genlock Out
NTSC or PAL TV
5
S
DC 15V
VS VOUT
IN 75
INPUT
INPUT
OUTPUT
OUTPUT
GENLOCK
GENLOCK
OFF
ON

Specifications:
Input TV systems NTSC 3.58, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Connection terminals
Video input : 1 ;S-Video input: 1
Video output: 1 ;S-Video output: 1
Genlock input: 1 composite;
Genlock output: 1 composite (CTB-100G)
Sampling Frequency
Y: 13.5 MHz
R-Y: 6.75 MHz
B-Y: 6.75 MHz
Digital code bit
Y: 8 bits
R-Y: 8 bits
B-Y: 8 bits
Processing controls
Correction Range Full frame TBC
Contrast, Bright, Color, Tint, Sharpness
Frequency Response 400 lines
S/N Ratio 50 dB
Power supply DC 15V
1 Kg
145(W)x 95(D)x 34(H)mm
Dimensions
Weight
Accessory
Memory
DC Adaptor
6M Bits
6
