General information
Z5330.001 Manual
Version: 1.4 en, 07/2016, D2021.EN .01
Copyright © 2016 by d&b audiotechnik GmbH & Co. KG; all
rights reserved.
Keep this document with the product or in a safe place
so that it is available for future reference.
We recommend you to regularly check the d&b website for the
latest version of this document.
When reselling this product, hand over this document to the new
owner.
If you supply d&b products, please draw the attention of your
customers to this document. Enclose the relevant documents with
the systems. If you require additional documents for this purpose,
you can order them from d&b.
d&b audiotechnik GmbH & Co. KG
Eugen-Adolff-Str. 134, D-71522 Backnang, Germany
T [phone], F [phone]

1 Z5330.001 D80 Touring rack assembly CEE............. 4
1.1 Intended use................................................................................ 4
1.2 Scope of supply.......................................................................... 4
2 Handling, cooling and placement................................. 5
2.1 Handling...................................................................................... 5
2.2 Cooling and placement.............................................................. 5
3 X5335 Mains power distributor - 32 A CEE............... 6
3.1 Intended use................................................................................ 6
3.2 Rear panel................................................................................... 6
3.2.1 AMP 1 / AMP 2 / AMP 3..................................................... 6
3.2.2 MAINS SUPPLY....................................................................... 6
3.2.3 MAINS LINK - 32 A CEE........................................................ 7
3.3 Front panel.................................................................................. 7
3.3.1 MAINS..................................................................................... 7
3.3.2 AUXILIARY MAINS OUTPUTS 16 A...................................... 7
3.3.3 4 CH OUTPUTS - NL8............................................................ 8
3.3.4 6 CH OUTPUTS - LKS 19 F.................................................... 8
3.3.5 NL8 F / LKS 19 F - Pin assignments....................................... 9
4 Z5338 I/O Panel................................................................ 10
4.1 INPUT........................................................................................ 10
4.2 INPUT LINK.............................................................................. 10
4.3 REMOTE................................................................................... 10
5 Z5333 Rack Link................................................................ 12
6 Manufacturer's Declarations........................................ 13
6.1 EU declaration of conformity (CE symbol)............................. 13
6.2 WEEE Declaration (Disposal).................................................. 13
Contents
d&b Z5330.001 Manual 1.4 en 3

1.1 Intended use
The Z5330.001 D80 Touring rack assembly is designed as a
closed system rack providing mains power distribution and
connector interfaces for 3 x D80 amplifiers.
For this purpose, the touring rack is equipped with a mains power
distribution device (X5335), which also serves as a loudspeaker
connector panel.
Also incorporated is an I/O panel (Z5338), which serves as a
connector interface for both analog and digital audio signals as
well as network connectors for either Ethernet or CAN-Bus remote
capabilities.
1.2 Scope of supply
Before starting up, please verify the shipment for completeness and
proper condition of the items.
If there is any sign of obvious damage, do not operate the rack
assembly and contact your local dealer from whom you received
the rack assembly.
Pos. Qty. d&b Code Description
[1] 1 Z5330.001 Touring rack assembly 10 RU
(CEE) - with shock mounted 19"
frame.
Including:
[2] 1 X5335 Mains power distribution and
LS Panel (CEE).
[3] 3 Z2710 D80 Amplifier.
(To be ordered separately.)
[4] 1 Z5338 I/O Panel.
[5] 1 Rack drawer 1 RU.
[6] 1 Z5333 Rack link cable (contained in
the rack drawer [5]).
D2021.EN .01 Z5330.001 Manual.
Dimensions and weight
Height x width x depth 710 x 600 x 780 mm
28 x 23.6 x 30.7"
Total weight 128 kg / 282 lb
[1]
[2]
[3]
[4]
[5]
[6]
1 Z5330.001 D80 Touring rack assembly CEE
d&b Z5330.001 Manual 1.4 en4

2.1 Handling
The touring rack is equipped with two sliding doors allowing quick
and easy access to the front and rear panels of the devices.
1. Unlock the door lock mechanism.
2. Open the door and ...
3. push the door to the rear into its park position.

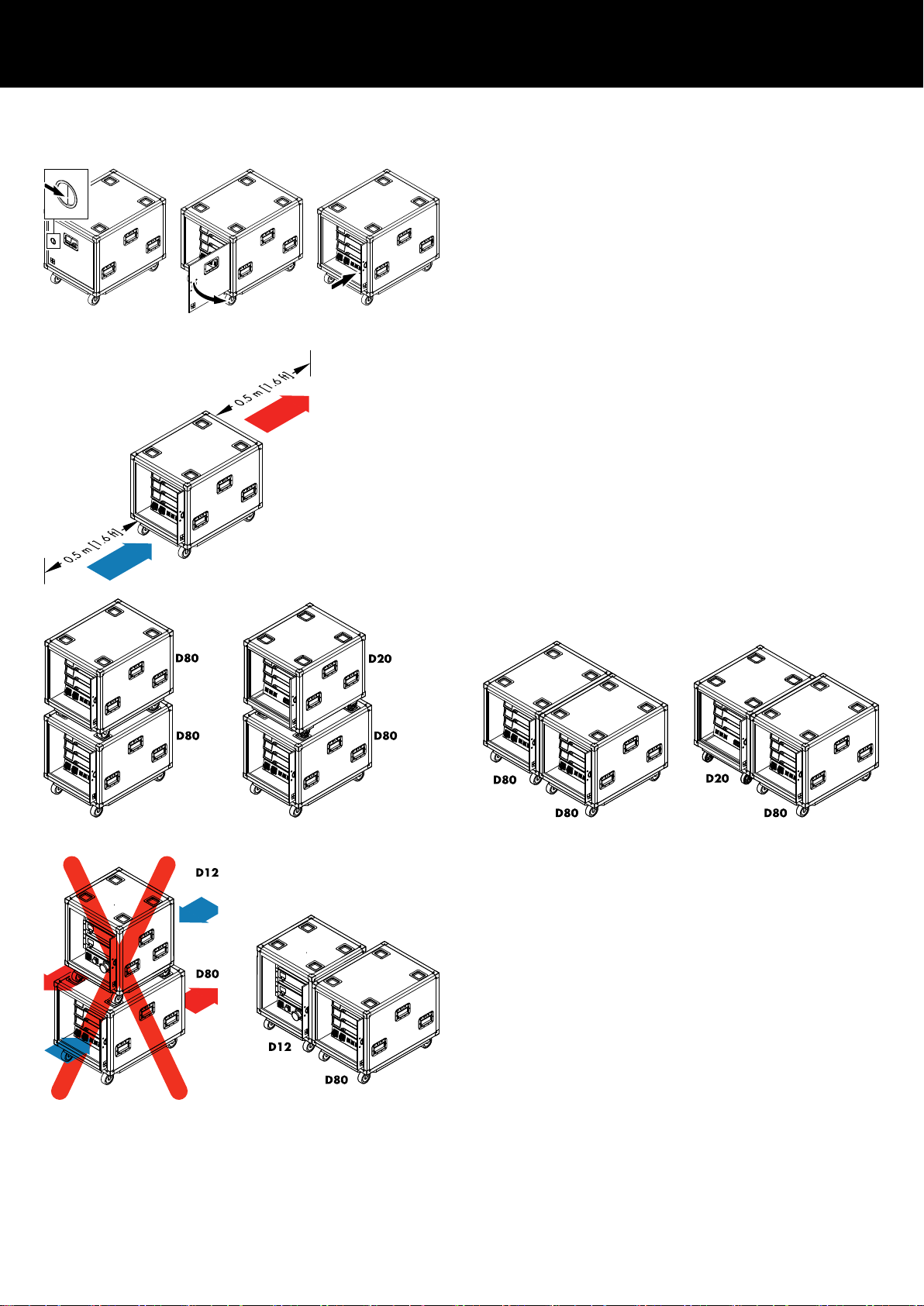

2.2 Cooling and placement
When using the d&b Z5330 D80 Touring rack assembly, make
sure to provide sufficient space of 0.5 m (1.6 ft) at the front and
rear of the touring rack to ensure sufficient cooling airflow.
D80 Touring rack assemblies as well as D80 and D20 Touring
racks can be stacked or positioned side by side.
When combining D80 Touring rack assemblies with D12 Touring
rack assemblies or any other rack assembly that produces an
opposing airflow, observe the following restrictions:
▪ Do not stack D80 and D12 Touring racks or any other rack
assemblies with opposing airflow.
▪ D80/D12 Touring rack assemblies can be positioned side by
side.
2 Handling, cooling and placement
d&b Z5330.001 Manual 1.4 en 5

X5335 Front panel
3.1 Intended use
The X5335 Mains power distributor is designed and dimensioned
to provide and distribute the mains power supply necessary for the
three D80 amplifiers. It also serves as a loudspeaker connection
panel for different connection options. It is a protective class 1 unit
with IP class 20 (NOT rain-, drip-, or splash-proof!).
The X5335 Mains power distributor must not be used for any other
purpose or outside the system rack.
3.2 Rear panel
3.2.1 AMP 1 / AMP 2 / AMP 3
Three fixed single-phase mains power lines (L1-L2-L3), each fitted
with a powerCON-HC® mains connector, are provided for the
internal mains power supply of the amplifiers.
NOTICE!
The mains power distributor device has no built-in circuit-breaker
for the amplifier's mains power lines. Protection is provided by the
onsite sub-distribution.
3.2.2 MAINS SUPPLY
The X5335 Mains power distributor is supplied with a fixed 3-
phase power cord equipped with a 32 A CEE (Cekon) mains
connector.
WARNING!
Potential risk of electric shock.
The mains power distributor is a protective class 1 unit. A missing
earth (ground) contact may cause dangerous voltages in the
housing and controls and may lead to electric shock.
▪ Connect the unit to mains power supplies with protective earth
only.
▪ If there is any sign of obvious damage to the power cord
and/or CEE mains connector, do not use the unit and replace it
before further use.
▪ Please ensure the mains connector is accessible at any time to
disconnect the unit in case of malfunction or danger.
▪ Do not connect or disconnect the CEE mains connector under
load or live.
Required mains supply network configuration
3-phase 230/400V - 50/60 Hz - 32 Amax.
X5335 Rear panel
3 X5335 Mains power distributor - 32 A CEE
d&b Z5330.001 Manual 1.4 en6

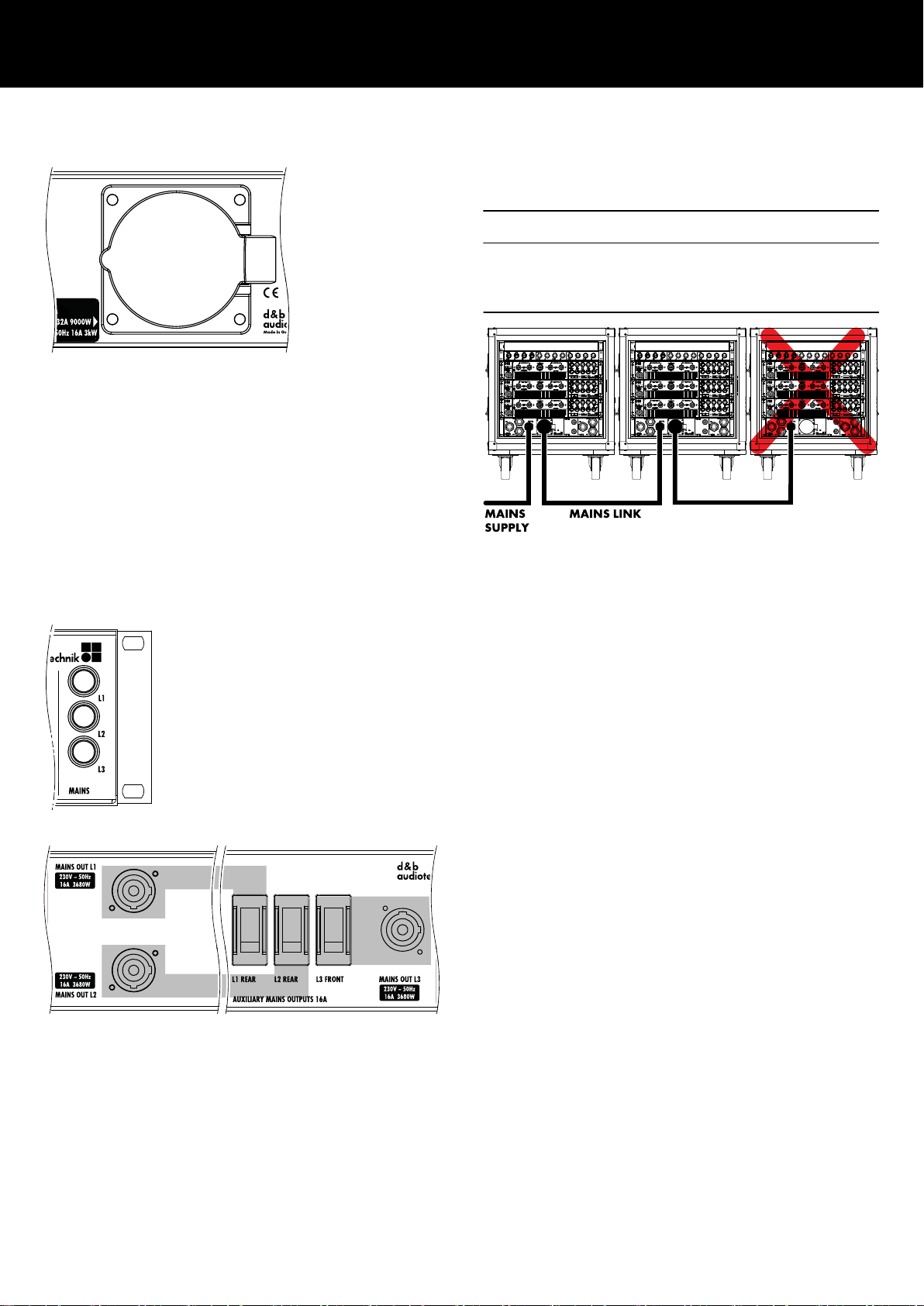

3.2.3 MAINS LINK - 32 A CEE
The MAINS LINK socket allows further system racks to be linked to
the mains power supply.
NOTICE!
To avoid any overload of the onsite mains power supply, we
recommend you to link no more than one further system rack to
the respective mains power supply line.
3.3 Front panel
3.3.1 MAINS
When the rack is connected to the onsite mains power supply, the
three mains indicators display the presence of the onsite mains
supply lines (phase conductor L1-L2-L3).
3.3.2 AUXILIARY MAINS OUTPUTS 16 A
Three auxiliary mains outputs (powerCON sockets) are provided.
One socket is mounted on the front and two sockets on the rear
panel. They are intended for the connection of low current devices
such as notebooks or additional Ethernet switches.
Each socket can be switched on and off by its dedicated switch.
These switches also serve as circuit-breakers for the corresponding
socket.
Please refer to the switch assignment as shown in the graphic
opposite.
d&b Z5330.001 Manual 1.4 en 7

3.3.3 4 CH OUTPUTS - NL8
NOTICE!
The 4 CH OUTPUTS connectors are only intended as an interface
to a rack panel or to loudspeaker multicores such as d&b
Z5343.xxx and breakout adapters such as d&b Z5347.xxx.
Do not connect any loudspeaker cabinets, neither passive nor
active systems, to the 4 CH OUTPUTS connectors, otherwise there
is a risk of damaging the loudspeaker components or the amplifier.
Each of the 4 CH OUTPUTS connectors represents the 4
CHANNEL OUTPUT of the respective D80 amplifier. Each
connector carries the output signals of all four channels of the
amplifier with the following pin assignment.
1+/— = Channel A pos. / neg. 2+/— = Channel B pos. / neg.
3+/— = Channel C pos. / neg. 4+/— = Channel D pos. / neg.
Please refer to the corresponding channel assignment label above
each connector as shown in the graphic opposite.
3.3.4 6 CH OUTPUTS - LKS 19 F
The 6 CH OUTPUTS multipin connectors (LKS 19 F) are used in
connection with the d&b Z5320.xxx cabling system to allow
efficient system wiring using loudspeaker multicore cables.
Each connector carries the output signal of six amplifier channels.
Please refer to the corresponding channel assignment label above
each connector as shown in the graphic opposite.
d&b Z5330.001 Manual 1.4 en8

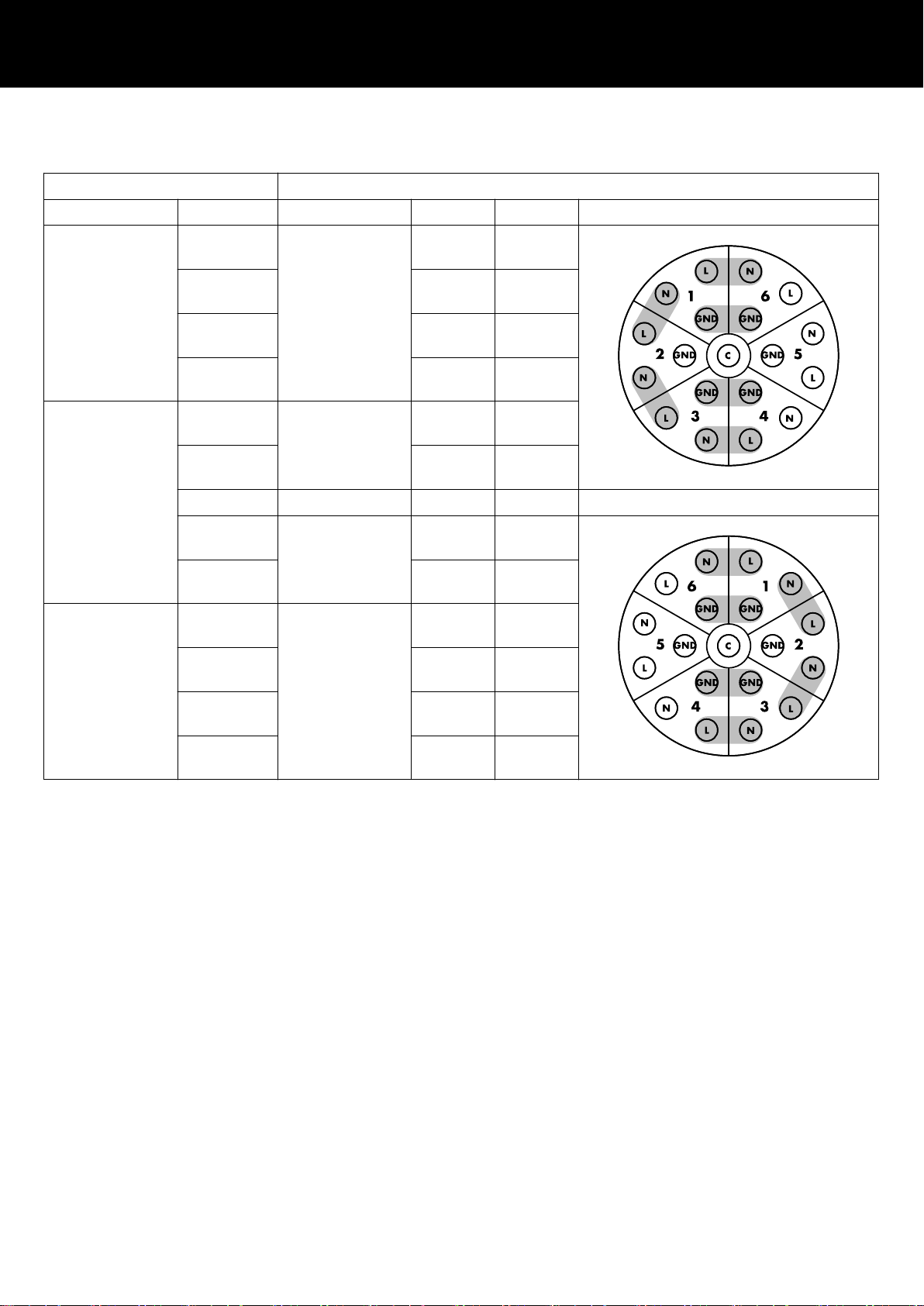

3.3.5 NL8 F / LKS 19 F - Pin assignments
4 CH OUTPUTS 6 CH OUTPUTS
NL8 F LKS 19 F - 1 Section Pin # LKS Pin-out - Front view
AMP 1
CH A/B/C/D
CH A: 1+
CH A: 1—
AMP 1
CH A/B/C/D
1
6
L
N
CH B: 2 +
CH B: 2 —
1
6
GND
GND
CH C: 3 +
CH C: 3 —
2
1
L
N
CH D: 4 +
CH D: 4 —
3
2
L
N
AMP 2
CH A/B/C/D
CH A: 1+
CH A: 1— AMP 2
CH A/B
3
4
N
L
CH B: 2 +
CH B: 2 —
3
4
GND
GND
LKS 19 F - 2 Section Pin # LKS Pin-out - Solder side
CH C: 3 +
CH C: 3 — AMP 2
CH C/D
1
6
L
N
CH D: 4 +
CH D: 4 —
1
6
GND
GND
AMP 3
CH A/B/C/D
CH A: 1+
CH A: 1—
AMP 3
CH A/B/C/D
2
1
L
N
CH B: 2 +
CH B: 2 —
3
2
L
N
CH C: 3 +
CH C: 3 —
3
4
N
L
CH D: 4 +
CH D: 4 —
3
4
GND
GND
d&b Z5330.001 Manual 1.4 en 9

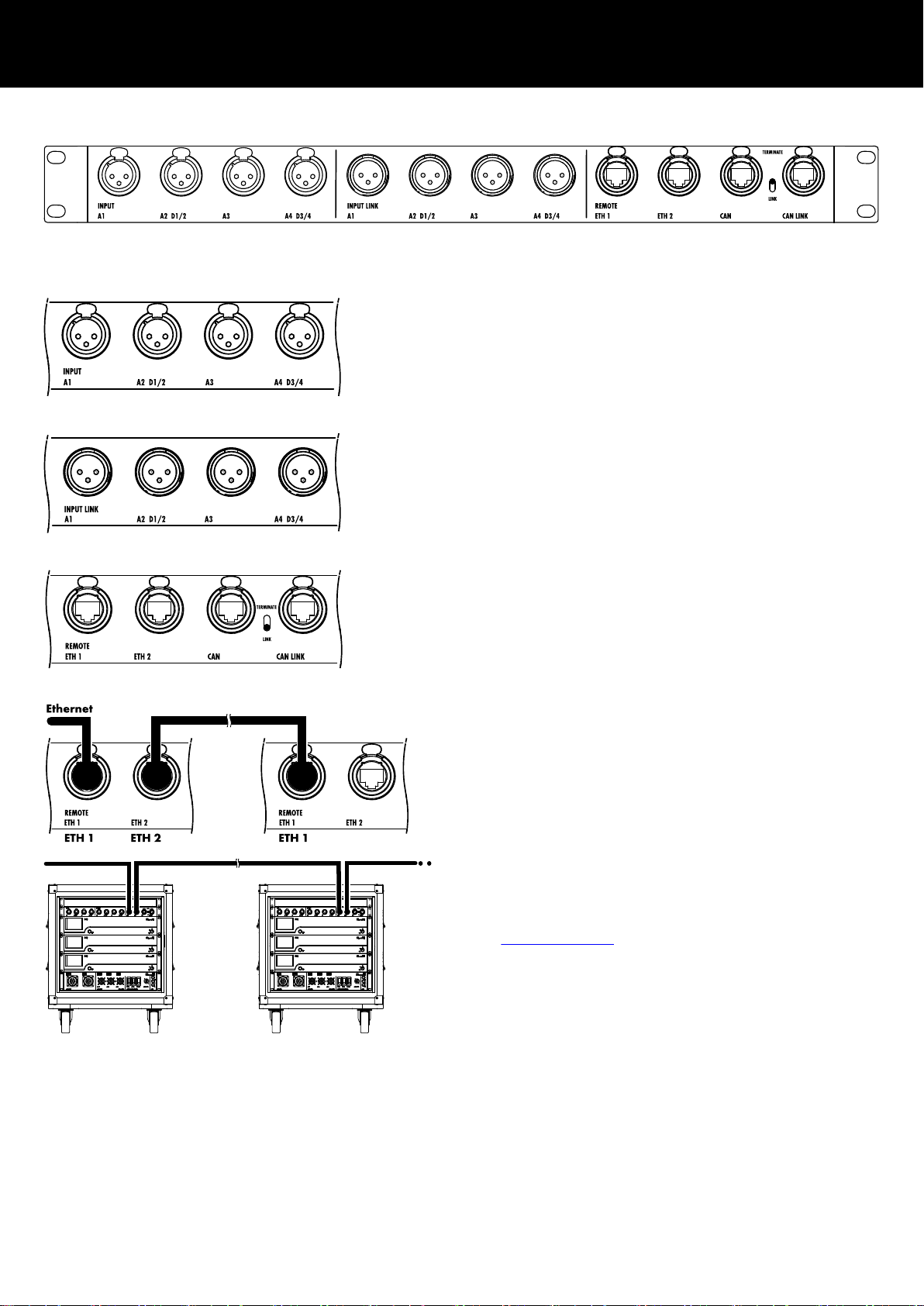

4.1 INPUT
The INPUT section represents the input connectors of the first
amplifier while the other two amplifiers are linked within the rack.
The INPUT section allows both analog and digital audio signals to
be fed to the amplifier.
4.2 INPUT LINK
The INPUT LINK section represents the link output connectors of the
last (third) amplifier and allows the linking of further system racks
using the enclosed rack link cable (Z5333 Rack link).

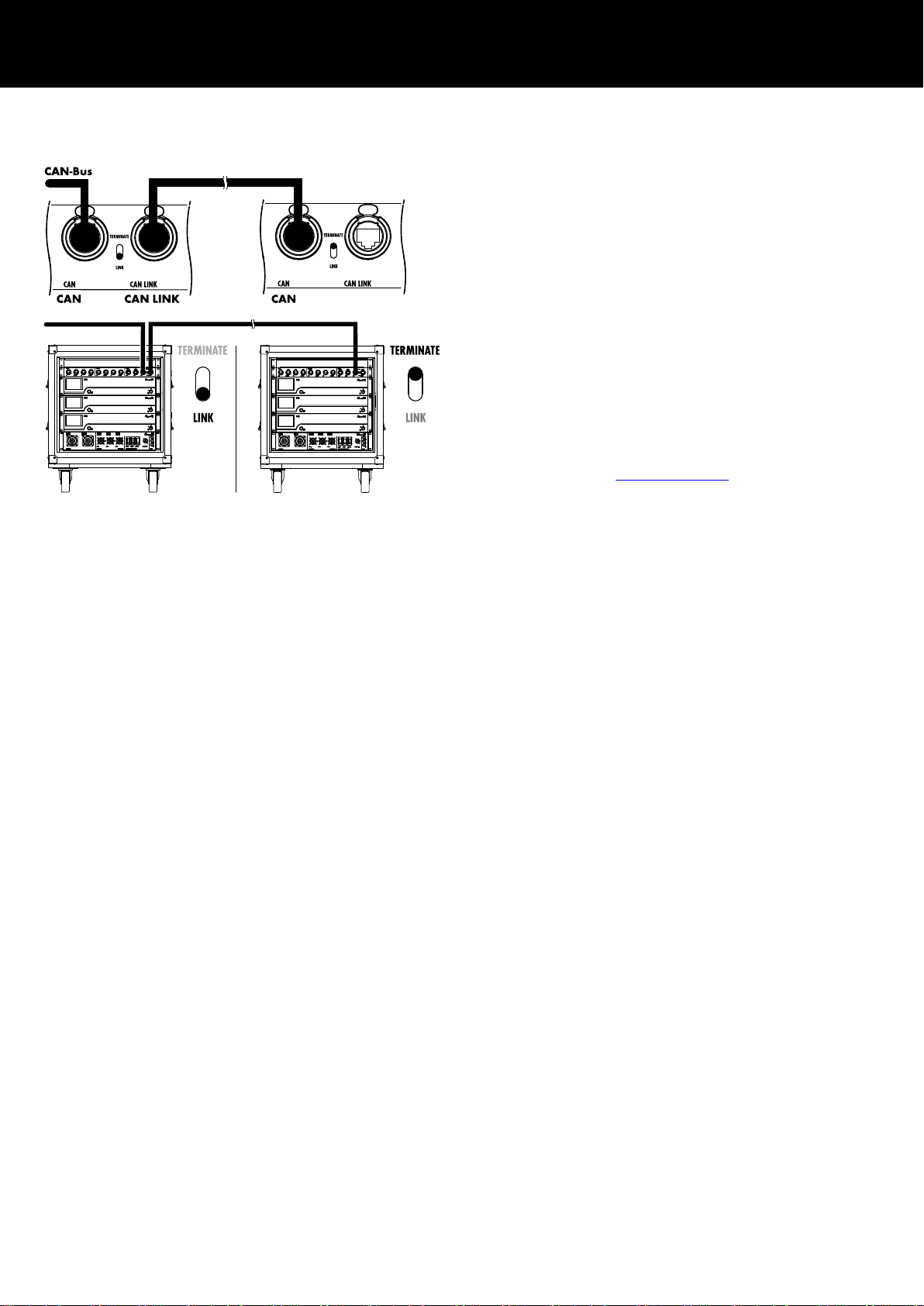

4.3 REMOTE
The REMOTE section allows the daisy chaining of system racks
within a remote network using the enclosed rack link cable (Z5333
Rack Link).
Ethernet network
ETH 1 Represents the upper etherCON connector of the first
amplifier and may be used as input while the other two
amplifiers are linked within the rack.
ETH 2 Represents the bottom etherCON connector of the last
(third) amplifier and may be used as output.
Note: In a daisy chain topology, if one device or an entire
rack fails or is switched off, this also affects all subsequent
devices and/or system racks which are then no longer
connected to the network either.
A detailed description of remote control via Ethernet is given in
the technical information TI 310 (d&b code D5310.EN) which
can be downloaded from the d&b website at
www.dbaudio.com.
4 Z5338 I/O Panel
d&b Z5330.001 Manual 1.4 en10

CAN-Bus network
CAN Represents the CAN input of the first amplifier
while the other two amplifiers are linked
within the rack.
CAN LINK Represents the CAN output of the last (third)
amplifier.
TERMINATE/
LINK
The built-in termination switch allows two
settings:
1. LINK: In system racks, at the start of and
within a CAN-Bus segment, set the switch
to LINK.
2. TERMINATE: On the last system rack of
a CAN-Bus segment, set the switch to
TERMINATE
Note: A detailed description of remote control via the d&b
Remote network (CAN-Bus) is given in the technical information
TI 312 (d&b code D5312.EN) which can be downloaded from
the d&b website at www.dbaudio.com.
d&b Z5330.001 Manual 1.4 en 11

The rack link cable allows further system racks to be linked
together.
It is suitable for both analog and digital audio signals as well as
for network wiring (Ethernet or CAN-Bus networks).
Technical specifications
Audio connector 2 x XLR female to 2 x XLR male
with color markup
Audio signal capability Analog
Digital AES3
Network connector etherCON
Network cable CAT 5E STP
Length 2 m / 6.5 ft
Rack link example:
4ch Digital audio and CAN-Bus
Rack link example:
2ch Analog audio and CAN-Bus
5 Z5333 Rack Link
d&b Z5330.001 Manual 1.4 en12

6.1 EU declaration of conformity (CE symbol)
This declaration applies to:
d&b Mains power distributor CEE, X5335.000
by d&b audiotechnik GmbH & Co. KG.
All product variants are included, provided they correspond to the
original technical version and have not been subject to any later
design or electromechanical modifications.
We herewith declare that said products are in conformity with the
provisions of the respective EC directives including all applicable
amendments.
A detailed declaration is available on request and can be ordered
from d&b or downloaded from the d&b website at
www.dbaudio.com.
6.2 WEEE Declaration (Disposal)
Electrical and electronic equipment must be disposed of separately
from normal waste at the end of its operational lifetime.
Please dispose of this product according to the respective national
regulations or contractual agreements. If there are any further
questions concerning the disposal of this product, please contact
d&b audiotechnik.
WEEE-Reg.-Nr. DE: 13421928
6 Manufacturer's Declarations
d&b Z5330.001 Manual 1.4 en 13

D2021.EN .01, 07/2016 © d&b audiotechnik GmbH & Co. KG
www.dbaudio.com
