d & b audiotechnik E0 User manual

E0
Manual (3.0E)
(incl. Accessories)

References in the manual
WARNING! This refers to a potentially dangerous situation which
may lead to personal injury.
CAUTION! This refers to a potentially dangerous situation which
may lead to personal injury.
IMPORTANT! This refers to a situation which may cause the equipment
to malfunction.
Note: Additional informations and/or references
Symbols on the equipment
Please refer to the information in the operating manual.
WARNING!
Dangerous voltage!
General Information
E0 Manual (incl. Accessories)
Version 3.0E, 09/2004, D2099.E.03
©by d&b audiotechnik AG 2004; all rights reserved.
The information contained in this manual has been carefully checked for
accuracy, at the time of going to press, however no guarantee is given
with respect to the correctness.
d&b audiotechnik AG accepts no responsibility for any errors or
inaccuracies that may appear in this manual or the products and
software described in it.
Technical specifications, dimensions, weights and properties do not
represent guaranteed qualities.
As manufacterers we reserve the right to make alterations and
modifications within the framework of legal provisions, as well as
changes aimed at improving quality.
Those products which are named in the manual, which at the same time
have registered trade-marks may not always be marked as such. The
lack of the ®mark does not consequently mean that the product is
freeware. Just as little can be placed on the basis of pending patents or
protection of designs.
d&b audiotechnik AG
Eugen-Adolff-Strasse 134, D-71522 Backnang, Germany
Telephone [phone], Fax [phone]
E-mail: [email protected], Internet: www.dbaudio.com

Safety precautions
Before you use our products, read the manual carefully
and observe all the safety precautions. They will protect
you and help to avoid equipment failures.
Keep this manual in a safe place so that it is available for
future reference.
If you supply d&b products, please draw the attention of
your customers to these safety guidelines. Enclose the
relevant manuals with the systems. If you require
additional manuals for this purpose, you can order them
from d&b.
Information regarding use of loudspeakers
WARNING! Never stand in the immediate vicinity of loudspeakers driven at a high
level. Professional loudspeaker systems are capable of causing a sound
pressure level detrimental to human health. Seemingly non-critical
sound levels (from approx. 95 dB SPL) can cause hearing damage if
people are exposed to it over a long period.
In order to prevent accidents when deploying loudspeakers on the
ground or when flown, please take note of the following:
When setting up the loudspeakers or loudspeaker stands, make sure
they are standing on a firm surface. If you place several systems on
top of one another, use straps to secure them against movement.
Only use accessories which have been tested and approved by d&b
for assembly and mobile deployment. Pay attention to the correct
application and maximum load capacity of the accessories as detailed
in our specific “Mounting instructions” or in our "Flying system and
Rigging manuals".
Ensure that all additional hardware, fixings and fasteners used for
installation or mobile deployment are of an appropriate size and load
safety factor. Pay attention to the manufacturers instructions and to the
relevant safety guidelines.
Regularly check the loudspeaker housings and accessories for visible
signs of wear and tear, and replace them when necessary.
Regularly check all load bearing bolts in the mounting devices.
CAUTION! Loudspeakers produce a static magnetic field even if they are not
connected or are not in use. Therefore make sure when erecting and
transporting loudspeakers that they are nowhere near equipment and
objects which may be impaired or damaged by an external magnetic
field. Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic
data carriers (floppy disks, audio and video tapes, bank cards, etc.) is
sufficient; a distance of more than 1 m (3 ft) may be necessary with
computer and video monitors.
E0 Manual (3.0E) Safety precautions - 1

E0

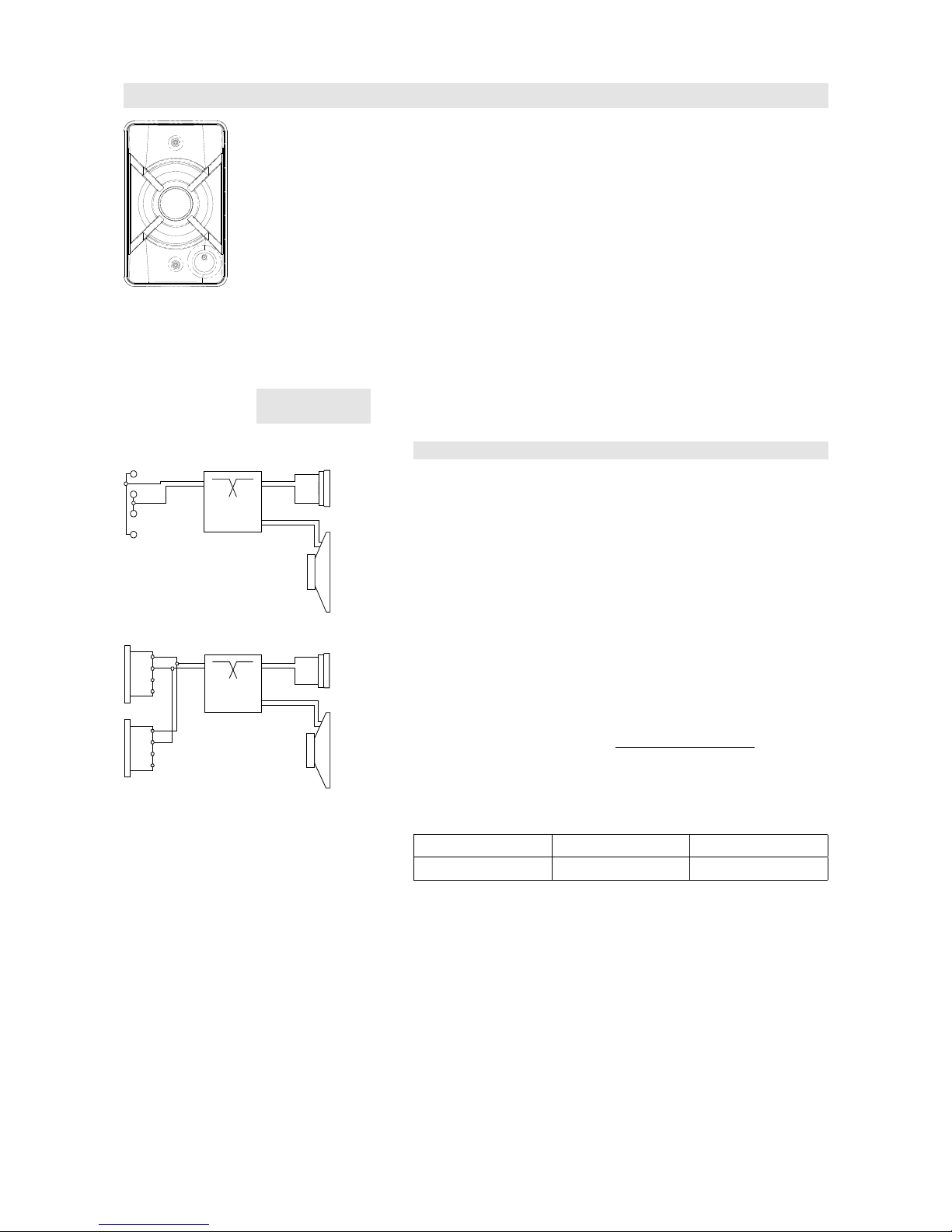

Fig. 1: E0 loudspeaker
The E0 is a compact, coaxial 2-way loudspeaker fitted with a 5” LF
driver and 1” dome tweeter and has a maximum sound pressure level of
116 dB SPL.
The E0 is housed in a cleverly shaped strong polyamide cabinet
containing magnetic shielding of the LF driver, and has a rigid metal grill
that protects the front of the loudspeaker. Recessed into the rear is a
quad push connector and self-locking ball joint with integrated mounting
arm that incorporates an M10 female thread. Along with a selection of
d&b rigging accessories the E0 can be deployed quickly and easily in a
variety of configurations.
Whilst the loudspeaker components are shielded against magnetic
radiation, we advise a minimum distance of 15 cm between the E0 and
susceptible equipment (e.g. PC and video monitors).
CAUTION! Only operate E0 loudspeakers with a d&b amplifier configured for the
E0 otherwise there is a risk of damage to the loudspeaker components.
Connections
passive
crossover
red +
black -
black -
red +
Fig. 2: Wiring of the push connector
1+
1-
2+
2-
1+
1-
2+
2- passive
crossover
Fig. 3: Wiring of the NL4 connectors
The E0 loudspeaker can be supplied with two connector options.
Push connector:
Two pairs of push connectors wired in parallel facilitating quick
connection to additional loudspeakers and the D12 or E-PAC amplifiers.
NL4 connector:
Two NL4 connectors wired in parallel using pins 1+/1−. Pins 2+/2− are
not connected – refer to the graphic opposite - Fig. 3
Using one connector as the input, the second connector allows for direct
connection to additional loudspeakers.
Dimensioning of the loudspeaker cable:
We recommend a loudspeaker cable with minimum cross-section of 0.5
mm2. The minimum cross-section required for a single cabinet can be
calculated from:
crosssectionmm2= single length of cablem
50
Where multiple E0 loudspeakers are connected in parallel the minimum
cross-section required is obtained by multiplying the above result by the
number of cabinets.
NL4 1+ 1−
Push connector red (+) black (−)
Tab. 1: NL4 and push connector pin assignments
E0 Manual (3.0E) Page 4 of 10

Operation with D12
IMPORTANT! Selecting E0 mode in the D12 enables up to four E0 cabinets to be
driven by each channel.
Controller settings
For acoustic adjustment the functions CUT, HFA and CPL can be
selected.
CUT circuit
Set to CUT, a high pass filter with a 120 Hz cut off frequency is inserted
in the controller signal path. The E0 is now configured for use with d&b
active subwoofers.
HFA circuit
-5
0
5
10
-10
-15
-20
-25
-30
20 100 1k 10k 20
k
Fig. 4: Frequency response correction of
HFA circuit
In HFA mode (High Frequency Attenuation), the HF response of the E0
system is rolled off. The HFA provides a natural, balanced frequency
response when a unit is placed close to listeners in near field or delay
use.
High Frequency Attenuation begins gradually at 1 kHz, dropping by
approximately 3 dB at 10 kHz. This roll-off mimics the decline in
frequency response experienced when listening to a system from a
distance in a typically reverberant room or auditorium.
CPL circuit
Fig. 5: Frequency response correction of
CPL circuit
The CPL (Coupling) circuit compensates for coupling effects between the
cabinets when building closely coupled arrays. CPL begins gradually at 1
kHz, with maximum attenuation below 400 Hz, providing a balanced
frequency response when Q7 cabinets are used in arrays of two or
more. The function of the CPL circuit in the D12 amplifier is shown in the
diagram opposite and can be set in dB attenuation values between –9
and 0, or a positive CPL value which creates an adjustable low
frequency boost around 65 Hz (0 to +5 dB).
Operation with E-PAC
Selecting E0 mode in the E-PAC enables up to two E0 cabinets to be
driven at full output power. LO IMP mode allows the E-PAC to drive a
maximum of four E0 cabinets with a 6 dB reduction of input level to the
loudspeakers.
The CUT and HFA settings are available. The characteristics of the CUT
and HFA settings are explained under the previous section "Operation
with D12 - Controller settings".
E0 Manual (3.0E) Page 5 of 10

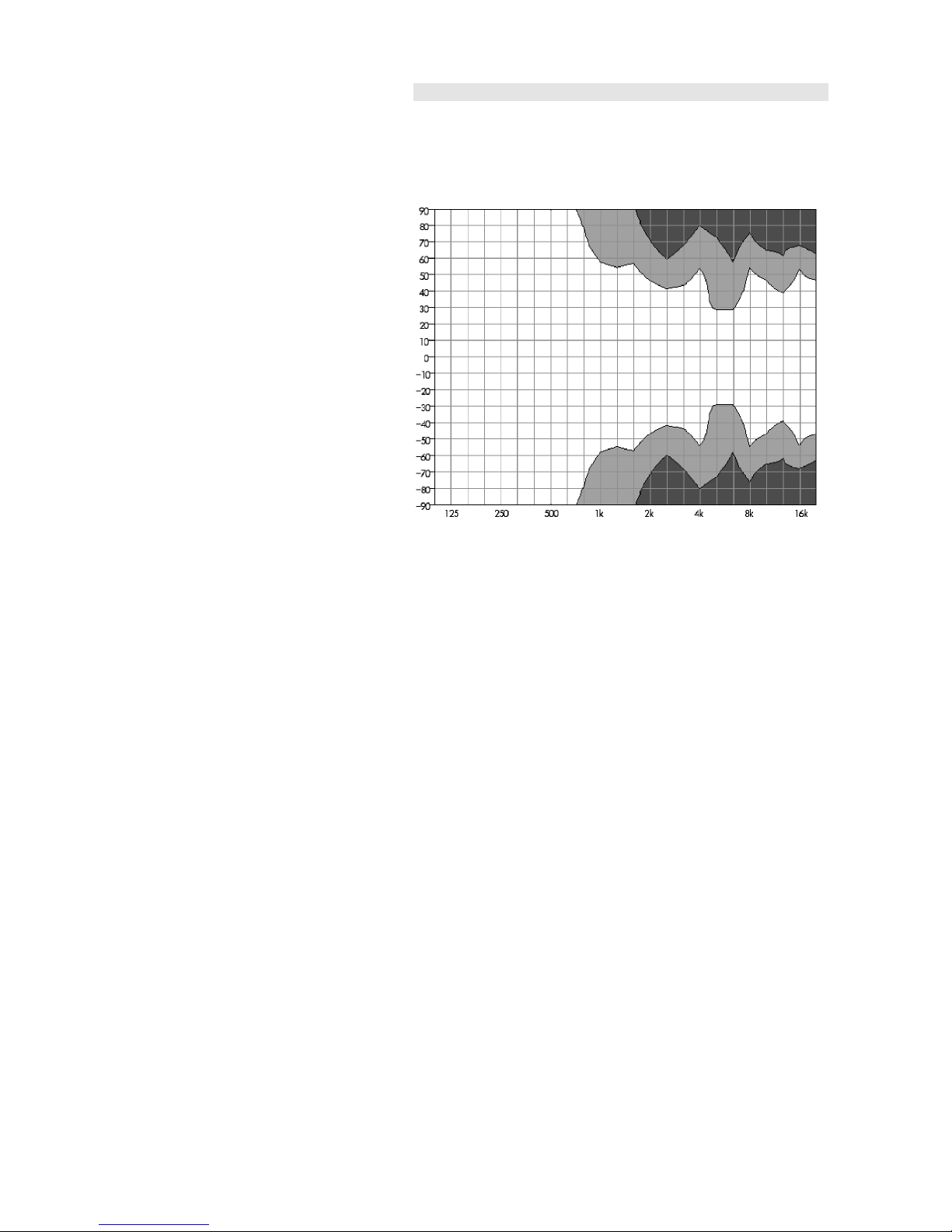

Dispersion characteristics
Due to the coaxial driver design, the horizontal and vertical dispersion
characteristics of the E0 are identical. The diagram below shows
dispersion angle vs frequency plotted using lines of equal sound
pressure (isobars) at –6 dB and –12 dB.
Fig. 6: E0 isobar diagram
E0 Manual (3.0E) Page 6 of 10

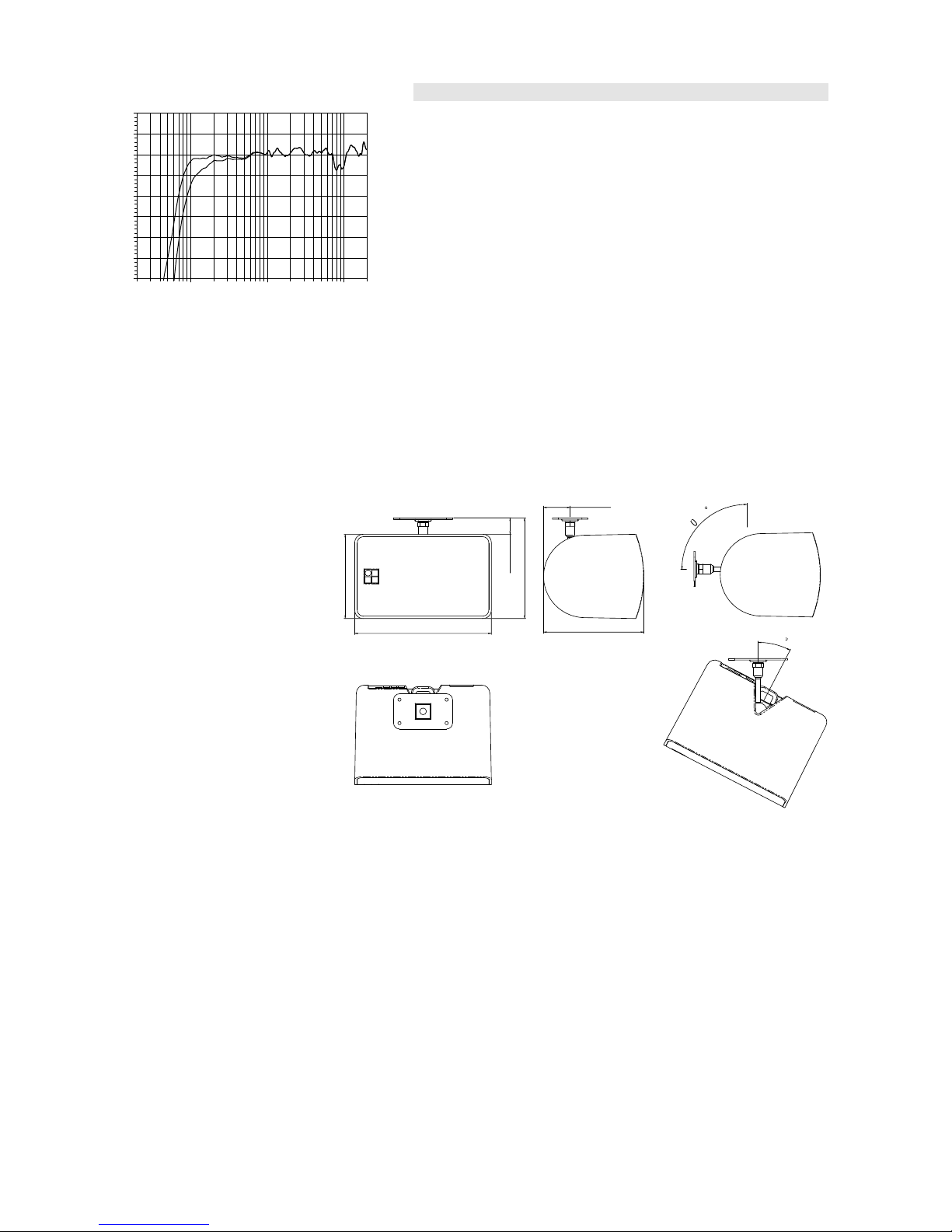

Technical specifications
-5
0
5
10
-10
-15
-20
-25
-30
20 100 1k 10k 20
k
Fig. 7: E0 frequency response standard
and CUT settings
E0 system data
Frequency response (–5 dB)......................................................................80 Hz - 20 kHz
Max. sound pressure (1 m, free field) with D12..................................................117 dB
Max. sound pressure (1 m, free field) with E-PAC..............................................116 dB
(SPLmax peak, pink noise test signal with crest factor of 4)
Input level (100 dB SPL / 1 m).................................................................................–4 dBu
Polarity to controller INPUT (XLR pin 2: + / 3: –)....................................LF: + / HF: –
E0 loudspeaker
Nominal impedance................................................................................................16 ohms
Power handling capacity (RMS / peak 10 ms)............................................50 /400 W
Nominal dispersion angle...............................................................................100° conical
Comonents...........................................5" driver/coaxially mounted 1" dome tweeter
.....................................................................................................Passive crossover network
Connections................................................Push connector, two pairs wired in parallel
corss-section up to 6 mm2
......................................................................................................................................2 x NL4
Pin assignments...................................................................Push connector red+/black–
..............................................................................................................................NL4 1+/1–
Weight..............................................................................................................2.5 kg (5.5 lb)
2
33
[
9.17"
]
2
8
[
1.1"
]
172
[
6.77"
]
1
44
[
5.67"
]
45
[
1.77"
]
170 [6.69"]
±
30
°
0-
90
°
Fig. 8: E0 cabinet dimensions in mm [inch]
E0 Manual (3.0E) Page 7 of 10

E0 Accessories
Fig. 9: E0 with B2123 Fixing plate
Recessed into the rear is a self-locking ball joint with integrated
mounting arm that incorporates an M10 female thread. The E0 rigging
accessories allow different mounting of the E0 loudspeaker as follows:
- The B2123 Fixing plate allows mounting to walls and ceilings or other
surfaces.
- Single cabinets can be hung from a truss or bar using the E6532
Super Clamp together with the E6533 M10 adapter for the Super
Clamp. The jaw of the Super Clamp can be adjusted to fit bars, or
any other supporting structures with diameters from 13 to 55 mm
(0.5" to 2.2").
- Alternatively the Z5029 TV spigot together with the Z5012 Pipe clamp
can be used for tube diameters from 32 to 50 mm (1.25" to 1.97").
- The Z5035 M10 to 3/8" adapter enables the E0 to be mounted to a
microphone stand, whilst the Z5034 Stand adapter allows the E0 to
be mounted to a loudspeaker stand. The E0 is mounted horizontally
when using either a microphone or loudspeaker stand.
Safety instructions
[S]
WARNUNG! Under no circumstances should the safety hook [S] be
used to support other loads.
When attaching the accessories as listed above to the
mounting arm of the E0 loudspeaker the spring washer
must always to be used.
When using the accessories as listed above, please refer
to the accessory specific mounting instructions.
Secondary safeties should always be provided and used
when flying or fixing loudspeaker loads overhead. In
case of the E0 loudspeaker there is a safety hook [S] at
the back of the loudspeaker to which a safety rope
should be attached.
Part list E0 accessories
[1] [2] [3]
Fig. 10: E0 accessories
The following accessories are included as standard with the E0
loudspeaker:
E0 Loudspeaker black/white (Z0400.000/001):
- 1 x Ball joint with integrated mounting arm M10 [1]
- 1 x Spring washer M10 [2]
- 1 x Fixing plate M10
black/white (B2123.200/201) [3]
E0 Manual (3.0E) Page 8 of 10

Assembly
[1]
[2]
Fig. 11: Attaching accessories to the
mounting arm [1] using the spring washer
[2]
Fig. 12: E6532 Super Clamp with E6533
M10 adapter for Super Clamp
The E0 ´s ball joint with integrated mounting arm incorporates an M10
female thread which enables the attachment of the accessory items as
listed above.
The specific accessories are attached to the mounting arm [1] using the
spring washer [2] and should be fixed using a wrench (SW: #17).
The E6533 M10 adapter allows the attachment of the E6532 Super
Clamp to the E0 mounting arm (please refer to the specific mounting
instructions provided with the Manfrotto Super Clamp).
Operation/Adjustments
The self-locking ball joint allows the angling of the loudspeaker in any
direction (see diagram below).
±
30
°
0 - 90°
Fig. 13: Angle setting of the E0 loudspeaker
Rigging examples
Fig. 14: E0 with E6532 Super Clamp Fig. 15: E0 with Z5029 TV spigot Fig. 16: E0 mounted on a mircorphone
stand using the Z5035 M10 to 3/8"
adapter
E0 Manual (3.0E) Page 9 of 10

EU declaration of conformity (CE symbol)
EU conformity of loudspeakers
This declaration applies to loudspeakers manufactured by d&b
audiotechnik AG and includes the types listed in the table below:
- E0 loudspeaker Z0400
All production versions of these types are included, provided they
correspond to the original technical version and have not been subject
to any later design or electromechanical modifications.
We herewith declare that said products are in conformity
with the provisions of the following EC directives
including all applicable amendments:
- 89/336 Electromagnetic Compatibility
The following standards have been applied:
- DIN EN 55013:08-1991
- DIN EN 55020:05-1995
- DIN EN 50082-1:03-1993
d&b audiotechnik AG, Eugen-Adolff-Str. 134, D-71522 Backnang, Germany, Phone [phone], Fax [phone]
