D-Link AC750 User manual

Version 1.01 | 11/04/2016
DIR-819
User Manual
Wireless AC750 Dual Band Router

iD-Link DIR-819 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes.
Manual Revisions
Revision Date Description
1.0 28 October, 2016 Initial release for revision A1
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2016 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
The purpose of this product is to create a constant network connection for your devices. As such, it does not have a standby mode or use a power
management mode. If you wish to power down this product, please simply unplug it from the power outlet.
Preface

iiD-Link DIR-819 User Manual
Table of Contents
Package Contents .............................................................. 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features............................................................................................ 4
Hardware Overview..................................................................... 5
LEDs........................................................................................... 5
Connections ........................................................................... 6
Installation ......................................................................... 7
Before You Begin........................................................................... 7
Wireless Installation Considerations...................................... 8

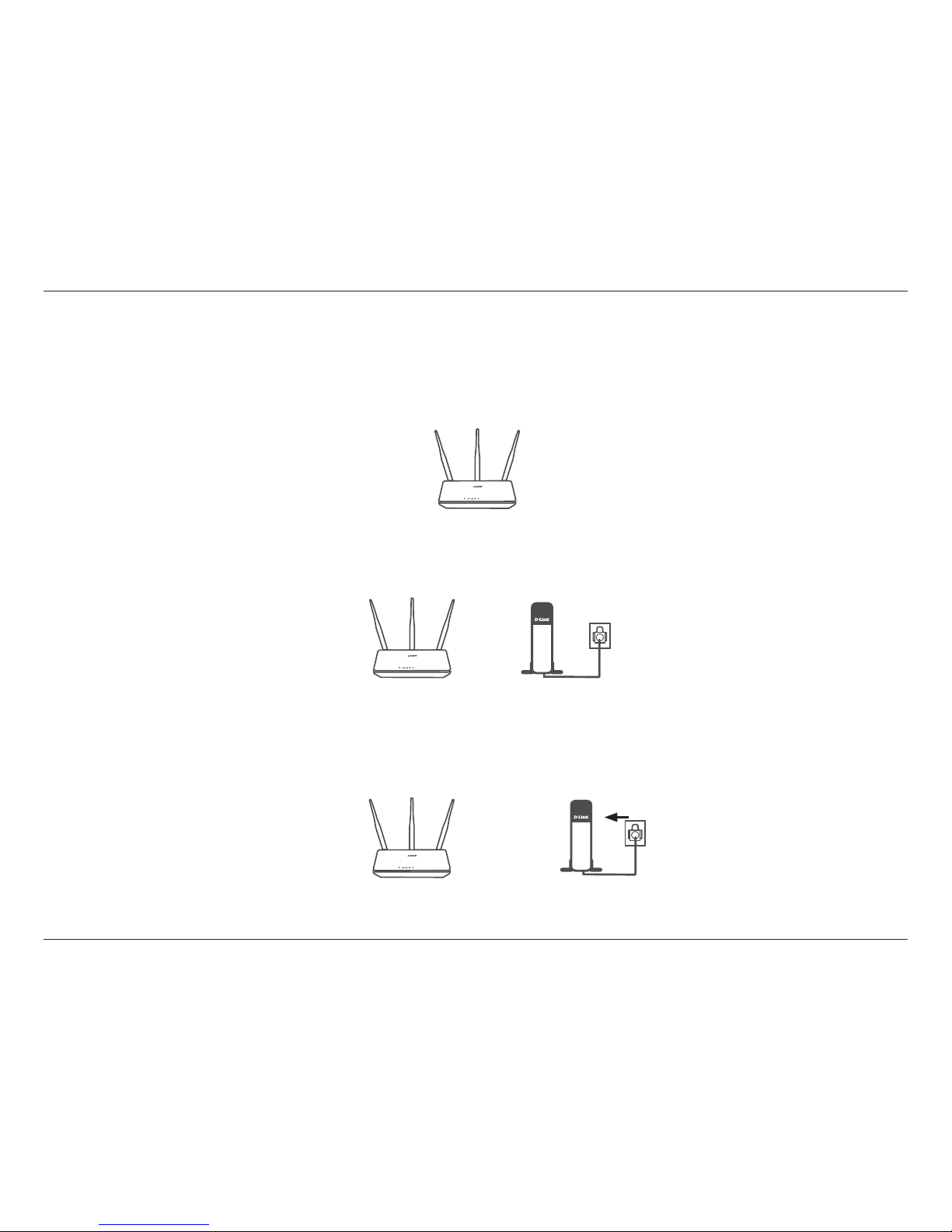

Hardware Setup ............................................................................ 9

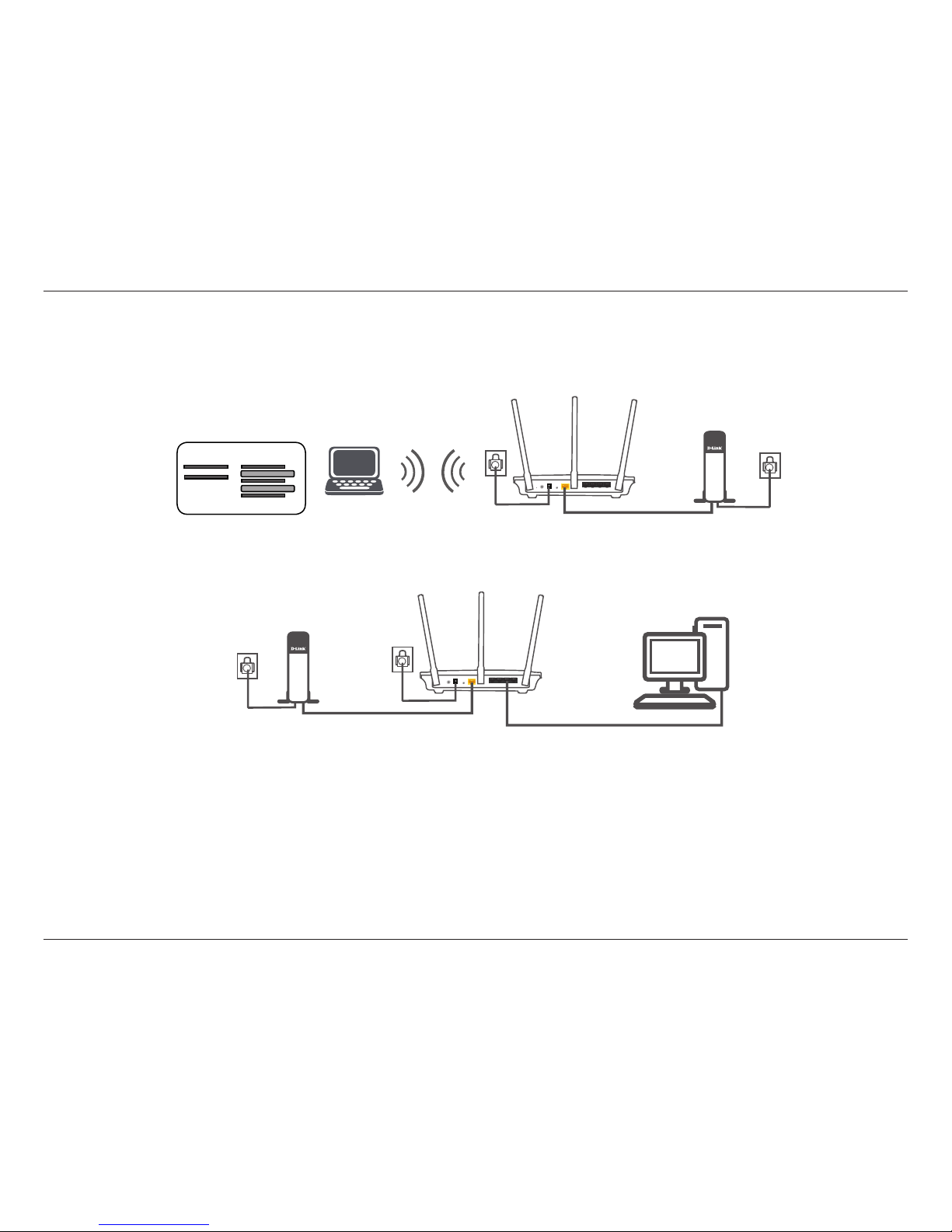

Completing Setup......................................................................12
Setup Wizard ................................................................................13
Conguration...................................................................21
Web UI Table of Contents ........................................................22
Setup...............................................................................................23
Internet...................................................................................24
Internet Connection Setup Wizard..........................25
Manual Internet Connection Setup ........................33
Wireless Settings.................................................................43
Wireless Connection Setup Wizard..........................44
Add Wireless Device with WPS..................................47
Manual Wireless Connection Setup ........................50
Wireless Security Mode ...............................................52
Network Settings ................................................................54
IPv6 ..........................................................................................57
IPv6 Internet Connection Setup Wizard ................58
IPv6 Local Connectivity Settings..............................62
Manual IPv6 Internet Connection Setup...............63
Advanced ......................................................................................79
Virtual Server........................................................................80
Port Forwarding ..................................................................81
Application Rules................................................................82
QOS Engine...........................................................................83
Network Filter.......................................................................85
Inbound Filter ......................................................................86
Access Control .....................................................................87
Add Policy.........................................................................88
Website Filter........................................................................91
Firewall Settings..................................................................92
Routing...................................................................................94
Advanced Wireless .............................................................95
Wi-Fi Protected Setup .......................................................96
Advanced Network ............................................................97
Guest Zone............................................................................98
IPv6 Firewall..........................................................................99
IPv6 Routing ...................................................................... 101
Tools ............................................................................................. 102
Admin .................................................................................. 103
Time...................................................................................... 104
Syslog................................................................................... 105
System ................................................................................. 106
Firmware ............................................................................. 107
Table of Contents

iiiD-Link DIR-819 User Manual
Table of Contents
Dynamic DNS .................................................................... 108
System Check.................................................................... 109
Schedules ........................................................................... 110
Status ........................................................................................... 111
Device Info ......................................................................... 112
Logs ...................................................................................... 114
Statistics .............................................................................. 115
Internet Sessions.............................................................. 116
Wireless ............................................................................... 117
Routing................................................................................ 118
IPV6....................................................................................... 119
IPv6 Routing ...................................................................... 120
Support ....................................................................................... 121
Connect a Wireless Client to Your Router.....................122
WPS Button................................................................................ 122
Windows® 10............................................................................. 123
Windows® 8................................................................................ 125
WPA/WPA2 ......................................................................... 125
Windows® 7................................................................................ 127
WPA/WPA2 ......................................................................... 127
WPS....................................................................................... 129
Windows Vista®......................................................................... 133
WPA/WPA2 ......................................................................... 134
Troubleshooting ............................................................136
Wireless Basics ...............................................................140
What is Wireless?...................................................................... 141
Tips................................................................................................ 143
Wireless Modes......................................................................... 144
Networking Basics.........................................................145
Check your IP address............................................................ 145
Statically Assign an IP address............................................ 146
Wireless Security ......................................................... 147
What is WPA? ................................................................ 147
Technical Specications ................................................148
Regulatory Information ................................................149

1D-Link DIR-819 User Manual
Section 1 - Product Overview

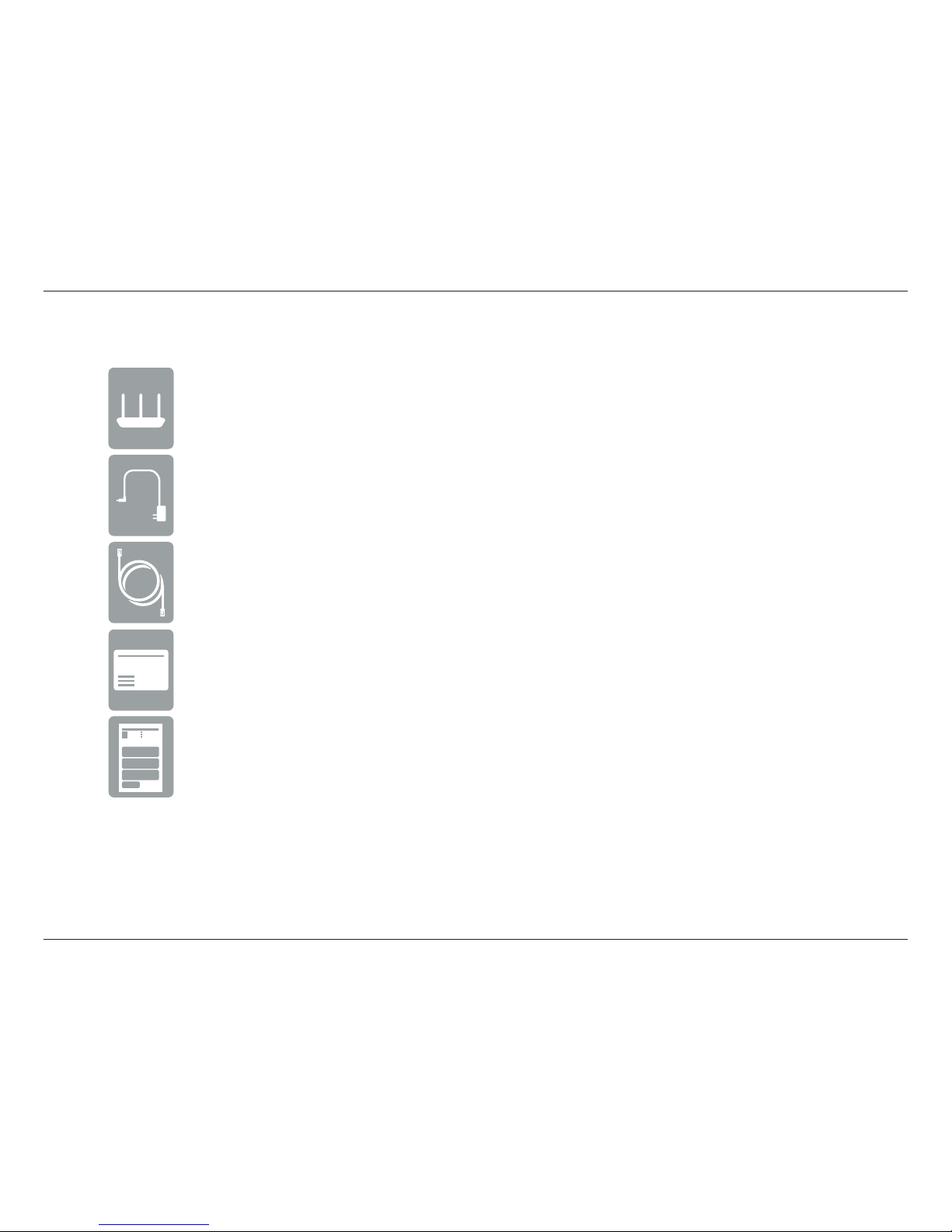

Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-819 will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-819 Wireless AC750 Dual Band Router
Power Adapter
Ethernet Cable
Wi-Fi Conguration Card
Quick Install Guide

2D-Link DIR-819 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based cable or DSL modem
• IEEE 802.11ac, 802.11n, 802.11a, 802.11g, or 802.11b wireless clients
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 9 or higher
• Firefox 20 or higher
• Safari 5.1 or higher
• Chrome 25 or higher
Windows®Users: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.
System Requirements

3D-Link DIR-819 User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-819 Wireless AC750 Dual Band Router shares your Internet connection over a blazing-fast wireless connection of up to 750 Mbps
(up to 433 Mbps over 5 GHzWireless AC and up to 300 Mbps over 2.4 GHz Wireless N)1, using advanced AC beamforming technology to signicantly
outperform 802.11n and other 802.11ac devices. Equipped with one Fast Ethernet WAN/Internet port and four Fast Ethernet LAN ports, the DIR-819
creates an excellent networking experience.
Featuring four antennas, the Wireless AC750 Dual Band Router oers better data rates, fewer dead-spots, more coverage, and higher reliability.
Operating exclusively in the 5 GHz band, the DIR-819’s 802.11ac wireless connections avoid the crowded 2.4 GHz band, giving you faster speeds while
still maintaining backwards compatibility with older 802.11n/g/b devices. A stronger Wi-Fi signal means you can install more wireless surveillance
cameras, baby monitors, sensors, and alarms in the places where you need them.
The DIR-819 supports the latest security features to help prevent unauthorized access. Support for WPA™ and WPA2™ standards ensure that you
will be able to use the best possible encryption regardless of your client devices. This router is also equipped with a dual-active rewall (SPI and
NAT) to prevent potential attacks over the Internet.
The DIR-819 is full of features to improve your home network. The rich parental controls allow you to easily control when the Internet should be
available in your home and what content is allowed. With all this and more, the DIR-819 Wireless AC750 Dual Band Router will serve your network
well for years to come.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.

4D-Link DIR-819 User Manual
Section 1 - Product Overview
•ExcellentWireless Networking -The DIR-819 provides wireless speeds of up to a combined 750 Mbps (433 Mbps 802.11ac 5 GHz, plus
300 Mbps 802.11n 2.4 GHz)1. This capability rivals wired connections, allowing users to participate in real-time activities online, such
as HD video communication, online gaming, and use mobile devices from anywhere in your home while still oering full 802.11n/g/b
backward compatibility.
• Fast Wired LAN and WAN Networking - With four 10/100 Fast Ethernet LAN ports, and a 10/100 Fast Ethernet WAN port, the DIR-819
has an enormous amount of bandwidth to take full advantage of the highest speed broadband connections available.
• IPv6 Support - The DIR-819 fully supports IPv6 and includes support for a variety of IPv6 connection types including: SLAAC/DHCPv6,
6to4, 6rd, Static IPv6, IPv6 PPPoE, IPv6 in IPv4 tunneling, and local connectivity.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network management features. Easily
apply content ltering based on MAC address, URL, and/or domain name. Schedule these lters to be active on certain days or for a
duration of hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-819 can pass through VPN sessions. It supports multiple and concurrent IPSec and
PPTP sessions, so users behind the DIR-819 can securely access corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DIR-819 lets you quickly congure and secure
your router to your specic settings in minutes.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network
conditions and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data
throughput rate. Environmental conditions will adversely aect wireless signal range.
Features

5D-Link DIR-819 User Manual
Section 1 - Product Overview
Hardware Overview

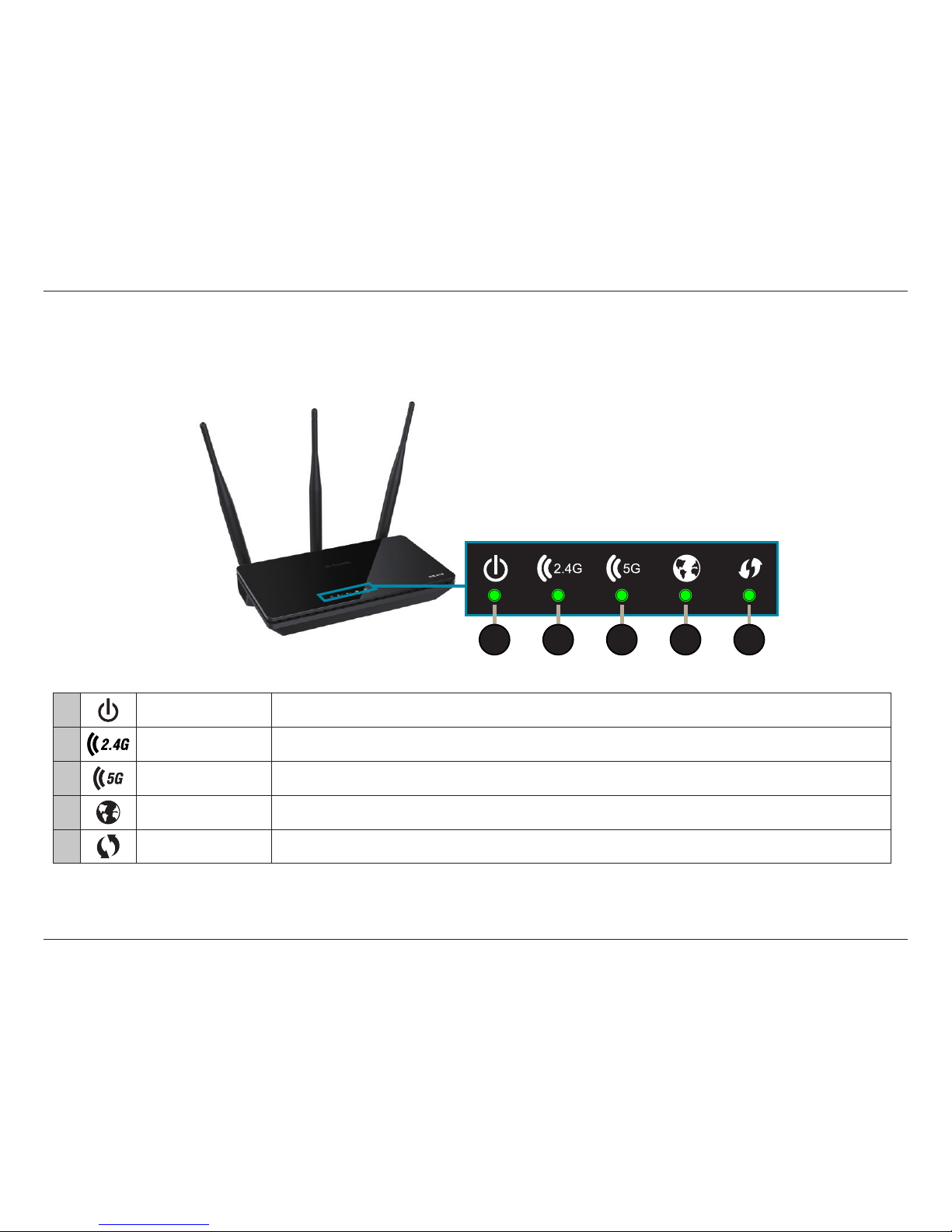

LEDs
1Power The Power LED indicates that the device is powered on with a proper connection to the power supply.
22.4 GHz Wireless The Wireless LED indicates that this wireless band is working. It blinks during wireless data transmission.
35 GHz Wireless The Wireless LED indicates that this wireless band is working. It blinks during wireless data transmission.
4 Internet The Internet LED indicates that an Internet link is established. It blinks during data transmission.
5 WPS The WPS LED blinks during the WPS pairing process.
1 2 3 4 5

6D-Link DIR-819 User Manual
Section 1 - Product Overview
Hardware Overview

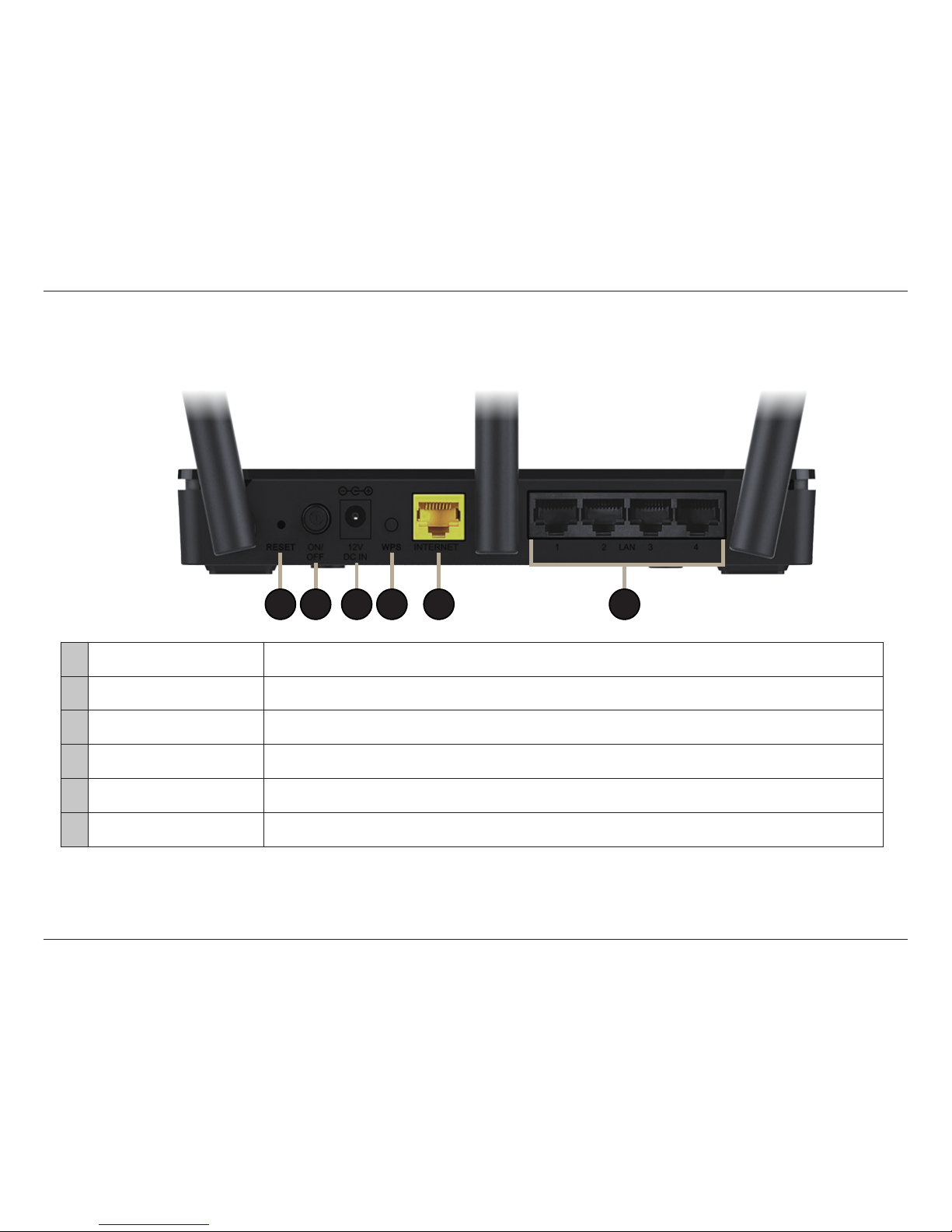

Connections
1 32 4 5 6
1 Reset Button Insert a paperclip in the hole, wait for 10 seconds, and release to reset the router to default settings.
2 Power Button Press the power button to power the device on and o.
3 Power Connector Connector for the supplied power adapter.
4 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
5 Internet Port Using an Ethernet cable, connect your broadband modem to this port.
6 LAN Ports (1-4) Connect Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.

7D-Link DIR-819 User Manual
Section 2 - Installation
Before You Begin
Installation
• Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, attic, or garage.
• Congure the router with the computer that was last connected directly to your Internet connection. Verify that it is connected to
the Internet before connecting additional devices.
• If your ISP provided you with a modem/router combo, you will need to set it to“bridge”mode so the router can work properly. Please
contact your Internet Service Provider (ISP) or refer to the user manual for your modem/router device.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then you must
turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and then turn the
modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).
• If connecting to a DSL modem, make sure to have your DSL service information provided by your Internet Service Provider handy.
This information is likely to include your DSL account's username and password. Your ISP may also supply you with additional WAN
conguration settings which might be necessary to establish a connection.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to label each cable
or take a picture of your existing setup before making any changes.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoET, BroadJump,
or EnterNet 300 from your computer or you will not be able to connect to the Internet.

8D-Link DIR-819 User Manual
Section 2 - Installation
Wireless Installation Considerations
This D-Link wireless device lets you access your network using a wireless connection from virtually anywhere within the operating range of your
wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through
may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business.
The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling
can reduce your adapter’s range from 1 to 30 meters (3 to 90 feet). Position your devices so that the number of walls or ceilings is
minimized.
2. Be aware of the direct line between network devices. A wall that is 0.5 meters (1.5 feet) thick, at a 45-degree angle appears to be
almost 1 meter (3 feet) thick. At a 2-degree angle it looks over 14 meters (42 feet) thick! Position devices so that the signal will
travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position
access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects
such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your
wireless signal.
4. Keep your product away at least 1 to 2 meters (3 to 6 feet) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your
wireless devices as possible. The base transmits a signal even if the phone is not in use.

9D-Link DIR-819 User Manual
Section 2 - Installation
1. The DIR-819 is designed to give you the fastest, most stable network connection possible. In order to maximize performance, fully extend
the antennas to provide optimal wireless coverage. Keep the router in an open area for better wireless coverage.
2. Position your DIR-819 near your Internet-connected modem. Place it in an open area for better wireless coverage.
Hardware Setup
3. Turn o and unplug the power and Ethernet cable to your cable or DSL broadband modem. This is required. In some cases, you may need
to turn it o for up to ve minutes.
Modem
DIR-819
Modem
DIR-819
DIR-819

10D-Link DIR-819 User Manual
Section 2 - Installation
INTERNET
POWER POWER PORT WPS
4321
RESET
DIR-819
INTERNET
POWER POWER PORT WPS
4321
RESET
DIR-819
4. Use the included Ethernet cable to connect your modem to the yellow port labeled INTERNET on the router.
5. Turn on or plug your modem back in and wait approximately one minute before proceeding onward.
Modem
INTERNET
POWER POWER PORT WPS
4321
RESET
DIR-819
Modem
6. Connect the supplied power adapter to the router and a power outlet, press the power button, and verify that the power LED is lit. Allow
1 minute for the router to boot up.
Modem
Hardware Setup (continued)

11D-Link DIR-819 User Manual
Section 2 - Installation
INTERNET
POWER POWER PORT WPS
4321
RESET
INTERNET
POWER POWER PORT WPS
4321
RESET
DIR-819
DIR-819
7. If you are conguring the DIR-819 wirelessly from a PC, connect to a Wi-Fi network printed on the included Wi-Fi conguration card. You
can also nd the Wi-Fi network names and passwords printed on the label attached to the bottom of your router.
8. If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online already. Try opening a web
browser and connecting to a website. If the website does not load, proceed to Completing Setup on page 12.
If you are conguring the DIR-819 from a PC with a wired Ethernet connection, plug one end of an Ethernet cable into the port labeled
1 on the back of the router, and the other end into the Ethernet port on your computer.
Hardware Setup (continued)
Wi-Fi Conguration Card
Modem
Modem

12D-Link DIR-819 User Manual
Section 2 - Installation
Completing Setup
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time, refer to Setup Wizard on page 13.
•Manual Setup - Log into the router and manually congure your router, refer to Conguration on page 21.

13D-Link DIR-819 User Manual
Section 2 - Installation
WELCOME TO THE D-LINK SETUP WIZARD
This wizard will guide you through a step-by-step process to congure your new D-Link router and connect to the
Internet.
• Step 1: Congure your Internet Connection
• Step 2: Congure your Wi-Fi Security
• Step 3: Set your Password
• Step 4: Select your Time Zone
• Step 5: Conrm Wi-Fi Settings
Cancel Next
The wizard is designed to guide you through a step-by-step process to congure your new
D-Link router and connect to the Internet.
Click Next to continue.
WELCOME TO THE DLINK SETUP WIZARD
Setup Wizard
If this is your first time installing the router, open your web browser and enter
http://dlinkrouter.local./ in the address bar. Alternatively, enter the IP address of the router
(default: http://192.168.0.1). The rst time you log in, the setup wizard will run.

14D-Link DIR-819 User Manual
Section 2 - Installation
STEP 1: CONFIGURE YOUR INTERNET CONNECTION
The router is detecting your Internet connection type, please wait...
Cancel Prev Next
Please wait while your router attempts to detect your Internet connection type. You may
need to enter information such as your ISP account username and password.
Next to continue.
STEP 1: CONFIGURE YOUR INTERNET CONNECTION
Step 1 - Congure Your Internet Connection
STEP 1: CONFIGURE YOUR INTERNET CONNECTION
If your Internet Service Provider was not listed or you don’t know who it is, please select the Internet connection type
below:
DHCP Connection (Dynamic IP Address)
Choose this if your Internet connection automatically provides you with an IP Address. Most Cable Modems use this type of
connection.
Username / Password Connection (PPPoE)
Choose this option if your Internet connection requires a username and password to get online. Most DSL modems use this type
of connection.
Username / Password Connection (PPTP)
PPTP client.
Username / Password Connection (L2TP)
L2TP client.
Static IP Address Connection
Choose this option if your Internet Setup Provider provided you with IP Address information that has to be manually congured.
Cancel Prev Next
Select the connection type your ISP uses.
If you select DHCP Connection (Dynamic IP Address), proceed to Step 2 - CongureYour
Wi-Fi Security on page 19.
For Username / Password Connection (PPPoE) setup help refer to page 15.
For Username / Password Connection (PPTP) setup help refer to page 15.
For Username / Password Connection (L2TP) setup help refer to page 16.
For Static IP Address Connection setup help refer to page 18.
Select your connection type and click Next to continue.
STEP 1: CONFIGURE YOUR INTERNET CONNECTION

15D-Link DIR-819 User Manual
Section 2 - Installation
If you chose Username / Password Connection (PPPoE) as your Internet Connection, congure the following settings:
SET USERNAME AND PASSWORD CONNECTION (PPPOE)
To set up this connection you will need to have a Username and Password from your Internet Service Provider. If you do
not have this information, please contact your ISP.
User Name :
Password :
Cancel Prev Next
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Click Next and proceed to Step 2 - Congure Your Wi-Fi Security on page 19.
SET USERNAME AND PASSWORD CONNECTION PPPOE
Username / Password Connection (PPPoE)
If you choose Username / Password Connection (PPTP) as your Internet Connection, enter your IP address, congure the following settings:
SET USERNAME AND PASSWORD CONNECTION (PPTP)
To set up this connection you will need to have a Username and Password from your Internet Service Provider. You also
need PPTP IP address. If you do not have this information, please contact your ISP.
Address Mode : Dynamic IP Static IP
PPTP IP Address :
PPTP Subnet Mask :
PPTP Gateway IP Address :
PPTP Server IP Address (may be
same as gateway):
User Name :
Password :
Verify Password :
DNS SETTINGS
Primary DNS Address :
Secondary DNS Address :
Cancel Prev Next
Address Mode: Select either Dynamic IP or Static IP
If you choose Static IP as the Address Mode, enter your IP address:
PPTP IP Address: Enter the PPTP IP Address provided by your ISP.
PPTP Subnet
Mask:
Enter the PPTP Subnet Mask provided by your ISP.
PPTP Gateway IP
Address:
Enter the PPTP Gateway IP Address provided by your ISP.
If you choose Dynamic IP or Static IP as the Address Mode, enter your PPTP Server IP
address:
PPTP Server IP
Address:
Enter the PPTP Server IP address provided by your ISP.
SET USERNAME AND PASSWORD CONNECTION PPTP
Username / Password Connection (PPTP)

16D-Link DIR-819 User Manual
Section 2 - Installation
SET USERNAME AND PASSWORD CONNECTION (PPTP)
To set up this connection you will need to have a Username and Password from your Internet Service Provider. You also
need PPTP IP address. If you do not have this information, please contact your ISP.
Address Mode : Dynamic IP Static IP
PPTP IP Address :
PPTP Subnet Mask :
PPTP Gateway IP Address :
PPTP Server IP Address (may be
same as gateway):
User Name :
Password :
Verify Password :
DNS SETTINGS
Primary DNS Address :
Secondary DNS Address :
Cancel Prev Next
Username / Password Connection (PPTP) (continued)
Primary DNS
Server:
Enter the primary DNS server IP addresses.
Secondary DNS
Server:
Enter the secondary DNS server IP addresses.
Click Next and proceed to Step 2 - Congure Your Wi-Fi Security on page 19.
DNS SETTINGS
User Name: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Verify Password: Enter the password provided by your ISP one more time.
If you choose Username / Password Connection (L2TP) as your Internet Connection, enter your IP address, congure the following settings:
SET USERNAME AND PASSWORD CONNECTION (L2TP)
To set up this connection you will need to have a Username and Password from your Internet Service Provider. You also
need L2TP IP address. If you do not have this information, please contact your ISP.
Address Mode : Dynamic IP Static IP
L2TP IP Address :
L2TP Subnet Mask :
L2TP Gateway IP Address :
L2TP Server IP Address : (may be same as gateway)
User Name :
Password :
Verify Password :
DNS SETTINGS
Primary DNS Address :
Secondary DNS Address : (optional)
Cancel Prev Next
Address Mode: Select either Dynamic IP or Static IP
If you choose Static IP as the Address Mode, enter your IP address:
L2TP IP Address: Enter the L2TP IP Address provided by your ISP.
L2TP Subnet
Mask:
Enter the L2TP Subnet Mask provided by your ISP.
L2TP Gateway IP
Address:
Enter the L2TP Gateway IP Address provided by your ISP.
SET USERNAME AND PASSWORD CONNECTION L2TP
Username / Password Connection (L2TP)
