D-Link AirPlusXtremeG DI-624 User manual

DI-624
Xtreme G 2.4GHz
Wireless Router
5V 3A DC Power Adapter
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DI-624. 01102003
Before You Begin
1. If you purchased this router to share your high-speed Internet connection with other
computers, you must have either an Ethernet-based Cable or DSL modem with an
established Internet account from an Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your modem for configuring
the DI-624 Multimode Wireless Router. The DI-624 acts as a DHCP server and will
assign all the necessary IP address information on your network. See Appendix at
the end of this Quick Installation Guide or the Manual on the CD-ROM for
setting each network adapter to automatically obtain an IP address.
Check Your Package Contents
DI-624 Xtreme G 2.4GHz Wireless Router
CD-ROM (containing Manual and Warranty)
Ethernet (Straight Through) Cable
Using a power supply
with a different voltage
rating will damage and void
the warranty of this product.
If any of the above items are missing, please contact your reseller.
This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3.

Connecting The DI-624 Wireless
Router To Your Network
A. First, connect the power adapter to the receptor at the back panel of
the DI-624 and then plug the other end of the power adapter to a wall
outlet or power strip. The Power LED will turn ON to indicate proper
operation.
B. Insert one end of an Ethernet cable to the WAN port on the back panel
of the DI-624 and the other end to the Ethernet port located on your
Cable or DSL modem. The WAN LED light will illuminate to indicate
proper connection.
C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-624
and an available Ethernet port on the network adapter in the computer
you will use to configure the DI-624. The LED light for LAN Port 1 will
illuminate to indicate proper connection. (Note: The WAN Port and LAN
Ports on the DI-624 are Auto-MDI/MDIX. Meaning you can use a
straight-through or crossover-cable to the WAN Port and LAN Ports.
D. Computers equipped with 802.11b wireless adapters will be able to
connect to the DI-624. The DWL-G650 AirExtreme Wireless Cardbus
Adapter and the DWL-G520 AirExtreme Wireless PCI Adapter will be
able to connect out of the box with the router using their default
wireless settings.

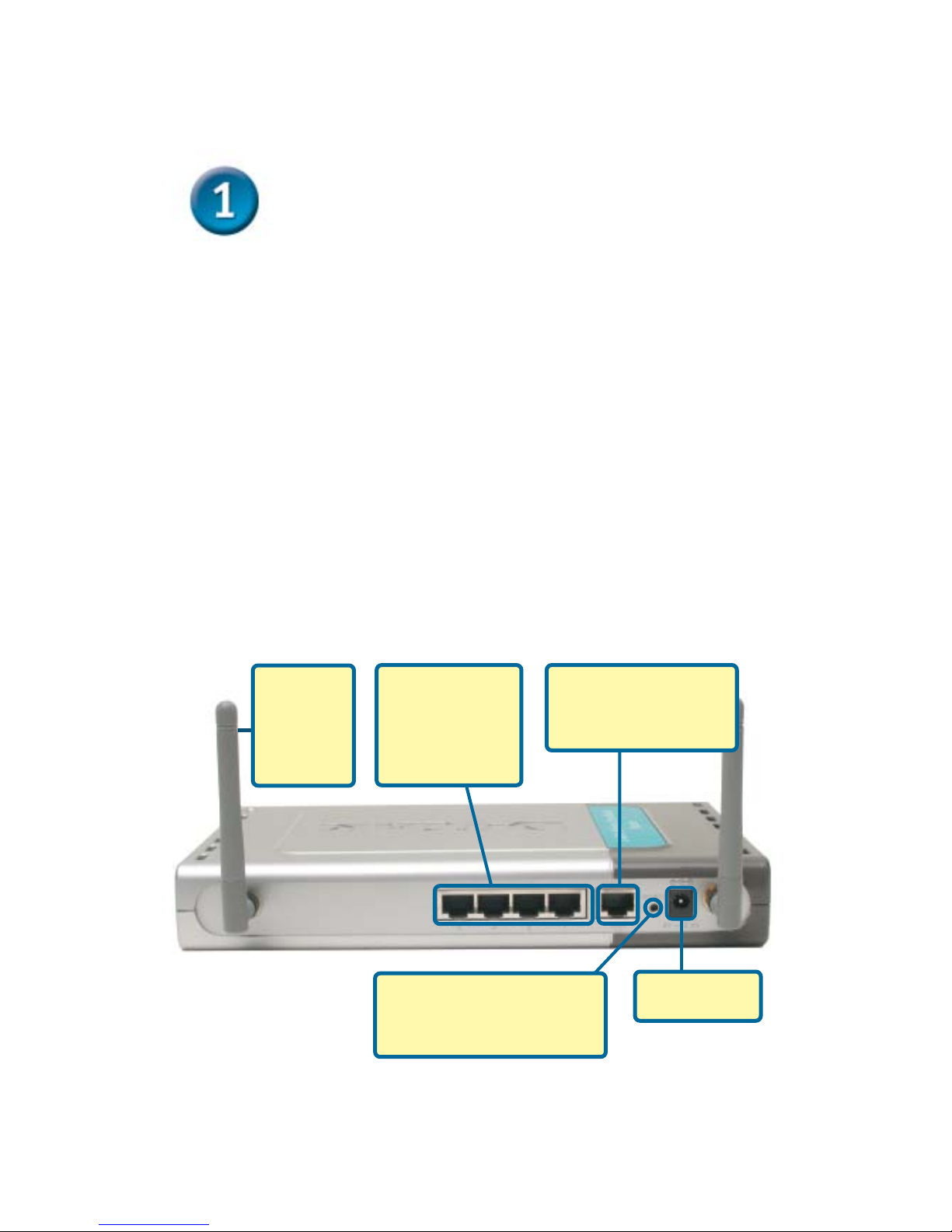

A. Receptor for
Power Adapter.
B. WAN PORT
This is for the connection
of an Ethernet cable to
the Cable or DSL modem
D. Antennas
Used to
wirelessly
connect to
802.11b
adapters.
C. LAN PORTS
These are the
connections for
Ethernet cables to
Ethernet enabled
computers.
Reset Button
Pressing this button restores
the Router to its original factory
default settings.

Restart Your Computer
Connecting Additional Computers To
The DI-624
Using additional Ethernet (CAT5 UTP) cables, connect your
Ethernet-equipped computers to the remaining Ethernet LAN ports
on the back panel of the DI-624.

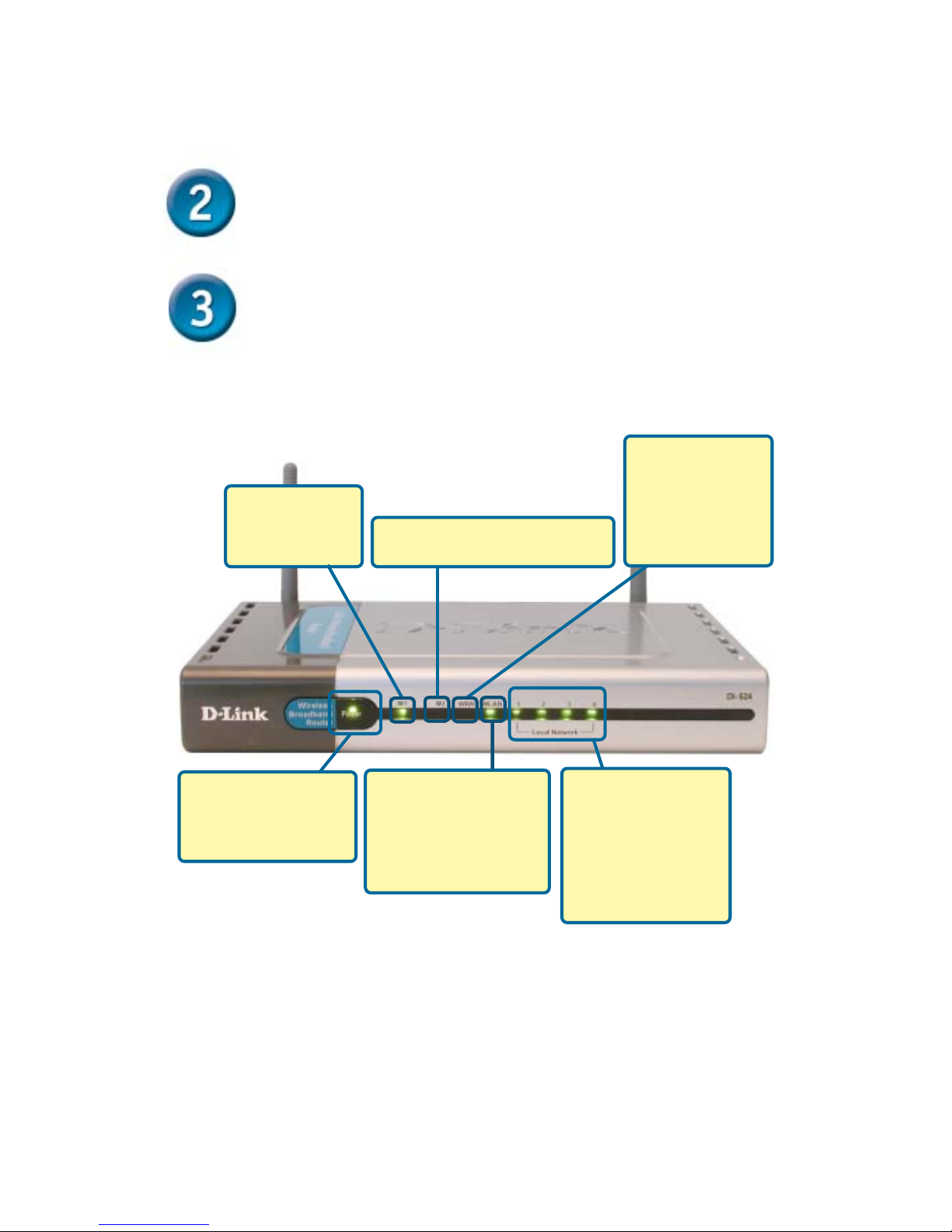

M1 LED – a solid
light indicates
that the DI-624 is
ready.
M2 LED – A solid light indicates
that the unit is defective.
WLAN LED – a solid
light indicates that the
wireless segment is
ready. This LED blinks
during wireless data
transmission.
WAN LED – a
solid light indicates
connection on the
WAN port. This
LED blinks during
data transmission.
LOCAL NETWORK
LEDs – a solid light
on the port indicates a
connection to an
Ethernet enabled
computer on ports 1-4.
This LED blinks during
data transmission.
POWER LED – a solid
light indicates a proper
connection to the
power supply.

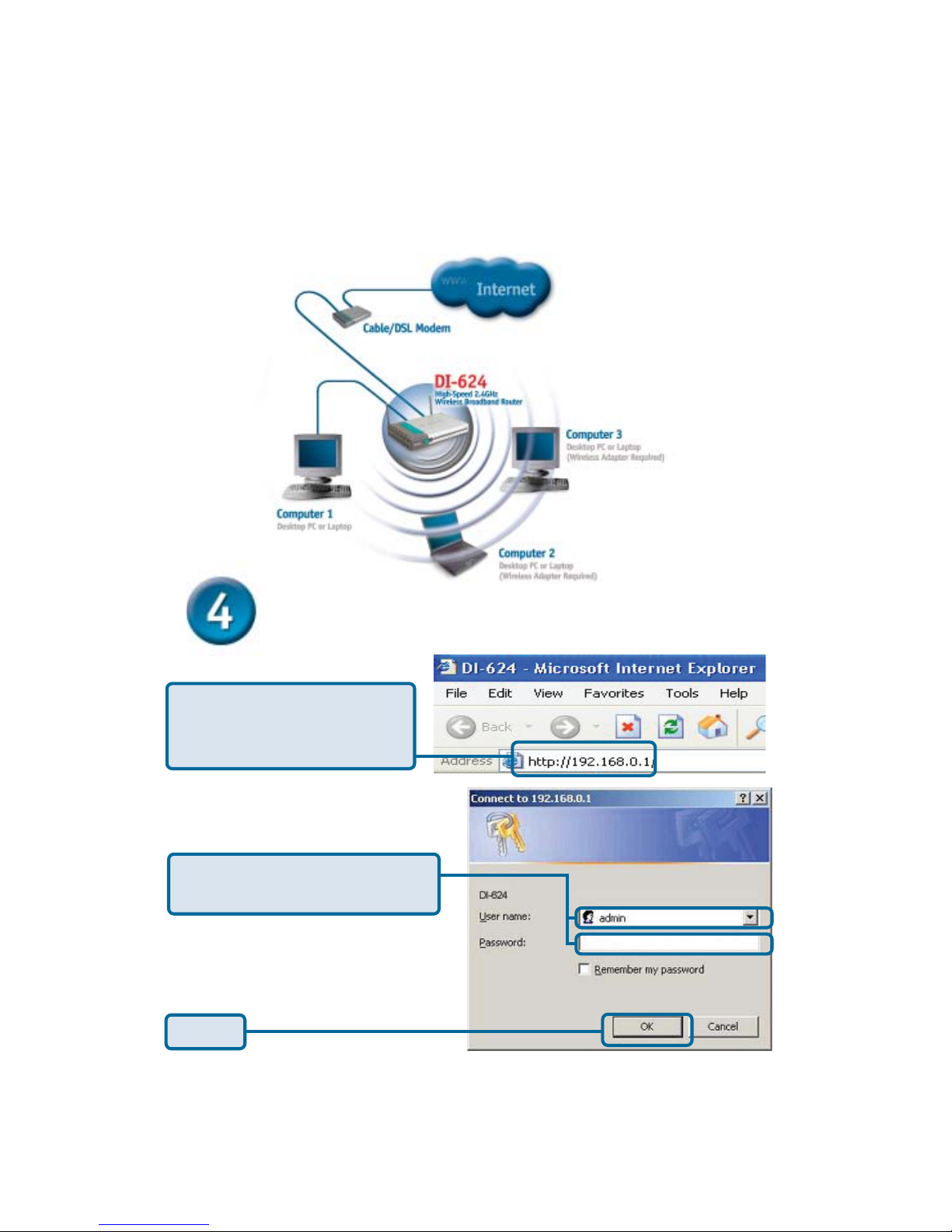

When you have completed the steps in this Quick Installation
Guide, your connected network should look similar to this:
Using The Setup Wizard
The logon pop-up screen will appear.
Open your Web browser and
type “http://192.168.0.1” into the
URL address box. Then press the
Enter or Return key.
Type “admin” for the username and
leave the password field blank.
Click OK

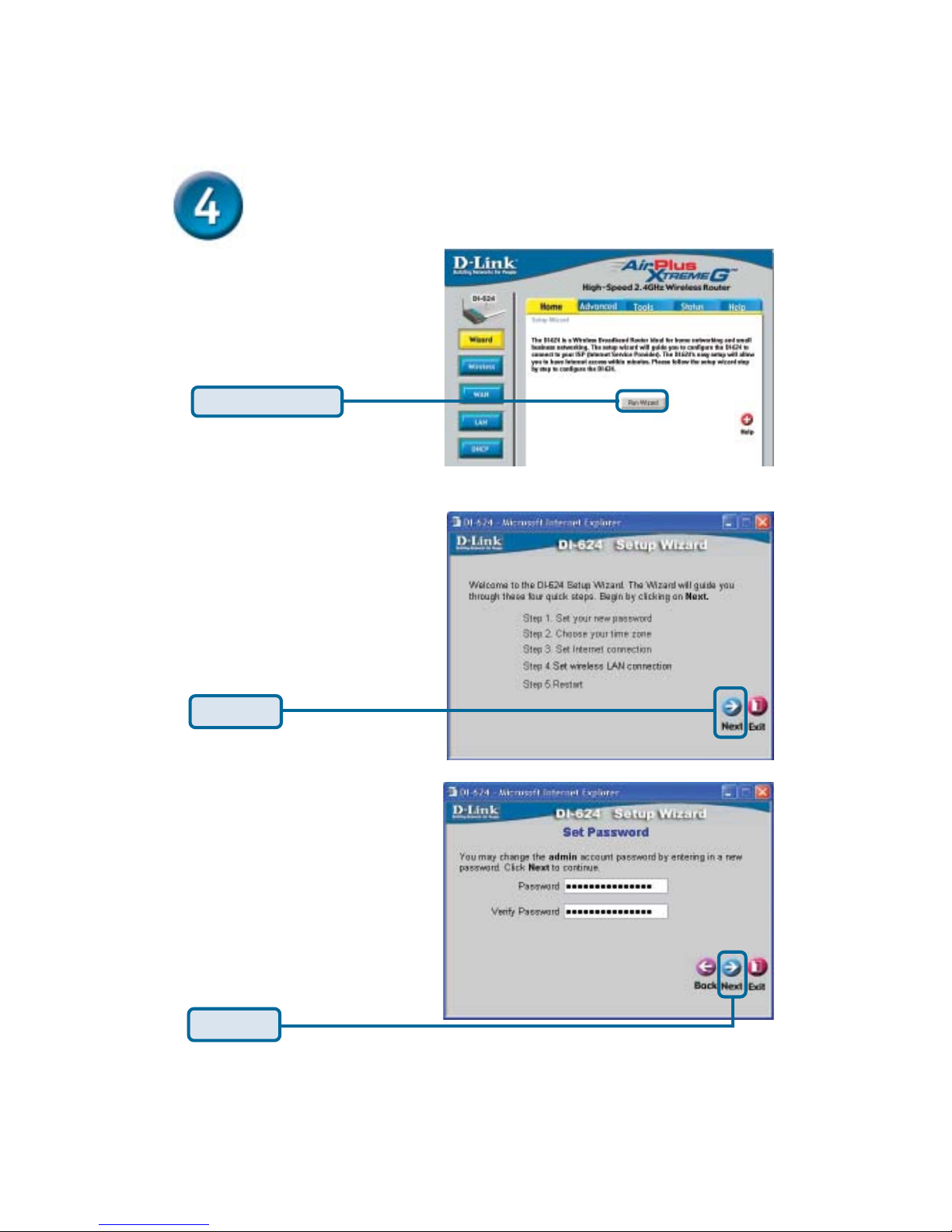

The Setup Wizard (continued)
Once you have logged in, the
Home screen will appear.
You will see the following screens
Set up your new password.
You have the option to
establish a password.
Click Run Wizard
Click Next
Click Next

The Setup Wizard (continued)

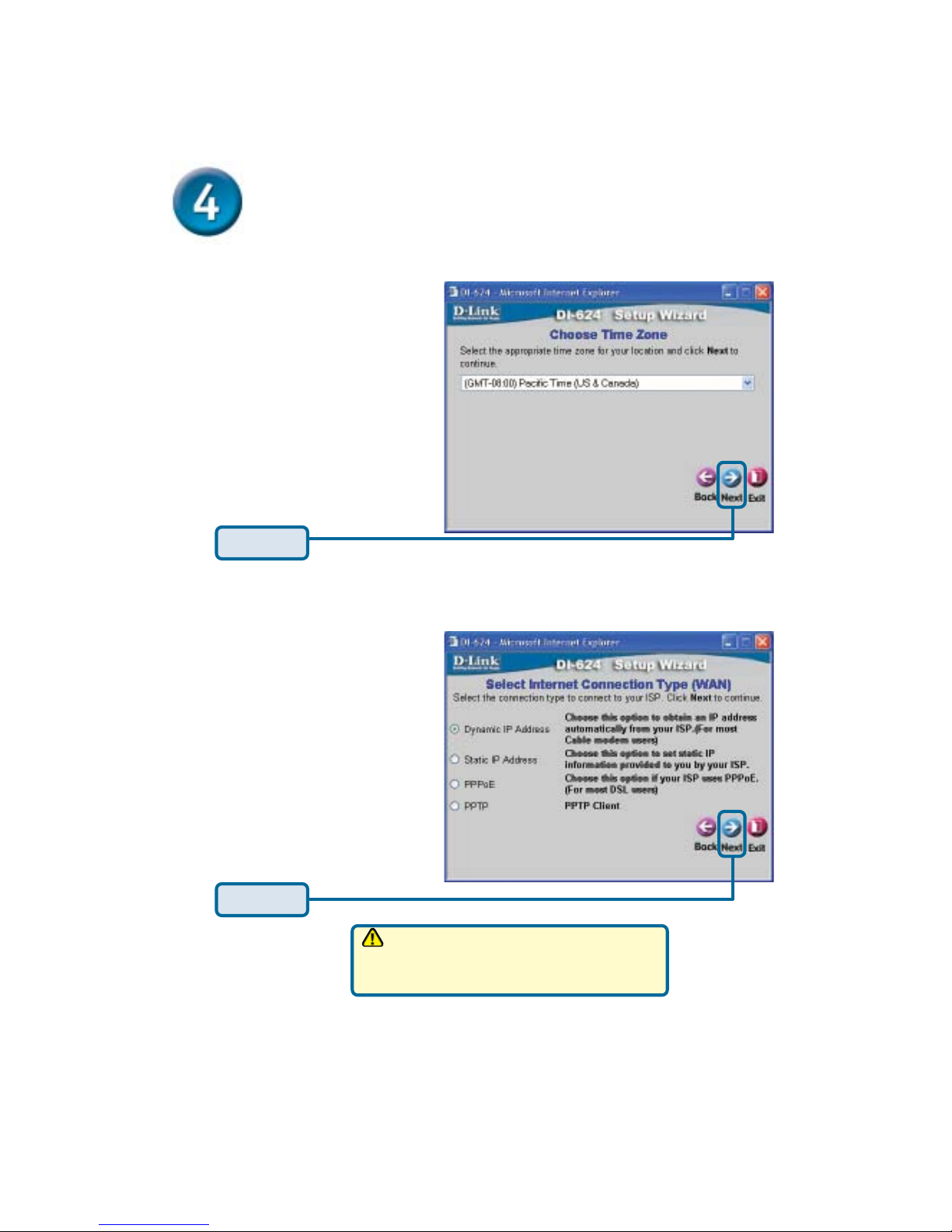

Select your Internet
Connection. You will be
prompted to select the
type of Internet connection
for your router.
Click Next
Choose your time zone from
the drop down list.
Click Next
If you are unsure of which setting to
select, please contact your Internet
Service Provider.

The Setup Wizard (continued)

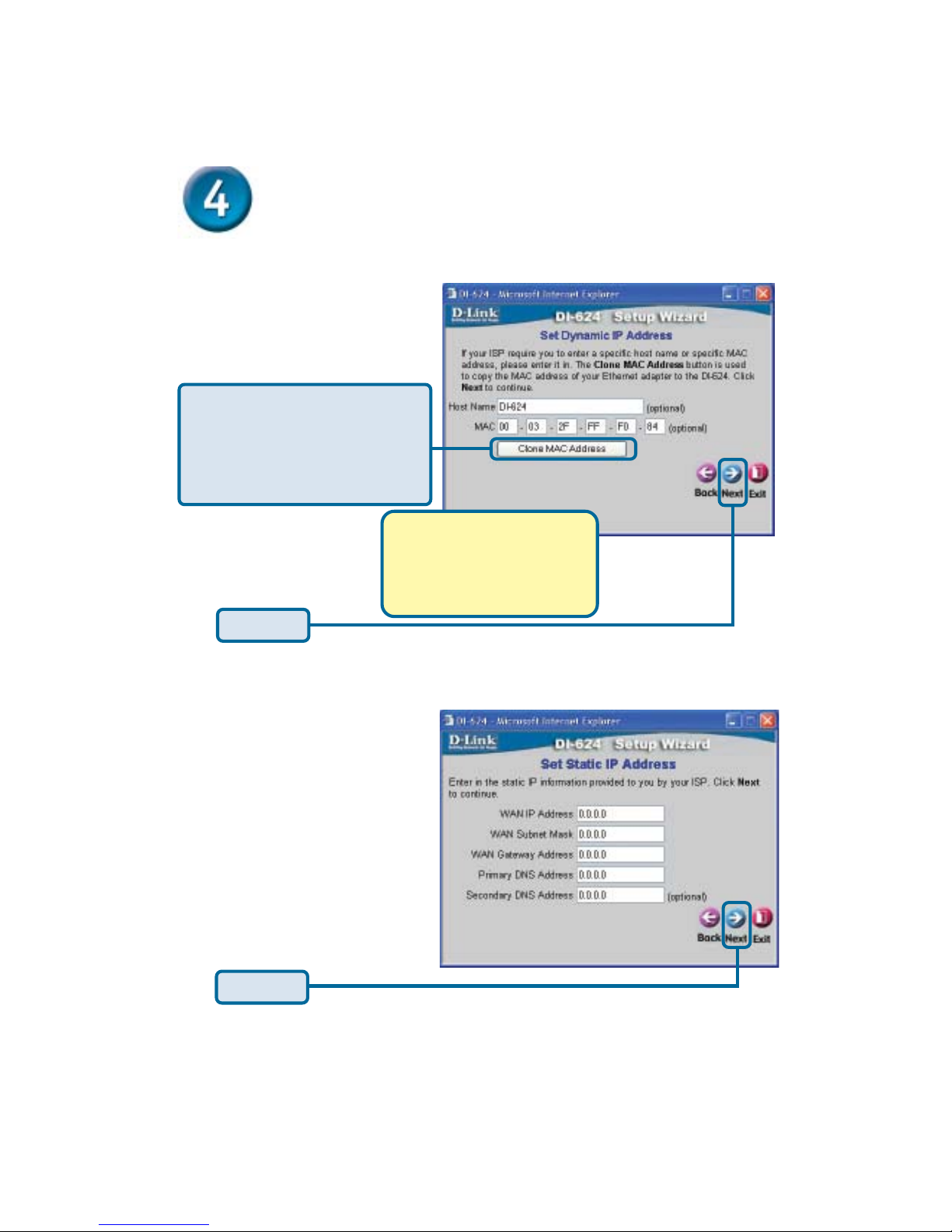

If your ISP requires a Static
IP Address, and this option
is selected, then this
screen will appear:
Enter the IP address informa-
tion originally provided to you
by your ISP. You will need to
complete all the required
fields.
Click Next
If you selected Dynamic IP
Address, this screen will
appear: (Used mainly for
Cable Internet service.)
What is a MAC address? Each
network adapter has a discrete
Media Access Control (MAC)
address. Note that some computers
and peripherals may already
include built-in network adapters.
Click the “Clone MAC Address”
button to automatically copy the
MAC address of the network
adapter in your computer. You can
also manually type in the MAC
address.
Click Next

The Setup Wizard (continued)

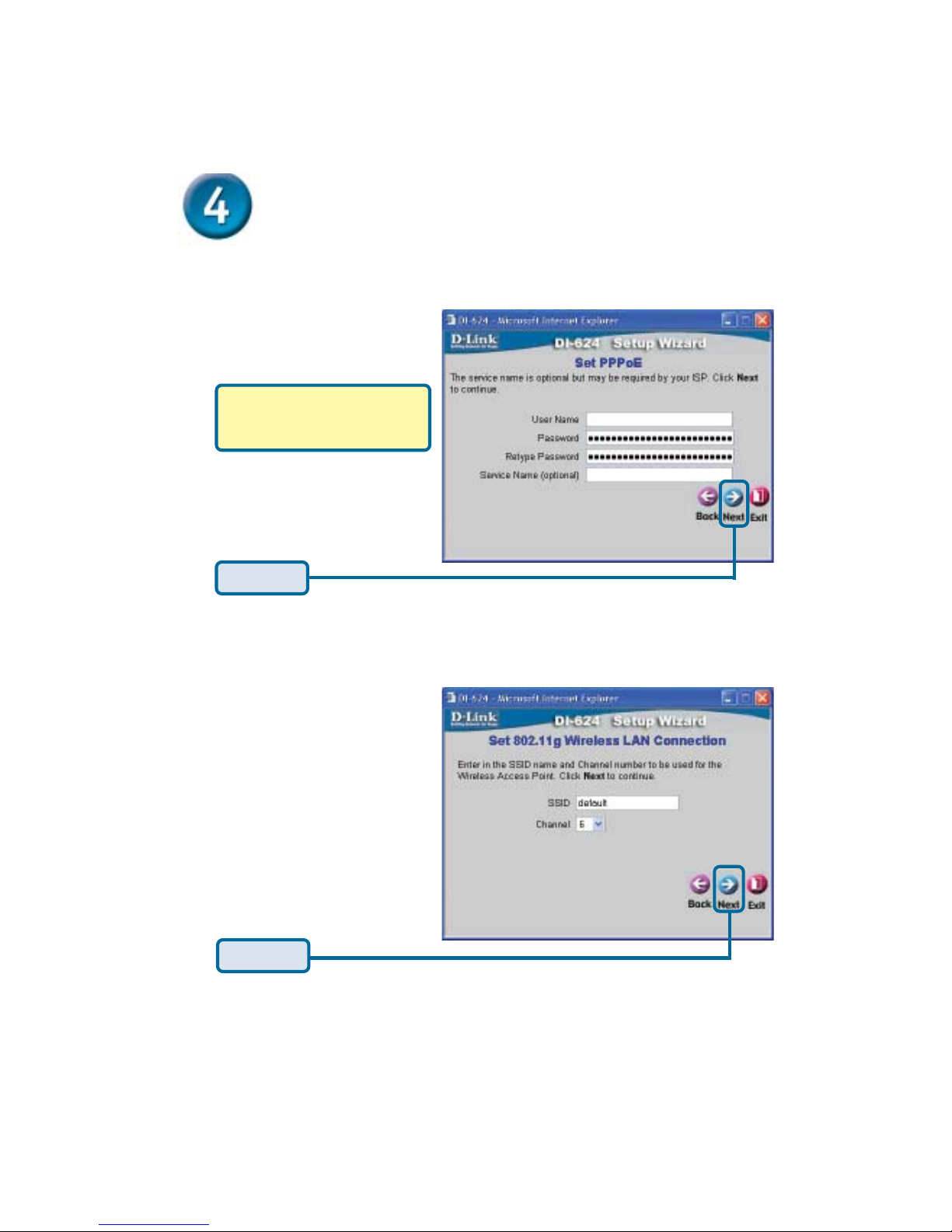

If your ISP uses PPPoE
(Point-to-Point Protocol over
Ethernet), and this option is
selected, then this screen will
appear: (Used mainly for DSL
Internet service.)
Wireless Setup.
The default wireless settings
for your 802.11b wireless
network are:
SSID = default
Channel = 6
You can change these settings
to match an existing wireless
network.
Please be sure to remove any
existing PPPoE client software
installed on your computers.
Enter in the username and
password provided to you by
your ISP.
Click Next
Click Next

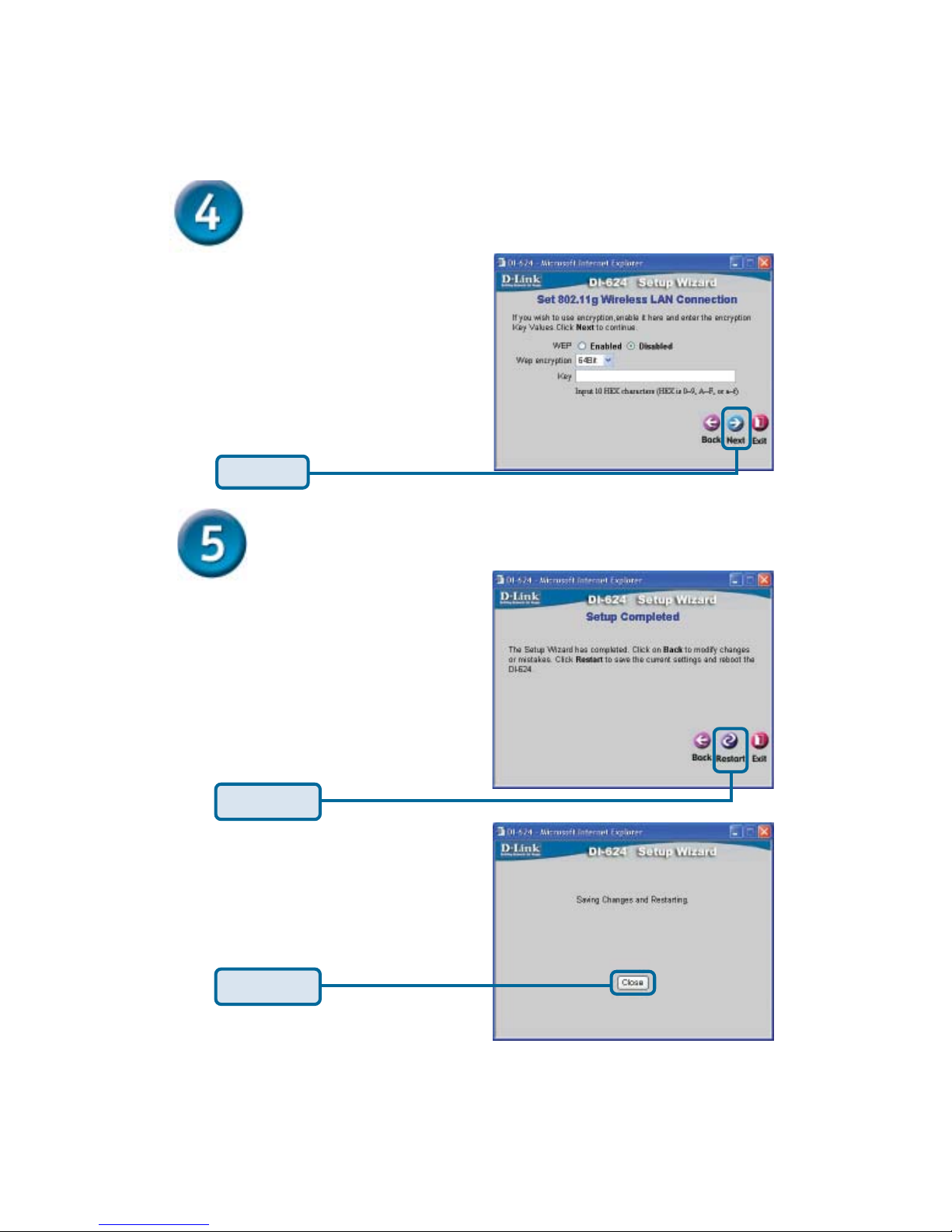

Your Setup is Complete!
Click Restart
If you wish to use encryption
for your 802.11b network, the
DI-624 is capable of three
levels of wireless encryption -
64-bit, and 128-bit. By default
the encryption is disabled.
You can change the encryp-
tion settings for more secure
wireless communication.
Click Next
The Setup Wizard (continued)
Click Restart

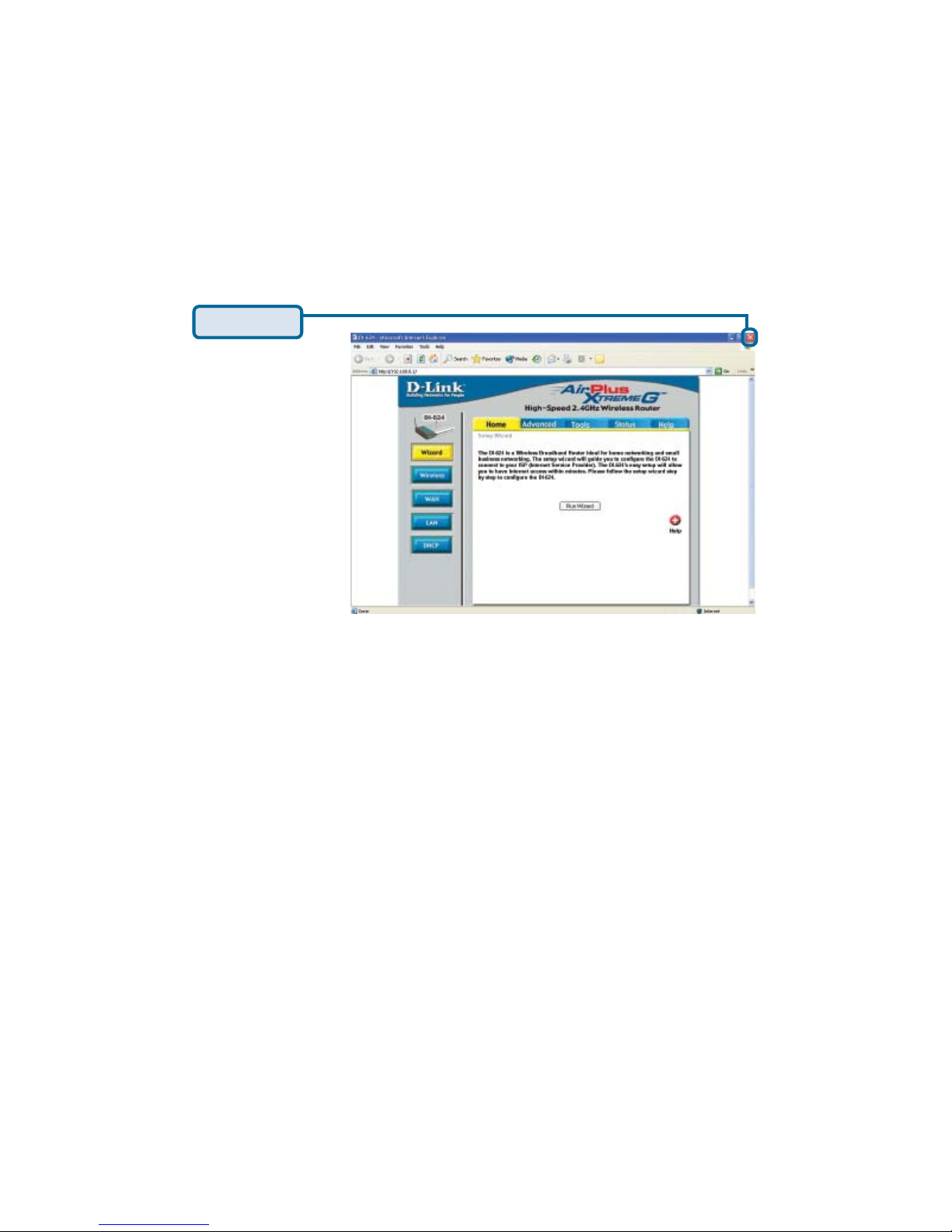

Test Internet Connection.
You will be returned to the Home tab.
For additional settings
or information, refer to
the Advanced, Tools,
or Status tabs on the
web-management
interface; or to the
Manual located on the
CD.
Then relaunch your
Web browser (i.e.,
Internet Explorer or
Netscape Navigator),
to link to your favorite
Web site to test your
Internet connection.
Click to Exit

To connect to the network, make sure
the network adapter in your computer
is configured properly. Here’s how to
configure the network adapter to obtain
an IP address automatically for the
DI-624 Broadband Router.

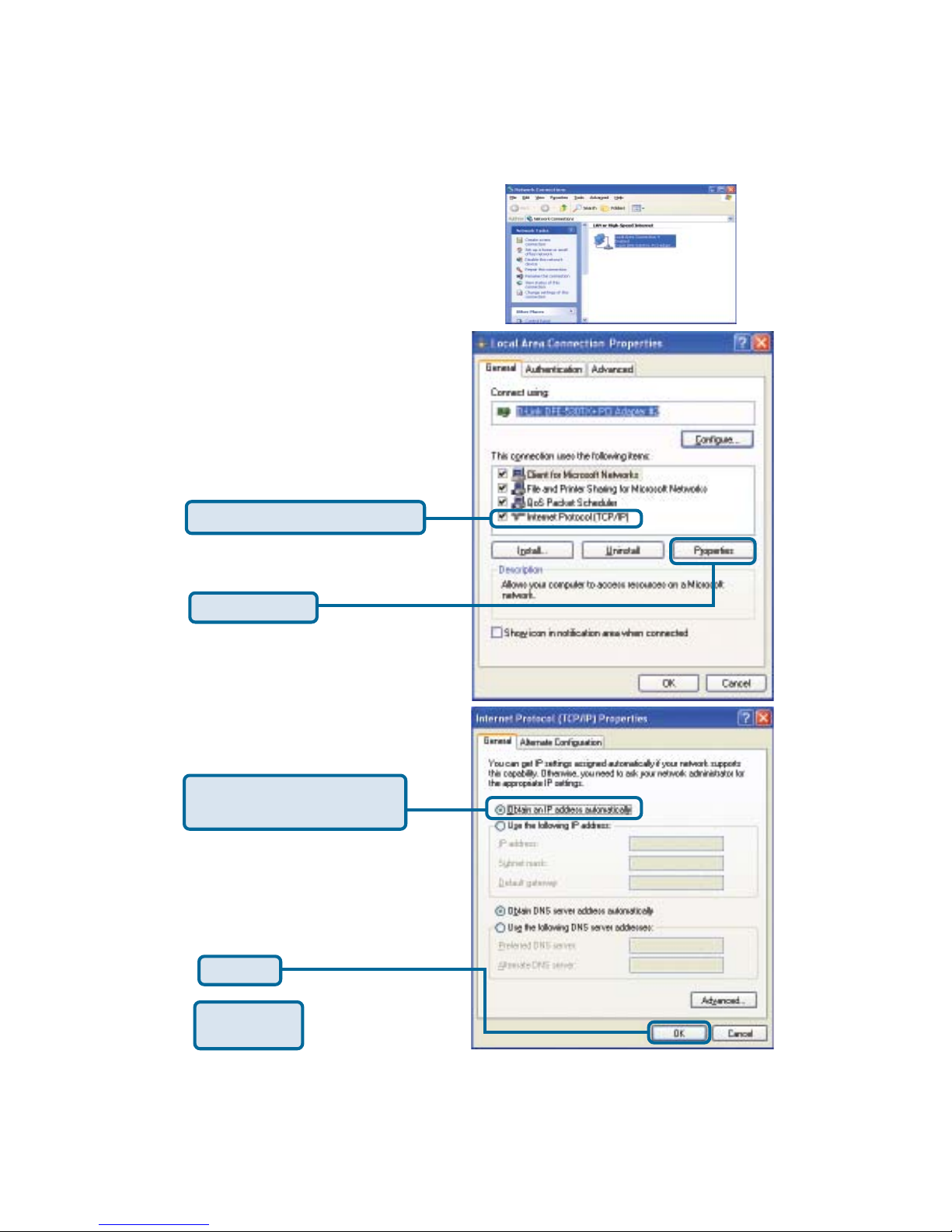

For Microsoft Windows XP:
Go to Start > right click on
My Network Places >
select Properties > Double-click on
the Network Connection associated
with the Ethernet adapter (i.e.,
D-Link DFE-530TX+).
APPENDIX (continued)
Click Internet Protocol (TCP/IP)
Click Properties
Select Obtain an IP address
automatically
Restart your
computer
Click OK

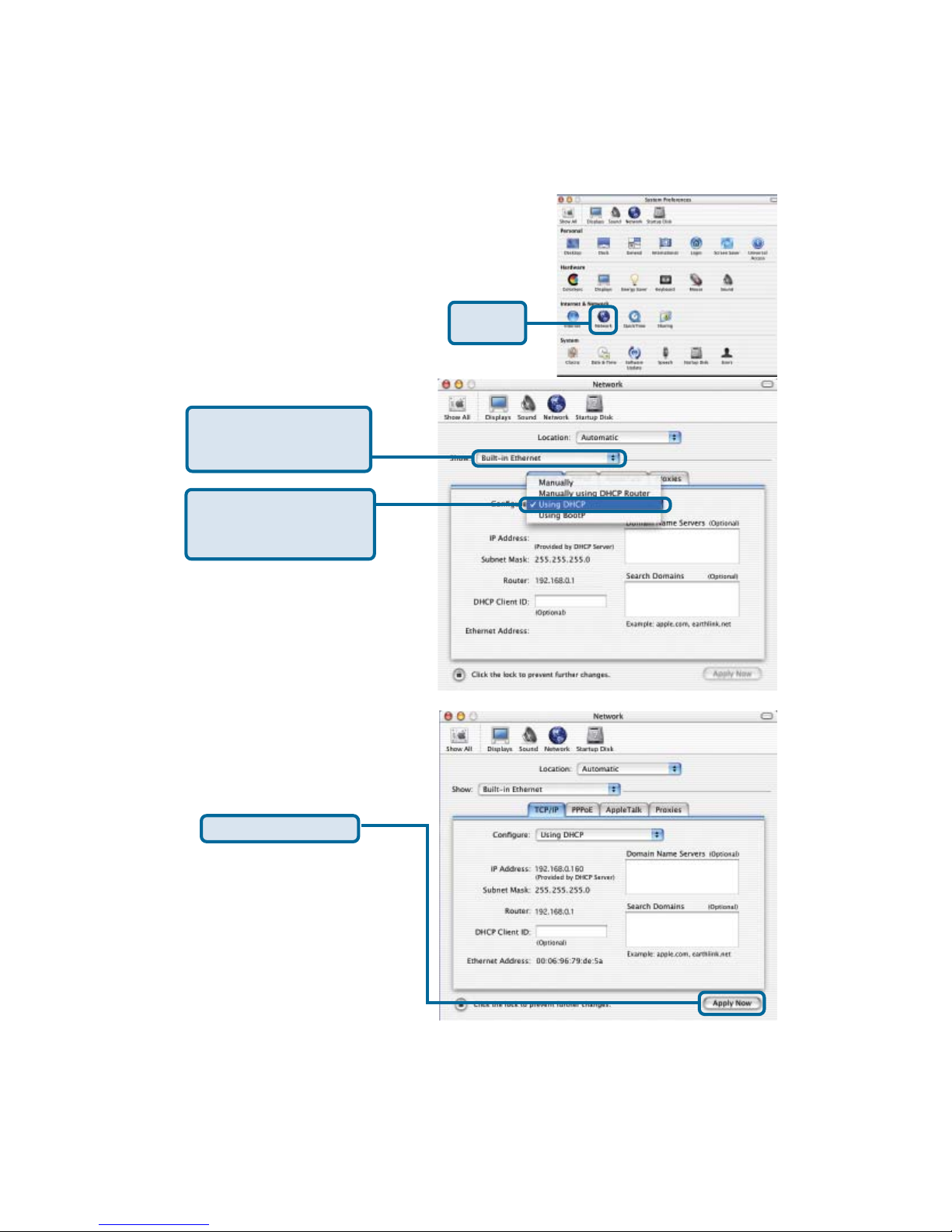

For Apple Macintosh OS X:
Go to the Apple Menu Click
on Network and Select
System Preferences
The IP address information,
the Subnet Mask, the Router’s
IP address and the Ethernet
adapter address will appear
Select Built-in Ethernet
in the show pull down
menu
Click on
Network
Click on Apply Now
Select Using DHCP in
the Configure pull down
menu

Notes

Notes

Notes

Technical Support
You can find the most recent software and user documentation on the D-Link
website.
D-Link provides free technical support for customers within the United States
for the duration of the warranty period on this product.
U.S. customers can contact D-Link technical support through our web site or
by phone.
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week
D-Link Technical Support over the Internet:
http://support.dlink.com
