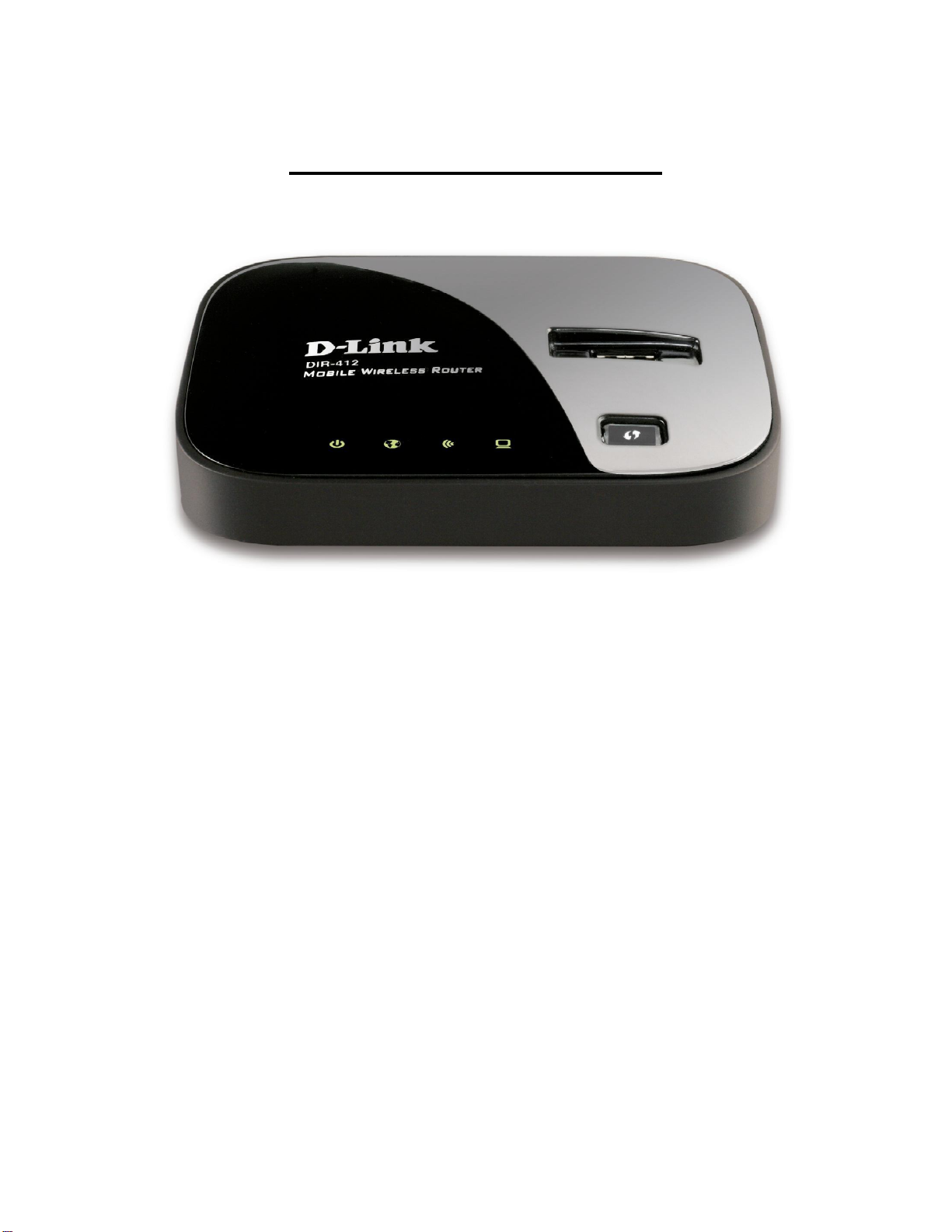

D-Link DIR-412 User manual

D-Link DIR-412 User Manual

Connect to a 3G Internet Service
If you are using a 3G USB dongle to connect to the Internet, please follow
the steps below

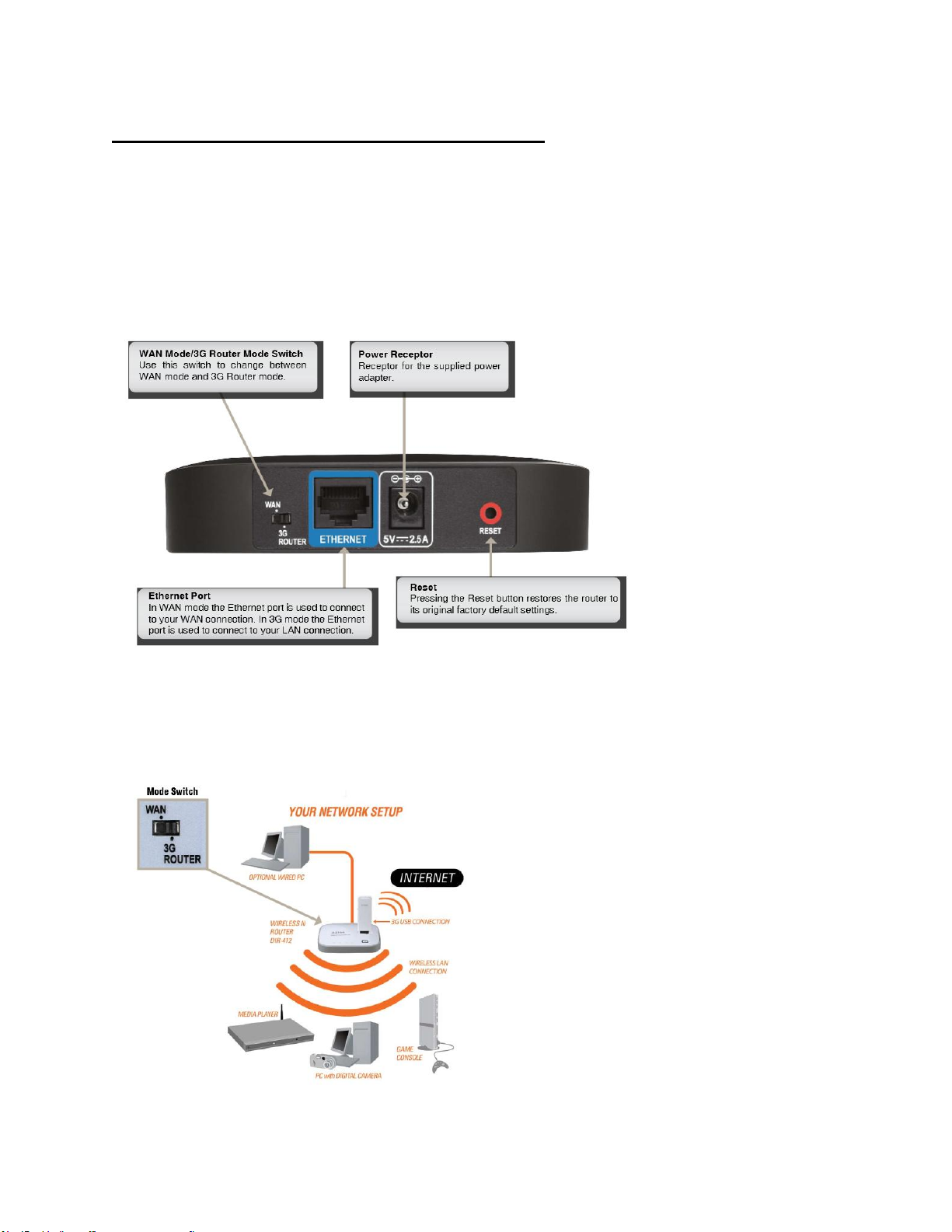

1. Move the toggle switch to the 3G Router mode position and wait for
the DIR-412 to reboot.
2. Insert your 3G USB dongle into the DIR-412’s 3G USB port.

3. Plug one end of Ethernet cable into the DIR-412, and the other end
into your PC.
4. Plug the power adapter to the router and connect to an outlet or
power strip. Wait about 50 seconds for the router to boot.
5. Verify the link lights on the router. The power light, Internet light, and
the Wireless LAN light should be lit. If not, make sure your computer
and router are powered on and verify the cable connections are
correct.

Configuration

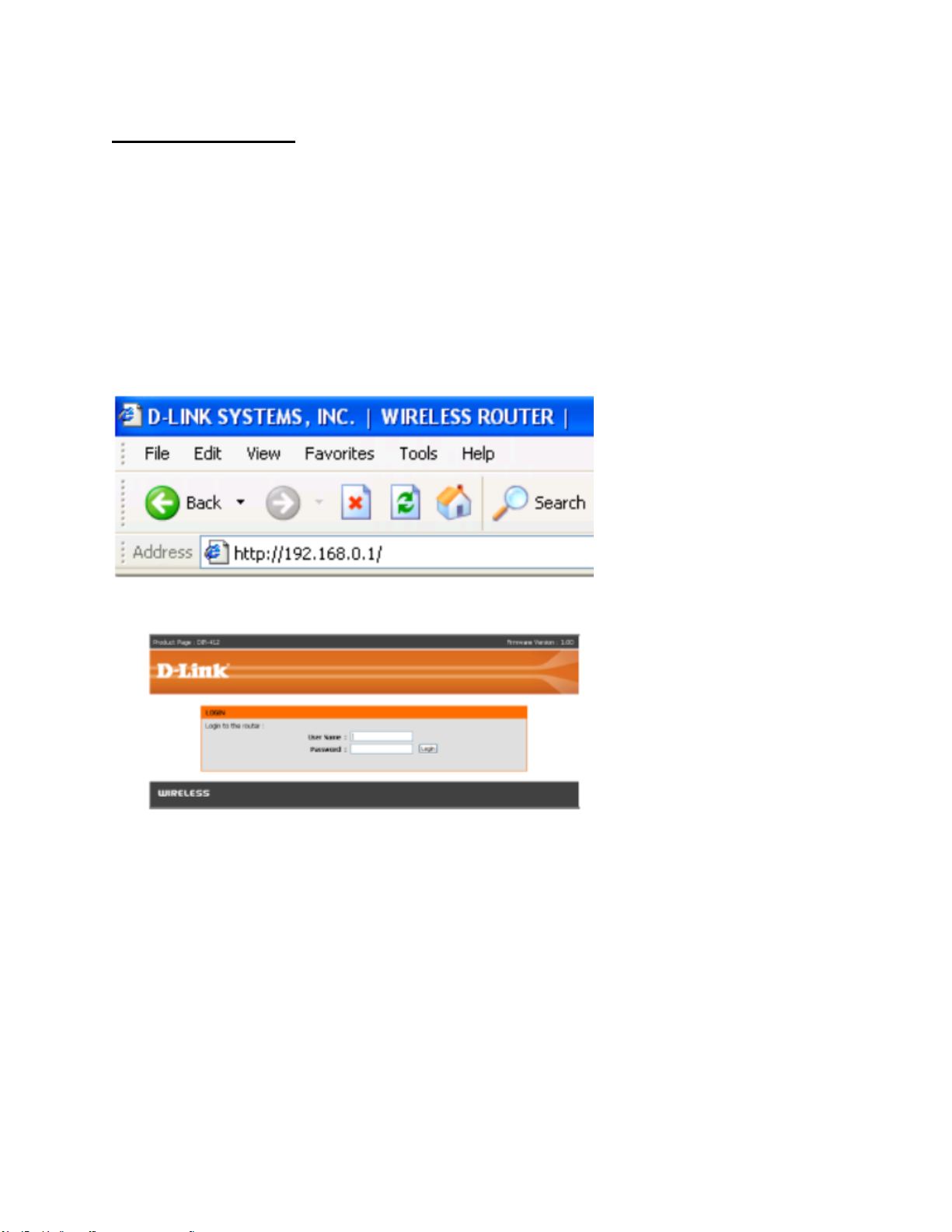

To access the configuration utility, open a web-browser such as Internet
Explorer and enter the IP address of the router (192.168.0.1).
Type “Admin”in the User Name field and then enter your password. Leave
the password blank by default.
Click the Login button to log in to the router.

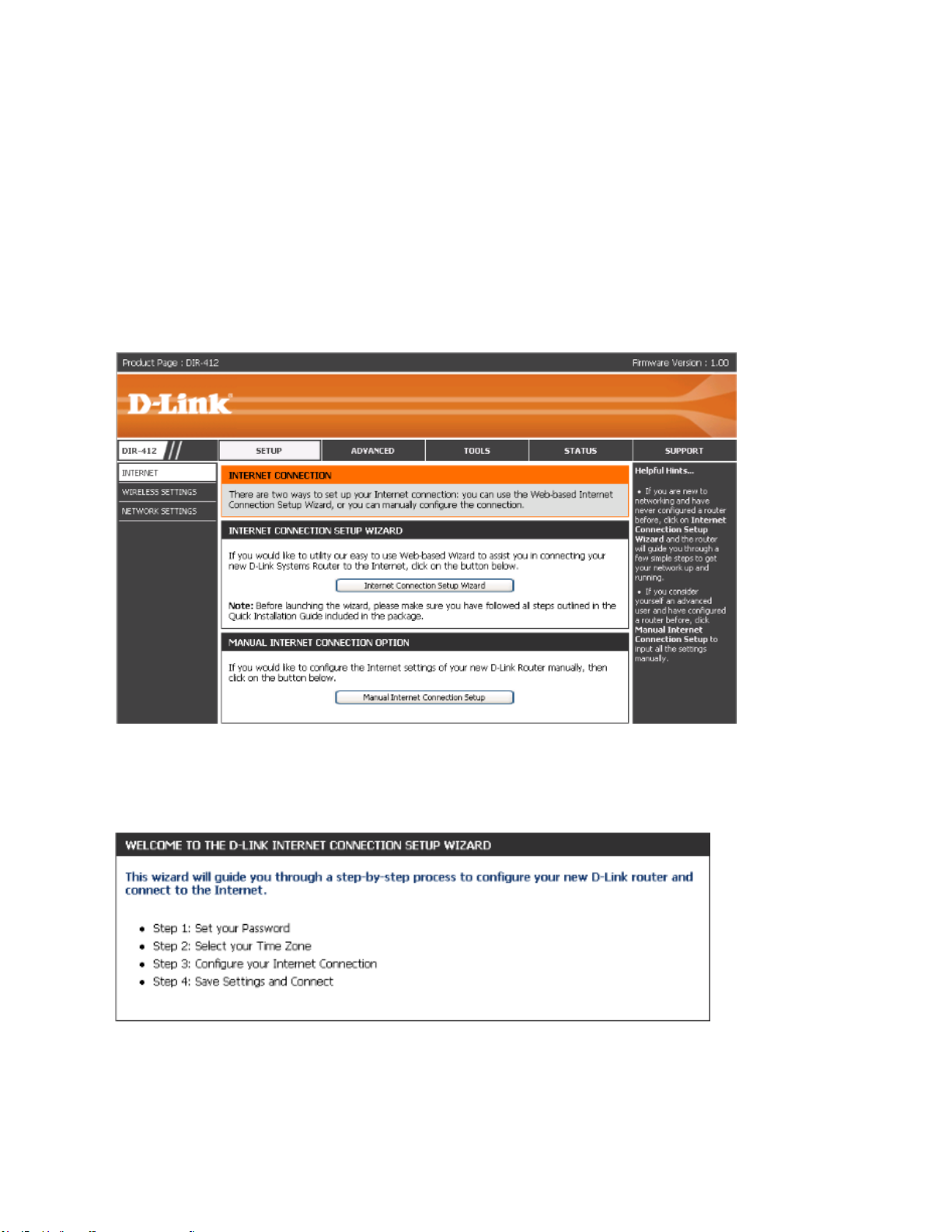

Once logged into the web interface of the router, the Setup > Internet page
will appear.
Click the Internet Connection Setup Wizard button to quickly configure your
router using the setup wizard.
If you want to enter your settings without running the wizard, click
Manual Internet Connection Setup
Click Next to continue.

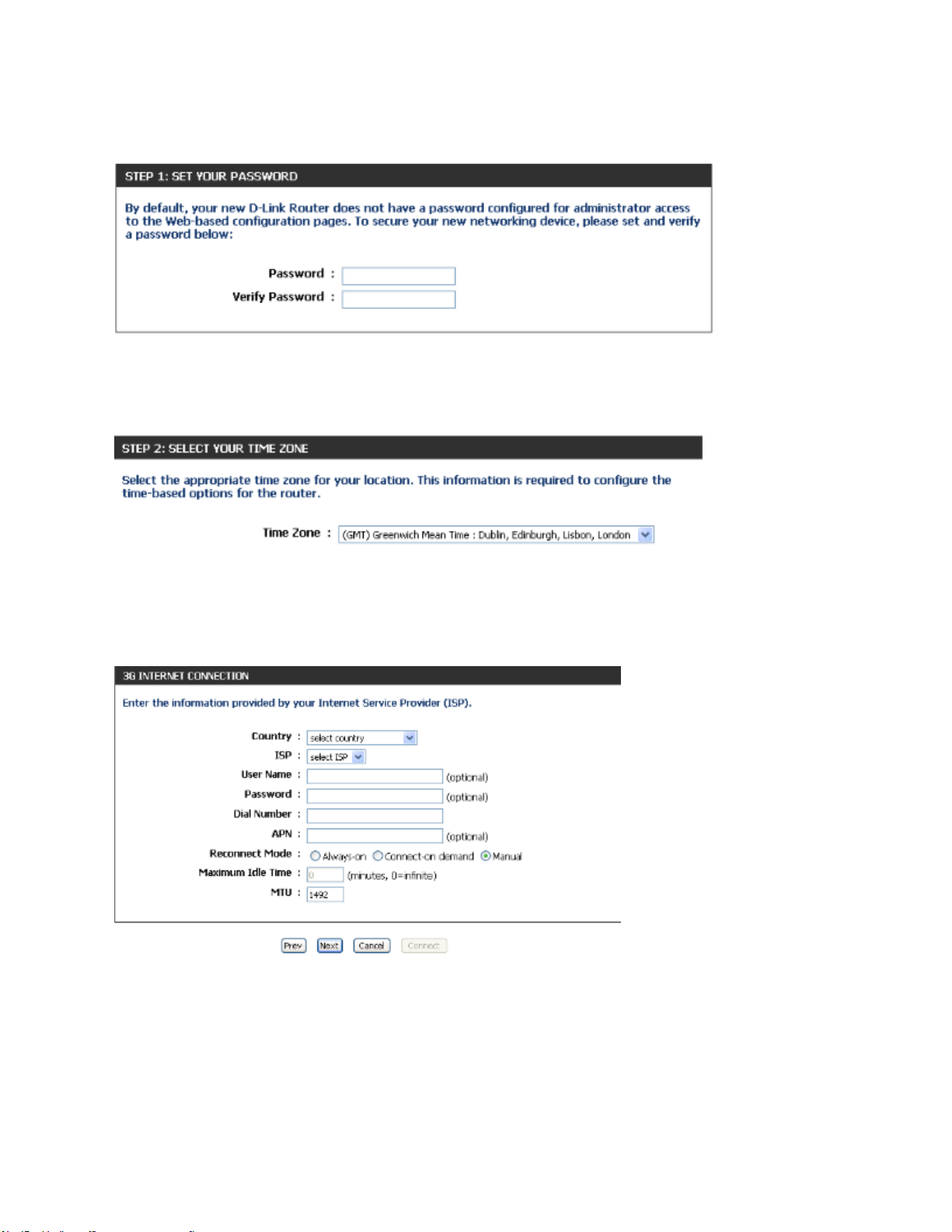

Create a new password and then click Next to continue.
Select your time zone from the drop-down menu and then click Next to
continue.
Configure your 3G Internet Connection settings and then click Next to
continue.
APN is provided to you by Exetel. (CONNECT or EXETEL1, depending on the plan)
Leave the Username and Password field BLANK

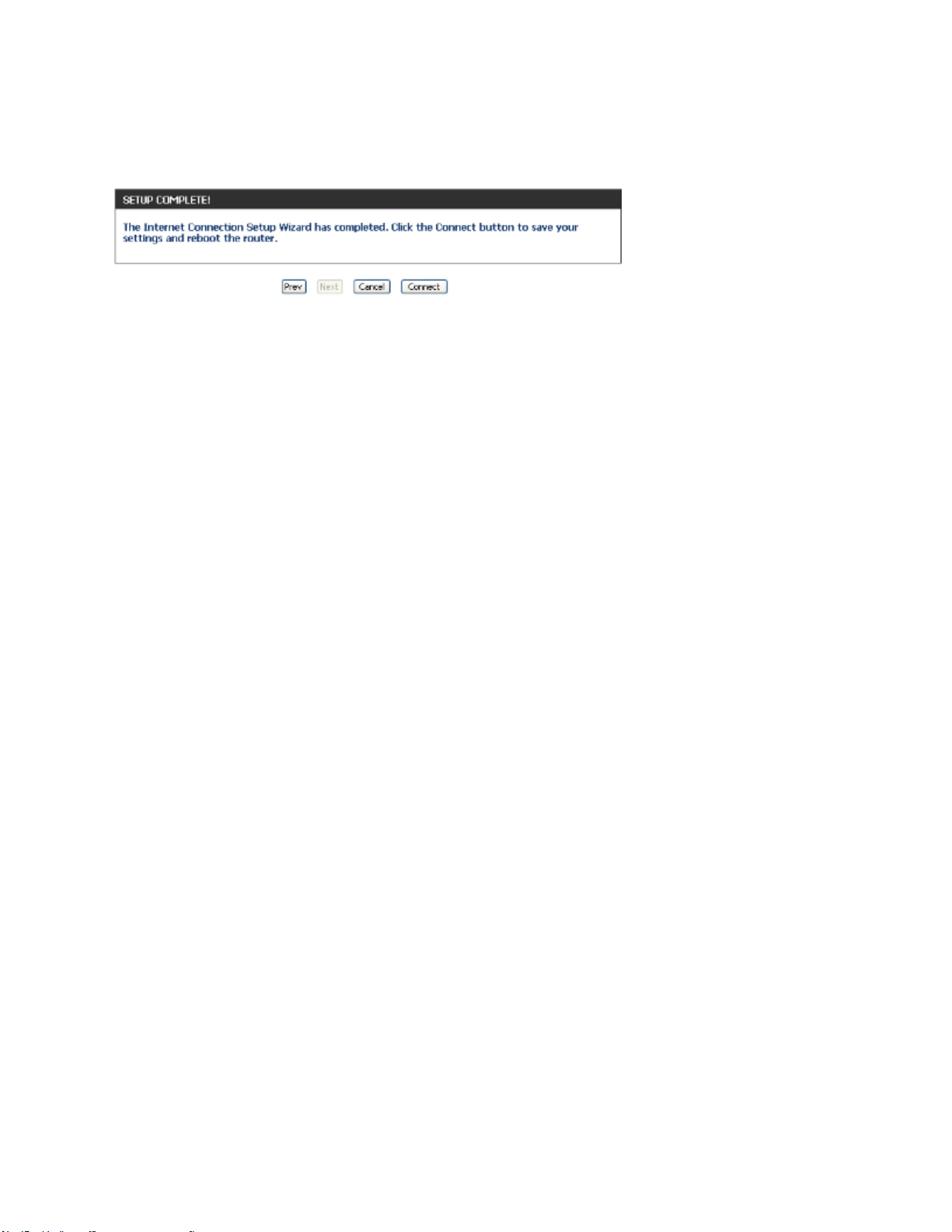

Click Connect to save your settings. Once the router has finished
rebooting, click Continue
.
Please allow 1-2 minutes to connect.
