D-Link AirPro DI-754 User manual

This product can be set up using
any current web browser, i.e.,
Internet Explorer 6.0, Netscape
Navigator 6.2.3.
DI-754
5GHz Multimode
Wireless Router
5V DC, 3A Power Adapter
©2002 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DI-754.09252002
Before You Begin
1. If you purchased this router to share your high-speed Internet connection with other
computers, you must have either an Ethernet-based Cable or DSL modem with an
established Internet account from an Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your modem for configuring
the DI-754 Multimode Wireless Router. The DI-754 acts as a DHCP Server by
default and will assign all the necessary IP address information on your network.
See Appendix at the end of this Quick Installation Guide or the Manual on the
CD-ROM for setting each network adapter to automatically obtain an IP
address.

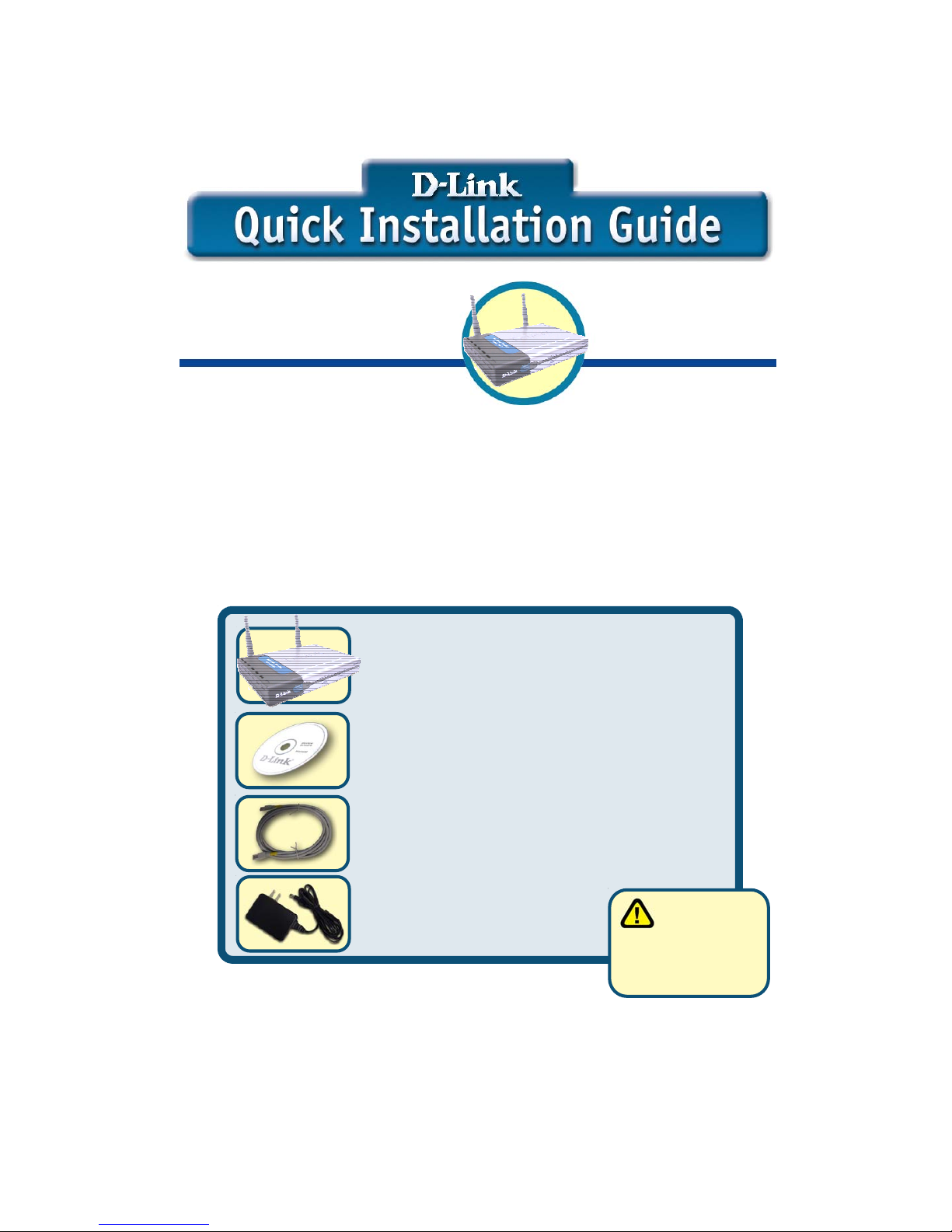

Check Your Package Contents
DI-754 Multimode Wireless Router
CD-ROM (containing Manual and Warranty)
Ethernet (CAT5 UTP/Straight Through) Cable
Using a power
supply with a
different voltage rating
will damage and void
the warranty for this
product.
If any of the above items are missing, please contact your reseller.

Connecting The DI-754 Multimode
Wireless Router To Your Network
A. First, connect the power adapter to the receptor at the back panel of
the DI-754 and then plug the other end of the power adapter to a wall
outlet or power strip. The Power LED will turn ON to indicate proper
operation.
B. Insert one end of an Ethernet cable to the WAN port on the back panel
of the DI-754 and the other end to the Ethernet port located on your
Cable or DSL modem. The WAN LED light will illuminate to indicate
proper connection.
C. Insert one end of an Ethernet cable to LAN port 1 on the back panel of
the DI-754 and the other end to the Ethernet port on the network adapter
in the computer you will use to configure the DI-754. The LED light for
LAN Port 1 will illuminate to indicate proper connection. (Note: The LAN
ports on the DI-754 will automatically sense the cable type when
connecting Ethernet-enabled computer, meaning it will work with either a
straight through or cross-over cable.
D. Computers equipped with 802.11a wireless adapters will be able to
connect to the DI-754. The DWL-A650 AirPro Wireless Cardbus Adapter
and the DWL-A520 AirPro Wireless PCI Adapter will be able to connect
out of the box with the router using their default wireless settings.
C.LAN Ports
These are the
connections for
Ethernet cables to
your Ethernet-
enabled
computers.
D.Antenna
Used to wirelessly
connect to
802.11a ada
p
ters.
A
.Receptor for
Power Ada
p
ter
Reset Button
Pressing this button restores
the router to its original factory
default settings.
B.WAN Port
This is the
connection for the
Ethernet cable to
the Cable or DSL
Modem.
E.Expansion Slot
For optional DWL-650+
Cardbus Adapter.

Restart Your Computer

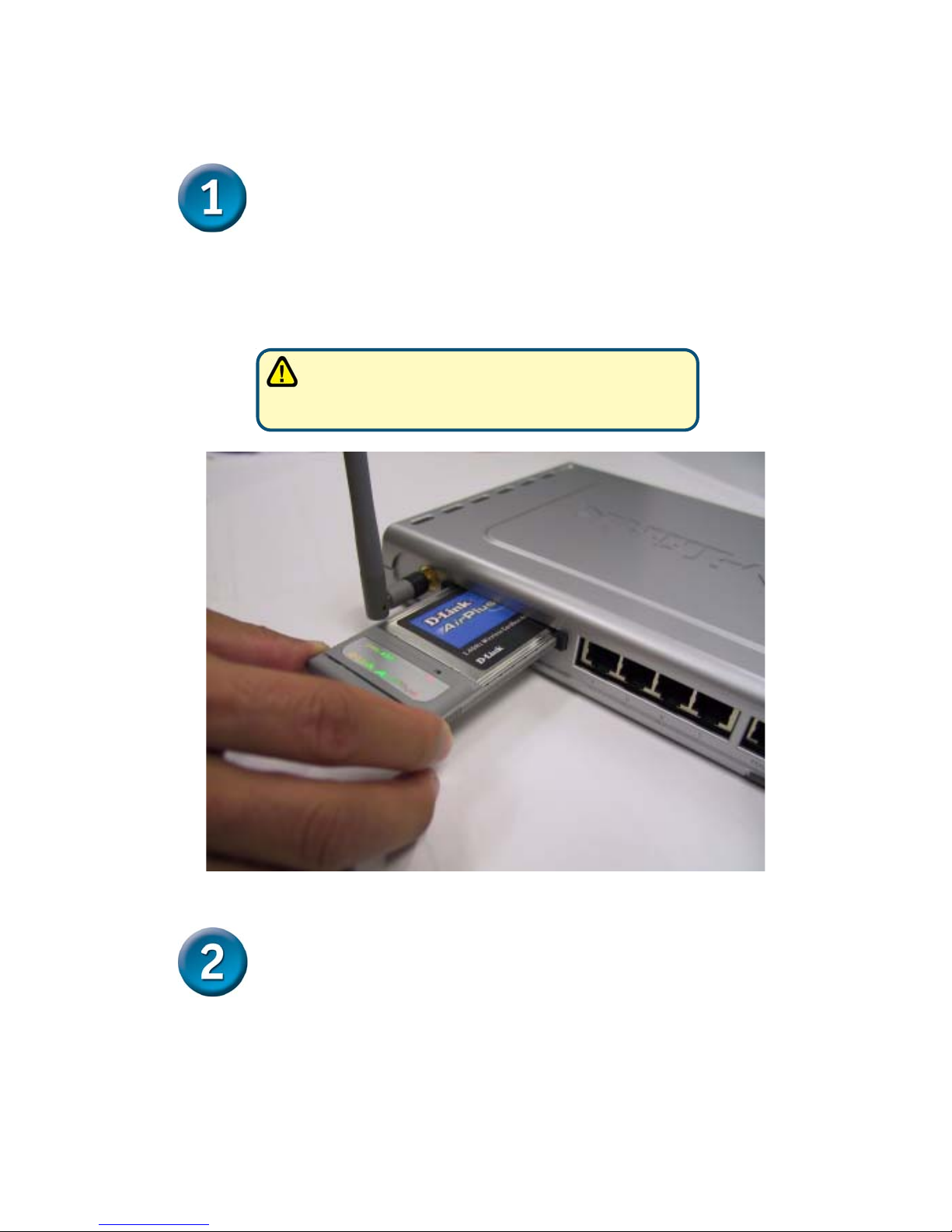

E. When a D-Link AirPlus DWL-650+ Wireless Cardbus Adapter is inserted into the
Expansion Slot on the back of the DI-754, computers equipped with 802.11b
wireless adapters will be able to connect to the DI-754. The DWL-650+ AirPlus
Wireless Cardbus Adapter and the DWL-520+ AirPlus Wireless PCI Adapter will be
able to connect out of the box with the router using their default wireless settings.
Continued...
The Expansion Slot on the DI-754 will only work with a
D-Link DWL-650+. Make sure the DI-754 Router is
completely powered off before inserting the DWL-650+
into the Ex
p
ansion Slot

Connecting Additional Computers To
The DI-754
Using additional Ethernet (CAT5 UTP) cables, connect your
Ethernet-equipped computers to the remaining Ethernet LAN ports
on the back panel of the DI-754

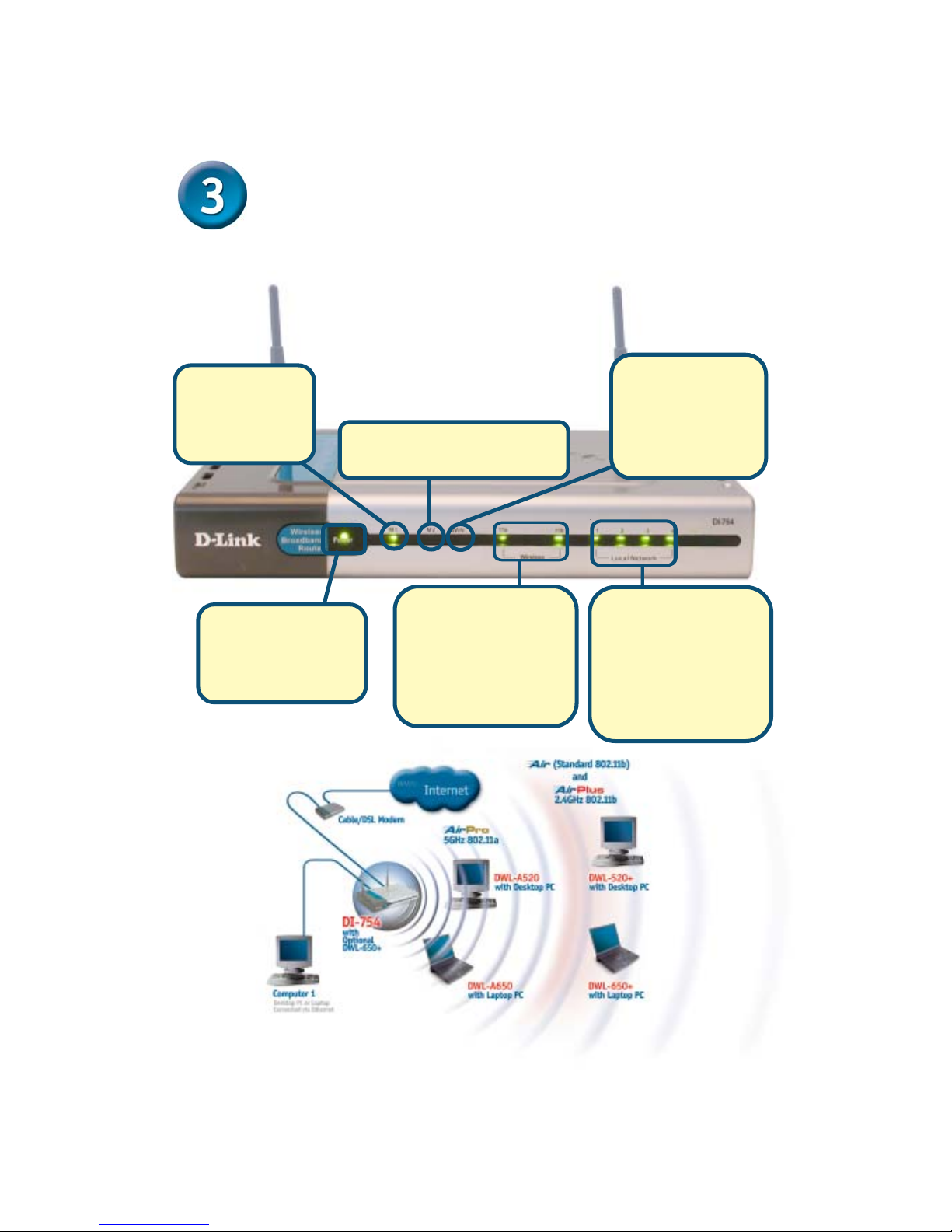

M1 LED – a solid
light indicates
that the DI-754 is
ready.
Power LED – a solid
light indicates a
proper connection to
the power supply
WAN LED – a
solid light indicates
connection on the
WAN port. This
LED blinks during
data transmission.
When you have completed the steps in this Quick Installation
Guide, your connected network should look similar to this:
Local Network LEDs
– a solid light on the
port indicates a
connection to an
Ethernet enabled
computer on ports 1-4.
This LED blinks during
data transmission.
11a/11b Wireless
LEDs – a solid light
indicates that the
wireless segment is
ready. These LEDs
blink during wireless
data transmission.
M2 LED – A solid light
indicates that the unit is
defective.

Using The Setup Wizard
Click OK
Type “admin” for the
username and leave the
password field blank.
The logon pop-up screen will appear.

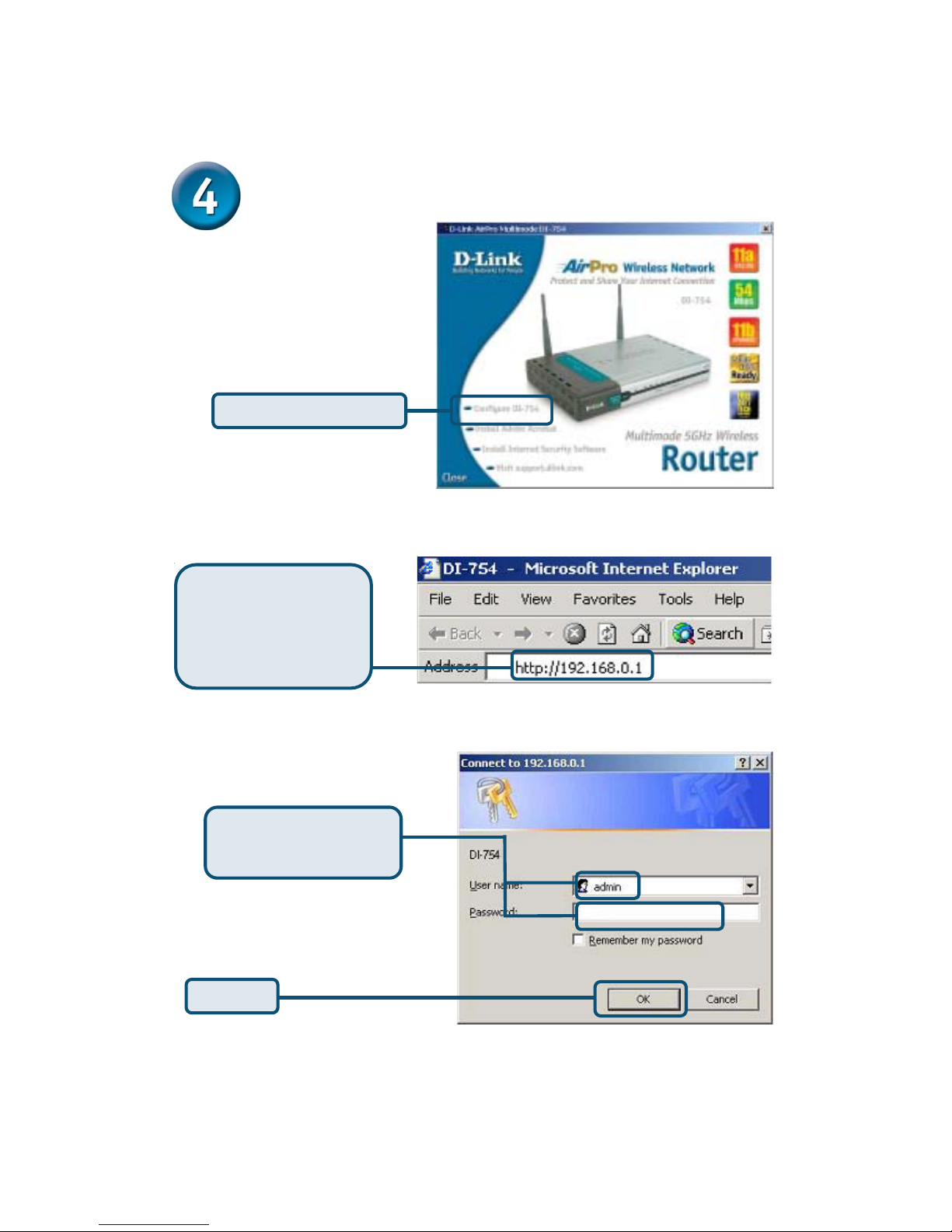

Open your Web
browser and type
“http://192.168.0.1” into
the URL address box.
Then press the Enter or
Return key.
If the logon screen does not
automatically appear, please follow
the step shown below. If the logon
screen does appear, proceed to the
next screen.
Click Configure DI-754
Insert the DI-754 CD-ROM
The Install Screen will appear.

The Setup Wizard (continued)

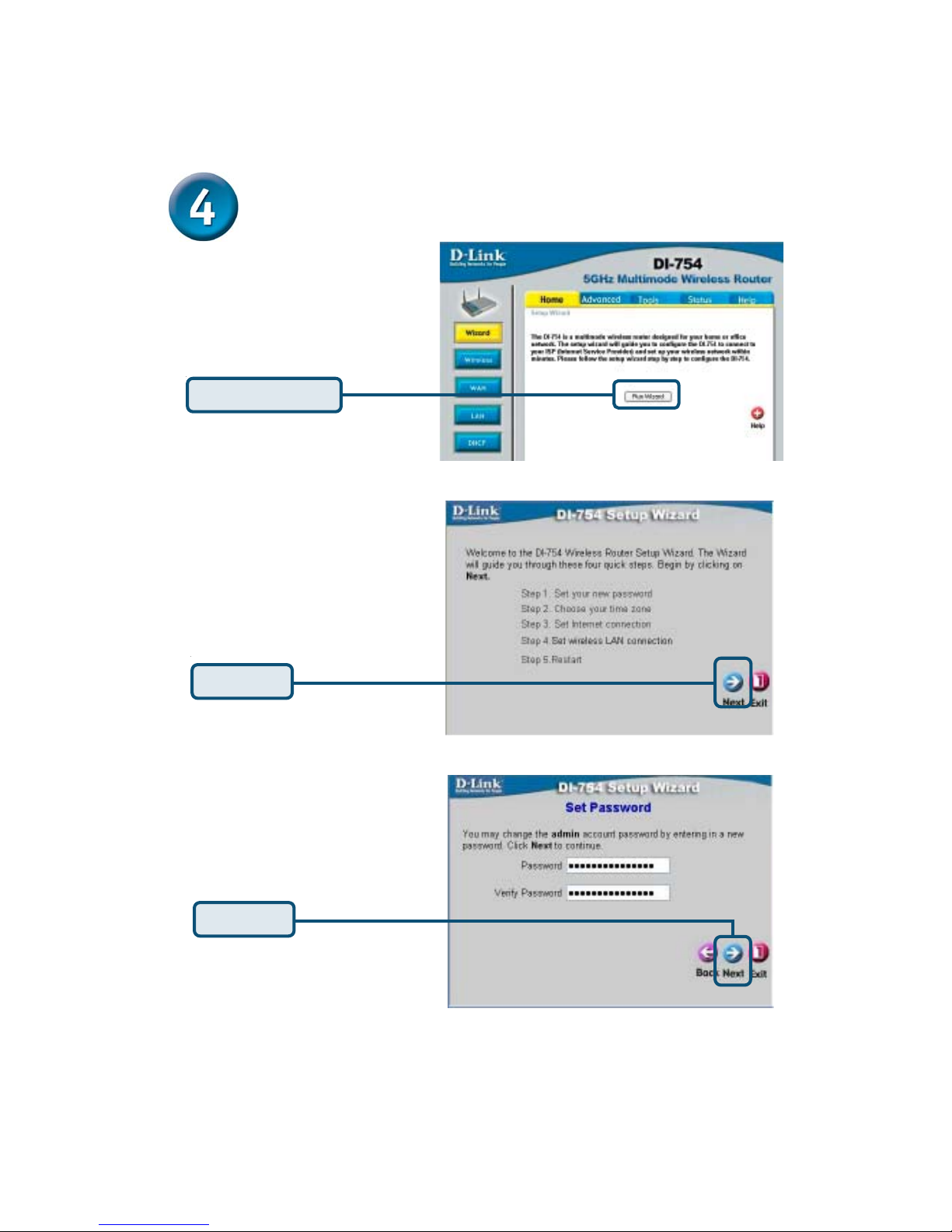

Click Run Wizard
Once you have
logged in, the
Home screen
will appear.
You will see the following
screens
Step 1 - Set up your new
password.You have the
option to establish a
password.
Click Next
Click Next

The Setup Wizard (continued)

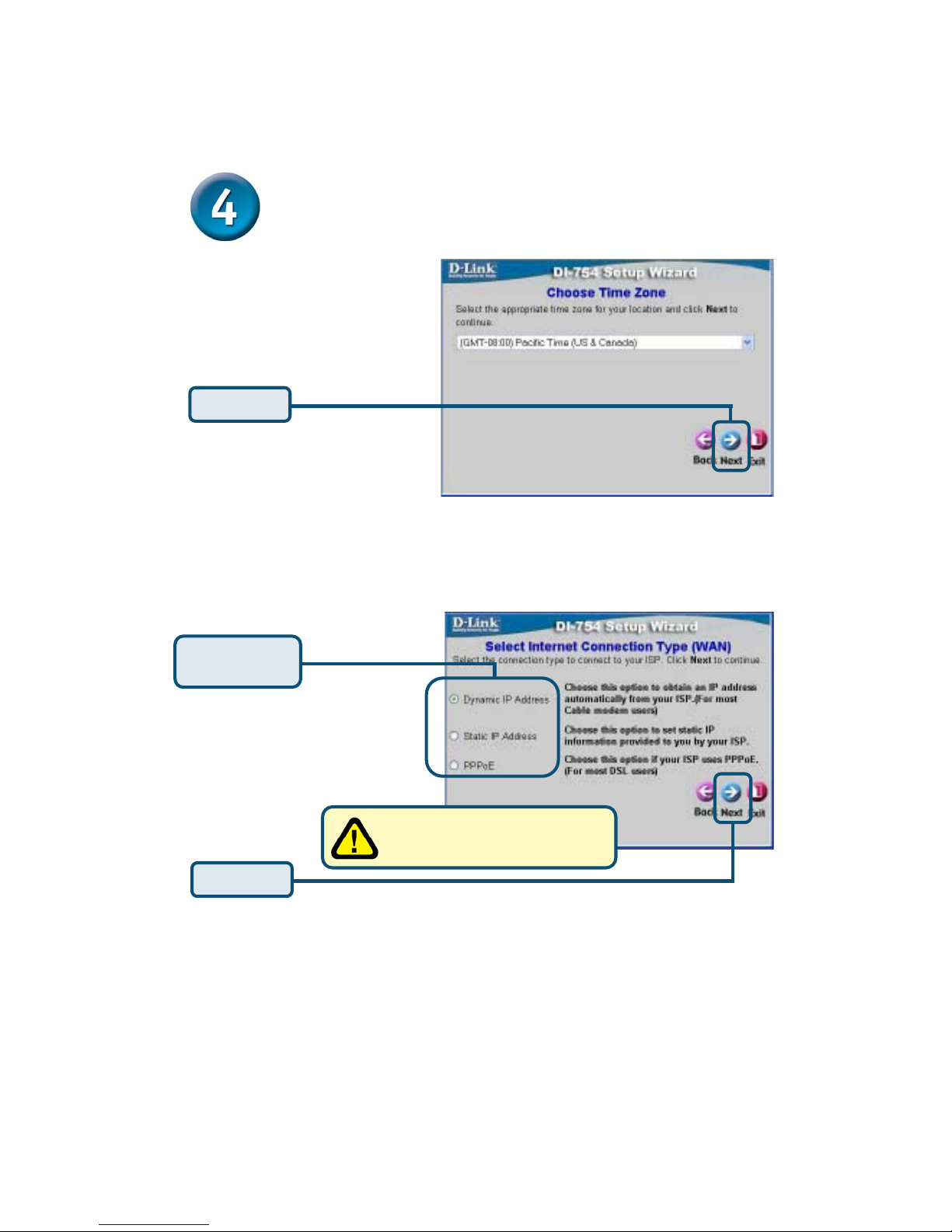

Step 2 - Choose your
time zone. You will be
prompted to select your
time zone for your router
Step 3 – Select your Internet Connection. You will be
prompted to select the type of Internet connection for your router.
Select one of
these settings
Click Next
If you are unsure of which setting to
select, please contact your Internet
Service Provider.
Click Next

The Setup Wizard (continued)
Click the “Clone MAC
Address” button to
automatically copy the MAC
address of the network adapter
in your computer. You can also
manually type in the MAC
address.
What is a MAC address? Each
network adapter has a discrete
Media Access Control (MAC)
address. Note that some computers
and peripherals may already include
built-in network adapters.
Click Next
If you selected Dynamic IP
Address, this screen will
appear:
Enter the IP address
information originally
provided to you by your ISP.
You will need to complete all
the required fields.
Click Next
If your ISP requires a Static
IP Address, and this option
is selected, then this
screen will appear:
Do not use
the numbers
displayed in these
fields. They are only
shown as an example.

The Setup Wizard (continued)
Enter in the username
and password provided
to you by your ISP.
Click Next
Please be sure
to remove any
existing PPPoE client
software installed on
your computers.

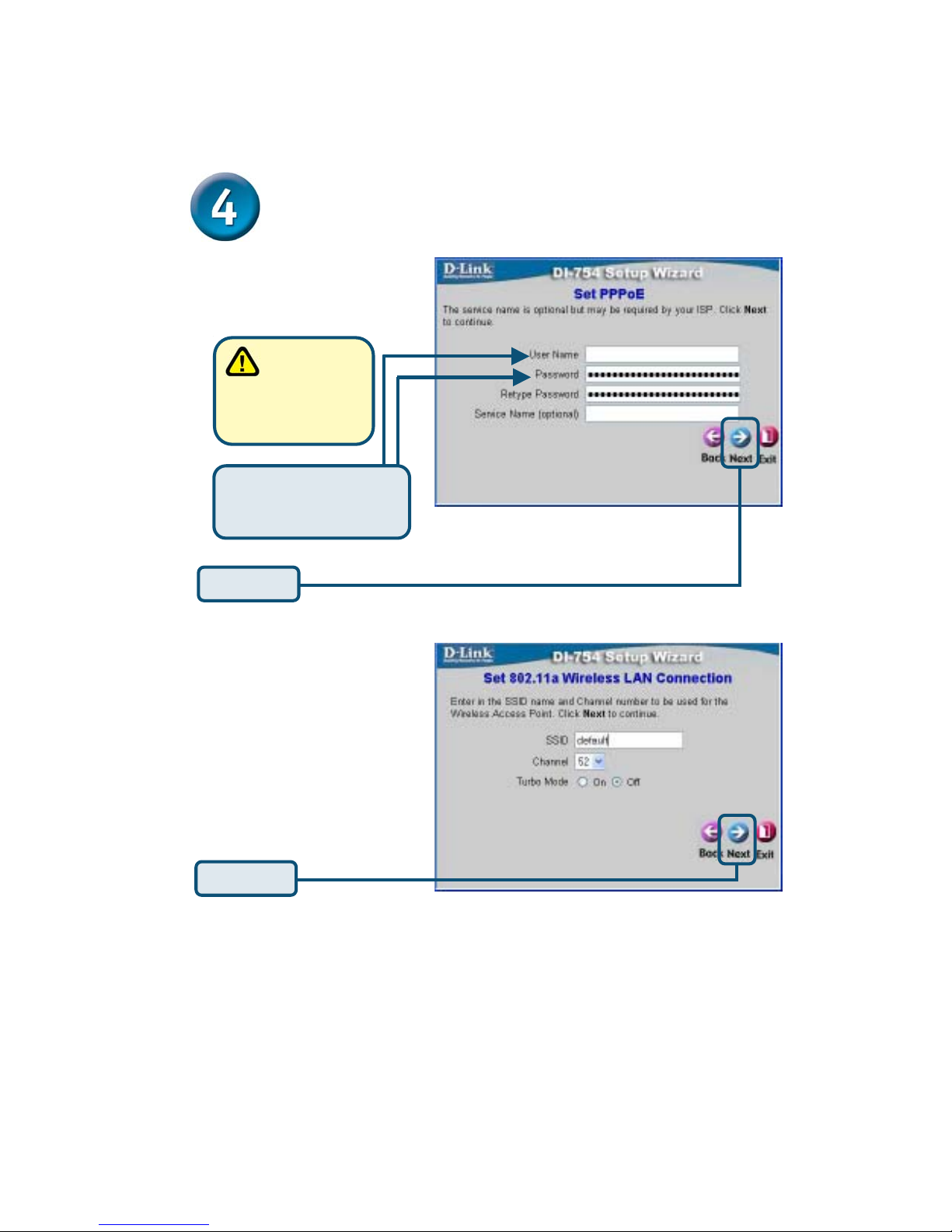

If your ISP uses PPPoE
(Point-to-Point Protocol
over Ethernet), and this
option is selected, then
this screen will appear:
Click Next

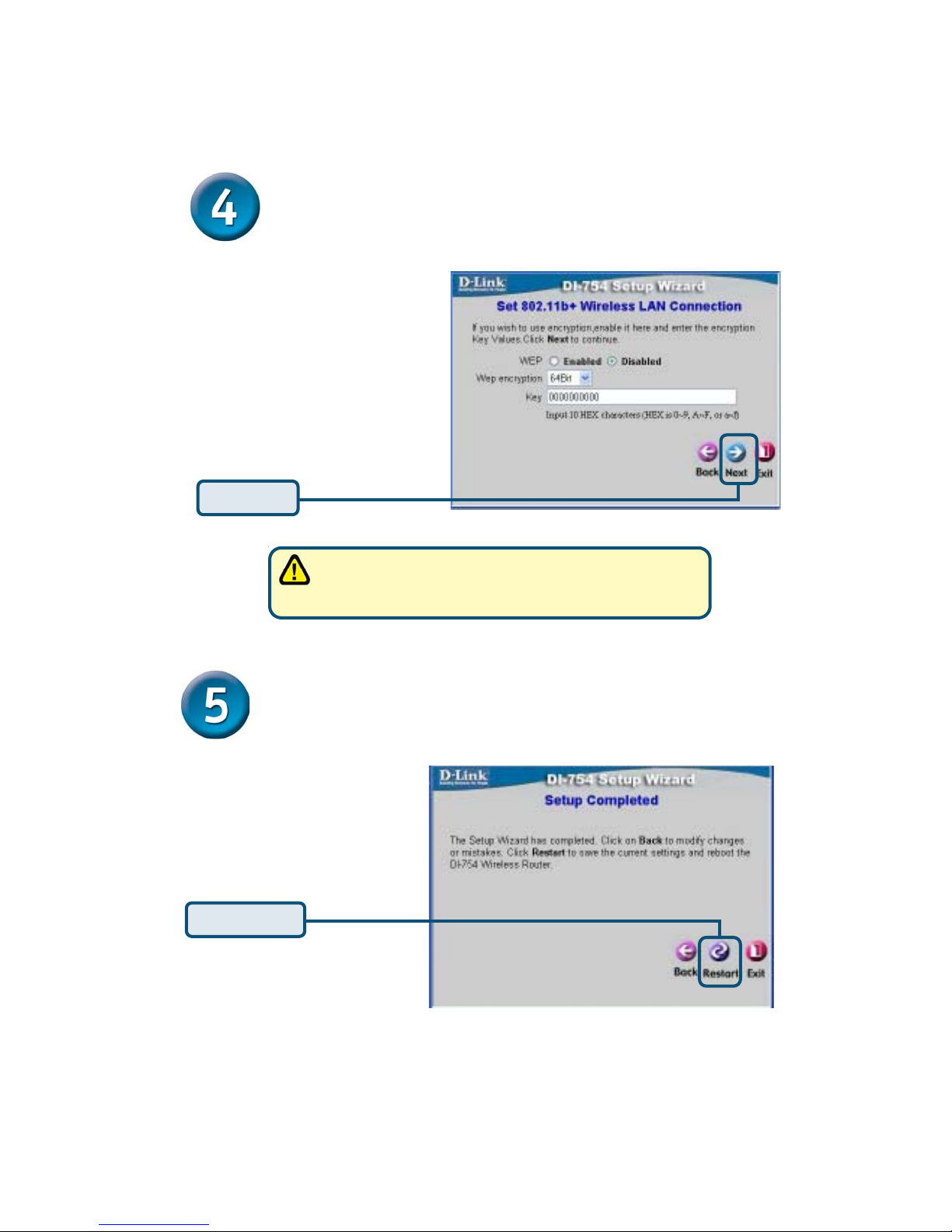

Step 4 – Wireless
Setup.
The default wireless
settings for your 802.11a
wireless network are:
SSID = default
Channel = 52
Turbo Mode = Off
You can change these
settings to match an
existing wireless network.

The Setup Wizard (continued)

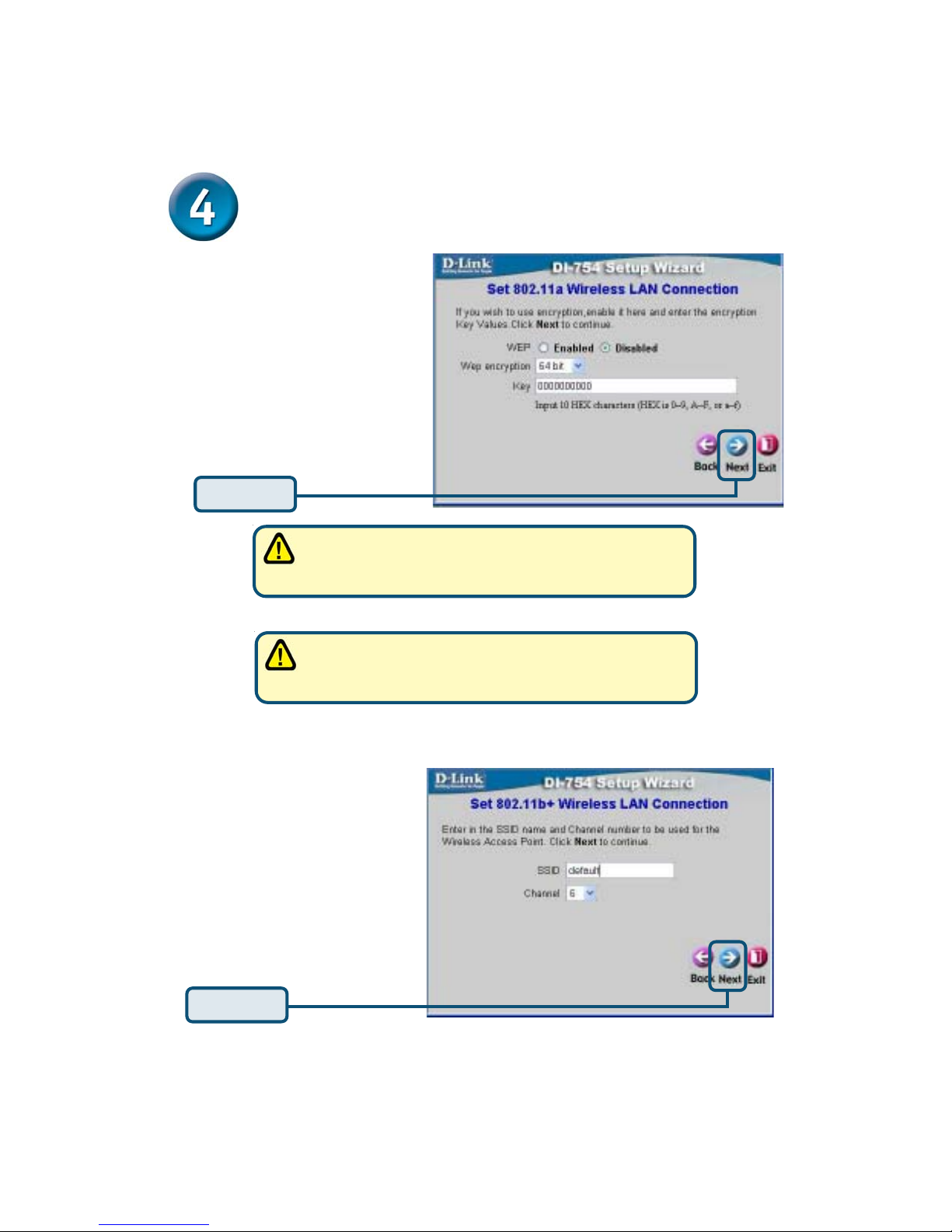

If you wish to use encryption
for your 802.11a network,
the DI-754 is capable of
three levels of wireless
encryption - 64-bit, 128-bit,
and 152-bit. By default the
encryption is disabled.
You can change the encryp-
tion settings for more secure
wireless communication.
Click Next
The default wireless settings
for your 802.11b wireless
network are:
SSID = default
Channel = 6
You can change these
settings to match an existing
wireless network.
Click Next
If you enable encryption on the DI-754 make sure to also
enable encryption on all 802.11a wireless clients or
wireless connection will not be established
The following steps are required if you have added the
DWL-650+ Wireless Cardbus adapter in the Expansion
Slot on the DI-754.

The Setup Wizard (continued)
If you wish to use
encryption for your
802.11b network, the DI-
754 is capable of three
levels of wireless
encryption - 64-bit, 128-
bit, and 256-bit. By
default the encryption
is disabled. You can
change the encryption
settings for more secure
wireless communication.
Click Next

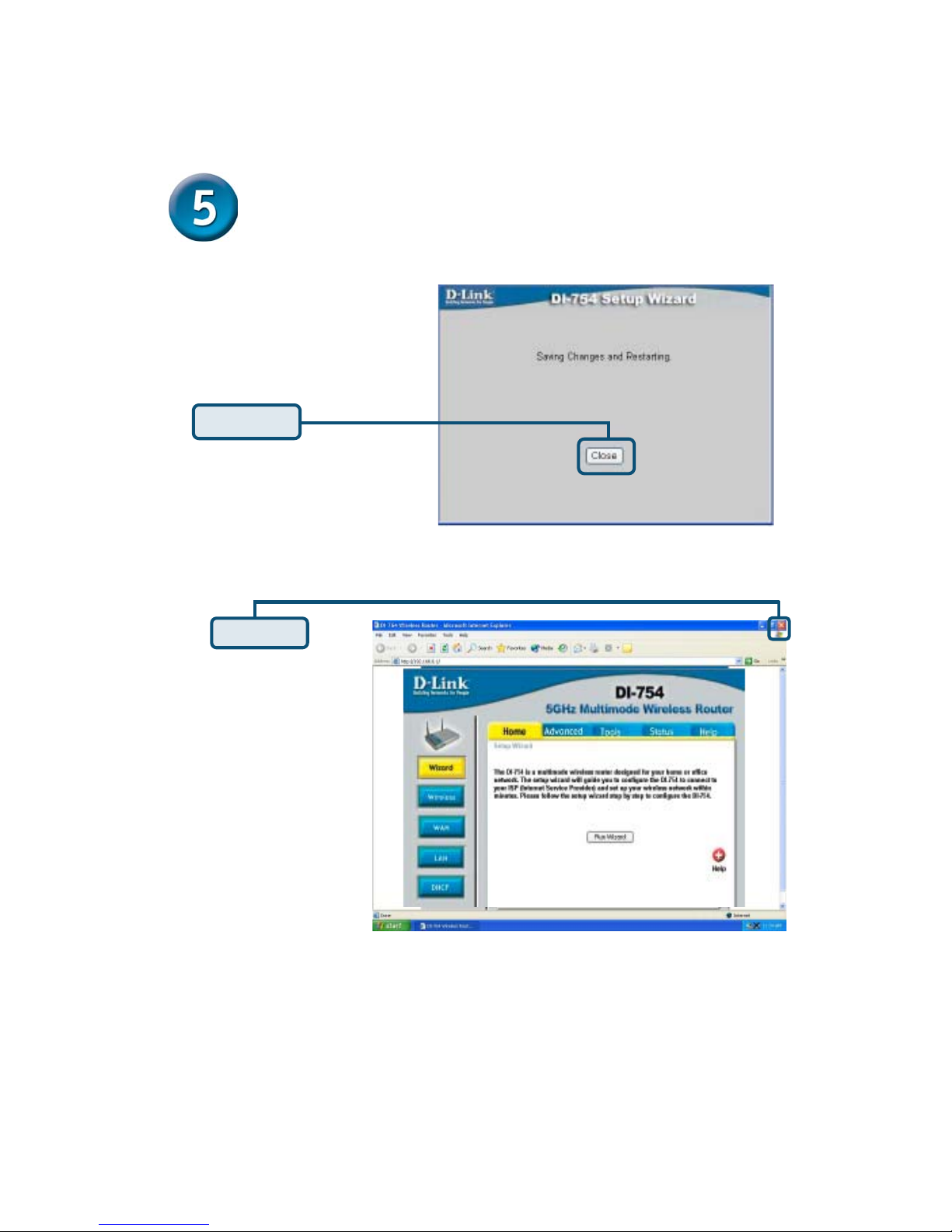

Your Setup is Complete!
Click Restart
If you enable encryption on the DI-754 make sure to also
enable encryption on all 802.11b wireless clients or
wireless connection will not be established

Continued...
Click Close
You will be returned to the Home tab.
Click Exit
For additional settings
or information, select
HELP or refer to the
manual located on the
CD.
Then relaunch your
Web browser (i.e.,
Internet Explorer or
Netscape Navigator),
to link to your favorite
Web site to test your
Internet connection.
Test your Internet connection.

APPENDIX
For Microsoft Windows XP:
Go to Start > right click on
My Network Places >
select Properties > Double-click on
the Network Connection associated
with the Ethernet adapter (i.e.,
D-Link DFE-530TX+).

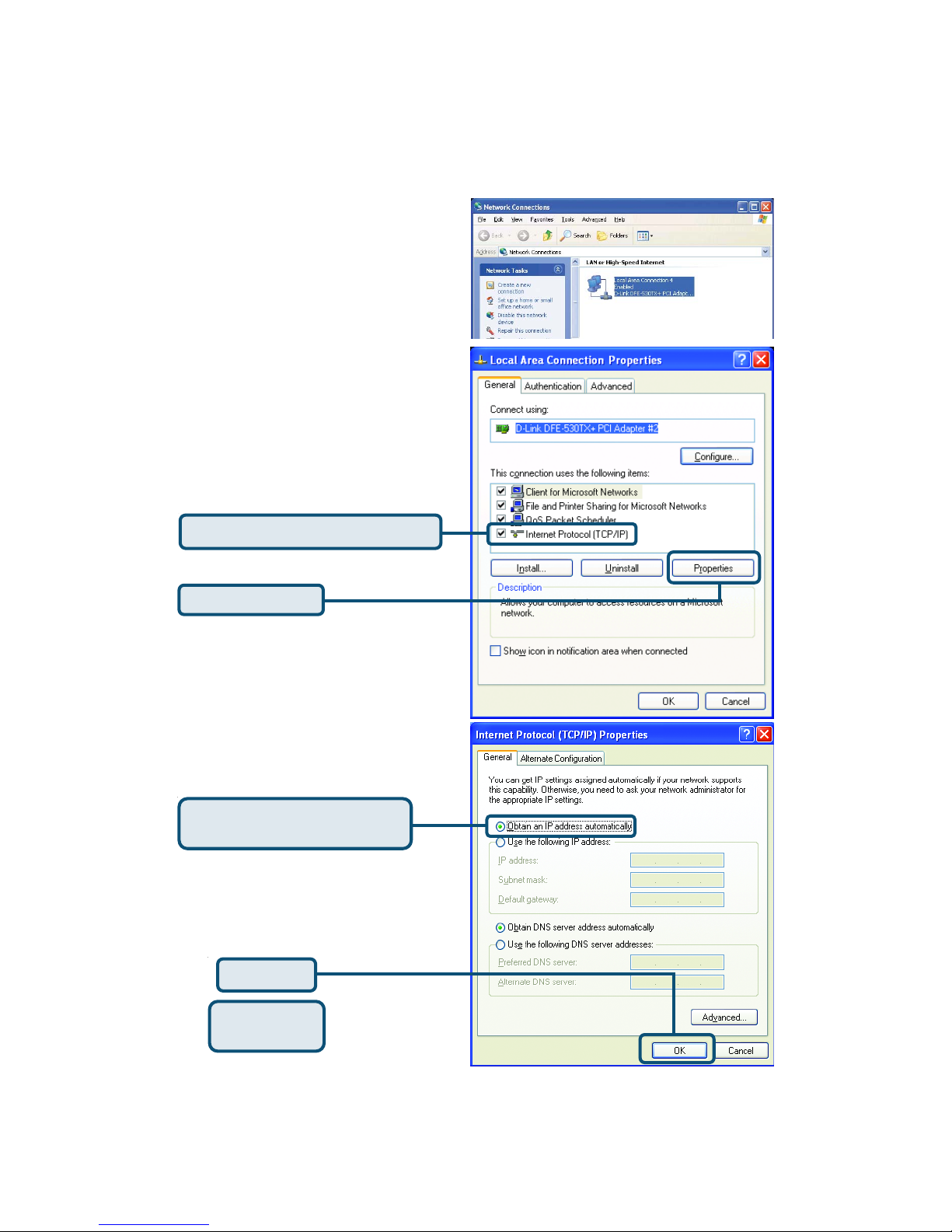

Click Internet Protocol (TCP/IP)
Click Properties
Select Obtain an IP address
automatically
Click OK
Restart your
computer
To connect to the DI-754, make sure
the network adapter in your computer
is configured properly. Here’s how to
configure the network adapter to obtain
an IP address automatically for the
DI-754 5GHz Multimode Wireless
Router.

For Apple Macintosh OS X:

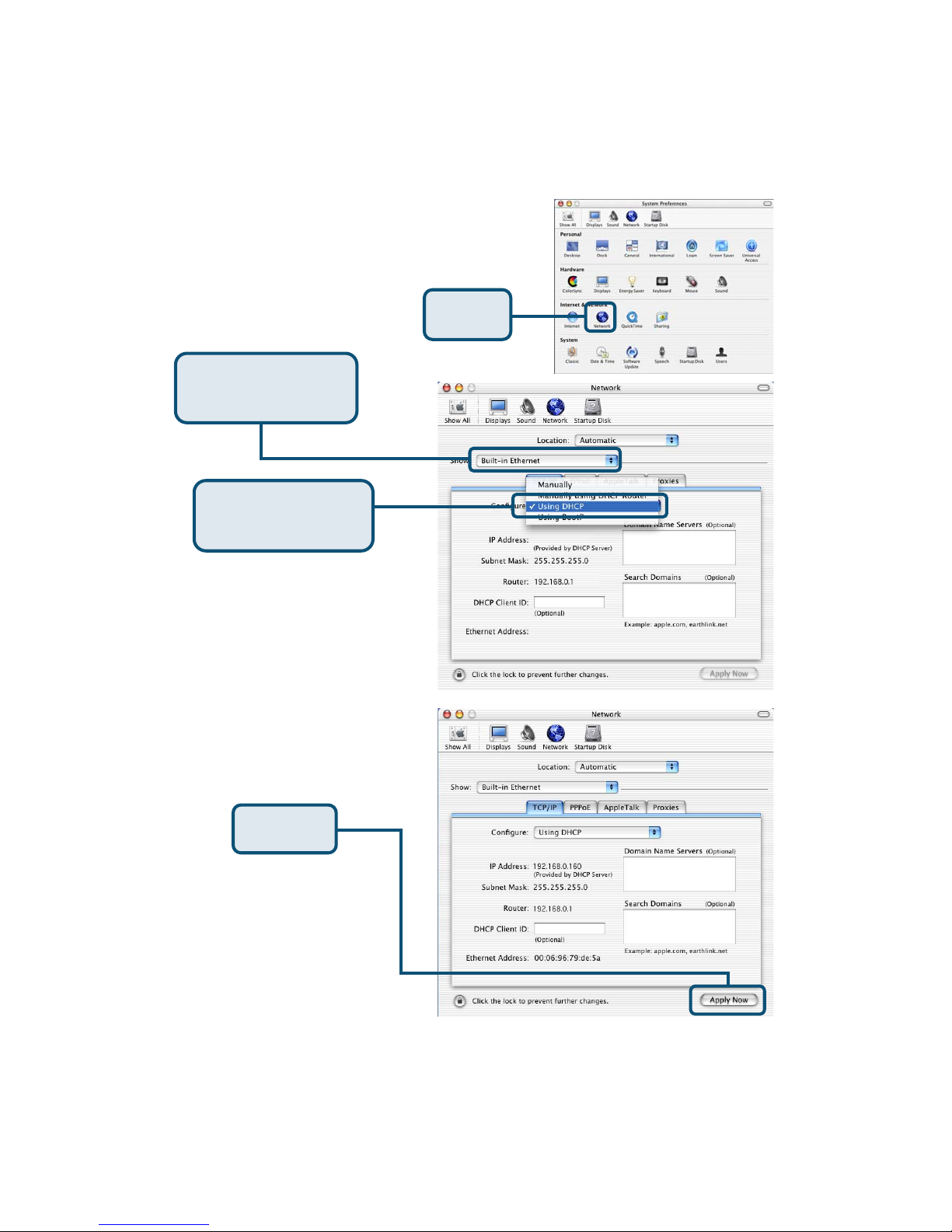

Go to the Apple Menu
Click on Network
and Select System
Preferences
Click on
Network
Select Built-in
Ethernet in the Show
pull-down menu
Select Using DHCP
in the Configure pull-
down menu
Click on
Apply Now
The IP address information,
the Subnet Mask, the Router’s
IP address and the Ethernet
adapter address will appear

NOTES

Technical Support
You can find the most recent software and user documentation on the D-Link
website.
D-Link provides free technical support for customers within the United States
for the duration of the warranty period on this product.
U.S. customers can contact D-Link technical support through our web site or
by phone.
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week
D-Link Technical Support over the Internet:
http://support.dlink.com
email: [e-mail]
