DIR-451

Quick Install Guide
DIR-451
3.5G Mobile Router

3 D-Link DIR-451 Quick Install Guide
System Requirements
Package Contents
* Subject to the services and terms available from your carrier.
• D-Link DIR-451 Mobile Router
• Power Adapter
• Ethernet Cable
• Manual and Warranty on CD
Note: Using a power supply with a different voltage rating than the one included with
the DIR-451 will cause damage and void the warranty for this product.
• A compatible 32-bit PCMCIA (HSUPA/HSDPA/UMTS) card or 3G USB
Modem*
• Computers with Windows®, Macintosh®, or Linux-based operating systems
and with an installed Ethernet adapter
• Internet Explorer Version 6.0 or Netscape Navigator™ Version 6.0 and
higher (for conguration)
If any of the above items are missing, please contact your reseller.

4D-Link DIR-451 Quick Install Guide
Connect to your network
Note: Ensure that your DIR-451 Mobile Router is not powered up before performing
the installation steps below.
1. Attaching the antenna.
a. Remove the antenna from its plastic wrapper.
b. Drive the antenna screws into the back panel of the
router in clockwise direction.
c. Once secured, position the antenna in an upward
direction at its connecting joint. This will ensure optimal
reception.
2. Insert your wireless 32-bit PCMCIA (HSUPA/HSDPA/UMTS) card into
the WWAN card slot or connect a 3G USB Modem to the USB port of
the DIR-451.
3. Insert the Ethernet cable into LAN Port 1 on the back panel of the
DIR-451, and the other end to an Ethernet port of the computer which
will be used for conguring this router.
Note: The LAN ports of the DIR-451 Mobile Router are Auto-MDI/MDIX, which provides
either patch or crossover Ethernet cable LAN Port access.
4. Connect the power adapter to the receptor on the back panel of your
DIR-451. Then plug the other end of the power adapter into a wall outlet
or power strip.
a. The Power LED will turn blue which indicates that
power has been supplied.
b. Other LEDs will also turn blue as the DIR-451 Mobile
Router performs initialization and Internet connection
processes. This will take a few minutes.
c. After you congure your Internet connection (using
the Setup Wizard), the following LEDs will turn blue:
Status, 3G Access, WLAN, and LAN Port 1 (or your
specic LAN Port connection).

5 D-Link DIR-451 Quick Install Guide
Using the Setup Wizard

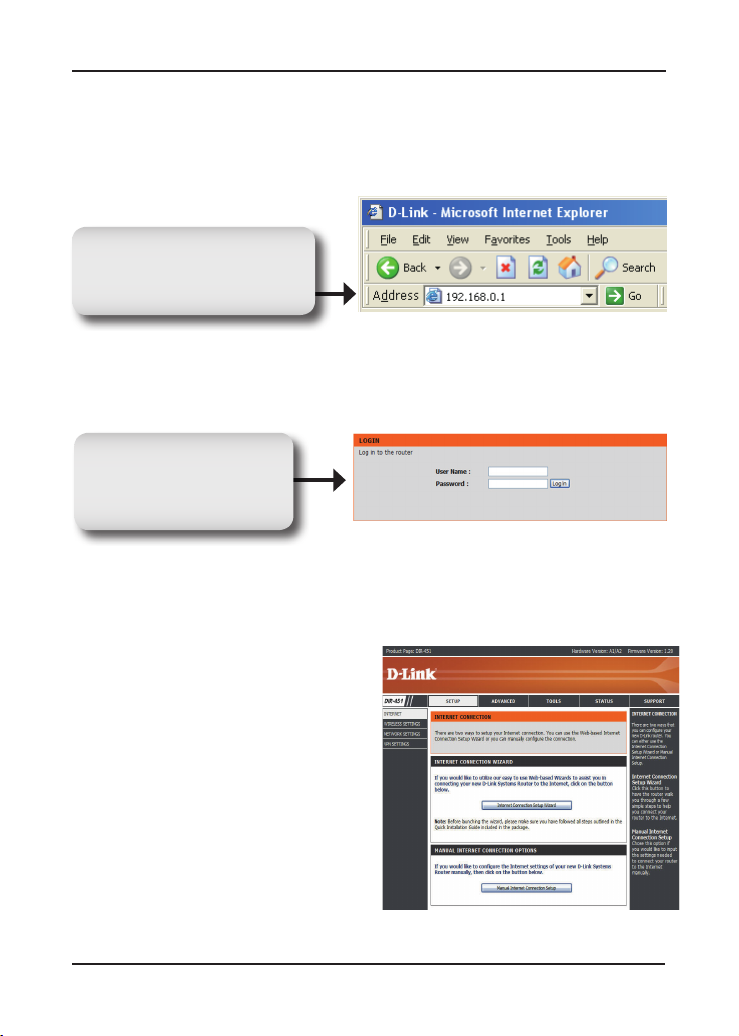

The Login screen will appear.
Once you have logged in, the Setup screen will appear.
Open your web browser and
type http://192.168.0.1 into
the URL address box. Press
Enter.
Type admin fo r t he
username and leave the
password blank. Click Log
In to continue.

6D-Link DIR-451 Quick Install Guide
Click Launch Internet Connection Setup Wizard to begin.
Click Next to continue.
Create a new password and then
click Next to continue.
Click Prev to go back to the previous
page or click Cancel to close the
wizard.
Select your time zone from the drop-down box and then click Next to continue.
Click Internet Connection Setup
Wizard to begin.
Click Prev to go back to the
previous page or click Cancel to
close the wizard.

7 D-Link DIR-451 Quick Install Guide
Select from WWAN or WAN as the type of interface and then click Next to
continue.
Click Next
Note: DIR-451 supports two kinds of WAN
interfaces, allowing you to assign either
a WAN or a WWAN(3G) connection as
the Backup WAN. If the Primary WAN is
down or unavailable, congure the Backup
WAN to Enable, and all the trafc will be
routed through Backup WAN. This feature
is called WAN Failover.
Click Prev to go back to the previous page or click Cancel to close the wizard.
Select the Country, ISP and the 3G
Card you are using from the drop-down
boxes to set up a 3G connection. The
User Name, Password, Dial Number
and APN elds are optional. You can
get this information from your Internet
Service Provider (ISP).
Click Next to continue, Prev to go back
to the previous page or Cancel to close
the wizard.
Select Static IP if your ISP assigned you
the IP address, subnet mask, gateway, and
DNS server addresses. Each IP address
entered must be in the appropriate format,
which are four octets separated by a dot
(x.x.x.x). The router will not accept the IP
address if it is not in this format.
Click Next to continue, Prev to go back to
the previous page or Cancel to close the
wizard.

8D-Link DIR-451 Quick Install Guide
If you have selected Dynamic IP, enter
the MAC address of the computer that
was last connected to or if you are
currently using that computer, click
Clone Your PC’s MAC Address
to automatically update the MAC
address.
Click Next to continue, Prev to go back to the previous page or Cancel to close
the wizard.

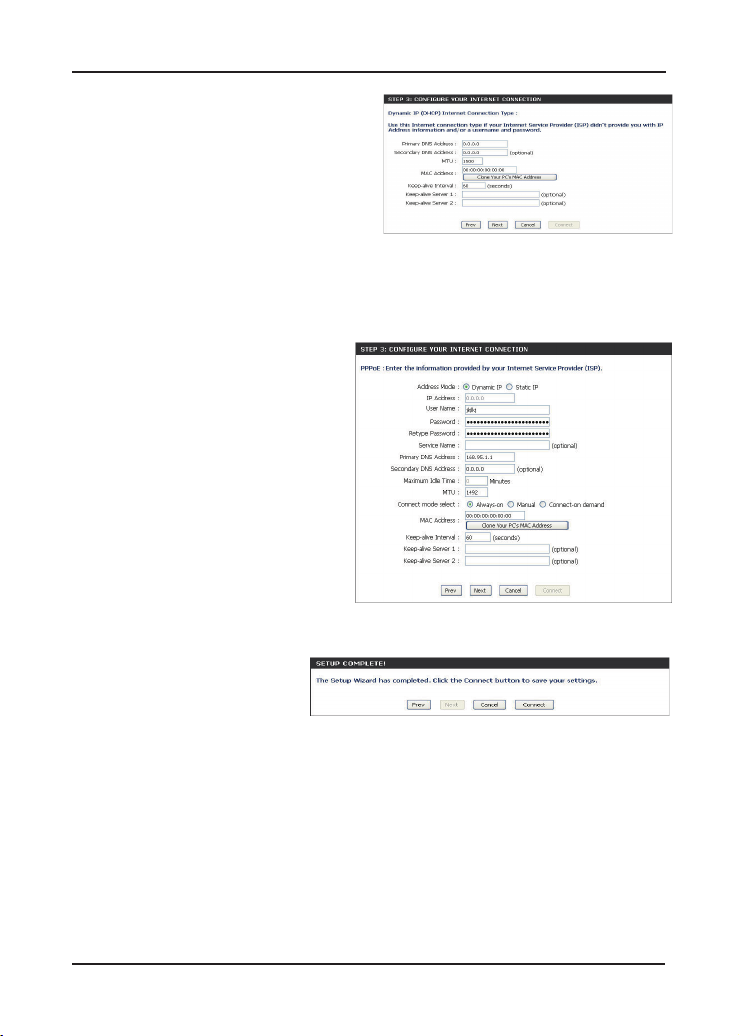

If you have selected PPPoE,
enter your PPPoE Username and
password.
Click Next to continue, Prev to
go back to the previous page or
Cancel to close the wizard.
You have completed the
Setup Wizard.
Click Connect to save your settings.
Note: Please refer to the DIR-451 User Manual for more detailed
information.
