D-Link COVR-1900 User manual

Version 1.00(WW) | 2020/01/17
COVR-1900
User Manual
AC1900 Dual Band Whole Home Mesh Wi-Fi System (1Pack)

iD-Link COVR-1900 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify
any person or organization of such revisions or changes.
Manual Revisions
Hardware Revision Date Description
A1 v1.00 2020/01/17 Initial release
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks
of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other
countries. App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2020 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from
D-Link Corporation, Inc.
Preface

iiD-Link COVR-1900 User Manual
Table of Contents
Table of Contents
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements.................................................................2
Features............................................................................................3
Hardware Overview..................................................................... 4
LED Indicators........................................................................ 4
Back Panel ...............................................................................5
Installation ......................................................................... 6
Before you Begin...........................................................................6
Wireless Installation Considerations......................................7
Setup.................................................................................................8
D-Link Wi-Fi App Setup....................................................... 9
Hardware Setup ..................................................................11
Setup Wizard ........................................................................14
Configuration...................................................................21
Home ..............................................................................................22
Internet...................................................................................23
COVR-1900 ............................................................................24
Connected Clients..............................................................25
Extenders...............................................................................27
Settings ..........................................................................................28
Wizard.....................................................................................28
Internet - IPv4.......................................................................29
IPv4 - Dynamic IP (DHCP)............................................30
IPv4 - Static IP..................................................................31
IPv4 - PPPoE .....................................................................32
IPv4 - PPTP........................................................................34
IPv4 - L2TP ........................................................................36
IPv4 - DS-Lite ...................................................................38
Internet - IPv6.......................................................................39
IPv6 - Auto Detection...................................................40
IPv6 - Static IPv6 .............................................................42
IPv6 - Auto Configuration (SLAAC/DHCPv6)........44
IPv6 - PPPoE .....................................................................47
IPv6 - 6rd...........................................................................51
IPv6 - Local Connectivity Only ..................................53
Internet - VLAN ....................................................................54
Wireless ..................................................................................56
Guest Zone.......................................................................60
Network..................................................................................62
D-Link Cloud.........................................................................64
Operation ..............................................................................65
Features..........................................................................................66
QoS Engine............................................................................66
Firewall Settings - Advanced ..........................................68
Firewall Settings - IPv4/IPv6 Rules................................70
Port Forwarding ..................................................................72
Port Forwarding - Virtual Server....................................74
Website Filter........................................................................76
Static Route - IPv4...............................................................77
Static Route - IPv6...............................................................78
Dynamic DNS .......................................................................79
Quick VPN..............................................................................81

iiiD-Link COVR-1900 User Manual
Table of Contents
Management................................................................................82
Time & Schedule - Time....................................................82
Time & Schedule - Schedule ...........................................83
System Log............................................................................84
System Admin - Admin.....................................................86
System Admin - System....................................................87
Upgrade .................................................................................88
Statistics.................................................................................89
Statistics - Extender............................................................90
Third Party Services.........................................................91
Registering a D-Link Cloud Service Account....................92
Amazon Alexa Setup .........................................................95
Amazon Alexa Voice Commands ..................................99
The Google Assistant Setup......................................... 100
The Google Assistant Voice Commands.................. 103
Quick VPN.......................................................................104
Important Information .......................................................... 105
iOS Devices ................................................................................ 106
VPN Setup Instructions.................................................. 106
Connect or Disconnect.................................................. 108
Mac OS X..................................................................................... 109
VPN Setup Instructions.................................................. 109
Connect or Disconnect.................................................. 111
Windows 7.................................................................................. 112
VPN Setup Instructions.................................................. 112
Connect or Disconnect.................................................. 115
Windows 8.1/8.......................................................................... 116
VPN Setup Instructions.................................................. 116
Connect or Disconnect.................................................. 121
Windows 10 ............................................................................... 122
VPN Setup Instructions.................................................. 122
Connect or Disconnect.................................................. 124
Android ....................................................................................... 125
VPN Setup Instructions.................................................. 125
Connect or Disconnect.................................................. 127
Connect a Wireless Client to your Router ....................129
WPS Button................................................................................ 129
Windows® 10 ............................................................................. 130
Windows® 8 - WPA/WPA2...................................................... 131
Windows® 7................................................................................ 133
Troubleshooting ............................................................135
Wireless Basics ...............................................................137
Wireless Modes ..............................................................141
Networking Basics.........................................................142
Wireless Security ...........................................................144
Technical Specifications................................................145
Federal Communication Commission Interference
Statement.......................................................................146

1D-Link COVR-1900 User Manual
Section 1 - Product Overview
If any of the above items are missing or damaged, please contact your local reseller.
Note: Using a power supply with a different voltage rating than the one included with the router will cause damage and void the warranty for this product.
Product Overview
Package Contents
COVR-1900
COVR-1900 V
Quick Installation Guide V
Quick Installation Card V
Ethernet Cable (RJ45) V
Power Adapter V

2D-Link COVR-1900 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based cable, DSL or fiber modem
• IEEE 802.11ac/n/g/b/a wireless clients
• 10/100/1000 Ethernet
Web-based
Configuration Utility
Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 10 or higher
• Firefox 28 or higher
• Safari 6 or higher
• Chrome 28 or higher
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
D-Link Wi-Fi App
Requirements
• iOS® or Android™ device (Please refer to the app's store page
to check whether your device is compatible.)
System Requirements

3D-Link COVR-1900 User Manual
Section 1 - Product Overview
Features
Need super-fast Wi-Fi for your wire-free, all-streaming house? With a powerful dual-core processor, the
AC1900 Dual Band Whole Home Mesh Wi-Fi System (1Pack) packs in enough processing power to handle every networking task you throw at it.
It’s a powerful, intelligent home router with integrated voice assistant compatibility for Amazon Alexa and Google Assistant so you can control your
network with voice commands.
Handle More with a High-Power Processor
With the COVR-1900, you’re not only enjoying buffer-free gaming and lightning fast surfing, you’re also enjoying features such as an optimizing
QoS, an automatic firmware update system that ensures the best protection and the latest features, and compatibility with voice assistants. All this
is possible with the router’s 1.25 GHz dual-core high-power processor, 128 MB of flash memory and 128 MB of RAM.
Enhanced Quality of Service Features
The built-in Quality of Service (QoS) engine allows you to prioritize important traffic to ensure that your favorite applications are receiving optimal
bandwidth.
Always Up-to-Date with the Latest Features
The COVR-1900 will automatically check daily for updates to make sure that the device always has the latest features and the most secure firmware,
and will install the update silently in the background. For an extra peace of mind, in the event of failure during the firmware update, the router will
store a backup system image in the memory before proceeding with the update.
Easy to Set Up and Manage
Sharing your Internet connection doesn’t have to be a complicated process; just download the free D-Link Wi-Fi app for your mobile device and
follow the on-screen step-by-step instructions to set up your COVR-1900. You also have the option to use a web browser to access the setup wizard
and to manage your router. Support for industry-standard Wi-Fi Protected Setup (WPS) lets you create encrypted connections to new devices by
pressing a button.

4D-Link COVR-1900 User Manual
Section 1 - Product Overview
Hardware Overview
LED Indicators
1
1 Status LED
Solid Red The device is booting up.
Blinking Red The device is in Recovery Mode.
Blinking Orange The device is cannot sync to another device. Once set up, a blinking orange
LED indicates there is not connection to the device.
Blinking Orange
(Fast) The device is upgrading Firmware.
Solid White The device is powered up and running. Once set up, a solid white LED
indicates a strong connection.
Blinking White The device is connecting to a wireless client using Wi-Fi Protected Setup
(WPS). Once set up, a blinkding white LED indicates a weak connection.
Off
The device is powered off. If the device is powered on and Status LED is
disabled, the device is working as normal. Refer to the Admin section on
page 86 for more information.

5D-Link COVR-1900 User Manual
Section 1 - Product Overview
Back Panel
5
1 Power Button Press the power button to power the device on or off.
2 Power Connector Connector for the supplied power adapter.
3 WPS Button Press to start the WPS process and automatically create an encrypted connection to a WPS
client.
4 Gigabit WAN Port Using an Ethernet cable, connect your broadband modem to this port.
5Gigabit LAN Ports
(1- 4)
Connect Ethernet devices such as computers, switches, storage (NAS) devices, and game
consoles.
1234

6D-Link COVR-1900 User Manual
Section 2 - Installation
Before you Begin
• Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, attic, or
garage.
• Configure the router with the computer that was last connected directly to your Internet connection. Verify that it is
connected to the Internet before connecting additional devices.
• If your ISP provided you with a modem/router combo, you will need to set it to“bridge”mode so the router can work
properly. Please contact your ISP or refer to the user manual for your modem/router device.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then
you must turn off your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the
router, and then turn the modem back on. In some cases, you may need to call your Internet Service Provider (ISP) to
change connection types (USB to Ethernet).
• If connecting to a DSL modem, make sure to have your DSL service information provided by your Internet Service
Provider handy. This information is likely to include your DSL account's Username and Password. Your ISP may also supply
you with additional WAN configuration settings which might be necessary to establish a connection.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to label
each cable or take a picture of your existing setup before making any changes.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoET,
BroadJump, or EnterNet 300 from your computer or you will not be able to connect to the Internet.
This section will walk you through the installation of your COVR-1900.
Installation

7D-Link COVR-1900 User Manual
Section 2 - Installation
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or
ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or
ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so
that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a difference. A solid metal door or aluminum studs may have a negative effect on range. Try
to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways.
Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file cabinets, brick, and
concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is
as far away from your wireless devices as possible. The base transmits a signal even if the phone is not in use.
Wireless Installation Considerations

8D-Link COVR-1900 User Manual
Section 2 - Installation
Setup
There are several different ways you can configure your router to connect to the Internet
• D-Link Wi-Fi App - Use your compatible Android or iOS device to install and configure your router. Refer to D-Link Wi-Fi
App Setup on page 9.
• Hardware Setup - This section explains how to setup your COVR-1900. Refer to Hardware Setup on page 11.
• D-Link Setup Wizard - This wizard will launch when you log into the router by using your PC for the first time. Refer to
Setup Wizard on page 14.
• Manual Setup - Log in to the router to manually configure your router. Refer to Configuration on page 21

9D-Link COVR-1900 User Manual
Section 2 - Installation
D-Link Wi-Fi App Setup
The D-Link Wi-Fi app allows you to install and configure your COVR-1900 from your compatible Android or iOS device.
Note: The screenshots may be different depending on your mobile device’s OS version. The following steps show the iOS interface
of the D-Link Wi-Fi app. If you are using an Android device, the appearance may be different from that of the screenshots, but the
process is the same.
Step 3
Tap on the Install New Device button at the middle of the screen.
Step 1
Search and install the free D-Link Wi-Fi app available on the App Store or on
Google Play. You can also scan the QR code on the right, which will take you
to the respective D-Link Wi-Fi app store page.
Step 2
Launch the D-Link Wi-Fi app from the home screen of your device.
D-Link Wi-Fi

10D-Link COVR-1900 User Manual
Section 2 - Installation
Step 5
Select Router and select COVR-1900 from the list of available devices. Tap
Next to continue.
Step 6
You will now be guided through a step-by-step process for setting up your
router. Simply follow the on-screen instructions to continue the installation
and the configuration process.
Step 4
Tap Scan the QR code to scan the setup QR code located in the Quick
Installation Card and proceed to step 6. Alternatively, you can tap Continue
without scanning to proceed to step 5.
QIC
10

11D-Link COVR-1900 User Manual
Section 2 - Installation
Hardware Setup

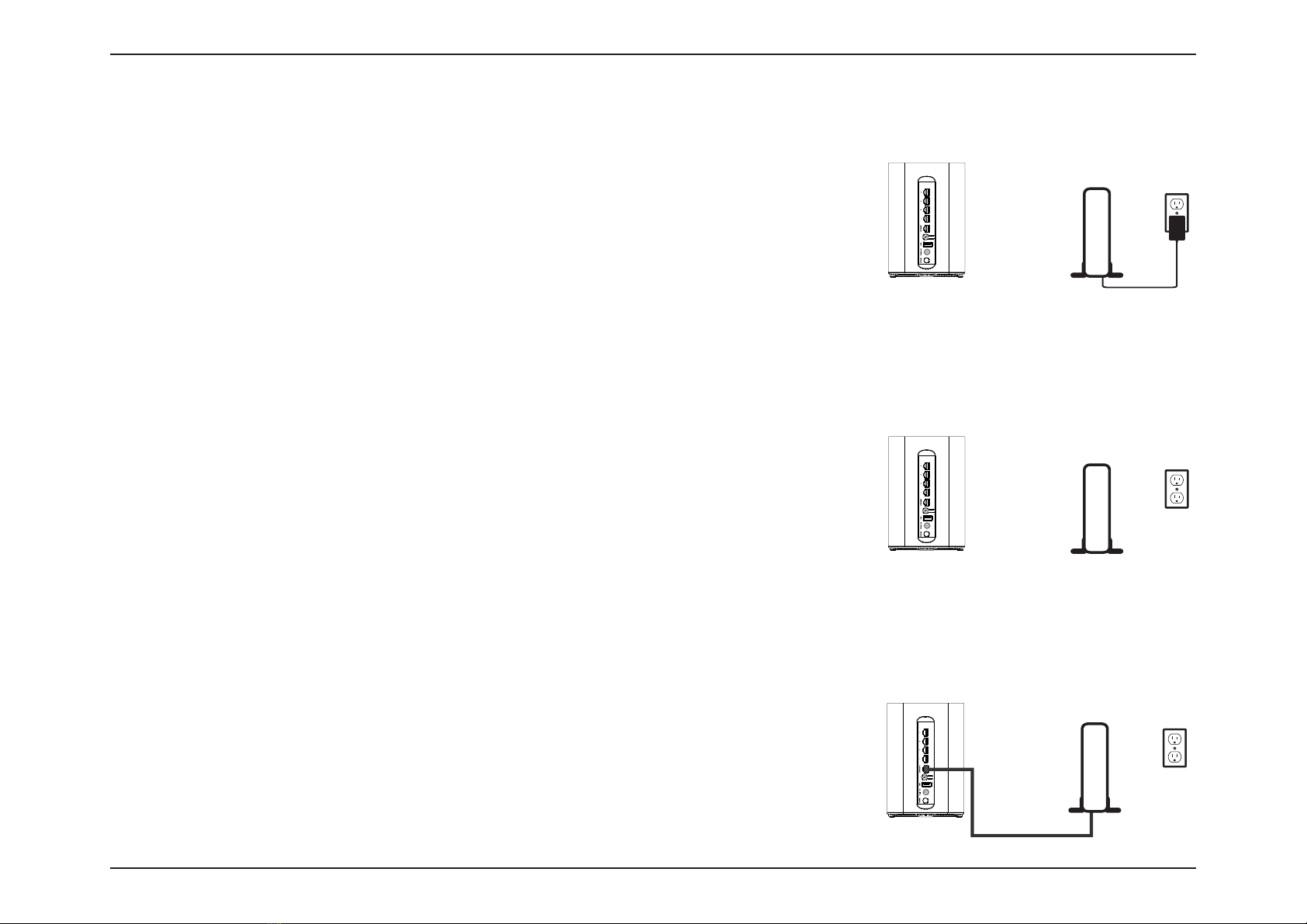

Step 1
Position your COVR-1900 near your Internet-connected modem. Place it in
an open area for better wireless coverage.
Step 2
Turn off and unplug the power to your cable or DSL broadband modem. This
is required. In some cases, you may need to turn it off for up to five minutes.
ModemModem
Step 3
Use the Ethernet cable to connect your modem to the port labelled
INTERNET on the router.
Modem

12D-Link COVR-1900 User Manual
Section 2 - Installation

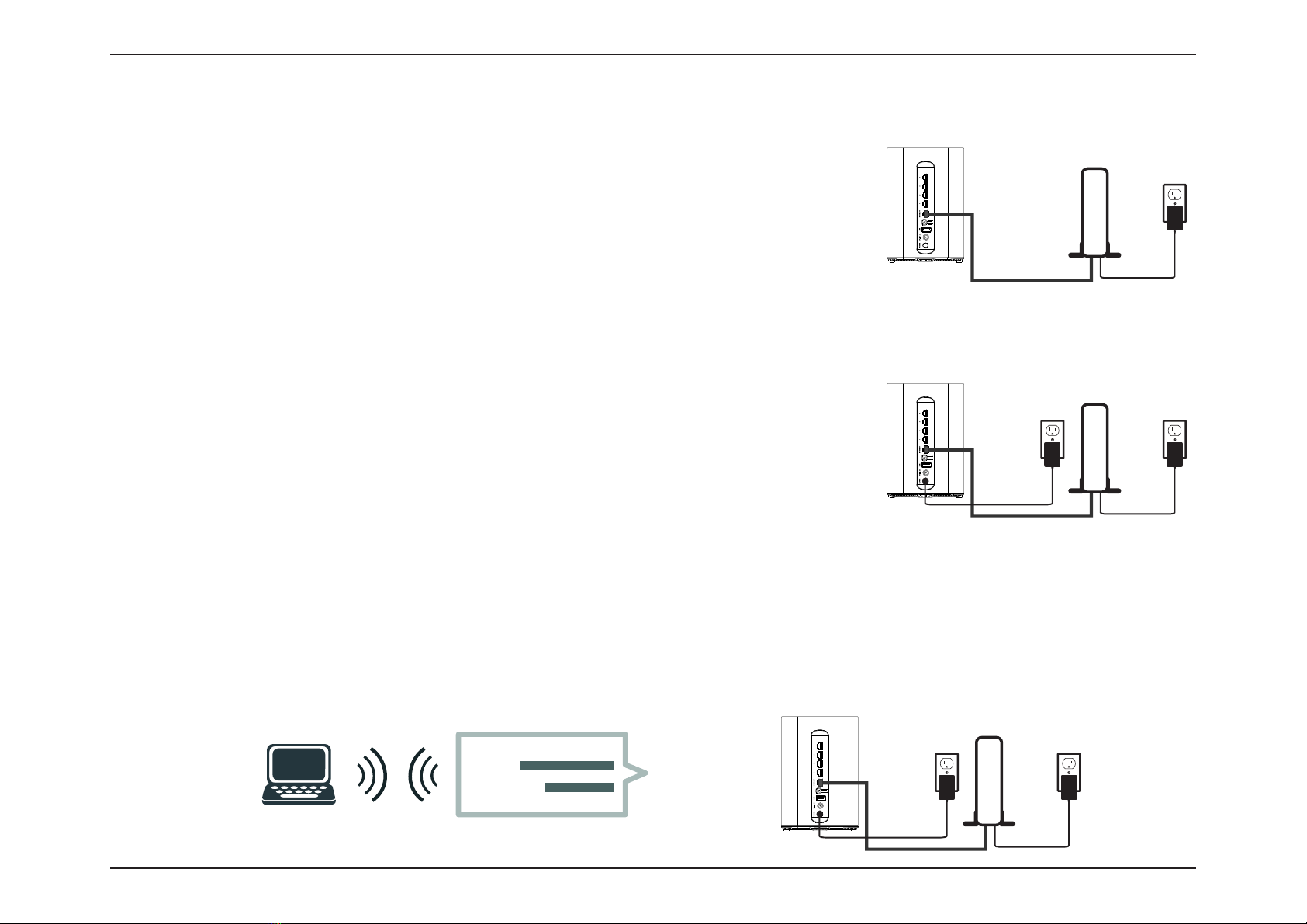

Step 4
Plug in and turn your modem back on and wait approximately one minute
before proceeding.
Step 5
Connect the supplied power adapter to the router and a power outlet,
press the power button, and wait approximately one minute until the LED
indicator on the front of the device changes from orange to solid white.
Step 6
If you are configuring the router wirelessly from a PC, connect to the Wi-Fi network printed on the label attached to the
bottom of your router or in the Quick Installation Card.
SSID:
Password:
ModemModem
Modem

13D-Link COVR-1900 User Manual
Section 2 - Installation

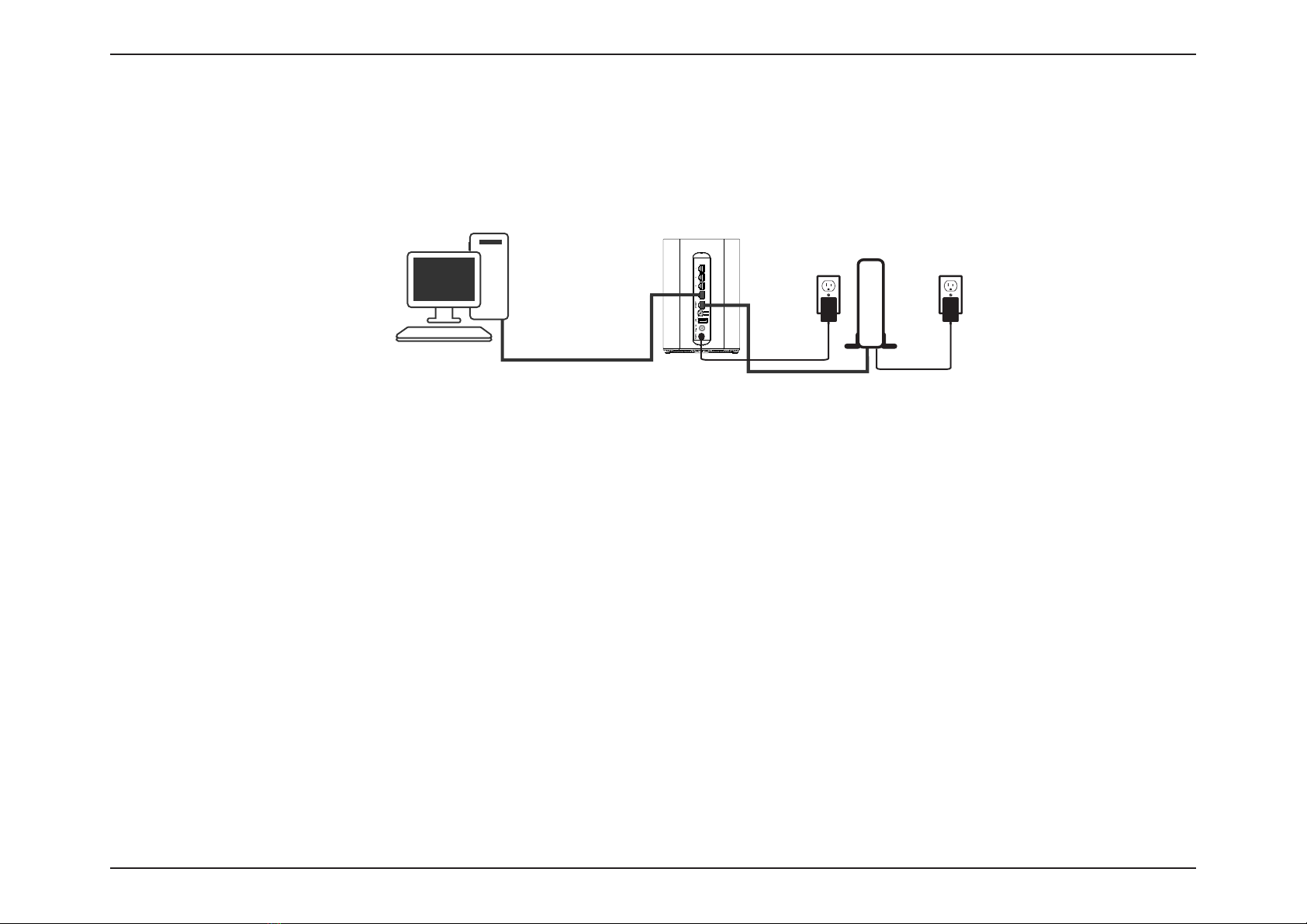

If you are configuring the router from a PC with a wired Ethernet connection, plug one end of an Ethernet cable into the
port labeled 1 on the back of the router, and the other end into the Ethernet port on your computer.
Step 7
If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online already. Try
opening a web browser and connecting to a website. If the website does not load, proceed to Setup Wizard on page 14.
Modem

14D-Link COVR-1900 User Manual
Section 2 - Installation
Setup Wizard
If this is your first time logging in to the and no connection has been established,
the setup wizard will automatically appear instead of the log in page. If the setup
process was not previously completed, then log in to the interface by leaving the
password field blank.
The setup wizard is designed to guide you through a step-by-step process to configure your new COVR-1900 and connect to the
Internet via a wireless setup process.
If this is your first time installing the router, open your web browser and
enter http://dlinkrouter.local./ in the address bar. Alternatively, enter the IP
address of the router (default: http://192.168.0.1).
Agree to the Terms of Use and Privacy Policy before proceeding.

15D-Link COVR-1900 User Manual
Section 2 - Installation
Please wait while your router detects your Internet connection type.
Follow the on-screen instructions to configure your new D-Link router and
connect to the Internet.
Click Next to continue.

16D-Link COVR-1900 User Manual
Section 2 - Installation
If the router detected or you selected PPPoE, enter your PPPoE username and
password. If you do not have this information, please contact your ISP.
Click Next to continue.
Note: Make sure to remove all other existing PPPoE software from your computer.
The software is no longer needed and will not work through a router.
If the router does not detect a valid Internet connection, a list of connection
types to choose from will be displayed. Select your Internet connection type
(this information can be obtained from your Internet Service Provider).
Click Next to continue.
