D-Link Amplifi DHP-1565 User manual

iD-Link DHP-1565 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2011 by D-Link Systems, Inc.
All rights reserved.This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc.
Revision Date Description
1.0 September 12, 2011 DHP-1565 Revision A1
Preface

iiD-Link DHP-1565 User Manual
Table of Contents
Preface........................................................................................................... i
Manual Revisions...............................................................................................i
Trademarks..........................................................................................................i
Product Overview....................................................................................... 1

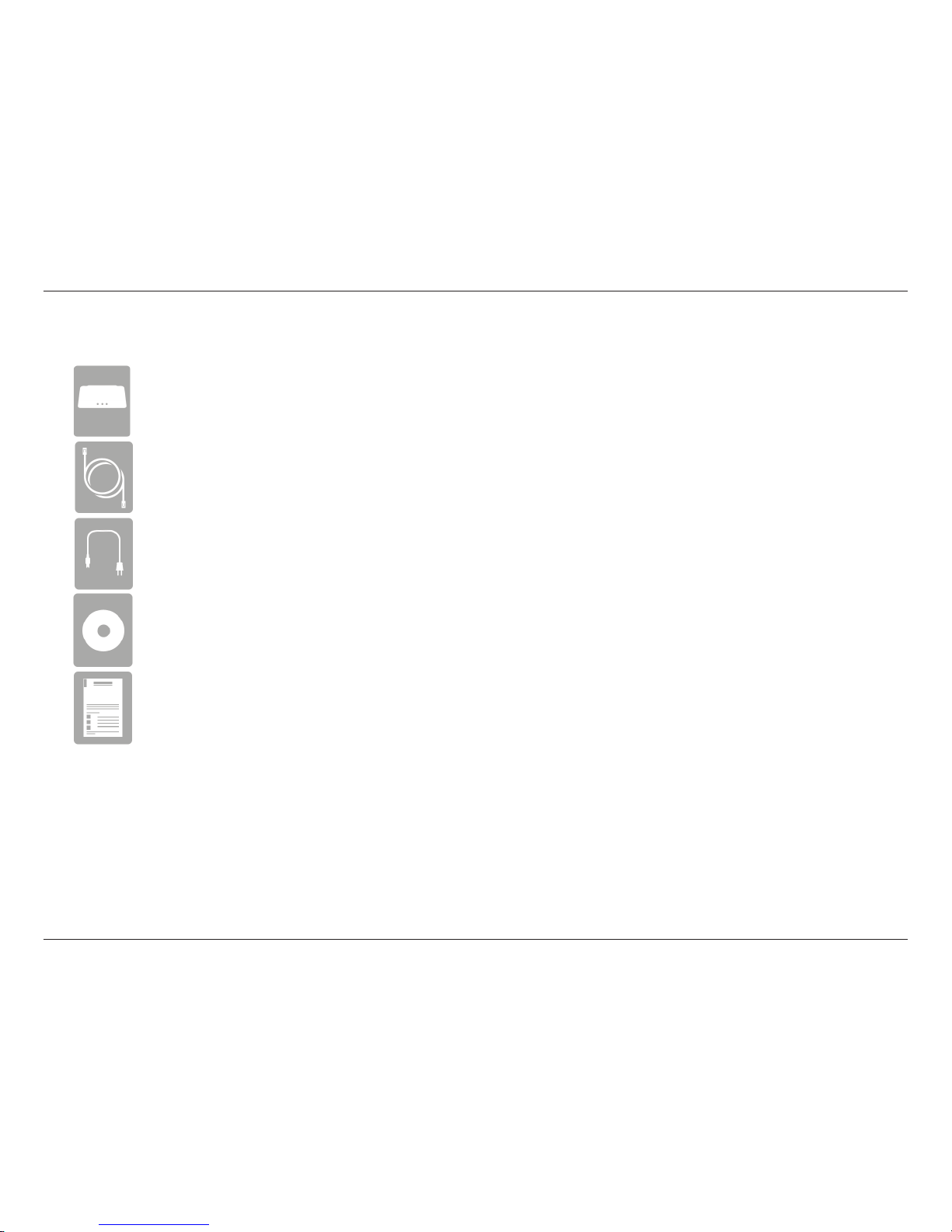

Package Contents ...........................................................................................1
System Requirements.................................................................................... 2
Introduction...................................................................................................... 3
Features ..............................................................................................................4

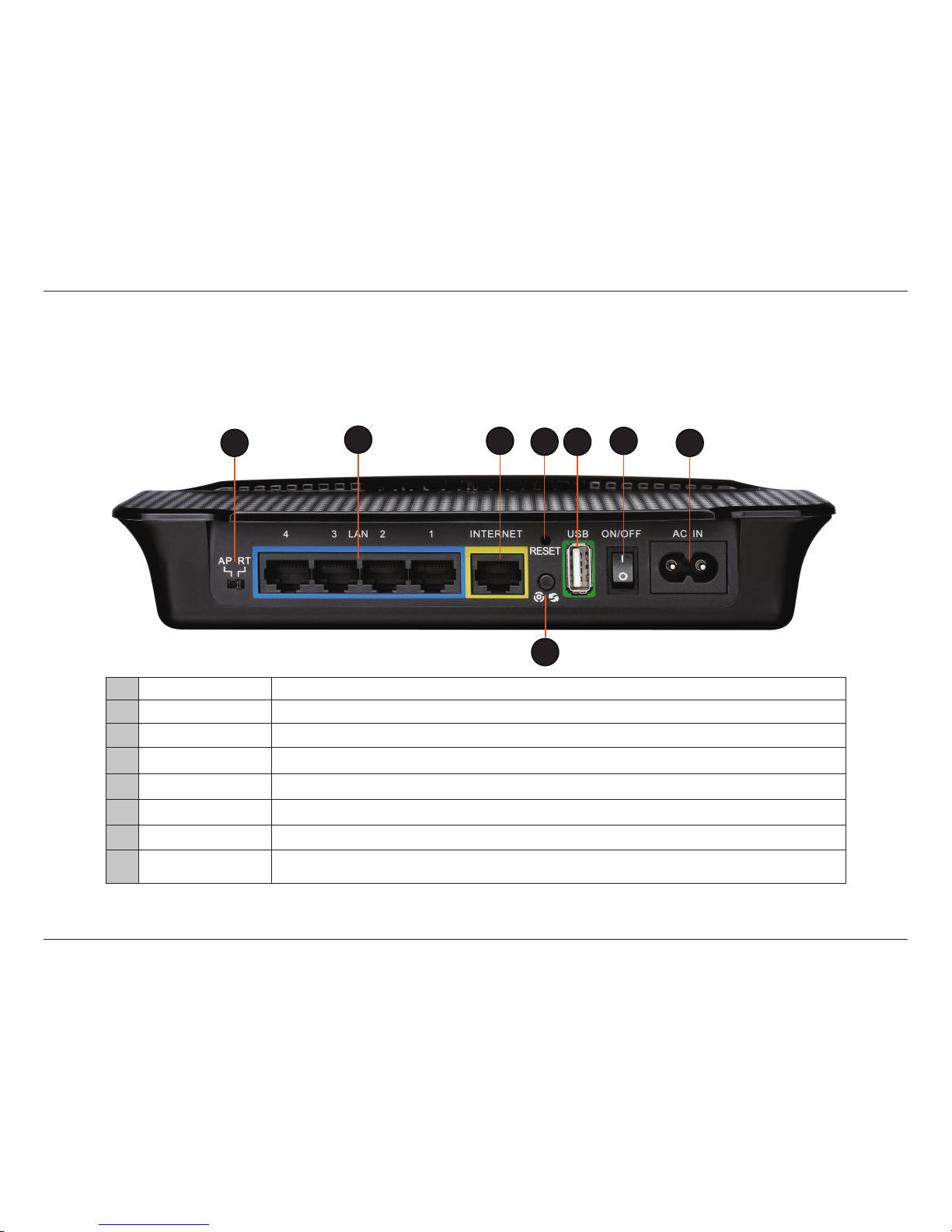

Hardware Overview........................................................................................ 5
Connections.............................................................................................5
LEDs ............................................................................................................6
Installation................................................................................................... 7
Before you Begin ............................................................................................. 7
Wireless Installation Considerations ........................................................8
Hardware Installation - For Router Mode ...............................................9
Connect to Cable/DSL/Satellite Modem...............................................10
Connect to Another Router.......................................................................11
Hardware Installation - For Access Point Mode..................................13
PowerLine Installation Considerations..................................................15
PowerLine Security.......................................................................................16
PowerLine Network-Quick Setup...................................................16
Encryption Button Usage ............................................................16
PowerLine Network Device Setup .................................................17
Getting Started ..............................................................................................18
Conguration (Router Mode).................................................................19
Web-based Conguration Utility.............................................................19
Setup..................................................................................................................20
Internet....................................................................................................20
Internet Connection Setup Wizard ................................................21
Manual Internet Connection Setup...............................................27
Static IP...............................................................................................28
Dynamic IP (DHCP) ........................................................................29
PPPoE (Username/Password).....................................................30
PPTP ....................................................................................................32
L2TP.....................................................................................................34
DS-Lite................................................................................................36
Wireless Settings ..................................................................................37
Manual Wireless Settings ..................................................................38
802.11n/b/g (2.4GHz)....................................................................38
Network Settings..................................................................................40
Router Settings................................................................................41
DHCP Server Settings....................................................................42
DHCP Reservation..........................................................................43
IPv6.....................................................................................................................44
IPv6 over PPPoE ..............................................................................47
Static IPv6..........................................................................................48
Tunneling Connection (6rd) .......................................................49
IPv6......................................................................................................50
Link-local Only.................................................................................50
IPv6 Manual Setup........................................................................................51
Table of Contents

iiiD-Link DHP-1565 User Manual
Table of Contents
Auto Detection................................................................................51
Static IPv6..........................................................................................52
Autoconguration..........................................................................53
PPPoE..................................................................................................54
IPv6 in IPv4 Tunneling...................................................................56
6 to 4 Tunneling ..............................................................................57
6rd........................................................................................................58
PLC Settings (Router Mode) ......................................................................59
Advanced .........................................................................................................62
Virtual Server .........................................................................................62
Port Forwarding....................................................................................64
Application Rules .................................................................................65
QoS Engine.............................................................................................66
Network Filter........................................................................................68
Access Control.......................................................................................69
Access Control Wizard...................................................................69
Website Filter.........................................................................................72
Inbound Filter........................................................................................73
Firewall Settings ...................................................................................74
Routing ....................................................................................................76
Advanced Wireless Settings .............................................................77
802.11n/b/g (2.4GHz)....................................................................77
Wi-Fi Protected Setup (WPS)............................................................78
Advanced Network..............................................................................80
UPnP....................................................................................................80
Internet Ping Block.........................................................................80
Internet Port Speed .......................................................................80
Multicast Streams...........................................................................80
Guest Zone ......................................................................................................81
IPv6 Firewall ....................................................................................................82
IPv6 Routing ...................................................................................................83
Tools...................................................................................................................84
Admin.......................................................................................................84
Time ..........................................................................................................85
SysLog ......................................................................................................86
Email Settings........................................................................................87
System......................................................................................................88
Firmware..................................................................................................89
Dynamic DNS.........................................................................................90
System Check ........................................................................................91
Schedules................................................................................................92
Status.................................................................................................................93
Device Info..............................................................................................93
Logs...........................................................................................................94
Statistics...................................................................................................95
Internet Sessions..................................................................................96
Routing Table.........................................................................................97
Wireless....................................................................................................98
IPv6............................................................................................................99
IPv6 Routing........................................................................................ 100
Support ................................................................................................ 101
Wireless Connection Setup Wizard......................................................102
Wireless Security Setup Wizard............................................................. 103
Add Wireless Device with WPS Wizard................................................ 105
Conguration (AP Mode)......................................................................... 106
Web-based Conguration Utility.......................................................... 106
Wireless Setup Wizard .............................................................................. 107
Wireless Setup .............................................................................. 109

ivD-Link DHP-1565 User Manual
Table of Contents
Network Settings - DHCP.......................................................... 111
Network Setup - Static IP.......................................................... 112
Conguration ..........................................................................................115
PLC Settings - AP Mode............................................................................ 115
Network Filter .............................................................................. 118
Advanced Wireless...................................................................... 119
Wi-Fi Protect Setup ..................................................................... 120
Add Wireless Device with WPS..................................................... 121
Adding a Wireless Device Using the PIN Method............ 121
Adding a Wireless Device Using the PBC Method........... 122
Manually Add Wireless Device with WPS..................................123
User Limit Settings..................................................................................... 124
Admin.............................................................................................. 125
Time.................................................................................................. 126
System Settings............................................................................ 127
Firmware......................................................................................... 128
Language Pack ............................................................................. 128
System Check ............................................................................... 129
Schedules....................................................................................... 130
Status ........................................................................................................131
Device Info..................................................................................... 131
Logs.................................................................................................. 132
Statistics.......................................................................................... 133
Wireless................................................................................................. 134
IPv6......................................................................................................... 135
Support.......................................................................................................... 136
Wireless Security.....................................................................................137
What is WPA?................................................................................................ 137
Congure WEP............................................................................................. 138
Congure WPA/WPA2-Personal (PSK)................................................. 139
Congure WPA/WPA2-Enterprise (RADIUS)...................................... 140
Connect to a Wireless Network............................................................141
Using Windows® 7...................................................................................... 141
Congure WPS ................................................................................... 144
Using Windows Vista®............................................................................... 148
Congure Wireless Security........................................................... 149
Using Windows® XP ................................................................................... 151
Congure WPA-PSK .......................................................................... 152
Troubleshooting .....................................................................................154
Wireless Basics ........................................................................................158
What is Wireless? ........................................................................................ 159
Tips .................................................................................................................. 161
Wireless Modes ........................................................................................... 162
Networking Basics..................................................................................163
Check your IP address...............................................................................163
Statically Assign an IP address............................................................... 164
Technical Specications ........................................................................165

1D-Link DHP-1565 User Manual
Section 1 - Product Overview
Product Overview
Note: Using a power supply with a dierent voltage rating than the one included with the DHP-1565 will cause damage and void the
warranty for this product.
Package Contents
DHP-1565 Wireless N PowerLine Gigabit Router
Ethernet Cable
Power cord
CD-ROM with Manual and Setup Wizard
QIG

2D-Link DHP-1565 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11n or 802.11g wireless clients
• 10/100/1000 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7 or higher
• Firefox 3.0 or higher
• Safari 3.0 or higher
• Chrome 2.0 or higher
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
CD Installation Wizard
Requirements
Computer with the following:
• Windows®7/ Vista® / XP with Service Pack 3
• An installed Ethernet adapter
• CD-ROM drive
System Requirements

3D-Link DHP-1565 User Manual
Section 1 - Product Overview
Introduction
TOTAL PERFORMANCE
Combines PowerLine features and IEEE 802.11n/g wireless technology to provide the best wire and wireless performance.
TOTAL SECURITY
The most complete set of security features including Active Firewall and WPA/WPA2 to protect your network against outside intruders.
TOTAL COVERAGE
Provides greater wireless signal rates and powerline in areas where a wired connection would be benecial like had-to-reach areas in your home
for best-in-class Whole Home Coverage.
ULTIMATE PERFORMANCE
The D-Link Wireless N PowerLine Gigabit Router (DHP-1565) is a 802.11n compliant device that delivers real world performance of up to 14x faster
than an 802.11g wireless connection (also faster than a 1000Mbps wired Ethernet connection). Create a secure wireless network to share photos,
les, music, video, printers, and network storage throughout your home. Connect the DHP-1565 router to a cable or DSL modem and share your
high-speed Internet access with everyone on the network. In addition, this Router includes a Quality of Service (QoS) engine that keeps digital
phone calls (VoIP) and online gaming smooth and responsive, providing a better Internet experience. PowerLine uses a building’s existing electrical
wiring to turn any power outlet into a fully functioning Ethernet port and transform your entire home into a wall-to-wall network, instantly. Now
you can take that same revolutionary PowerLine technology and give up to 4 of your favorite connected devices their own Gigabit Ethernet port
with 500Mbps speed, and QoS prioritization experience seamless digital entertainment and performance anywhere in your home.
TOTAL NETWORK SECURITY
The Wireless N PowerLine Gigabit Router supports all of the latest wireless security features to prevent unauthorized access, be it from over the
wireless network or from the Internet. Support for WPA/WPA2 standards ensure that you’ll be able to use the best possible encryption method,
regardless of your client devices. In addition, this router utilizes dual active rewalls (SPI and NAT) to prevent potential attacks from across the Internet.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wire and wireless signal range.

4D-Link DHP-1565 User Manual
Section 1 - Product Overview
• FasterWirelessNetworking - The DHP-1565 provides up to 300Mbps* wireless connection with other 802.11n wireless clients.
This capability allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time
audio. The performance of this 802.11n wireless router gives you the freedom of wireless networking at speeds 650% faster than
802.11g.
• Compatiblewith802.11gDevices -The DHP-1565 is still fully compatible with the IEEE 802.11g standards, so it can connect with
existing 802.11g PCI, USB, and Cardbus adapters.
• AdvancedFirewallFeatures - The Web-based user interface displays a number of advanced network management features
including:
• Content Filtering - Easily applied content ltering based on MAC Address, URL, and/or Domain Name.
• Filter Scheduling -These lters can be scheduled to be active on certain days or for a duration of hours or minutes.
• Secure Multiple/Concurrent Sessions - The DHP-1565 can pass through VPN sessions. It supports multiple and
concurrent IPSec and PPTP sessions, so users behind the DHP-1565 can securely access corporate networks.
•User-friendlySetupWizard - Through its easy-to-use Web-based user interface, the DHP-1565 lets you control what information
is accessible to those on the wireless network, whether from the Internet or from your company’s server. Congure your router to
your specic settings within minutes.
• Faster PowerlineNetworking-  Built-in PowerLine Router capabilities work seamlessly with D-Link’s PowerLine AV adapters
(must be purchased separately) that extend your network to the farthest corners of your home using the electrical wiring already
installed in your walls. Simply connect your router (DHP-1565) and plug it into a power outlet to turn every other power outlet in
your home into a possible network connection with speeds up to 500Mbps - fast enough to stream HD video and share large les.
Since it is compliant with the HomePlug AV standard, you can use it to extend an existing PowerLine network², or simply create a
new one. It turns every power outlet into a possible network connection so you can access digital media devices, game consoles,
print servers, computers and network storage devices from any room in your home.
* Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.
Features

5D-Link DHP-1565 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1AP-Router Switch Two-way switch used to Select AP or Router Mode.
2LAN Ports (1-4) Connect 10/100/1000 Ethernet devices such as computers, switches, and hubs.
3Internet Port The auto MDI/MDIX Internet port is the connection for the Ethernet cable to the cable or DSL modem.
4Reset Button Pressing the Reset button restores the router to its original factory default settings.
5USB USB 1.1/2.0 port for SharePortTM Network and WCN support.
6Power Button Use this switch to power on/power o the device.
7Power Receptor Receptor for the supplied power cord.
8Common connect
Button
Push this button to establish a secure PowerLine network with other PowerLine AV devices and initiate the WPS
process to create secure wireless networks
23456
1 7
8

6D-Link DHP-1565 User Manual
Section 1 - Product Overview
1Power LED A solid green light indicates a proper connection to the power supply. Blinking green light indicates that device common
Connect Button was pressed or power saving mode enable. This LED will light orange during a factory reset or reboot.
2Internet LED A solid green light indicates that the internet connection has successfully completed. A solid orange light indicates that the
physical link is up, but the ISP service is down.
3PowerLine LED A solid light indicates that a PowerLine connection is established.
Hardware Overview
LEDs
12
3

7D-Link DHP-1565 User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area
such as a closet, cabinet, or in the attic or garage.
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then you must
turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and then turn
the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet, Broadjump,
or Enternet 300 from your computer or you will not be able to connect to the Internet.
• When running the Setup Wizard from the D-Link CD, make sure the computer you are running the CD from is connected to the
Internet and online or the wizard will not work. If you have disconnected any hardware, re-connect your computer back to the
modem and make sure you are online.

8D-Link DHP-1565 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your
wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must
pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your
home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling
can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is
minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will
travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position
access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects
such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your
wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems),
your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from
your wireless devices as possible. The base transmits a signal even if the phone in not in use. Please refer to page 20 for detail
information.

9D-Link DHP-1565 User Manual
Section 2 - Installation
Hardware Installation - For Router Mode

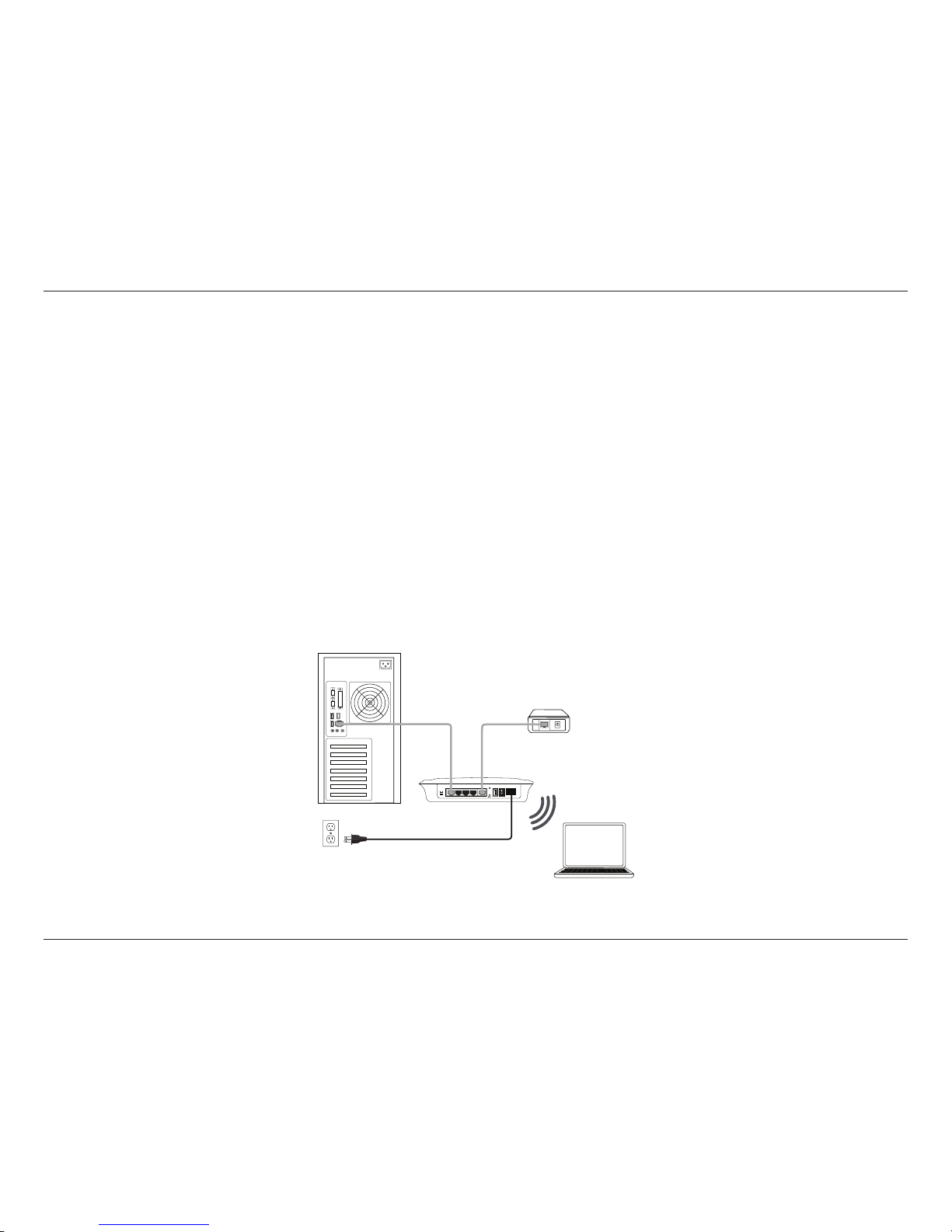

Network Diagram
Windows users can use the Setup Wizard (from the CD) to congure their router. If you do not want to use the wizard, lost your CD, or are running Mac or
Linux, you will need to use the manual setup procedure below.
Start Here
Setup Wizard
For the Wizard to work, the computer must be connected to the Internet and be online. If you have disconnected any hardware, please re-connect your
computer back into the modem and make sure you are online.
Insert the CD into your drive on a computer that is online and click Install Router to start the Setup Wizard. Follow the onscreen instructions to install
and congure your router.
Laptop
1234 LAN INTERNET
RESET
ON/OFFUSB
AR RT
AC IN
INTERNET
DHP-1565
Modem
PC

10D-Link DHP-1565 User Manual
Section 2 - Installation
If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:
1. Place the router in an open and central location. Do not plug the power cord into the router.
2. Unplug the Ethernet cable from the computer (or existing router if upgrading) that is connected to your modem.Then, plug it into
the yellow port labeled INTERNET on the back of the D-Link Wireless N PowerLine Gigabit Router. The Modem is now connected
to your Wireless N PowerLine Gigabit Router (DHP-1565).
3. Plug one end of the included blue Ethernet cable that came with your router into the blue port labeled LAN on the back of the
D-Link Wireless N PowerLine Gigabit Router. Plug the other end of this cable into the Ethernet port on your computer. Turn on the
computer. Reconnect the power cord to your cable or DSL modem and wait for 2 minutes. Let it complete its connection to your
ISP before proceeding to the next step.
4. Connect the supplied power cord into the power receptor located on the back of the Wireless N PowerLine Gigabit Router (DHP-
1565) and then plug into a wall outlet (Please do not use a power strip or a surge protector). Turn on the DHP-1565 Router by
pushing the power button located on the back of this unit.
Note: Power source is conrmed when the green LED Power Indicator on the Wireless N PowerLine Gigabit Router is illuminated.
5. Open a web browser, enter http://192.168.0.1 (or http://dlinkrouter) and then press Enter. When the login window appears, set
the user name to Admin and leave the password box blank. Click Log In to continue the Internet Connection setup wizard. This
wizard will walk you through a step-by-step process to congure Wireless N PowerLine Gigabit Router (DHP-1565) and connect
to the Internet. Please refer to page 19 for detailed information.
Note: To run the Wireless Connection Setup Wizard, click the Wireless Connection Setup Wizard button in the Setup Wireless
Settings window. This wizard will walk you through a step-by-step process to congure your wireless settings. Please refer to
page 35 for detailed information.
Connect to Cable/DSL/Satellite Modem

11D-Link DHP-1565 User Manual
Section 2 - Installation
If you are connecting the D-Link router to another router to use as a wireless access point and/or switch, you will have to do the following before
connecting the router to your network:
• Disable UPnP™
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept a DHCP address
from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router and use the power switch to power up the router. Connect one of your computers to the router (LAN port) using
an Ethernet cable. Make sure your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking
Basics section for more information. If you need to change the settings, write down your existing settings before making any changes. In most
cases, your computer should be set to receive an IP address automatically in which case you will not have to do anything to your computer.
2. Open a web browser and enter http://192.168.0.1 and press Enter. When the login window appears, set the user name to Admin and leave the
password box empty. Click Log In to continue.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server checkbox. Click Save Settings to continue.
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to save your settings. Use this
new IP address to access the conguration utility of the router in the future. Close the browser and change your computer’s IP settings back to
the original values as in Step 1.
Connect to Another Router

12D-Link DHP-1565 User Manual
Section 2 - Installation
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything into the Internet
(WAN) port of the D-Link router.
8. You may now use the other 2 LAN ports to connect other Ethernet devices and computers. To congure your wireless network, open a web
browser and enter the IP address you assigned to the router. Refer to the Conguration and Wireless Security sections for more information
on setting up your wireless network.

13D-Link DHP-1565 User Manual
Section 2 - Installation
Hardware Installation - For Access Point Mode
Install your device
Plug the power cord of the DHP-1565 into an AC wall outlet close to your Computer
as seen in Room B. Conrm the DHP-1565 is in AP mode and turn it on by pushing
the on/o switch located on the back of the unit. Wait about 30 seconds for the
DHP-1565 to boot.
Connect one end of the supplied CAT5 Ethernet cable to the Ethernet port on the
DHP-1565 and the other end to the Ethernet port on your computer.
ROOM A
TV
Internet
Game Console
ROOM B
Computer
DHP-1565 (AP Mode)
Existing Wall Wiring
DHP-1565 (Router Mode)

14D-Link DHP-1565 User Manual

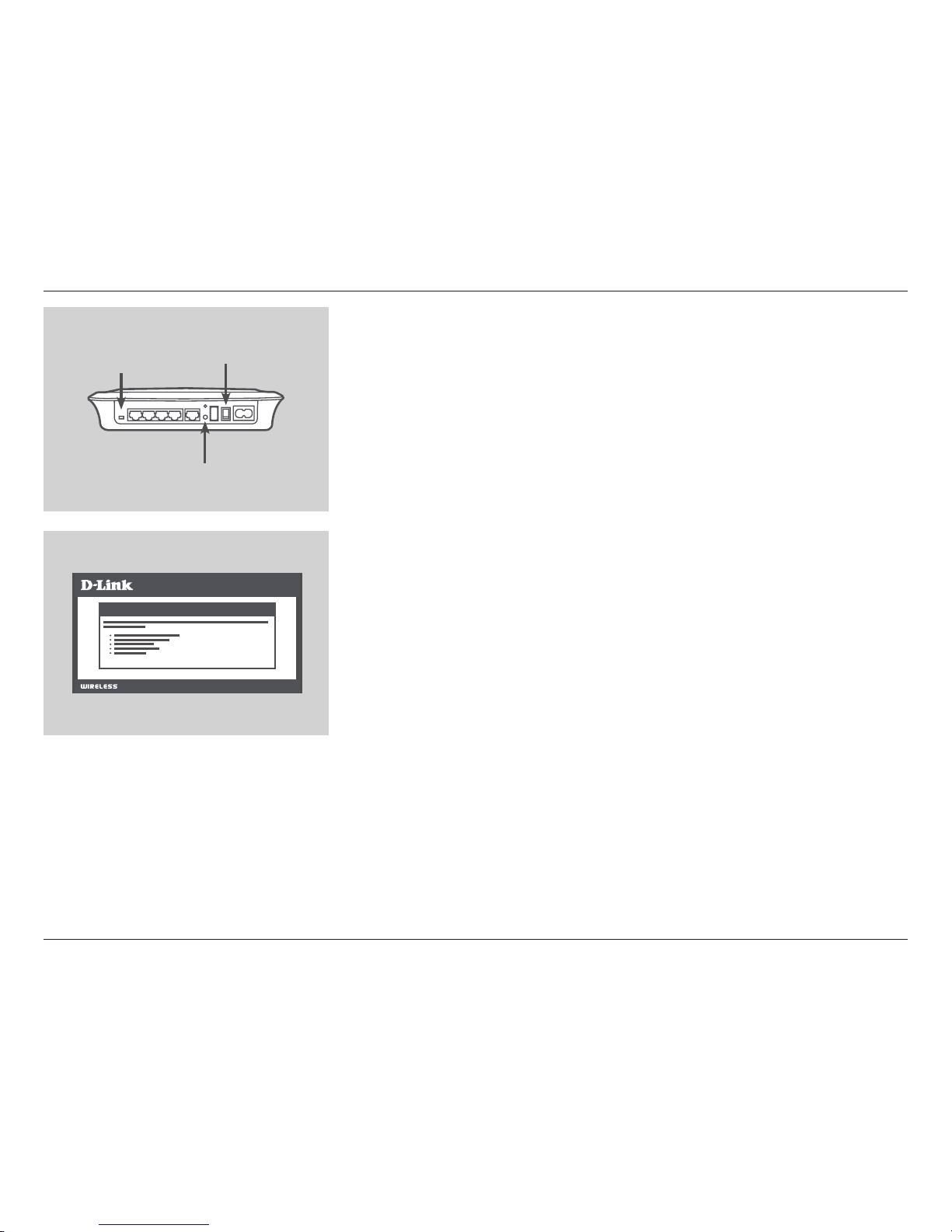

Section 2 - Installation
COMMON CONNECT
BUTTON
ON/OFF
SWITCH
AP/ROUTER
MODE SWITCH
WELCOME TO THE D-LINK SETUP WIZARD
PLC Network Security
Press the Common Connect button for one to three seconds. The PowerLine LED
should start to blink.
Plug the second PowerLine device (for example the DHP-1565 in Room A as
seen on page 13) into a power outlet. Press the Common Connect button on this
PowerLine device for one to three seconds.
Wait for both devices to reboot (all LEDs will turn o and on). When the PowerLine
LEDs on both devices are steadily lit, the two devices will be networked together
securely.
Wireless Security
Open a web browser, enter http://dlinkrouterWXYZ (WXYZ: four-digit sux of the
PLC MAC address located on the bottom of device) and then press Enter.
Follow the Setup Wizard to assist you in establishing secure wireless network.
(Please refer to“Setup Wizard”in the user manual for detailed installation information.)

15D-Link DHP-1565 User Manual
Section 1 - Product Overview
PowerLine Installation Considerations
Plan the location of your PowerLine devices:
1. Connect the PowerLine devices to electrical outlets that are not controlled by a wall switch in order to avoid accidentally turning o the power
to the device.
2. Do not connect the Wireless N PowerLine Gigabit Router to an extension cord, surge protector, or power strip. This might prevent the device
from working correctly or it may reduce the network performance.
3. Avoid using the Wireless N PowerLine Gigabit Router in an electrical outlet that is located near an appliance that uses a lot of power, such as a
washer, dryer or refrigerator. This may prevent the adapter from working correctly, or may negatively impact the network performance.
4. Verify that your PowerLine devices are electrically rated to operate with the power available in your location.
5. To help prevent against electrical shock, be sure to plug the power cables into properly grounded electrical outlets.
