D-Link DVG-G1402S - Wireless Broadband VoIP Router User manual

Version 1.0
DVG-G1402S
Wireless G VoIP Router

2 D-Link Systems, Inc.
DVG-G1402S Install GuideSystem Requirements
System Requirements
Computer with Windows® XP or 2000
Internet Explorer 6.0 or Netscape® Navigator 7.0 and above
An available Ethernet port on the network
A subscription with a VoIP service provider.
Manual and Software
on CD
Package Contents
D-Link DVG-G1402S
Wireless G VoIP Router
Ethernet Cable 12V 1.25A Power Supply
It’s best to use the same computer that is connected to your router for
configuring the DVG-G1402S Router. The DVG-G1402S acts as a DHCP
server and will assign all the necessary IP address information on your
network. See the Quick Installation Guide or the Manual on the CD-ROM
for setting each network adapter to automatically obtain an IP address.
If any of the above items are missing, please contact your reseller.
Phone Cable
Warning: Using a power
supply with a different voltage
will cause damage and void
the warranty for this product.

D-Link Systems, Inc. 3
DVG-G1402S Install Guide Hardware Overview

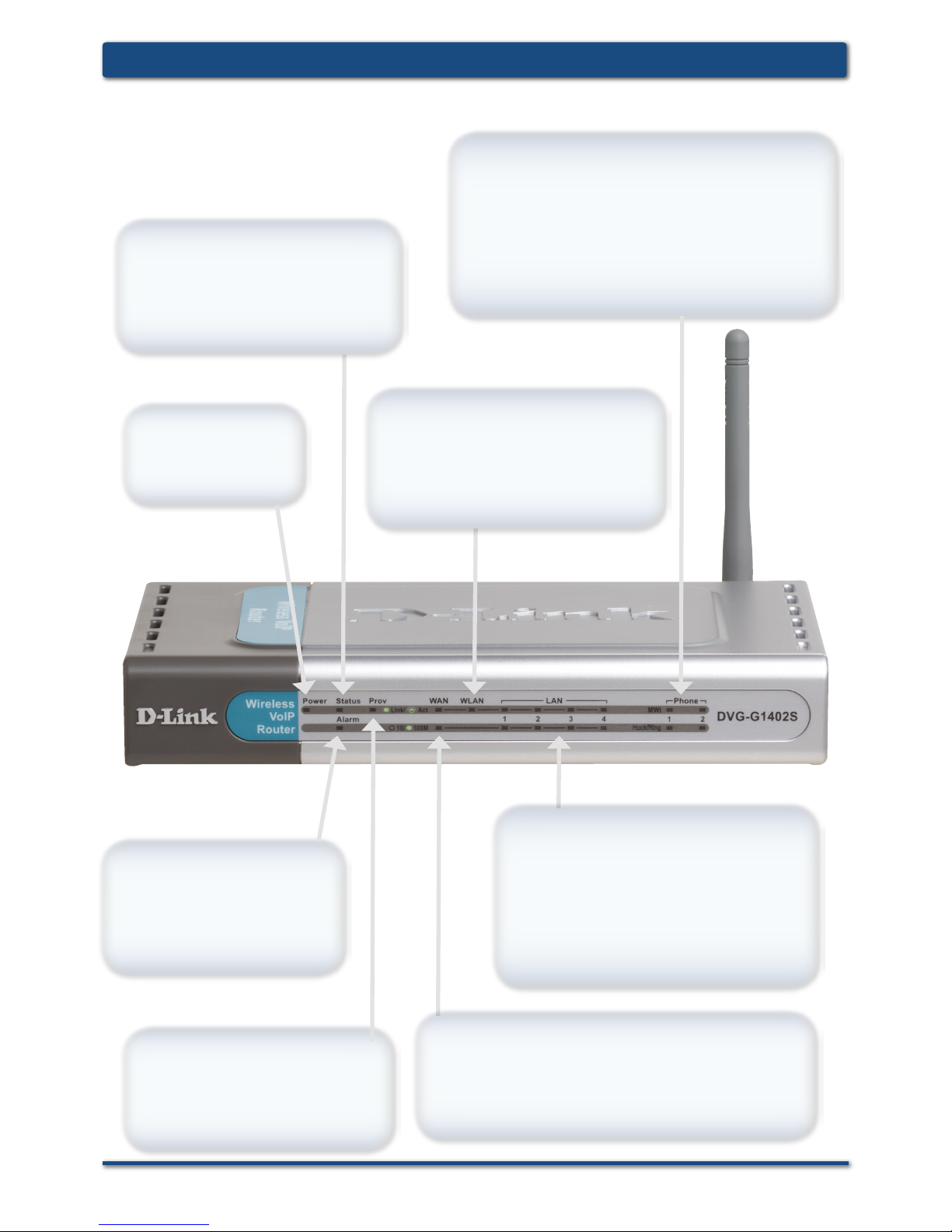

Front Panel
Alarm LED
The Alarm LED will light solid
red if the self-test or bootup
fails. The Alarm LED will flash
red slowly when the device is
booting.
Power LED
Solid indicates a
connection to a good
power source.
Phone LEDs
This LED displays the VoIP status and Hook/
Ringing activity on the phone port that is used
to connect your normal telephone(s).
MWI: Lights to indicate a voicemail is waiting.
Hook/Ring: If a phone connected to a phone
port is off the hook or in use, this LED will light
solid. When a phone is ringing, the indicator
will blink.
Status LED
The Status LED will turn on when
the router is connected to a VoIP
service provider. This light will turn
off if not connected to a service
provider.
WLAN LED
A steady light indicates a wireless
connection. A blinking light indicates
that the DVG-G1402S is receiving/
transmitting from/to the wireless
network.
Prov LED
A blinking light indicates the router
is attempting to connect with the
VoIP service provider. Once the
service connects, the LED will
turn off.
WAN LEDs
When a connection is established the 10 or 100
LED will light up solid. The LED will blink to indictate
activity. If the 10 or 100 LED does not light up when a
cable is connected, verify the cable connections and
make sure your devices are powered on.
LAN LEDs
When a connection is established the 10
or 100 LED (bottom) will light up solid on
the appropriate port. The LEDs will blink to
indictate activity. If the 10 or 100 LED does
not light up when a cable is connected,
verify the cable connections and make
sure your devices are powered on.

4 D-Link Systems, Inc.
DVG-G1402S Install GuideHardware Overview

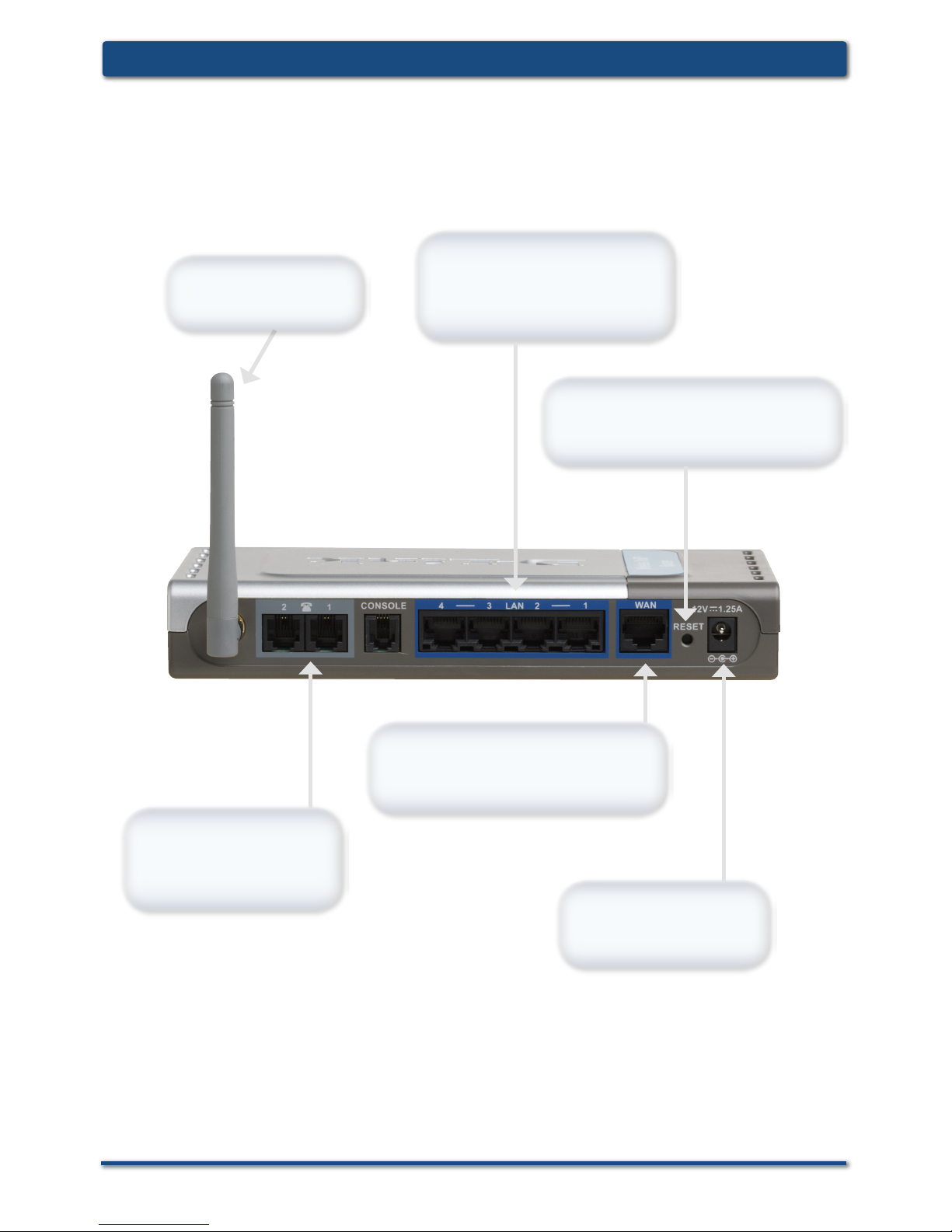

Rear Panel
Phone Ports
Connect to your phones
using standard phone
cabling (RJ-11).
LAN Ports
Connect to your Ethernet
enabled computers using
Ethernet cabling.
WAN Port
Connects to your broadband modem
using an Ethernet cable.
Reset Button
This button will restore the factory
default settings of the DVG-G1402S.
Power Receptor
Receptor for the provided
power adapter.
Antenna
Connects to a wireless
network.

D-Link Systems, Inc. 5
DVG-G1402S Install Guide Installing the Hardware

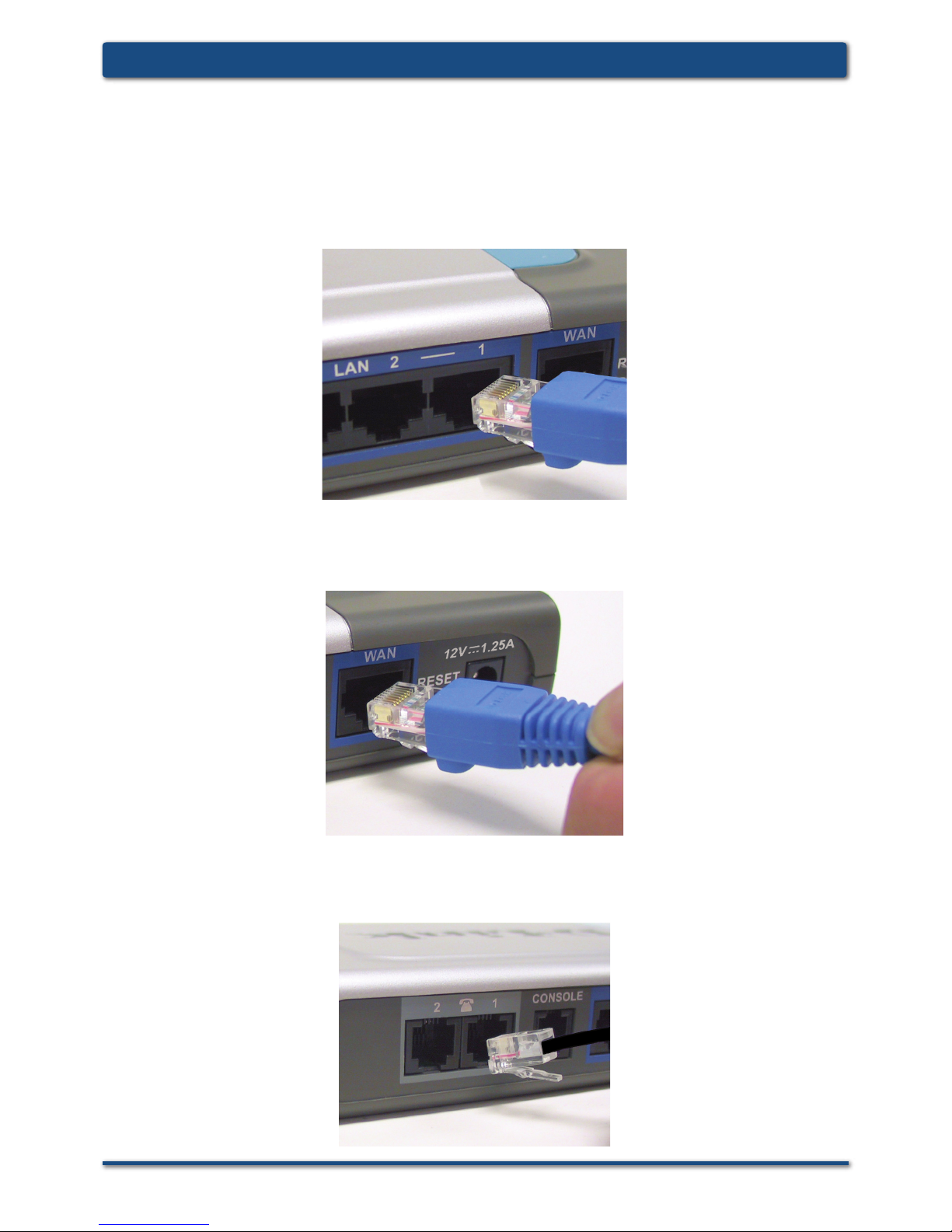

Installing the Hardware
A. Insert one end of the Ethernet cable into the Ethernet (LAN) port on the back
panel of the DVG-G1402S and the other end of the cable to an Ethernet
Adapter or available Ethernet port on your computer.
C. Insert a telephone cable into the Phone port, then connect the cable to your
telephone line.
B. Insert one end of the Ethernet cable into the WAN port on the back of the
DVG-G1402S and the other into your cable/DSL modem or the LAN port
of your router.

6 D-Link Systems, Inc.
DVG-G1402S Install GuideInstalling the Hardware

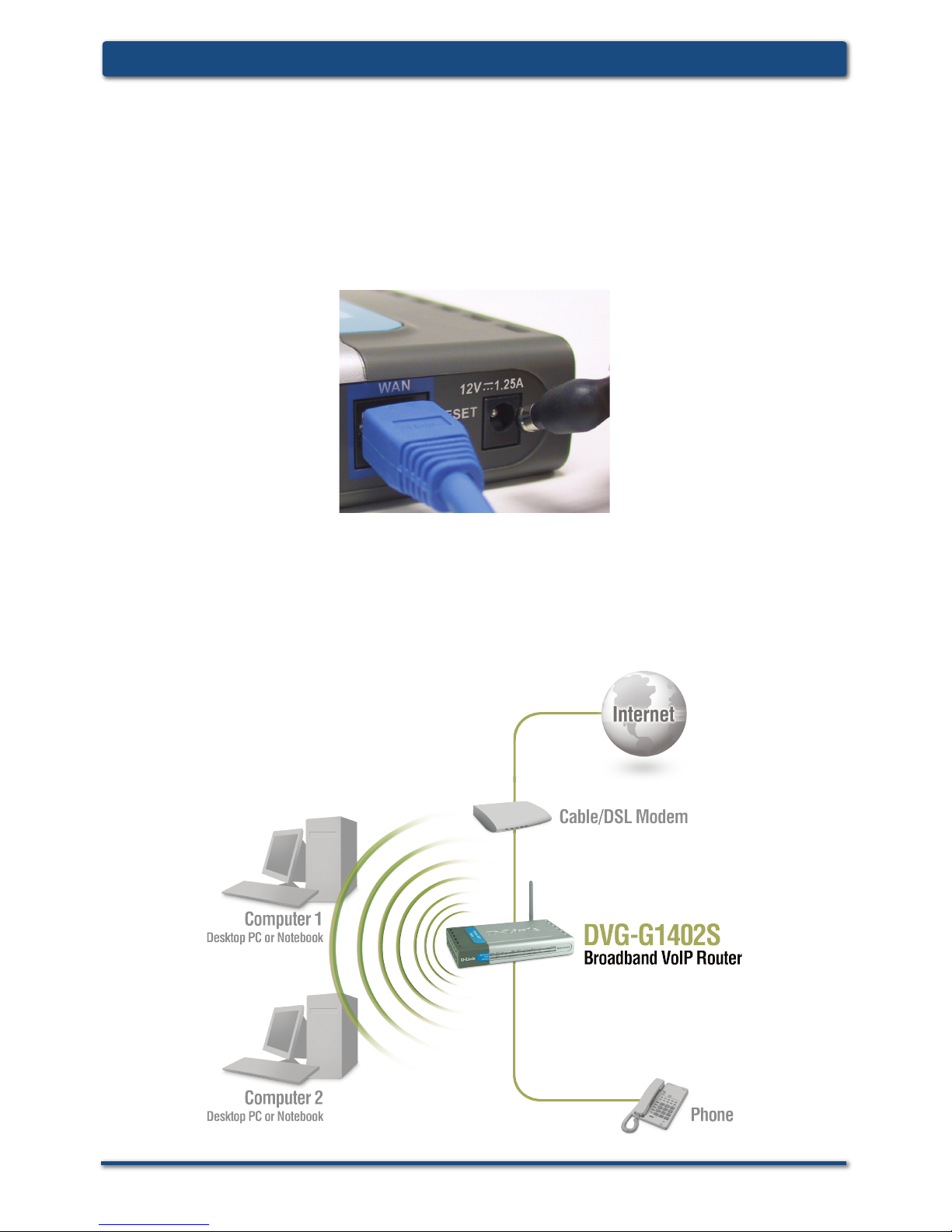

D. Connect the power adapter to the power input at the back panel of the
DVG-G1402S and then plug the other end of the power adapter to a wall
outlet or power strip. On the front of the device, the Power LED will turn ON
to indicate proper operation.
E. Check the LED display on the front of the Router to confirm that the
connections have been made.
Once you’ve completed your DVG-G1402S installation, your network may appear
similar to the diagram below.
Installing the Hardware (continued)

D-Link Systems, Inc. 7
DVG-G1402S Install Guide Configuration
Note: if you have changed the default IP address assigned to the DVG-G1402S, make
sure to enter the correct IP address.
Open a web browser and type in the IP
address of the DVG-G1402S.

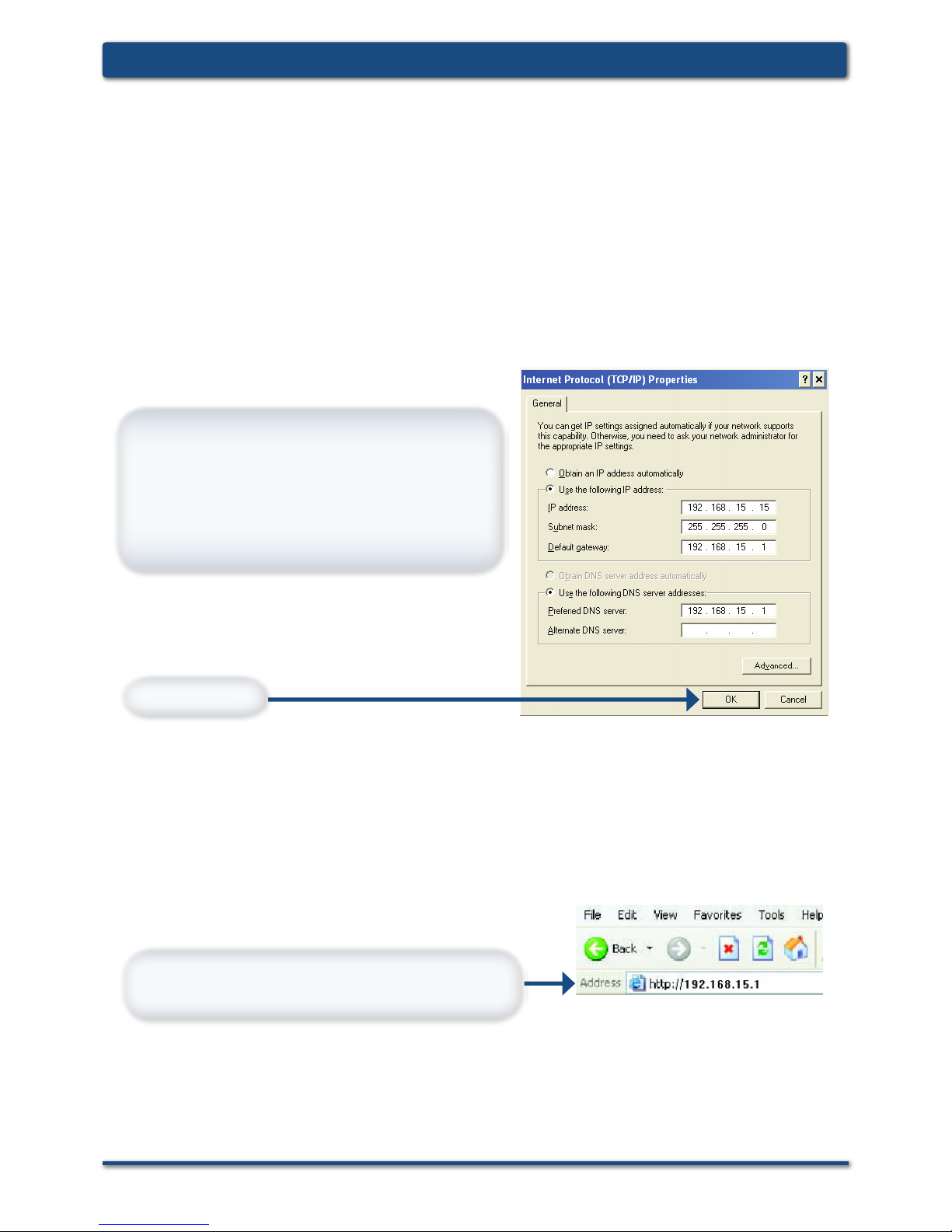

Prior to using your Web browser for web-based management, if DHCP is
not enabled on your computer, be sure to assign a static IP address to your

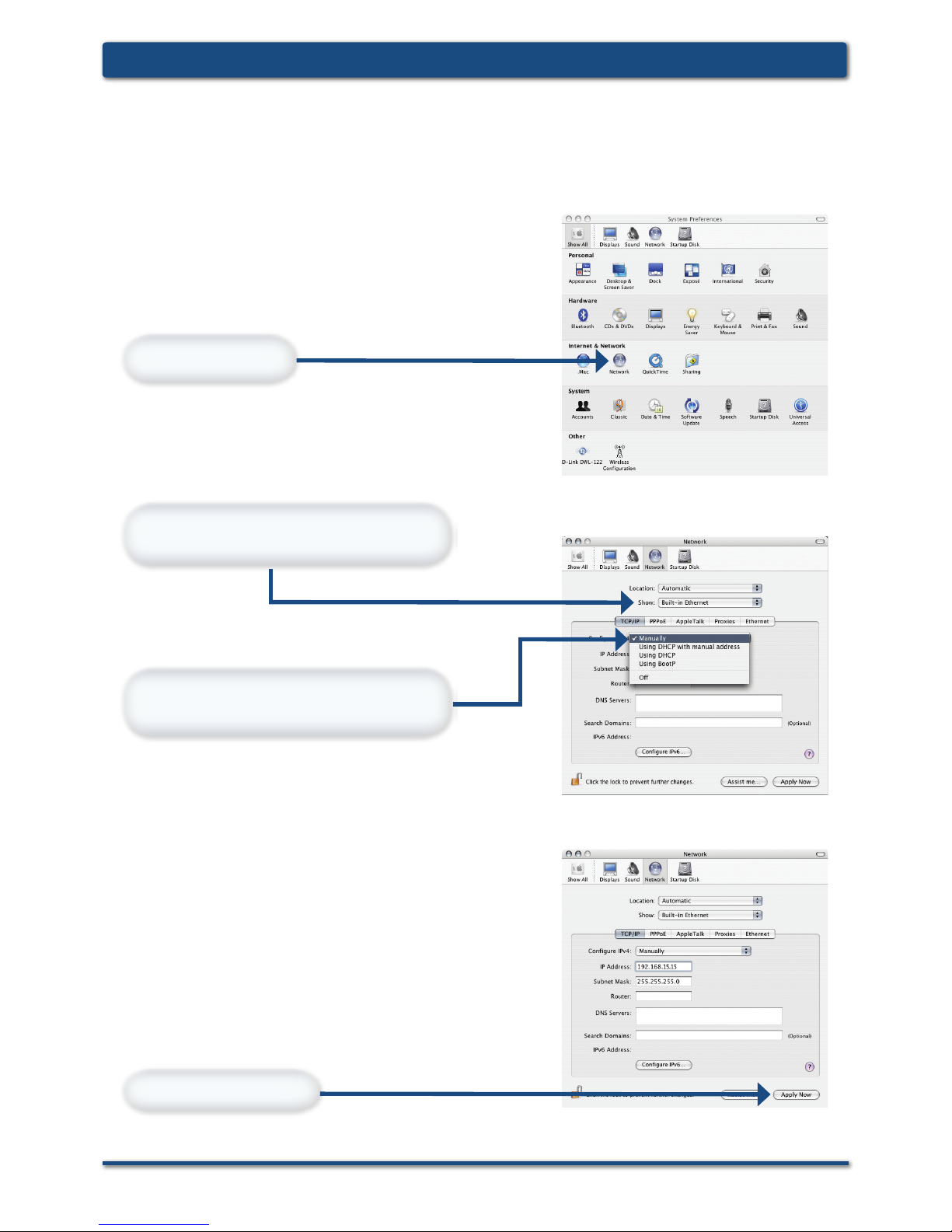

computer. For Macintosh OSX, refer to page 15.
Windows 2000/XP: Go to Start > right-click My Network Places > select
Properties > Right-click Local Area Connection > select Properties >
double-click Internet Protocol (TCP/IP).
Set your PC’s IP address to
192.168.15.15 and the subnet mask
to 255.255.255.0. The default gateway
and primary DNS server IP addresses
should be set to the LAN IP address of
the DVG-G1402S (192.168.15.1).
Click OK.
To access the web-based configuration utility, open a web browser such as
Internet Explorer and enter the IP address of the DVG-G1402S.
Configuration

8 D-Link Systems, Inc.

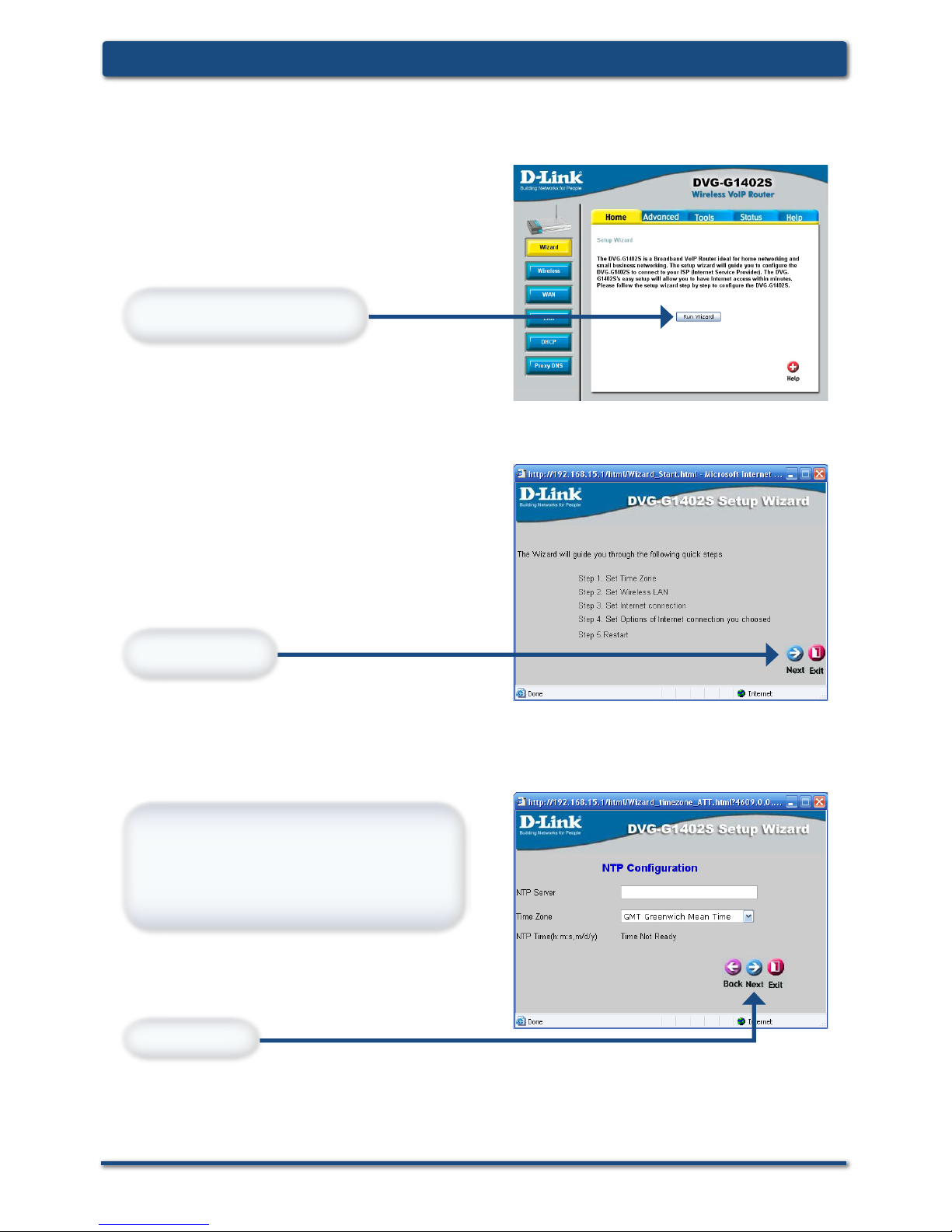

DVG-G1402S Install GuideConfiguration
Click on Run Wizard.
Click Next.
Configuration (continued)
Click Next.
Enter a NTP server or leave
blank to use the default server.
Select your time zone from the
drop-down menu.

D-Link Systems, Inc. 9
DVG-G1402S Install Guide Configuration
Configuration (continued)
Click Next.
Click Next.

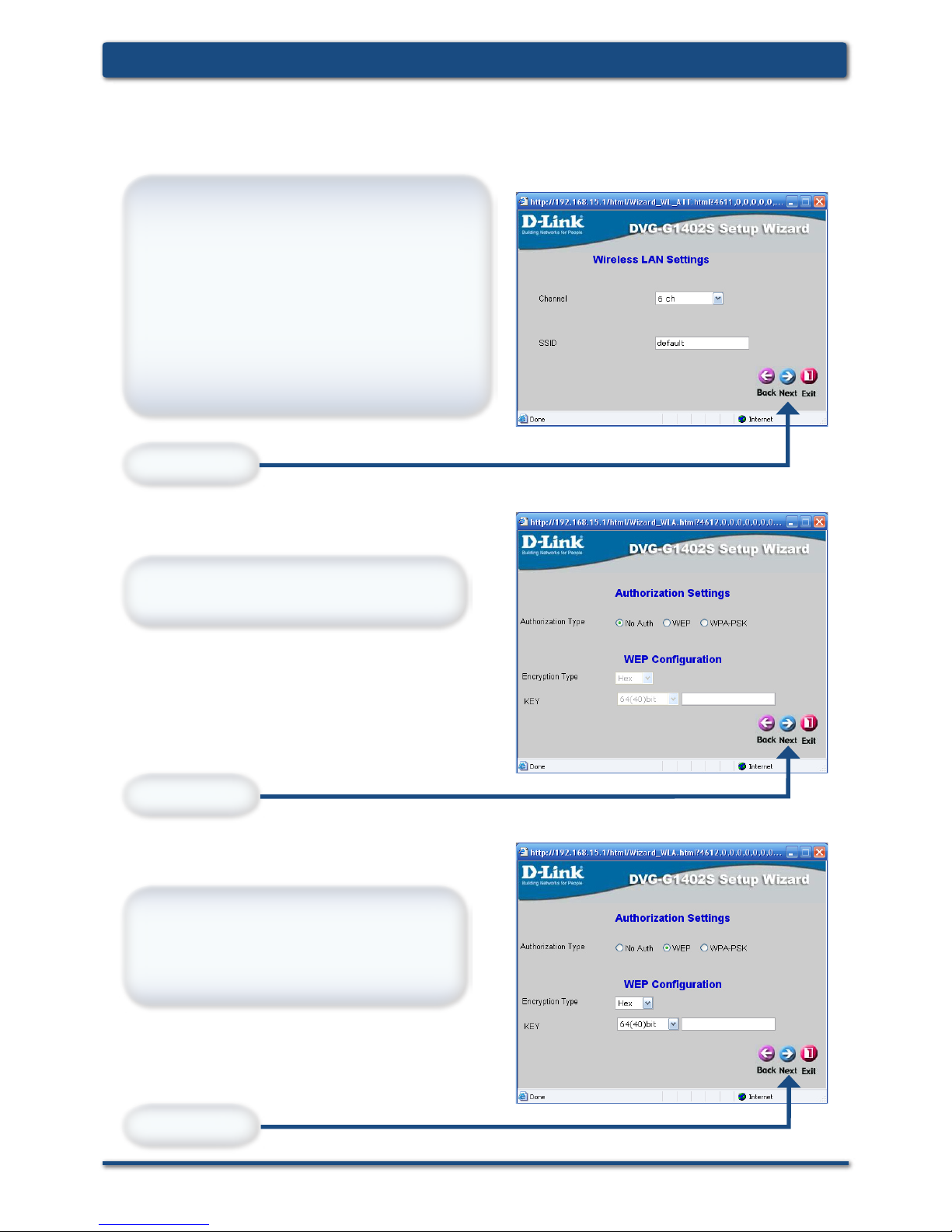

Select a channel. For best results,
use 1, 6, or 11. Enter the SSID, or
Service Set Identifier, which is the
workgroup name of your Wireless
Network. All devices must all have
the same SSID to communicate
on the wireless network. The SSID
can be up to 32 characters and is
case-sensitive.
Select the Authentication Type:
None, WEP, or WPA-PSK.
Click Next.
If you selected WEP, enter the
Encryption Type (Hex or ASCII),
the encryption level (64, 128, or
152-bit), and the WEP key.

10 D-Link Systems, Inc.
DVG-G1402S Install GuideConfiguration
Configuration (continued)
Click Next.

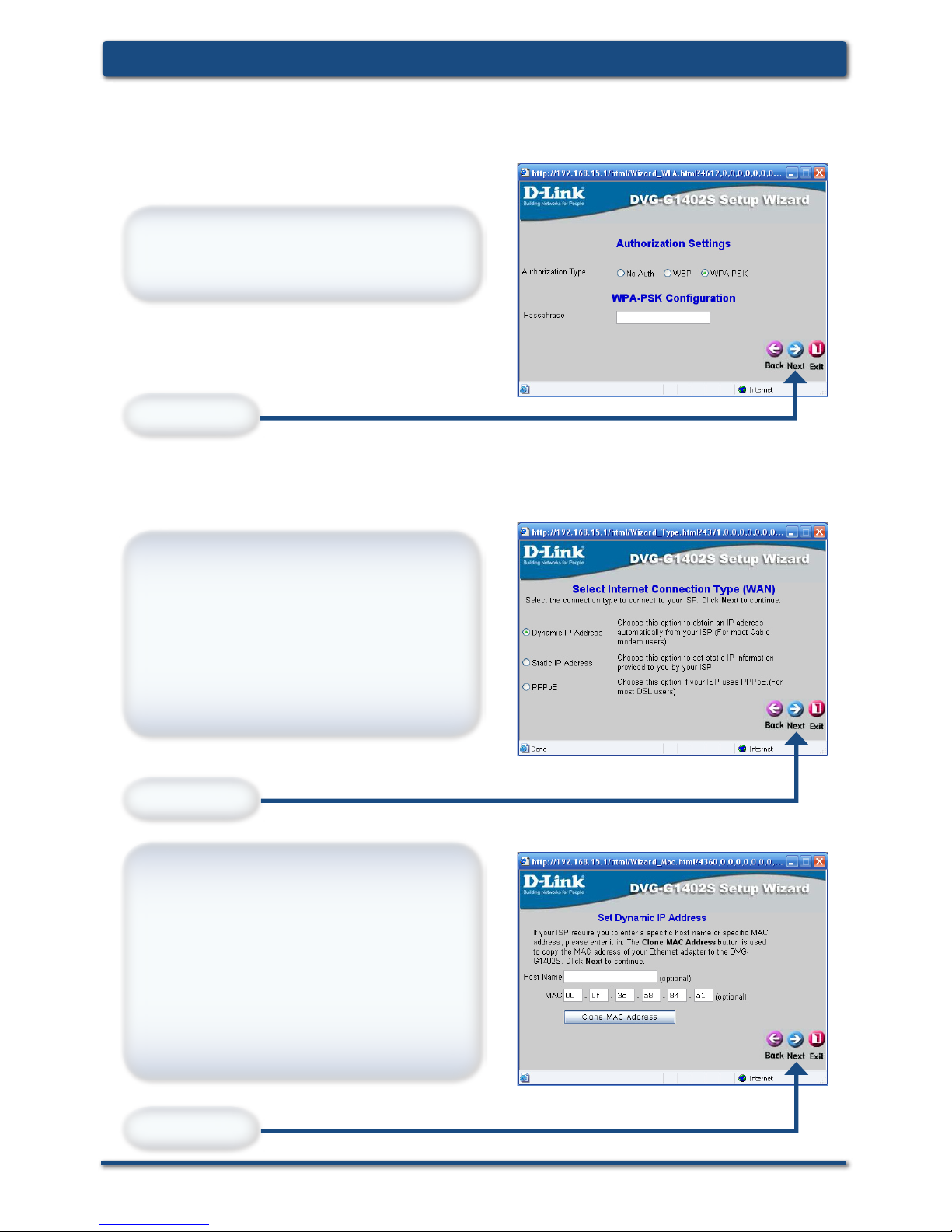

If you selected WPA-PSK, enter the
Passphrase. The passphrase must
be between 8 and 63 characters.
Select your Internet connection
type:
Dynamic - Most Cable ISPs or if
you are connecting the
DVG-G1402S behind a router.
Static - Select if your ISP supplied
you with your IP settings.
PPPoE - Most DSL ISPs
Click Next.
If you selected Dynamic, enter
a host name (optional). If you are
connecting directly to a cable
modem, enter the MAC address of
the network adapter that was last
connected to the modem. If you are
using the computer that was last
connected direclty to the modem,
click Clone MAC Address.
Click Next.
For more information on WEP and WPA security, please refer to the section on Wireless
Security on page 12.

D-Link Systems, Inc. 11
DVG-G1402S Install Guide Configuration

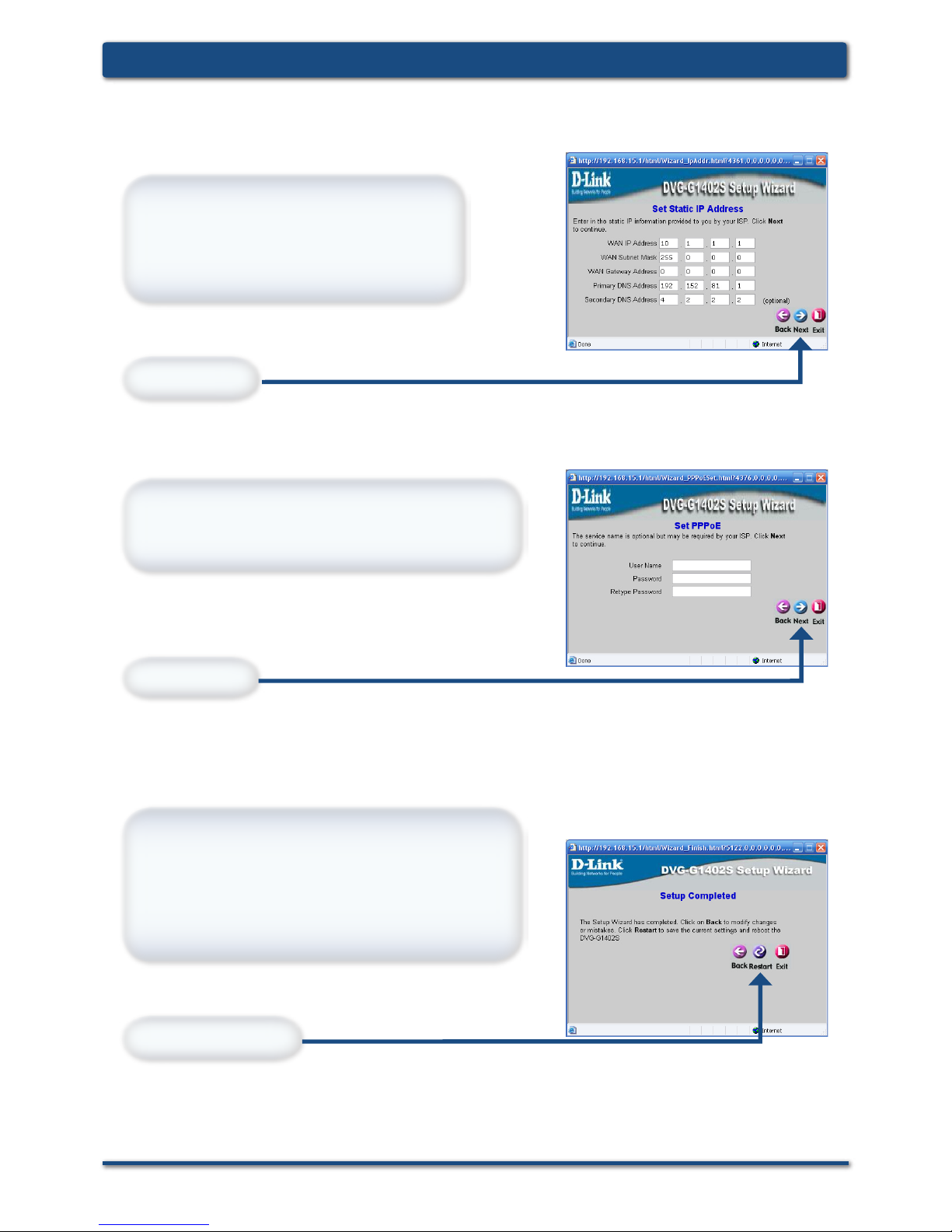

If you selected PPPoE, enter your
username and password supplied by
your ISP.
Note: You will no longer use the PPPoE software that is installed on your
computer. Make sure you disable or uninstall the software.
Click Next.
Setup is finished. Click Restart to
reboot the DVG-G1402S. Once the
adapter is finished rebooting, turn on
your modem and allow up to 2 minutes
to connect to your ISP.
Click Restart.
Hardware configuration is complete! If your VoIP service is already activated,
you can make phone calls now.
If you selected Static, enter the
IP address, subnet mask, default
gateway, and DNS server(s)
supplied by your ISP.
Click Next.
Configuration (continued)

12 D-Link Systems, Inc.
DVG-G1402S Install GuideWireless Security
WEP (Wired Equivalent Privacy) is a method of encrypting data for wireless
communication intended to provide the same level of privacy as a wired network.
To gain access to a WEP network, you must know the key. The key is a string of
characters that you create. When using WEP, you must determine the level of
encryption. The type of encryption determines the key length. 128-bit encryption
requires a longer key than 64-bit encryption. Keys are defined by entering in
a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American
Standard Code for Information Interchange – alphanumeric characters) format.
ASCII format is provided so you can enter a string that is easier to remember.
The ASCII string is converted to HEX for use over the network. Four keys can
be defined so that you can change keys easily.
Example:
64-bit hexadecimal keys are exactly 10 characters in length.
(12345678FA is a valid string of 10 characters for 64-bit encryption)
128-bit hexadecimal keys are exactly 26 characters in length.
(456FBCDF123400122225271730 is a valid string of 26 characters for
128-bit encryption)
64-bit ASCII keys are exactly 5 characters in length
(DMODE is a valid string of 5 characters for 64-bit encryption)
128-bit ASCII keys are exactly 13 characters in length
(2002HALOSWIN1 is a valid string of 13 characters for 128-bit encryption)
WPA-PSK (Wi-Fi Protected Access - Pre-Shared Key) is a Wi-Fi standard that
was designed to improve upon the security features of WEP (Wired Equivalent
Privacy).
WPA has improved data encryption through the Temporal Key Integrity Protocol
(TKIP). TKIP scrambles the keys using a hashing algorithm and, by adding an
integrity-checking feature, ensures that the keys haven’t been tampered with.
The key or passphrase is an alpha-numeric password between 8 and 63
characters long. The passphrase can include symbols (!?*&_) and spaces. Make
sure you enter this key exactly the same on your wireless clients.
Wireless Security

D-Link Systems, Inc. 13
DVG-G1402S Install Guide Wireless Installation Considerations
The D-Link DVG-G1402S lets you access your network, using a wireless
connection, from virtually anywhere within its operating range. Keep in mind,
however, that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through, may limit the range. Typical
ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:
Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that generate RF noise.
4
Keep the number of walls and ceilings between the DVG-G1402S and other
network devices to a minimum - each wall or ceiling can reduce your router’s
range from 3-90 feet (1-30 meters). Position your devices so that the number
of walls or ceilings is minimized.
1
Be aware of the direct line between network devices. A wall that is 1.5 feet
thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter)
thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
2
Building Materials make a difference. A solid metal door or aluminum studs
may have a negative effect on range. Try to position access points, wireless
routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with
insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete will
degrade your wireless signal.
3
If you are using 2.4GHz cordless phones or X-10 (wireless products
such as ceiling fans, lights, and home security systems), your wireless
connection may degrade dramatically or drop completely. Make sure your
2.4GHz phone base is as far away from your wireless devices as possible.
The base transmits a signal even if the phone in not in use.
5
Wireless Considerations

14 D-Link Systems, Inc.
DVG-G1402S Install GuideVoIP Basics
Making and Receiving Calls
Placing a call is exactly the same as with any other regular phone. Just pick up
the handset and dial the regular telephone number. It’s that simple. Receiving
calls also works the same. The phone will ring just like a regular phone. With
VoIP, just pick up the phone and start talking!
In more technical terms, your D-Link VoIP Router converts your analog signal to
digital. The digital signal is sent through your modem and across the Internet.
When someone calls you, they dial your regular telephone number. Behind the
scenes, your number looks similar to an e-mail address. This number instructs
the call to travel over the Internet to the D-Link VoIP Router, your phone rings,
and all you have to do is pick up and answer it.
How does it work?
VoIP technology converts your voice (or analog) into data (or digital signal)
allowing you to place and receive calls over your broadband connection. Simply
plug a D-Link Broadband VoIP Router in to your Cable or DSL Modem, and
plug a standard household telephone into it. You can then place and receive
calls over this phone and also have additional control functions available to you
through a Web browser.
You must subscribe to a VoIP phone service plan and have a high-speed Internet
connection. You cannot use the phone unless you have an account and are provisioned
by the provider. D-Link Systems, Inc. is not a Telephone Service Provider or VoIP Phone
Service Provider.
VoIP Basics

D-Link Systems, Inc. 15
DVG-G1402S Install Guide IP Address Configuration
Go to the Apple Menu > select System
Preferences > click Network.
Set the IP address to 192.168.15.15
and the subnet mask to 255.255.255.0.
The default gateway and primary DNS
server IP addresses should be set to
the LAN IP address of the DVG-G1402S
(192.168.15.1).
Click Network.
Select Built-in Ethernet from
the Show drop-down menu.
Select Manually from the
Configuration drop-down menu.
Click Apply Now.
IP Address Configuration - Macintosh OSX

16 D-Link Systems, Inc.
DVG-G1402S Install GuideContacting Technical Support
Technical Support
D-Link’s website contains the latest user documentation and software updates
for D-Link products.
D-Link provides free technical support for customers within the United States
and Canada for the duration of the product’s warranty period.
U.S. and Canadian customers can contact D-Link Technical Support through
our website or by phone.
United States
Telephone
[phone]
Twenty four hours a day, seven days a week.
World Wide Web
http://support.dlink.com
E-mail
suppor[email protected]
Canada
Telephone
[phone]
Monday through Friday, 7:30am to 3:00am EST.
Saturday and Sunday 9:00am to 12:00am EST
World Wide Web
http://support.dlink.ca
E-mail
suppor[email protected]
Version 1.0
Revised 09/07/2005
Copyright ©2005 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo are registered trademarks of D-Link Corporation
or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. Maximum wireless signal
rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including
volume of network traffic, building materials and construction, and network overhead lower actual data throughput rate. Product specifications,
size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the packaging. See inside
package for warranty details. Visit www.dlink.com for more details.
