D-Link DIR-806A User manual

User Manual
DIR-806A
AC750 Wi-Fi Router
January 2022

DIR-806A AC750 Wi-Fi Router
User Manual
Contents
Chapter 1. Introduction.........................................5
Contents and Audience.......................................................5
Conventions.................................................................5
Document Structure..........................................................5
Chapter 2. Overview.............................................6
General Information.........................................................6
Specifications..............................................................
Product Appearance.........................................................12
Upper Panel..............................................................12
Back Panel...............................................................13
Delivery Package...........................................................14
Chapter 3. Installation and Connection.........................15
Before You Begin...........................................................15
Connecting to PC...........................................................16
PC with Ethernet Adapter.................................................16
Obtaining IP Address Aut matically (OS Wind ws 7)........................17
Obtaining IP Address Aut matically (OS Wind ws 10).......................22
PC with Wi-Fi Adapter....................................................26
Obtaining IP Address Aut matically and C nnecting
t Wireless Netw rk (OS Wind ws 7).......................................27
Obtaining IP Address Aut matically and C nnecting
t Wireless Netw rk (OS Wind ws 10)......................................30
Connecting to Web-based Interface..........................................33
Web-based Interface Structure..............................................35
Summary Page.............................................................35
H me Page................................................................37
Menu Secti ns............................................................38
N tificati ns............................................................39
Chapter 4. Configuring via Web-based Interface.................40
Initial Configuration Wizard...............................................40
Selecting Operati n M de.................................................42
Router.................................................................42
Access Point or Repeater...............................................43
Changing LAN IPv4 Address................................................45
Wi-Fi Client.............................................................46
C nfiguring WAN C nnecti n...............................................48
Static IPv4 Connection.................................................49
Static IPv6 Connection.................................................50
PPPoE, IPv6 PPPoE, PPPoE Dual Stac ,
PPPoE + Dynamic IP (PPPoE Dual Access) Connections.....................51
PPPoE + Static IP (PPPoE Dual Access) Connection.......................52
PPTP + Dynamic IP or L2TP + Dynamic IP Connection......................53
PPTP + Static IP or L2TP + Static IP Connection........................54
C nfiguring Wireless Netw rk.............................................55
C nfiguring LAN P rts f r IPTV/V IP......................................57
Changing Web-based Interface Passw rd....................................59
Connection of Multimedia Devices...........................................61
Page 2 of 197

DIR-806A AC750 Wi-Fi Router
User Manual
Statistics.................................................................64
Netw rk Statistics.......................................................64
DHCP.....................................................................65
R uting Table............................................................66
Clients and Sessi ns.....................................................67
Multicast Gr ups.........................................................68
Connections Setup..........................................................69
WAN......................................................................69
Creating Dynamic IPv4 or Static IPv4 WAN Connection....................71
Creating Dynamic IPv6 or Static IPv6 WAN Connection....................75
Creating PPPoE WAN Connection..........................................79
Creating PPTP or L2TP WAN Connection...................................83
Creating PPPoE IPv6 or PPPoE Dual Stac WAN Connection.................88
LAN......................................................................93
IPv4...................................................................93
IPv6...................................................................98
WAN Reservati n.........................................................101
Wi-Fi.....................................................................103
Basic Settings..........................................................103
Client Management.......................................................110
WPS.....................................................................111
Using WPS Function via Web-based Interface............................113
Using WPS Function without Web-based Interface........................114
WMM.....................................................................115
Client..................................................................117
Additi nal..............................................................119
MAC Filter..............................................................123
R aming.................................................................126
Advanced..................................................................128
VLAN....................................................................129
SNMP....................................................................132
DNS.....................................................................135
DDNS....................................................................137
P rts Settings..........................................................139
Redirect................................................................142
R uting.................................................................143
TR-069 Client...........................................................145
UPnP IGD................................................................147
UDPXY...................................................................148
IGMP....................................................................150
ALG/Passthr ugh.........................................................151
IPsec...................................................................153
Firewall..................................................................159
IP Filter...............................................................159
Virtual Servers.........................................................163
DMZ.....................................................................166
MAC Filter..............................................................167
URL Filter..............................................................169
Rem te Access...........................................................170
Page 3 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Introduction
System....................................................................1 2
C nfigurati n...........................................................173
Firmware Update.........................................................175
Local Update..........................................................176
Remote Update.........................................................177
L g.....................................................................178
Ping....................................................................181
Tracer ute..............................................................183
Telnet..................................................................185
System Time.............................................................186
Yandex.DNS................................................................188
Settings................................................................188
Devices and Rules.......................................................190
Chapter 5. Operation Guidelines...............................192
Safety Rules and Conditions...............................................192
Wireless Installation Considerations......................................193
Chapter 6. Abbreviations and Acronyms.........................194
Page 4 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Introduction
CHAP ER 1. IN RODUC ION
Contents and Audience
This manual describes the router DIR-806A and explains how to configure and operate it.
This manual is intended for users familiar with basic networ ing concepts, who create an in-home
local area networ , and system administrators, who install and configure networ s in offices.
Conventions
Example Description
text The body text of the manual.
Before You Begin A reference to a chapter or section of this manual.
“Quick Installation
Guide” A reference to a document.
Change A name of a menu, menu item, control (field, chec box, drop-down
list, button, etc.).
192.168.0.1 Data that you should enter in the specified field.
!Information An important note.
Document Structure
Chapter 1 describes the purpose and structure of the document.
Chapter 2 gives an overview of the router's hardware and software features, describes its
appearance and the pac age contents.
Chapter 3 explains how to install the router DIR-806A and configure a PC in order to access its
web-based interface.
Chapter 4 describes all pages of the web-based interface in detail.
Chapter 5 includes safety instructions and tips for networ ing.
Chapter introduces abbreviations and acronyms most commonly used in User Manuals for
D-Lin customer premises equipment.
Page 5 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Overview
CHAP ER 2. OVERVIEW
General Information
The DIR-806A device is a wireless dual band router with a built-in 4-port switch. It provides a fast
and simple way to create a wireless and wired networ at home or in an office.
You are able to connect the wireless router DIR-806A to a cable or DSL modem or to a private
Ethernet line and use a high-speed Internet connection to successfully fulfill a wide range of
professional tas s. The built-in 4-port switch enables you to connect Ethernet-enabled computers,
game consoles, and other devices to your networ .
Using the DIR-806A device, you are able to quic ly create a high-speed wireless networ at home
or in your office, which lets computers and mobile devices access the Internet virtually anywhere
(within the operational range of your wireless networ ). Simultaneous activity of 2.4GHz band and
5GHz band allows performing a wide range of tas s. The router can operate as a base station for
connecting wireless devices of the standards 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac (at
the wireless connection rate up to 733Mbps1).
The router supports multiple functions for the wireless interface: several security standards (WEP,
WPA/WPA2), MAC address filtering, WPS, WMM.
Smart adjustment of Wi-Fi clients is useful for networ s based on several D-Lin access points or
routers – when the smart adjustment function is configured on each of them, a client always
connects to the access point (router) with the highest signal level.
Support of guest Wi-Fi networ allows you to create a separate wireless networ with individual
security settings. Devices connected to the guest networ will be able to access the Internet, but will
be isolated from the devices and resources of the router's LAN.
The wireless router DIR-806A includes a built-in firewall. The advanced security functions
minimize threats of hac er attac s, prevent unwanted intrusions to your networ , and bloc access
to unwanted websites for users of your LAN.
In addition, the router supports IPsec and allows to create secure VPN tunnels.
Built-in Yandex.DNS service protects against malicious and fraudulent web sites and helps to bloc
access to adult content on children's devices.
You can configure the settings of the wireless router DIR-806A via the user-friendly web-based
interface (the interface is available in several languages).
The configuration wizard allows you to quic ly switch DIR-806A to one of the following modes:
router (for connection to a wired or wireless ISP), access point, repeater, or client, and then
configure all needed setting for operation in the selected mode in several simple steps.
Also DIR-806A supports configuration and management via mobile application for Android and
iPhone smartphones.
You can simply update the firmware: the router itself finds approved firmware on D-Lin update
server and notifies when ready to install it.
1 Up to 300Mbps for 2.4GHz and up to 433Mbps for 5GHz.
Page 6 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Overview
Specifications*
Hardware
Processor ·MT7620A (5 0MHz)
RAM ·64MB, DDR2
Flash ·MB, SPI
Interfaces ·10/100BASE-TX WAN port
·4 10/100BASE-TX LAN ports
LEDs ·Power
·2.4G WLAN
·5G WLAN
·Internet
·WPS
Buttons ·ON/OFF button to power on/power off
·WPS/RESET button to restore factory default settings and set up wireless
connection
Antenna ·Three external non-detachable antennas (5dBi gain)
MIMO ·2 x 2 (for 2.4GHz)
Power connector ·Power input connector (DC)
Software
WAN connection types ·PPPoE
·IPv6 PPPoE
·PPPoE Dual Stack
·Static IPv4 / Dynamic IPv4
·Static IPv6 / Dynamic IPv6
·PPPoE + Static IP (PPPoE Dual Access)
·PPPoE + Dynamic IP (PPPoE Dual Access)
·PPTP/L2TP + Static IP
·PPTP/L2TP + Dynamic IP
* The device features are subject to change without notice. For the latest versions of the firmware and relevant
documentation, visit www.dlin .ru.
Page 7 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Overview
Software
Network functions ·Support of IEEE 02.1X for Internet connection
·DHCP server/relay
·Advanced configuration of built-in DHCP server
·Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation
·Automatic obtainment of LAN IP address (for access point/repeater/client
modes)
·DNS relay
·Dynamic DNS
·Static IPv4/IPv6 routing
·IGMP Proxy
·RIP
·Support of UPnP IGD
·Support of VLAN
·WAN ping respond
·Support of SIP ALG
·Support of RTSP
·WAN failover
·Autonegotiation of speed, duplex mode, and flow control / Manual speed and
duplex mode setup for each Ethernet port
·Built-in UDPXY application
Firewall functions ·Network Address Translation (NAT)
·Stateful Packet Inspection (SPI)
·IPv4/IPv6 filter
·MAC filter
·URL filter
·DMZ
·Virtual servers
·Built-in Yandex.DNS web content filtering service
VPN ·IPsec/PPTP/L2TP/PPPoE pass-through
·PPTP/L2TP tunnels
·IPsec tunnels
IKEv1 support
DES encryption
NAT Traversal
Support of DPD (Keep-alive for VPN tunnels)
Management and monitoring ·Local and remote access to settings through TELNET/WEB (HTTP/HTTPS)
·Multilingual web-based interface for configuration and management
·Support of D-Link Assistant application for Android and iPhone smartphones
·Notification on connection problems and auto redirect to settings
·Firmware update via web-based interface
·Automatic notification on new firmware version
·Saving/restoring configuration to/from file
·Support of logging to remote host
·Automatic synchronization of system time with NTP server and manual
time/date setup
·Ping utility
·Traceroute utility
·TR-069 client
·SNMP agent
·Automatic reboot on schedule
Page 8 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Overview
Wireless Module Parameters
Standards ·IEEE 02.11a/n/ac
·IEEE 02.11b/g/n
Frequency range
The frequency range depends upon the
radio frequency regulations applied in your
country
·2400 ~ 24 3.5MHz
·5150 ~ 5350MHz
·5650 ~ 5 50MHz
Wireless connection security ·WEP
·WPA/WPA2 (Personal/Enterprise)
·МАС filter
·WPS (PBC/PIN)
Advanced functions ·Support of client mode
·WMM (Wi-Fi QoS)
·Information on connected Wi-Fi clients
·Advanced settings
·Smart adjustment of Wi-Fi clients
·Guest Wi-Fi / support of MBSSID
·Periodic scan of channels, automatic switch to least loaded channel
·Autonegotiation of channel bandwidth in accordance with environment
conditions (20/40 Coexistence)
Wireless connection rate ·IEEE 02.11a: 6, 9, 12, 1 , 24, 36, 4 , and 54Mbps
·IEEE 02.11b: 1, 2, 5.5, and 11Mbps
·IEEE 02.11g: 6, 9, 12, 1 , 24, 36, 4 , and 54Mbps
·IEEE 02.11n (2.4GHz/5GHz): from 6.5 to 300Mbps (from MCS0 to MCS15)
·IEEE 02.11ac (5GHz): from 6.5 to 433Mbps (from MCS0 to MCS9)
ransmitter output power
The maximum value of the transmitter
output power depends upon the radio
frequency regulations applied in your
country
·02.11a (typical at room temperature 25 °C)
15dBm at 6, 9, 12, 1 , 24, 36, 4 , 54Mbps
·02.11b (typical at room temperature 25 °C)
15dBm at 1, 2, 5.5, 11Mbps
·02.11g (typical at room temperature 25 °C)
15dBm at 6, 9, 12, 1 , 24, 36, 4 , 54Mbps
·02.11n (typical at room temperature 25 °C)
2.4GHz, HT20/HT40
15dBm at MCS0~15
5GHz, HT20/HT40
15dBm at MCS0~15
·02.11ac (typical at room temperature 25 °C)
VHT20
15dBm at MCS0~7
14.5dBm at MCS
VHT40
15dBm at MCS0~7
14.5dBm at MCS ~9
VHT 0
15dBm at MCS0~7
14.5dBm at MCS ~9
Page 9 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Overview
Wireless Module Parameters
Receiver sensitivity ·02.11a (typical at PER < 10% (1000-byte PDUs) at room temperature 25 °C)
- 2dBm at 6Mbps
- 1dBm at 9Mbps
-79dBm at 12Mbps
-77dBm at 1 Mbps
-74dBm at 24Mbps
-70dBm at 36Mbps
-66dBm at 4 Mbps
-65dBm at 54Mbps
·02.11b (typical at PER = % (1000-byte PDUs) at room temperature 25 °C)
-79dBm at 1, 2, 5.5, 11Mbps
·02.11g (typical at PER = 10% (1000-byte PDUs) at room temperature 25 °C)
- 2dBm at 6Mbps
- 1dBm at 9Mbps
-79dBm at 12Mbps
-77dBm at 1 Mbps
-74dBm at 24Mbps
-70dBm at 36Mbps
-66dBm at 4 Mbps
-65dBm at 54Mbps
·02.11n (typical at PER = 10% (1000-byte PDUs))
HT20
- 2dBm at MCS0
-79dBm at MCS1
-77dBm at MCS2
-74dBm at MCS3
-70dBm at MCS4
-66dBm at MCS5
-65dBm at MCS6
-64dBm at MCS7
HT40
-79dBm at MCS0
-76dBm at MCS1
-74dBm at MCS2
-71dBm at MCS3
-67dBm at MCS4
-63dBm at MCS5
-62dBm at MCS6
-61dBm at MCS7
·02.11ac (typical at PER = 10% (1000-byte PDUs))
VHT20
- 2dBm at MCS0
-79dBm at MCS1
-77dBm at MCS2
-74dBm at MCS3
-70dBm at MCS4
-66dBm at MCS5
-65dBm at MCS6
-64dBm at MCS7
-59dBm at MCS
VHT40
-79dBm at MCS0
-76dBm at MCS1
-74dBm at MCS2
-71dBm at MCS3
-67dBm at MCS4
-63dBm at MCS5
-62dBm at MCS6
-61dBm at MCS7
-56dBm at MCS
-54dBm at MCS9
Page 10 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Overview
Wireless Module Parameters
VHT 0
-76dBm at MCS0
-73dBm at MCS1
-71dBm at MCS2
-6 dBm at MCS3
-64dBm at MCS4
-60dBm at MCS5
-59dBm at MCS6
-5 dBm at MCS7
-53dBm at MCS
-51dBm at MCS9
Modulation schemes ·02.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM
·02.11b: DQPSK, DBPSK, DSSS, CCK
·02.11g: BPSK, QPSK, 16QAM, 64QAM with OFDM
·02.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
·02.11ac: BPSK, QPSK, 16QAM, 64QAM, up to 256QAM with OFDM
Physical Parameters
Dimensions (L x W x H) ·192 x 10 x 30 mm (7.56 x 4.25 x 1.1 in)
Weight ·240 g (0.53 lb)
Operating Environment
Power ·Output: 12V DC, 0.5A
emperature ·Operating: from 0 to 40 °C
·Storage: from -20 to 65 °C
Humidity ·Operating: from 10% to 90% (non-condensing)
·Storage: from 5% to 95% (non-condensing)
Page 11 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Overview
Product Appearance
Upper Panel
Figure 1. Upper panel view.
LED Mode Description
Power
Solid green The router is powered on.
No light The router is powered off.
2.4G WLAN
5G WLAN
Solid green The router's WLAN of the relevant band is on.
Blin ing green Data transfer through the Wi-Fi networ of the relevant
band.
No light The router's WLAN of the relevant band is off.
Internet
Solid green The WAN cable is connected to the port.
Blin ing green Data transfer through the WAN port.
No light The WAN cable is not connected.
WPS
Blin ing green Attempting to add a wireless device via the WPS
function.
No light The WPS function is not in use.
Page 12 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Overview
Back Panel
Figure 2. Bac panel view.
Port Description
WPS/RESE
A button to set up a wireless connection (the WPS function) and to
restore the factory default settings.
To use the WPS function: with the device turned on, push the button
and release. The WPS LED should start blin ing.
To restore the factory defaults: with the device turned on, push the
button, hold it for 10 seconds, and then release the button.
ON/OFF A button to turn the router on/off.
12V DC IN Power connector.
IN ERNE
A port to connect to a cable or DSL modem or to a private Ethernet
line (it is recommended to use the cable included in the delivery
pac age).
LAN 1-4 4 Ethernet ports to connect computers or networ devices.
The device is also equipped with three external non-detachable Wi-Fi antennas.
Page 13 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Overview
Delivery Package
The following should be included:
•Router DIR-806A
•Power adapter DC 12V/0.5A
•Ethernet cable
•“Quick Installation Guide” (brochure).
The “User Manual” and “Quick Installation Guide” documents are available on D-Lin website
(see www.dlin .ru).
!Using a power supply with a different voltage rating than the one included will cause
damage and void the warranty for this product.
Page 14 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Installation and Connection
CHAP ER 3. INS ALLA ION AND CONNEC ION
Before You Begin
Please, read this manual prior to installing the device. Ma e sure that you have all the necessary
information and equipment.
Computer or Mobile Device
Configuration of the wireless dual band router with a built-in 4-port switch DIR-806A (hereinafter
referred to as “the router”) is performed via the built-in web-based interface. The web-based
interface is available from any operating system that supports a web browser.
Also you can use D-Lin Assistant application for Android or iPhone mobile devices (smartphones
or tablets).
PC Web Browser
The following web browsers are recommended:
•Apple Safari 8 and later
•Google Chrome 48 and later
•Microsoft Internet Explorer 10 and later
•Microsoft Edge 20.10240 and later
•Mozilla Firefox 44 and later
•Opera 35 and later.
For successful operation, JavaScript should be enabled on the web browser. Ma e sure that
JavaScript has not been disabled by other software (such as virus protection or web user security
pac ages) running on your computer.
Wired or Wireless NIC (Ethernet or Wi-Fi dapter)
Any computer that uses the router should be equipped with an Ethernet or Wi-Fi adapter (NIC). If
your computer is not equipped with such a device, install an Ethernet or Wi-Fi adapter prior to using
the router.
Wireless Connection
Wireless wor stations from your networ should be equipped with a wireless 802.11a, b, g, n, or ac
NIC (Wi-Fi adapter). In addition, you should specify the values of SSID, channel number and
security settings defined in the web-based interface of the router for all these wireless wor stations.
Page 15 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Installation and Connection
Connecting to PC
PC with Ethernet Adapter
1. Connect an Ethernet cable between any of LAN ports located on the bac panel of the router
and the Ethernet port of your PC.
2. Connect the power cord to the power connector port on the bac panel of the router, then
plug the power adapter into an electrical outlet or power strip.
3. Turn on the router by pressing the ON/OFF button on its bac panel.

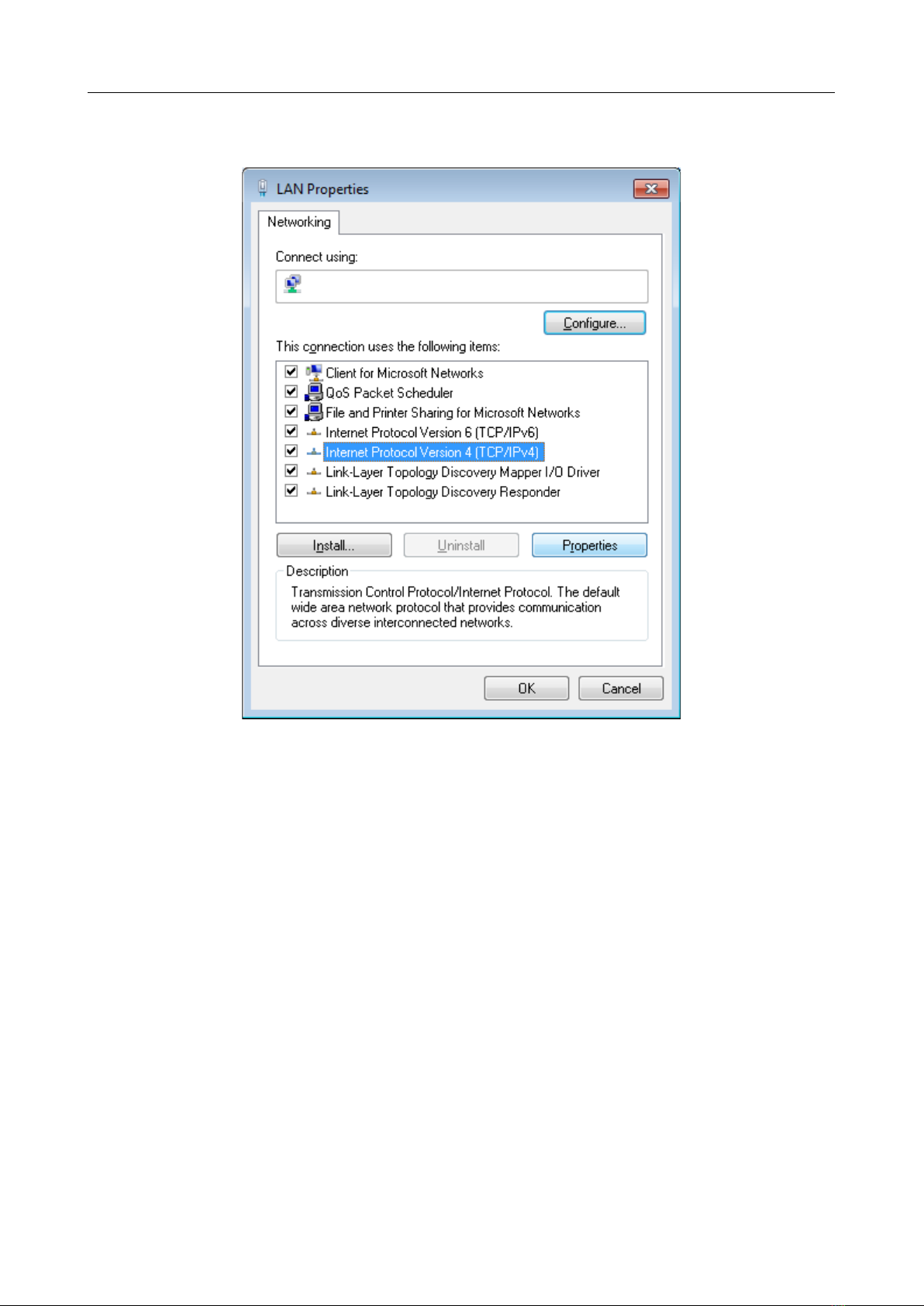

Then ma e sure that your PC is configured to obtain an IP address automatically (as DHCP client).
Page 16 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Installation and Connection
Obtaining IP Address Automatically (OS indows 7)
1. Clic the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the category
view (the Category value is selected from the View by drop-down list in the top right
corner of the window), choose the View network status and tasks line under the
Network and Internet section.)

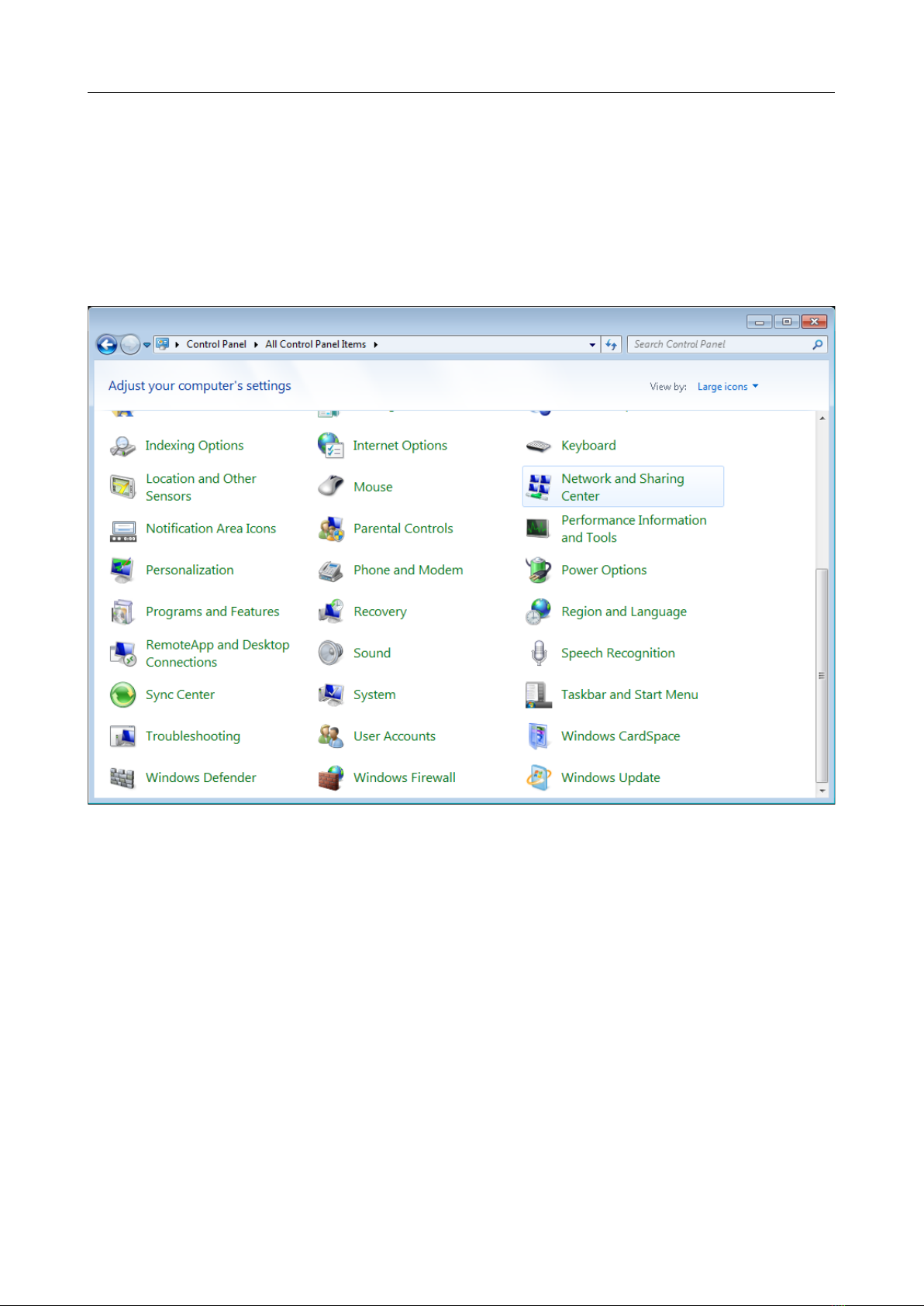

Figure 3. The Control Panel window.
Page 17 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Installation and Connection
3. In the menu located on the left part of the window, select the Change adapter settings
line.

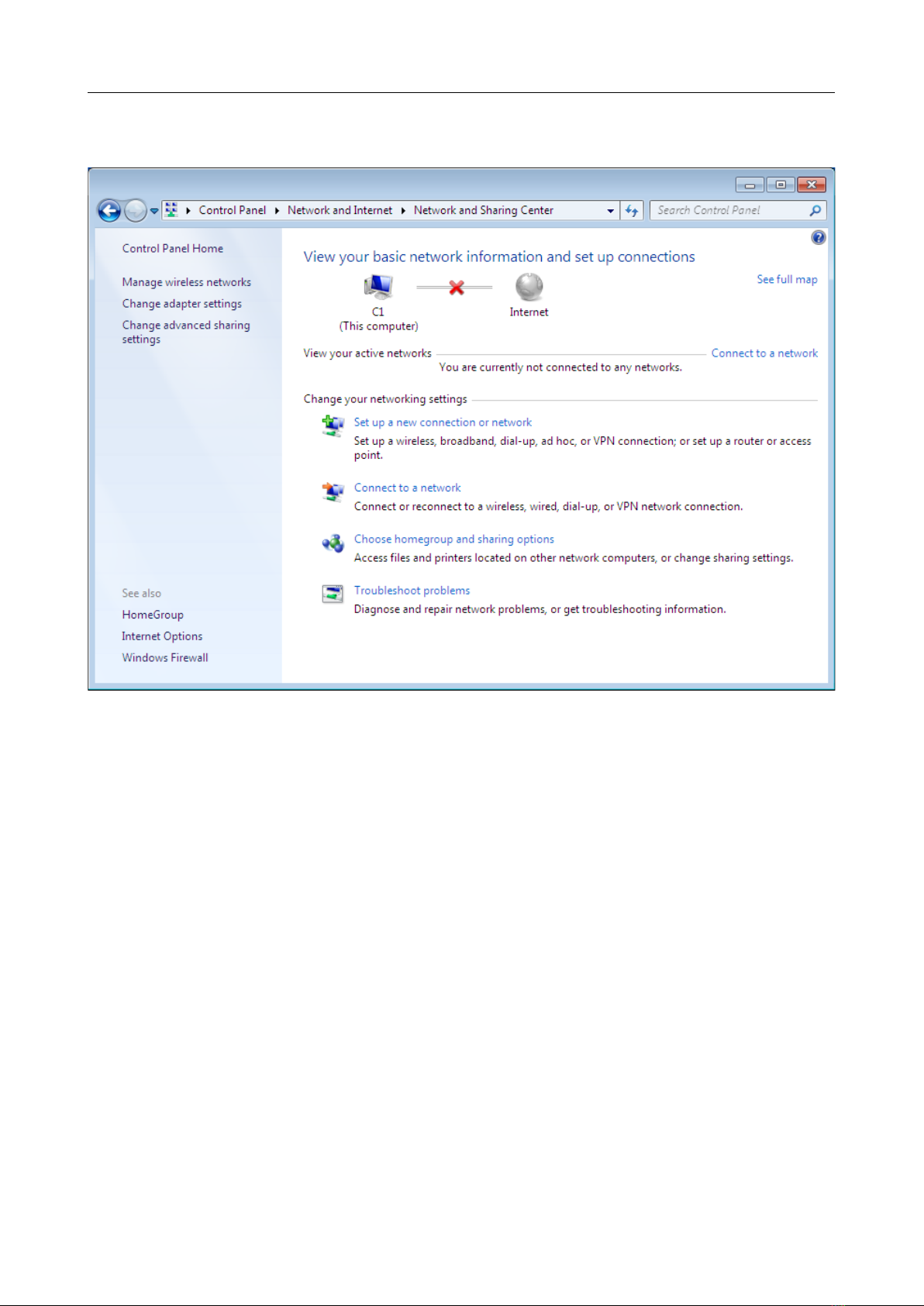

Figure 4. The Net ork and Sharing Center window.
Page 18 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Installation and Connection
4. In the opened window, right-clic the relevant Local Area Connection icon and select
the Properties line in the menu displayed.

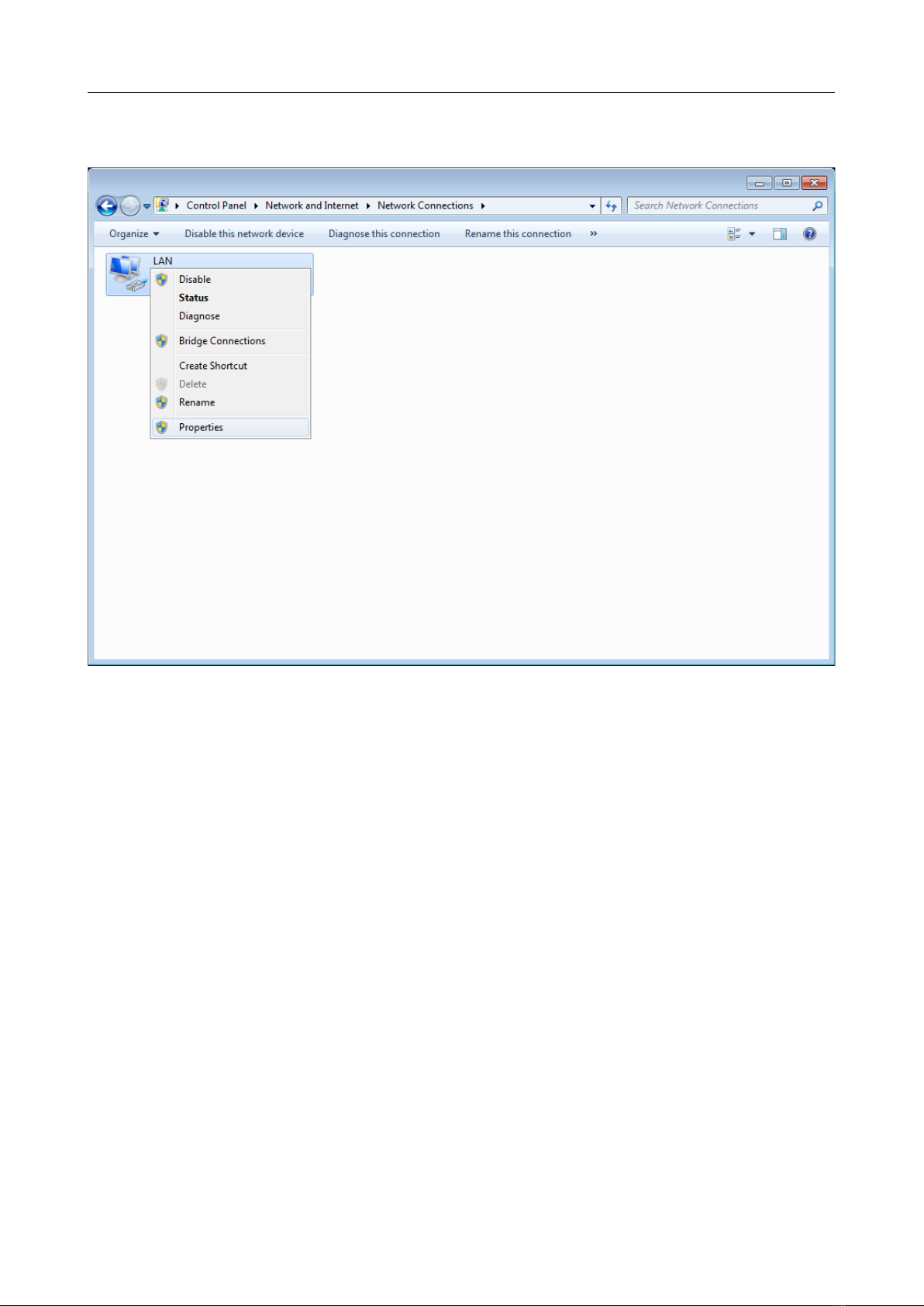

Figure 5. The Net ork Connections window.
Page 19 of 197

DIR-806A AC750 Wi-Fi Router
User Manual Installation and Connection
5. In the Local Area Connection Properties window, on the Networking tab, select the
Internet Protocol Version 4 ( CP/IPv4) line. Clic the Properties button.
Figure 6. The Local Area Connection Properties window.
Page 20 of 197
