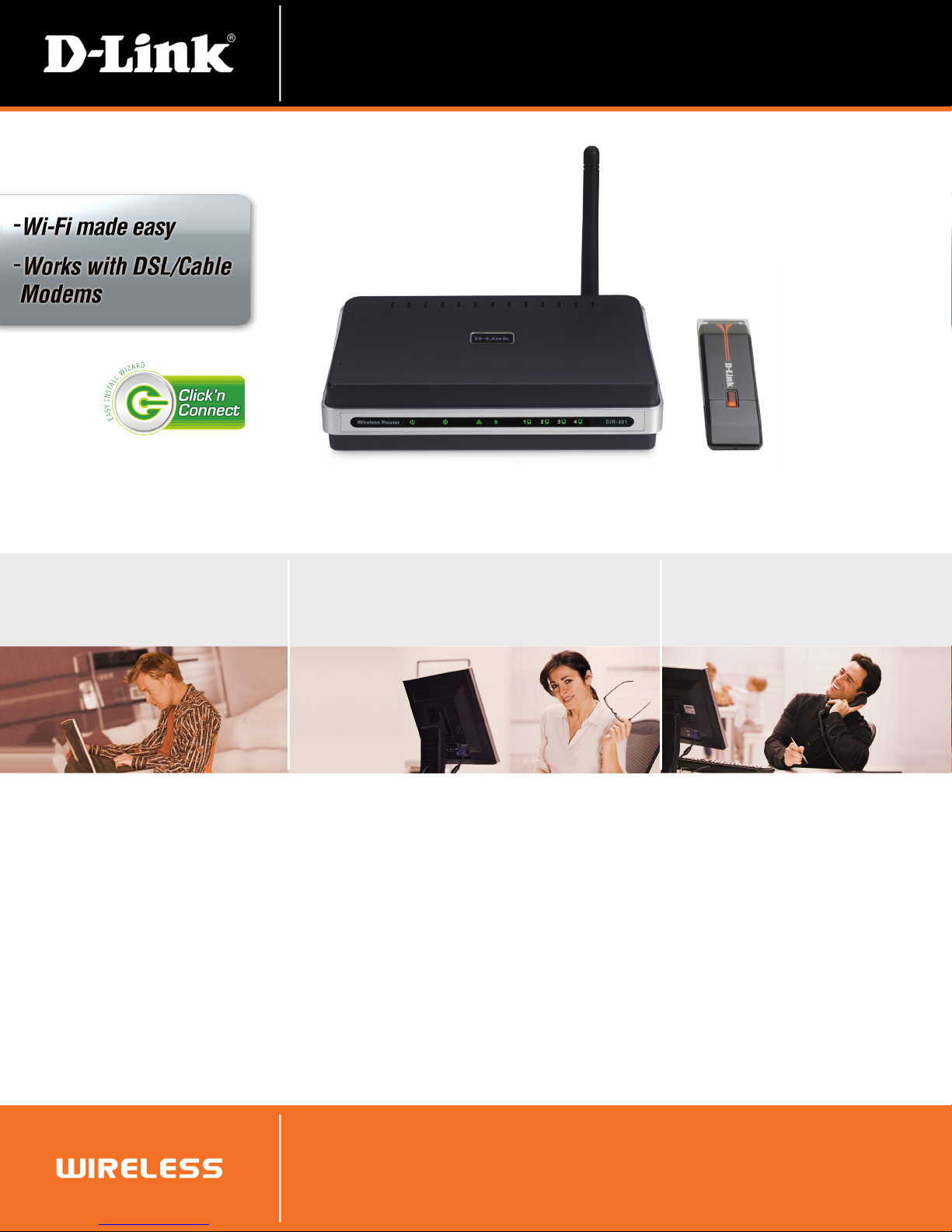

D-Link DKT-110 User manual

TOTAL COMPATIBILITY
Works with any Wi-Fi certified
device, giving you peace of mind and
performance
TOTAL SIMPLICITY
With USB you can use the adapter on both
laptop or desktop PCs. With Click’n Connect ,
you can just use the CD and get online fast
TOTAL SECURITY
Complete set of security features including Active
Firewall and WPA2 to protect your network
against outside intruders
CREATE A WIRELESS NETWORK
WIRELESS G STARTER KIT
BASIC WIRELESS NETWORKING
Create a wireless network for your home using the D-Link Wireless G Starter Kit. Connect the Wireless G Router to a broadband modem and wirelessly share
your high-speed Internet connection. Plug the Wireless USB 2.0 Adapter to your laptop or desktop PC and enjoy surfing the web, checking e-mail, and chatting
with family and friends online.
BASIC SECURITY PROTECTION
The D-Link Wireless G Starter Kit’s Router includes a built-in firewall that safeguards your network from harmful attacks. It minimizes the threats of hackers
and prevents unwanted intruders from entering your network. Additional security features like MAC address filtering prevents unauthorized network access
and parental control features prevent users from viewing inappropriate content. The Wireless G Router also supports WEP and WPA encryption. D-Link’s easy-
to-use Wireless G Router includes basic routing and security features to help you create a simple wireless network for your apartment or small house.
COMPATIBILITY ASSURANCE
The D-Link Wireless G Starter Kit is based on the 802.11g standard and is backward compatible with 802.11b, ensuring compatibility with a wide range of
wireless devices. The Wireless G Router includes four Ethernet ports ready for you to connect Ethernet-enabled PC, print server and other devices.
EASY TO INSTALL AND USE
With D-Link’s Click’n Connect Wizard, you can set up your wireless network in minutes. The wizard will guide you through an easy to follow process to
install your new hardware and connect to your network. It configures your Internet Service Provider (ISP) settings to quickly establish broadband Internet
connectivity. The Wizard even makes it easy to add new wireless devices onto the network.
DKT-110

WHAT THIS PRODUCT DOES
Share your broadband Internet connection with
multiple computers in your house by simply
connecting the D-Link Wireless G Router to your cable
or DSL modem and plugging in the D-Link Wireless
USB 2.0 Adapter to your laptop or desktop PC. Once
connected, you can create your own personal
wireless home network to share documents, music,
and photos.
ADVANCED WIRELESS FUNCTIONS
The D-Link Wireless G Starter Kit includes everything
you need to get a wireless network up and running.
DIR-301 Wireless G Router:
+ Share Your Internet Connection with Built-In
4-Port Switch
+ Advanced Firewall & Security
+ Advanced Scheduling and User Level Control
+ Supports VPN Pass-through
+ Supports WPA2 (AES) and WPA (TKIP)
DWA-111 Wireless USB 2.0 Adapter:
+ Plug & Play Installation
+ Up to 5X Faster than 802.11b
+ Up to 54Mbps1 with other 802.11g Wireless
Devices
Network Accessories & Aid:
+ Cat. 5 Ethernet Cable
+ Power Adapter
+ Manuals and Driver on CD-ROM
+ Interactive Install Guide
TECHNICAL SPECIFICATIONS
CREATE A WIRELESS NETWORK
DKT-110
MINIMUM SYSTEM REQUIREMENTS
DIR-301:
+ Cable or DSL Modem with Ethernet
Port
+ Computer with Windows XP SP2
or Windows 2000 SP4 or Mac OS X
(v10.4/v10.3) or Linux-Based Operating
System and an Installed Ethernet
Adapter
+ Internet Explorer 6 or Firefox 1.5 or
Later
DWA-111:
+ Computer or Laptop with an Available
USB Port
+ Windows, XP and 2000
+ MAC 10.3.x or later
STANDARDS
+ IEEE 802.11g
+ IEEE 802.11b
+ IEEE 802.3
+ IEEE 802.3u
WIRELESS SIGNAL RATES 1WITH
AUTOMATIC FALLBACK
+ 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, &
1Mbps
WIRELESS FREQUENCY RANGE
+ 2.4GHz to 2.462GHz
MODULATION TECHNOLGOY
+ Orthogonal Frequency Division
Multiplexing (OFDM)
+ Complementary Code Keying (CCK)
WIRELESS TRANSMIT POWER
+ DIR-301: 15dBm +/- 2dBm
+ DWA-111: 15dBm +/- 2dBm
ANTENNA
+ DIR-301: Detachable Dipole Antenna
(Reverse SMA Plug)
+ DWA-111: Integrated Internal Antenna
SECURITY
+ WEP 64/128-Bit Data Encryption (User-
Selectable)
+ Wi-Fi Protected Access (WPA/WPA2)
ADVANCED FIREWALL FEATURES
(DIR-301)
+ Network Address Translation (NAT)
+ Stateful Packet Inspection (SPI)
+ MAC Filtering
+ Website Filtering
DEVICE MANAGEMENT (DIR-301)
+ Internet Explorer v6 or later; or other
Java-enabled Browsers
DIAGNOSTIC LED
DIR-301:
+ Power
+ Status
+ Internet
+ WLAN (Wireless Connection)
+ LAN
DWA-111:
+ Link
+ Act
O.S. SUPPORT (DWA-111)
+ Microsoft Windows 2000, 32-bit XP
+ Mac OS 10.4
POWER CONSUMPTION
+ DWA-111: Transmission: 350mA,
Reception: 200mA
POWER INPUT
+ DIR-301: 5VDC, 2A, Through External
Power Adapter
+ DWA-111: USB Bus Power, No
External Power Adapter Required
DIMENSIONS
+ DIR-301: 112.6 x 147.5 x 31.8 mm
+ DWA-111: 27.6 x 87.2 x 11.9 mm
WEIGHT
+ DIR-301: 246 grams (0.5 lb)
+ DWA-111: 45.36 grams (0.1 lb)
CERTIFICATION
+ CE
OPERATING TEMPERATURE
+ DIR-301: 0˚ to 55˚ C (32˚ to 131˚ F)
+ DWA-111: 0˚ to 40˚ C (32˚ to 104˚ F)
OPERATING HUMIDITY
+ DIR-301: 95% maximum
+ DWA-111: 80% maximum
1. Maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building
materials and construction, and network overhead lower actual data throughput rate and adversely affect the range.
2.The devices described herein are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the packaging.
D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries. All other trademarks are the property of their respective owners.
Copyright 2006. All rights reserved.
Release 01 (Jan 2007)
