D-Link AC750 User manual

Wireless AC750 Dual Band Cloud Router
User Manual
DIR-810L
Version 1.0 | 03/05/2013

iD-Link DIR-810L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 April 03, 2013 • Initial release for Revision A1
Preface

iiD-Link DIR-810L User Manual
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview ..............................................................1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Introduction ................................................................................... 3
Features ............................................................................................ 4

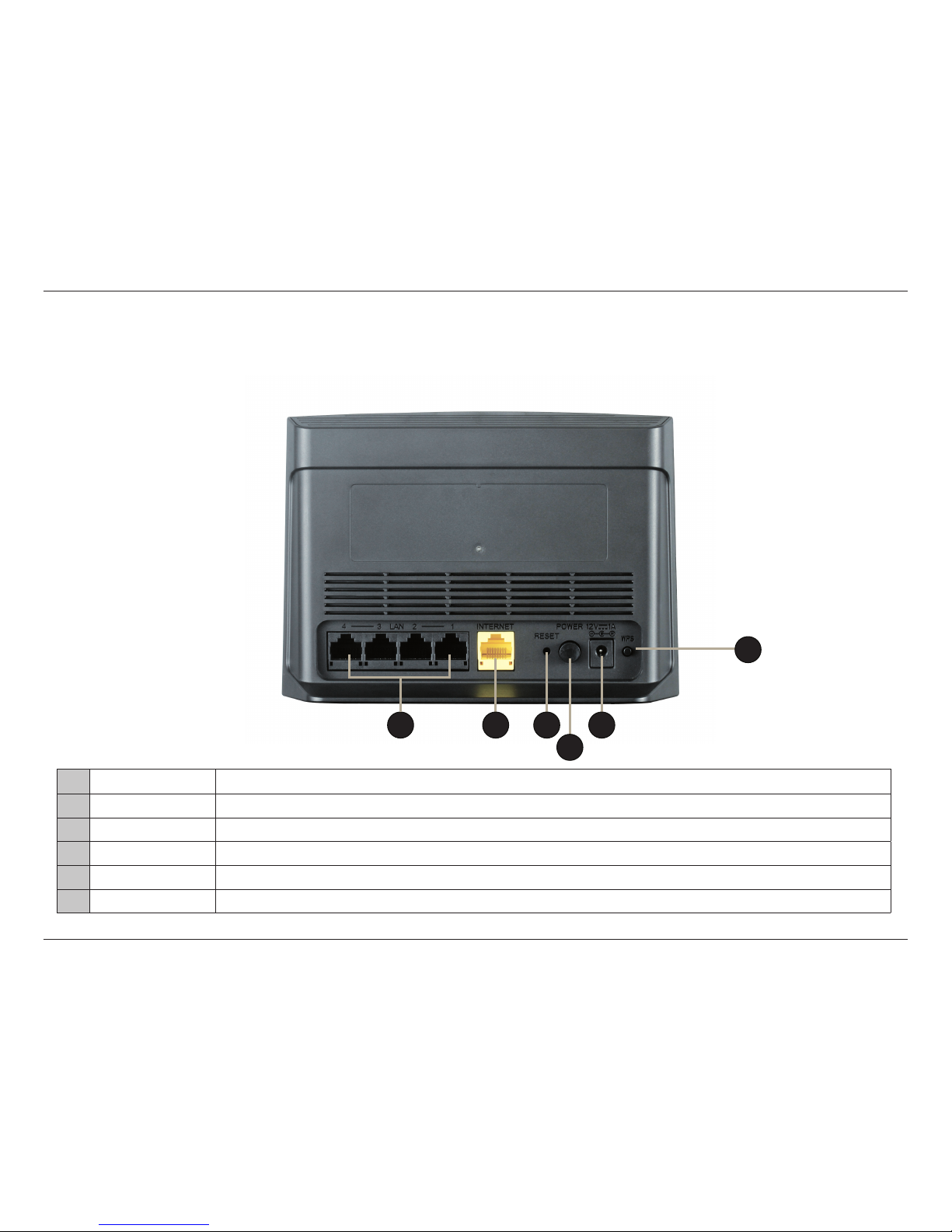

Hardware Overview ..................................................................... 5
Connections ...........................................................................5

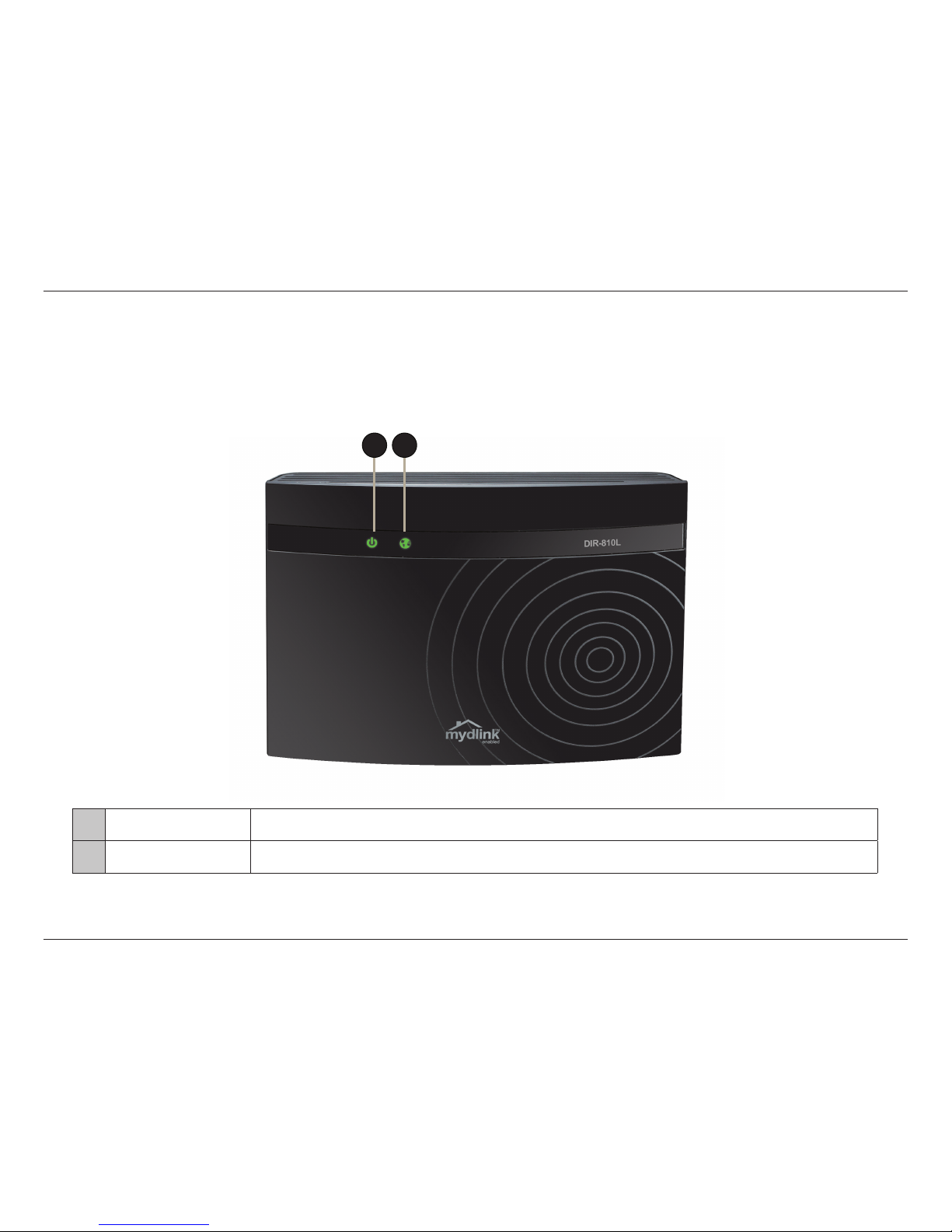

LEDs ........................................................................................... 6
Installation ......................................................................... 7
Before you Begin ........................................................................... 7
Wireless Installation Considerations ...................................... 8
Manual Setup ................................................................................. 9
Conguration ...................................................................11

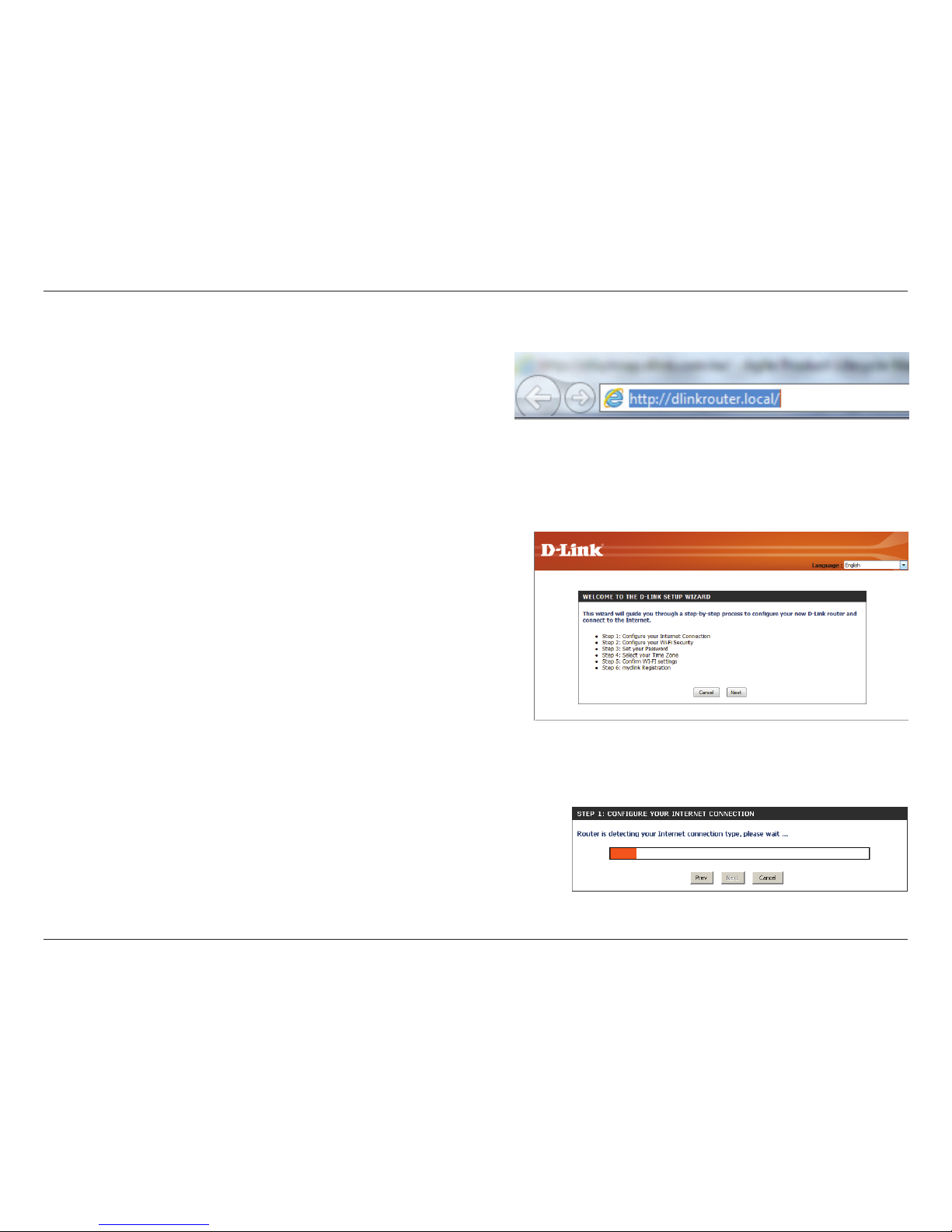

Quick Setup Wizard ....................................................................12
QRS Mobile App (iOS, Android) .............................................19
Web-based Conguration Utility ..........................................20
Internet Connection Setup .............................................21
Internet Connection Setup Wizard ...............................22
Internet (Manual Setup) ...................................................28
Static (assigned by ISP) ................................................30
PPPoE (DSL) ......................................................................31
PPTP ....................................................................................33
L2TP ....................................................................................35
DS-Lite ...............................................................................37
Wireless Connection Setup Wizard ..............................38
Wi-Fi Protected Setup Wizard .........................................41
Manual wireless network setup .....................................42
Manual Setup - 2.4Ghz Band .....................................43
Manual Setup - 5Ghz Band .........................................48
Wireless Security .................................................................53
What is WPA? ...................................................................53
Network Settings ................................................................54
Router Settings ...............................................................54
DHCP Server Settings ...................................................55
DHCP Reservation .........................................................57
IPv6 ..........................................................................................58
IPv6 Internet Connection Setup Wizard ................59
IPv6 Local Connectivity Settings ..............................64
IPv6 Manual Setup.........................................................65
mydlinkTM Settings ..............................................................74
Advanced ...............................................................................77
Virtual Server ...................................................................77
Port Forwarding .............................................................78
Application Rules ...........................................................79
QoS Engine .......................................................................80
Network Filters ................................................................82
Access Control .................................................................83
Table of Contents

iiiD-Link DIR-810L User Manual
Table of Contents
Website Filters .................................................................86
Inbound Filters ................................................................87
Firewall Settings .............................................................88
Routing ..............................................................................90
Advanced Wireless ........................................................91
Wi-Fi Protected Setup (WPS) .....................................92
Advanced Network Settings ......................................94
Guest Zone .......................................................................95
IPv6 Firewall .....................................................................96
IPv6 Routing ....................................................................97
Tools ........................................................................................98
Admin.................................................................................98
Time ....................................................................................99
SysLog ............................................................................. 100
Email Settings............................................................... 101
System ............................................................................ 102
Firmware ........................................................................ 103
Language Pack ............................................................. 103
Dynamic DNS ............................................................... 104
System Check ............................................................... 105
Schedules ...................................................................... 106
Status ................................................................................... 107
Device Info .................................................................... 107
Logs.................................................................................. 108
Statistics ......................................................................... 109
Internet Sessions ......................................................... 110
Routing ........................................................................... 111
Wireless........................................................................... 112
IPv6 ..................................................................................113
IPV6 Routing ................................................................. 114
Support ............................................................................... 115
Connect a Wireless Client to your Router ....................116
WPS Button ................................................................................ 116
Windows® 8 ................................................................................ 117
WPA/WPA2 ......................................................................... 117
Windows® 7 ................................................................................ 119
WPA/WPA2 ......................................................................... 119
WPS ....................................................................................... 122
Windows Vista® ......................................................................... 126
WPA/WPA2 ......................................................................... 127
WPS/WCN 2.0 .................................................................... 129
Windows® XP ............................................................................. 130
WPA/WPA2 ......................................................................... 131
Troubleshooting ............................................................133
Wireless Basics ...............................................................137
What is Wireless? ...................................................................... 138
Tips ................................................................................................ 140
Wireless Modes ......................................................................... 141
Networking Basics .........................................................142
Check your IP address ............................................................ 142
Statically Assign an IP address ............................................ 143
Technical Specications ................................................144

1D-Link DIR-810L User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-810L will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-810L Wireless AC750 Dual Band Cloud Router
Ethernet Cable
Power Adapter
WI-FI Conguration Note
Wi-Fi Conguration Note

2D-Link DIR-810L User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based Cable or DSL modem
• 802.11a, 802.11g, 802.11n, or 802.11ac wireless clients
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7 or higher
• Firefox 3.5 or higher
• Safari 4 or higher
• Chrome 8 or higher
Windows® Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
mydlink Requirements
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Computer with the following browser requirements:
• Internet Explorer 7 or higher
• Firefox 3 or higher
• Safari 5 or higher
• Chrome 5 or higher
iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc.
System Requirements

3D-Link DIR-810L User Manual
Section 1 - Product Overview
Introduction
Now you can monitor and manage your home network right from your laptop, iOS, or Android™ device. This cloud-enabled
router can be congured to notify you whenever new devices are connected to your network or unwanted access is detected.
Monitor in realtime websites that are being visited, with recent browser history displayed on the mydlink™ Lite app – which is
great for parents keeping an eye on children using the internet at home. The D-Link Cloud Service can help you to detect and
block unwelcome guests who attempt to access your wireless network, and any suspicious activities will be displayed right
on your mydlink Lite app or browser.
The D-Link DIR-810L is a draft IEEE 802.11ac compliant device that delivers speeds up to 3 times faster than 802.11n, while
staying backward compatible with older 802.11b/g/n devices. Connect the DIR-810L to a Cable or DSL modem and provide
high-speed Internet access to multiple wireless clients. Powered by the latest draft 802.11ac technology, this router provides
superior wireless coverage for small to medium sized homes. The DIR-810L also includes a 4-port 10/100 Fast Ethernet switch
that connects Ethernet wired devices for high-speed wired connectivity.
With some routers, all wired and wireless trac, including VoIP, Video Streaming, Online Gaming, and Web browsing are mixed
together into a single data stream. By handling data this way, applications like video streaming could experience lags or delays.
With D-Link Intelligent QoS Technology, wired and wireless trac are analyzed and separated into multiple data streams. You
can also assign priorities to dierent data streams to ensure that the trac most important to you recieves optimum bandwidth.
The DIR-810L supports the latest wireless security features to help prevent unauthorized access, be it from inside your wireless
network or from the Internet. Support for the WPA and WPA2 standards gives you a range of security and encryption choices,
based on the capabilities of your wireless clients. In addition, this router utilizes Dual Active Firewalls (SPI and NAT) to prevent
potential attacks from across the Internet.

4D-Link DIR-810L User Manual
Section 1 - Product Overview
• Ultimate Fast Wireless Networking - The DIR-810L provides a wireless connection up to 300Mbps on the 2.4GHz
band, and up to 433Mbps on the 5GHz band. This capability allows users to participate in real-time activities
online, such as video streaming, online gaming, and real-time audio. The performance of this 802.11ac wireless
router gives you the freedom of wireless networking at speeds up to three times faster than 802.11n.
• Compatible with 802.11a/g/n Devices - The DIR-810L remains fully compatible with the IEEE 802.11b, 802.11g
and 802.11n standards, so it can connect your existing wireless clients, providing backwards compatibility for
older devices.
• Advanced Security Features - The Web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on MAC Address, URL, and/or Domain
Name.
• Filter Scheduling - These lters can be scheduled to be active on certain days or for a duration of
hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-810L can pass through VPN sessions. It supports
multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-810L can securely access
corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DIR-810L guides you
through the process of setting up a customized, secure wireless network, allowing you to congure your router
to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11b, 802.11g, 802.11n and draft 802.11ac specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features

5D-Link DIR-810L User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1WPS Button Press to start the WPS process. The Power LED will start to blink.
2LAN Ports (1-4) Connect 10/100 Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
3Internet Port Using an Ethernet cable, connect your broadband modem to this port.
4Power Button Press the power button to power on and o.
5Power Receptor Receptor for the supplied power adapter.
6Reset Button (Hole) Use a paperclip to depress the reset button and restore the router to its original factory settings.
1
3
4
562

6D-Link DIR-810L User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1Power LED A solid green light indicates a proper connection to the power supply. The light will blink green during the
WPS process. The light will be solid orange during boot up.
2Internet LED A solid light indicates connection on the Internet port. If the LED is orange, a connection is present but the
router cannot connect to the Internet.
1 2

7D-Link DIR-810L User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in an attic or garage.
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using this router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port
on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection
types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet,
Broadjump, or Enternet 300 from your computer, or you will not be able to connect to the Internet.

8D-Link DIR-810L User Manual
Section 2 - Installation
Wireless Installation Considerations
The DIR-810L Wireless AC750 Dual Band Cloud Router lets you access your network using a wireless connection from virtually
anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location
of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending
on the types of materials used and background RF (radio frequency) noise in your home or business. The key to maximizing
wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the router and other network devices to a minimum - each wall
or ceiling can reduce your adapter’s range by 3-90 feet (1-30 meters.) Position your devices so that the number
of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 0.5 meters thick (1.5 feet), at a 45-degree
angle appears to be almost 1 meter (3 feet) thick. At a 2-degree angle it can appear over 14 meters (42 feet)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building materials can aect your wireless signal. A solid metal door or aluminum studs may have a negative
eect on range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 wireless products (such as ceiling fans, lights, and home security
systems), your wireless connection may be degraded dramatically or even drop completely. Make sure your
2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone in not in use.

9D-Link DIR-810L User Manual
Section 2 - Installation

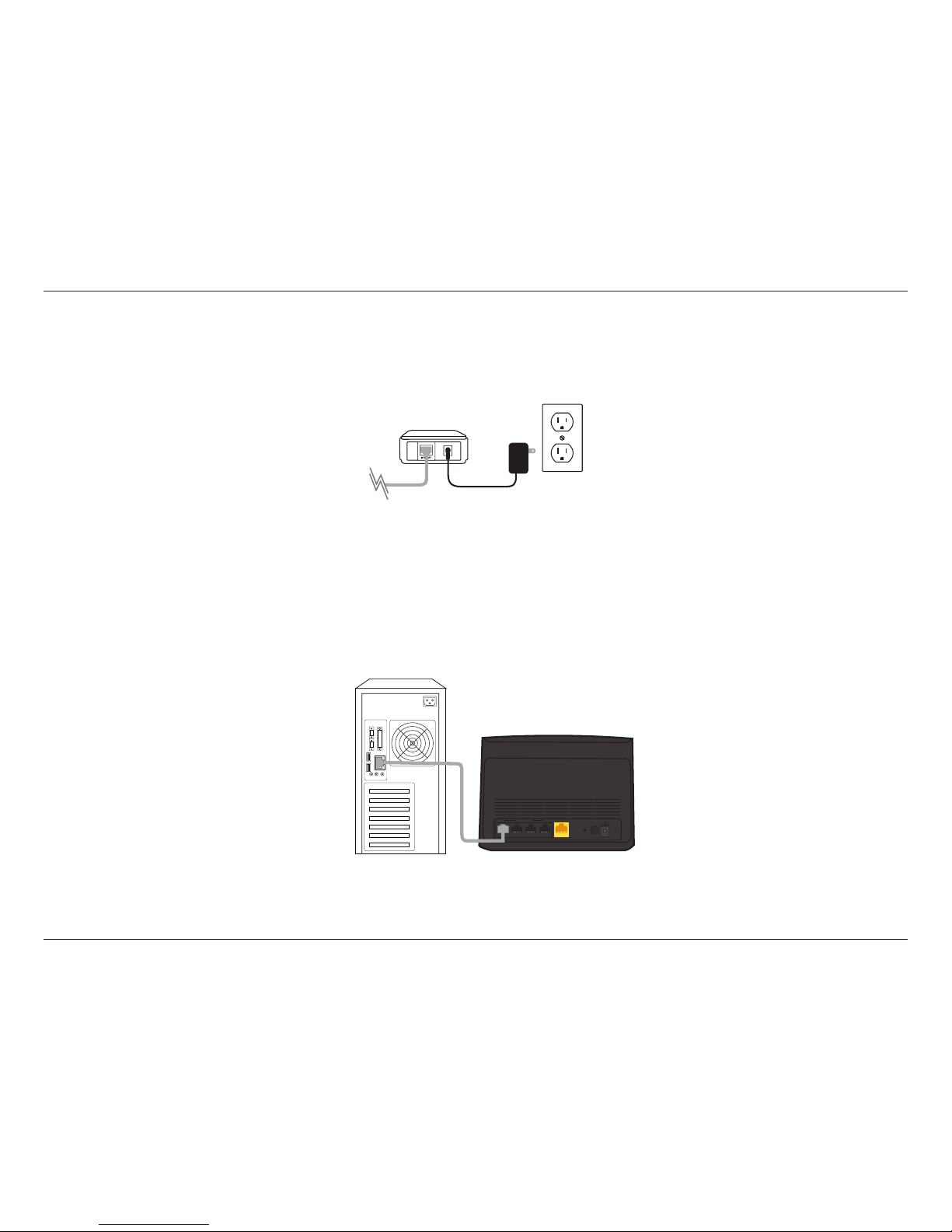

1. Turn o and unplug your cable or DSL broadband modem. This is required.
Manual Setup
2. Position your router close to your modem and a computer. Place the router in an open area of your intended
work area for better wireless coverage.
3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your computer.
Plug it into the LAN port labeled 1 on the back of your router. The router is now connected to your computer.
Modem
DIR-810L
Computer
LAN
RESET
INTERNET1234 12V 1A
POWER
WPS

10D-Link DIR-810L User Manual
Section 2 - Installation
DIR-810L
Modem
INTERNET
LAN
RESET
INTERNET1234 12V 1A
POWER
WPS

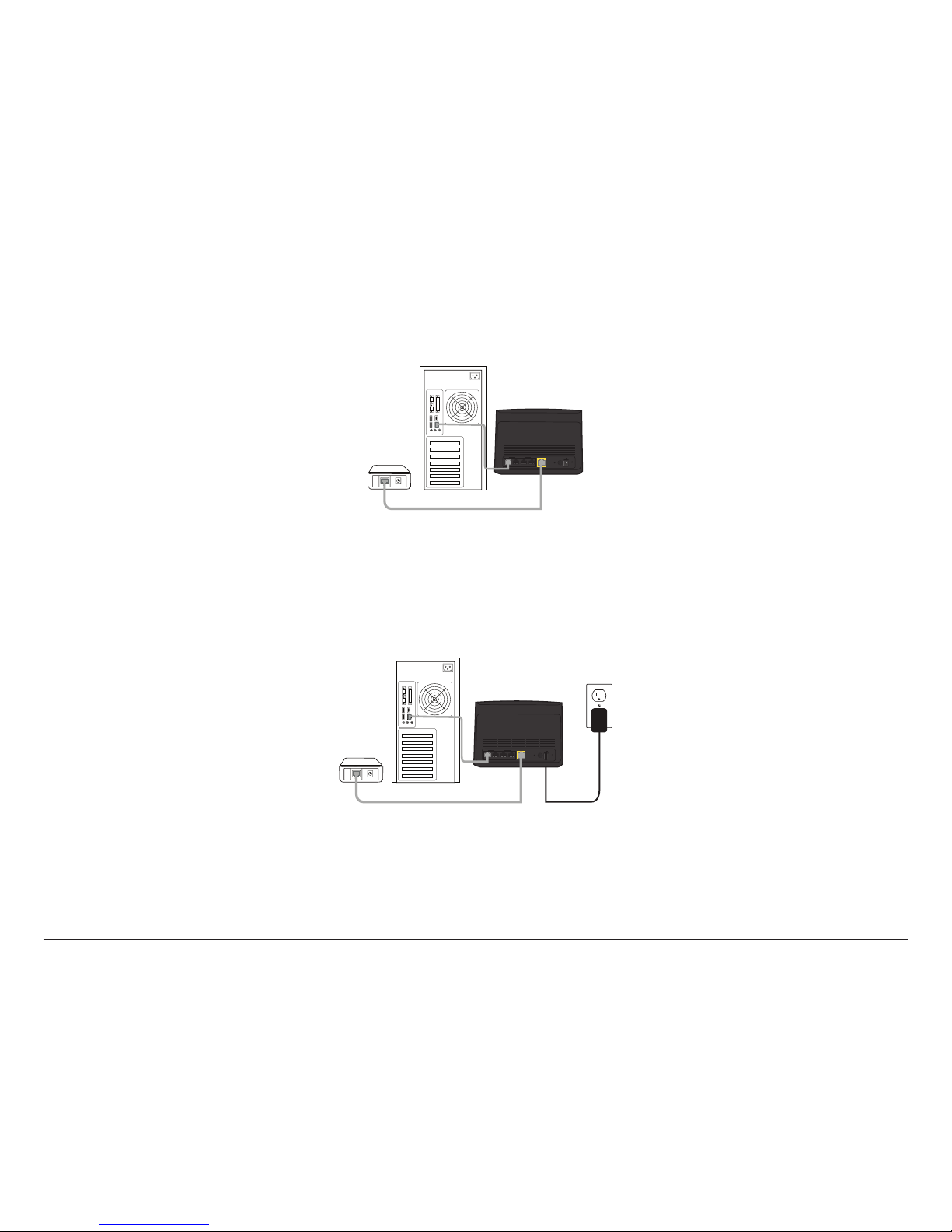

4. Plug one end of the included blue Ethernet cable that came with your router into the yellow port labeled
INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.
5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.
6. Connect the supplied power adaptor into the power port on the back of the router and then plug it into a power
outlet or surge protector. Press the power button and verify that the power LED is lit. Allow 1 minute for the
router to boot up.
7. If you are connecting to a Broadband service that uses a dynamic connection (not PPPoE), you may be online
already. Try opening a web browser and enter a web site. A solid light on the Internet LED indicates connection
on the Internet port and the router can connect to the Internet. If the LED is orange, a connection is present but
the router cannot connect to the Internet.
DIR-810L
Modem
Computer
Computer
INTERNET
LAN
RESET
INTERNET1234 12V 1A
POWER
WPS

11D-Link DIR-810L User Manual
Section 2 - Installation
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to “Quick Setup Wizard”
on page 12.
• QRS Mobile App - Use your iOS or Android device to congure your router. Refer to ”QRS Mobile App (iOS, Android)” on
page 19.
• Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to ”Internet (Manual
Setup)” on page 28.
Conguration

12D-Link DIR-810L User Manual
Section 3 - Conguration
If this is your rst time logging into the router, this wizard will
start automatically.
This wizard is designed to guide you through a step-by-step
process to congure your new D-Link router and connect to the
Internet.
Click Next to continue.
Quick Setup Wizard
If this is your rst time installing the router, open your web
browser. You will automatically be directed to the Wizard Setup
Screen. If not, enter “http://dlinkrouter.local”. Then, press Enter.
If you have already congured your settings and you would like to
access the conguration utility, please refer to “Internet (Manual
Setup)” on page 28.
Please wait while your router detects your internet connection type.
If the router detects your Internet connection, you may need to enter
your ISP information such as username and password.

13D-Link DIR-810L User Manual
Section 3 - Conguration

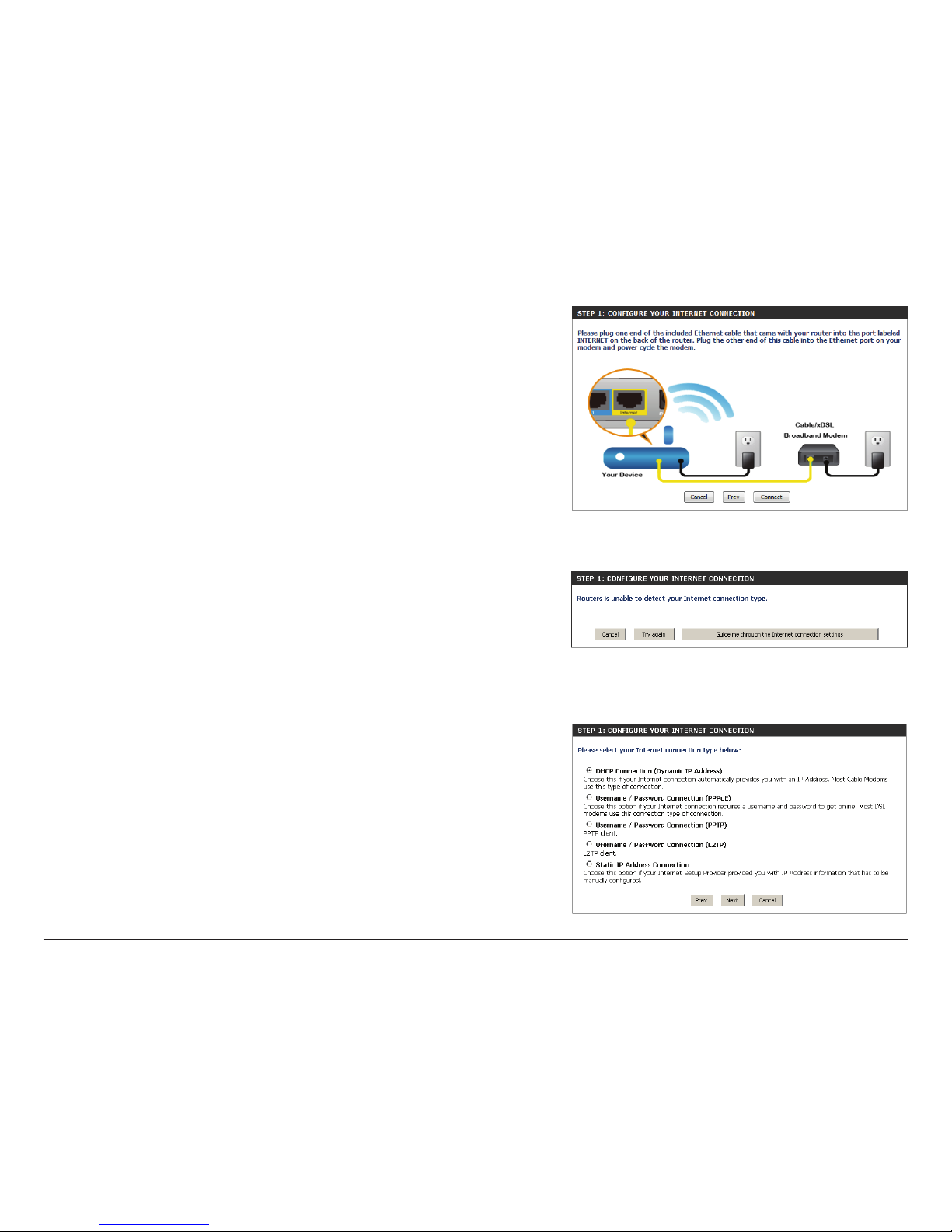

If the router does not detect a valid Ethernet connection from the
Internet port, this screen will appear. Check the connection between
your broadband modem to the Internet port and then click Try Again.
If the router detects an Ethernet connection but does not detect the type
of Internet connection you have, this screen will appear. Click Guide me
through the Internet Connection Settings to display a list of connection
types to choose from.
Select your Internet connection type and click Next to continue.

14D-Link DIR-810L User Manual
Section 3 - Conguration

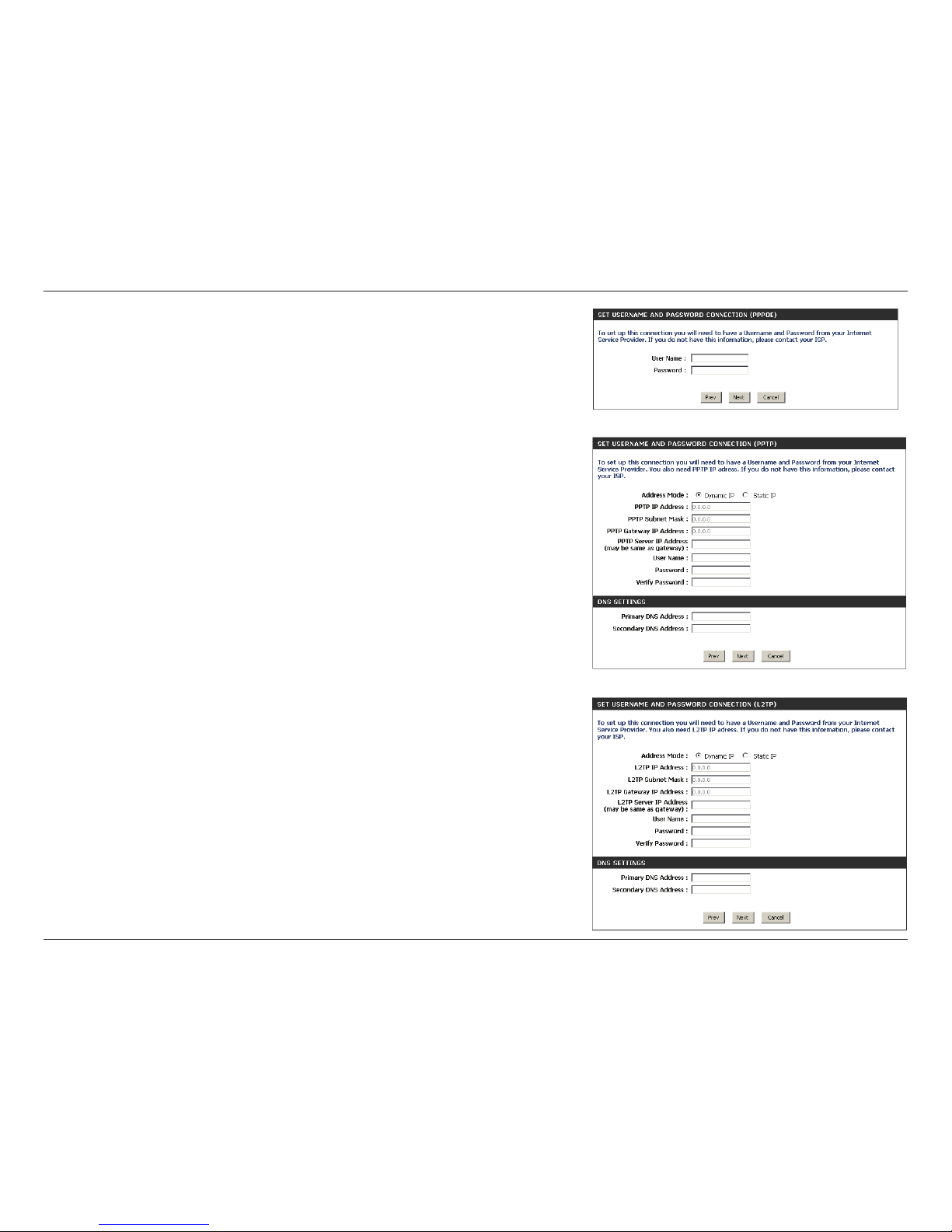

If the router detected or you selected PPPoE, enter your PPPoE username
and password and click Next to continue.
Note: Make sure to remove any PPPoE software from your computer. The
software is no longer needed and will not work through a router.
If the router detected or you selected PPTP, enter your PPTP username,
password, and other information supplied by your ISP. Click Next to
continue.
If the router detected or you selected L2TP, enter your L2TP username,
password, and other information supplied by your ISP. Click Next to
continue.

15D-Link DIR-810L User Manual
Section 3 - Conguration

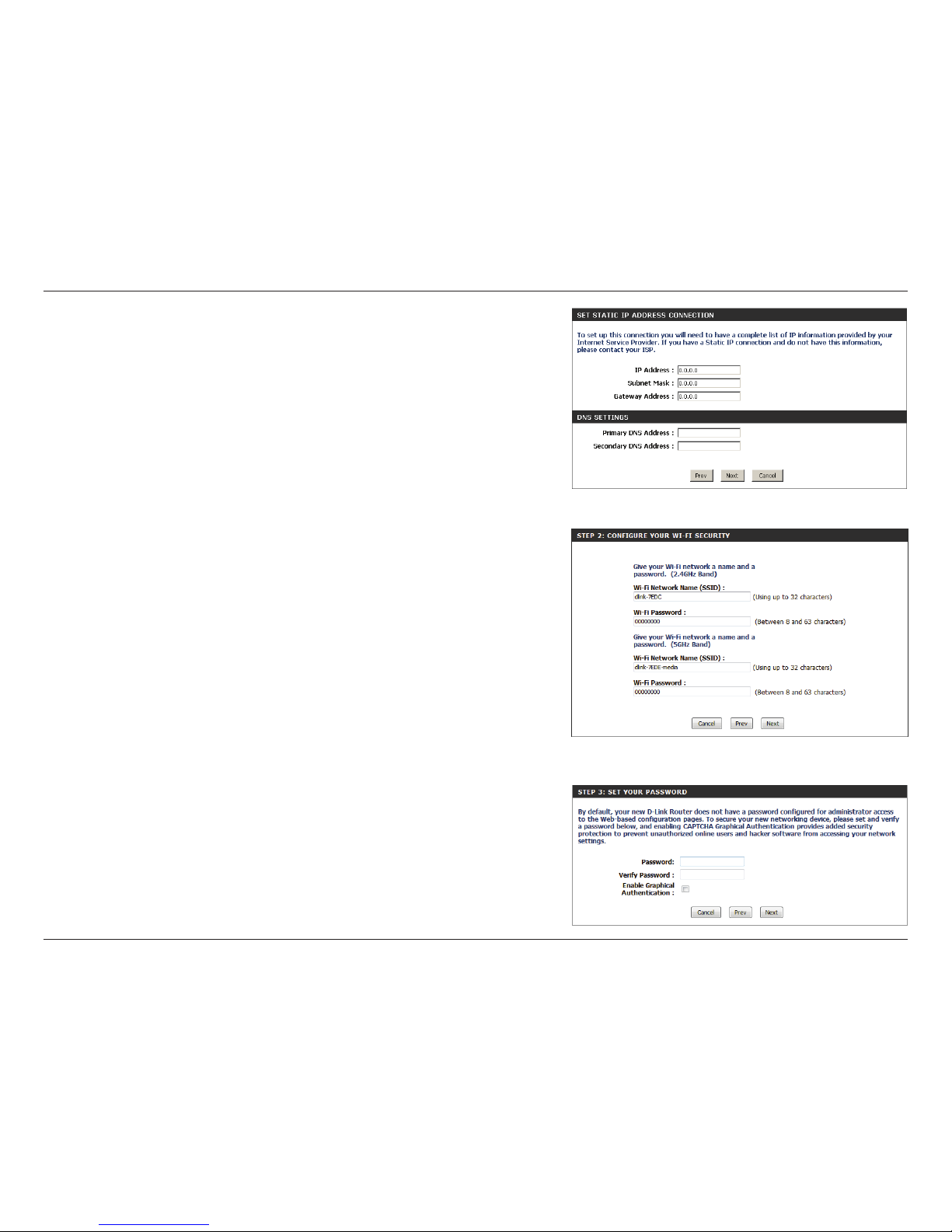

If the router detected or you selected Static, enter the IP and DNS
settings supplied by your ISP. Click Next to continue.
For both the 2.4GHz and 5GHz bands, create a Wi-Fi network name
(SSID) using up to 32 characters. These names will identify your wireless
network.
Create a Wi-Fi password (Network Key) (between 8-63 characters). Your
wireless clients will need to have this password or key entered to be able
to connect to your wireless network. It is recommended that you make
a record of this information for future reference.
Click Next to continue.
In order to secure your router, please enter a new password, which will
be used to access the web-based conguration utility. Check the Enable
Graphical Authentication box to enable CAPTCHA authentication for
added security. Click Next to continue.

16D-Link DIR-810L User Manual
Section 3 - Conguration

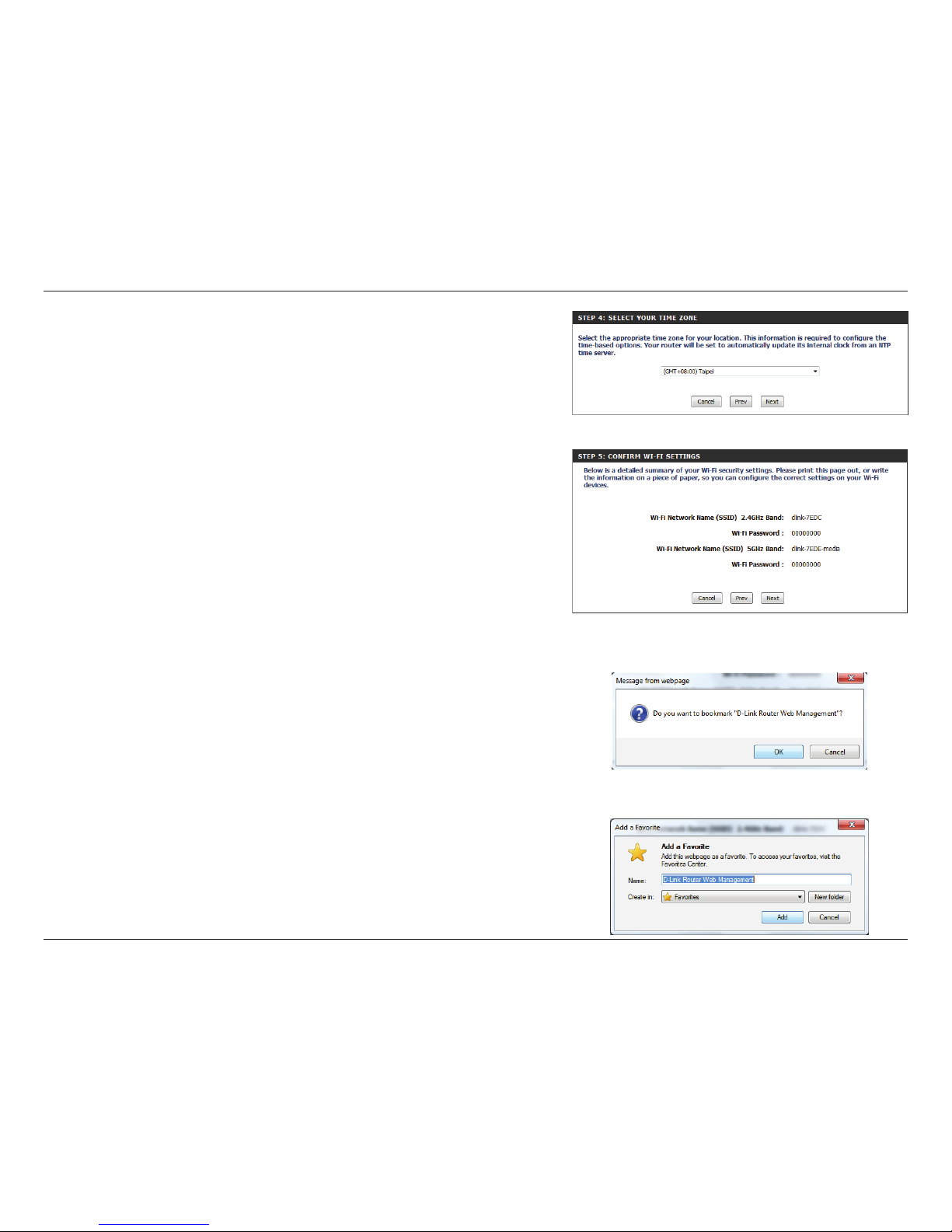

Select your time zone from the drop-down menu and click Next to
continue.
The Setup Complete window will display your Wi-Fi settings. Click Next
to continue.
If you want to create a bookmark for the router’s web-based conguration
utility, click OK. Click Cancel if you do not want to create a bookmark.
If you clicked Yes, a window may appear (depending on which web
browser you are using) to create a bookmark.
