1
Quick Installation Guide
DVG-N5402SP
VoIP Router

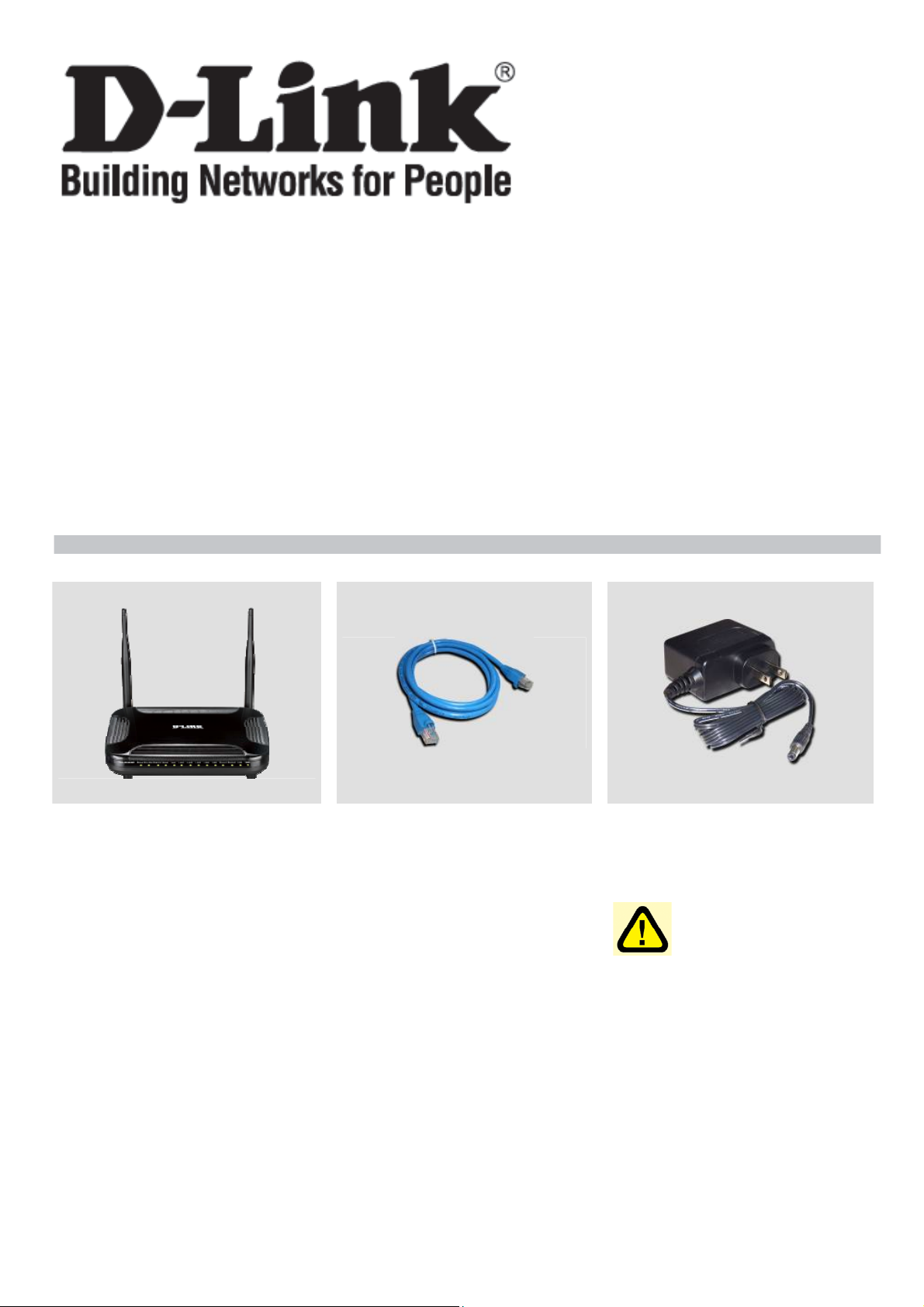

Check Your Package Contents
User Manual can be found at http://www.dlink.com.sg/support/
DVG-N5402SP
VoIP Router Ether (CAT5 UTP)
Cable 12VDC, 2A Power
Adapter
Using a power
adapter with a
different voltage rating
will damage this
product and void the
warranty.

2

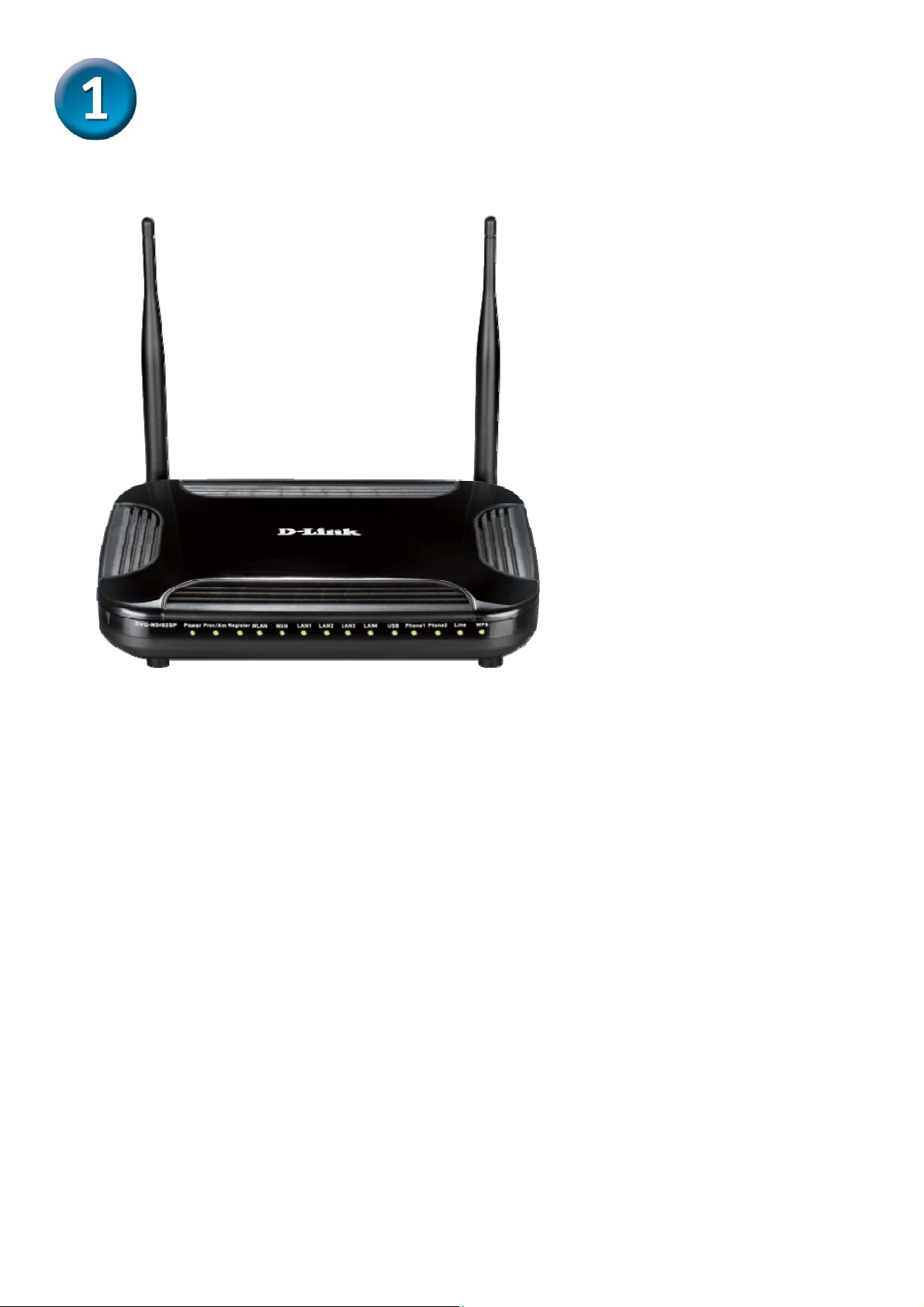

Front Panel Power: A steady green
light indicates a proper
connection to a power
source. A red light
indicates the power-on
self test fails or the
device is malfunction.
Prov/Alm: A blinking
light indicates the VoIP
Router can not register
with SIP Server or can
not get the IP address.
A blinking light also
indicates the VoIP
Router is attempting to
connect with the
Provisioning server.
Once the service
connects, the LED will
turn off. The LED will
light solid red if the
self-test or boot-up
fails.
Register: The Register LED will turn on and continuously working
when the VoIP Router is connected to a VoIP service provider. The
LED will flash if not connected to a service provider.
WLAN: A steady light indicates a wireless connection. A blinking
light indicates that the VoIP Router is receiving or transmitting from
or to the wireless network.
WAN: When a connection is established the LED will light up solid.
The LED will blink to indicate the activity. If the LED does not light
Hardware Overview

3
up when a cable is connected, verify the cable connections and
ensure that your devices are powered on.
LAN: When a connection is established the LED will light up solid
on the appropriate port. The LEDs will blink to indicate the activity.
If the LED does not light up when a cable is connected, verify the
cable connections and ensure that your devices are powered on.
USB: When a connection is established the LED will light up solid.
The LED will blink to indicate the activity. If the LED does not light
up when a USB device is connected, verify the USB connection
and ensure that the devices are powered on.
Phone: This LED displays the VoIP status and hook or ringing
activity on the phone port that is used to connect your normal
telephone(s). If a phone connected to a phone port is off the hook
or in use, this LED will light solid. When a phone is ringing, the
indicator will blink.
Line: Light on means the line is in use (off-hook), and vice versa.
WPS: When a WPS negotiation is established the LED will light up
solid. The LED will blink to indicate the activity. If the LED does not
light up when the WPS negotiation is failed or is not established.

4

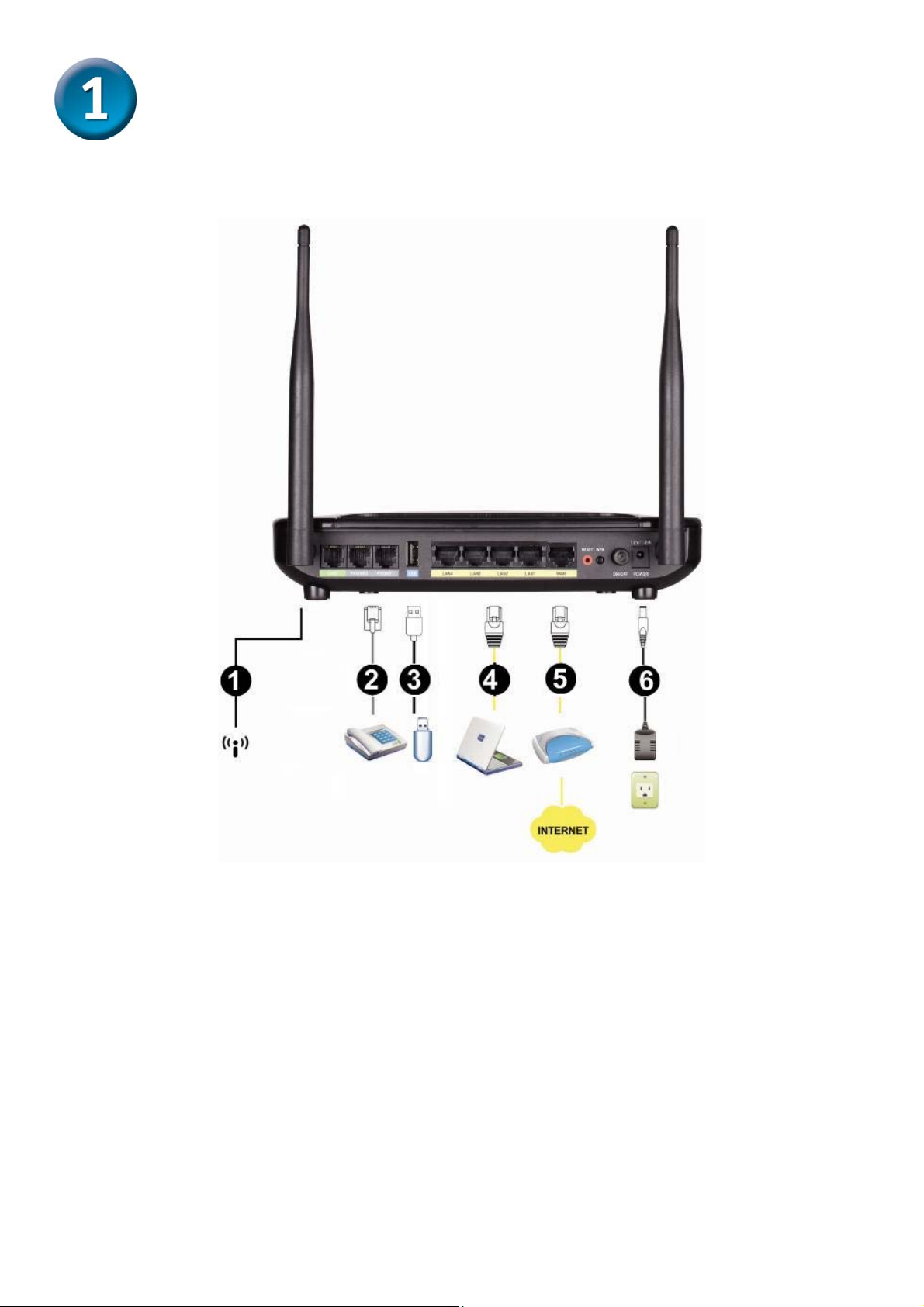

Rear Panel
1. Antenna: Connect to a wireless network.
2. Phone Port (1-2): Connect to your phones using standard phone
cabling (RJ-11).
3. USB: USB host 2.0 port, for connecting to another USB device to
supply some value-added application.
4. LAN: Connect to your Ethernet enabled computers using Ethernet
cabling.
5. WAN: Connect to your broadband modem using an Ethernet cable.
6. Power Receptor: Receptor for the provided power adapter.
Hardware Overview
(continued)

5

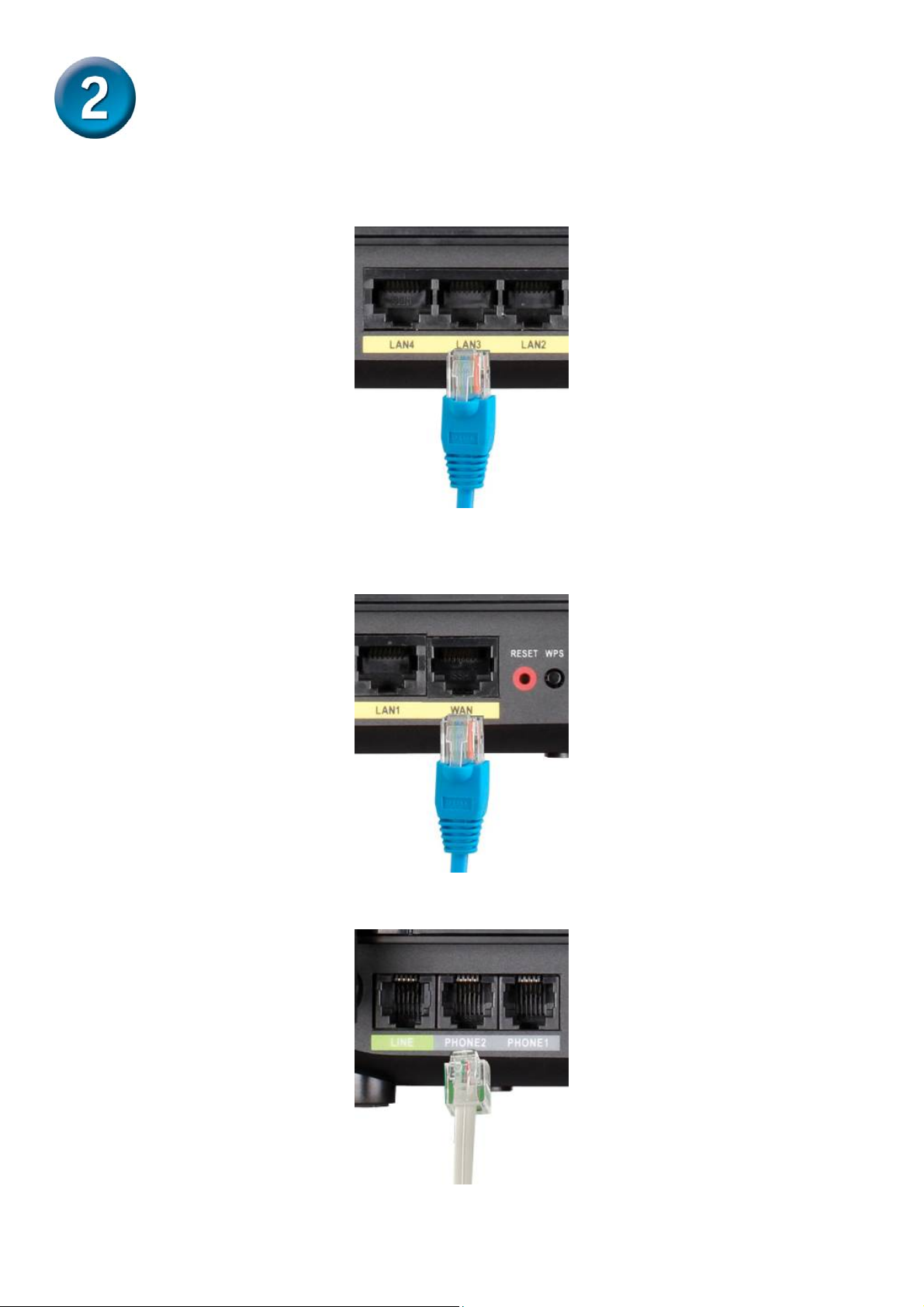

A. Insert one end of the Ethernet cable into the Ethernet (LAN) port on
the back panel of the DVG-N5402SP and the other end of the cable
to an Ethernet Adapter or available Ethernet port on your computer.
B. Insert one end of the Ethernet cable into the WAN port on the back of
the DVG-N5402SP and the specify port of the ONT or the LAN port
of your router.
C. Insert a telephone cable into the Phone port, and then connect the
cable to your telephone.
Installing the Hardware

6

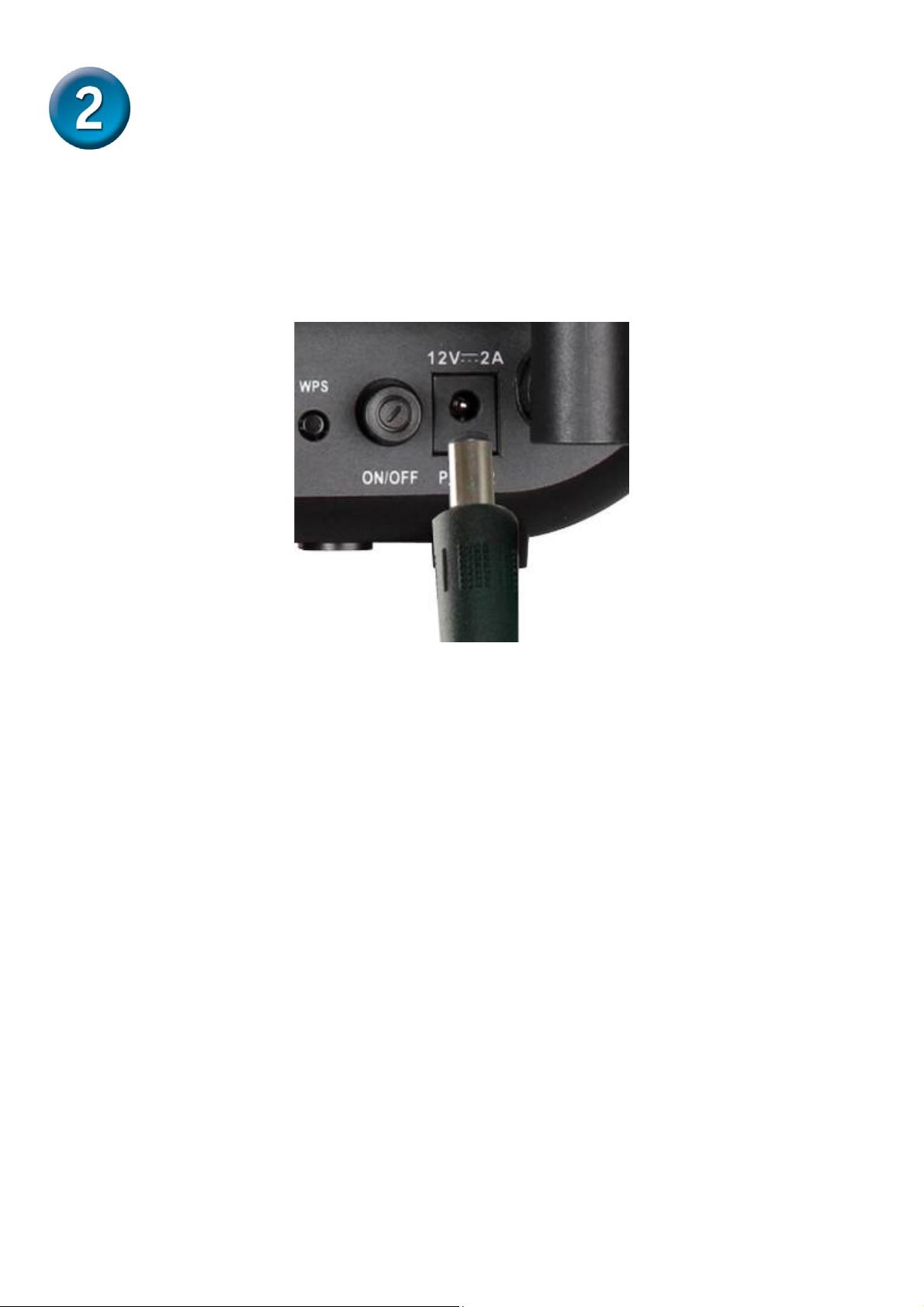

D. Connect the power adapter to the power input at the back panel of
the DVG-N5402SP and then plug the other end of the power adapter
to a wall outlet or power strip. On the front of the device, the Power
LED will turn On to indicate proper operation.
E. Check the LED display on the front of the VoIP Wireless Router to
confirm that the connections have been made.
Installing the Hardware (continued)

7

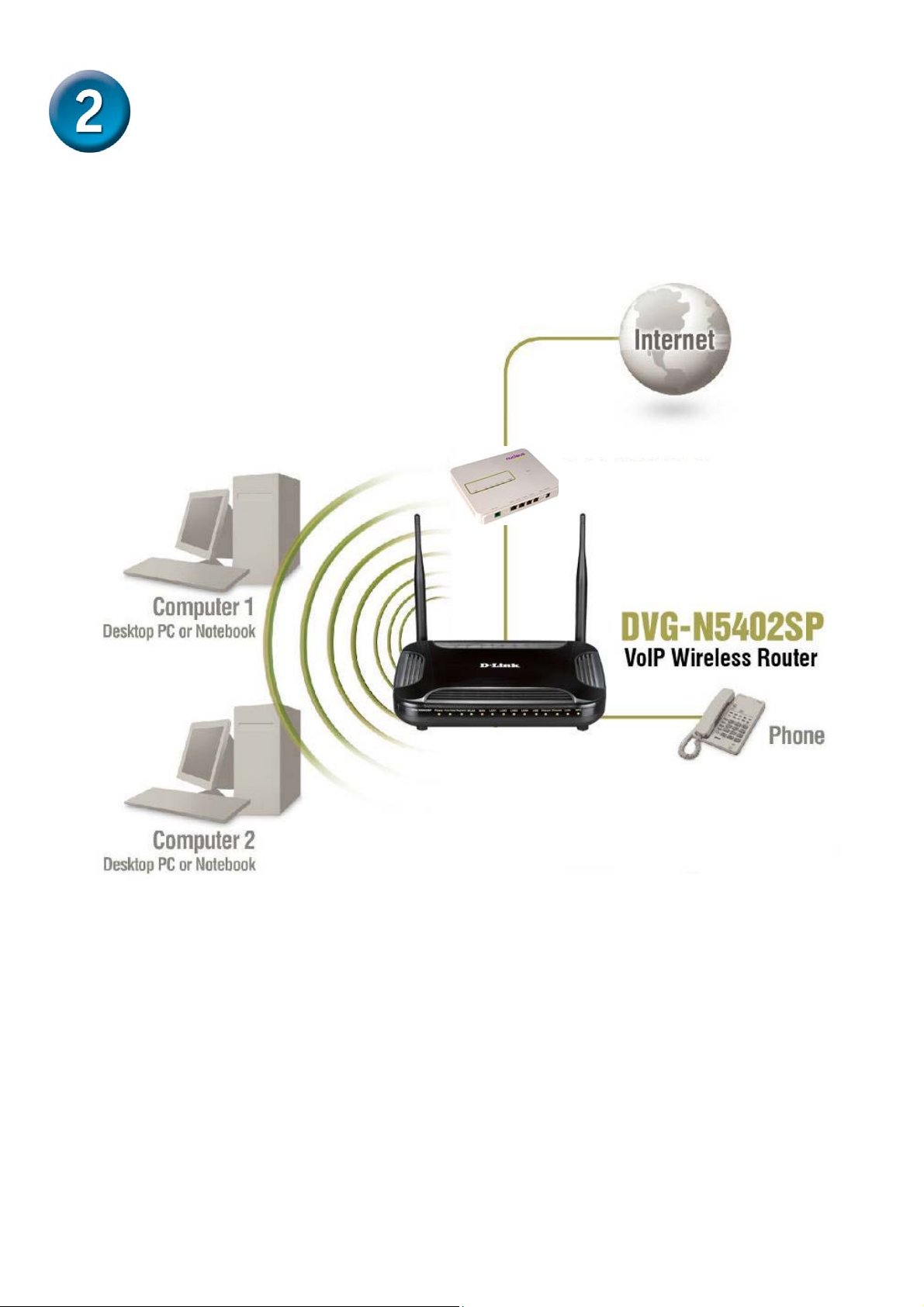

After the installations are completed, your network should look similar to
the diagram below.
Hardware configuration is complete! If your VoIP service is already activated, you
can make phone calls now.
Installing the Hardware (continued)
ONT

8
Configuration

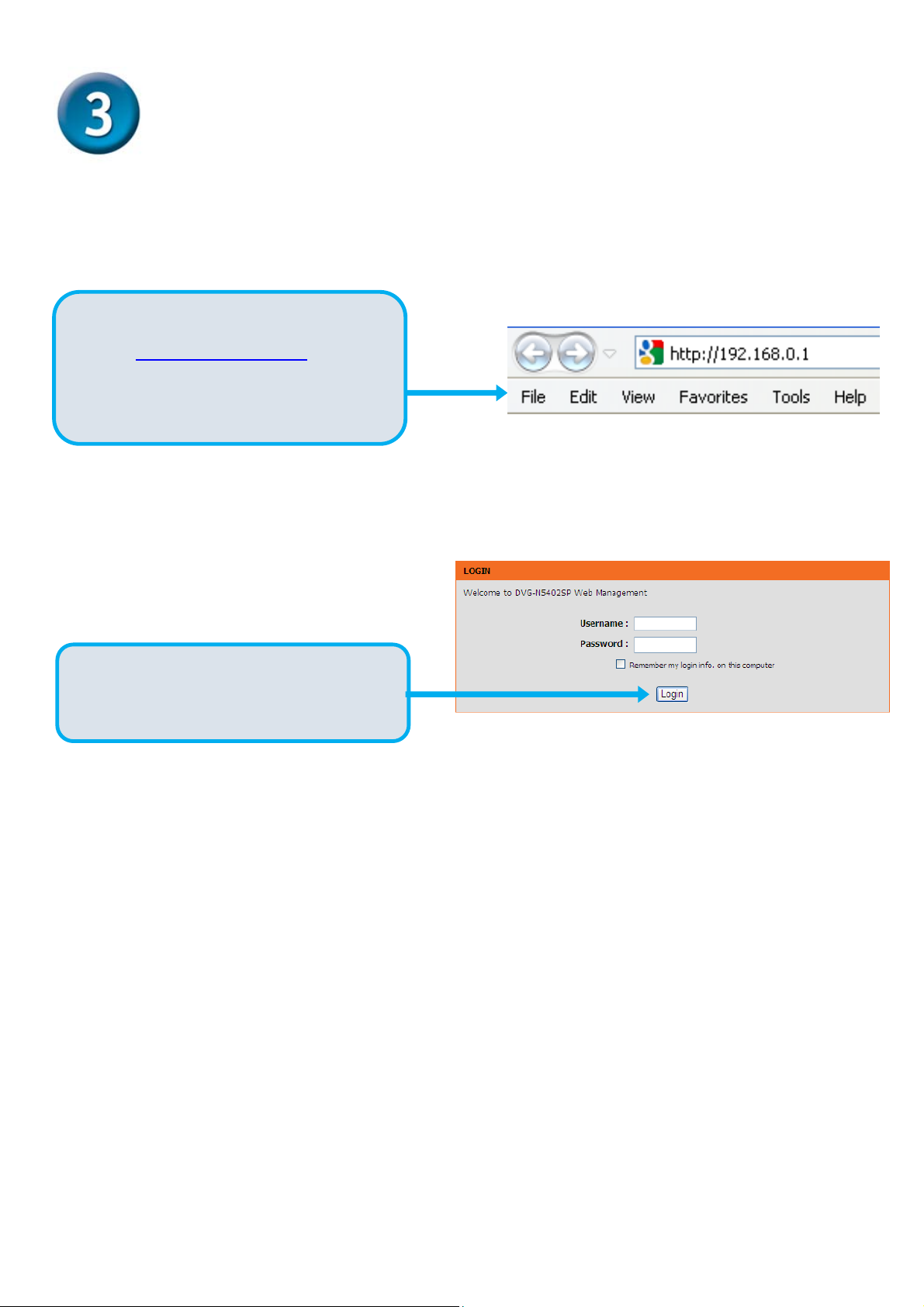

To access the web-based configuration utility, open a web browser such
as Internet Explorer and enter the IP address of the DVG-N5402SP.
Open your Web browser and
type http://192.168.0.1 into the
URL address box. Press the
Enter or Return Key.
Click Login to enter Web Site.
The default username and
password: admin/password

9
Configuration (continued)
The username of ADMIN and USE
R
have been defined and locked b
y
default. It is highly recommended to
create a login password to keep
your router secure.
Click Apply.
By Default, the wireless SSID will be
“DVG-N5402SP-XXXXXX”
And “XXXXXX” will be the last 6
digits of your MAC address located
below the device.

10
Configuration (continued)

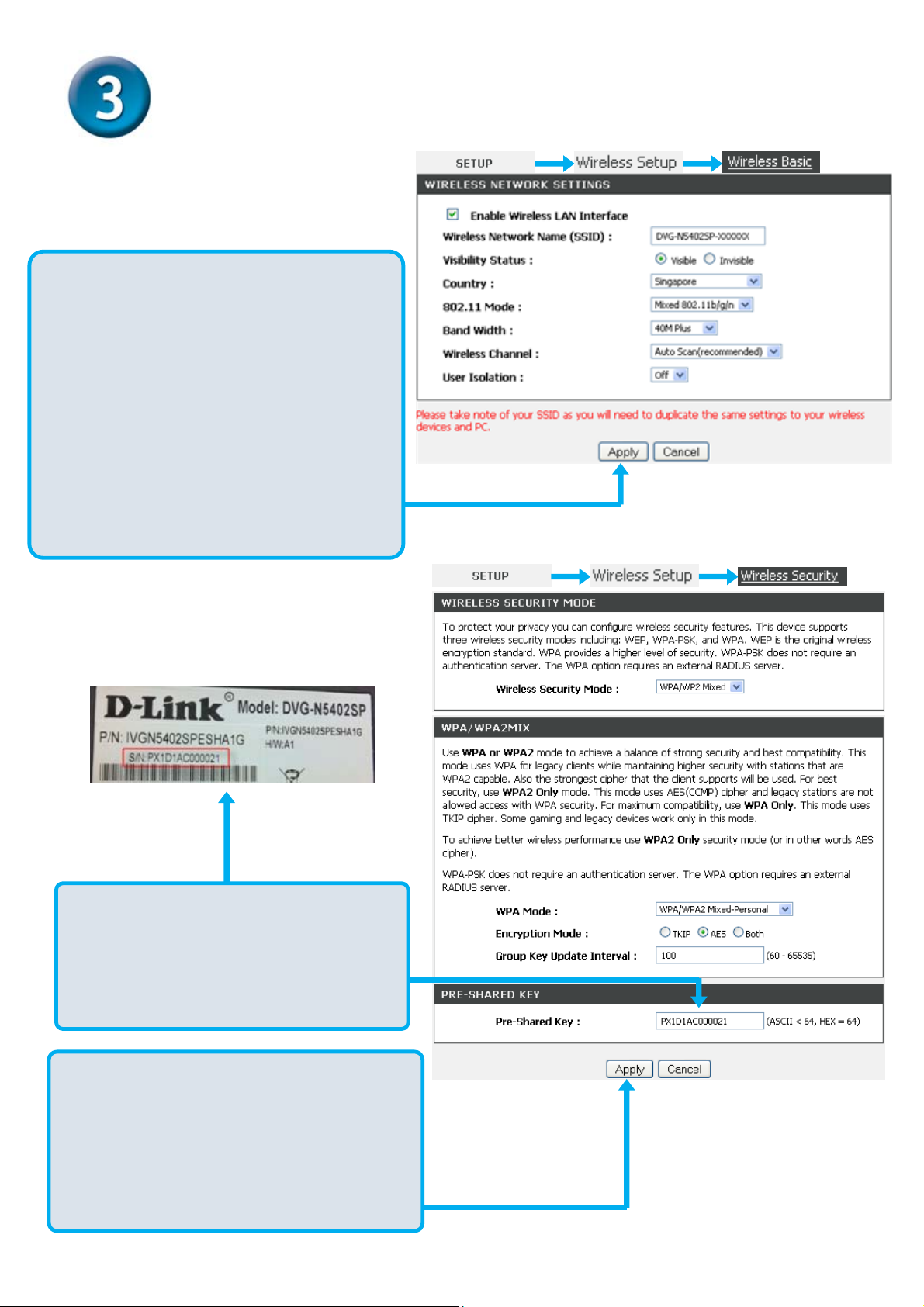

Enter the SSID to name your own
wireless network. All devices must
have the same SSID to
communicate on the wireless
network. Select a wireless channel.
Select the 802.11 Mode of your
network which can work in different
speed of wireless connection.
Click Apply.
Select your wireless security modes:
None, WEP, WPA only, WPA2
only or WPA/WPA2 Mixed for your
wireless network.
Click Apply
By default, there are no wireless
securities but by changing to
WPA/WPA2 Mixed, the Pre-
Shared Key will be the serial
number of your router.

11
Technical Support
You can find software updates and user documentation/manual on the
D-Link website.
Tech Support for customers within Singapore:
D-Link Technical Support over the Telephone:
Service Centre Hotline: [phone] [Press 1]
24x7 Technical Support Hotline: [phone]
D-Link Technical Support over the Internet:
www.dlink.com.sg/support/
email:[email protected]
