DAC Pedal Pro User manual

Pg. 1 visit us online @ www.dacsolution.com
Last modified: 9/11/14
Copyright© Digital Accessories Corporation. All Rights Reserved.
Information in this document is subject to change without notice. he software may be used or copied only in
accordance with the terms of the EULA. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or any means electronic or mechanical or photocopying and recording for any purpose other
than the purchaser’s personal use without the written permission of Digital Accessories Corporation.
Digital Accessories Corporation (DAC)

DAC Pedal Pro
Pg. 2 visit us online @ www.dacsolution.com
Getting Started
DAC Pedal Pro is an application that allows you to assign keystrokes to a 3 or 4 button DAC foot control. his
is helpful for a variety of applications that use hotkeys to perform functions. For example, with Dragon
speech recognition software, Pedal Pro can allow a button on the foot control to handle turning the
microphone on or off.
Pedal Pro is designed to run in the background and has an icon on the Windows taskbar. he hotkey
functions assigned to the foot control only work if Pedal Pro is running. In addition, Pedal Pro can only work
if the desired application either has focus to receive the keystrokes, or always monitors keystokes even
when running in the background (as Dragon speech recognition software does).
System equirements
Before installing, please make sure that your computer meets the following requirements:
• Windows XP SP3, Windows Vista SP1, Windows 7, or Windows 8
• 10 MB hard disk space
• 1024 x 768 resolution
• 1 USB port
• Internet access (to activate your product key)
Supported Foot Controls
Pedal Pro requires a DAC USB foot control for proper functionality. he DAC FP-110-USB (3 button model)
and DAC FP-110-USB4 (4 button model) are supported.

DAC Pedal Pro
Pg. 3 visit us online @ www.dacsolution.com
Installing
Step 1
Run the
installer.
You can do so from either the Install CD you received or a downloaded installer.
Step 2
Keep all of the defaults and simply click
Next
through each screen.
Step
3
Plug the
foot
control
into an empty USB
slot. he drivers will load automatically.
Note: If you are plugging the foot control into a
USB hub and are experiencing issues, please try
connecting it directly to the computer.
Installation is complete!
Step
4
When y
ou first open
Pedal Pro, it will
prompt you want to register and select
whether you are using a 3 or 4 pedal foot
control.
Select the foot control type that you are
using.
o register, enter your Product Key in the
box and click egister Now.
If you wish to register at a later time, you
can access registration from File> egister.
Installation is complete!

DAC Pedal Pro
Pg. 4 visit us online @ www.dacsolution.com
Configuring
Before you can begin to use DAC Pedal Pro, the foot control must be assigned hotkey functions. When you
first open the application, it will ask you to select whether you are using a 3 or 4 pedal foot control. After
that the main screen will open (4 pedal configuration shown below).
Each pedal on the foot control can be assigned a single
keystroke or a combination of keystrokes for when it is
pressed (the Depress value) and when you let off the
pedal (the elease value). You can leave a field blank
if desired and no function will be assigned to it.
Pedal Numbers
Each pedal on the foot control is assigned a number. o
know what number it is, simply press that particular
pedal and the pedal number box will light up. For
example, if the pedal lights up box 2, then to configure
that pedal you will set up the fields for section 2.
Label
he Label field allows a name to be assigned to each
pedal’s hotkeys. his allows you to easily determine
what function you have assigned to that pedal.
Depress
he Depress field holds the keystroke(s) that will be
sent when that pedal is pressed down. If you wish to
enter a special key (e.g. delete) select it from the
dropdown menu beside the field.
elease
he elease field holds the keystroke(s) that will be sent when that pedal is released (when you take your
foot off it). If you wish to enter a special key (e.g. delete) select it from the dropdown menu beside the
field.
Changing Foot Control Styles
If you have a 3 pedal foot control and have now changed to a 4 pedal style (or vice versa), you can easily
make this change from the menu bar. Simply click on Pedal Style and from the drop-down menu select your
new style. Pedal Pro automatically adjusts the number of hotkey fields available based on your selection.

DAC Pedal Pro
Pg. 5 visit us online @ www.dacsolution.com
Choosing Hotkeys
IMPO TANT!
Before you can configure Pedal Pro’s hotkeys, be sure to
quit the application that you will be using the foot control
with (e.g. Dragon speech recognition). If you do not, then
any keystrokes you enter as a hotkey for Pedal Pro will go
into that application, making it impossible to configure
Pedal Pro.
First, you need to determine the hotkey you want to
configure for each pedal on the foot control. o do this,
you will want to see what hotkeys are currently being used
by your application.

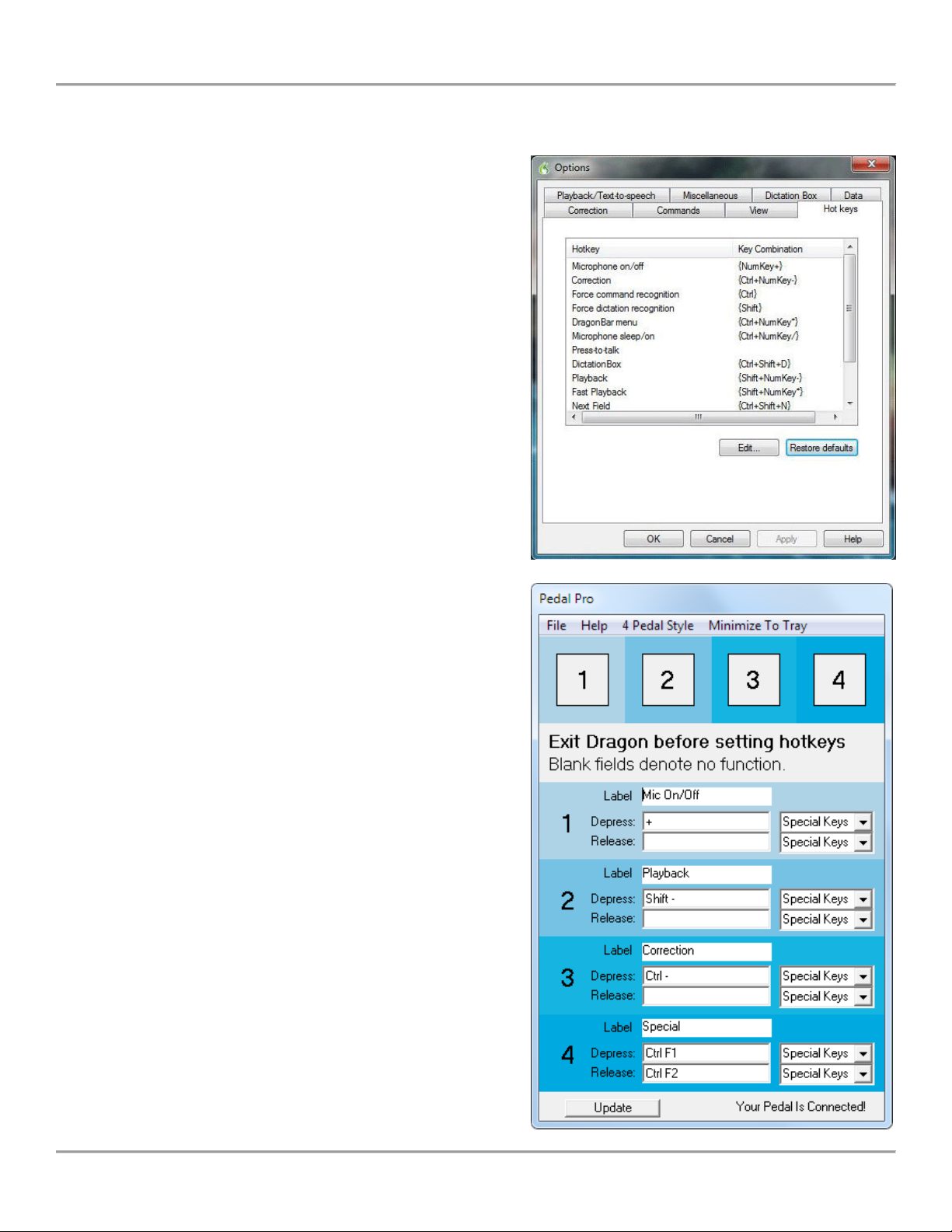

TIP - If you are using Dragon, the image to the right shows
the Hotkey configuration screen.
Pedal Pro only sends a hotkey when you use the foot
control. If you want to change the function that a
particular hotkey performs, this must be changed in the
desired application, not Pedal Pro.
Now that you have your hotkeys set up in your application,
you can assign them to the desired pedal on the foot
control in Pedal Pro.
1. Enter a name in the Label field (optional)
2. Enter a hotkey in the Depress and/or Release fields
3. Click Update to save your settings
Special keys can be selected from the dropdown menu (to
the right of each field) if needed. Each field is limited to
only 1 alphanumeric character. So your hotkey cannot be
A5, 12, or such. However, the hotkey can contain multiple
keystrokes when using special keys. For example, if you
want the hotkey to be SHIF +C RL+4, then simply press all
three of those keys on the keyboard at the same time and
it will be entered.

DAC Pedal Pro
Pg. 6 visit us online @ www.dacsolution.com
un at Startup
By default, Pedal Pro is configured to automatically run whenever your computer starts up. It is
recommended that this option be kept. his helps prevent the frustration of having the foot control not
respond because you forgot to launch Pedal Pro.
he automatic startup feature can be disabled or enabled at any time though. Simply go to File> un at
Startup. If the feature is enabled, a check mark will be beside the option. If there is not a check mark, then
the feature is currently disabled.
NOTE: Enabling/disabling the un at Startup feature requires administrator rights in Windows. If you are
logged in with a restricted user account, you may need your network administrator to re-open Pedal Pro for
you using an administrator account, and then make the change. his can be done by right-clicking Pedal
Pro’s icon and choosing un as administrator.
NOTE WINDOWS 8 USE S: For those using Windows 8, even if you are logged in as a user with full,
administrator rights, by default you will not have permission to change this setting. o do so, right-click
Pedal Pro’s icon and choosing un as administrator.
Check for Update
his can be accessed from File>Check for Update. It will open a webpage with a link to the latest version of
Pedal Pro. If it is newer than your current version, you may want to download the setup and run the
installer. his will update your version of Pedal Pro.

DAC Pedal Pro
Pg. 7 visit us online @ www.dacsolution.com
Troubleshooting
Issue
Installer runs with
errors.
Possible Cause
You do not have sufficient
security credentials to run the
installer.
Solution
Run the installer as an admin instead of a
restricted user.
Your
operating system is not
supported by Pedal Pro.
V
erify your operating system is listed under th
e
Getting Started section. If it is not, install on a
supported OS.
Issue
Pedal Pro will not
keep my settings
after being closed.
Possible Cause
You do not have sufficient
security permissions.
Solution
On the Pedal Pro application directory, assign Full
Control to your user account or group, or log into
Windows with an admin account.
Issue
The foot control is
not working (and
this is your first tim
e
using Pedal Pro).
Possible Cause
he drivers have not loaded.
Solution
Reboot your computer.
he USB port is bad.
Plug the foot
control
into a different USB port,
preferably one that you can verify is functioning
correctly.
You have the foot
con
trol
plugged into a USB hub.
Some USB hubs are not compatible with the foot
pedal. Plug the foot control directly into one of
your computer’s USB ports.
You
are not using a compatible
foot control.
Verify that you are using a DAC FP
-
110
-
USB or DAC
FP-110-USB4.
Issue
The foot control is
not working (but it
worked previously).
Possible Cause
Pedal Pro is not running.
Solution
Open the Pedal Pro application.
he USB port is bad.
Plug the foot
control
into a different USB port,
preferably one that you can verify is functioning
correctly.
he application for Pedal Pro is
either not running or requires
focus but does not have focus.
Open the application Pedal Pro sends hotkeys to.
If it is already open, it may require focus. If so,
make sure the application is not minimized but is
on top of all other programs and windows.
