Technical Manual
Range Models: ER30D, ER36D, ER48D

Page 7-1
SECTION 7 - TROUBLESHOOTING GUIDE
Section 7 - Troubleshooting Guide
Control Panel Error Codes
The error codes below apply to both models ER36D and ER48D.
General Error Codes
The following codes give a general indication of the location of problems detected by the control panel
controller board. They are usually followed by another, more specific error code (see below).
ERROR CODE GENERAL LOCATION
F1 INTERNAL
F2 COMMUNICATION BETWEEN CONTROL PANEL AND RELAY BOARD
F3 EXTERNAL
F9 DOOR LOCK
Specific Error Codes
ERROR CODE POSSIBLE CAUSES POSSIBLE SOLUTIONS
F10
Shorted element relay. Replace power board.
Intermittent temperature sensor or loose
sensor wiring.
Tighten sensor connections for
replace temperature sensor.
F11 Shorted key (button) on keypad membrane. Replace keypad membrane.
F13 Control panel failure. Replace power board.
F14 Defective power board. Replace power board.
F15 Defective power board. Replace power board.
F20
Data cable between relay board and control
panel loose or defective.
Tighten connections, replace if
necessary.
Defective control panel circuit board. Replace control panel circuit board.
F30 Shorted temperature sensor. Replace sensor.
Shorted temperature sensor wiring. Repair sensor wiring.
F31 Open temperature sensor. Replace sensor.
Open temperature sensor wiring. Replace sensor wiring.
F32
Data cable between relay board and control
panel loose or defective.
Tighten connections, replace if
necessary.
Defective membrane. Replace membrane.
F90 Cables to door latch loose or defective. Tighten connections or repair cable.
Defective door latch assembly. Replace door latch assembly.
F95 Defective power board. Replace power board.
IMPORTANT
While this troubleshooting guide provides information to aid in troubleshooting problems with
the range, it does not contain information on every possible type of failure.
See Appendix A to determine when elements and convection fan should be on or off.
•
•

Page 7-2
DACOR RANGE SERVICE MANUAL
Basic Troubleshooting Instructions
If the range does not function properly, check for obvious problems first, such as the main power
switch being turned off, or the control panel being locked.
If the problem is not immediately obvious, use the Performance Tests in Appendix B and consult
the Troubleshooting Chart on the following pages to help locate the problem.
Troubleshooting Chart - Oven
PROBLEM POSSIBLE CAUSES WHAT TO CHECK
Nothing works, no power
to the range, control panel
display is dark, burners do
not spark, burner knobs
don’t light when turned
on.
Range not connected to
electrical power.
Conduit or appliance wire connection.•
Power to range is off. Tripped circuit breaker or blown fuse.•
Power outage. Contact power company.•
Wiring problems. Check wiring harness.•
Oven will not heat.
Cooktop works OK. Control
panel lit. Oven controller
beeps when keys are
pressed.
Oven setting not
correct.
Press CANCEL/SECURE, then follow instructions in
Operating the Oven section of this manual.
•
Oven set for delay
timed cooking.
Oven will turn on automatically at preset time. Press
CANCEL/SECURE to return to normal operation.
•
Attempting to broil with
meat probe connected.
Broil and convection broil settings will not work when
meat probe is connected. Disconnect meat probe.
•
Power board problems. Power board wiring.
Power board.
•
•
Bad heating element. Check Cycling Chart (Appendix A) to determine
elements used during the mode that is not working.
Check continuity.
•
High limit switch
tripped or defective.
Wires to high limit switch.
High limit switch.
•
•
Oven does not heat,
display is lit. Cooktop
works OK. Control panel
does not beep when keys
are pressed.
Power board problems. Power board.•
Control panel locked-
up.
Cycle power. Check range to see if normal operation
resumes.
•
Control panel
problems.
Cable from power board to oven controller board.
Oven controller board.
Cable from oven controller board to keypad membrane.
Keypad membrane.
•
•
•
•
Oven does not heat,
display is not lit. Cooktop
works OK. Control panel
does not beep when keys
are pressed.
Power board problems. Wiring to power board
Power board
•
•
Control panel locked-
up.
Cycle power. Check range to see if normal operation
resumes.
•
Control panel
problems.
Cable from power board to oven controller board.
Oven controller board.
Cable from oven controller board to keypad membrane.
Keypad membrane.
•
•
•
•
1.
2.

Page 7-3
SECTION 7 - TROUBLESHOOTING GUIDE
Troubleshooting Chart - Oven (continued)
PROBLEM POSSIBLE CAUSES WHAT TO CHECK
Time on display not
correct.
Time of day not set. Set time.•
Power failure or power was
turned off.
Reset time.•
Control panel problems. Oven controller board.•
Time flashes on display. Power failure or power was
turned off.
Reset time.•
Control panel problems. Cable from power board to oven controller board.
Oven controller board.
Cable from oven controller board to keypad
membrane.
Keypad membrane.
•
•
•
•
Oven does not self-
clean. Display is lit.
Oven controller beeps
when keys are pressed.
Cooktop works OK.
Door not shut tightly. Check for obstructions. Close door tightly.•
Oven set for delay timed
cleaning.
Oven will start to self-clean at preset time. Press
CANCEL/SECURE to return to normal operation.
•
Model ER48D only: Other
oven is on or self-cleaning.
Due to power consumption on model ER48D, one
oven cannot self-clean while the other is in use or
self-cleaning. Turn off other oven.
•
Oven not set properly. Follow instructions in Cleaning and Maintenance
section.
•
Meat probe connected. Oven will not start self-clean cycle when meat probe
is connected. Disconnect and remove meat probe.
•
Door latch problems. Door latch wiring.
Door latch and switches.
•
•
High limit switch tripped or
defective.
Wires to high limit switch.
High limit switch.
•
•
Power board problems. Power board wiring.
Power board.
•
•
Control panel problems. Oven controller board.
Cable from oven controller board to keypad
membrane.
Keypad membrane (self-clean key).
•
•
•
Oven lights will not work.
Oven heats normally and
cooktop works OK.
Light bulbs burned out. Replace light bulbs. See Cleaning and Maintenance
section.
•
Oven in self-clean mode. Lights do not work when oven is in self-clean mode.•
Light fixture/wiring
problems.
Light wiring harness.
Light fixture.
•
•
Light transformer. Wiring between transformer and power board.
Transformer.
•
•
Power board problems. Wiring to power board.
Power board.
•
•
Control panel problems. Oven controller board.
Cable from oven controller board to keypad
membrane.
Keypad membrane.
•
•
•

Page 7-4
DACOR RANGE SERVICE MANUAL
Troubleshooting Chart - Oven (continued)
PROBLEM POSSIBLE CAUSES WHAT TO CHECK
Foods over or under cook. Incorrect cooking time or
temperature.
Follow instructions in Operating Instructions section.•
Items not being cooked on
rack level that will provide
best results.
See Understanding the Various Cooking Modes
section.
•
Food placed in oven during
pre-heat.
Make sure pre-heat indicator on display is off before
putting food in oven (does not apply to broil modes).
•
Oven set to incorrect
temperature scale.
See Setting the Temperature Scale section.•
Relay stuck closed on
power board.
Power board.•
Defective temperature
sensor.
Temperature sensor.•
Elements not wired
correctly.
Check for correct element wiring.•
Cooling fan continues
to run after oven is
turned off. Shuts off after
extended period of time.
Normal operation. The cooling fan may run for a while after the oven is
turned off, until the internal parts have cooled.
•
Cooling fan runs
continuously after oven is
off and does not shut off
after an extended period
of time.
Power board problems. Power board.•
Defective temperature
sensor.
Temperature sensor.•
Control panel problems. Cable from power board to oven controller board.
Oven controller board.
•
•
Oven door will not open. Oven is set to self-clean. Check display. If “LOCK” appears on display oven
door cannot be opened. Wait for oven to complete
self-clean or press CANCEL/SECURE. Door will
unlock once oven has cooled.
•
Door latch problems. Door latch wiring.
Door latch and switches.
•
•
Power board problems. Power board.•
Meat probe does not
work.
Meat probe not plugged in. Make sure meat probe is plugged into meat probe
connector.
•
Meat probe defective. Check meat probe continuity.•
Meat probe connector
problem.
Wiring from meat probe to power board.
Power board.
•
•

Page 7-5
SECTION 7 - TROUBLESHOOTING GUIDE
Troubleshooting Chart - Cooktop
PROBLEM POSSIBLE CAUSES WHAT TO CHECK
Igniters do not spark.
Control panel is dark.
Range not connected to
electrical power.
Have electrician connect range to properly wired
electrical connection.
•
Power to range is off. Turn power on at junction box. Check for tripped circuit
breaker or blown fuse.
•
Power outage. Contact power company.•
Igniters do not spark.
Control panel is lit.
Wet or dirty igniter. Clean according to Cleaning and Maintenance section.•
Spark module problems. Wiring between terminal blocks below access panel
and spark module (including switches mounted to the
valves).
Wiring between spark module and igniter.
Spark module.
•
•
•
No flame. Igniter(s) not working (no
clicking sound).
See igniters do not spark above.•
Wet or dirty igniter. Clean according to Cleaning and Maintenance section.•
Gas is turned off. Make sure the gas supply valve is in the on position.•
Gas supply interrupted. Contact gas company.•
Gas supply pressure too
low.
Make sure gas supply to building meets the Gas Supply
Requirements in the installation section.
•
Defective regulator. Gas supply regulator.•
Flame yellow at tips. LPG gas supply. Slightly yellow tips are normal for range equipped for
use with LPG.
•
Large, erratic, or yellow
flame.
Dirty burner assembly. Make sure burner bases, burner heads, burner rings,
and burner caps are free of grease and grime. See
Cleaning and Maintenance.
On stack burners, make sure the main orifice in the
bottom of the burner base is not plugged up.
•
•
Burner ring or burner cap
not properly positioned.
Make sure burner is assembled according to the
Installation Instructions section.
•
Range not equipped for
correct altitude or gas type
(natural gas or LPG).
Determine if range is properly equipped for type of
gas being used and for the correct altitude range. See
Model Identification section.
•
Crown burner venturi out
of adjustment.
Check venturi opening. See Component Repair section.•
Low gas pressure. Make sure gas supply to building meets the Gas Supply
Requirements in the installation section.
•
Defective regulator. Gas supply regulator.•

Page 7-6
DACOR RANGE SERVICE MANUAL
Troubleshooting Chart - Cooktop
PROBLEM POSSIBLE CAUSES WHAT TO CHECK
Igniter continues to
spark (click) after
flame ignites.
Burner is cold. Burners may continue to spark for up to 60 seconds
when cold and set to low. See Operating the Cooktop
section for more information on how to minimize.
•
Flame distorted by air
draft.
Minimize any air drafts around the range. Close nearby
windows.
•
Wet or dirty igniter. Clean according to Cleaning and Maintenance section.•
Burner ring or burner cap
is dirty.
Clean according to Cleaning and Maintenance section.•
Burner ring or burner cap
not properly positioned.
Make sure burner is assembled according to the
Installation Instructions section.
•
Improper electrical
polarity.
Electrical wiring reversed. See Electrical Connection in
Installation Instructions section.
•
Flame goes out at low
setting.
Air intake holes
obstructed.
Check to make sure air holes above knobs are not
blocked.
•
Low gas pressure. Make sure gas supply to building meets the Gas Supply
Requirements in the installation section.
•
Burner knob does not
light.
LED harness problems. LED wiring harness connection.
LED wiring harness wires open.
•
•
LED defective. LED continuity.•
Accessing Software Version Information
To access to read the software versions loaded on the various printed circuit boards:
Disconnect power to the range for 20 seconds, then reconnect.
Within the first 30 seconds after power up, press and hold the BAKE and BROIL keys for at least
6-10 seconds to enter diagnostic mode.
Press START to read the EEPROM version on the control board.
Press PROBE to read the FLASH version on the control board.
Press SELF-CLEAN to read the software version on the power board.
Press CANCEL/SECURE twice to exit diagnostic mode.
1.
2.
3.
4.
5.
6.

Page 8-1
SECTION 8 - RANGE DISASSEMBLY
Section 8 - Range Disassembly
Open the oven door completely.
Pull the hinge locks forward on both hinges,
until they stop.
•
•
DANGER
Turn off electrical power at the main power supply and the gas supply at the gas supply valve
before servicing the range. Failure to turn off electrical power and the gas supply to the range
will result in a electric shock and explosion hazard.
•
Door Removal
WARNING
Do not attempt to disengage the hinge locks on the door while it is removed from the oven. The
hinge springs could release, causing personal injury.
Do not lift or carry the oven door by the door handle.
•
•
Raise the door so that it is at a 15° angle
from the front of the oven. Hold the door with
one hand on each side. Lift the door up and
out.
•

Page 8-2
DACOR RANGE SERVICE MANUAL
Grasp the oven door on opposite sides and
hold it at a 15°angle from the front of the
oven. Slide the hinges A into the hinge
openings B , resting the bottom of the hinge
arms C on the lower lip D of the hinge
receptacles. Continue to hold the door at a
15°angle with one hand while pushing in on
each of the bottom corners of the door. Push
until the notch E on the bottom of each
hinge slips over the lower lip D of each
hinge receptacle.
Lower the door to the fully opened position.
Rotate both hinge locks toward the oven.
Open and close the door completely to ensure
that it is properly installed.
•
•
•
•
WARNING
Be sure that the notch on the bottom of each hinge rests on top of the lower lip of each hinge
receptacle before attempting to open the oven door. Failure to do so may cause the door to fall
off its hinges, resulting in personal injury or damage to the door.
Rotate the hinge locks toward the front of the range immediately after installation of the door.
Failure to do so may cause the door to fall off its hinges, resulting in personal injury or damage
to the door.
•
•
Door Installation
A
C
E
B
D

Page 8-3
SECTION 8 - RANGE DISASSEMBLY

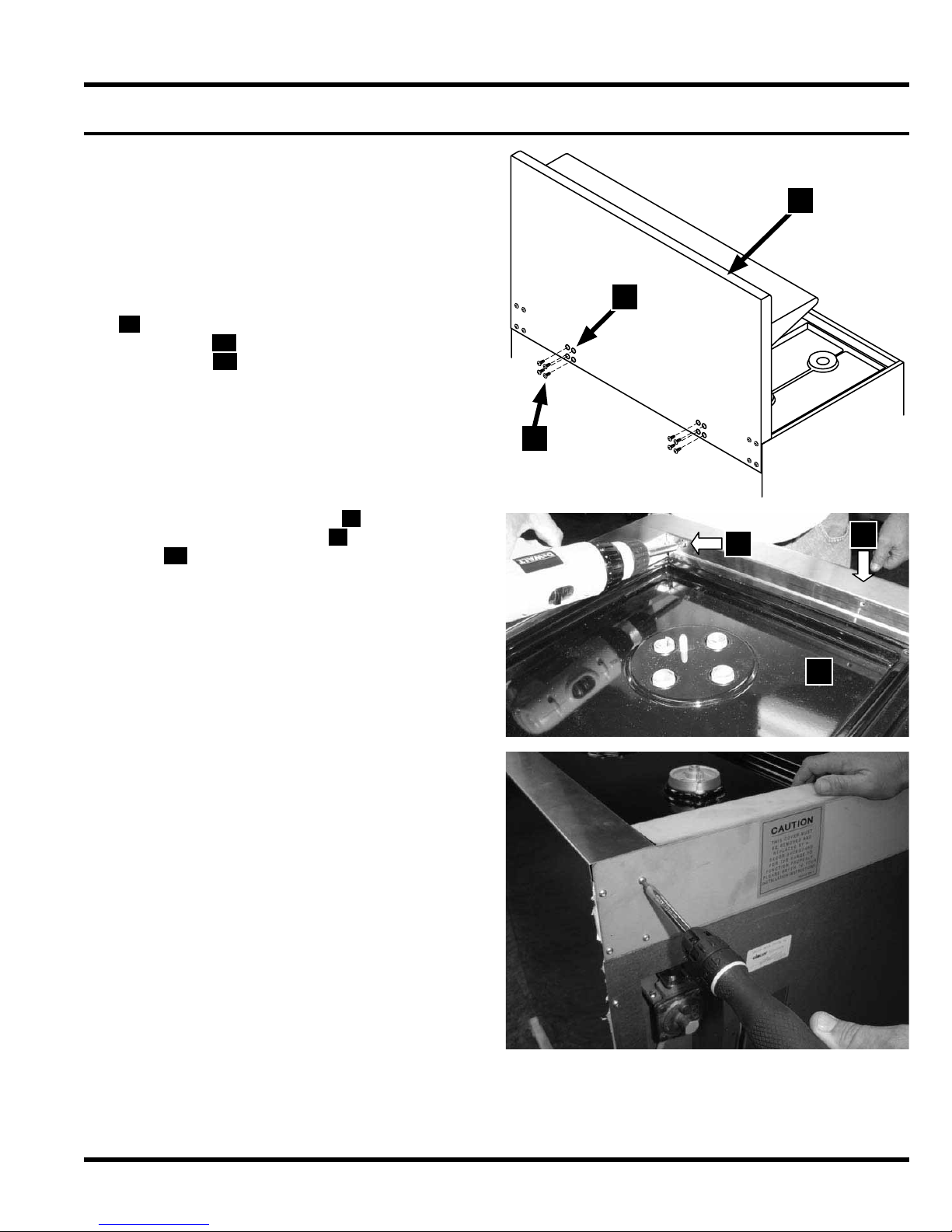

Removing the Back Panel
Turn off the gas supply at the gas supply
valve and power to the range at the junction
or fuse box.
Pull the range out from the wall or cabinet.
Remove the grates, the burner caps, burner
rings, and crown burner heads from the
cooktop.
If the range is equipped with a 24” backguard
F, remove the eight (8) backguard bracket
hex screws G. They are accessed through
the 8 holes H on the back of the backguard.
•
•
•
•
Remove the five (5) screws Ion the front of
the island trim/backguard J, above the spill
trays K.
•
Remove the eight (8) screws on the back side
of the island trim/backguard, four (4) on each
side of the range.
•
G
H
F
IJ
K

Page 8-4
DACOR RANGE SERVICE MANUAL
Pull the island trim/backguard J up and off
the range.
Remove the stainless steel spill tray trim piece
L.
•
•
Remove the electrical access panel cover N
by removing the two (2) screws Mthat hold
it in place.
Remove the two (2) screws Oon the
sides of the electrical access panel. It is not
necessary to remove the gas regulator access
panel cover P.
•
•
Remove all of the remaining screws from the
back panel and pull it off.
•
J
L
M
M
N
OO
P
Removing the Back Panel (continued)

Page 8-5
SECTION 8 - RANGE DISASSEMBLY
Remove the end cap.•
Removing the Side Panel(s)
Loosen the end cap set screws Bthrough
the access holes Con the bottom of the
front panel lip D.
•
D
B
C
Turn off the gas supply at the supply valve
and power to the range at the junction or fuse
box.
Pull the range out from the wall or cabinet
Remove all of the screws from the edge of the
back panel A on the same side of the range
as the side panel being removed.
•
•
•A

Page 8-6
DACOR RANGE SERVICE MANUAL
Remove the grates, the burner caps, burner
rings, and crown burner heads from the
cooktop.
Remove the screws above the spill tray that
hold the side panel in place.
•
•
Lift the side panel off of the range.•
Remove the side panel screw inside the front
panel lip.
•
Removing the Side Panel(s) (continued)

Page 8-7
SECTION 8 - RANGE DISASSEMBLY
H
I

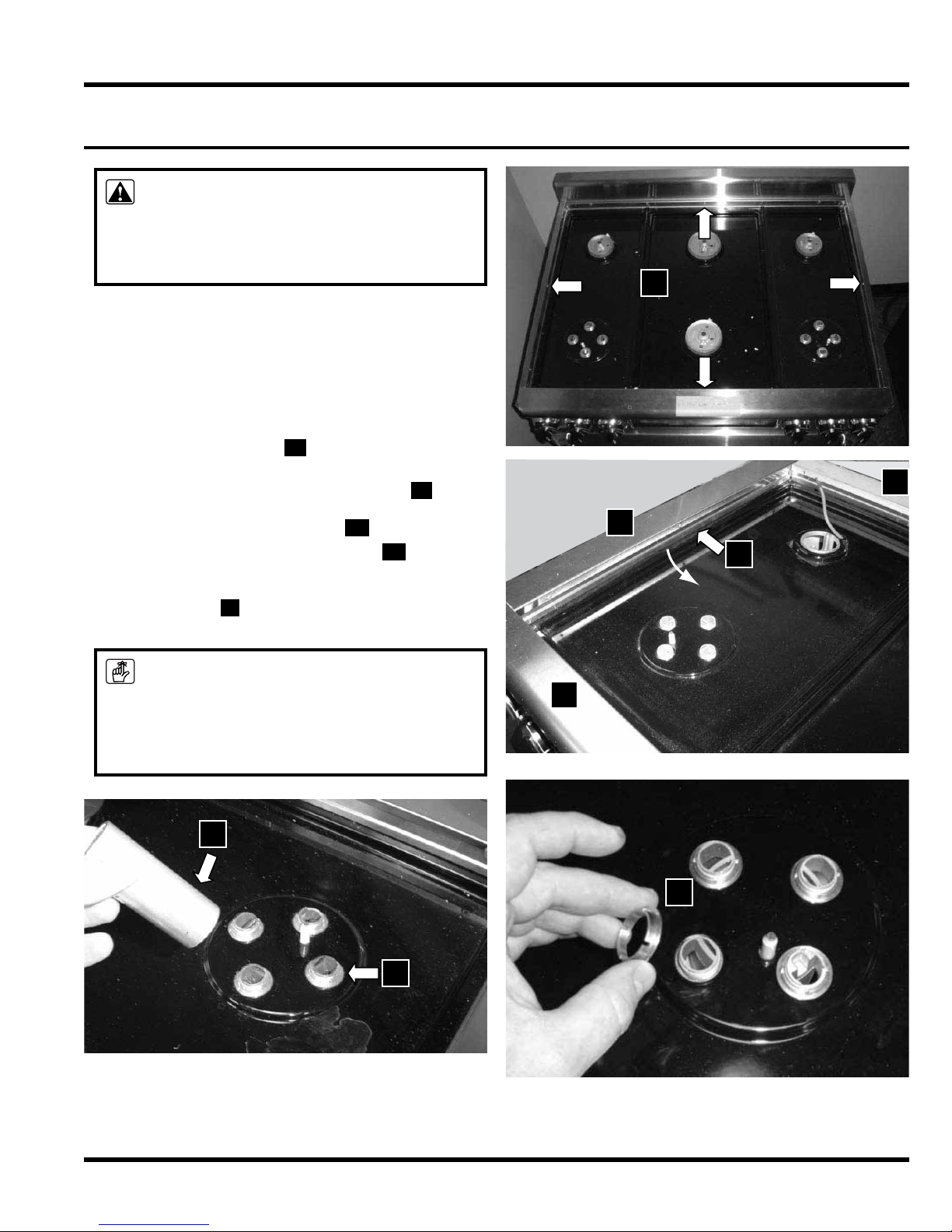

Removing the Spill Trays
Turn off the gas supply at the supply valve
and power to the range at the junction or
fuse box.
Remove the grates, the burner caps, burner
rings, and crown burner heads from the
cooktop.
Remove the spill tray trim screws, located
above the spill trays E, from the back,
front, and side panels.
Slip all four (4) spill tray trim pieces F that
were held in place by the screws out of the
side, front, and back panels G.
Use the thread ring removal tool H(Dacor
part# 101539, included with range, see
page 3-6 for location) to remove all four (4)
thread rings Ifrom the crown burner bases
(eight [8] thread rings total).
•
•
•
•
•
E
I
G
F
G
G
NOTE
Dacor recommends using anti-seize
grease on the thread rings during
reassembly. Doing so will make future
disassembly easier.
•
CAUTION
Take care when disassembling the spill
tray. Many of the spill tray components
are porcelain coated and can chip.
•

Page 8-8
DACOR RANGE SERVICE MANUAL
Remove the screws from the stack burner
heads H(eight [8] screws total).
•
Remove each of the stack burner heads.
When removing the head, disconnect the
igniter wire from each one.
•
Gently lift up on the back of one of the
porcelain trim pieces Iwhere the spill trays
Jcome together. Pull it toward the back of
the range and out of the stainless steel trim
piece above the front of the spill tray. Be
careful not to chip the porcelain.
Repeat for the remaining porcelain trim piece.
•
•
To remove the spill trays, pull up on the
back of each spill tray and slip it out of the
stainless steel trim piece toward the front
of the range. Be careful not to chip the
porcelain.
•
H
IJ
J
Removing the Spill Trays (continued)

Page 9-1
SECTION 9 - COMPONENT REPAIR
Section 9 - Component Repair
Door Gasket (seal)
Remove the oven door. See the Door Removal
section on page 8-1.
Lay the door on a flat, padded surface with
the door gasket Afacing up.
Remove the gasket by grasping sections of it
and pulling up.
Insert the self-locking tabs on the
replacement gasket into the holes on the
oven door. Check to make sure that all of the
self-locking tabs are firmly in place by pulling
gently on the gasket.
Reinstall the oven door. See the Door
Installation section on page 8-2.
•
•
•
•
•
DANGER
Turn off electrical power at the main power supply and the gas supply at the supply valve
before servicing the range. Failure to turn off electrical power and the gas supply to the range
will result in a electric shock and explosion hazard.
•
Door Component Repair
WARNING
Do not attempt to disengage the hinge locks on the door while it is removed from the oven. The
hinge springs could release, causing personal injury.
Do not lift or carry the oven door by the door handle.
•
•
Door Handle (ER48D)
Remove the oven door. See the Door Removal
section on page 8-1.
Lay the door on a flat, padded surface with
the door gasket facing up.
Remove the two (2) screws Bin the top
corners of the door.
Grasp the door with one hand and pull up.
Pull the door handle out from underneath.
To reinstall the door handle, grasp the door
with one hand and pull up. Hold the handle in
position on the front. Lower the door onto the
padded surface.
Replace the two (2) screws in the top corners
of the door and tighten into place. Do not
over-tighten the screws. The front door glass
could crack.
Reinstall the oven door. See the Door
Installation section on page 8-2.
•
•
•
•
•
•
•
A
BB

Page 9-2
DACOR RANGE SERVICE MANUAL
Door Handle (ER36D)
Remove the oven door. See the Door Removal
section on page 8-1.
Lay the door on a flat, padded surface with the
door gasket facing up.
Remove the two (2) door handle screw
plugs X . The door handle mounting screws
are located below the plugs.
Remove the two (2) door handle screws Y.
Do not remove the door liner screws B .
Grasp the door with one hand and pull up. Pull
the door handle out from underneath.
To reinstall the door handle, grasp the door
with one hand and pull up. Hold the handle in
position on the front. Lower the door onto the
padded surface.
Replace the two (2) screws in the top corners
of the door and tighten into place. Do not
over-tighten the screws. The front door glass
could crack.
Reinstall the door handle screw plugs.
Reinstall the oven door. See the Door
Installation section on page 8-2.
•
•
•
•
•
•
•
•
•
B
BX
Y
X
Y

Page 9-3
S
E
C
TI
ON
9
-
C
O
M
P
O
NE
N
T
R
EPAIR
Front Door Glass Assembly
Front Door Glass Assembly
R
em
o
v
e the
o
v
e
n
doo
r. See the D
oo
r Rem
o
v
a
l
section on page 8-1.
L
ay the door, handle down, on a flat, padded
sur
f
ace with the door gasket
f
acing up.
R
emo
v
e t
h
e two
(
2
)
screws Bin t
h
e to
p
co
rners
o
f the
doo
r.
On ER48D Only:
G
ras
p
the to
p
end o
f
the
d
oor wit
h
one
h
an
d
an
d
p
u
ll
u
p
. Pu
ll
t
h
e
d
oo
r
h
a
n
d
le
ou
t fr
o
m
u
n
d
erne
a
th
.
Gras
p
the to
p
o
f
the door with both hands
a
n
d
turn it o
v
er on the
p
added surface so that
t
h
e door
g
asket fa
c
es
u
p
.
R
em
o
v
e
the two
(
2
)
inner screw
s
C
o
n the
bottom of the door. The outer screw
s
D
on
the bottom of the door are part of the hin
g
e
a
ssembl
y
. Do not rem
o
v
e
th
e
m
.
•
•
•
•
•
•
Door Component Repair
Door Component Repair
(continued)
(continued)
WARNING
To pre
v
ent persona
l
in
j
ury, use
gl
o
v
e
s
w
hen handlin
g
g
lass components that are
broken or shattered.
•
BB
C
C
D
C
Grab the
f
ront door glass assembly with both
h
an
d
s an
d
rem
o
v
e
i
t.
On ER36D Only
y
:
R
em
o
v
e
the two (2) door
handle screw plugs X
.
The door handle
mountin
g
screws are
l
ocate
d
b
e
l
ow t
h
e p
l
u
g
s
(
see
f
acin
g
pa
g
e).
R
em
o
v
e
the two (2) door
handle screws Y
.
D
o no
t
r
emo
v
e the door
l
iner screws B . Assem
bl
e t
h
e
d
oor
h
an
dl
e to
the new
f
ront door
g
lass assembl
y
.
Replace
the plugs
•
•

Page 9-
4
D
A
C
OR
R
ANGE
R
R
S
ERVI
C
E
M
ANUAL
When putting the
f
ront door glass assembly
back in
p
lace, be careful not to knock loose
the door spacers which are
g
lued to the top
co
r
ne
r
s
. Also, make sure the tabs E
o
n the
bottom rest on the outside of the door liner
.
R
einst
a
ll the screws
o
n the
bo
tt
o
m
o
f the
d
oor, then grasp the top o
f
the door with both
h
an
d
s an
d
turn it
o
v
e
r.
On ER48D Only
y
: Hold the top end of the doo
r
u
p with one hand. Position the handle unde
r
t
h
e
d
oor an
d
l
ower t
h
e
d
oor on to
p
. Re
pl
ace
t
h
e
h
an
dl
e screws. Do not
o
v
e
r-ti
gh
ten.
R
einst
a
ll the
o
v
en
doo
r. See the
Doo
r
Insta
ll
ation
s
ection on page 8-2
.
•
•
•
•
Door Hinges
Door Hinges
R
em
o
v
e the
o
v
e
n
doo
r. See the D
oo
r Rem
o
v
a
l
section on page 8-1.
L
ay the door, handle down, on a flat, padded
sur
f
ace with the door gasket
f
acing up.
R
emo
v
e t
h
e two
(
2
)
screws B in t
h
e to
p
co
rners
o
f the
doo
r.
On ER48D Only
y
:
G
rasp the top end o
f
the
d
oor wit
h
one
h
an
d
an
d
p
u
ll
u
p
. Pu
ll
t
h
e
d
oo
r
handle out from underneath
.
Grasp the top o
f
the door with
bo
t
h
h
a
n
d
s
a
nd turn it o
v
er on the
p
added sur
f
ace so that
the door
g
asket faces up
.
R
em
o
v
e the two (2) inner screws C
o
n the
bottom o
f
the door. The outer screws D
on
the bottom of the door are part of the hin
g
e
a
ssembly. Do not rem
o
v
e
them
.
•
•
•
•
•
•
E
Door Component Repair
Door Component Repair
(continued)
(continued)
BB
D
C
C
C
Continued..
.

Page 9-5
SECTION 9 - COMPONENT REPAIR
Door Hinges (continued)
Grab the front door glass assembly with both
hands and remove it.
•
Remove the two (2) hinge cover screws F
over the hinge to be removed and pull off the
hinge cover G.
Remove the hinge retainer screw Hfor the
hinge to be removed.
•
•
Carefully pry up the hinge Iup and out of
the door.
After installing the hinge, replace the hinge
cover and the three (3) screws that hold the
hinge assembly in place.
Reassemble the door. When putting the front
door glass assembly back in place, be careful
not to knock loose the door spacers which are
glued to the top corners. Also, make sure the
tabs E on the bottom rest on the outside of
the door liner.
Reinstall the screws on the bottom of the
door, then grasp the top of the door with both
hands and turn it over.
On ER48D Only: Hold the top end of the door
up with one hand. Position the handle under
the door and lower the door on top. Replace
the handle screws. Do not over-tighten.
Reinstall the oven door. See the Door
Installation section on page 8-2.
•
•
•
•
•
•
F
H
F
F
F
GG
H
I
E
