REFRIGERATION
DACOR is in the details

FRESH is in the details

refrigeration
There’s cool. And then there’s cool. Cool as in temperature
and cool as in “Hey, that’s pretty cool.” And no matter which
model of our state-of-the-art refrigerators you choose,
you’ll find the perfect blend of both cools as you discover
that keeping cool has never looked so cool.

EPICURE®48" BUILT-IN SIDE-BY-SIDE REFRIGERATOR WITH WATER & ICE DISPENSER |EF48NBSS
4

48"/42" built-in
refrigeration
To us the why is just as important as the what. It’s our passion for details that
makes our side-by side Built-In Refrigerator so extraordinary. Want to keep your
food fresher? The Ingredient Care CenterTM offers temperature controlled drawers
to maintain texture and taste. Want to keep things cool? Easy-to-use Electronic
Touch Controls let you know when the temperature rises above the optimum levels.
You want to see what you’re doing? White lighting provides improved illumination.
CHOOSE THE EPICURE OR
INTEGRATED STYLE THAT
ACCOMMODATES A CUSTOM
FRONT PANEL TO MATCH
YOUR KITCHEN CABINETRY.
INGREDIENT
CARE CENTER
Electronically controlled,
temperature adjustable
drawers keep food fresh with
a cold air flow between the
freezer and the refrigerator.
Adjust the controls for more or
less flow through the air duct,
so it’s perfect for everything
from cheese to meats,
even produce.
ELECTRONIC TOUCH
CONTROLS
ADJUSTABLE GALLON
DOOR BIN
CRISPER AND
DELI DRAWERS
There’s nothing this door
can’t handle. Big or small. Two
liters and gallons. Adjust the
shelving accordingly for added
convenience. Great for milk
and larger bottles of water.
There’s no such thing as
too convenient. Our state-of-
the-art drawers allow you to
see their contents easily from
the outside, while the gliding
system allows you to open
and close them with ease.
Easy to use controls will sound
an alert if either door is left
open. This feature will also beep
if it rises above the appropriate
temperature for longer than
1 1/2 hours. While Max CoolTM
assists with periods of heavy
ice usage, full grocery loads, or
a spike in a room temperature.
DACOR |REFRIGERATION
5

EPICURE®36" BUILT-IN WITH BOTTOM FREEZER |EF36RNBSS
6

INTEGRATED TAILOR-MADE
PANELS COUPLED WITH
INGENIOUS FLUSH-MOUNT
DESIGN CREATES TASTEFUL
LOOK TO MATCH YOUR KITCHEN.
Remodeling? Renovating? Either way it’s no problem with this new offering from
Dacor. Our newest line of food preservation systems will fit into virtually any
standard sized opening. And being the first ENERGY STAR®Qualified standard
built-in, it uses 41% less energy. Our newest line is not just about preserving your
food, it’s about preserving your tomorrow.
36" built-in refrigeration
ENERGY STAR
QUALIFIED
Keep your food fresh, while
keeping green. Promote
cleaner air without sacrificing
quality. By choosing a Dacor
refrigerator, you’re choosing
an appliance that uses at
least 41% less energy than
our competitors.

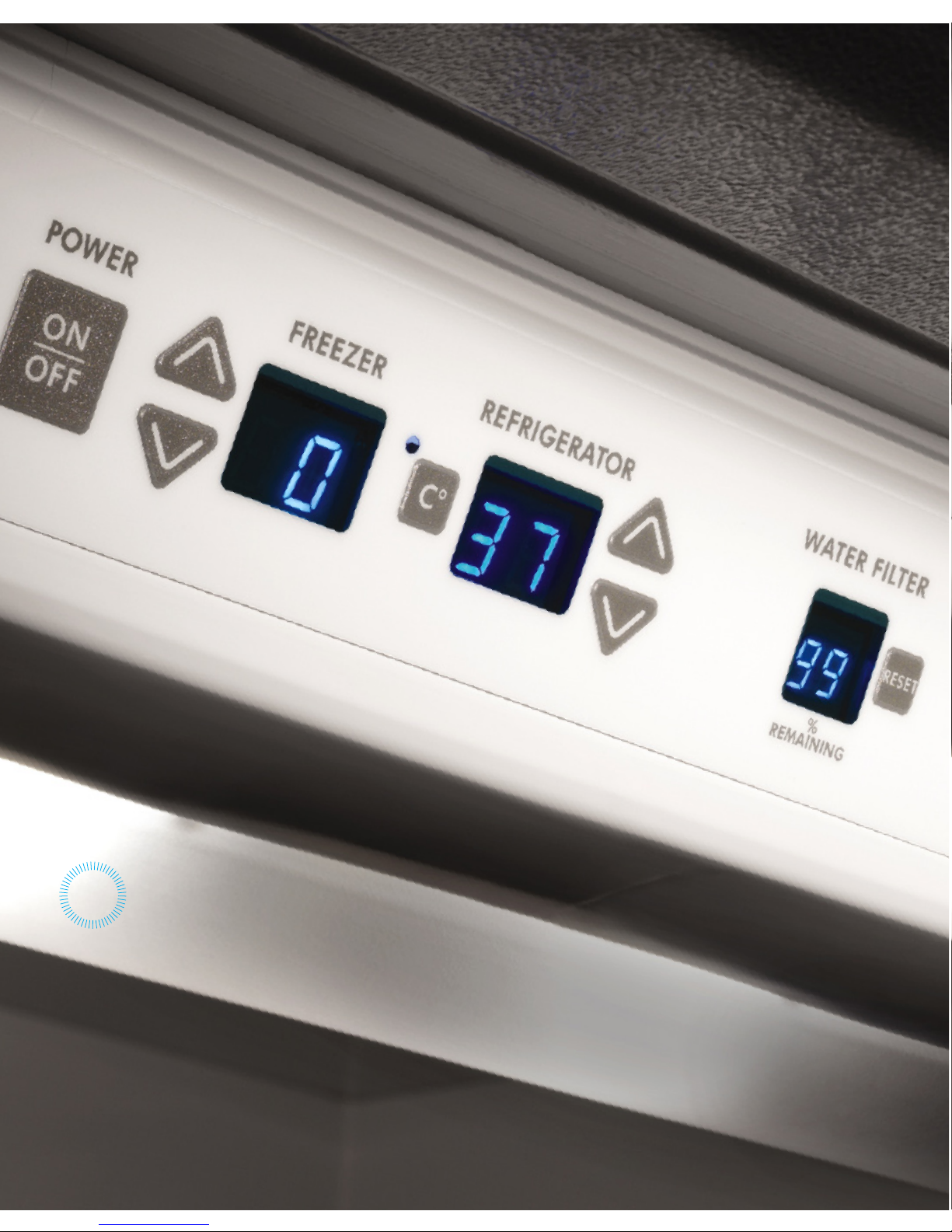

ELECTRONIC TOUCH
CONTROLS
LED LIGHTING IN
MEAT DRAWER
WATER FILTRATION
SYSTEM
Save energy. Improve
illumination. Our LED
lighting system in the meat
drawer actually does both.
It’s just another way that
we’re helping you and the
environment at the same time.
State-of-the-art and easy-
to-use are no longer mutually
exclusive. Our water filtration
system reduces water
impurities, while the water
filter indicator, conveniently
located on the control panel,
will alert you when you need
to change the filter.
The power to keep your food
fresh is up front and easy to
use. An alarm will sound if you
leave either door open and if
the temperature rises above 4
degrees in your refrigerator or
the freezer temperature rises
15 degrees. So needless to say,
it’s pretty cool at keeping cool.
DACOR |REFRIGERATION
7

36"bottom freezer
refrigeration
We always ask, “How do we make this better?” So we focused on the details.
Wider shelf space and larger bins so you can organize and access your food easily,
multiple temperature sensors and an Adaptive Defrost System to maintain
ideal temperatures, and an interior ice maker and water filtration system for
optimal refreshment.
FRENCH DOOR
EF36BNFSS
Epicure styling allows you to
complement the stainless steel
doors with your choice of trim
colors in Chrome, Brass, Copper
and Black Chrome.
SIMULTANEOUSLY SUBTLE AND
NOTICEABLY BEAUTIFUL, YOU CAN
CUSTOMIZE OUR INTEGRATED
STYLE TO BLEND IN WITH YOUR
EXISTING CABINETRY.
FRENCH DOOR
PF36BNDFBK | AFM36VSP
Sleek, modern and engineered for
the next millennium and beyond.
Inside the frame, a floating vertical
black glass. In a word, cool.
FRENCH DOOR
PF36BNDFBU (SHOWN)
Match your Preference refrigerator
to the rest of your Dacor kitchen
by choosing from six distinct options
of color-infused glass panels; Blue
Water, Slate Green, Titanium Silver,
Sterling Gray, Anthracite Gray,
and Black.
8
Epicure Trim Colors
Preference Colors
®
®®

EPICURE 36' BOTTOM FREEZER FRENCH DOOR REFRIGERATOR. ALSO AVAILABLE WITH RIGHT HAND OR LEFT HAND DOOR SWING.
DACOR |REFRIGERATION
9

– NANCY SMULLEN Customer | Freshness Fanatic
“I love the smell
of fresh basil
picked from
the garden.
With 3 different
temperature
zones, DACOR
keeps my food
fresher longer,
and my basil
smelling like...
basil.”
10

1 CABINET DEPTH
DESIGN
Our new 36" Bottom
Freezer Refrigerator is
a little bit of Dacor magic.
Save space with style,
without limiting storage
or function.
2 CONTROL PANEL
Keep your food fresh
with our control panel’s
superior technology.
Accurate to 1 degree of
displayed temperature,
you can control the freezer
and refrigerator with one
simple touch.
3 TEMPERATURE-
CONTROLLED DELI
& MEAT DRAWER
Who says size doesn’t
matter? Not only does
the drawer keep meat at
the perfect temperature,
it’s big enough to store
an entire 18" deli tray.
Your cold cuts never
had it so good.
4 MAX COLD
Don’t let freezer burn
burn you any longer.
This feature adjusts the
fresh food and freezer
compartment temperature
to maintain food fresh-
ness longer and protect
against dehydration.
To us a refrigerator isn’t just a box that keeps your food cold, it’s a collection of
details engineered to simplify your life. It’s not just about what it does, it’s how it
does it for you. That’s why to us, the difference is in the details.
DIFFERENCE is in the details
1 2
3 4
DACOR |REFRIGERATION
11

1 BEVERAGE
CENTER
Keeping your beverages
cool where you want them.
Precision temperature and
humidity control coupled
with discreet convenience
make this an excellent
addition to any room.
OPTIONS AVAILABLE
Left- or Right-Hand
Door Swing
2-3 WineSteward™
If wine is your passion, the
Epicure WineSteward is
not just uncompromised
luxury, it’s specifically
engineered to maintain
precise temperature and
humidity levels to ensure
your passion is preserved.
OPTIONS AVAILABLE
Single or Dual
Temperature Zones
Left- or Right-Hand
Door Swing
4 OUTDOOR
REFRIGERATION
Our outdoor refrigerators
can withstand ambient
temperatures from -20°F
to 130°F, conveniently
put the chill on your white
wine, and make sure those
cold ones stay that way.
OPTIONS AVAILABLE
Left- or Right-Hand
Door Swing
Nestled. Tucked away. Seamlessly integrated into your life. Our flawless design has
transformed the kitchen and has now transcended it. Our undercounter refrigerator
was conceived from the inside out, with you in mind.
UNDERCOUNTER refrigeration
1 2
3 4
12

EPICURE DUAL-ZONE WINESTEWARD | EF24LWCZ2SS
DACOR |REFRIGERATION
13

48"/42"
built-in,
side-by-side
MODEL EF48NBSS EF48DBSS IF48NBOL IF48DBOL
EPICURE 48" BUILT-IN EPICURE 48" BUILT-IN INTEGRATED 48" BUILT-IN INTEGRATED 48" BUILT-IN
SIDE-BY-SIDE REFRIGERATOR SIDE-BY-SIDE REFRIGERATOR SIDE-BY-SIDE REFRIGERATOR SIDE-BY-SIDE REFRIGERATOR
WITH ICE/WATER DISPENSER WITH ICE/WATER DISPENSER
FINISHES
Colors Stainless Steel Stainless Steel Custom (required) Custom (required)
Door Handle Options Sold Separately Sold Separately Sold Separately Sold Separately
(see accessories) (see accessories) (see accessories) (see accessories)
MAIN FEATURES
42" model also available EF42NBSS EF42DBSSIF42NBOLIF42DBOL
Integrated Electronic Through-the-door, •  •
Dual-pad Ice & Water Dispenser
Electronic Touch Controls •• • •
Door Alarm •• • •
Over Temperature Feature •• • •
Adjustable Gallon Door Bin •• • •
Water Filtration System •• • •
On-Demand Pulsed Defrost System •• • •
Crisper and Deli Drawers •• • •
Adjustable Glass Shelves •• • •
Dual Magnetic Gasket System ensures freshness •• • •
Bright Interior Lighting, LED in Meat Drawer •• • •
Stainless Steel Door Skin is replaceable if damaged •• • •
Star-K Certified (Sabbath & holiday-compliant) •• • •
REQUIREMENTS
Electrical 115V, 15A 115V, 15A 115V, 15A 115V, 15A
SPECIFICATIONS
Overall Dimensions (48") 47 1/4" W 47 1/4" W 47 1/4" W 47 1/4" W
83 3/8" H 83 3/8" H 83 3/8" H 83 3/8" H
25 3/8" D 25 3/8" D 25 3/8" D 25 3/8" D
Overall Dimensions (42") 41 1/4" W 41 1/4" W 41 1/4" W 41 1/4" W
83 3/8" H 83 3/8" H 83 3/8" H 83 3/8" H
25 3/8" D 25 3/8" D 25 3/8" D 25 3/8" D
Interior Capacity (48" Refrigerator/Freezer) 18.7 ft3/11 ft318.7 ft3/11 ft3 18.7 ft3/11 ft3 18.7 ft3/11 ft3
Interior Capacity (42" Refrigerator/Freezer) 15.9 ft3/9.4 ft315.9 ft3/9.4 ft3 15.9 ft3/9.4 ft3 15.9 ft3/9.4 ft3
PRECISION is in the details
REFRIGERATION SPECIFICATIONS
14

36"
built-in
MODEL EF36RNBSS IF36LNBOL
EPICURE 36" BUILT-IN EPICURE 36" BUILT-IN
STANDARD DOOR, BOTTOM STANDARD DOOR, BOTTOM
FREEZER REFRIGERATOR FREEZER REFRIGERATOR
FINISHES
Colors Stainless Steel Custom (required)
Door Handle Options Sold Separately Sold Separately
(see accessories) (see accessories)
MAIN FEATURES
Standard Door Style with Left-Hand Door Swing EF36LNBSS IF36LNBOL
Standard Door Style with Right-Hand Door Swing EF36RNBSS IF36RNBOL
Electronic Touch Controls ••
Door Alarm ••
Over Temperature Feature ••
Adjustable Gallon Door Bin ••
Water Filtration System ••
On-Demand Pulsed Defrost System ••
Crisper and Deli Drawers ••
Adjustable Glass Shelves ••
Dual Magnetic Gasket System ensures freshness ••
Bright Interior Lighting; LED in Meat Drawer ••
Stainless Steel Door Skin is replaceable if damaged ••
Star-K Certified (Sabbath & holiday-compliant) ••
ENERGY STAR®Qualified ••
REQUIREMENTS
Electrical 115V, 15A 115V, 15A
SPECIFICATIONS
Overall Dimensions 35 1/4" W 35 1/4" W
83 3/8" H 83 3/8" H
25 3/8" D 25 3/8" D
Interior Capacity (Refrigerator/Freezer) 15.3 ft3/5.2 ft315.3 ft3/5.2 ft3
REFRIGERATION SPECIFICATIONS
15

36"
standard
MODEL EF36BNFSS PF36BNDFBK PF36BNDF IF36KNDFSF EF36LNF
EPICURE 36" MILLENNIA 36" PREFERENCE 36" INTEGRATED 36" EPICURE 36"
FRENCH DOOR, BOTTOM FRENCH DOOR, BOTTOM FRENCH DOOR, BOTTOM FRENCH DOOR, BOTTOM STANDARD DOOR, BOTTOM
FREEZER REFRIGERATOR FREEZER REFRIGERATOR FREEZER REFRIGERATOR FREEZER REFRIGERATOR FREEZER REFRIGERATOR
FINISHES
Colors Stainless Steel Preference Black Glass Black, Anthracite Custom (required) Stainless Steel
with Vertical Stainless Gray, Sterling Gray,
Steel Trim Accessory Titanium Silver, Blue
Kit (AFM36VSP) Water, Slate Green
Door Handle Options Sold Separately None None None Sold Separately
(see accessories) (see accessories)
MAIN FEATURES
Cabinet-depth Design •• • • •
French Door Style •• • •
Standard Door Style with Left-Hand Door Swing  EF36LNF
Standard Door Style with Right-Hand Door Swing  EF36RNF
Millennia®Vertical Style Door Panel Required Accessory
Adaptive Defrost •• • • •
2 Humidity-Controlled Crisper Drawers •• • • •
1 Temperature-Controlled Meat & Deli Drawer •• • • •
Multiple Temperature Sensors •• • • •
Full-Width Wire Baskets in Freezer •• • • •
Gallon Door Storage •• • • •
Tempered Glass Spill-Proof Shelves •• • • •
Adjustable Door Bins •• • • •
Covered Dairy Compartment •• • • •
Automatic Ice Maker •• • • •
Interior Water Filtration System •• • • •
Cool White Lighting •• • • •
Fast Ice; Max Cold •• • • •
Absent Mode; Temperature Alarm; Door Alarm •• • • •
ENERGY STAR®Rated •• • • •
REQUIREMENTS
Electrical 115V, 15A 115V, 15A 115V, 15A 115V, 15A 115V, 15A
SPECIFICATIONS
Overall Dimensions (36"without handles) 35 5/8" W 35 5/8" W 35 5/8" W 35 5/8" W 35 5/8" W
70 1/8" H 70 1/8" H 70 1/8" H 70 1/8" H 70 1/8" H
27 1/8" D 27 1/8" D 27 1/8" D 27 1/8" D 27 1/8" D
Overall Dimensions (36" without door) 24" D 24" D 24" D 24" D 24" D
Interior Capacity (Refrigerator/Freezer) 14.4 ft3 /5.4 ft314.4 ft3 /5.4 ft3 14.4 ft3 / 5.4 ft3 14.4 ft3 /5.4 ft3 14.4 ft3 /5.4 ft3
REFRIGERATION SPECIFICATIONS
16

MODEL EF24LBCSS EF24LWCZ1SS EF24LWCZ2SS OF24LS
EPICURE EPICURE WINESTEWARD EPICURE WINESTEWARD EPICURE OUTDOOR
BEVERAGE CENTER SINGLE TEMPERATURE ZONE DUAL TEMPERATURE ZONE BEVERAGE CENTER
undercounter
FINISHES
Colors Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Chrome Trim Standard Chrome Trim Standard Chrome Trim Standard Chrome Trim Standard
MAIN FEATURES
Capacity 88 cans & 29 bottles (750 ml) 53+ bottles (750 ml)53+ bottles (750 ml) 88 cans & 29 bottles (750 ml)
or 160 cans or 160 cans
Adjustable Temperature 37–68˚ F 37–68˚ F37–68˚ F34˚ F
Active Carbon Air Filter (Air Purification) 1 121
Electronic Controls/Digital Temperature Display •• • •
Interior Lighting (florescent lights 8W) •• • •
Internal Fan •• • •
One-Piece Stainless Steel Glass Door Frame •• •
One-Piece Stainless Steel Door •
Left-Hand Door Swing EF24LBCSS EF24LWCZ1SSEF24LWCZ2SSOF24LS
Right-Hand Door Swing EF24RBCSS EF24RWCZ1SSEF24RWCZ2SSOF24RS
Pull-Out Wine Racks 2 542
Wine Labeling System •• • •
REQUIREMENTS
Electrical 120V, 15A 120V, 15A 120V, 15A 120V, 15A
SPECIFICATIONS
Overall Dimensions 23 5/8" W x 33 27/32" H x 22 5/8" D
REFRIGERATION SPECIFICATIONS
17

ACCESSORIES
18
accessories
REPLACEMENT WATER FILTER FOR
48"/42" & 36"BUILT-IN REFRIGERATORS
AFF5
Protect your family from waterborne contaminants such as lead, giardia,
cryptosporidium, atrazine, lindane, 2, 4-d, asbestos and more. Replace
your Dacor refrigerator water filter every six months or if your water
has a bad taste or odor. Designed to be used with Dacor’s 48" and 42"
Built-In Refrigerators.
REPLACEMENT WATER FILTER FOR
36" BOTTOM FREEZER REFRIGERATORS
AFF3
Protect your family from waterborne contaminants such as lead, giardia,
cryptosporidium, atrazine, lindane, 2, 4-d, asbestos and more. Replace
your Dacor refrigerator water filter every six months or if your water
has a bad taste or odor. Designed to be used with Dacor’s 36" Bottom
Freezer Refrigerators.
ADDITIONAL ACCESSORY NEEDED TO MATCH
MILLENNIA VERTICAL DESIGN
AFM36VSP
Millennia Vertical Style – Door Panel
REFRIGERATION HANDLES FOR
48"/42"" BUILT-IN, SIDE BY SIDE (SET OF 2)
AFEBI42H2BR
Epicure Style – Brass Trim
AFEBI42H2CP
Epicure Style – Copper Trim
AFEBI42H2CH
Epicure Style – Chrome Trim
AFEBI42H2BC
Epicure Style – Black Chrome Trim
AFMBI42H2
Millennia Style
REFRIGERATION HANDLES FOR
36" BUILT-IN (SET OF 2)
AFEBI36H2BR
Epicure Style – Brass Trim
AFEBI36H2CP
Epicure Style – Copper Trim
AFEBI36H2CH
Epicure Style – Chrome Trim
AFEBI36H2BC
Epicure Style – Black Chrome Trim
AFMBI36H2
Millennia Style
REFRIGERATION HANDLES FOR
36" BOTTOM FREEZER, FRENCH DOOR (SET OF 3)
AFE36H3BR
Epicure Style – Brass Trim
AFE36H3CP
Epicure Style – Copper Trim
AFE36H3CH
Epicure Style – Chrome Trim
AFE36H3BC
Epicure Style – Black Chrome Trim
AFM36H3
Millennia Style
AFP36H3
Preference Style
REFRIGERATION HANDLES FOR
36" BOTTOM FREEZER, STANDARD DOOR (SET OF 2)
AFE36H2BR
Epicure Style – Brass Trim
AFE36H2CP
Epicure Style – Copper Trim
AFE36H2CH
Epicure Style – Chrome Trim
AFE36H2BC
Epicure Style – Black Chrome Trim

©Copyright 2008 Dacor, Inc. All rights reserved.
L65838 112907
Discover the many innovative
details that make the Dacor
kitchen like no other by taking
an interactive tour at
DACOR.COM
DACOR
1440 Bridge Gate Drive
Diamond Bar, CA 91765
800.793.0093
