USER MANUAL
Model
DW-1308XLE
WASHING MACHINE

IMPORTANT SAFEGUARD
5
!WARNINGS
Be sure to connect POWER PLUG and
POWER CORD properly.
Be sure to plug the POWER CORD
into a proper outlet for the washer.
An improperly attached plug may
catch fire.
Never disconnect by pulling the
cord. Hold the plug as you pull it out.
Never use a damaged POWER CORD.
Never connect and/or disconnect the
POWER PLUG with wet hands, it may
cause an electric shock.
CAUTIONS
Do not allow the wash load to stick
out from the WASH or SPIN TUB.
Do not wash, rinse or spin
waterproof clothes or sheets.
Push evenly thick clothes or bulky
wash items completely down into the
WASH or SPIN TUB. Otherwise, it
may deform or damage the washer.
Do not use water hotter than
50℃ .
It may deform plastic parts
in the washer and cause a
malfunction.
Do not put your hand(s) under
the washer during operation.
It may deform or damage the
washer, and it may cause
you injury.
Do not get on the washer or
put any heavy things on the
washer.
Rotating parts may cause
injury.
!
Be sure not to bring any type of
flame near the washer or put lit
cigarettes or volatile materials on
the top of the washer.
Never wash items stained with
benzine, kerosene, thinner or
gasoline.
It may deform the washer or
catch fire, because this washer
has a large number of plastic
parts.
Do not install the washer in the bath-
room or very humid place.
It may cause a malfunction
or an electric shock.
This appliance is not intended for use by
persons(including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
It may cause a risk of fire or
explosion.
Be sure not to splash or pour
water on the CONTROL PANEL.
It may cause a malfunction or
an electric shock.
Do not allow your washer to be
repaired by an unqualified service
person.
It may cause a risk of accidental
fire.
If the washer operates abnormally,
it may cause injury.
If the power cord is damaged, in
order to avoid danger, please ask
a technical person to repair it.
Never put your hand(s) into the
WASH or SPIN TUB, while the
washer is operating.
If you reach into the WASH or
SPIN TUB, it can cause injury.

SPECIFICATIONS
890mmx540mmx1000mm
34kg
Unit size
Rated wash capacity
Rated spin-dry capacity
13.0kg
7.5kg
0.02Mpa~0.3Mpa
Rated wash input power
Rated spin-dry input power
Rated voltage
Rated frequency
Net weight of the product
Water pressure
220-240V
50Hz
220W
420W
Model DW-1308XLE

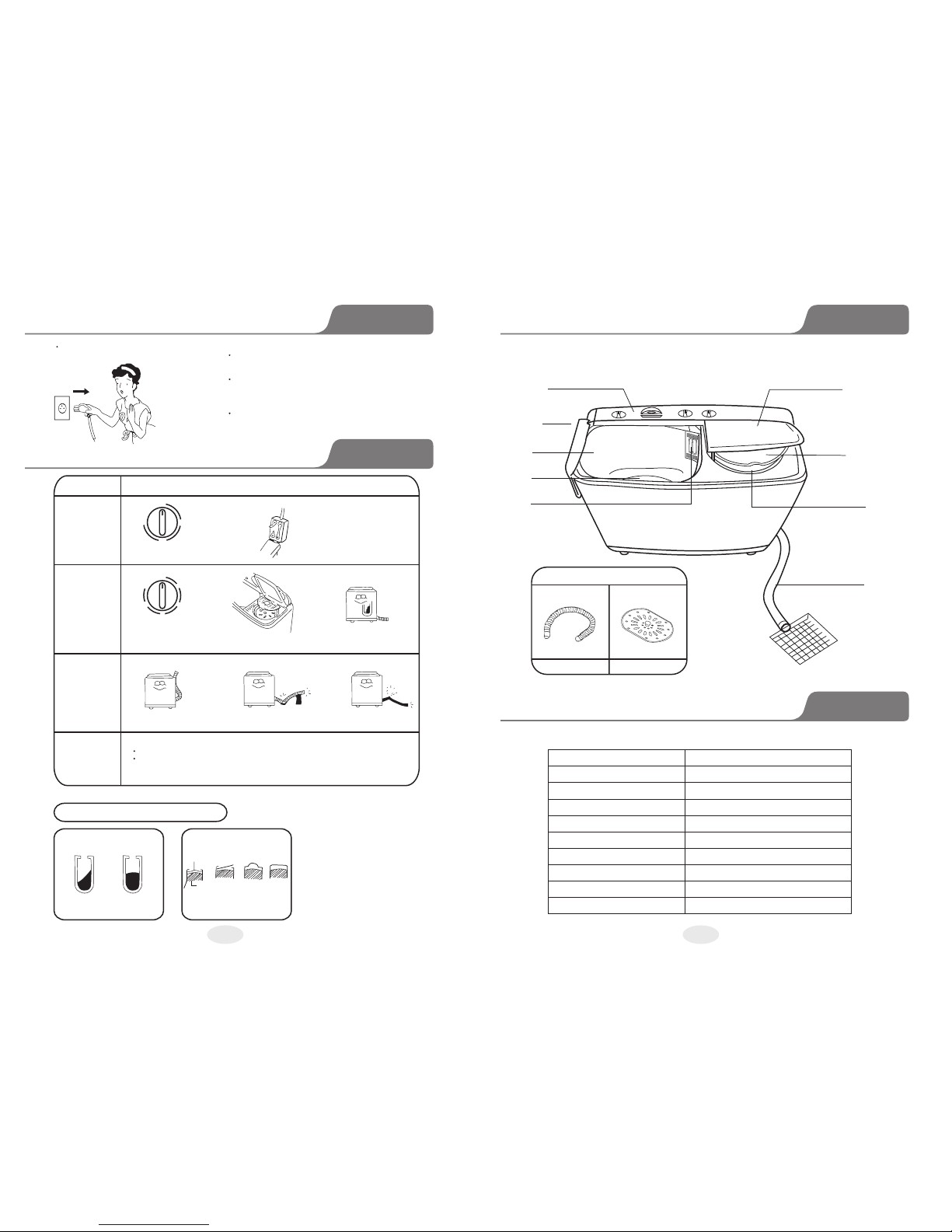

CONTROL PANEL OUTER SPIN TUB LID
INNER SPIN TUB LID
SPIN TUB
DRAIN HOSE
WASH TUB LID
WASH TUB
PULSATOR
LINT FILTER
ACCESSORIES
INLET HOSE
1 set 1 set
SPINNER CAP
NAMES OF PARTS
4 1
Troubles Check list
Not washing
Not spinning
Not drainning
Over load
WASH TIMER is in
the "OFF"position.
OFF
5
10
15
Power failure.
Fuse blown.
OFF
1
2
3
4
5
SPIN TIMER is in
the "OFF"position.
LID not closed properly.
DRAIN HOSE is not laid
down correctly.
DRAIN HOSE is
twisted.
Too much .
Power voltage too low.
laundry in the tub
Notes for spinning
Distribute laundry evenly in the
SPIN TUB as shown below.
X O
Put the SPINNER CAP inside
the tub as shown below.
SPIN TUB
Laundry
O X X X
Unplug the POWER CORD
after operation. Wipe the washer clean and dry with
a soft cloth.
Cleaning of the WASH and SPIN TUB
is necessity after bleaching or starching,
otherwise, undesireable deposit will left over.
Remove the LINT FILTER for cleaning.
PULSATOR maybe
clogged.
Laundry not distributed
evenly.
DRAIN HOSE frozen.
TROUBLESHOOTING
MAINTENANCE

Washing
!The new hose-sets supplied with
the appliance are to be used and
that old hose-sets should not be
reused.
Install on a stable level surface
INSTALLATION
!
Connect the DRAIN HOSE
Extension of DRAIN HOSE.
Shorter than 1m
Lower than 15cm
Never let the end of the DRAIN HOSE be
immersed in the water.
Plug the POWER CORD
into the outlet.
Let down the DRAIN
HOSE.
Connect the INLET HOSE
PREPARATION BEFORE WASH
Install the washing machine on a stable,
level surface.(oblique angle should be
within 2°
This washing machine has ventilation openings in the base. Do not obstruct the holes with a carpet or towel.
Keep the washing machine more than 5cm
apart from the wall to prevent a noisy sound
while spinning.
)
Wash oily or dyed laundry
separately.
Wash delicate clothes in a
nylon net.
Be sure to remove things such as
keys, pins and coins from the lau-
ndry.
Wash fuzzy laundry by turning it
inside out.
2 3
Drainning
Make sure water is turned off when spin-drying for safety reason.
1. Lay down the DRAIN HOSE and turn the WASH SELECTOR to DRAIN.
Kinds of laundry Washing
Time
Synthetic(thin)
Delicate fabrics
Cotton
Linen
Heavily soiled clothes
Thick clothes
Blanket
2 to 5 min.
5 to 10 min.
10 to 15 min.
5 min.
OPERATING INSTRUCTIONS
Rinsing
Spin drying
1. Transfer the laundry to the SPIN TUB, and place the SPINNER CAP on the top of laundry.
2. Close the INNER and OUTER SPIN TUB LID.
3. Turn the SPIN TIMER to 1 minute position.
4. Transfer the laundry to the WASH TUB after spin drying.
5. Set the WASH SELECTOR to GENTLE or NORMAL position.
6. Let water flow into the WASH TUB and rinse for another 3 to 5 minutes. Repeat it 2 to 3 times.
7. When finish washing, make sure the WASH TIMER is at the “OFF” position, then turn WASH
SELECTOR to DRAIN position.
1. Transfer the laundry to the SPIN TUB and place
the SPINNER CAP on the top of the laundry.
2. Close the INNER and OUTER SPINNER LID.
3. Turn the SPIN TIMER knob to the desired dry time
position. Then spin-dry will start.
Kinds of laundry Spin-drying time
Wool articles 30 seconds
1 minute
1 to 3 minutes
3 minutes
3 to 5 minutes
5 minutes
Thin articles(synthetic)
Sweater(synthetic)
Blanket(synthetic)
Underwear(cotton)
Sheet(towel fabric)
1. Set the WASH SELECTOR to NORMAL position.
2. Turn on the water tap, let water flow into the WASH TUB
in accordance with the amount of laundry to be washed.
(The marks H, L in tub are High, Low water level.)
3. Add proper amount of detergent.
4. Put laundry into the WASH TUB.
5. Turn the WASH TIMER knob to the desired wash time
position, and washing action will start.
6. When finished, make sure the WASH TIMER is at
the “OFF” position, then turn WASH SELECTOR to
DRAIN position.
