DAEWOO ELECTRONICS Daema FR-208 User manual

Catalogue
Product introduction Product features.......................................1
Part names...............................................2
Safety and warning information................3
Carrying and installing the appliance.......4
Connecting the appliance........................4
Usage Preparation before using..........................4
Thermostat................................................5
Switching on and temperature control.....5
Refrigerator compartment........................6
Cleaning and maintaining
the appliance
Defrosting.................................................7
Cleaning the appliance............................7
Ways to save power consumption.......... 7
Other notices............................................8
Non-fault instances and
special instances
Non-fault instances..................................8
Special instances.....................................9
General knowledge for
the appliance
General knowledge ( I )..........................10
General knowledge ( II ).........................11
Product Introduction
Product features
Advanced cooling system & Energy saving
Super quiet technology
Various weather adaptation
Green refrigerant without HFC and FCKW
Sturdy safety glass shelves
Removable door seal for easy cleaning
1
USER MANUAL
Model
FR-208
REFRIGERATOR
S A L E S & S E R V I C E S ( M ) S D N B H D

Product Introduction
Part names
The below picture is for your reference. There maybe some differences from
your appliance.
2
1.Door lamp switch
2.Thermostat
3.Safety plastic shelf of refrigerator compartment
4.Safety plastic shelf for fruit&vegetable compartment
5.Fruit&vegetable container
6. Up door rack
7.Door of the refrigerator compartment
8.Down door rack
9.Lamp
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Must use separate, well-earthed and 3 wires power socket.
Do not squeeze, fold, knot or damage the cord. During carrying and installation, When
the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
Keep children away from package and its parts.
Danger of suffocation from folding cartons and plastic film!
Children should be supervised to ensure that they do not play with the appliance.
Do not climb, sit, stand or lean on the door.
When repairing or cleaning the appliance, pull out the plug.
When pulling out plug, do not pull cord to avoid cord bursted.
If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
The appliance should be recycled by appointed institutions. Personal handling may
causes danger.
Please according to local regulations regarding disposal of the appliance for its
flammable blowing gas.
If the supply cord is damaged , it must be replaced by a special cord or assembly available
from the manufacturer or its service agent.
Danger - do not put inside flammable & explosive material (e.g. Alcohol, gasoline etc)
Risk of explosion and fire!
Danger - do not store bottled or canned drinks (especially carbonated drinks) in the
freezer compartment.
Risk of explosion!
Danger - Do not touch food or metal container in the freezer compartment by wet hand.
Do not put frozen food straight from the freezer compartment into your mouth.
Risk of low-temperature burns!
Warning - Do not damage the refrigerant circuit.. Leaking refrigerant may ignite
or cause eye injuries. Wash the eyes at once and see a doctor.
Warning - Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
Warning - Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
(e.g. Heaters, electric ice makers, etc.)
Do not use microwave oven, rice cooker and voltage regulator on the top of
the appliance.
Warning - Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
Warning - To avoid hazard due to instability of the appliance, it must be fixed in
accordance with the instructions.
Warning - Connect to potable water supply only.
Safety and Warning information
Product Introduction
3
2
4
3
5
6
8
7
1
9

Carrying
Carry the appliance by touching the bottom.
Do not carry by touching the door or door handle.
Do not carry the appliance transversely or reversely.
The appliance has 2 wheels on the back.
During moving, uplift the front side and move the
appliance by 2 wheels on the back.
The incline angle should be less than 45 .
Installing
Install the appliance in a dry and ventilated room.
The below distances should be required.
from the side panels to wall: 10cm minimum.
from the back to wall: 10cm minimum.
from the top to wall or ceiling: 30cm minimum.
Adjust the feet
There are 2 feet on the front bottom.
Put the appliance on sturdy & horizontal ground.
Adjust the feet screws by wrench (See the picture) to
vertical and stable position.
Make sure the feet screws touching ground wholly to
avoid shock and noise.
Carrying and installing the appliance
Product Introduction
4
On the thermostat knob, there are positions from OFF to MAX.
(Note: Position off - max identify refrigerations, not temperatures.)
Position WARM = Highest setting temperature
Position MAX = Lowest setting temperature (keep cooling all the time)
Position OFF = The compressor stop working
Switching on
At the first time of switching on, rotate the thermostat knob to position MAX
and close the door. After 2 hours, rotate the thermostat knob into normal
working positions ( WARM COLD ).
From position WARM to MAX, the compartment temperature is from high to low.
Thermostat
Switching on and temperature control
Usage
5
For normal working, set position WARM COLD.
For fast freezing or ice making, set position COLD MAX.
In different seasons, choose different levels for good
freezing effect.
For summer, set position WARM COLD.
For winter, set position COLD MAX.
Temperature control
Remove all the packing materials include polyfoams and tapes.
Preparation before Using
Usage
Connecting the appliance
The rated voltage is 220-240V. The rated frequency is 50Hz.
The working voltage range is from 180V to 242V.
The socket and its cable should stand more than 10A
current.
The socket must be fused with a 10A fuse or higher.
Check the accessories and documents according to the packing list.
Before switching on the appliance for the first time ,clean the interior.
After installing the appliance, wait for 12 hours at least before switching
on the appliance. During transportation the oil in the compressor may have
flowed into the refrigeration system.
Thermostat knob
MAX
OFF
COLD
WARM
TEMPERATURE
CONTROL

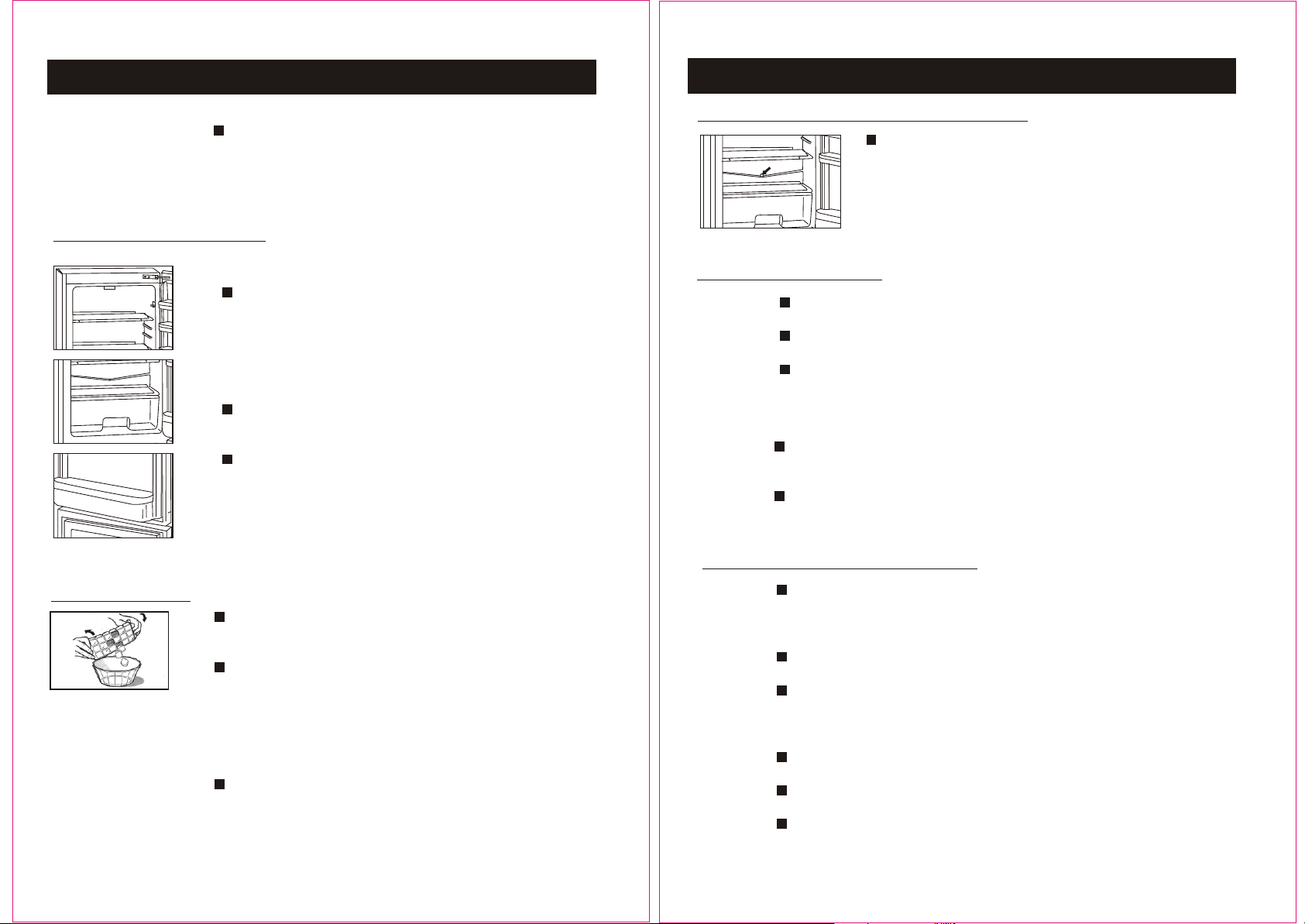

Refrigerator compartment
The fefrigerator compartment is for short time stored food.
Safety glass shelves
The shelf positions can be adjusted for different food.
Shelves can be taken out by lifting up the rear.
Recommend from the top down:
bakery products, ready-to -eat items, dairy products,
meat and salami.
Fruit & Vegetable container
Door racks
The door racks can be taken out by lifting up.
Recommend from the top down:
butter, cheese, eggs, tubes, small bottles, large bottles,
milk and fruit-juice cartons. .
Usage
6
Set one high position for low temperature.( E.g.
Position COLD) before making ice cubes.
Fill the ice cube tray 3 / 4 full of pure water and place
in the freezer compartment.
( Note: pure water can not be too full, or ice cubes will
get whole and not easy loosened.
It takes about 2.5 hours to make ice cubes.
More than 1700g ice cubes can be made per day.)
To loose the ice cubes, hold the tray briefly under
running water or twist the tray slightly.
Making ice cubes
7
Cleaning and maintaining the appliance
Defrosting the refrigerator compartment
The refrigerator compartment has automatic
defrosting function. Frost change into water.
Through the hole on the back, the water go to the
water plate where the water is steamed out
by heat from the compressor.
Cleaning the appliance
Before cleaning, pull out the plug.
During cleaning, prevent water to enter door lamp box.
Clean the body by soft towel with water or neutral
cleaning agents.
Clean the door seal with water only and dry throughly.
( For easy cleaning, take off door seal from the door.)
Regularly clean the water plate and outlet hole of the refrigerator
compartment to make sure good defrosting function.
Do not use cleaning agents which contain abrasive( e.g. tooth paste), acid,
impregnant( e.g. Alcohol).
Ways to save power consumption
Install the appliance in a cool, well ventilated room, but not in direct sunlight
and not near a heat source(radiator, cooker, etc.)
Otherwise, use an insulating plate.
Leave warm food and drinks to cool down firstly.
Thaw frozen food by placing it in the refrigerator compartment.
The low temperature of the frozen food will then cool the food in the
refrigerator compartment.
Open the appliance door as briefly and short as possible.
Defrost and clean the appliance when there is much frost on the refrigerant tube.
Occasionally clean the rear of the appliance with a vacuum cleaner or paint
brush to prevent an increase of power consumption.
If the compressor works for a long time, change high
position into low position.
E.g. Change from position COLD into position WARM.

8
Cleaning and maintaining the appliance
Other notices
During power cut:
1. Open the appliance door as briefly as possible.
2. Do not put new food to avoid temperature increases inside compartments.
Notices power cut in advance:
1. Set the temperature control at position COLD for low temperature inside compartments.
2. Make some ice cubes and put into the top of the refrigerator compartment.
9
Non-fault instances and special instances
Non-fault instances
Sounds like buzz
The compressor makes buzz sounds when working.
If the feet are not adjusted on vertical and stable position, there are shocks
and noises. Adjust the feet on vertical and stable position.
Long time starting
In summer, the ambient temperature is high. It is normal that the compressor
starts frequently.
Higher power consumption than the rating parameter
The rating parameter is from the test. Test condition are on 25 ambient
temperature, 5 in the refrigerator compartment, -18 in the freezer
compartment, without opening the doors and keeping working 24hours.
If with more food inside, on a higher ambient temperature or open the
doors frequently, the actual power consumption is higher.
Special instances
Instances Possible reasons Handlings
No cooling The plug is not inserted properly Check the plug
The fuse is switched off Check the fuse
There is a power cut Please check if power is on
The temperature Open the doors in a long time Close the doors
in the compartments Put too many food inside Put food less than the
is high appliance capacity
The thermostat control is not Adjust the thermostat control
proper or the ambient
temperature is high
There are humidity The outlet hole for frost water Clean the outlet hole for frost
or water inside the is blocked off. Water
refrigerator
compartment
Frost on the outer surface of the appliance
High humidity in air caused this. Just wipe off frost.
Frost in the back of the refrigerator compartment
The refrigerant tube close the back of the refrigerator compartment and
the temperature nearby is lower and cause frost.
Automatic defrost is processed after the refrigerator compartment stops
working.
High temperature on the door frame of the freezer compartment
It is a special measure to prevent icing around the door.
High temperature at the lateral sides
The condenser is inside the upper surface of the lateral sides. The condenser
emits heat when the appliance works.
In summer, the lateral temperature is around 50 .
High temperature on the compressor
When the appliance works, the temperature on the compressor is about 80 .
Sounds like water current in the appliance
The refrigerant goes through the refrigerant tube when the appliance works.
Sounds like click in the appliance
There are shrinkage and expanding between inside body and the refrigerant
tube.
The compressor can not start
The voltage is too low.
Recommend to fit one voltage regulator which power capacity is 500W higher.
Non-fault instances and special instances
Replace lamp
Cut-off power ,disassemble lamp-chimney ,usehand to disassemblelamp .
Contra rotate thelamp ,then takeout the lamp.
Clockwise circumvolve newlamp into thelamp holder. (Specification oflamp :should
not more than10W screw-base lamp.)

10 11
General knowledge for the appliance
For better service, please pay attention to the below general knowledge for the
appliance. It helps you for a quiet condition and avoid noise troubles.
General knowledge for the appliance (I)
Adjusting the feet
Adjust the feet and make sure the
appliance in vertical and stable position.
Installing the appliance separately
Install the appliance separately and avoid
resonances between the appliance and
other furniture.
Keep space among containers
Keep space among containers (e.g.
dishes, plates and wine bottles) in the
compartments, to avoid impacts from
touches.
Check the drawers and fruit & vegetable
container
Loosing and impact of the drawers and
fruit & vegetable container can cause
big shocks in the appliance.
Put the drawers and the container well to
avoid shocks.
If the drawer of freezer compartment is
empty, put some food inside to decrease
noise.
General knowledge for the appliance
The compressor and refrigerant decrease the compartment temperature of the
appliance and keep food fresh and nutritious. During working, there is some
slight sounds. It is normal and no damage to the appliance. Do not worry.
General knowledge for the appliance (II)
Slight sound like buzz
The compressor makes buzz sound
when working. The buzz sound will be
louder when the compressor starts.
Sound like water current and air current
The refrigerant goes through the pipe to
decrease the compartment temperature.
The refrigerant can be gas or liquid in the
pipe. During the flow of the refrigerant,
there is sound like water current and
air current.
Sound like click
The sound comes from the switching
on/off of the compressor by the
thermostat.
