DAEWOO ELECTRONICS FR-630NT User manual

Service Manual
Refrigerator
Model: FR-630NT/NB
FR-662NT/NB
FR-700NT/NB
http : //svc.dwe.co.kr Nov. 1999
DAEWOO ELECTRONICS CO., LTD.
S/M No. : FR630NT010

1
TABLE OF CONTENTS
EXTERNAL VIEWS ............................................................................................................................. 2
1. EXTERNAL SIZE........................................................................................................................... 2
2. NAME OF PARTS......................................................................................................................... 2
SPECIFICATIONS............................................................................................................................... 3
1. OUTLINE....................................................................................................................................... 3
2. ELECTRIC PARTS........................................................................................................................ 3
3. POWER CORD ............................................................................................................................. 8
4. DOOR COLOR.............................................................................................................................. 9
OPERATION AND FUCTIOLNS.......................................................................................................... 10
DIAGRAM............................................................................................................................................ 17
1. WIRING DIAGRAM ....................................................................................................................... 17
2. RATICAL WIRING DIAGRAM ....................................................................................................... 17
3. CIRCUIT DIAGRAM ...................................................................................................................... 18
4. AIR FLOW DIAGRAM ................................................................................................................... 18
5. REFRIGERANT CYCLE DIAGRAM.............................................................................................. 19
DISASSEMBLY AND ASSEMBLY...................................................................................................... 20
EXPLODED VIEW AND PARTS LIST................................................................................................. 37
1. EXPLODED VIEW......................................................................................................................... 37
2. TOTAL PARTS LIST ..................................................................................................................... 38
3. MACHINE ROOM EXPLODED VIEW AND PARTS LIST............................................................. 42
1) For starters, be sure to check any chances of the leakage of electricity.
2) You could handle a part in the vicinity of electricity after unplugging.
3) You should put on rubber gloves to prevent an electric shock on operation test.
4) Make sure the rated current, voltage, capacity before using an instrument.
5) Keep your wet hands away from the metal goods in the freezer compartment not to be frostbitten.
6) Be careful not to let water to permeate the electric part in the machine room.
7) With the door open during your repair, you might be hurt by that door.
8) You should give a tilt to the refrigerator for your safe after removing the breakable goods inside the refrigerator.
9) You'd better use gloves if you fix it up around the evaporator.
SAFETY AND PRECAUTIONS

2
EXTERNAL VIEWS
1. EXTERNAL SIZE
2. NAME OF PARTS
810
17.4
818.6
21.7
24
523
54
1041
113.4
27
601
10.5
1791
1084
95.5
35
62
533
810
24 762 24
45 102 25
A
A
FR-630NT/NB FR-662NT/NB FR-700NT/NB
A590 620 650
Freezer Compartment Lamp
Shelf Ffreezer
Case Icing
Guide Icing
Ice Box
Refrigerator Compartment Lamp
Cover Cubic Duct
Fresh Case
Shelf Refrigerator
Deodorant
Cover Vegetable
Case Vegetable(B)
Case Vegetable(A)
Guide Vegetable
Front Grille
Adjustable Foot
Freezer Pocket Top
Freezer Pocket Under
Egg Pocket
Egg Tray
Guide Bottle
Bottle Pocket
Multi Pocket
Multi Pocket
1
2
3
4
5
15
7
8
9
10
11
12
13
14
6
16
17
18
19
20
21
22
23
24

3
SPECIFICATIONS
1. OUTLINE
2. ELECTRIC PARTS
1) COMPRESSOR
DIVISION CONTENTS
MODEL NAME FR-630NT/NB FR-662NT/NB FR-700NT/NB
USABLE CAPACITY FREEZER 138 147 156
REFRIGERATOR 366 377 398
TOTAL 504 524 554
EXTERIOR DIMENSION WIDTH 818 mm 818 mm 818 mm
DEPTH 752 mm 782 mm 812 mm
HEIGHT 1818 mm 1818 mm 1818 mm
QUANTITY OF REFRIGERANT R12 170 g
R134a 140 g
COOLING &CONTROL SYSTEM COOLING SYSTEM Fan Cooling System
DEFROST SYSTEM Fin Evaporator Forced Defrosting System
DEFORST CONTROL Automatic Start & Stop
NET WEIGHT 85 kg 92 kg 95 kg
REFRIGERANT R12
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
COMP MODEL X X X X SL28YE-5 PL23YH-4 SL28YE-5 SL28YE-5
PART CODE X X X X 3954128A50 3956125G40 3954128A50 3954128A50
STARTING TYPE X X X X RSIR RSCR RSIR RSIR
REFRIGERANT R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
COMP MODEL XHBL25YG-3 XHPL26YH-5 XHPL26YH-5 HPL26YH-5
PART CODE X3952125R30 X3956126S50 X3956126S50 3956126S50
STARTING TYPE XCSR XRSCR XRSCR RSCR
l
l
l
HEL21YH-1
RSCR
3953121S10

4
SPECIFICATIONS
2) RELAY
3) STARTING CAPACITOR
REFRIGERANT R12
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
ASSY TYPE NAME X X X X 276THBYY-52 181SHBYY-52 276THBYY-52
PART CODE X X X X 3018119940 3018116610 3018119940
PTC RESIS-TANCE X X X X S220 S330 S220
PART CODE X X X X
OVER LOAD PART CODE X X X X 276THB 181SHB 276THB
REFRIGERANT R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
ASSY TYPE NAME X783NHBZZ-52 X 317NHBYF52 197NHBYY-52 X197NHBYY-52 197NHBYY-52
PART CODE X3018119390 X 3018119950 3018119920 X3018119920 3018119920
PTC RESIS-TANCE XS220 X S068 S330 XS330 S330
PART CODE X X X X
OVER LOAD PART CODE X783NHB X 317NHB 197NHB X197NHB 197NHB
REFRIGERANT R12
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
PART CODE X X X X X X X X
RATED VOLTAGE X X X X X X X X
RATED CAPACITANCE X X X X X X X X
REFRIGERANT R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
PART CODE X3016400100 X X X X X X
RATED VOLTAGE X200V X X X X X X
RATED CAPACITANCE X100 X X X X X X

5
SPECIFICATIONS
4)RUNNING CAPACITOR
5) F-FAN MOTOR
6) R-FAN MOTOR
7) C- FAN MOTOR
REFRIGERANT R12
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
PART CODE X X X X X 400EL15110 X X
RATED VOLTAGE X X X X X 350V X X
RATED CAPACITANCE X X X X X 5X X
REFRIGERANT R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
PART CODE X3816800400 X 400EL15130 3016401900 X3016401900 3016401900
RATED VOLTAGE X300V X 230V 400V X400V 400V
RATED CAPACITANCE X7X 10 4X4 4
REFRIGERANT R12, R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 20 / 60 230 / 60 240 / 50
TYPE NAME DL-2213DWFA DL-2213DWFA DL-2213DWFA DL-2213DWFA DL-2213DWFA DL-2213DWFA DL-2213DWFA DL-2213DWFA
PART CODE 3015905300 3015905300 3015905300 3015905300 3015905300 3015905300 3015905300 3015905300
REVOLUTION 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM
REFRIGERANT R12,R134a
VOLTAGE ( V/HZ) 100 /50,60" 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
TYPE NAME DL-2213DWRA DL-2213DWRA DL-2213DWRA DL-2213DWRA DL-2213DWRA DL-2213DWRA DL-2213DWRA DL-2213DWRA
PART CODE 3015906900 3015906900 3015906900 3015906900 3015906900 3015906900 3015906900 3015906900
REVOLUTION 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM
REFRIGERANT R12,R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
TYPE NAME DL-2213DWCA DL-2213DWCA DL-2213DWCA DL-2213DWCA DL-2213DWCA DL-2213DWCA DL-2213DWCA DL-2213DWCA
PART CODE 3015906800 3015906800 3015906800 3015906800 3015906800 3015906800 3015906800 3015906800
REVOLUTION 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM 2200RPM

6
SPECIFICATIONS
8) DEFROST HEATER
9) LAMP ASSEMBLY
10) PCB TRANSFORMER
11) MAIN PCB ASSEMBLY
12) DRYER
REFRIGERANT R12,R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
SPEC (W) X180W 180W 180W 180W 180W 180W 180W
PART CODE X3012803210 3012803210 3012803210 3012803200 3012803200 3012803200 3012803200
REFRIGERANT R12,R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
SPEC (W) 15W 15W 15W 15W 15W 15W 15W 15W
PART CODE 3013600010 3013600010 3013600010 3013600010 3013600080 3013600080 3013600080 3016800080
REFRIGERANT R12,R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
TYPE NAME XFRB-5070NT FRB-5070NT FRB-5070NT FRB-5070NT FRB-5070NT FRB-5070NT FRB-5070NT
PART CODE X5EPK057860 5EPK057860 5EPK057008 5EPK057004 5EPK057004 5EPK057004 5EPK057004
REFRIGERANT R12,R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
TYPE NAME XN808 N808 N808 N808 N808 N808 N808
PART CODE X3014384030 3014384030 3014384030 3014384010 3014384010 3014384020 3014384010
REFRIGERANT R12 R134a
SPEC (g) 10g 15g
PART CODE 3016805300 3016801020

7
SPECIFICATIONS
13) FUSE (PCB)
14) THERMO FUSE
15) DOOR S/W
16) F-SENSER
17) R-SENSER
REFRIGERANT R12,R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
RATED CURRENT X250V/1.6A
PART CODE X5F3GB1682R
REFRIGERANT R12,R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
OPERATING TEMPERATURE X77
PART CODE X3017200500
REFRIGERANT R12,R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
PART CODE X3018100010
REFRIGERANT R12,R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
PART CODE X3014801501
REFRIGERANT R12,R134
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 60 240 / 50
PART CODE X3014801601

8
SPECIFICATIONS
3. POWER CORD
NO SHAPE OF POWER CORD PART CODE DESCRIPTION REMARK
13011315000 CP-2PIN For european country
2401RA17200 CP-2PIN For other country
34006D17101 KP-30 For America & El Salvador
4401PD17101 KP-211 For Japan & Taiwan
53011300801 BP-3PIN
63011303010 # 267 For Chile
73011315310 For Israel
83011303050 BS-1363A For U.K, Middle Asia Singapore & Malaysia
93011301200 KP-551/550 For China & Australia
* Upper power cord’s part code is only for lead wire, without any kinds of terminal or housing

9
SPECIFICATIONS
4.DOOR COLOR
1) ASSEMBLY URETHAN FREEZER DOOR
2) ASSEMBLY URETHAN REFRIGERATOR DOOR
Refrigerant R12 R134a
COLORTYPE Dull laminasheet High-glossy
Laminasheet Normal PCM High-glossy Bright PCM Dull laminasheet High-glossy Laminasheet Normal PCM High-glossy Bright PCM
PARTCODE X3010081960 X X X 3010077430 X X
Refrigerant R12 R134a
COLORTYPE Dull laminasheet High-glossy
Laminasheet Normal PCM High-glossy Bright PCM Dull laminasheet High-glossy Laminasheet Normal PCM High-glossy Bright PCM
PARTCODE X3010077740 X X X 3010077770 X X

10
OPERATION AND FUCTIOLNS
NO CONTROL FUNCTION CONTROL OBJECTS CONTENTS REMARK
1DISPLAY CUSTOM LED 1. Normal state
1) SILENT Icon (Amber) is off.
2) Initial State : Both compartment’s icons indicate
Middle-mode (“1”, and “2” are lit..)
2. FRZ.SET Button
1) Temperature Regulation of Freezer Compartment
2) Middle-left Icons are lit by pressing the button.
3) When Q.F Mode is set, Freezer Mode’s Icons
(middle-left) are on and off 3 times, then only Q.F
LED(red) is lit.
3. REF.SET Button
1) Temperature Regulation of Freshfood Compartment.
2) Middle-right Icons are lit by pressing the button.
3) When Q.R Mode is set, Refrigerator Mode’s Icons
(middle-right) are on and off 3 times, the only Q.R
LED(red) is lit.
4. SILENT Button
1) SILENT Mode starts by presssing the button.
- SILENT Icon is LIT.
- All the other LED is off.
2) The mode is finished by pressing the button once again.
- The Icon turns off and it returns to previous[normal]
state.
3) The mode ends by itself in 130minutes after its start.
- The Icon turns off.
- All the other LED is off.
(1) 1 2 3 Q.F
(1) 1 2 3 Q.R

11

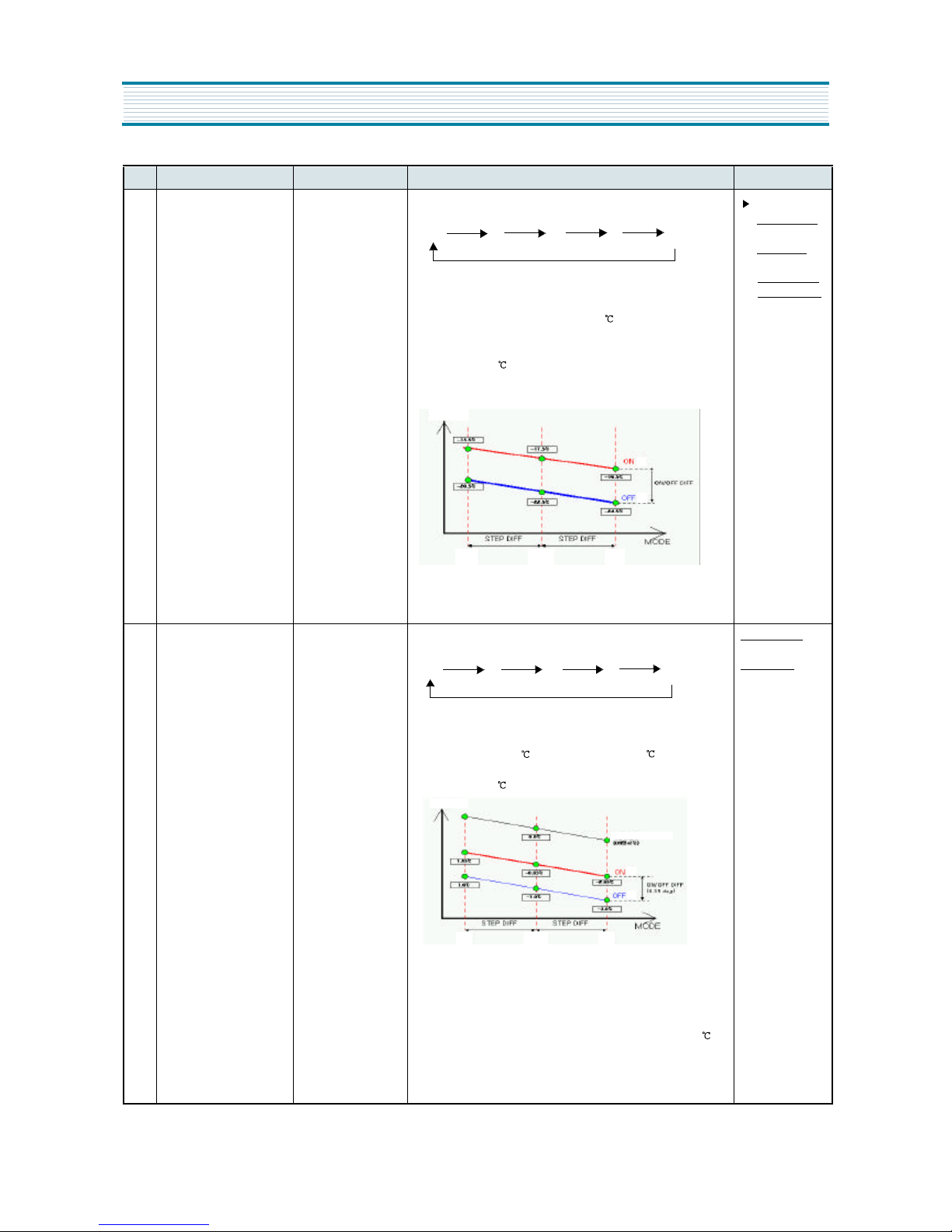

2Temperature Regulation
of Freezer Compartment 1. COMP 2. F-FAN 1. Temperature regulation by FRZ.SET Button.
2. COMP and F-Fan are controlled by On/Off point of each mode.
3. Freezer Compartment ON / OFF DIFF : 5
(Middle(2)-OFF : -22.5 )
4. “ 3 “ / “ 1” DIFF : 2
5. Control Point of each Mode
6. COMP and F-FAN are ON during Q.F Mode regardless of F-Sensor.
(Approximately 150minutes)
Reference
ON/OFF Diff :
Fixed by Micom
STEP Diff :
Fixed by Micom
Comp&C- Fan
are Coworking
3Temperature Regulation of
Refrigerator (Freshfood
Compartment)
1. COMP
2. R-FAN 1. Temperature regulation by REF.SET Button.
2. R-Fan is controlled by On/Off-point of each mode.
3. ON / OFF DIFF : 0.35 (Middle(“ 1” ) Off-point : -1.0 )
4. “ 3” / ” 1” DIFF : 2
5. Prevention of Weak-refrigeration
1) When weak-refrigeration is sensed, COMP turns on regardless of
F-Sensor.
2) When R-Sensor reaches to R-Fan Off-point, COMP is controlled by
F-Sensor and R-FAN turns off.
3) Sensing point of weak-refrigeration ; R-S Off-point of each mode +7
4) Finishing point of weak-refrigeration ; same as R-S Off-point
6. Q.R(Quick Refrigeration) continues for 40minutes.
ON/OFF, Diff :
Can not be changed
STEP DIFF :
Can not be changed
NO CONTROL FUNCTION CONTROL OBJECTS CONTENTS REMARK
(1) 1 2 3 Q.F
(1) 1 2 3 Q.F
Temp.
12 3
1 2 3
Temp.
Weak-Refrigeration
OPERATION AND FUCTIOLNS

12
3Temperature Regulation of
Refrigerator (Freshfood
Compartment)
1. COMP
2. R-FAN *In case Q.R starts during 1(refrigeration) mode
1) R-Fan and COMP continue to be On until the R-Sensor reaches to
Off-point(-7 ) of over-refrigeration.
2) It continues to be 3 until Q.R ends after reaching to Off-point of over-
refrigeration.
3) It returns to normal[previous] state when Q.R (40 minutes) ends.
4SILENT Control 1. COMP
2. R-FAN
3. F-FAM
4. Custom LED
1. SILENT Mode starts by pressing the button.
2. Terms to start SILENT Mode
F-Sensor 15
Restart of SILENT within 40 minutes after the mode
F-Sensor error
Door Switch error
In Defrosting Mode (HTR Defrosting, Pause, Fan-delay)
SILENT starts if conditions tohappen.
3. Once SILENT starts, all the electric devices (COMP, F-Fan, R-Fan) turn
Off and only SILENT Icon is lit.
4. Terms to finish SILENT Mode
F-Sensor -9
More than 130 minutes of Limit-time
F-Sensor error
In case any other button is pressed during SILENT Mode
Door opened time is more than 30 seconds during the mode.
If the mode is finished by , and, F/R-Fan Delay time is
set to 5 minutes, and prevention of SILENT Restart time is set to
40 minutes.
5. When the mode is finished all the electric devices and C-LEDs return to
normal [previous] state.
6. Pre-cool continues after SILENT Mode.
7. Q.F and Q.R continue after SILENT Mode for the rest time.
NO CONTROL FUNCTION CONTROL OBJECTS CONTENTS REMARK
Temp.
1
3
Over
refrigeration
off point
Q.R(40min. )Time
OPERATION AND FUCTIOLNS

13

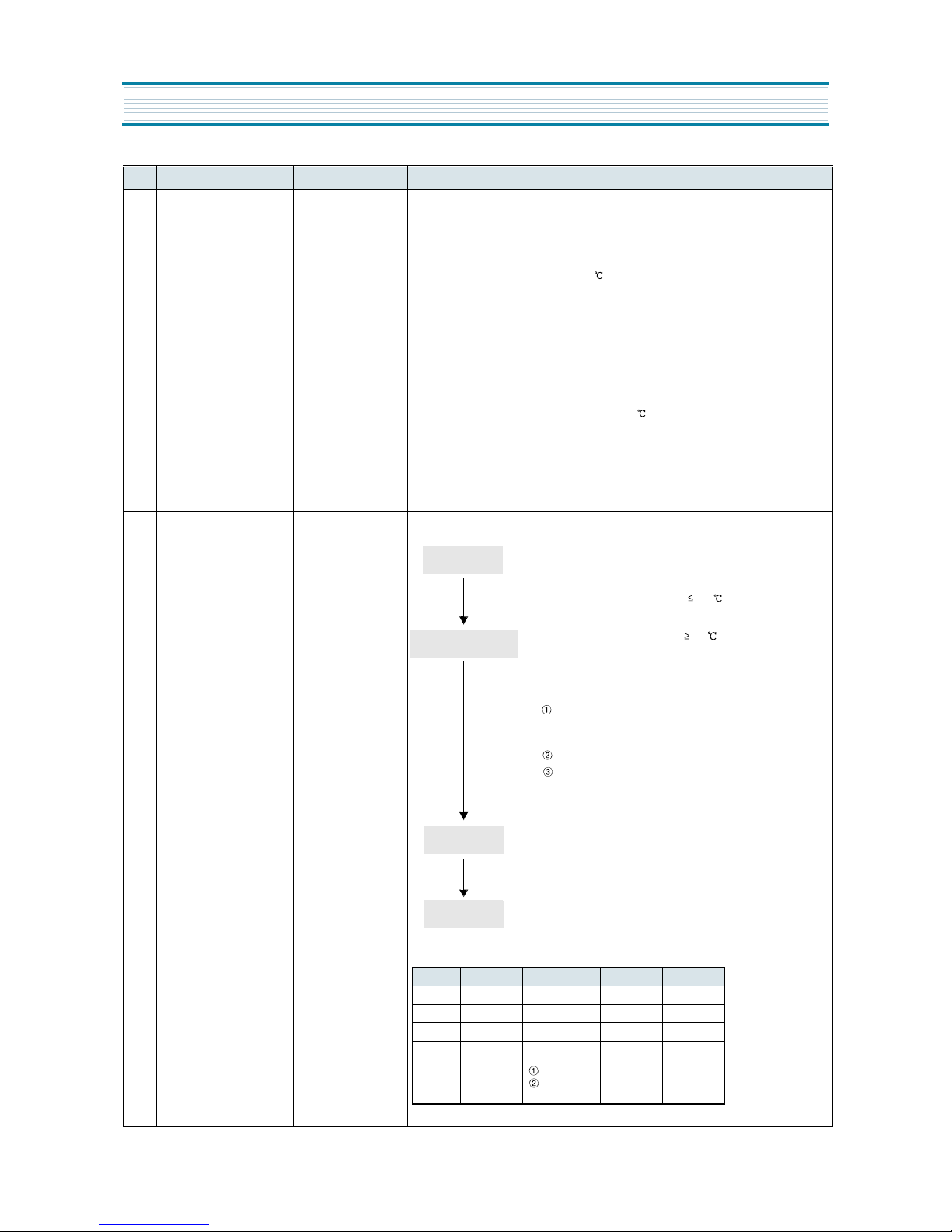

5Defrosting Period 1. Defrosting Mode 1. What to be considered in determining Defrosting Period
1) Total Run-time of COMP : 6, 8, 10, 12, 14 hours
2) Running-rate of COMP (each 2hours running-rate) : more than 80%
3) Total time of Door openings : 10minutes
4) Total Time (COMP-On + COMP-Off) : 60hours
5) Ambient Temperature : more than 35
6) In each Error : R1, F1, D1, F3, RT-S, Door-SW Error
2. Terms to start Defrosting Period
1) The Defrosting starts with the following conditions, in case total
COMP-run time passes 6, 8, 10 or 12hours
¨ çwhen an Error occurs
¨ èwhen running-rate of COMP is more than 80%
¨ éwhen total Door-opening time is more than 10minutes
¨ êwhen the ambient temperature is more than 35
2) Defrosting starts unconditionally when total COMP-run time passes
14 hours, under the condition that terms of 1) are not satisfied.
3) Defrosting starts immediately when Total-time (COMP-On + Off time)
is more than 60 hours, under the condition that terms of 1) and/or 2)
are not satisfied.
6Defrostiong Mode 1.COMP
2. F-FAN
3. R-FAN
4. HEATER
1. Defrosting Period
1) Time : 50minutes
2) COMP and F-Fan are On, R-fan is in
Control, and HTR is off
3) Pre-cool turns off when F-Sensor-27 .
1) Heater turns off when D-Sensor10 .
2) Limit time : 80minutes
3) Heater continues to be On for 40 minutes
of limit time when D-Sesor is in error.
4) Limit time
30seconds: Heater continues to be On
after Defrosting regardless of D-Sensor
temperature.
40minutes: in case of D1-Error
80minutes: in normal control state
1) Time : 4minutes
2) COMP, F-Fan and R-Fan are Off.
1) Time : 5minutes
2) Only COMP is On, while F or R-Fan is Off.
2. Output Control and Limit Time of each Defrosting Mode C-Fan and COMP
are co-working.
NO CONTROL FUNCTION CONTROL OBJECTS CONTENTS REMARK
Pre-cool
Heater Defrostiong
Pause
Fan-delay
Pre-cool HTR Defrosting Pause Fan-delay
COMP ON OFF OFF ON
F-Fan ON OFF OFF OFF
R-Fan Control OFF OFF OFF
Heater OFF ON OFF OFF
Limit
Time 50 min. 80 min.
40 min.
(In D-Sensor error)
4 min. 5 min.
OPERATION AND FUCTIOLNS

14
7Error Display (displayed on
C-LED of F-PCB) 1. Custom-LED 1. How to start ; open and close refrigerator door 3 times while pressing REF.SET Button and it starts after 3 seconds.
2. Display
If any error, characters(Bar-LED) of C-LED are lit.
In Error Display Mode, the Buzzer beeps in short interval - every
0.1second at 5seconds cycle.
3. How to finish : doing above 1 again.
4. It ends by itself 4 minutes after start.
5. All the Error Code is reset by itself when it returns to normal state.
6. Error Code
7. Error Control
1) F1 Error
Occurrence ; in case of F-Sensor disconnection/short-circuit
Control ; let COMP and F-Fan On for 40min., Off for 20min.
Dissolution ; if F-Sensor is in normal state, it is finished by itself.
2) r1 Error
Occurrence : in case of R-Sensor disconnection/short-circuit
Control it in accordance as ambient temperature.
Dissolution : if R-Sensor is in normal state, it is finished by itself.
3) rt Error
Occurrence : RT-Sensor disconnection/short-circuit
Control : deletion of control-condition by RT-Sensor
Dissolution : if RT-Sensor is in normal state, it is finished by itself.
Limit-time : 4min.
Check error with-
out using jig.
NO CONTROL FUNCTION CONTROL OBJECTS CONTENTS REMARK
Error Code C-LED CONTENTS Running State
F 1 “1” of Freezer F-S disconnection/
short-circuit
COMP and F-Fan are On for
40min., Off for 20min. at
60min.s period.
r 1 “2” of Freezer R-S disconnection/
short-circuit
Running by 20min.s period
according to RT
d 1 “ Q.F” of
Freezer
D-S
disconnection/
short-circuit
Heater is On for 40 min.
during Defrosting.
r t “3” of Freezer RT-S disconnection/
short-circuit Deletion by RT-Sensor
d OOr “ 1” of Ref.
Defective Door
S/W
(when S/W senses
that door opened
more than 1 hour)
Deletion of sensing Door-S/W
C 1 “ 2” of Ref.
Abnormal Cycle
(COMP runs more
than 3 hours at
D-S5.)
Normal Running
F 3 “ 3” of Ref.
In case of Heater
Defrosting, when
it returns toTime
(80min.), not
D-Sensor
Normal Running
(Deletion of Pre-cool Mode in
Defrosting Mode)
RT/S In Error ~13 14 ~29 29 ~
Running-Rate
(ON/OFF) 8/12 7/13 8/12 9/11
OPERATION AND FUCTIOLNS

15
4) d1 Error
Occurrence : D-Sensor disconnection/short-circuit
Control : by limit time(40min.) of Defrosting-return
Dissolution : if D-Sensor is in normal state, it is finished by itself.
5) door Error
Occurrence : when door-opening is sensed for more than 1 hour
Control : deletion of Door SW sensing function
Dissolution : if Door SW open-close is sensed, it ends by itself.
Display dissolution : after Custom LED Display Mode
(Door SW should be in normal state if Error Display Mode is to start.)
6) C1 Error
Occurrence : when COMP runs continuously for more than
3 hours while D-Sensor is above -5
Control : normal running
Dissolution : when D-Sensor temperature is below -5 while
Comp is Off
7) F3 Error
Occurrence : by limit time of 80min. at defrosting-return
Control : deletion of Pre-cool mode at defrosting mode
Dissolution : the end of defrosting is done by D-Sensor
8Forced Defrosting 1. Defrosting Mode A/S (Heater) Forced Defrosting
1. Start : press REF.SET Button 5 times while pressing FRZ.SET Button
(It is impossible in the state of Energy Consumption Forced Defrosting.)
2. Process
1) Let Heater On for 30seconds.
2) Delete Pre-cool of normal defrosting mode.
3. Heater turns Off when D-Sensor temperature is more than 10,
30 seconds after Heater On.
9Time Delay of Electric
Devices 1. F-Fan 2. R-Fan 1. F-Fan Time Delay in COMP On/Off
F-Fan turns On/Off 1 minute after COMP On/Off.
2. F-fan, R-fan will be delayed to open door easily.
10 Initial Defrosting Defrosting Mode 1. Defrosting mode starts when D-Sensor 3.5 at initial power sup-
ply. (It starts from Pre-cool.)
COMP delayed for
6min. at initial
defrosting
NO CONTROL FUNCTION CONTROL OBJECTS CONTENTS REMARK
HTR Defrosting Pause Fan Delay Normal Running
1min. 1min.
2sec.
2sec.
OPERATION AND FUCTIOLNS

16
11 Explanation after Delivery Electric Devices 1. Start : press both buttons for 3 seconds after initial power supply
(plug-in).
2. Electric devices turn Off for 3 hours.
3. Display works in normal way.
12 Prevention of COMP Restart COMP 1. COMP does not restart for 6 minutes after COMP Off, though F-Sensor
turns On. 6min. delay
13 Buzzer Alarm Buzzer 1. Buzzer rings by pressing F-PCB Buttons.
2. Buzzer rings for 1 second after initial power supply (plug-in).
3. Buzzer rings for 1 second at the start of A/S Forced Defrosting.
4. Buzzer rings every 1 minute after door opening.
(It rings within 5minutes and ring-time is prolonged as time passes.)
5. Buzzer makes short ring every 5 seconds in Error Display.
14 Demonstration Function Electric Devices 1. Start : open and close Refrigerator[Freshfood Compartment] Door
5 times while pressing FRZ.SET Button.
2. Control
1) Electric devices turn Off except for F-Fan and R-Fan.
2) Fan Control
3. Dissolution :
1) Open and close Refrigerator[Freshfood Compartment] Door 5 times
while pressing REF.SET Button in Demonstration mode.
2) Supply the power again(plug-out and plug-in)
15 Control of R-Sensor Off-
Point 1. Control Resistance of R-Sensor “ 2”
Off-point
1. In case of Weak-refrigeration (though R-Fan and COMP work on and
on), the following actions are to be done.
2. Resistance R13 : Control Resistance of R-Sensor Middle(“ 2” ) Off-point
(- 1.0 , 31.4 )
3. Resistance R14 : reduceing R-Sensor Resistance by 1.5¡ Éin case
of weak-Refrigeration (-2.5 , 2.15 )
4. SW1 : during A/S, if SW1 is opened, R-Sensor Middle Off-point
decreases by 1.5 .
5. Switch Status and R-Sensor Middle Off-point
NO CONTROL FUNCTION CONTROL OBJECTS CONTENTS REMARK
Door Open Door Close
F-FAN ON OFF
R-FAN ON OFF
Switch Status R-Sensor Middle Off-point
Normal / Using Jig -1.0
In Weak-refrigeration -2.5
OPERATION AND FUCTIOLNS

17
DIAGRAM
3. CIRCUIT DIAGRAM

18
DIAGRAM
2. AIR FLOW DIAGRAM
Freezer
Pleas don’t put bottles such as beer,
beverage etc.
It might be broken because of freezing.
Freezer pocket
Please don’t put long term storing
items such as ice cream etc.
It might be melted because of
opening the door freguently.
Chilled room
It is good for the storage of
fishes and meats.
Crisper
It is suitable to store vegeta-
ble and fruit.
The moisture panel which is attached
to the cover humidity properly.
Vegetable and fruit would be better to
Inlet of cooling air
It should not be blocked with
food etc. as it is the inlet where
cooling air returns.
Multiple outlet of cooling air.
Please don’t put in vegetable etc. which
contain moisture. It might be frozen
because of low temperature.

19
DIAGRAM
3. REFRIGE RANT CYCLE DIAGRAM
C
O
M
P
R
E
S
S
O
R
W
I
-
C
O
N
H
O
T
P
I
P
E
D
R
Y
E
R
C
A
P
I
L
L
A
R
Y
T
U
B
E
E
V
A
P
O
R
A
T
O
R
A
C
C
U
M
U
L
A
T
O
R
S
U
C
P
I
P
E
P
I
P
E
C
O
N
S
